A metering skid leak can develop quietly, then become a serious process-safety event. Early warning signs include unstable pressure, unexplained flow imbalance, frost near fittings, oily residue, corrosion, or a faint hissing sound. Instrument drift also matters. A sudden change in differential pressure may indicate a seal, flange, valve stem, or impulse line problem.

The fastest reliable approach combines fixed gas detection with continuous pressure and flow monitoring. Fixed sensors can trigger alarms within seconds, while ultrasonic detectors may identify pressurized-gas leaks before visible damage appears. Operators should confirm alarms using a controlled inspection, such as U.S. EPA Method 21 or optical gas imaging. API RP 754 treats loss of primary containment as a key process-safety indicator. NACE International’s IMPACT study estimated corrosion costs at 2.5 trillion dollars annually, equal to about 3.4% of global economic output. That figure makes small corrosion marks less easy to dismiss.

Tips: Check trend data, not only alarm status. Compare pressure, temperature, and meter balance together. Inspect valve packing and flange bolts during scheduled rounds. Use remote sensors where access is restricted. Never approach a suspected release without site procedures and gas testing. No detector is perfect. A missed low-rate leak can still grow, especially when vibration, thermal cycling, and poor drainage combine. The uncomfortable lesson is simple: alarm response alone is not enough; disciplined verification prevents false confidence.

The fastest way to detect metering skid leaks is a focused inspection of connections, valves, and instruments. Start from the highest-pressure section and work downstream. Check flanges, threaded joints, tubing fittings, and impulse lines for wetness, frost, staining, or unusual odor. A small mirror can reveal seepage behind crowded pipework. Do not rely on sight alone.

Before testing, follow the site isolation and depressurization procedure. Use a calibrated gas detector or an approved leak-detection solution suitable for the process fluid. Apply it around each connection, not across the entire skid. Bubbles often appear slowly. Watch for changes near valve stems, bonnet joints, drain plugs, and sample points. Instrument behavior also matters. A drifting pressure reading, unstable flow signal, or mismatch between local and remote gauges may indicate a blocked impulse line or a developing leak.

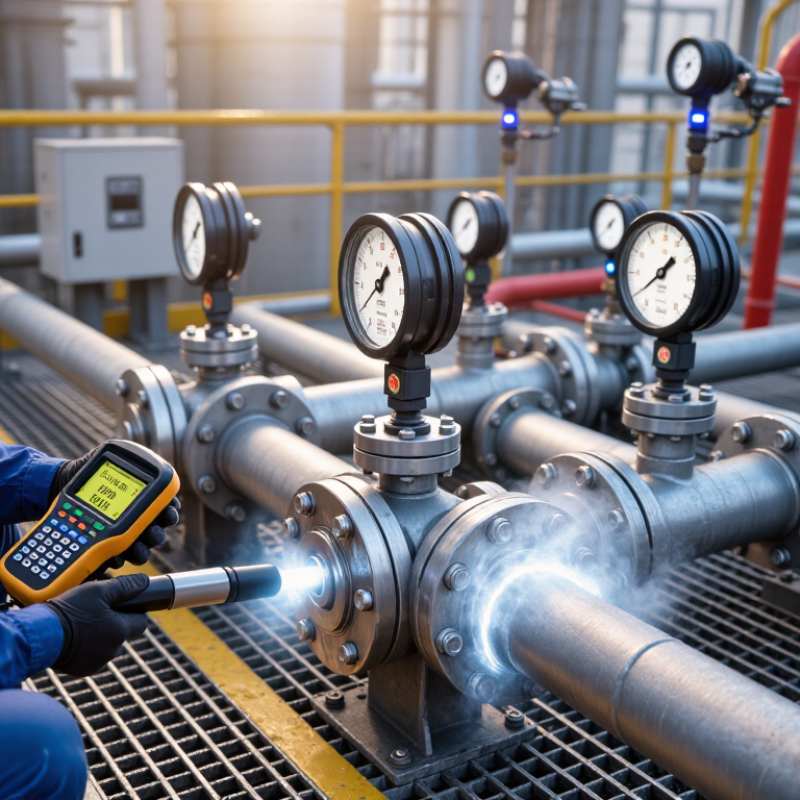

What Is the Fastest Way to Detect Metering Skid Leaks?

A pressure test is usually the fastest first check for a metering skid. Isolate the skid, stabilize its temperature, and record the pressure with a calibrated gauge. A falling reading points to a leak, but it does not identify the leaking fitting. Small temperature changes can also distort the result. This is where operators sometimes move too quickly.

In practice, combining pressure decay with sensor scanning is more dependable than either method alone. Pressure testing shows loss. Sensors show location.

The imperfect part is timing: testing a warm skid too soon can create a false result, while delayed sensor checks can miss a short-lived release.

Record pressure, temperature, sensor readings, and repair conditions for a traceable decision.

The fastest leak detection starts with a controlled walkdown, not immediate disassembly. Check pressure changes, liquid stains, frost, odor, and unusual hissing around valves, flanges, impulse lines, and transmitters. Use a calibrated combustible-gas detector, followed by an optical gas-imaging camera when conditions permit. EPA Method 21 requires instrument-based screening for volatile organic compound leaks, while its equipment-leak protocol supports repeatable measurement and emission estimation. Do not trust one reading. Wind, rain, temperature, and sensor placement can distort results.

Confirm the indication from two directions. Record the gas concentration, time, weather, equipment tag, and exact leak point. A small yellow flag or removable marker helps crews relocate the source. The IOGP Safety Performance Indicators report treats loss of containment as a valuable process-safety signal, even when no injury occurs. That matters on compact metering skids, where one loose connection can affect several instruments. My practical rule is simple: photograph the detector screen before changing anything. Evidence disappears quickly.

Isolate carefully.

Follow the approved operating procedure, verify upstream and downstream boundaries, and depressurize only through authorized systems. Never assume a closed valve is tight; confirm zero pressure where the procedure requires it. After repair, repeat the survey under comparable conditions and document the final reading. API RP 1173 emphasizes continual improvement through learning from abnormal conditions. That includes weak records. A missing timestamp or uncertain instrument range can undermine an otherwise correct diagnosis. Good documentation is not paperwork after the job. It is part of leak control.
