Compressor, signal transmitter, etc. can also be provided to realize the functions of loading LPG from the tankers without pump into the LPG filling skid and remotely transmitting signals.

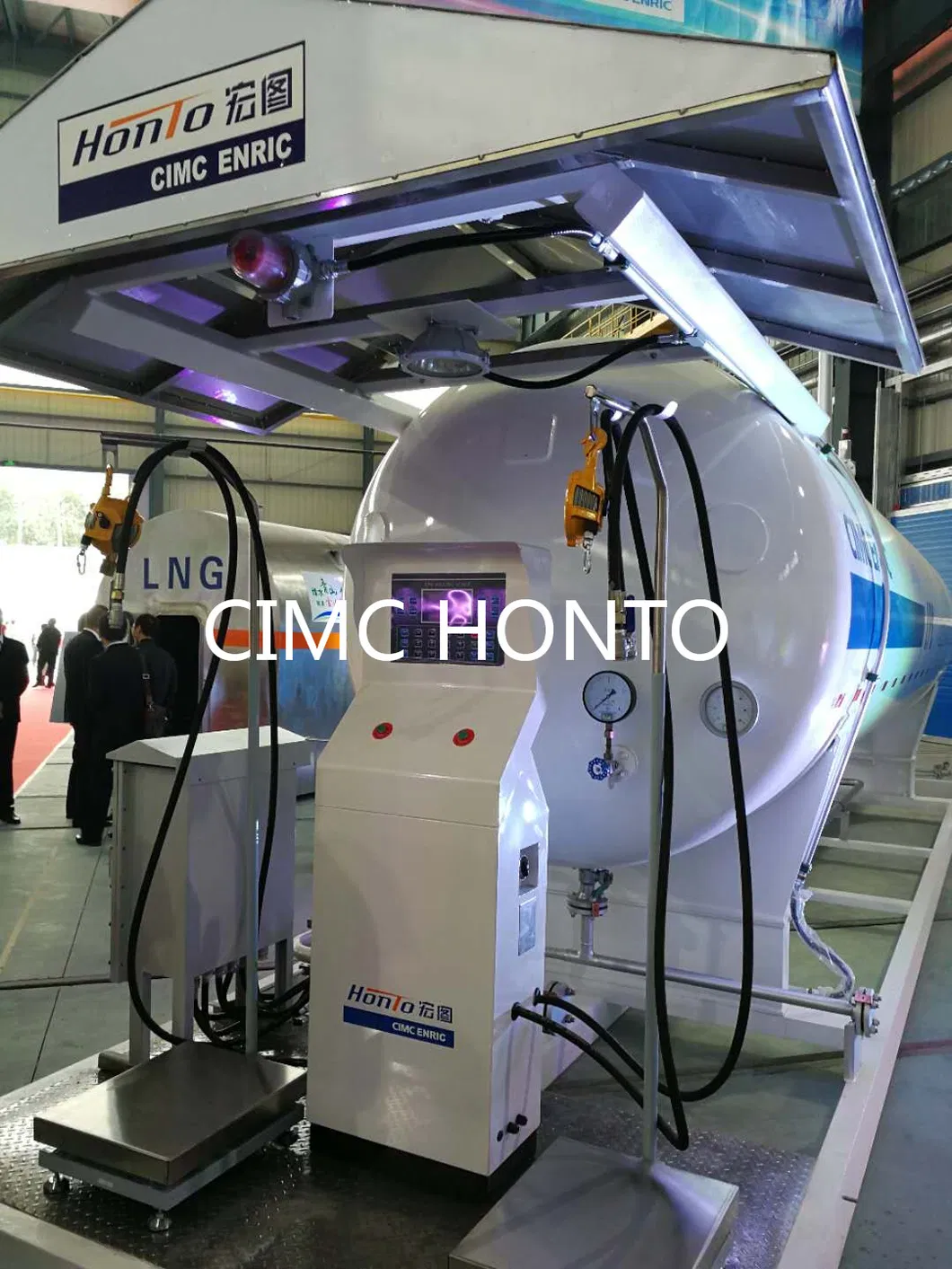

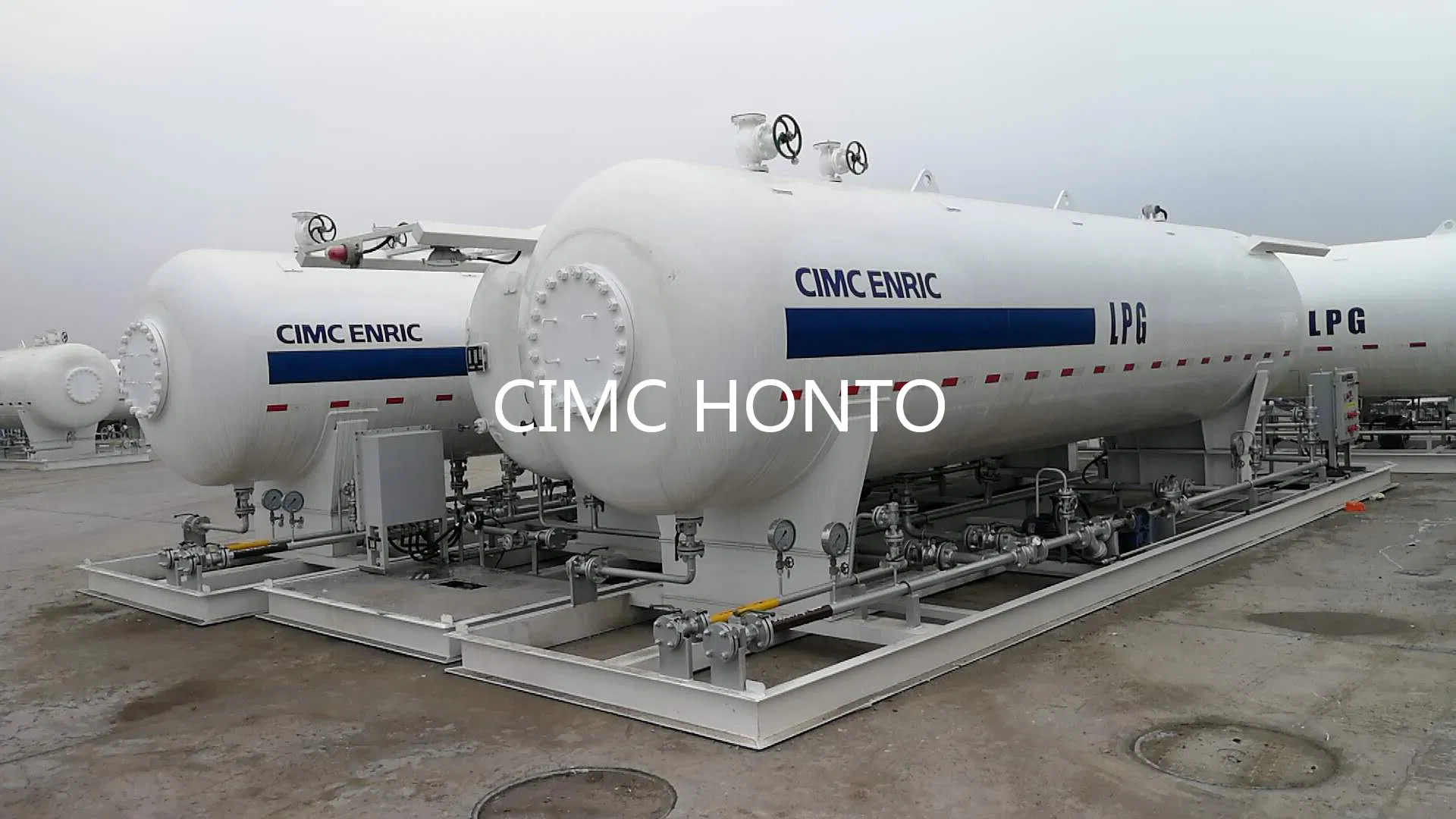

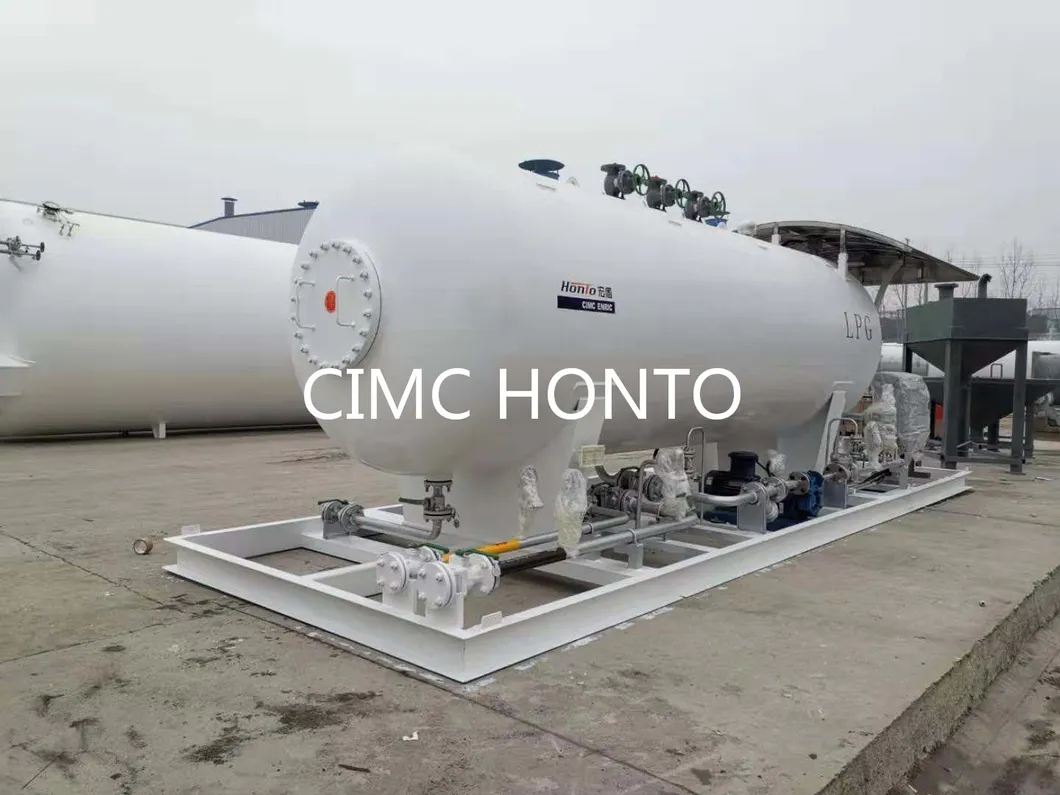

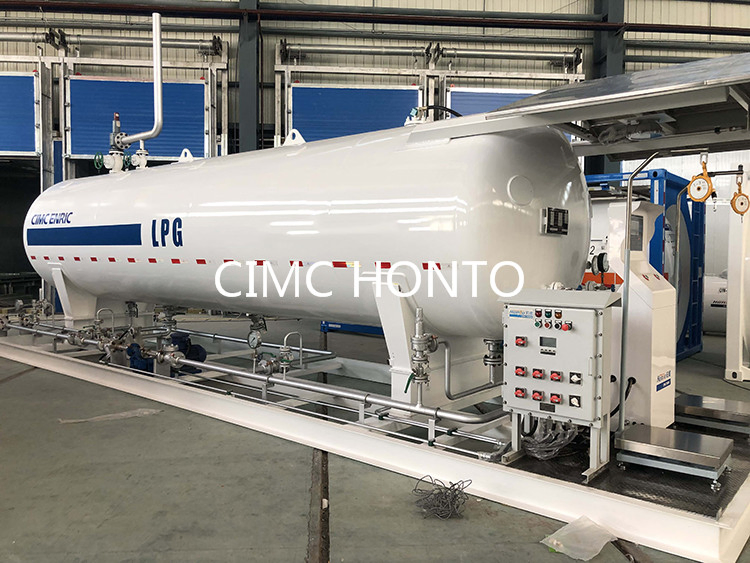

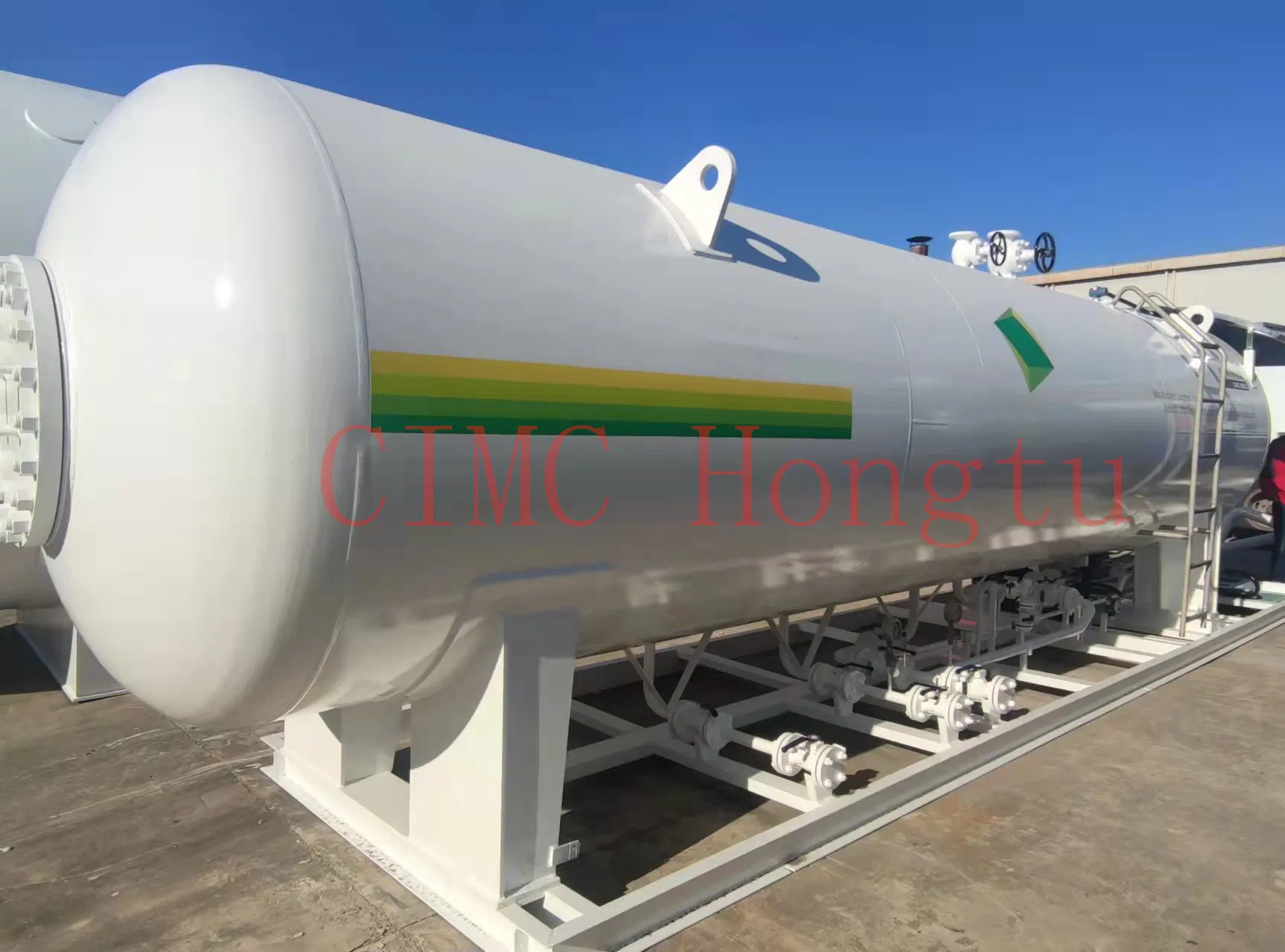

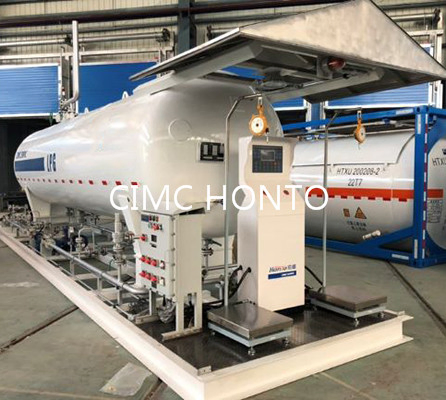

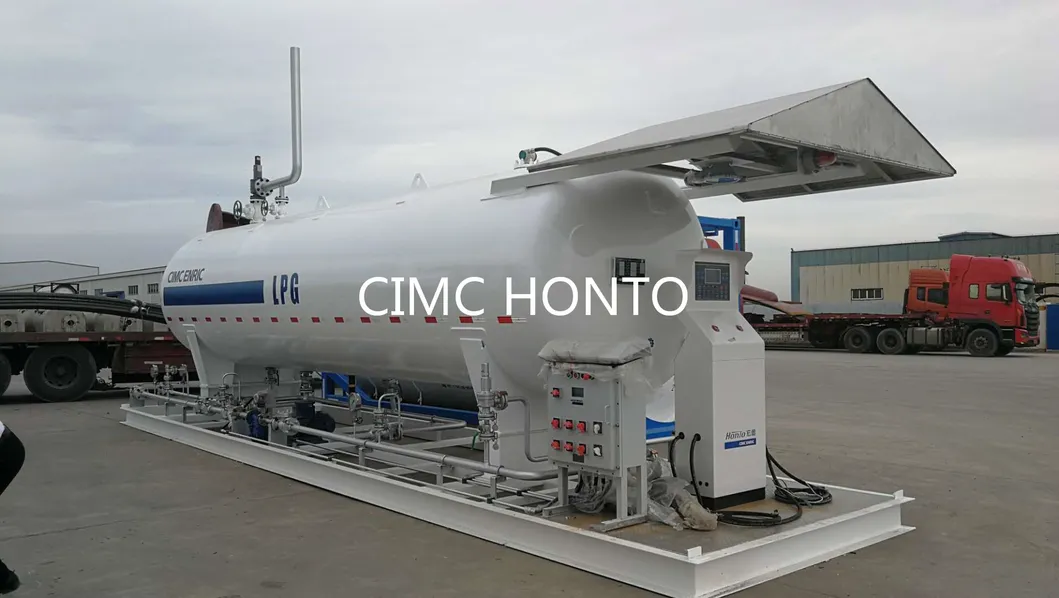

This product is an integrated equipment for metering civil LPG storage tank (household gas tank). The main equipment adopts integrated skid design, including LPG storage tank, process piping, hydrocarbon pump, LPG filling scale and control cabinet. It features unloading functions for LPG tankers, filling functions for LPG cylinders in cars, bottling for civil cylinders, and safe reflux systems.
1. High integrity: Small occupied land area with standard serialized design.
2. Complete functions: Meets various customer requirements for storage and distribution.
3. PLC control: Safe, reliable, and automated operation.
4. Quick setup: Short installation time with commissioning completed inside the plant.
5. Portable: Skid design makes it highly convenient for transportation.
| Technical Specification | 10m³ Unit | 20m³ Unit |
|---|---|---|
| Tank Volume (m³) | 10m³ | 20m³ |
| Filling Weight (kg) | 4035 | 8070 |
| Design Pressure (Mpa) | 1.61 | |
| MAWP (Mpa) | 1.77 | |
| Design Temperature (ºC) | -20ºC ~ 50ºC | |
| Shell /Head Thickness (mm) | 10mm/10mm | 12mm/13mm |
| Tank Material | Q345R | |
| Processing Pipe Material | 20# | |
Rated as a provincial technical center for pressure vessels, we have acquired more than 120 patents through frequent technical communications and cooperation with global standardization committees and top universities.
Our team includes over 330 professional technical staff, 30 senior engineers, and multi-skilled technicians who participate in compiling national standards for transportable pressure vessels.
Equipped with more than 2000 sets of advanced machinery, including plasma cutting, US Lincoln welding robots, and 2000-ton spherical shell press machines.
We provide complete industrial equipment clusters from oil refining devices and spherical tanks to lightweight large-volume liquefied gas tankers and end-application engineering.
Products pass 111 quality control points and 243 procedures. Each weld quality is tracked for over 20 years, ensuring comprehensive management of safety and environment.
