Advanced Pneumatic Loading Arm for Efficient Industrial Manipulation

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊Basic Specifications

Model NO.

HC-R3015

Reach

4 meters

Usage

Machining, Material Handling

Transport Package

Container

Specification

300kg 500kg 1000kg

Origin

Made in China

HS Code

7308900000

Capacity

10000 set/Year

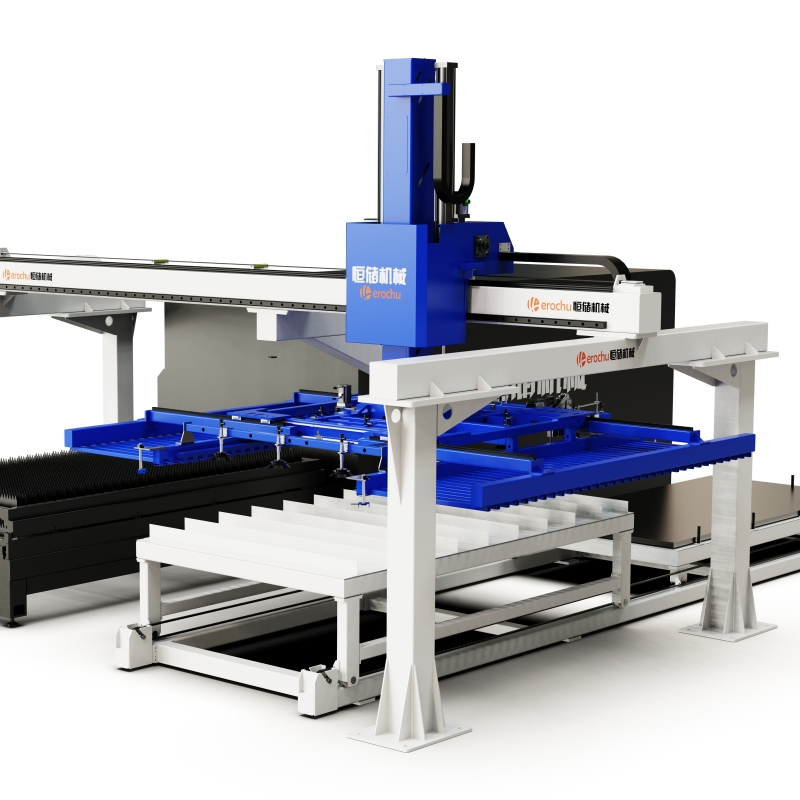

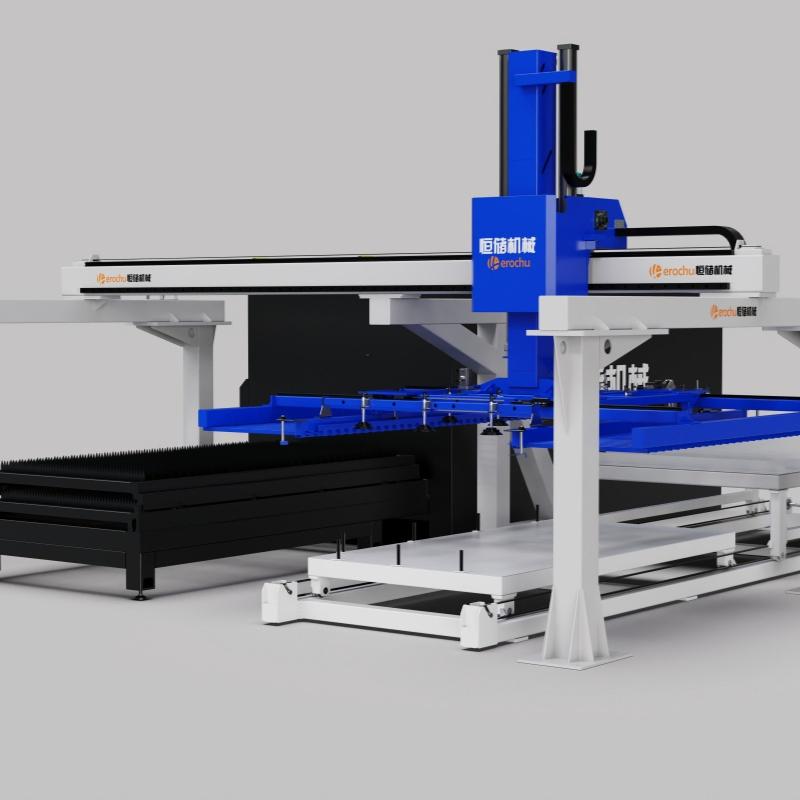

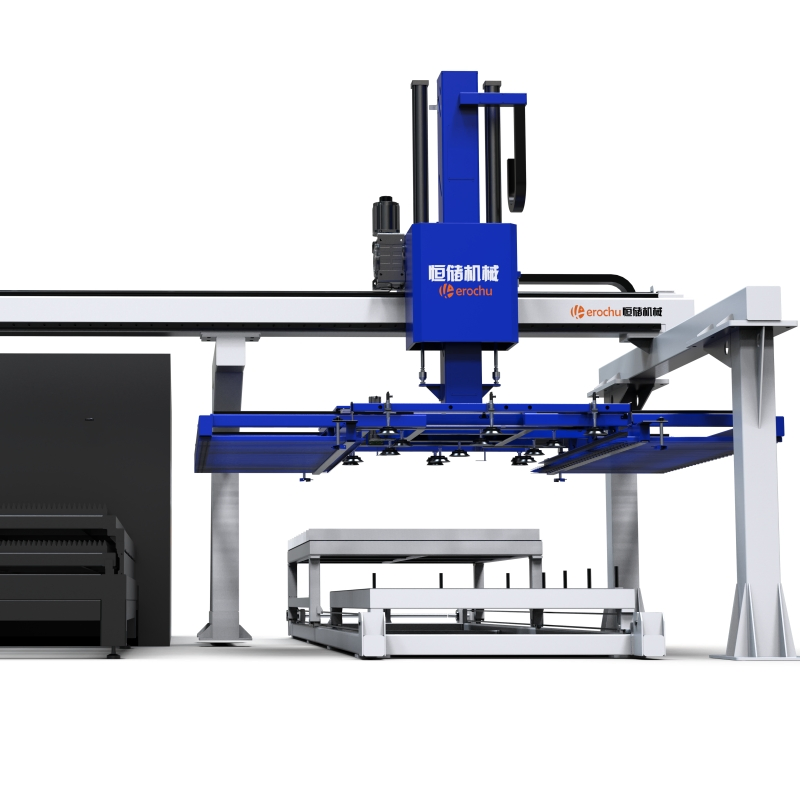

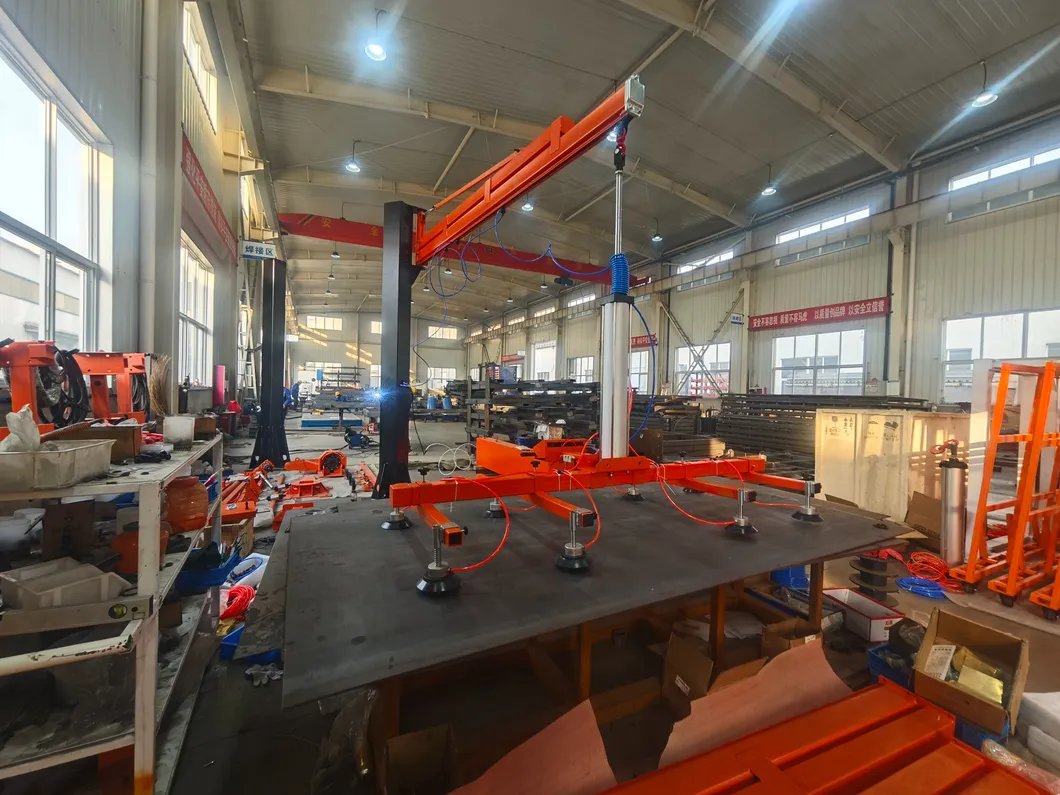

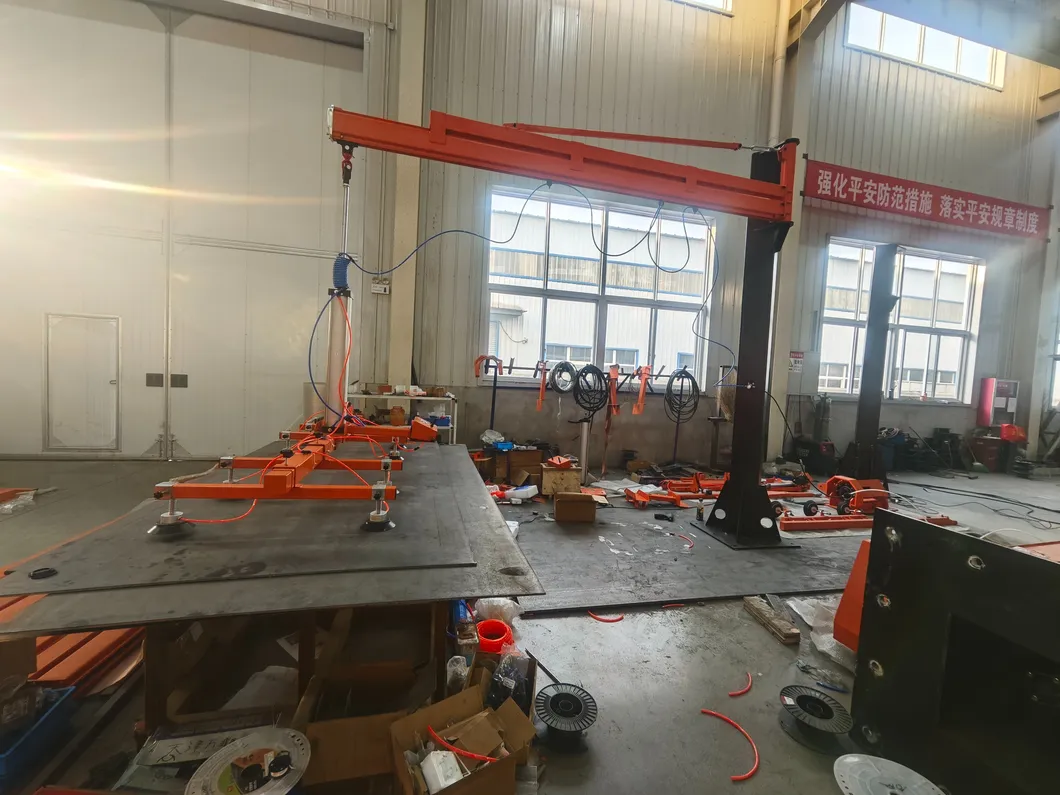

Laser cutting loading machine is automated auxiliary equipment used to transport materials to the working table for precise cutting operations.
Uses mechanical transmission, pneumatic or vacuum adsorption for gripping, carrying, and placing materials.
Automatically identifies position, size, and shape of materials based on preset procedures for precise positioning.

⚙️Technical Parameters

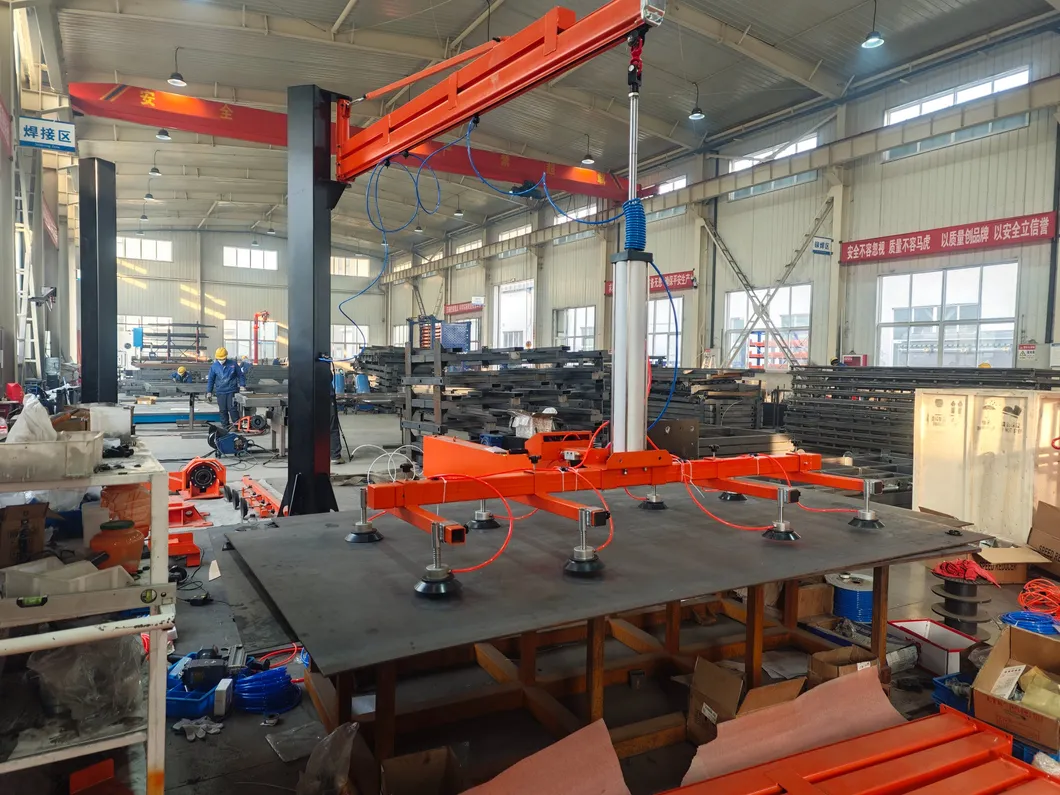

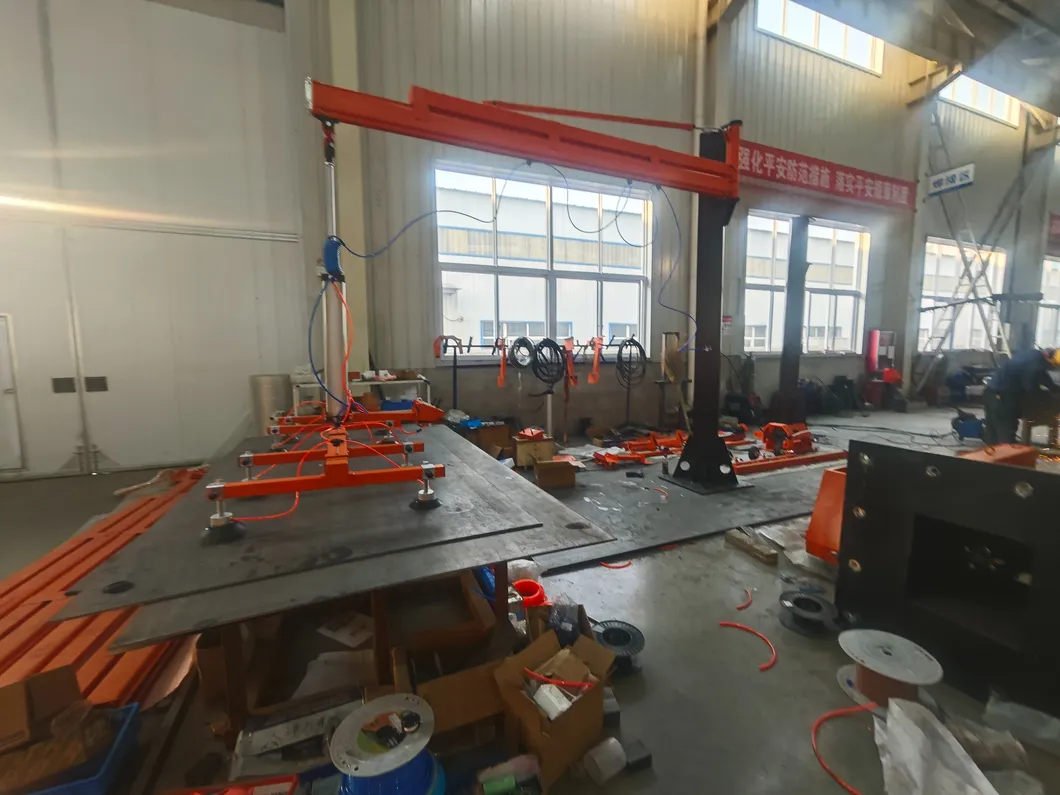

Product	Pneumatic Cantilever Loading Manipulator
Feeding Plate Thickness	1-8mm	1-12mm	1-20mm
Max Feeding Format	4000*1500mm	4000*1500mm	4000*1500mm
Min Feeding Format	1250*1250mm	1250*1250mm	1250*1250mm
Maximum Plate Weight	300KG	500KG	1000KG
Number of Suction Cups	8	8	8
Power Mode	Pneumatic / Electric

High Space Utilisation

The cantilever retractable design enables adjustment for different lengths of goods, making full use of space for pipes, profiles, and long timber.

Automated Operating Processes

Continuous loading operation reduces downtime, making the production process fluent and significantly increasing output per unit of time.

Meets All Loading Needs

Easily handles metal, wood, or plastic sheets and pipes, achieving stable and efficient operation for various materials.

Reduces Labour Costs

Replaces heavy manual labor for repetitive tasks, reducing reliance on manpower and lowering operational expenses.

❓Frequently Asked Questions

Q1: How can I select the most suitable robotic arm for my needs? Please provide details regarding the materials you intend to transport, including the specific size, thickness, and total weight. Our technical team will analyze these parameters to recommend the ideal solution.

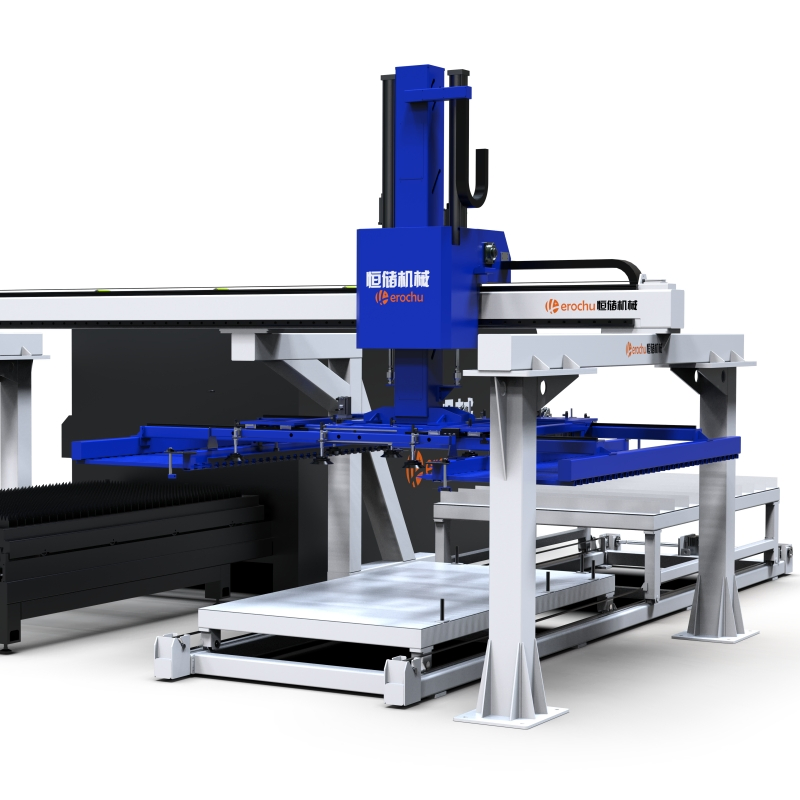

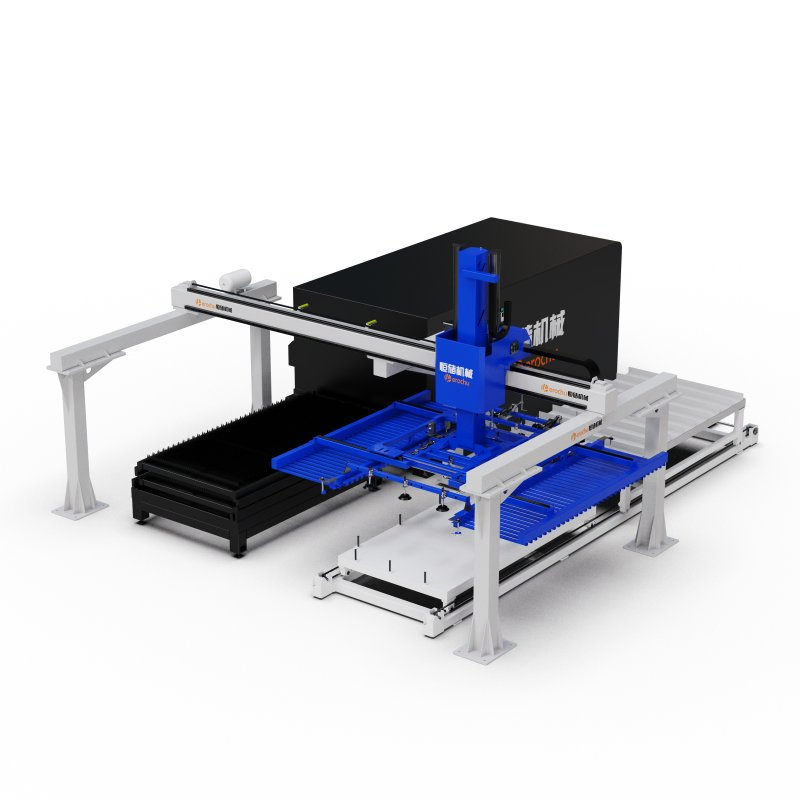

Q2: Can this system handle both loading and unloading? Yes, integrated loading and unloading systems are available. Requirements depend on your laser cutting machine table size and your preferred handling method, such as board racks or exchange platforms.

Q3: Is on-site installation and debugging provided? Yes, professional personnel can be dispatched to your facility to manage the installation and debugging process, ensuring a successful trial operation and seamless integration.

Q4: How is the quality and safety of the equipment ensured? All equipment undergoes strict quality inspections and load testing before leaving the factory. Our systems meet international quality standards and carry professional CE certification for safety and stability.

Q5: What materials are compatible with this loading manipulator? The system is highly versatile and can handle various materials including metal sheets, pipes, wood, and plastic, provided they fall within the weight and dimension specifications.

Q6: Can the system be customized for specific factory layouts? Yes, we provide suitable technical solutions based on your specific workspace parameters and production requirements to maximize space utilization.
