Al1401 for Top - Loading: Liquid Loading Arm Solution

Customization:	Available
After-sales Service:	1 Year Garantee
Warranty:	1 Year

Basic Product Information

Model NO.

AL1401

Certification

ISO 9001:2000

Power Source

Manual

Pressure

Pn4.0

Medium

Mud, Water, Crude Oil, Gasoline, Diesel

Structure

Seamless Pipe with Swivel Joint

Material

Stainless Steel, Carbon Steel, PTFE Lined

Quality Guarantee

1 Year

Application

Truck Tanker, Rail Car, Marine

Spec

DN50, DN80, DN100, DN150

HS Code

8428909090

Capacity

5000 Sets / Year

Product Description

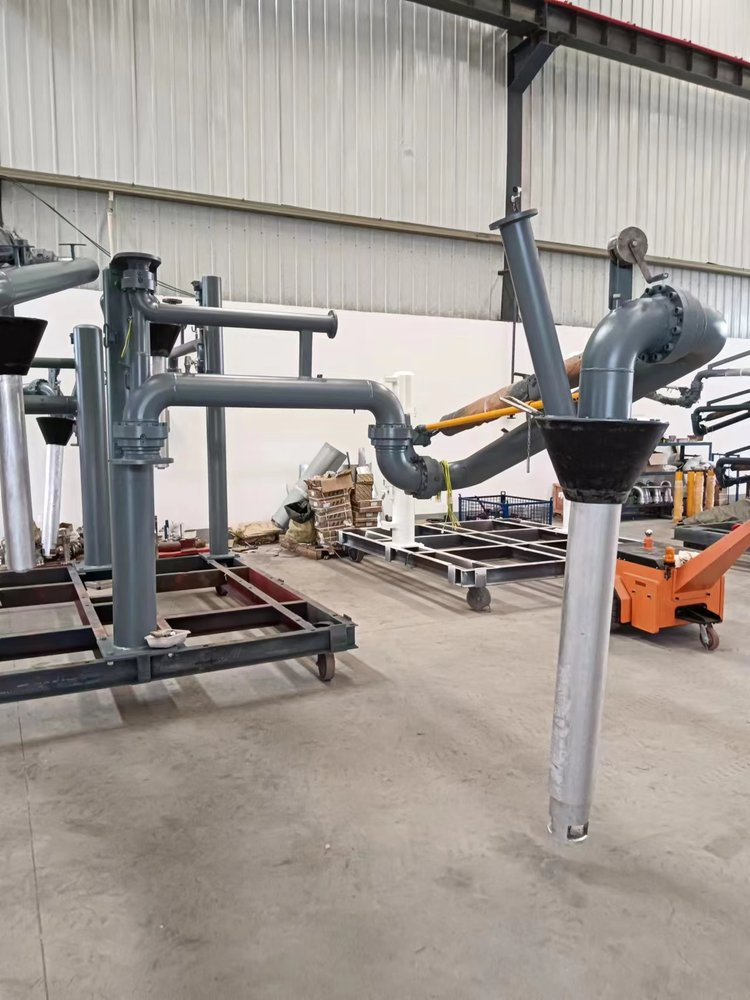

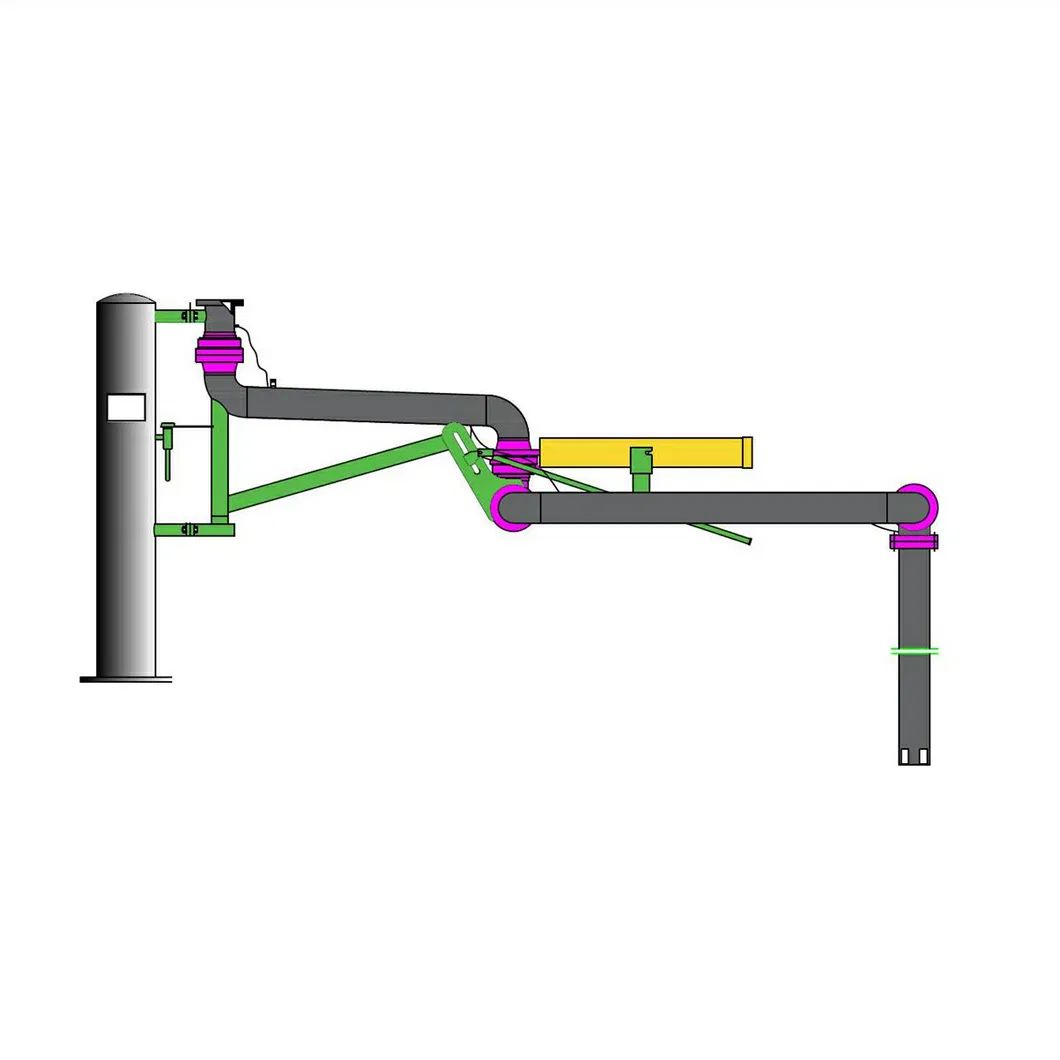

The structure for loading arm AL1401:

Our land loading arm is specifically designed for transporting fluid between piping systems and tankers. It is tailored to accommodate different tanker types, liquid properties, and site conditions.

Equipped with a loading platform, folding stairs, and a safety cage, the land loading arm forms a comprehensive loading system. It features level location or quantitative monitoring; when fluid levels exceed the preset value, the system provides both audible and visual alarms or a remote signal.

Depending on requirements, operating modes include manual, pneumatic, or hydraulic control.

Model	AL1401 - Typical loading arm, easy operation and maintenance.
Places Applied	Top open loading
Applications	Product oil, chemicals
Nominal Diameter	DN25~DN200 (1"~8")
Working Temperature	-196~250ºC
Working Pressure	PN1.0~PN4.0
Material	Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined, etc.

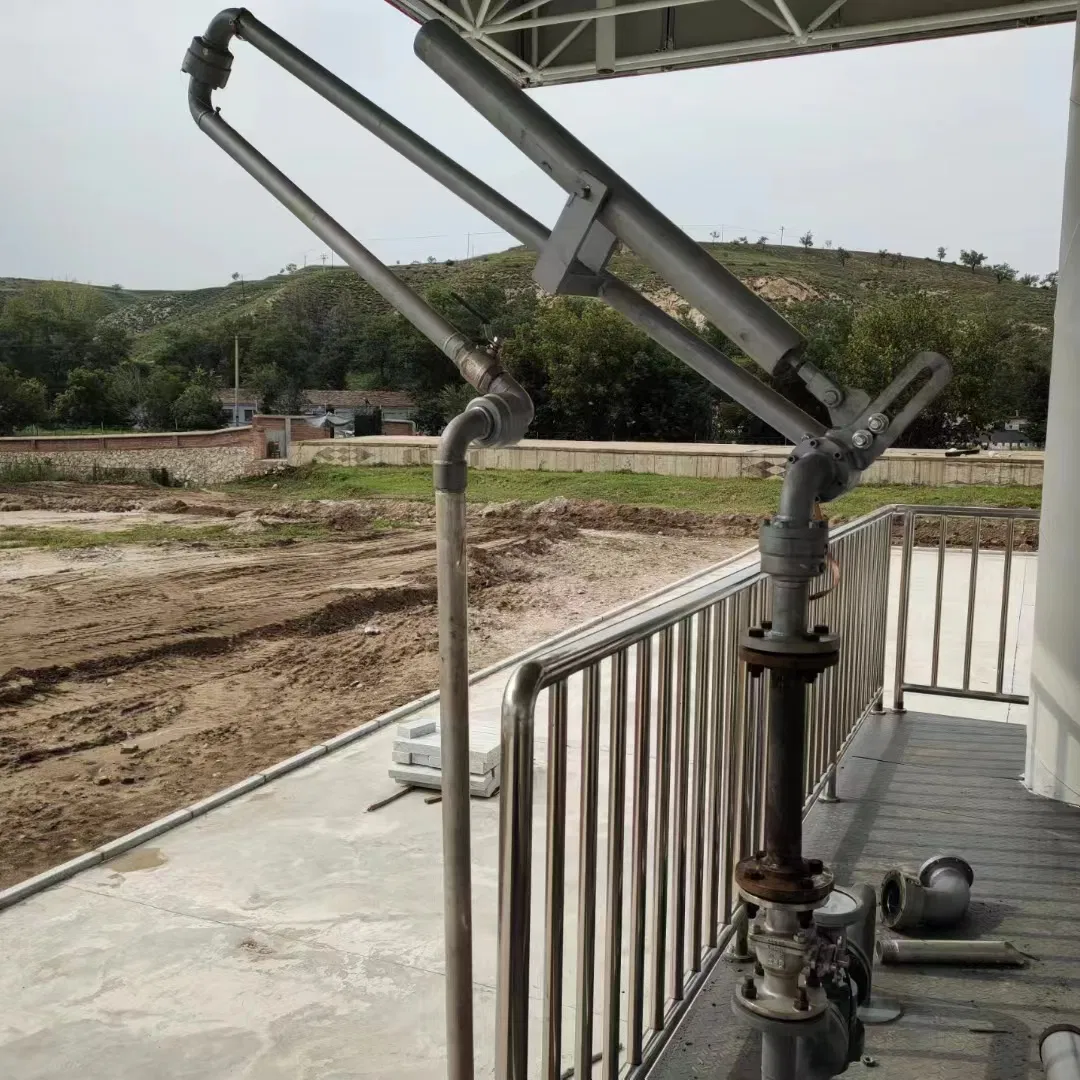

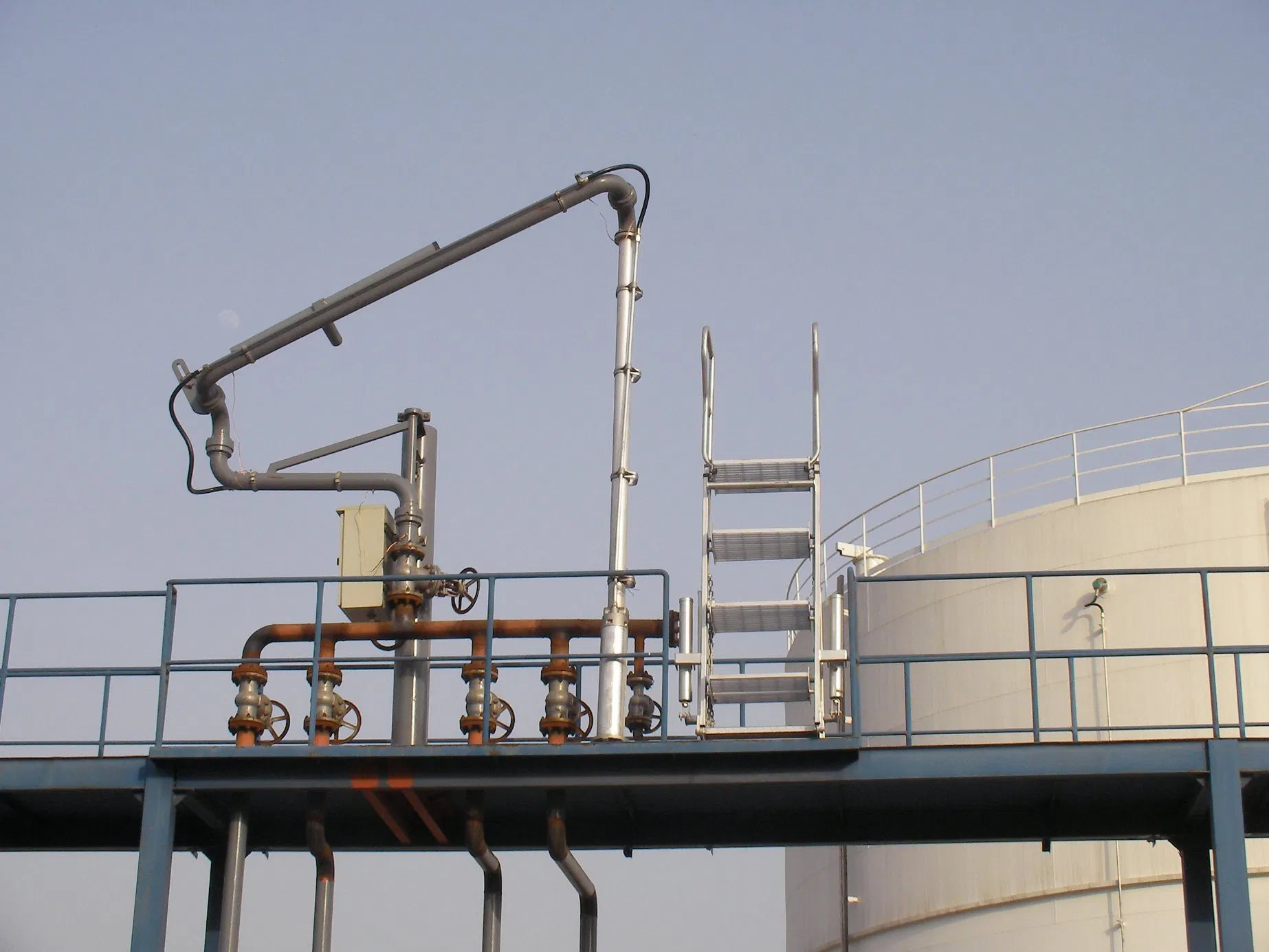

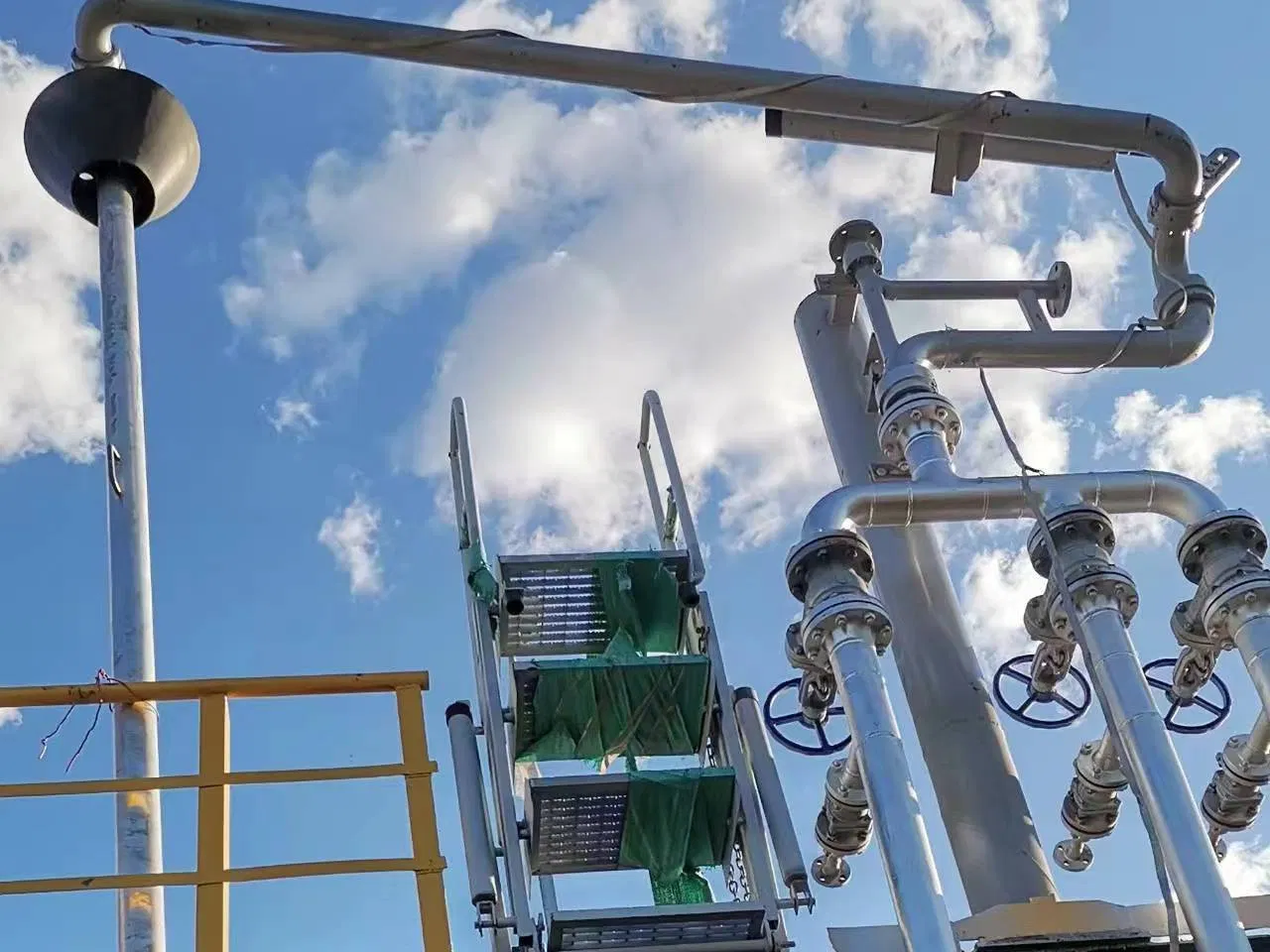

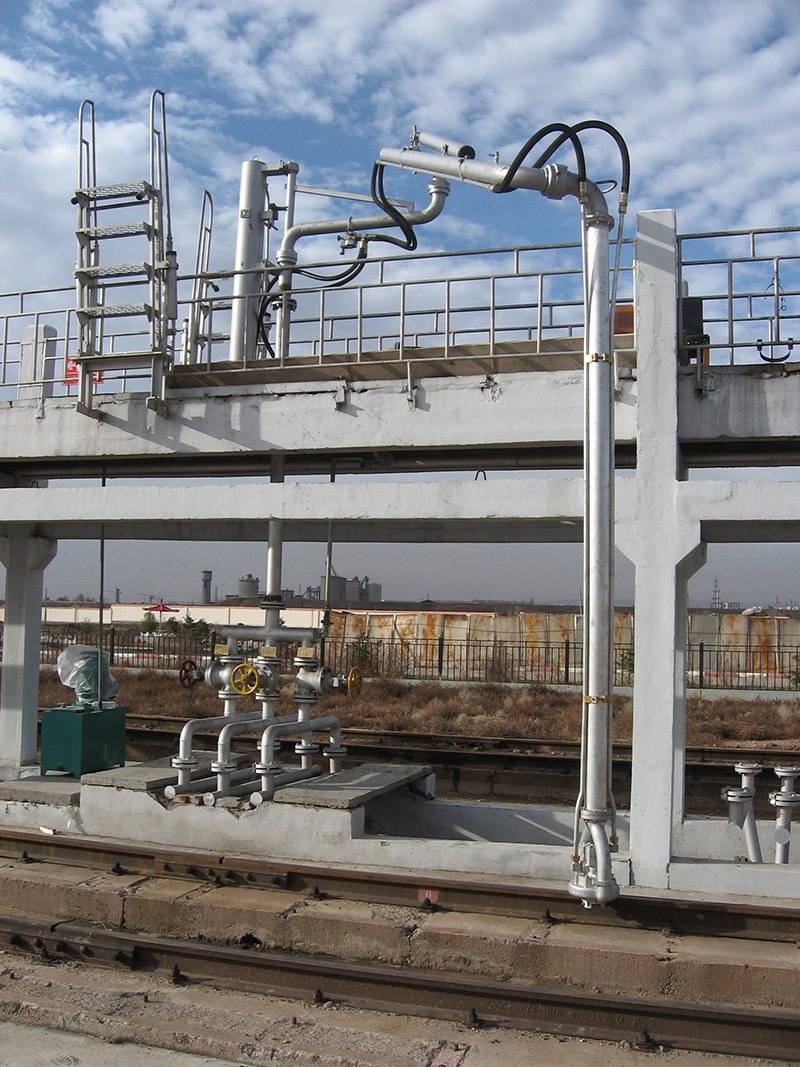

On-site Performance & Project Cases

Company Profile

The manufacturer is primarily engaged in the R&D, design, manufacturing, and maintenance of petrochemical storage and transportation equipment. Key products include loading arms, floating roofs, marine arms, network shells, movable ladders, and skid-mounted equipment.

As a high-tech enterprise, the professional team provides automatic control systems widely used in large and medium-sized petrochemical projects. Products have been exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, and beyond, earning recognition for superior quality and reliability.

We adhere to technological innovation and track international developments to provide high-quality, energy-saving, and environmentally friendly solutions.

Frequently Asked Questions

1. What is the standard delivery time for the loading arms?

Standard delivery is typically within 20 days. For customized or special products, the lead time ranges from 30 to 50 days.

2. Which payment terms are accepted?

We primarily accept T/T (Telegraphic Transfer) before shipment or L/C (Letter of Credit).

3. Do you offer OEM services or custom name plates?

Yes, we welcome OEM requests and can customize product name plates according to customer requirements.

4. How is the quality of the products guaranteed?

We maintain a strict quality control process, including inspections at every stage, RT tests, PT tests, and hydraulic tests. We hold ISO and TUV certifications for both processes and welders.

5. Can you provide the necessary export documentation?

Yes, we provide full documentation including material certificates, inspection reports, and customs certificates like CO, Form E, etc.

6. What is the typical warranty period?

The standard warranty is 12 months from commissioning or 18 months from delivery. In specific cases, a 2-year warranty can be supplied.
