Al1401 Loading Arm for Chemical Media Handling

Customization:	Available
After-sales Service:	1 Year Garantee
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

AL1401

Certification

ISO 9001:2000

Power Source

Manual

Operation Pressure

Pn4.0

Applicable Medium

Mud, Water, Crude Oil, Gasoline, Diesel

Structure

Seamless Pipe with Swivel Joint

Material

Stainless Steel, Carbon Steel, PTFE Lined etc

Guarantee

1 Year

Specification

DN50, DN80, DN100, DN150

Package Size

6000cm * 2300cm * 2500cm

Gross Weight

2000.00kg

Product Description

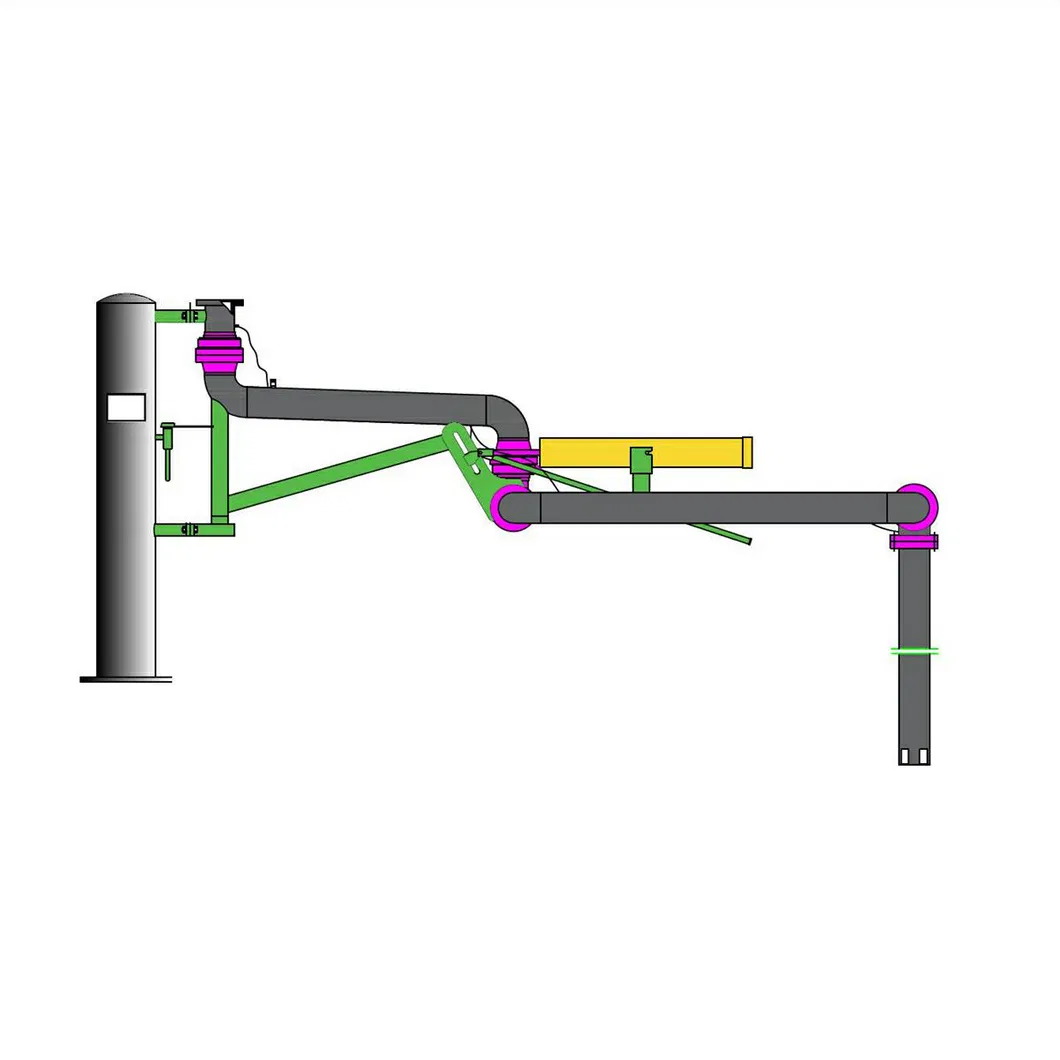

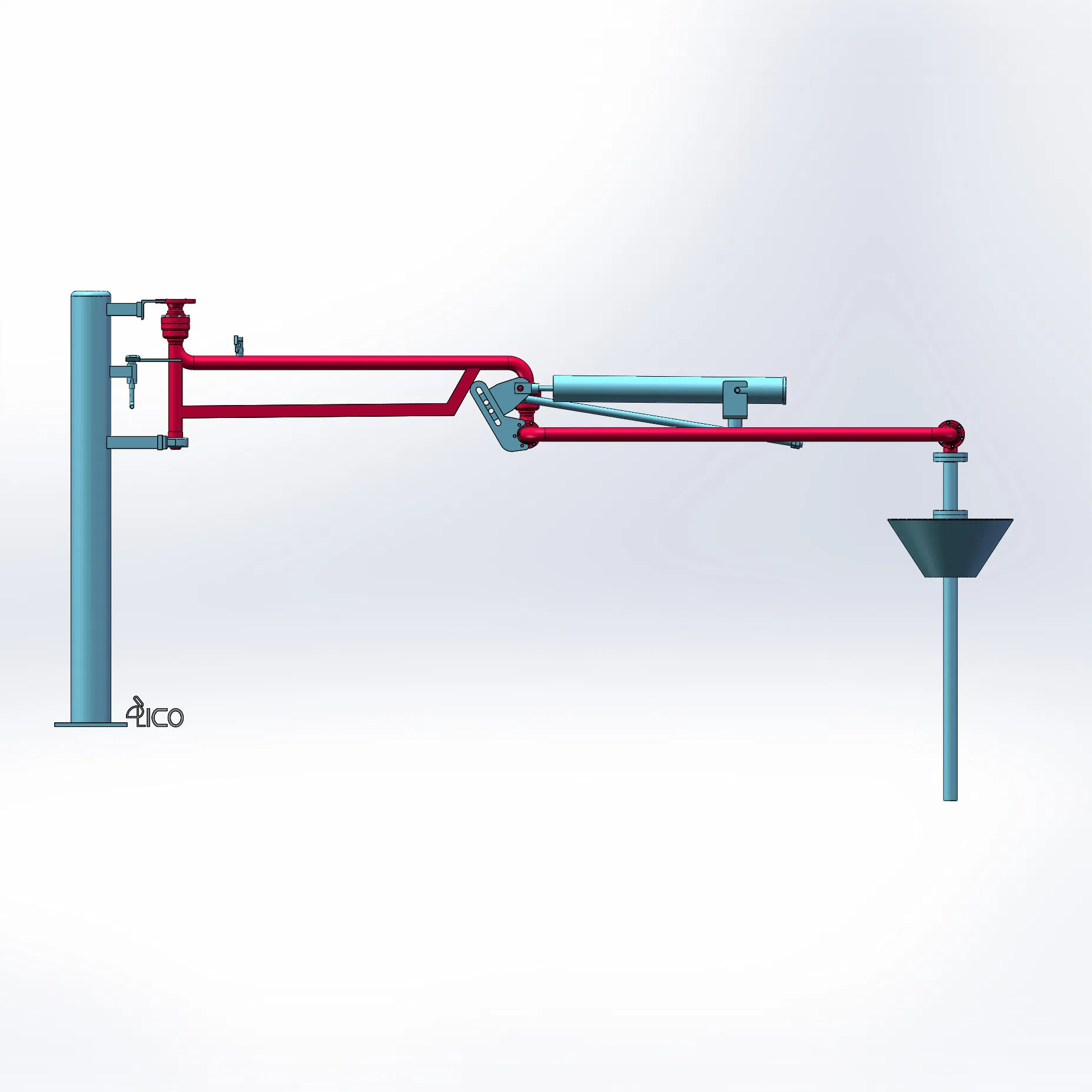

AL1401 Loading Arm Overview

The AL1401 loading arm is a top-mounted, open-type liquid loading equipment. It features 4 high-precision swivel joints on the liquid-phase line. Designed with an upward-facing interface, it is constructed from premium carbon steel or stainless steel.

Ideal for non-volatile liquid media (crude oil, refined oil, chemical products)
Compatible with truck and train loading operations
Manual, pneumatic, or hydraulic operating modes available
Integrated safety systems with quantitative monitoring and alarms

Technical Parameters

Feature	Details & Specifications
Places Applied	Top open loading
Applications	Product oil, chemicals
Nominal Diameter	DN25~DN200 (1" ~ 8")
Working Temperature	-196°C to 250°C
Working Pressure	PN1.0 ~ PN4.0
Pipeline Material	Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined

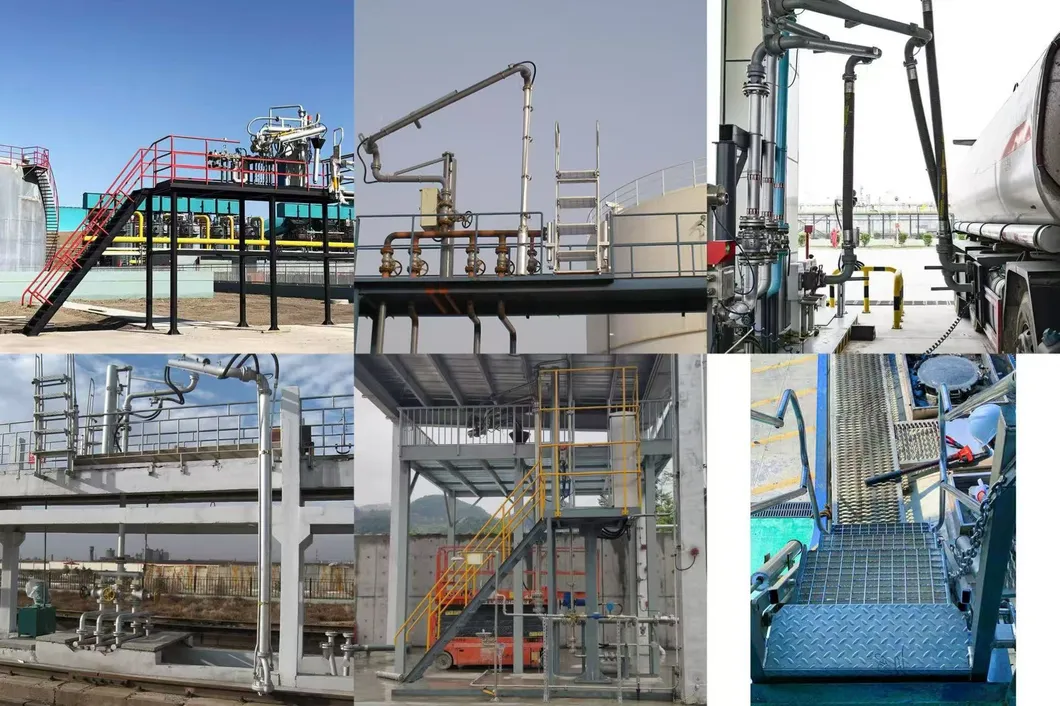

On-Site & Shop Display

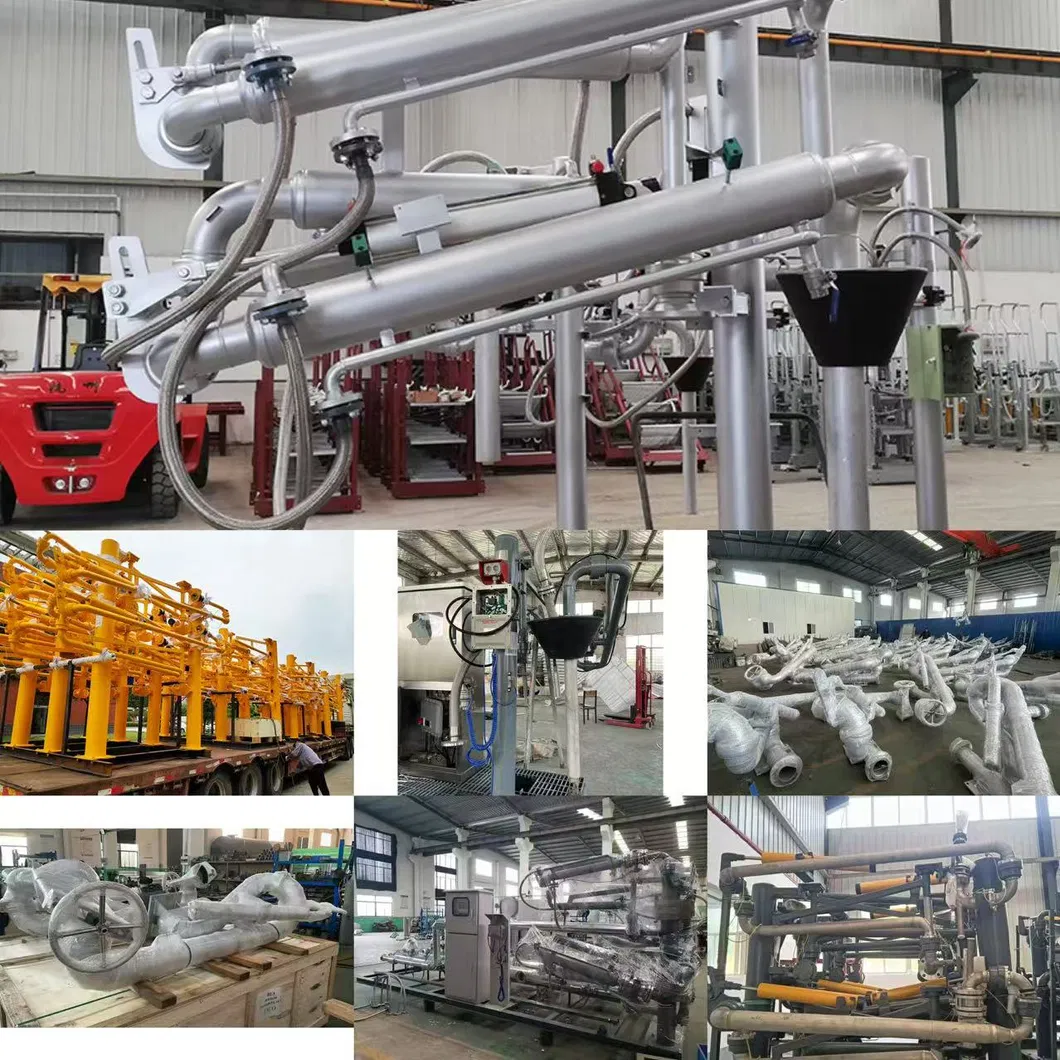

Professional Installation & Fabrication

Global Project Cases

Manufacturing Capabilities

We are a professional manufacturer specialized in the R&D, design, and manufacturing of petrochemical storage and transportation equipment. Our expertise includes loading arms, floating roofs, marine arms, and skid-mounted equipment. Our products are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, and Saudi Arabia, recognized for their superior technology and environmental protection standards.

Frequently Asked Questions

What is your production period or delivery time?

Standard delivery time is within 20 days. For specialized or custom products, the lead time is typically 30-50 days.

What payment terms do you offer?

We accept T/T (Telegraphic Transfer) before shipment or L/C (Letter of Credit).

Can you provide OEM services or custom nameplates?

Yes, we welcome OEM requests and can customize product nameplates according to customer requirements.

How do you ensure the quality of your products?

We implement a strict quality control process including inspections at every production stage, RT tests, PT tests, and hydraulic testing. We hold ISO certification and TUV welder certificates.

Can you provide documentation and certifications?

Yes, we provide all necessary documentation including material certificates, inspection reports, and customs certificates such as CO and Form E.

How long is the warranty period?

The standard warranty is 12 months from commissioning or 18 months from delivery, whichever comes first. Extended 2-year warranties are available for specific projects.
