Liftora Arm
1 / 5
| Model NO. | AL1401 |
| Certification | ISO 9001:2000 |
| Power Source | Manual |
| Operation Pressure | Pn4.0 |
| Applicable Medium | Mud, Water, Crude Oil, Gasoline, Diesel |
| Structure | Seamless Pipe with Swivel Joint |
| Material | Stainless Steel, Carbon Steel, PTFE Lined etc |
| Color | Light Gray or Customized |
| Quality Guarantee | 1 Year |
| Application | Truck Tanker, Rail Car, Marine |
| Production Capacity | 5000 Sets / Year |

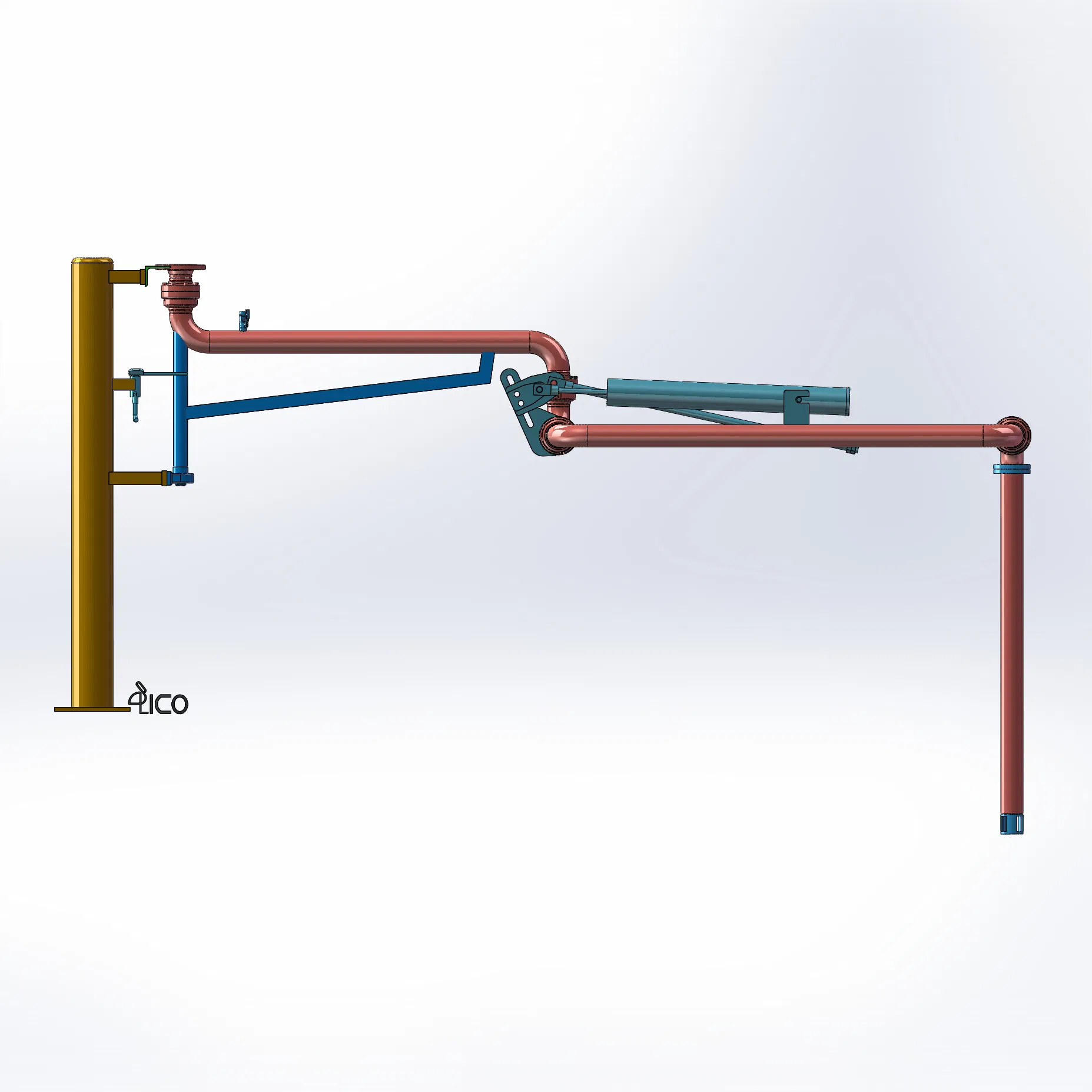

Crane AL1401 is often used for open-top loading of tank trucks and is suitable for crude oil, refined oil, chemical media, etc. The working pressure ranges from 1.0Mpa to 2.5Mpa, and the design temperature ranges from -19ºC to +110ºC. The pipeline material can be selected from carbon steel, stainless steel, etc., which can meet various working conditions.
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.
By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal. According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.
| AL1401 typical loading arm. Easy operation and maintenance. | |
| Places Applied | Top open loading |
| Applications | Product oil, chemicals |
| Nominal Diameter | DN25~DN200 (1"~8") |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |
We are mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc.
Our products are widely used in large and medium-sized petrochemical enterprises. Specialized equipment such as loading arms, jibs, floating roofs, and movable ladders are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc., and have been recognized by domestic and foreign customers.
We continue to adhere to product technological innovation, closely track the development status of petrochemical storage and transportation equipment, and provide customers with high-quality products featuring cutting-edge technology, energy conservation and environmental protection.
