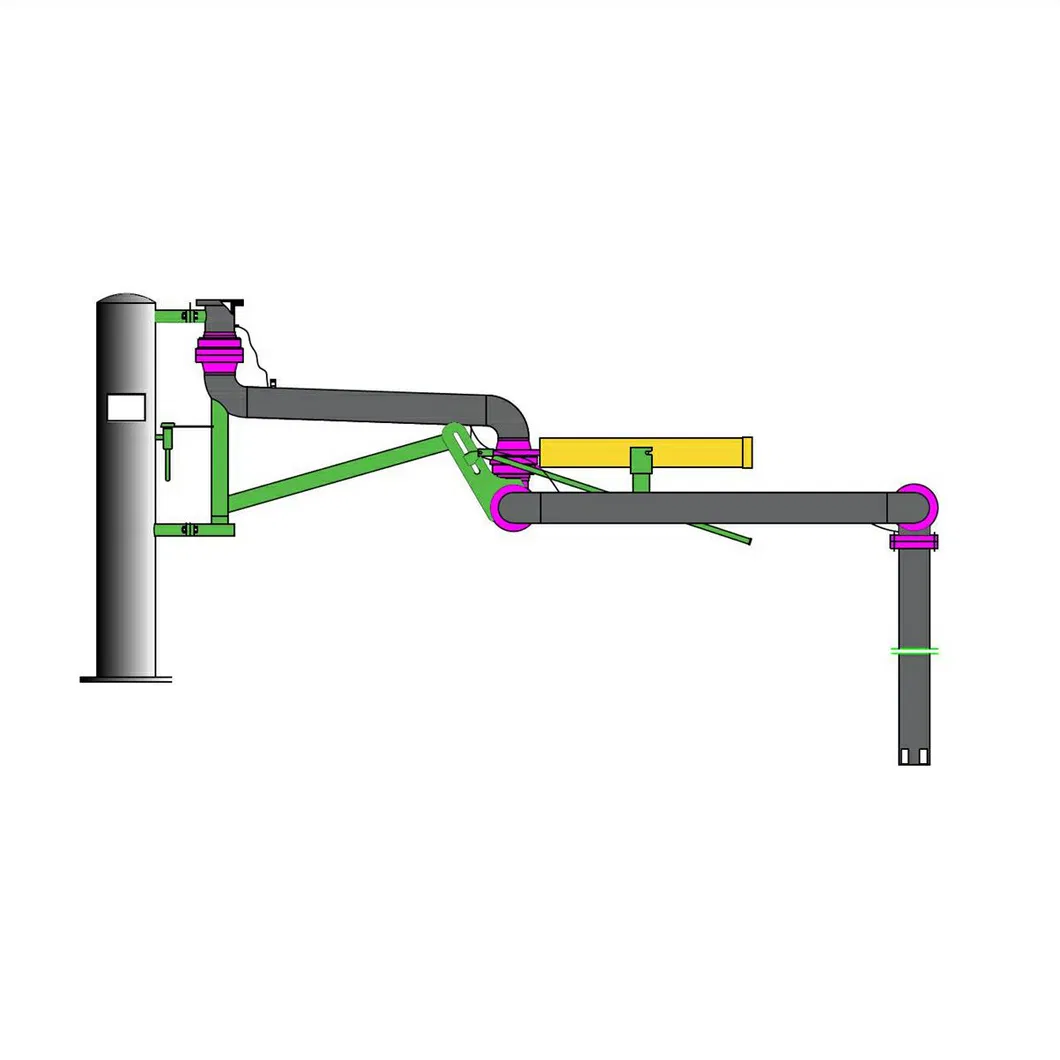

The structure for loading arm AL1401:
The AL1401 hose crane is specially designed for top loading and unloading of tank trucks and railway tank cars. It's suitable for various liquids like crude oil, refined oil, and chemical media. Connected to pipelines via swivel joints, it can rotate flexibly for efficient loading and unloading, widely used in petrochemical, warehousing, and logistics industries.
✓ Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions.
✓ Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.
✓ By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
✓ According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.
| AL1401 Loading Arm Specifications | |
| Places Applied | Top open loading |
| Applications | Product oil, chemicals |
| Nominal Diameter | DN25~DN200 (1"~8") |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of Pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |
We are mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Our products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc., and we are a high-tech enterprise.
We are a professional manufacturer of petrochemical storage and transportation machinery and automatic control systems. Products such as loading arms, jibs, floating roofs, movable ladders and skid-mounted equipment are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc., and have been recognized by domestic and foreign customers.
We will continue to adhere to product technological innovation, closely track the development status of domestic and foreign petrochemical storage and transportation equipment, and provide customers with high-quality products featuring cutting-edge technology, superior quality, energy conservation and environmental protection.
