Al1403 Loading/Unloading Arm for Medium-Viscosity Fluid Transfers

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

📋 Basic Product Information

Model NO.

1403

Certification

ISO 9001:2000

Power Source

Manual

Operation Pressure

Pn4.0

Applicable Medium

Water, Crude Oil, Gasoline, Diesel etc

Structure

Seamless Pipe with Swivel Joint

Material

SS, CS, PTFE Lined etc

Color

Light Grey or Customized

Quality Guarantee

1 Year

Seals

Viton or PTFE

Application

Truck Tanker, Rail Tanker, Marine

Specification

DN50, DN80, DN100, DN150

🔍 Product Overview

The AL1403 Loading Arm:

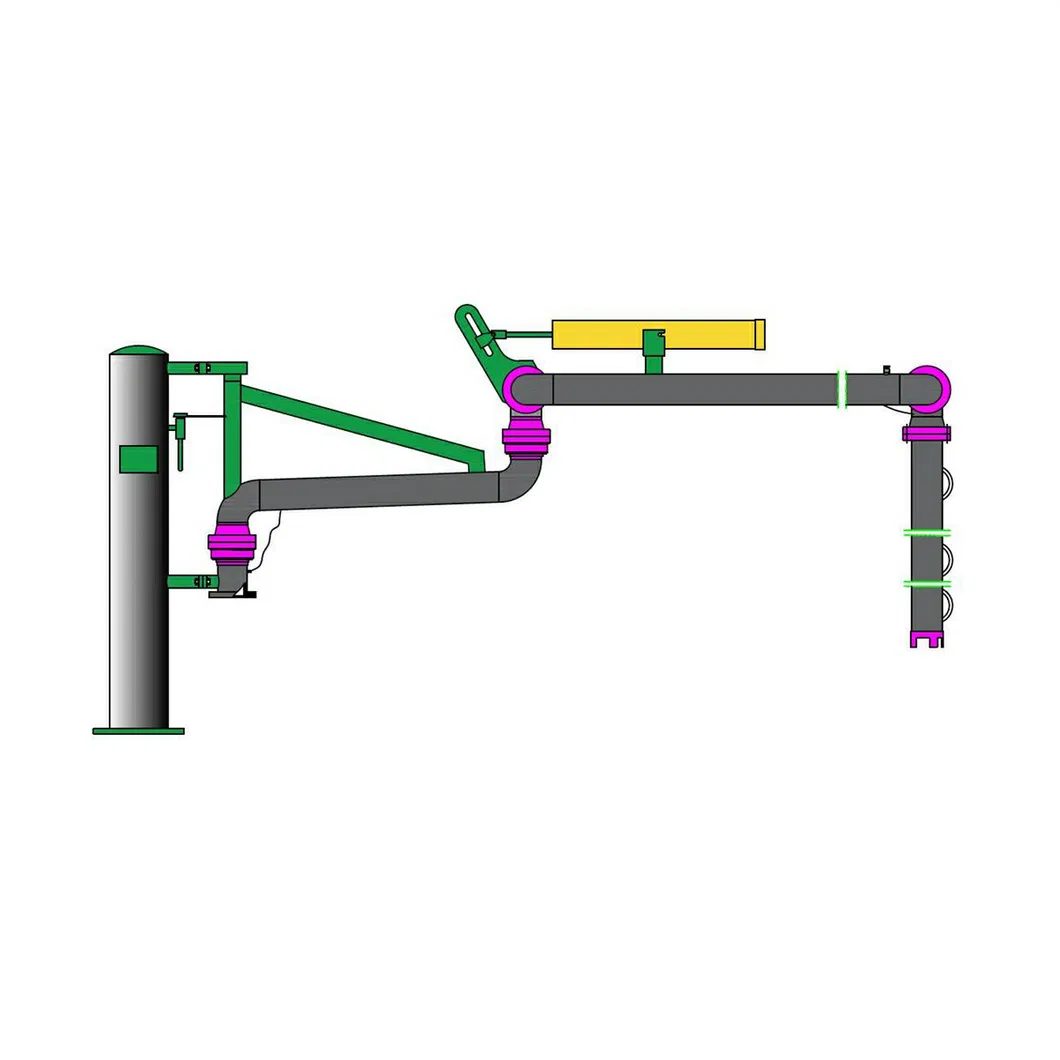

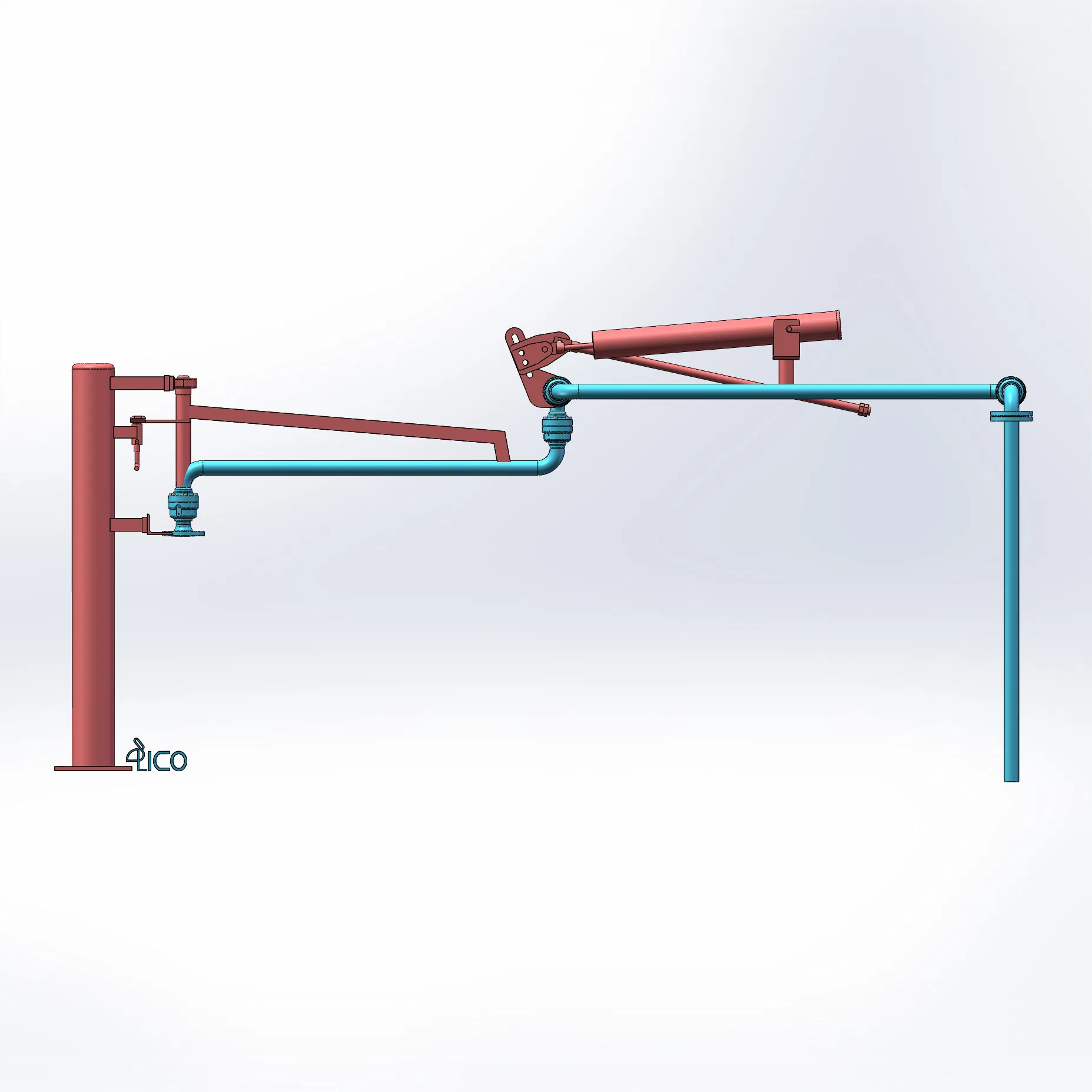

AL1403 is mainly applied in petrochemical and warehousing logistics sectors for top-loading and unloading operations of normal-temperature liquid media such as crude oil, heavy oil, and acid-base solutions. It is compatible with truck/train tank cars and storage tanks, especially suitable for transferring abrasive or corrosive media like asphalt and sulfuric acid in high-load environments.

It boasts notable advantages: available in carbon steel or stainless steel, with the former featuring high strength and the latter offering superior corrosion resistance. The top-loading design streamlines operations and improves efficiency, while flexible swivel joints and high-seal components ensure leak-proof performance.

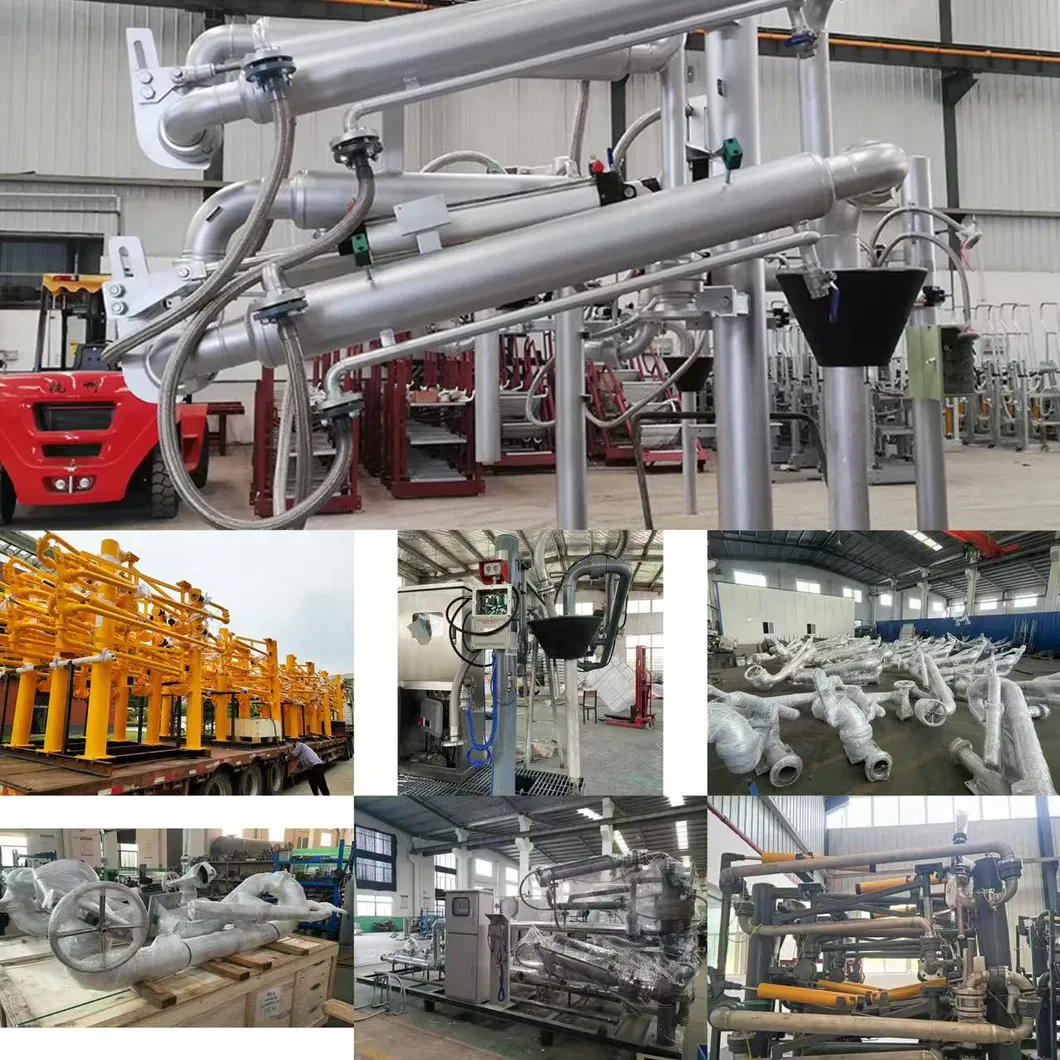

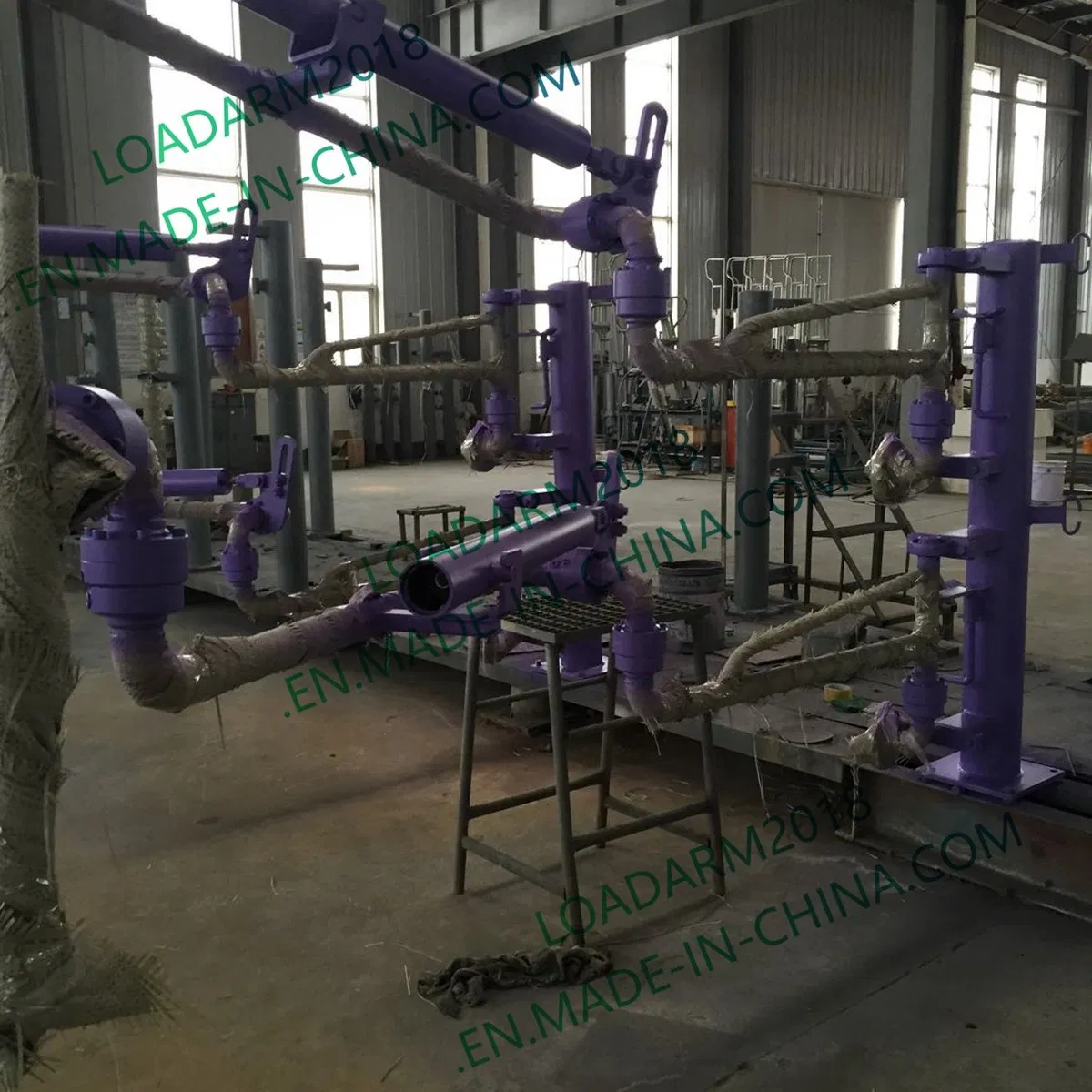

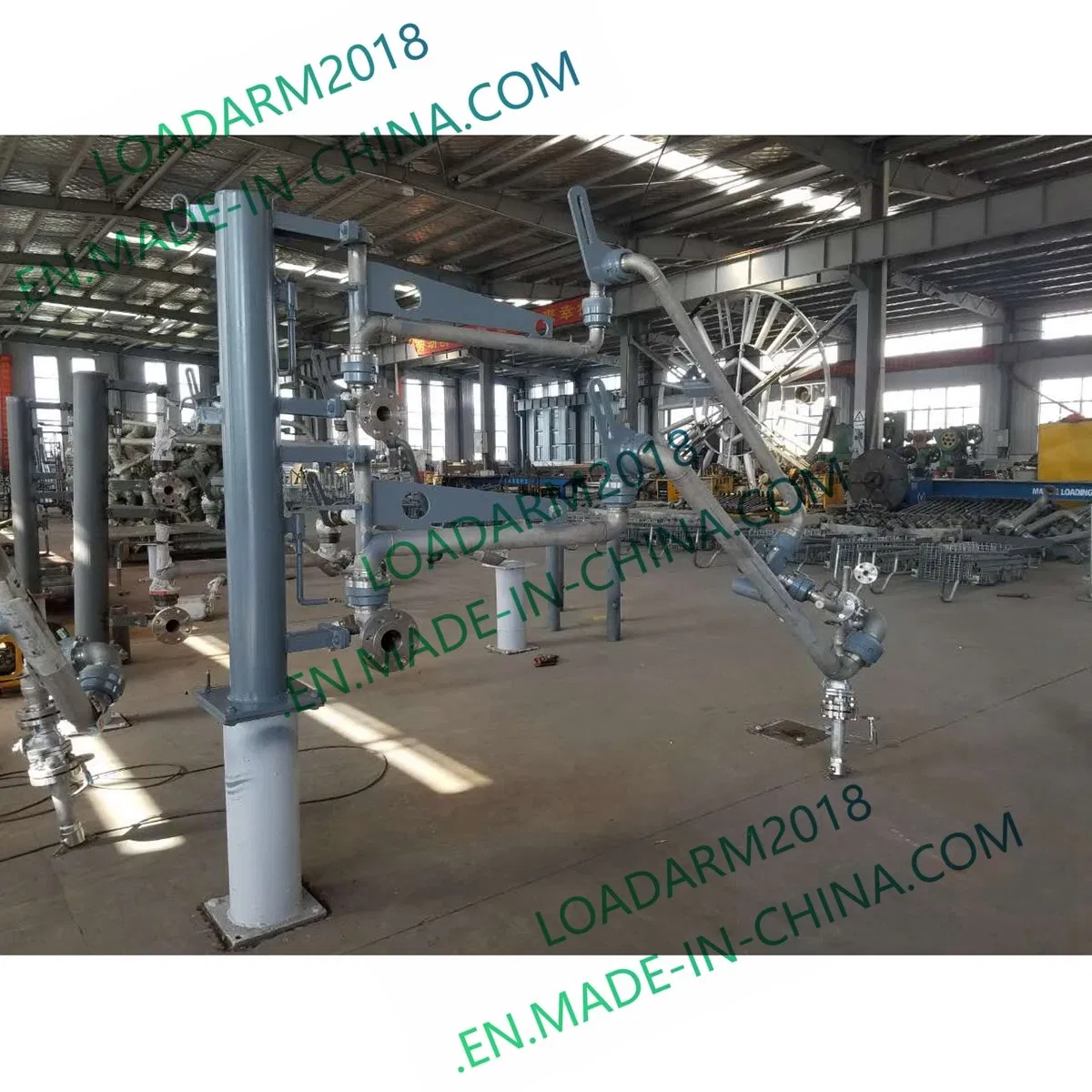

🏭 Workshop & Site Display

⚙️ Technical Data & Specifications

Our land loading arm is specifically designed for transporting fluid between piping systems and tankers. It can be equipped with loading platforms, folding stairs, and safety cages for a complete loading solution.

Parameter Item	Specifications
Places Applied	Top open loading
Applications	Product oil, chemicals
Nominal Diameter	DN25~DN200 (1"~8")
Working Temperature	-196~250 ºC
Working Pressure	PN1.0~PN4.0
Material of Pipeline	Carbon steel, stainless steel, aluminum, low-temp steel, PTFE lined etc.
Operation Modes	Manual, pneumatic or hydraulic

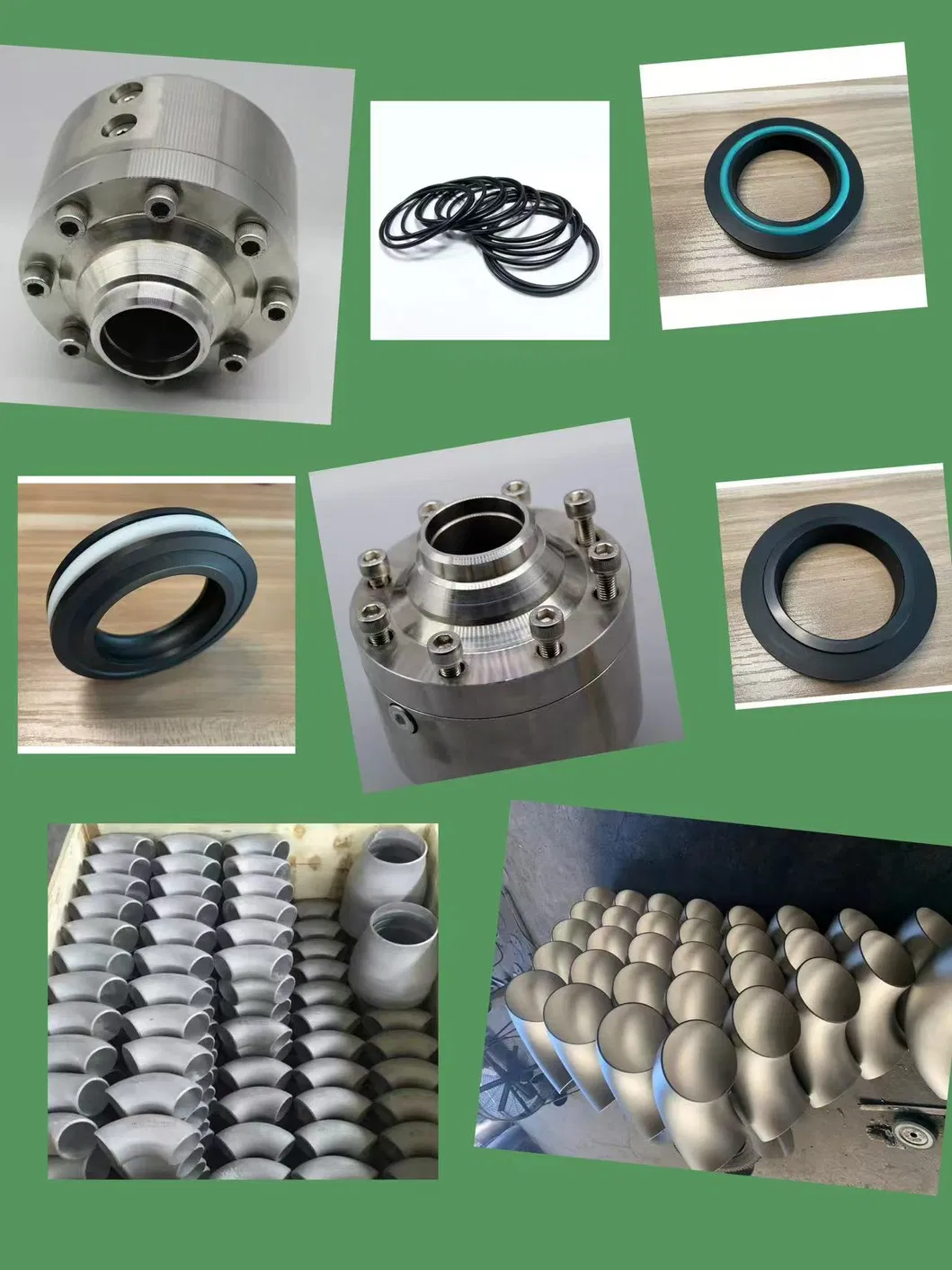

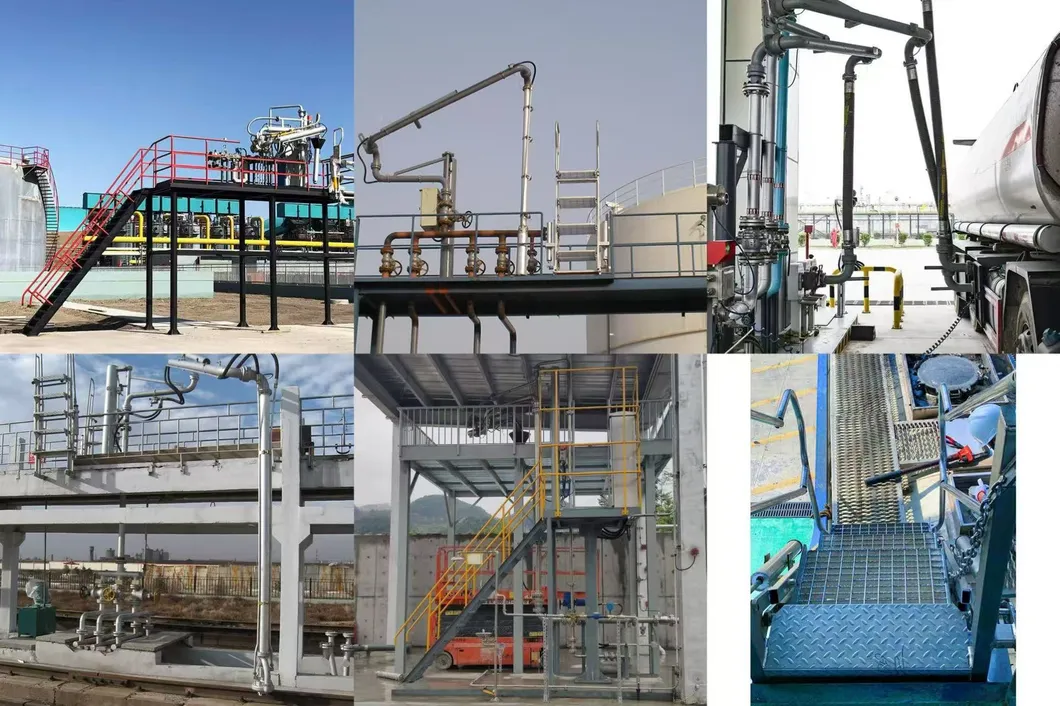

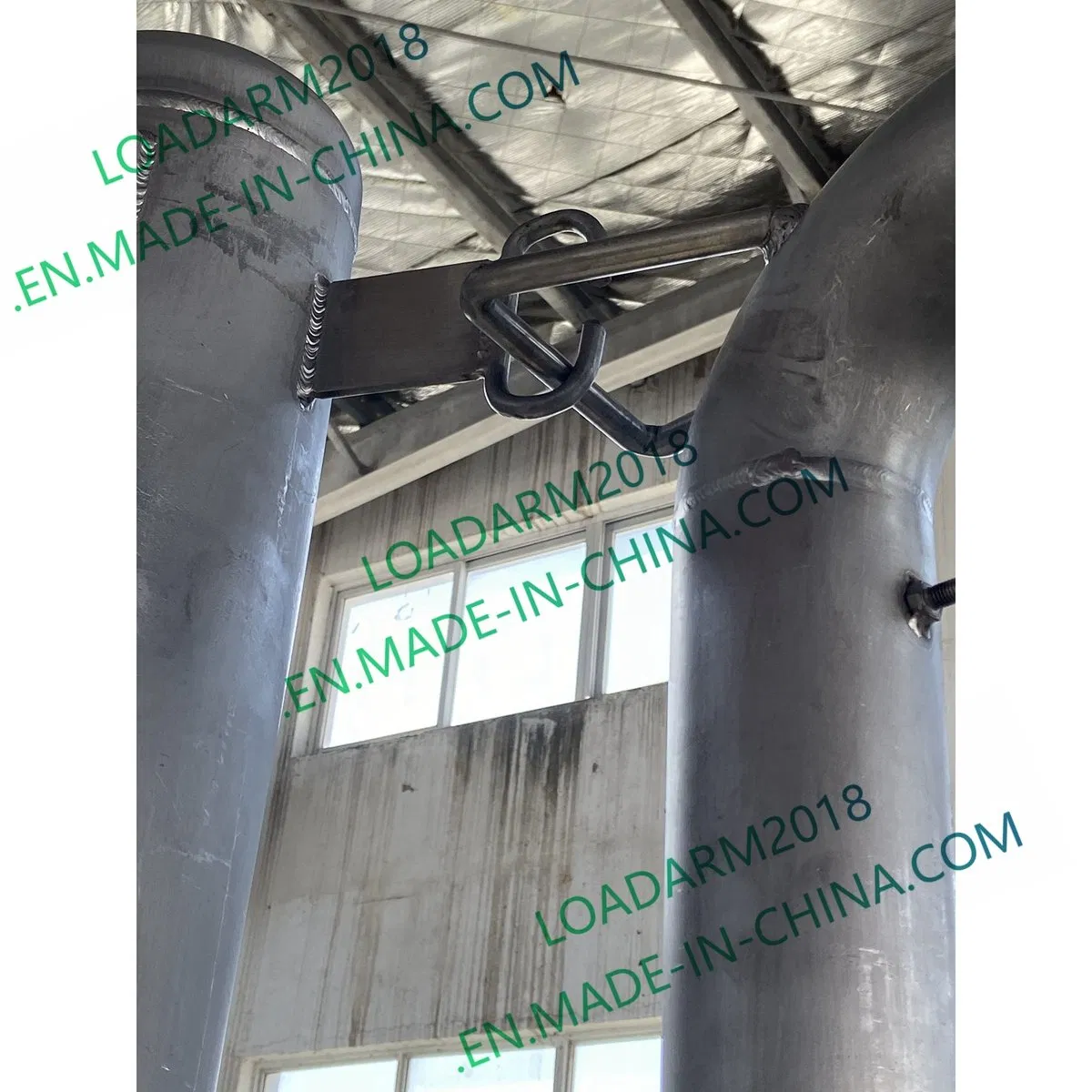

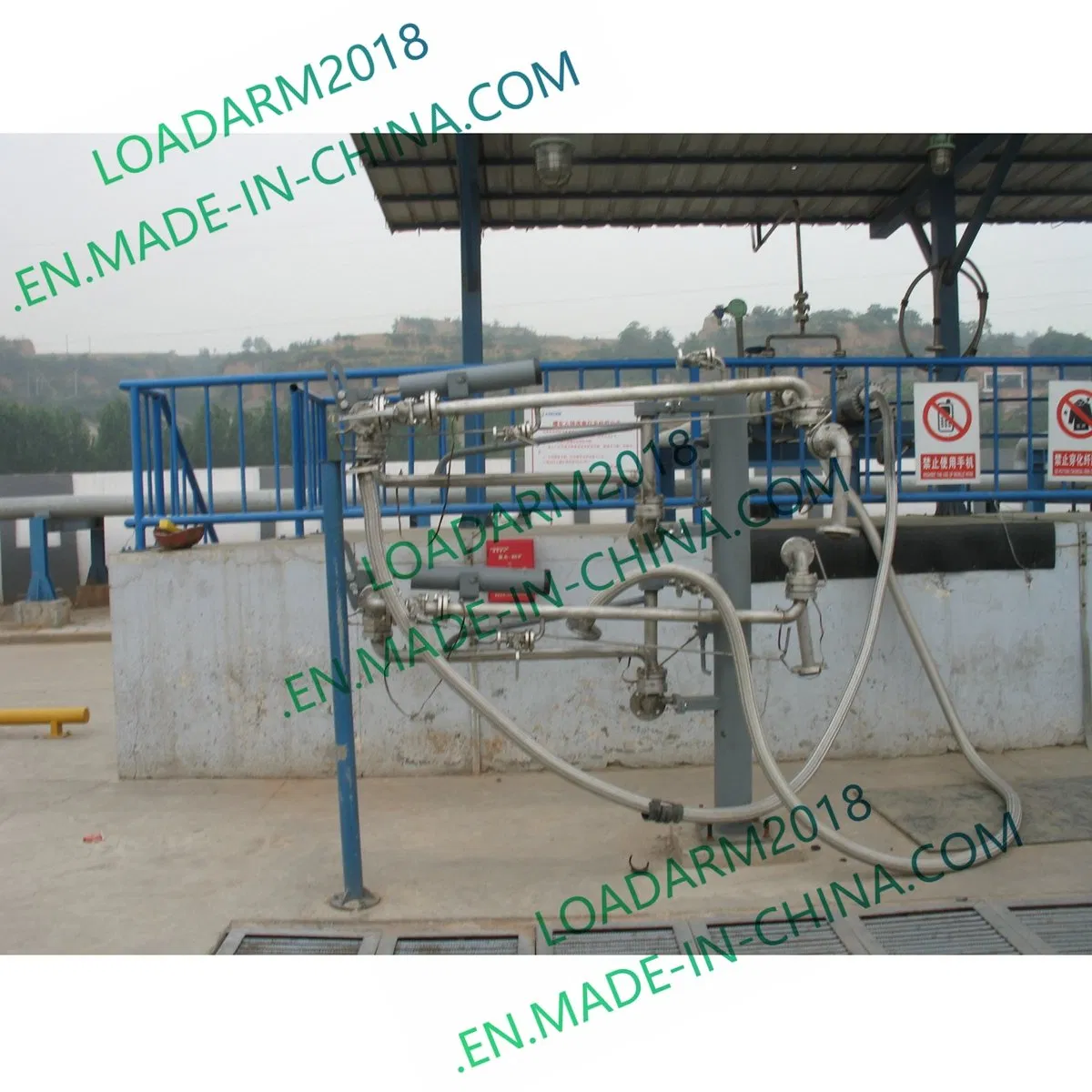

📸 Detailed View & Projects

📦 Packaging & Delivery

Package Size

100.00cm * 200.00cm * 100.00cm

Package Gross Weight

888.000kg

Transport Package

Pallet or Plywood Case

❓ Frequently Asked Questions

1. What is your production period or delivery time?

Delivery time can be within 20 days. For special products, it could be within 30-50 days.

2. What payment terms do you offer?

T/T before shipment or L/C can be accepted.

3. Can you do OEM or use the customer's name plate?

Yes, we can accept and welcome OEM requests and the use of customer-specific name plates.

4. How do you ensure the quality of your products?

We have a strict quality control process, including inspections at every stage, RT tests, PT tests, and hydraulic tests. We hold ISO certification and TUV welder certificates.

5. Can you provide documentation and certifications?

Yes, we provide all necessary documentation including material certificates, inspection reports, and customs clearance certificates (CO, Form E, etc.).

6. How long is your warranty period?

12 months from commissioning or 18 months from delivery, whichever comes first. In some cases, we can provide a 2-year warranty.
