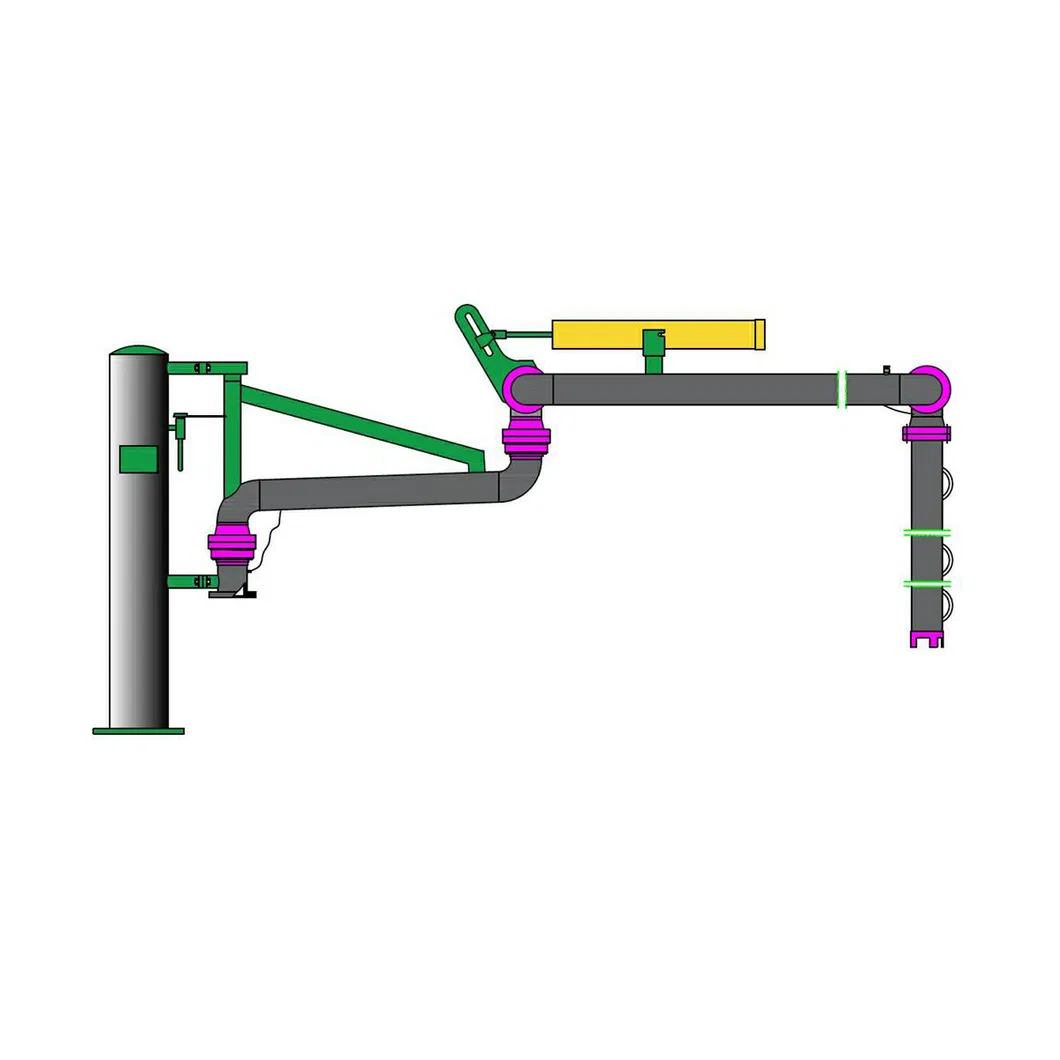

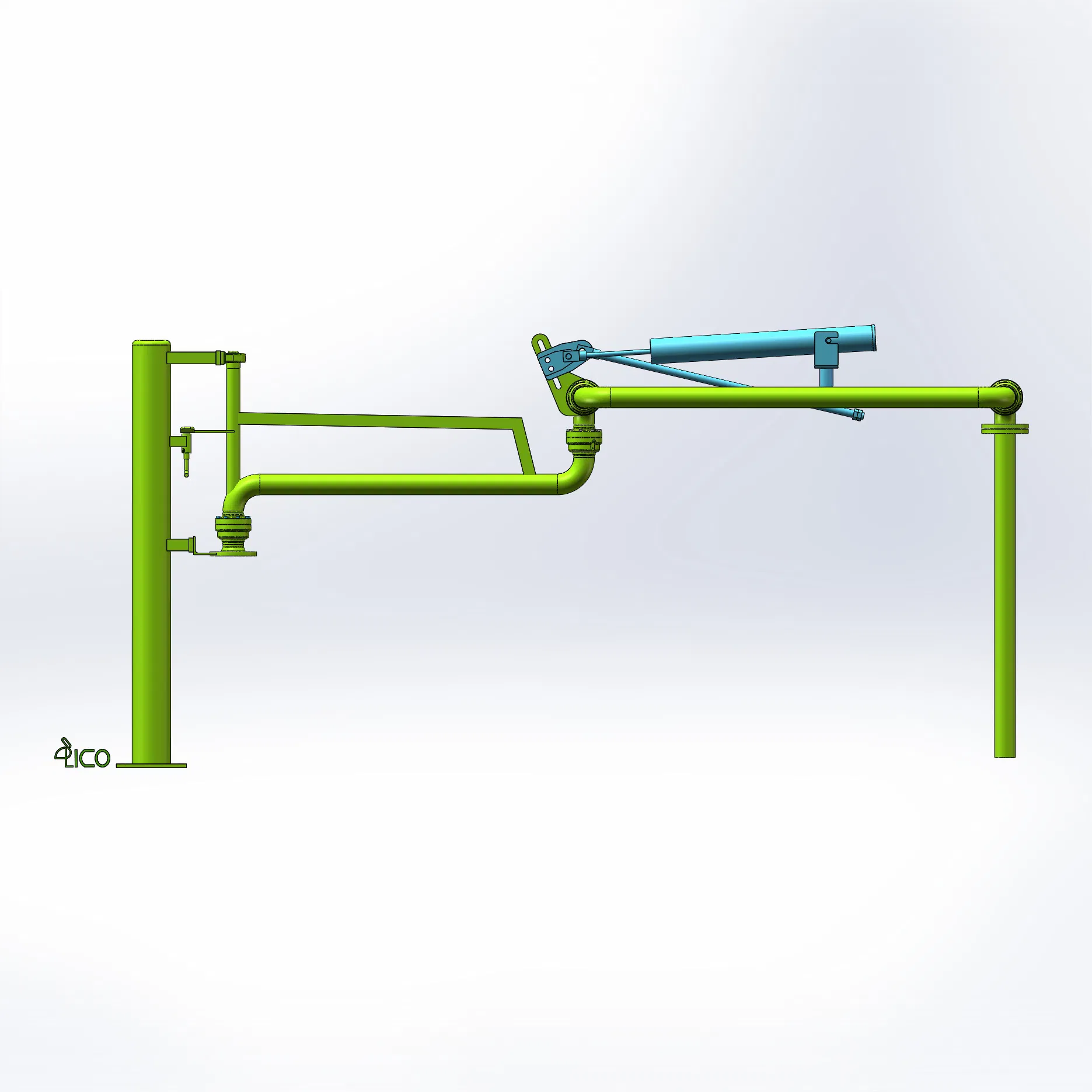

The structure of AL1403 Loading arm:
AL1403 is mainly applied in petrochemical and warehousing logistics sectors for top-loading and unloading operations of normal-temperature liquid media such as crude oil, heavy oil, and acid-base solutions, compatible with truck/train tank cars and storage tanks. It is especially suitable for transferring abrasive or corrosive media like asphalt and sulfuric acid in high-load and corrosive environments.
General Introduction for land loading arm:
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
| AL1402 Technical Specifications | |
|---|---|
| Places Applied | Top open loading |
| Applications | Product oil, chemicals |
| Nominal Diameter | DN25~DN200 (1"~8") |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |
We are mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Our products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc.
Our products are widely used in large and medium-sized petrochemical enterprises. Products such as loading arms, jibs, floating roofs, movable ladders and skid-mounted equipment are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc., and have been recognized by domestic and foreign customers. We continue to adhere to product technological innovation and provide customers with high-quality products featuring cutting-edge technology, energy conservation and environmental protection.
