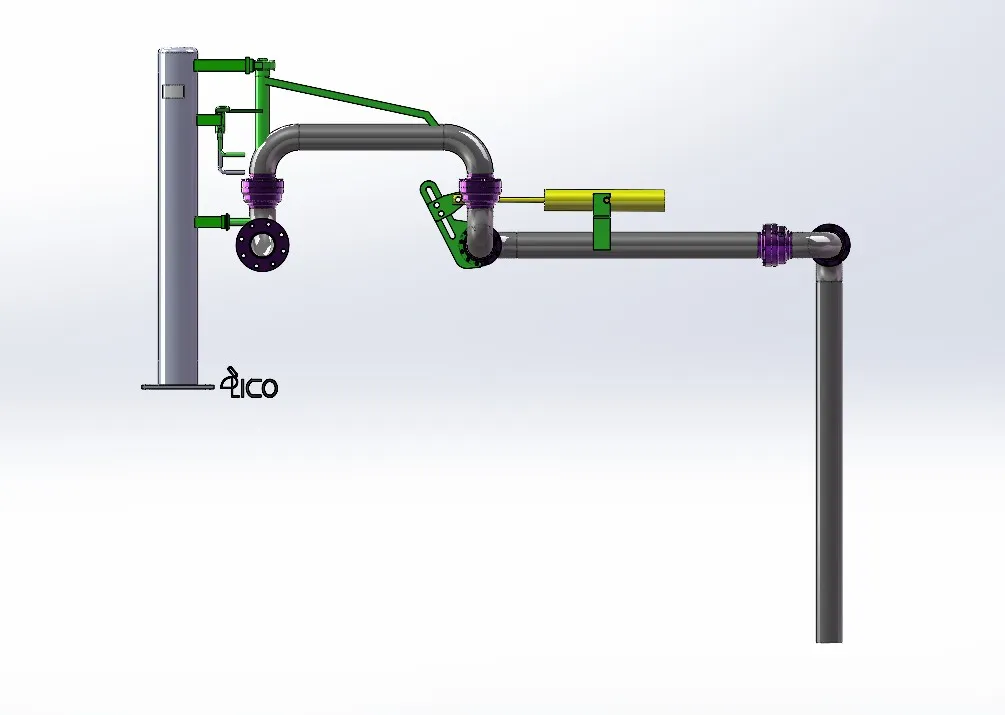

The structure of AL1502 Loading arm:
The AL1502 is a single-pipe overhead loading arm specifically designed for the top-loading and unloading of highly volatile chemicals, especially chlorine. Its primary use lies in rail and road tank truck operations, facilitating the transfer of hazardous and volatile media between storage facilities and vehicles.
Key advantages include robust construction with corrosion-resistant materials, flexible swivel joints for seamless connection, and a tight-sealing design to minimize leakage risk. The modular structure simplifies maintenance for industrial chemical handling.
General Introduction for Land Loading Arm:
Our land loading arm is designed for transporting fluid between piping systems and tankers, customized for different tanker types, liquids, and site conditions. Equipped with loading platforms, folding stairs, and safety cages, it forms a complete loading system with options for manual, pneumatic, or hydraulic operation.
| AL1502 Technical Data | |
| Places Applied | Top open loading |
| Applications | Product oil, chemicals |
| Nominal Diameter | DN25~DN200 (1"~8") |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of Pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |

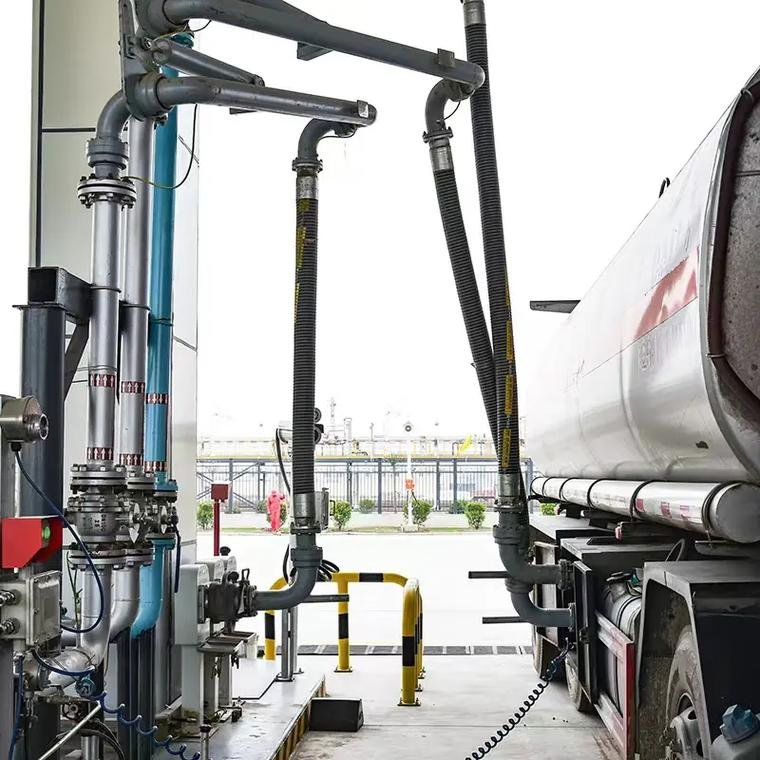

Loading Arm on Site

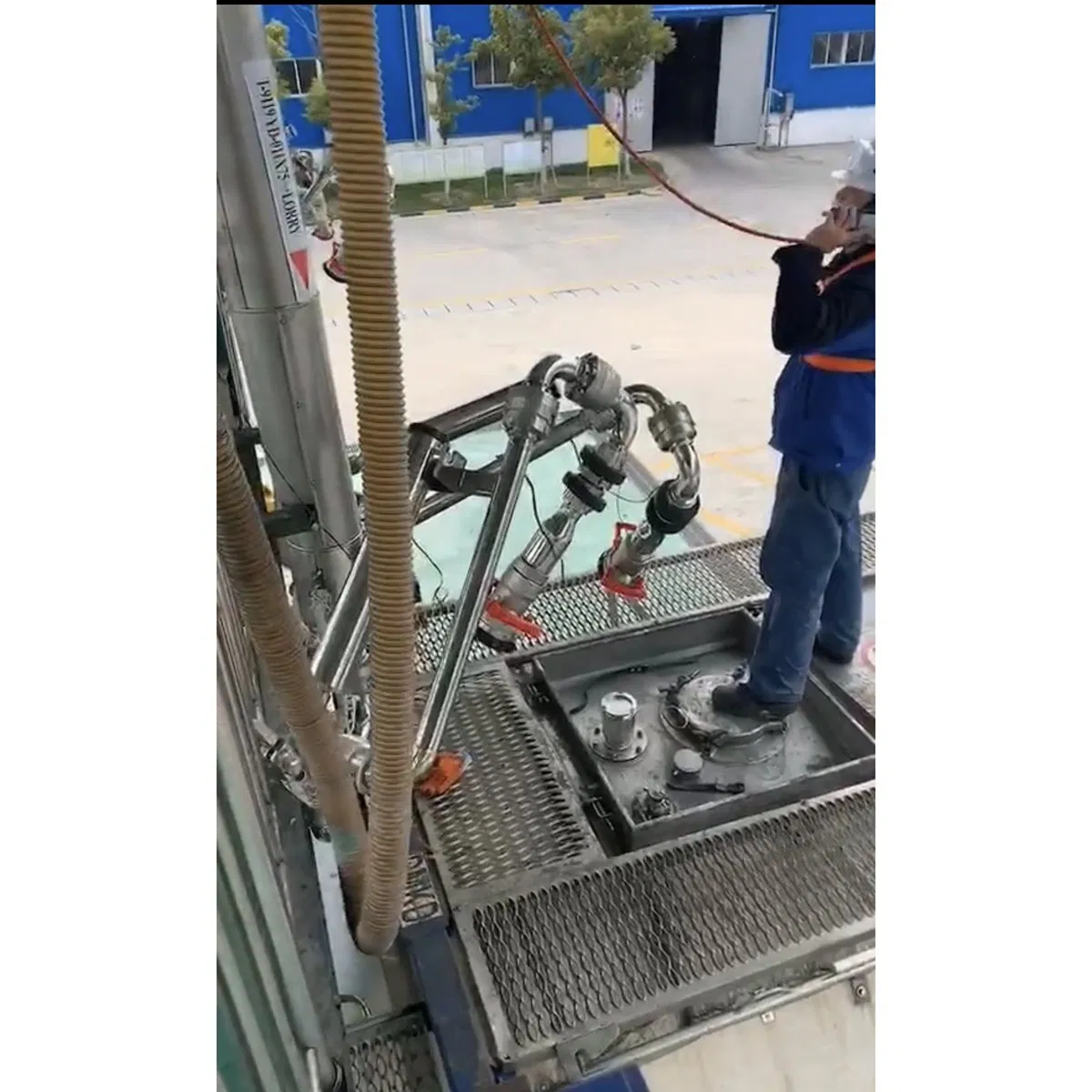

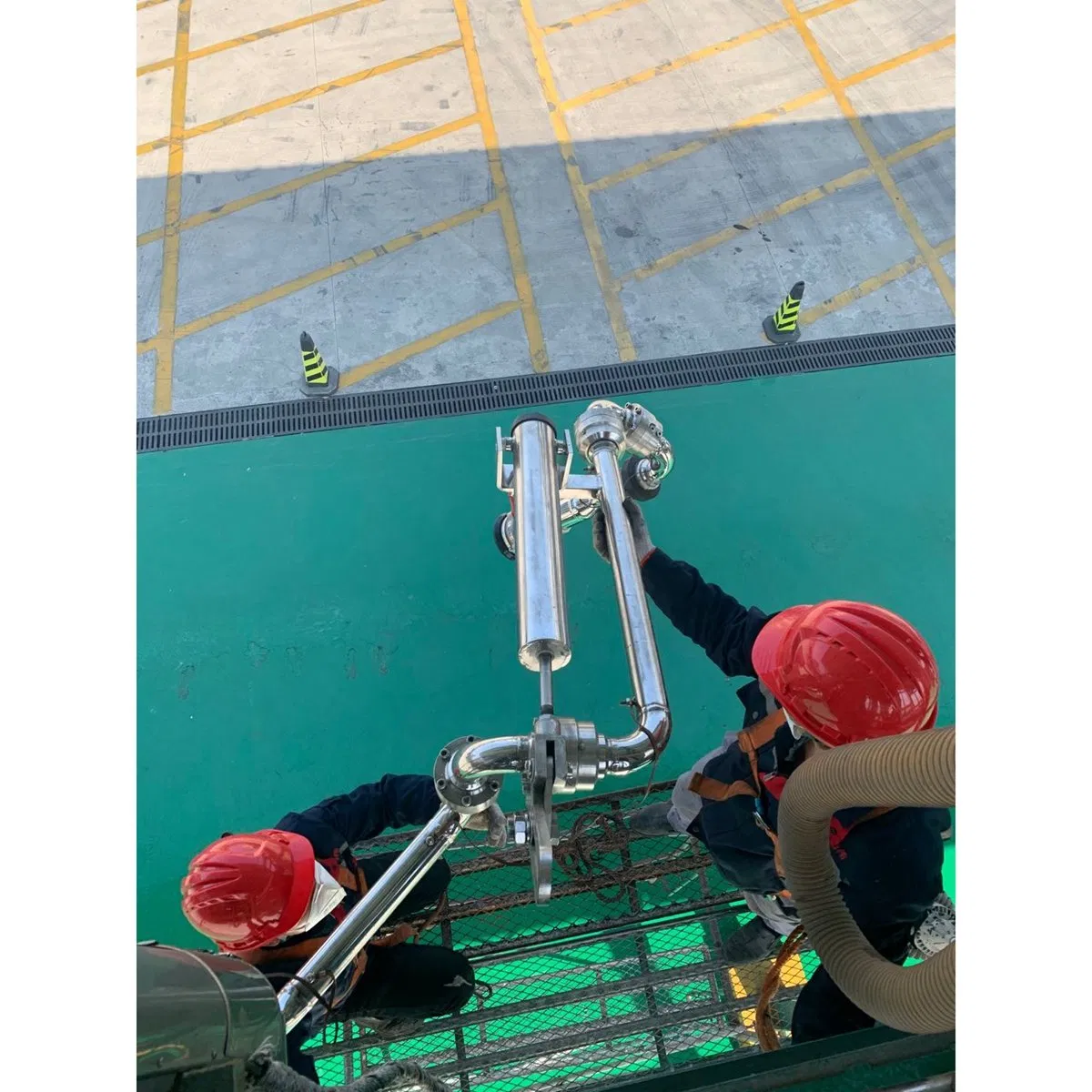

Operating View

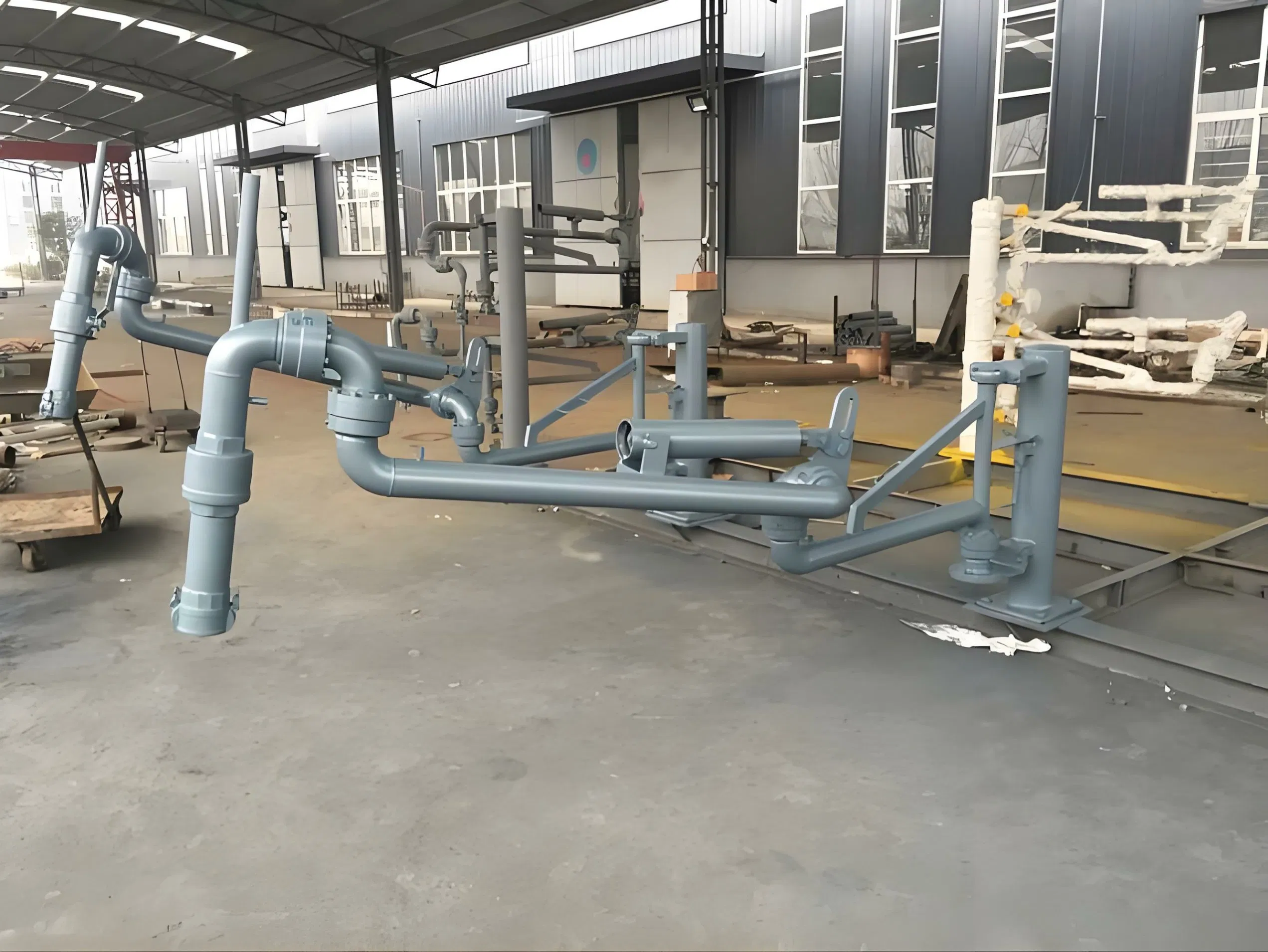

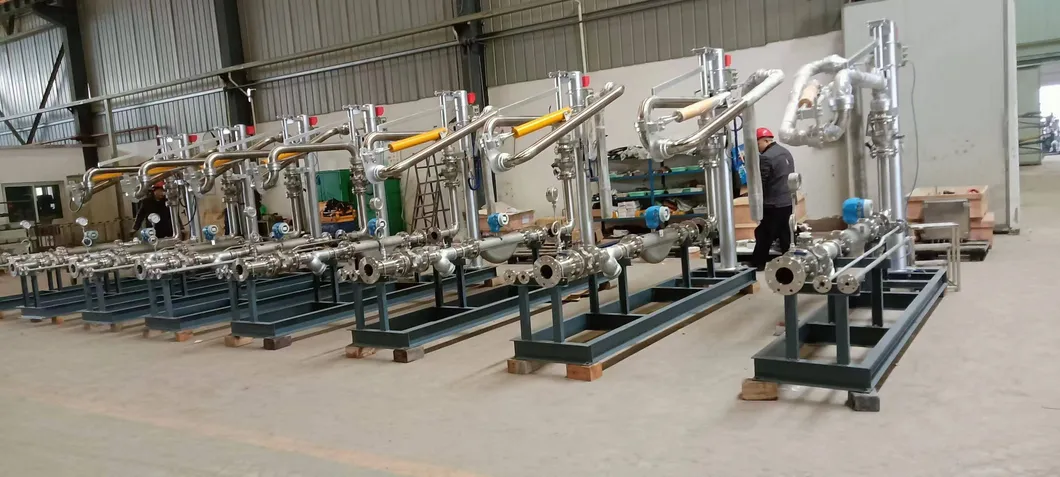

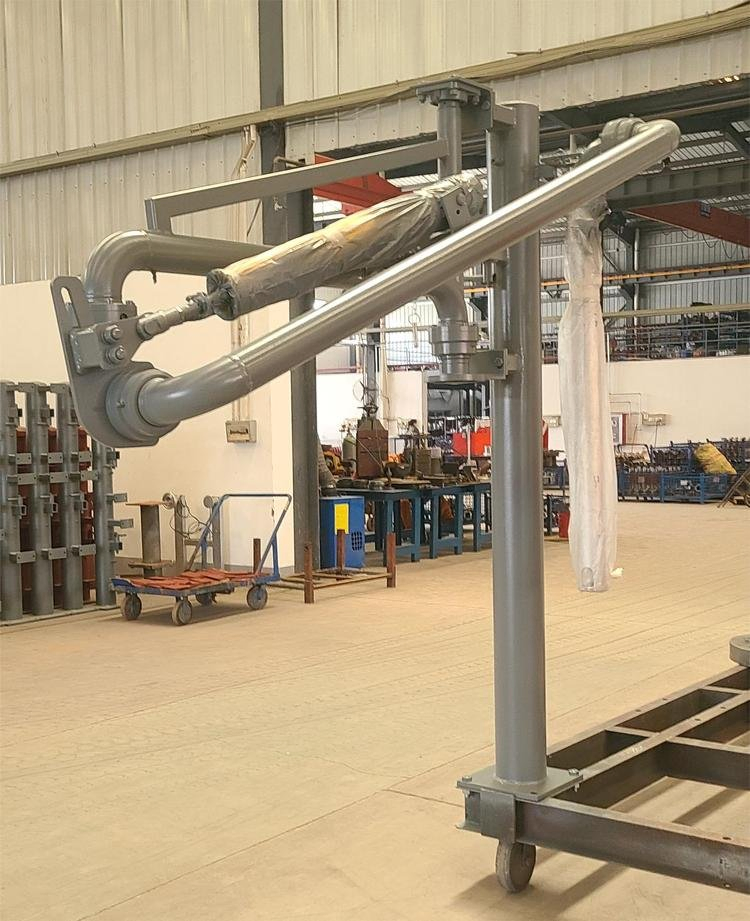

Workshop Production:
Detailed Component View:
The manufacturer is mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, and skid-mounted equipment.
As a professional manufacturer, the systems are widely used in large and medium-sized petrochemical enterprises. Equipment has been exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc., recognized by global customers for superior quality, energy conservation and environmental protection.
