Al1513 Loading Arm for Laboratory-Scale Bulk Transfer

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

i

Basic Information

Model NO.:1513

Certification:ISO 9001:2000

Power Source:Manual

Operation Pressure:Pn4.0

Applicable Medium:Water, Crude Oil, Gasoline, Diesel etc

Structure:Seamless Pipe with Swivel Joint

Material:Ss, CS, PTFE Lined etc

Color:Light Grey or Customized

Quality Guarantee:1 Year

Seals:Viton or PTFE

Application:Truck Tanker, Rail Tanker, Marine

Package Size:100cm * 200cm * 100cm

Gross Weight:888.000kg

Capacity:5000 Sets / Year

P

Product Description

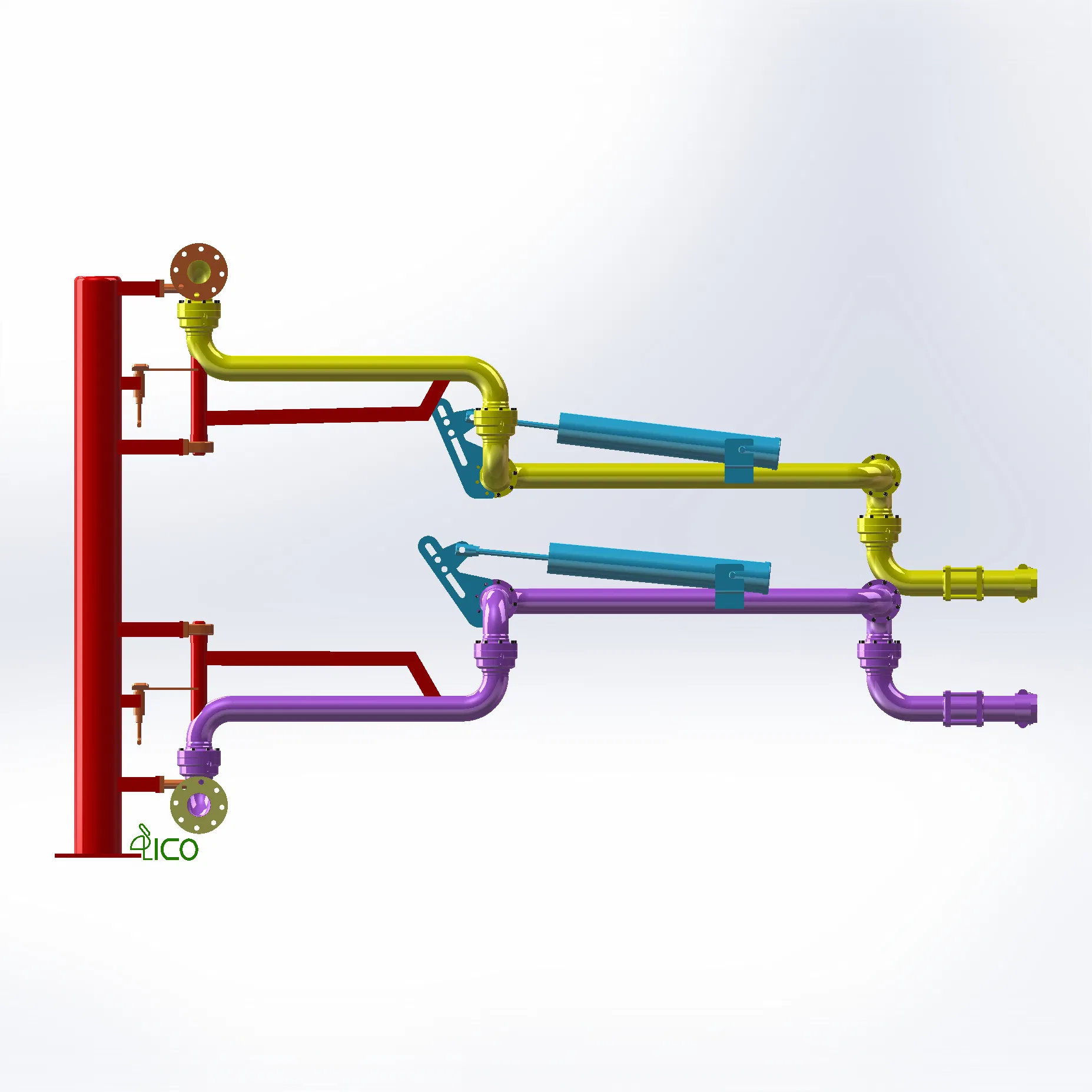

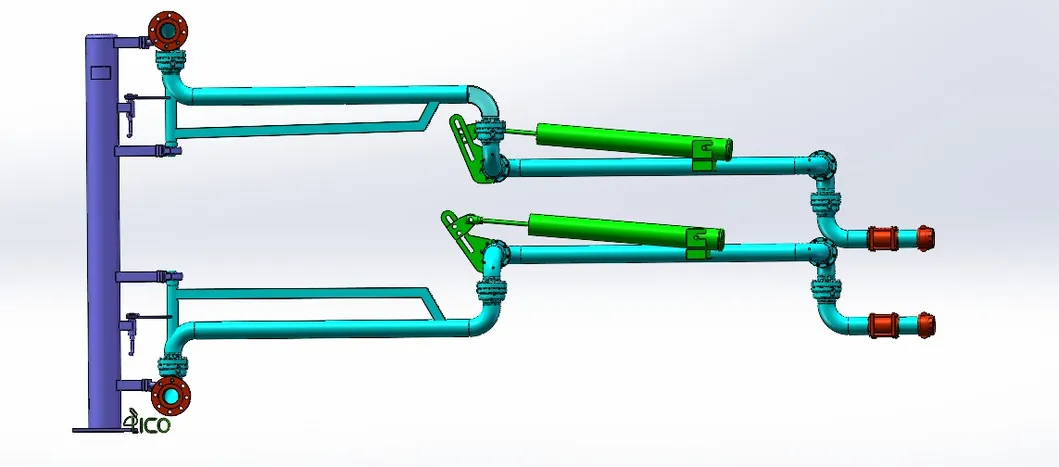

The structure of AL1513 Loading arm:

AL1513 land liquid loading arm is used for loading/unloading liquids (e.g., corrosive, high-viscosity or low-temperature condensable media) in railway/car tankers in petroleum/chemical industries, enabling flexible docking and stable transmission via swivel joints. Advantages: good sealing against leakage/pollution, corrosion-resistant materials + tracing for various media, safer/durable than hoses, an efficient and reliable loading/unloading solution.

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.

By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal. According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.

S

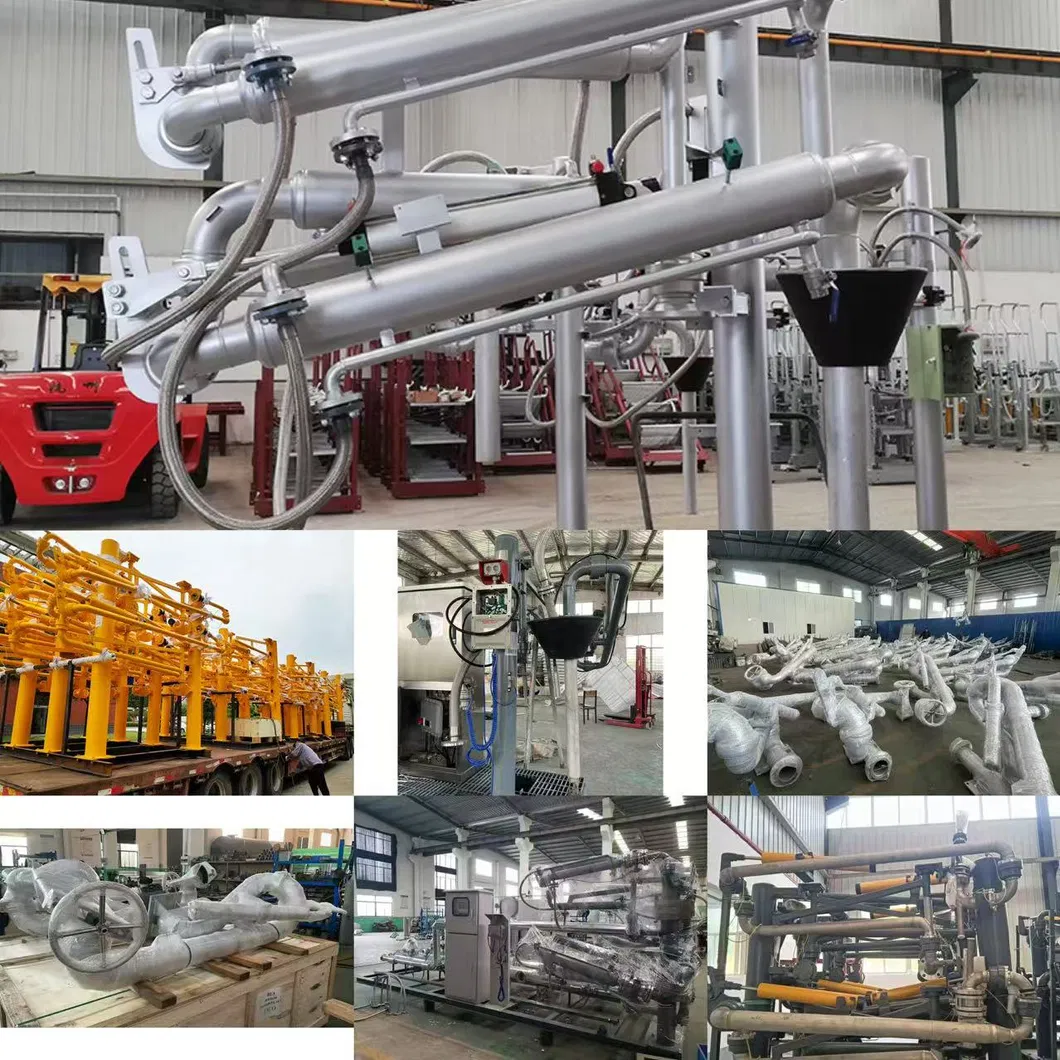

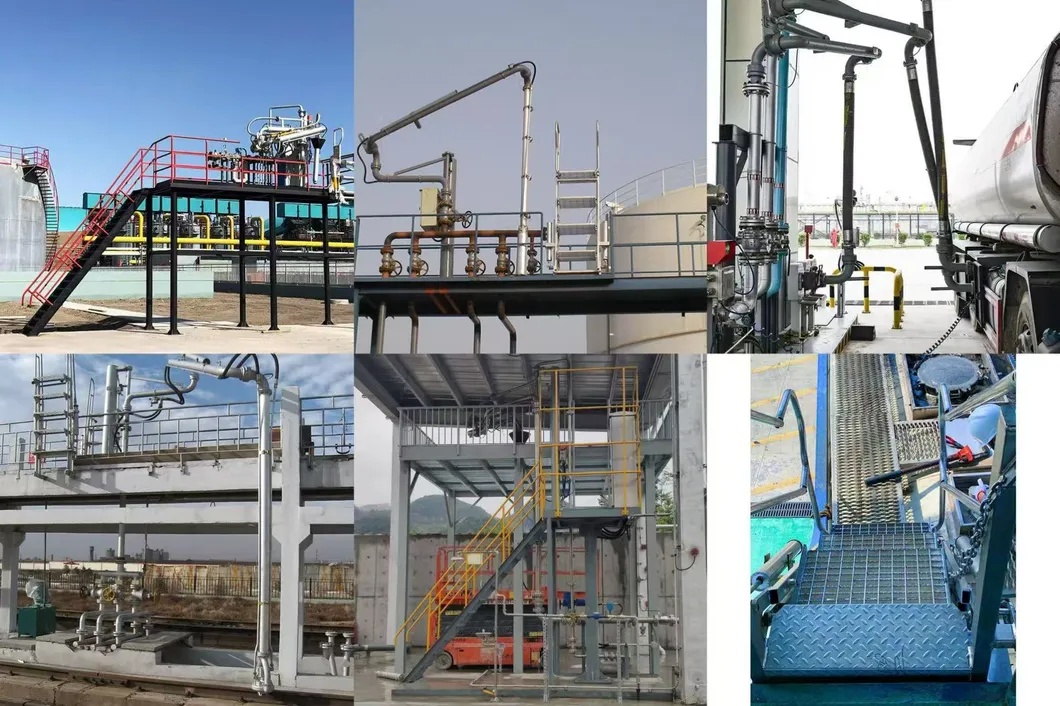

On Site & Workshop

T

Product Parameters

Feature	Technical Specifications
Model Type	AL1513 Typical Loading Arm
Places Applied	Top open loading
Applications	Product oil, chemicals
Nominal Diameter	DN25~DN200 (1"~8")
Working Temperature	-196~250ºC
Working Pressure	PN1.0~PN4.0
Pipeline Material	Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.

D

Detailed Photos & Projects

C

Profile

We are mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Our products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc.

As a professional manufacturer of petrochemical storage and transportation machinery, our products are widely used in large and medium-sized petrochemical enterprises. Products such as loading arms, jibs, floating roofs, movable ladders and skid-mounted equipment are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc. We attach great importance to talent development and strictly control product quality, regarding quality as the cornerstone of development.

?

Frequently Asked Questions

1. What is your production period or delivery time?

Delivery time can be within 20 days. For special products, it could be within 30-50 days.

2. What payment terms do you offer?

T/T before shipment or L/C can be accepted.

3. Can you do OEM or use the customer's name plate for the product?

Yes, we can accept and welcome OEM requirements.

4. How do you make sure of the quality of your products?

We have a strict quality control process in the factory, including inspections at every stage of production, RT tests, PT tests, and hydraulic tests. We hold ISO certification and welding certificates from TUV.

5. Can you provide documentation and certifications for your products?

Yes, we can provide all necessary documentation and certifications, including material certificates, inspection reports, and customs clearance certificates such as CO, Form E, etc.

6. How long is your warranty period?

12 months from commissioning or 18 months from delivery, whichever comes first. In some cases, we can supply a 2-year warranty.
