Liftora Arm
1 / 5
| Model NO. | AL2543 | Certification | ISO 9001:2000 |
| Power Source | Manual | Operation Pressure | Pn4.0 |
| Applicable Medium | Water, Crude Oil, Gasiline, Diesel etc | Structure | Seamless Pipe with Swivel Joint |
| Material | Ss, CS, PTFE Lined etc | Color | Light Grey or Customized |
| Quality Guarantee | 1 Year | Seals | PTFE |
| Application | Truck Tanker, Rail Tanker, Marine | Transport Package | Pallet or Plywood Case |
| Specification | DN50, DN80, DN100, DN150 | Production Capacity | 5000 Sets / Year |
| Package Size | 6000.00cm * 2300.00cm * 2500.00cm |
| Package Gross Weight | 1500.000kg |

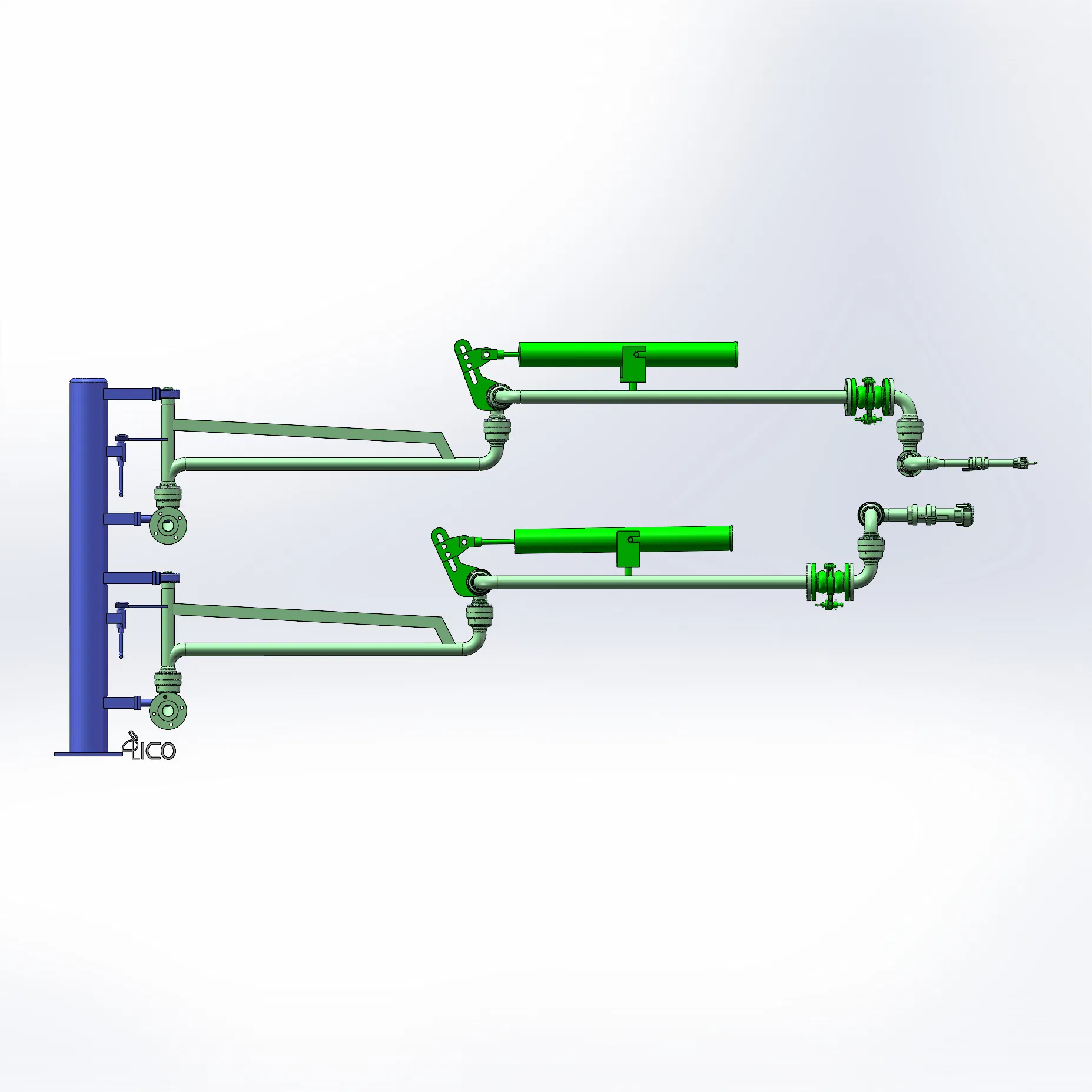

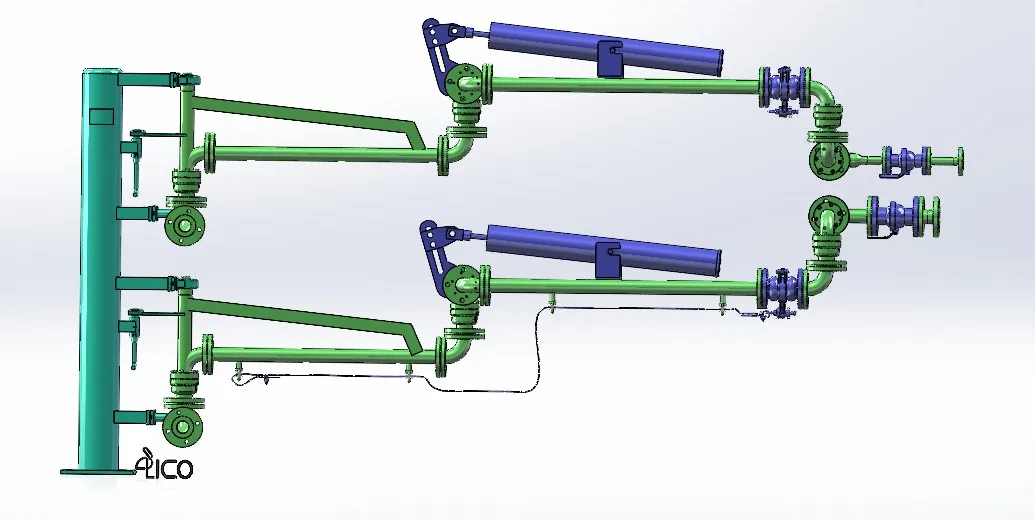

AL2543 is a land-based bottom-loading crane tube, suitable for loading and unloading volatile media such as liquefied petroleum gas and liquid ammonia. Its upper and lower loading and unloading pipelines are responsible for gas and liquid phases respectively. Five swivel joints make its movements flexible, enabling precise connection to tank trucks. Key components are made of alloy steel and other materials, ensuring good sealing and smooth rotation, thus guaranteeing safe and efficient material loading and unloading.

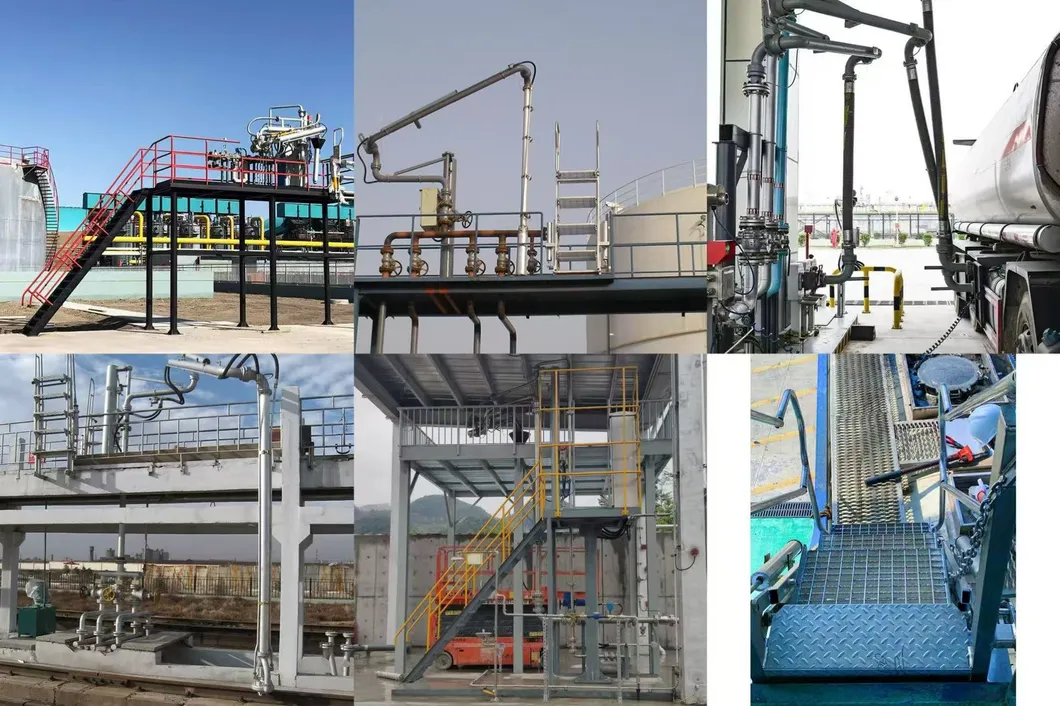

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
| AL2543 Technical Specification | |
|---|---|
| Places Applied | Bottom closed loading or unloading |
| Applications | Products which are easy to gasify at normal temperature and pressure. |
| Nominal Diameter | DN50~DN80 (liquid), DN25~DN50 (vapour) |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of Pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |

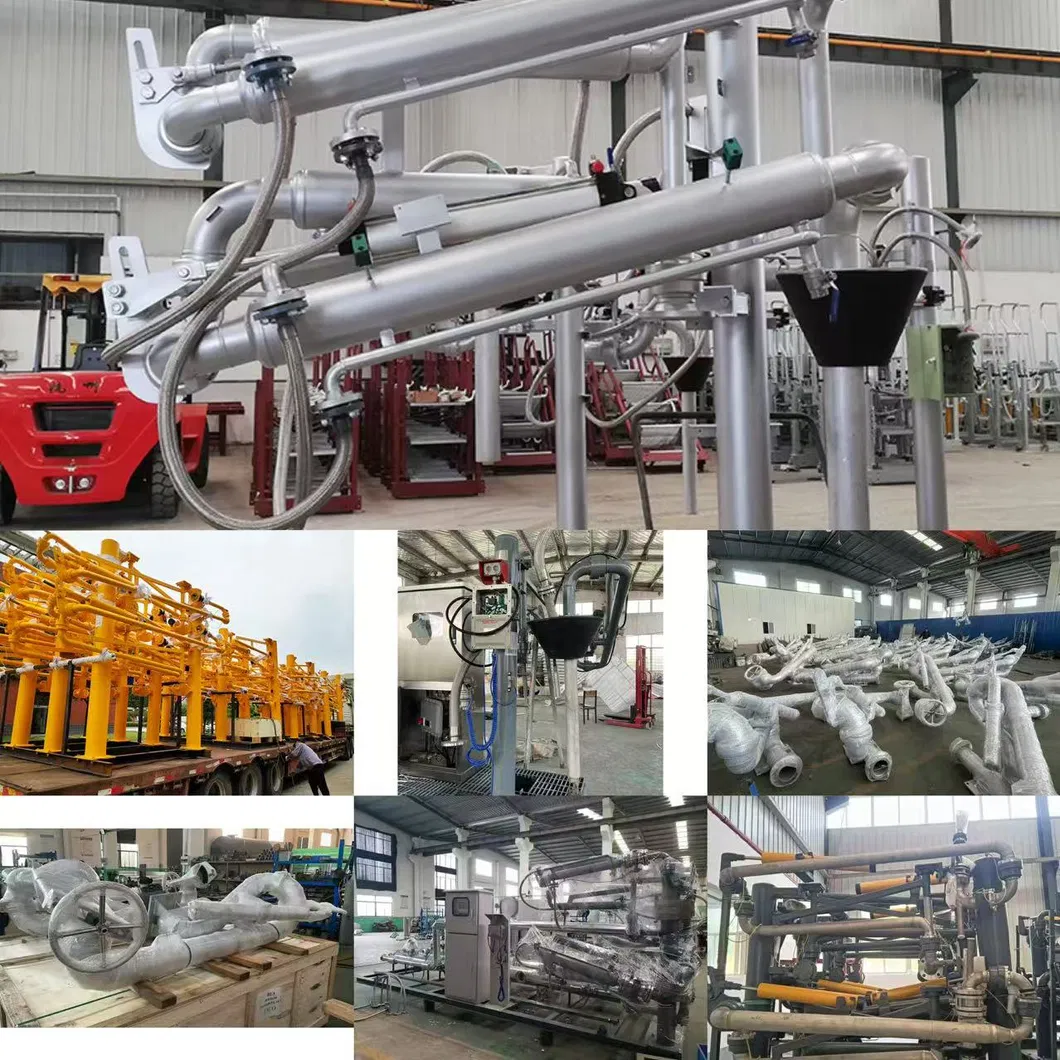

We are mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc.
Products such as loading arms, jibs, floating roofs, movable ladders and skid-mounted equipment are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc., and have been recognized by domestic and foreign customers. We continue to adhere to product technological innovation and provide customers with high-quality products featuring cutting-edge technology, superior quality, energy conservation and environmental protection.
