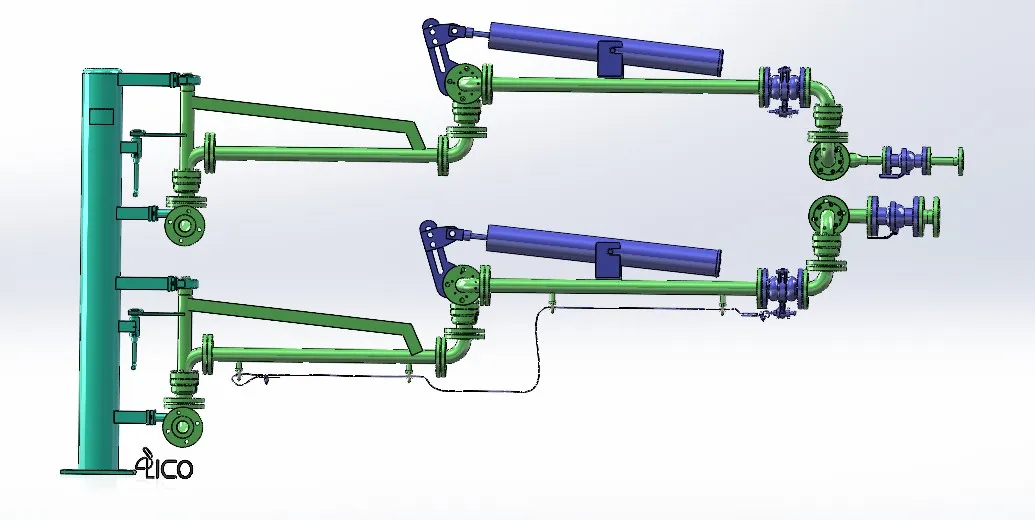

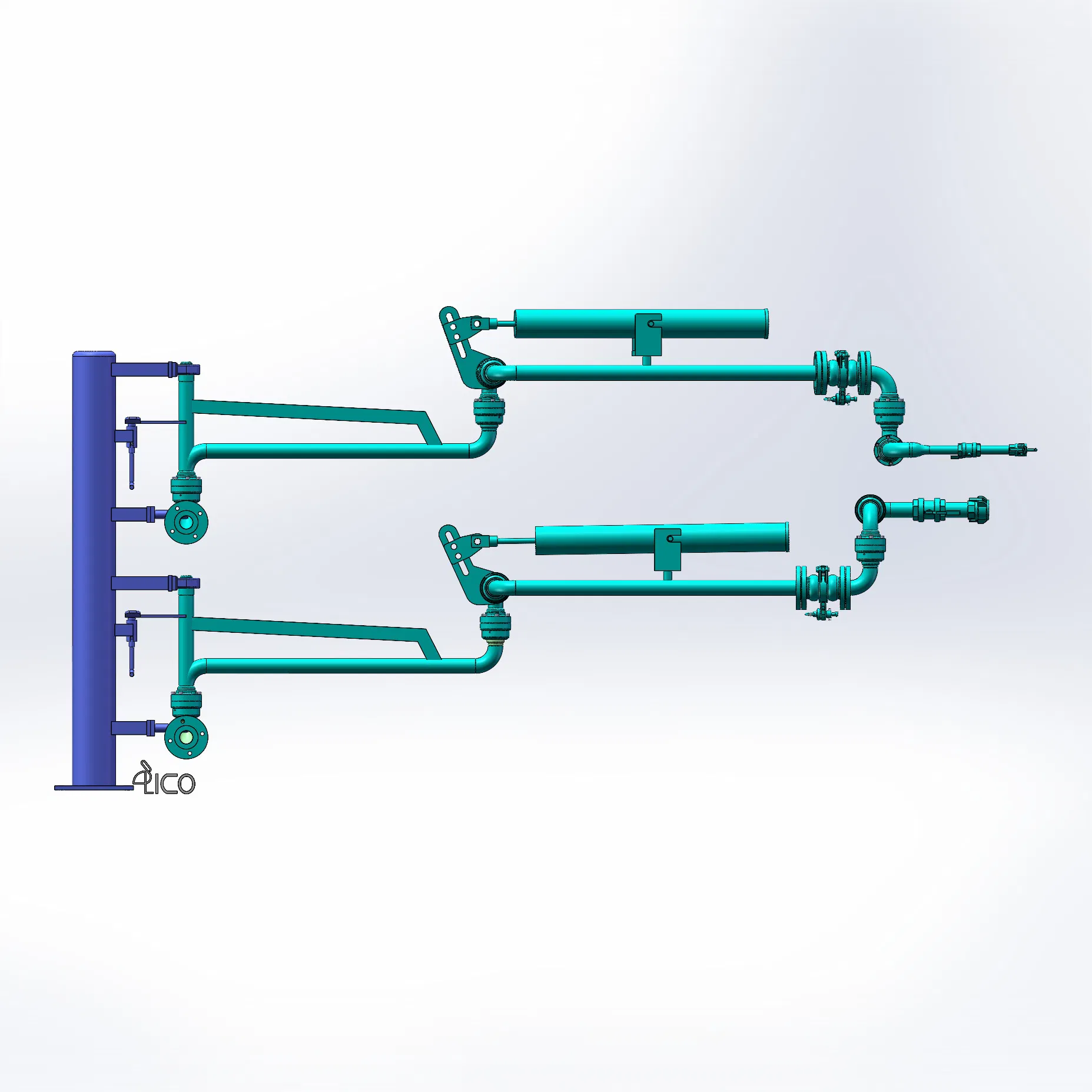

The structure for AL2543 land loading arm:
AL2543 is a bottom-loading crane tube, suitable for bottom-loading and unloading operations of trucks and trains for highly volatile chemical media such as liquefied petroleum gas (LPG), liquid ammonia, and dimethyl ether. It consists of upper and lower loading and unloading pipelines. Five swivel joints enable the crane tube to flexibly connect to tank trucks. Key components are made of alloy steel and other materials, ensuring good sealing and flexible rotation, thus effectively guaranteeing the safety and efficiency of loading and unloading.
Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.
| Places Applied | Bottom closed loading or unloading |
| Applications | Products easy to gasify at normal temperature and pressure (LPG, Ammonia, Chlorine) |
| Nominal Diameter | DN50~DN80 (liquid), DN25~DN50 (vapour) |
| Working Temp | -196℃ ~ 250℃ |
| Working Pressure | PN1.0 ~ PN4.0 |
| Pipeline Material | Carbon steel, stainless steel, aluminum, PTFE lined, etc. |
Workshop Production:
On-Site Installation:
We are mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as automation control systems. Our products include loading arms, floating roofs, marine arms, network shells, movable ladders, and skid-mounted equipment.
We are a professional manufacturer where products are widely used in large and medium-sized petrochemical enterprises. Our equipment is exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc. We attach great importance to talent development and strictly control product quality, regarding quality as the cornerstone of development.
