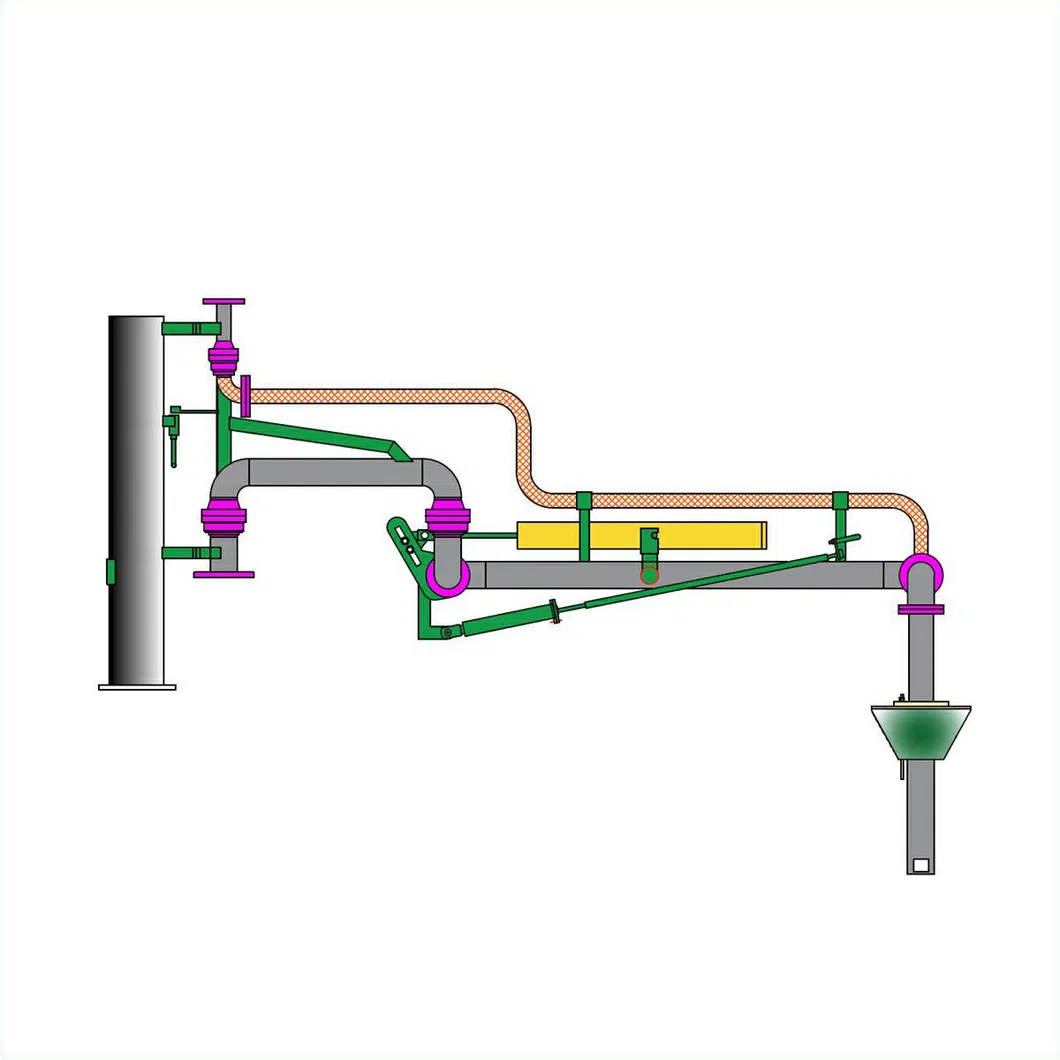

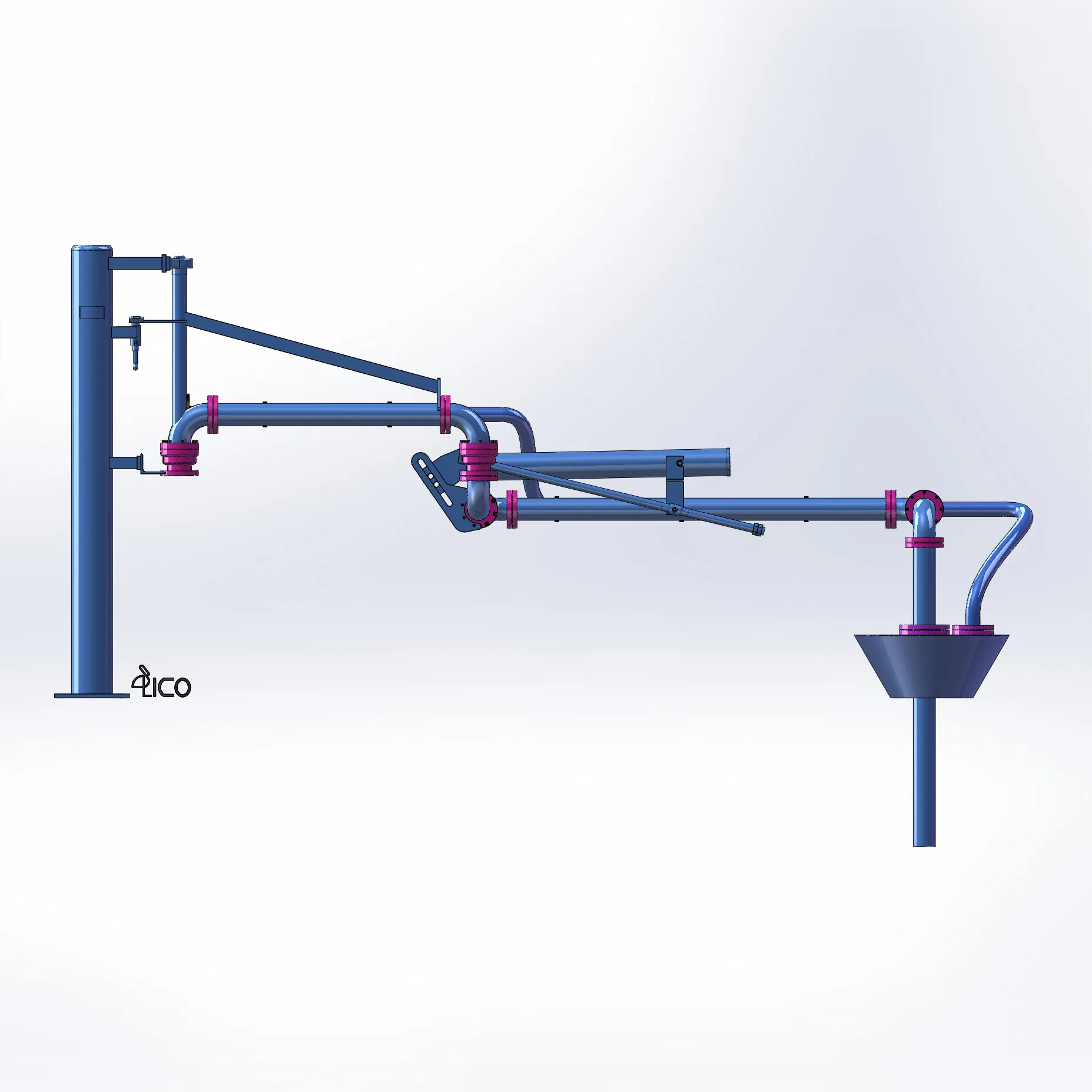

The structure of AL1412 Loading arm:
AL1412 loading arm is designed for top closed loading, suitable for handling volatile and toxic media. Equipped with vapor and liquid pipes, the vapor pipe is commonly DN50, and the liquid pipe is determined by the flow rate. With a design temperature from -196°C to 250°C and pressure from -0.08MPa to 6.0MPa, it can effectively recover volatile gases and reduce leakage risks.
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.
By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal. According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.
Our loading arm on site & in workshop:
| AL1402 Typical Loading Arm Technical Data | |
|---|---|
| Places Applied | Top open loading |
| Applications | Product oil, chemicals |
| Nominal Diameter | DN25~DN200 (1"~8") |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |
Our company is mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Its products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc., and it is a high-tech enterprise.
We are a professional manufacturer of petrochemical storage and transportation machinery and automatic control systems. Our products are widely used in large and medium-sized petrochemical enterprises. Products such as loading arms, jibs, floating roofs, movable ladders and skid-mounted equipment are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc., and have been recognized by domestic and foreign customers. The company attaches great importance to talent development and strictly controls product quality, regarding "quality" as the cornerstone of its development.
We will continue to adhere to product technological innovation, closely track the development status of domestic and foreign petrochemical storage and transportation equipment, continuously strengthen the technological R&D of independent products, and provide customers with high-quality products featuring cutting-edge technology, superior quality, energy conservation and environmental protection.
