1. LPG Storage Tank & Underframe: High-durability integrated design.

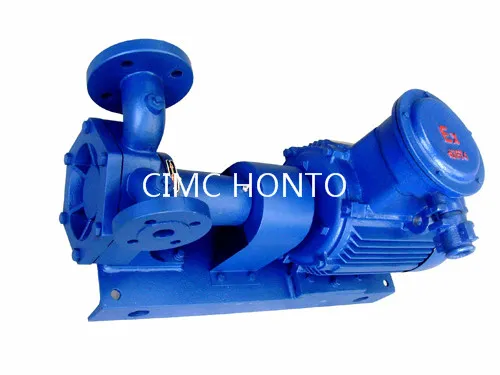

2. Pipeline & Pump System: Includes LPG filling pump and comprehensive pipeline network.

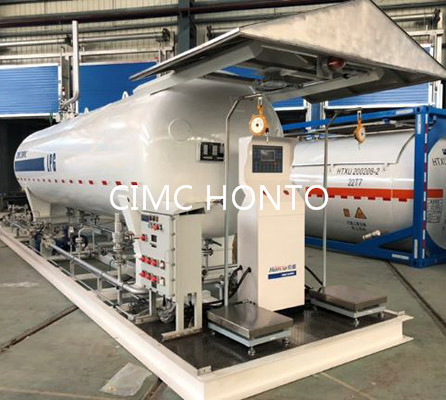

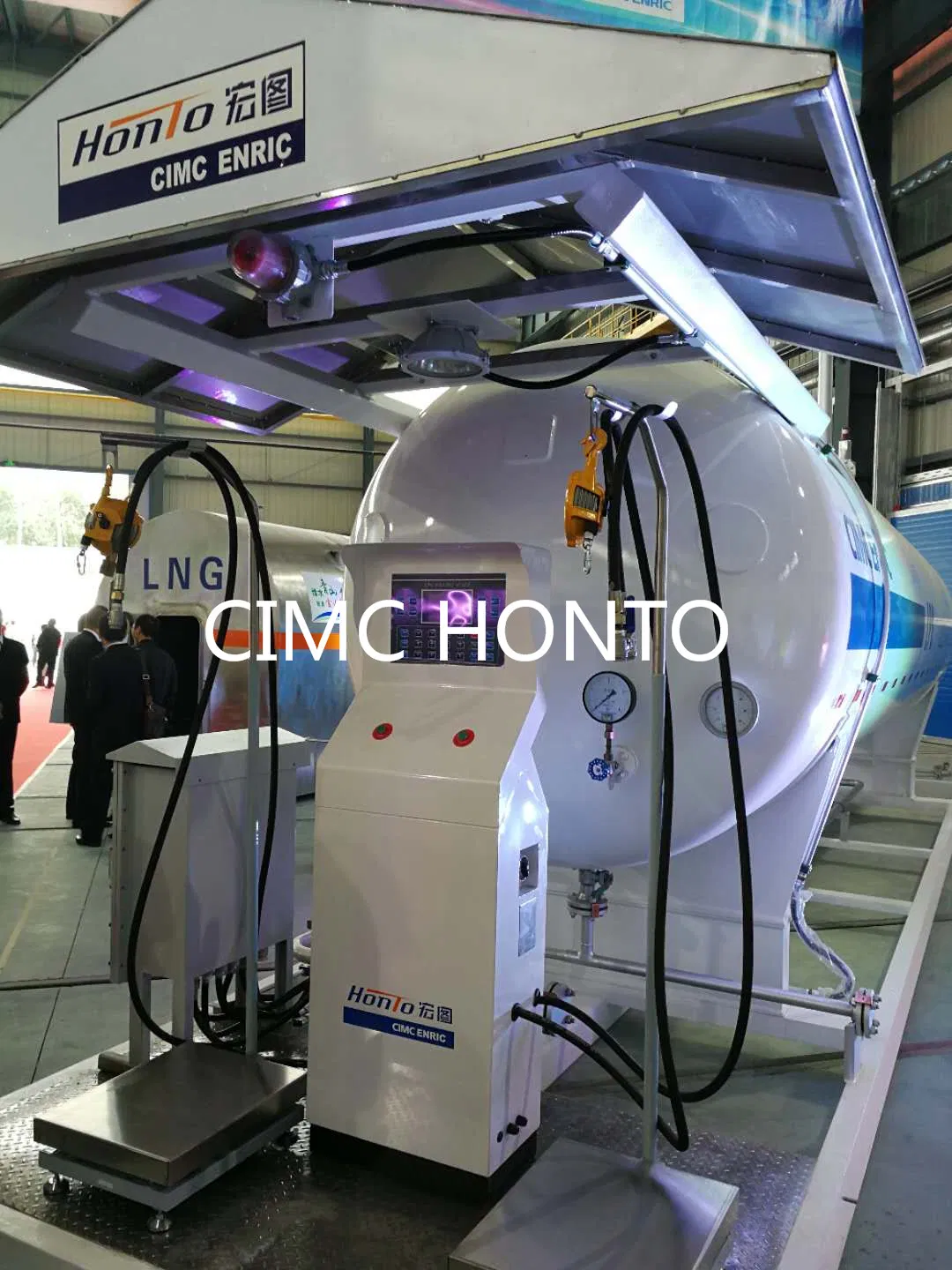

3. Control & Measurement: Equipped with LPG filling scale or dispenser and electrical control system.

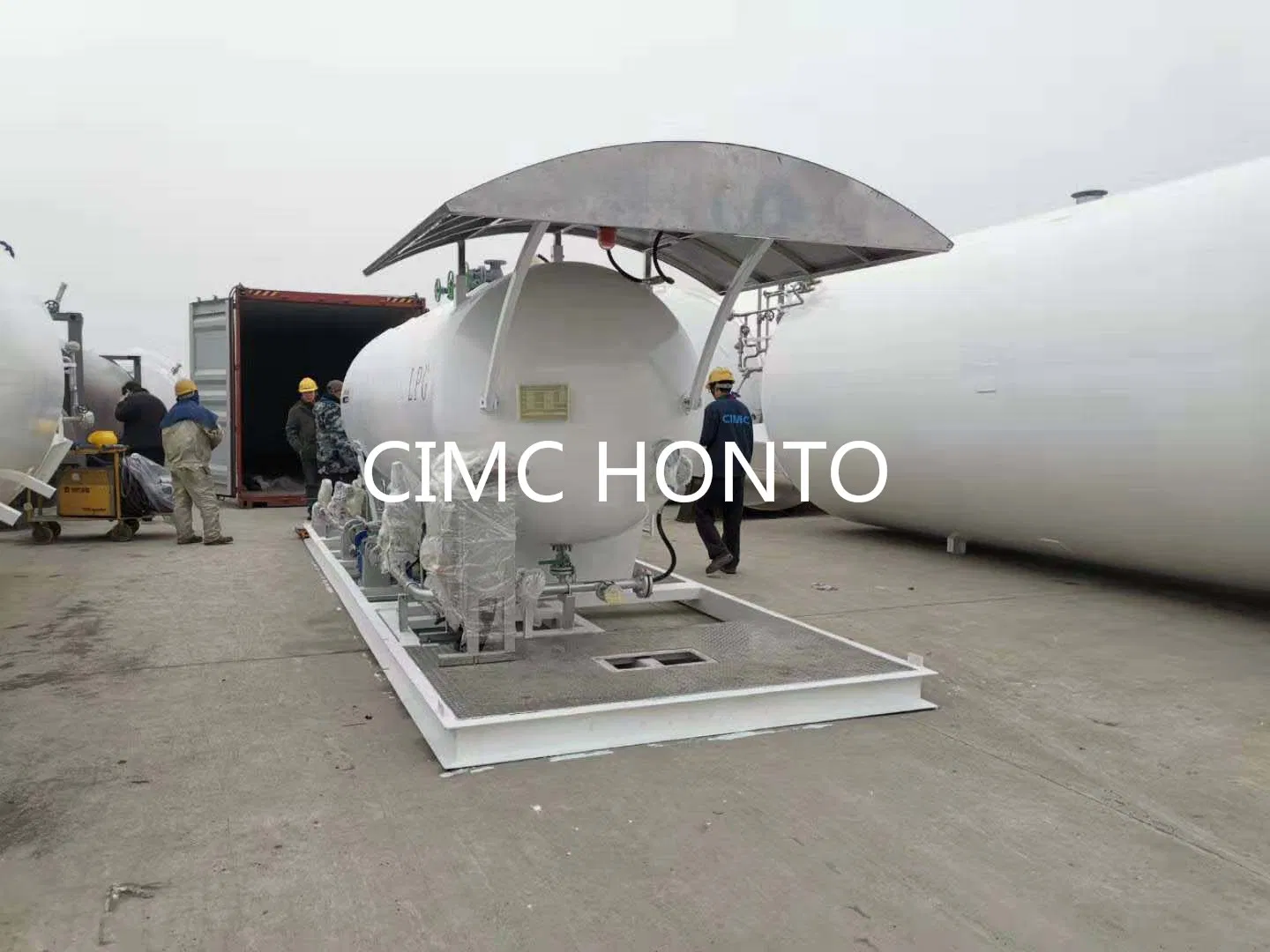

4. Additional Features: Sunshed, compressor, and signal transmitters for remote monitoring are available.

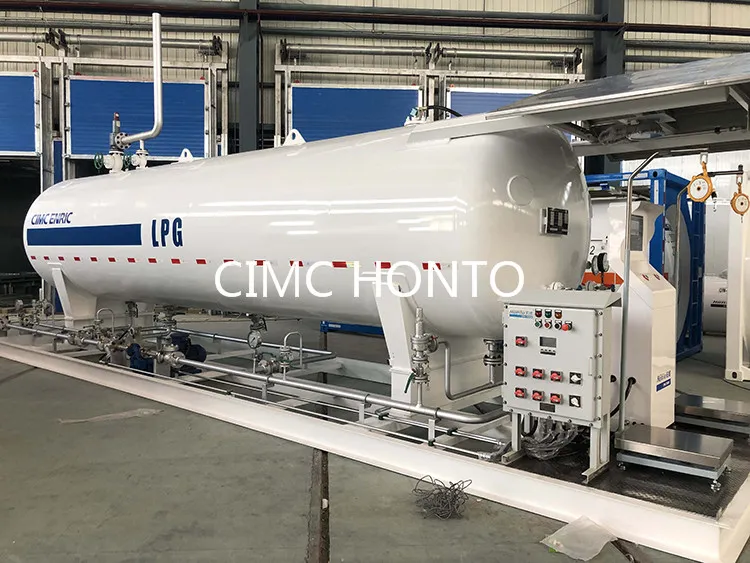

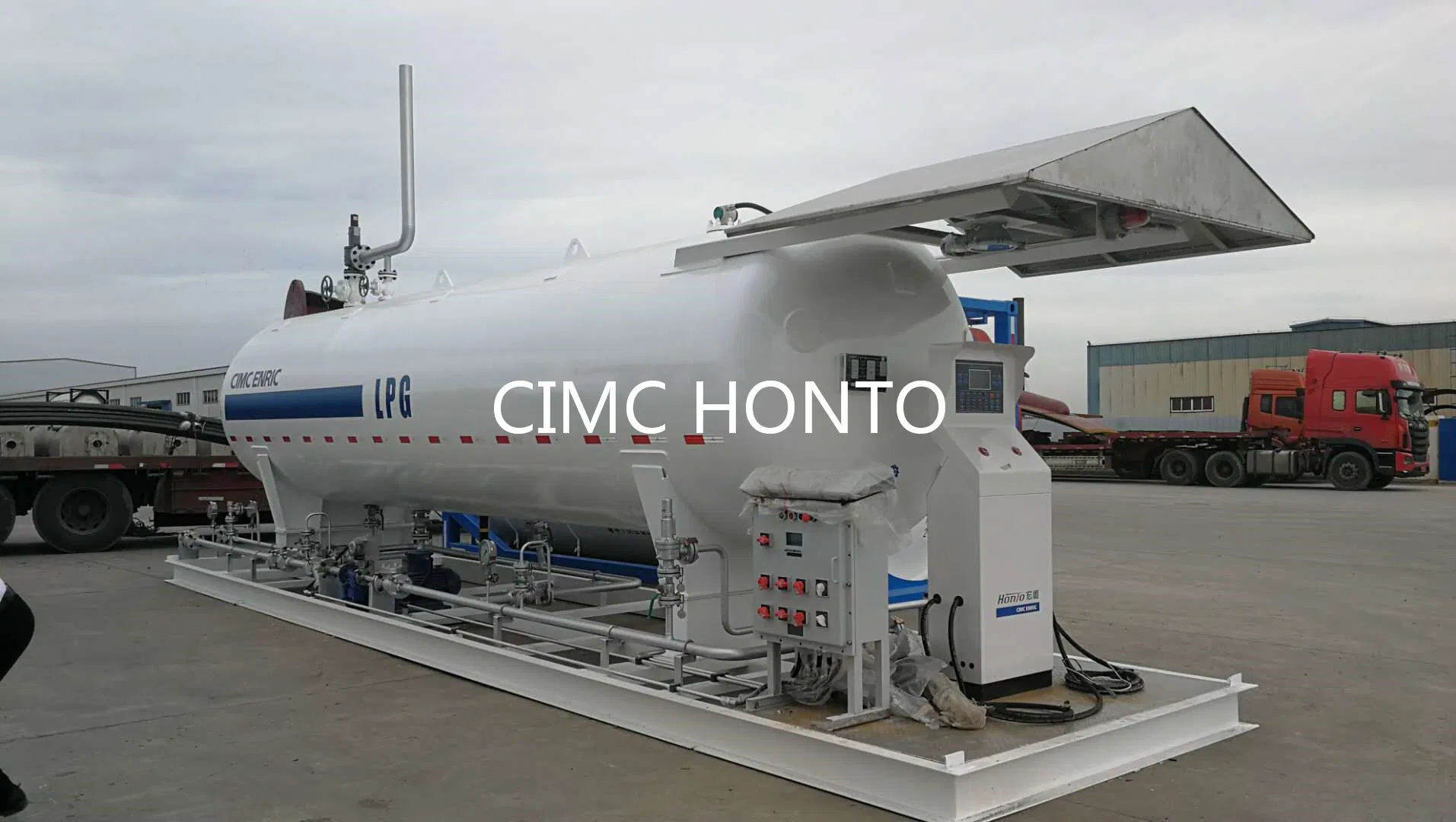

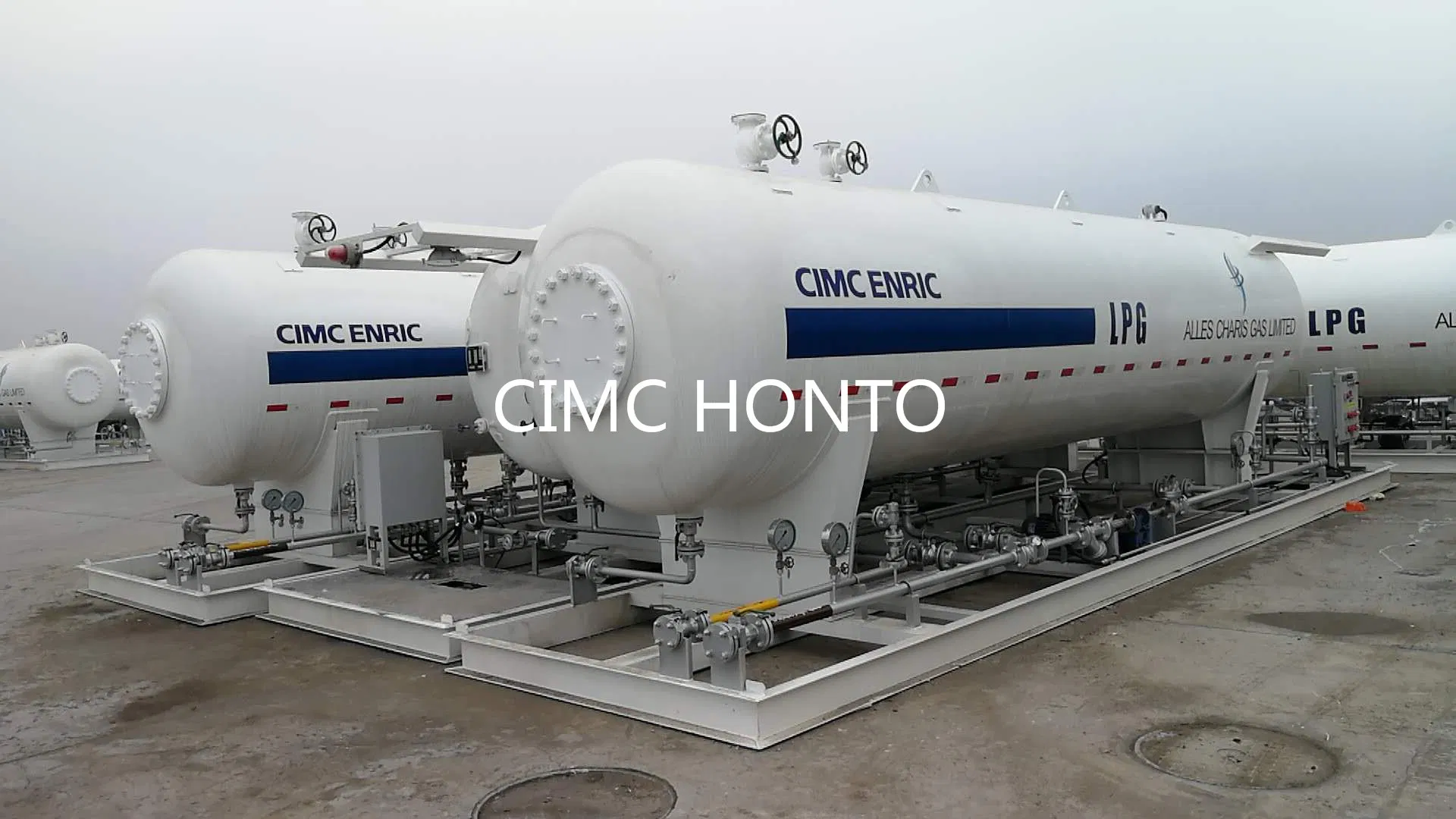

This integrated equipment is designed for metering civil LPG storage. The skid design incorporates the tank, piping, hydrocarbon pump, and filling scale. It supports unloading from tankers, bottling for cylinders, and safe reflux functions.
| Technical Parameter | 10m³ Specification | 20m³ Specification |
|---|---|---|
| Filling Weight (kg) | 4035 | 8070 |
| Design Pressure (Mpa) | 1.61 | |
| MAWP (Mpa) | 1.77 | |
| Design Temperature | -20ºC ~ 50ºC | |
| Shell/Head Thickness | 10mm/10mm | 12mm/13mm |
| Tank Material | Q345R | |

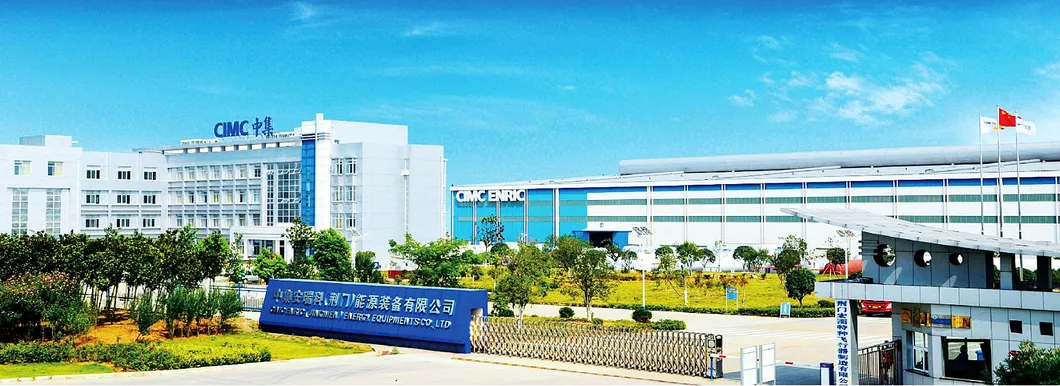

Established in 1971, the company has transitioned from aviation technology roots to becoming a leader in hazardous chemical storage and transportation equipment. With over 1,300 employees and 130,000 m² of workshop area, the company specializes in R&D for normal and cryogenic storage solutions, EPC services, and chemical equipment.
Holding ASME "U" and "U2" stamps, the manufacturer provides global solutions for LPG industrial chains, serving over 40 countries across North America, Southeast Asia, and Africa.
