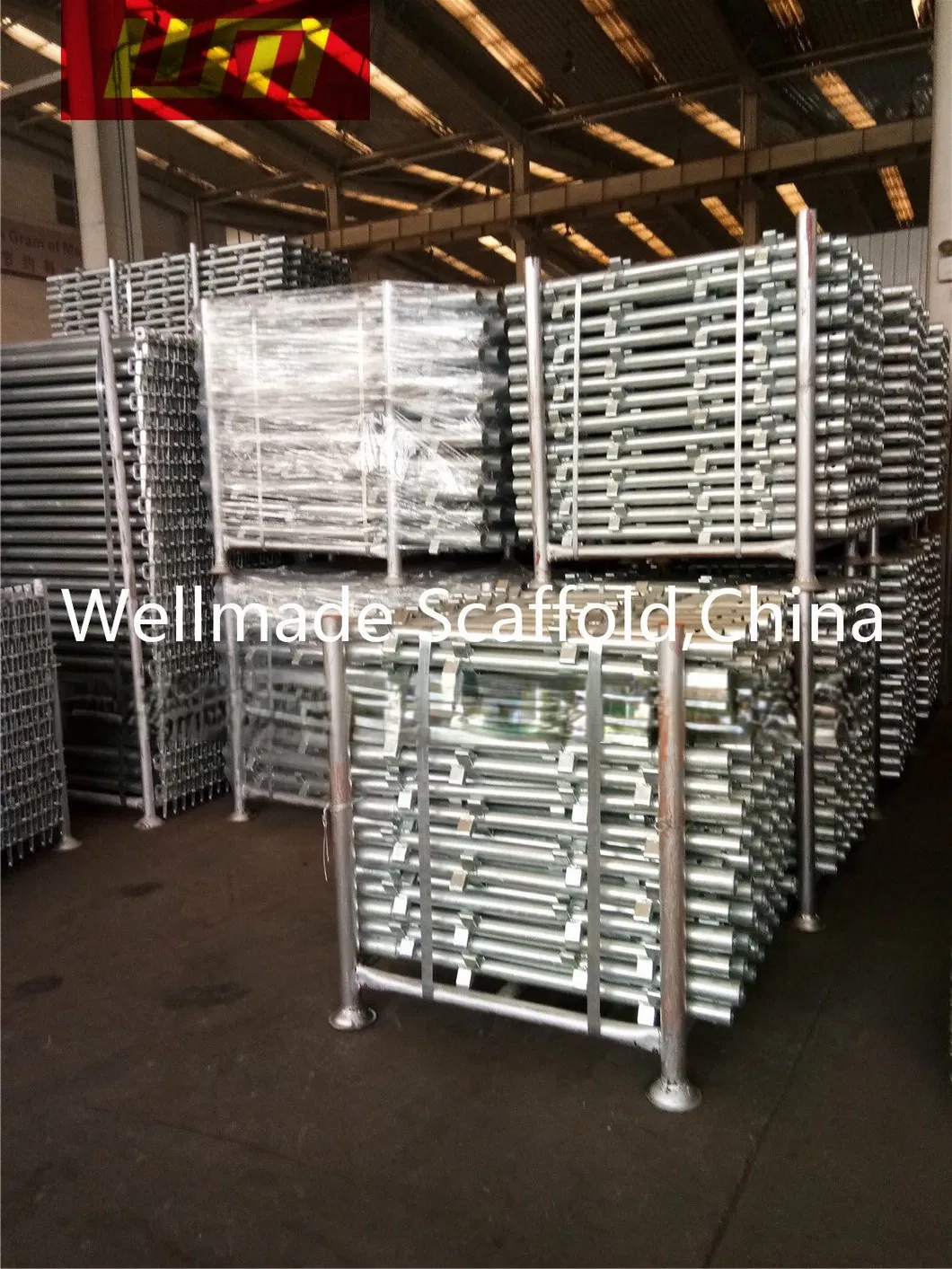

Kwikstage Scaffolding System AS/NZS 1576 Standard
System Scaffoldings are made of high-strength structural steel under guidance of ISO accreditation. Certified by AS/NZS 1576 and AS/NZS 1577, this system meets all scaffolding needs for Industrial, Commercial, and Residential Construction Projects, as well as Oil & Gas Service, Offshore & Onshore Engineering, and Shipbuilding Service. Each component undergoes rigorous testing to ensure the highest possible standard of quality.
| Description | Specification | Length | Surface Finish | Steel Grade |
|---|---|---|---|---|
| Standard | 48.3x4.0mm | 500mm - 1500mm | Galvanized/Painted | Q235/Q345 |
| 48.3x4.0mm | 2000mm - 2500mm | Galvanized/Painted | Q235/Q345 | |
| 48.3x4.0mm | 3000mm | Galvanized/Painted | Q235/Q345 | |
| Ledger | 48.3x3.2mm | 500mm - 1200mm | Galvanized/Painted | Q235/Q345 |
| 48.3x3.2mm | 1800mm - 2400mm | Galvanized/Painted | Q235/Q345 | |
| Brace | 48.3x3.2mm | 500mm - 1200mm | Galvanized/Painted | Q235/Q345 |
| 48.3x3.2mm | 1800mm - 2400mm | Galvanized/Painted | Q235/Q345 | |
| Transom | 50.0x50.0x5.0mm | 500mm - 1200mm | Galvanized/Painted | Q235/Q345 |
| 50.0x50.0x5.0mm | 1800mm - 2400mm | Galvanized/Painted | Q235/Q345 |
| Standard Compatibility | EN 12810, AS/NZS 1576, BS 1139, EN 74 |
| Certification | SGS Test Report |
| Features | Automatic Welding |
| MOQ | 1x20' GP Container |
| Payment Terms | T/T, L/C |
| Delivery Time | 20-30 days after confirmation |
| Packaging | In Bulk or Steel pallet per requirements |
With over 20 years of manufacturing and exporting experience to over 55 countries, the scaffolding products have been utilized in various construction projects including Commercial and Industrial Construction, Oil, Gas & Chemicals, Power & Energy, and Mining & Refining projects.
Services range from scaffolding materials fabrication to professional engineering support for drawing and design solutions. All systems conform to ISO9001:2015 Quality Management Systems and international standards including BS1139, EN74, EN39, EN10219, EN12811, and EN12810.
