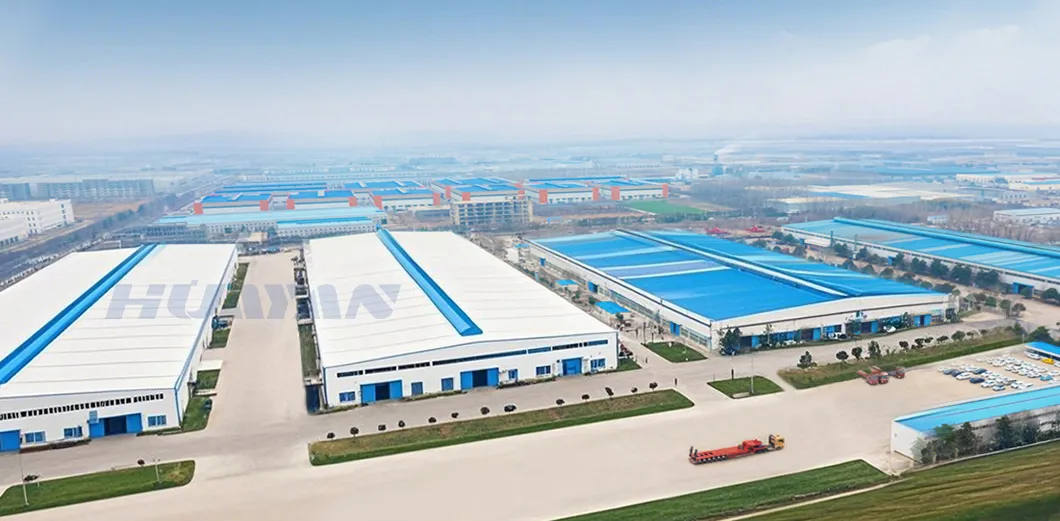

Our company was established in 2005 and is a leading integrated transportation solution provider integrating R&D, production and trade. Covering an area of 222,000 square meters, the company uses advanced automation equipment, a professional R&D team and cutting-edge manufacturing technology to provide high-quality special transportation equipment.
Our product range includes gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, powder/liquid tankers and a full range of semi-trailers for energy, hazardous chemical transportation and engineering logistics. We have more than 20 years of export experience and serve more than 30 countries globally, ensuring compliance with international technical standards such as ISO9001, ASME, and ADR.

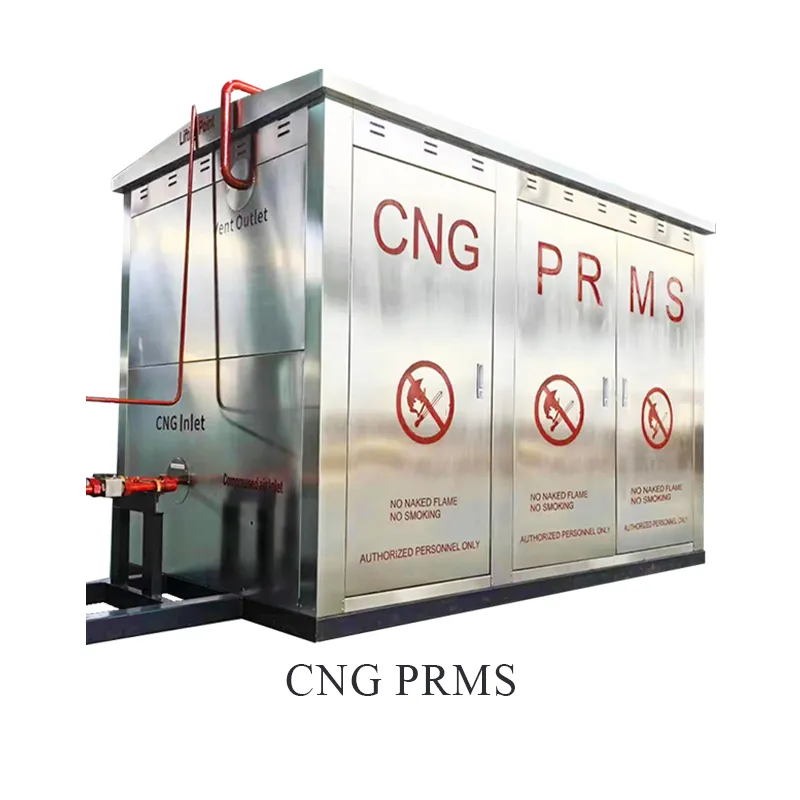

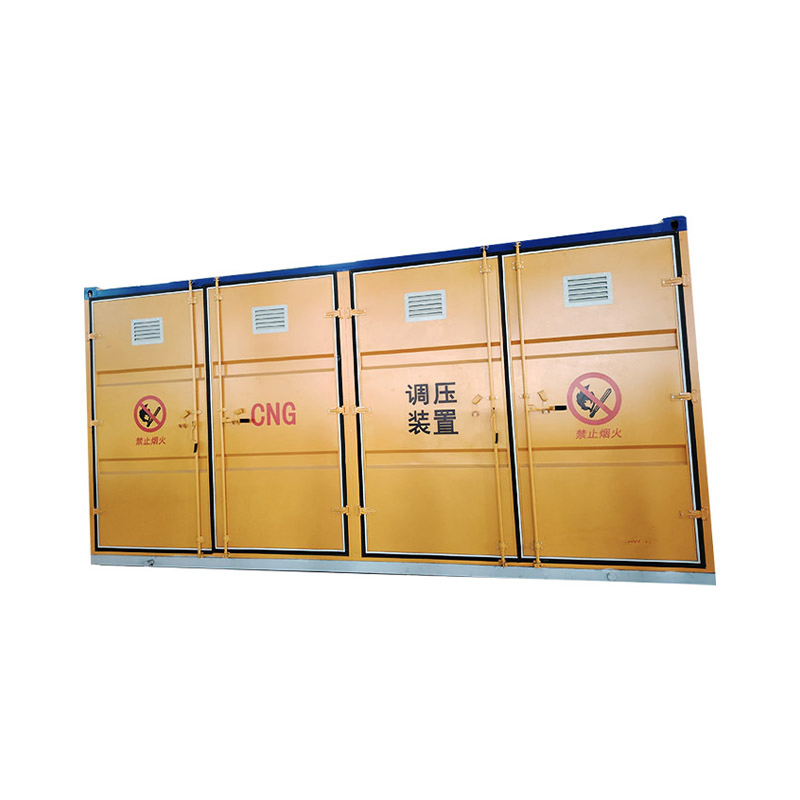

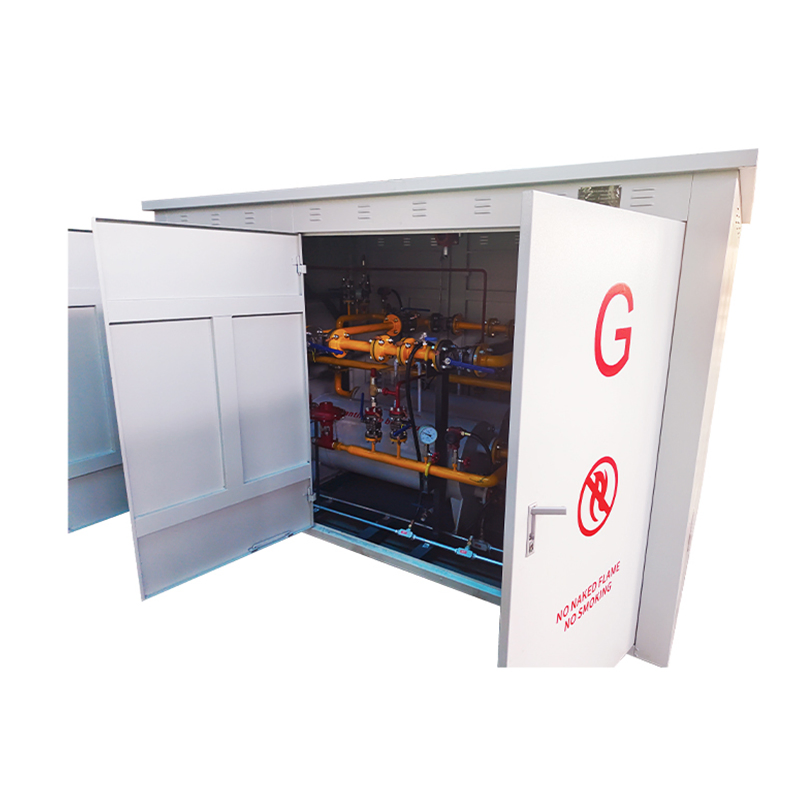

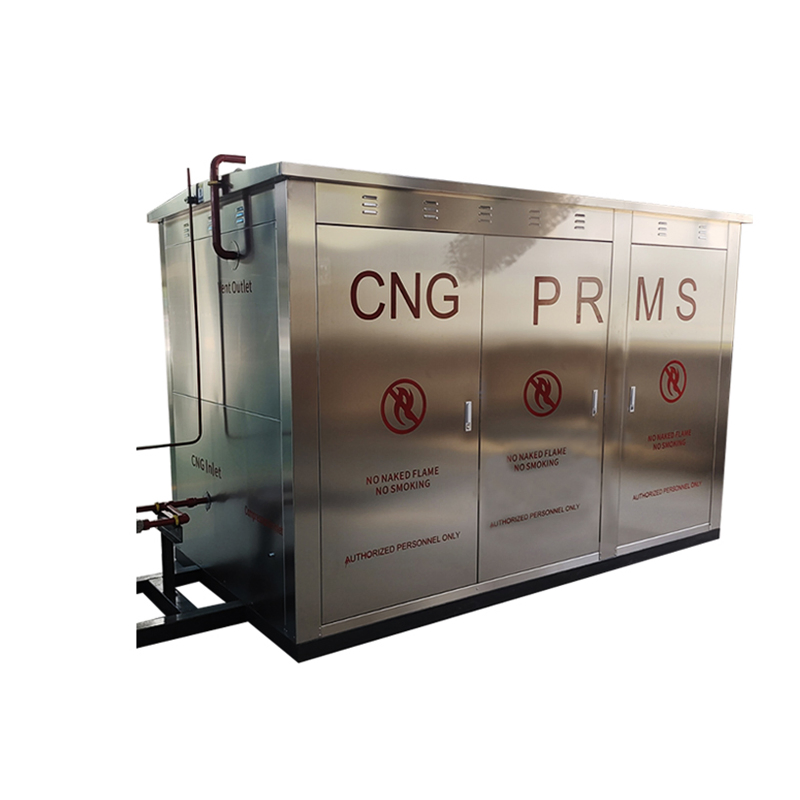

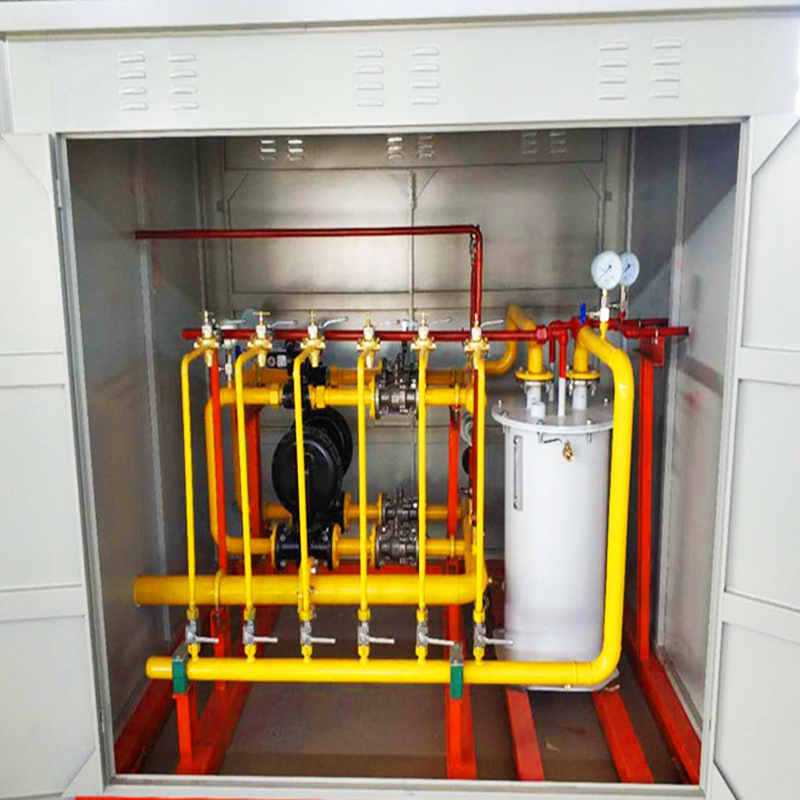

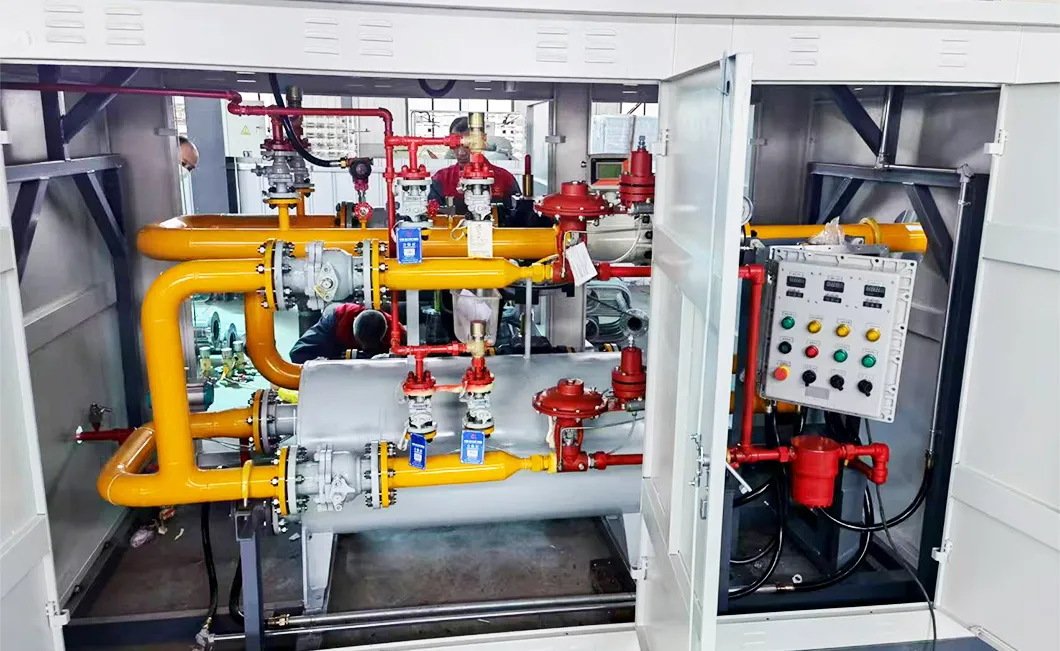

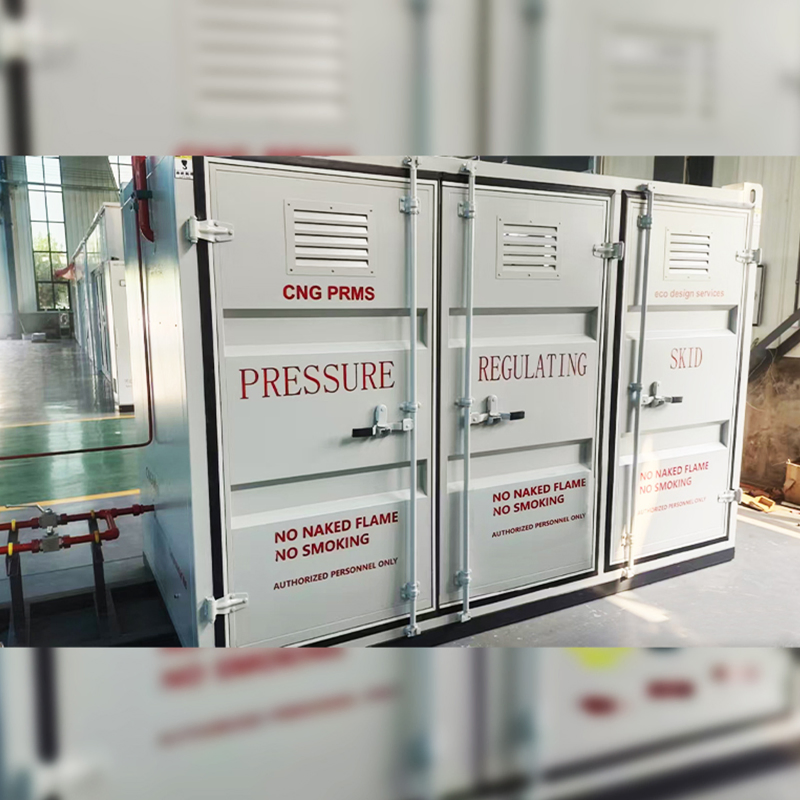

This series of pressure-regulating boxes is primarily designed for medium and low-pressure gas transmission and distribution systems. Each unit includes a filter, pressure regulator (with self-shutoff and release functions), ball valve, pressure gauge, and enclosure. The box features a compact structure, easy maintenance, and reliable safety performance.
| Technical Specifications | |
|---|---|
| Structural mode | Two-stage pressure regulation, overall skid-mounted |
| Rated gas supply | 1000m³/h |
| Inlet pressure | 25MPa |
| Outlet pressure | 0.2-0.4MPa |
| Pressure reduction level | 2 levels |
| Heat exchange level | 2 levels |
| Heat exchange temperature | 60-75ºC |
| Outlet temperature | ≥-5ºC |
| Shut-off valve power | 0.2-0.6Mpa (compressed air) |
| Alarm mode | Sound and light dual alarm |
| Medium | Compressed natural gas |
Integrates unloading pressurization, tank pressurization, gasification, metering, and electrical control. Design pressure reaches 21.8 MPa with a wide adjustment range (0.2-1.6 MPa) and flow rates from 200-2000 Nm³/h. Supports remote monitoring and unattended operation.

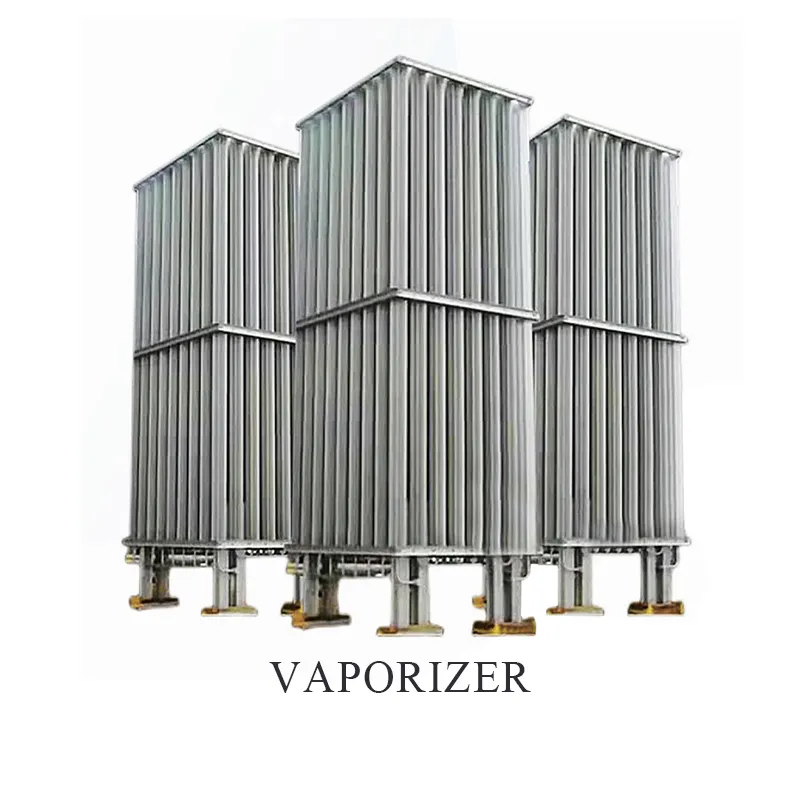

Adopting air temperature or water bath design, finishing combination (8+12 or 4+8) to reduce frosting. Maximum flow rate 8000 m³/h. Made of aluminum alloy welding and stainless steel bolts for easy maintenance.

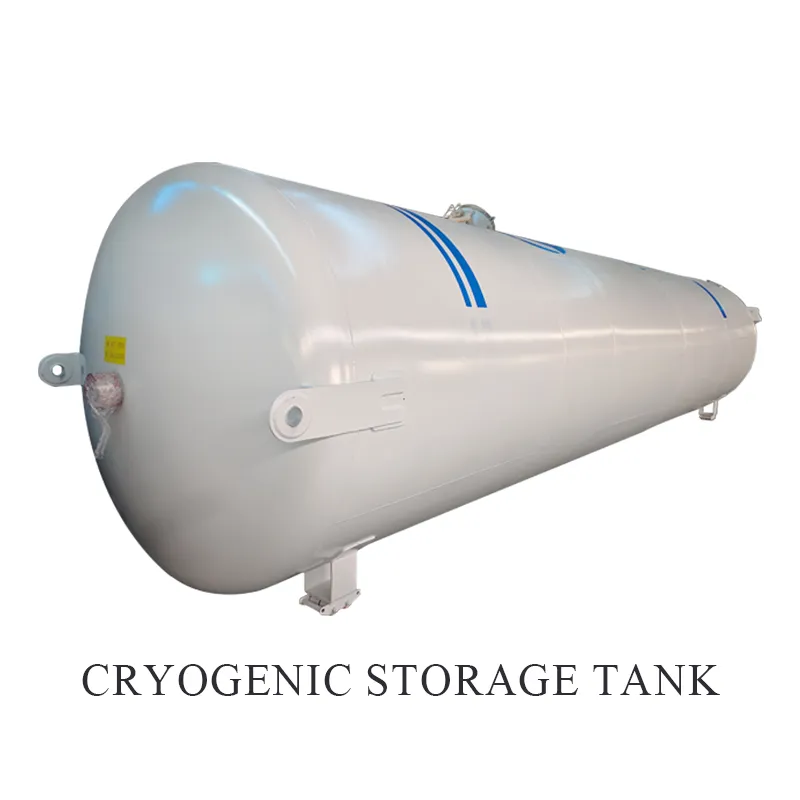

Double-layer vacuum insulation structure with a 300 mm gap filled with pearlescent sand. Volumes up to 150 m³. Equipped with safety discharge devices, fire sprinklers, and lightning rods.
Our products have passed ISO9001, 14001 and CE certificates. We provide relevant documentation meeting various national requirements to ensure global compliance and safety.
