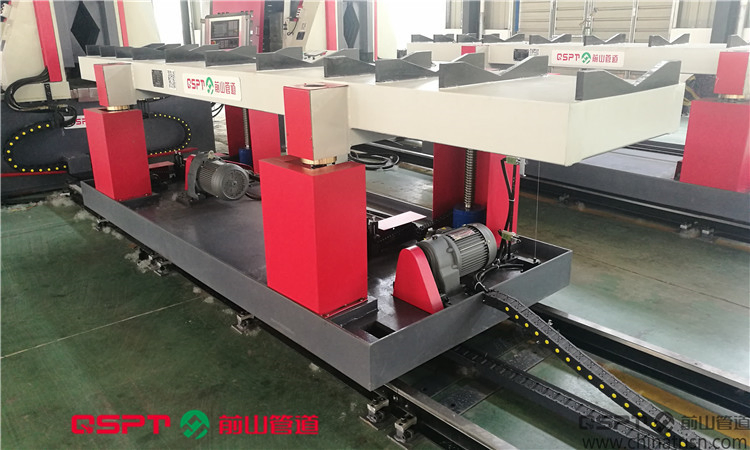

Pipe Prefabrication Automatic Conveying System

Performance Features:

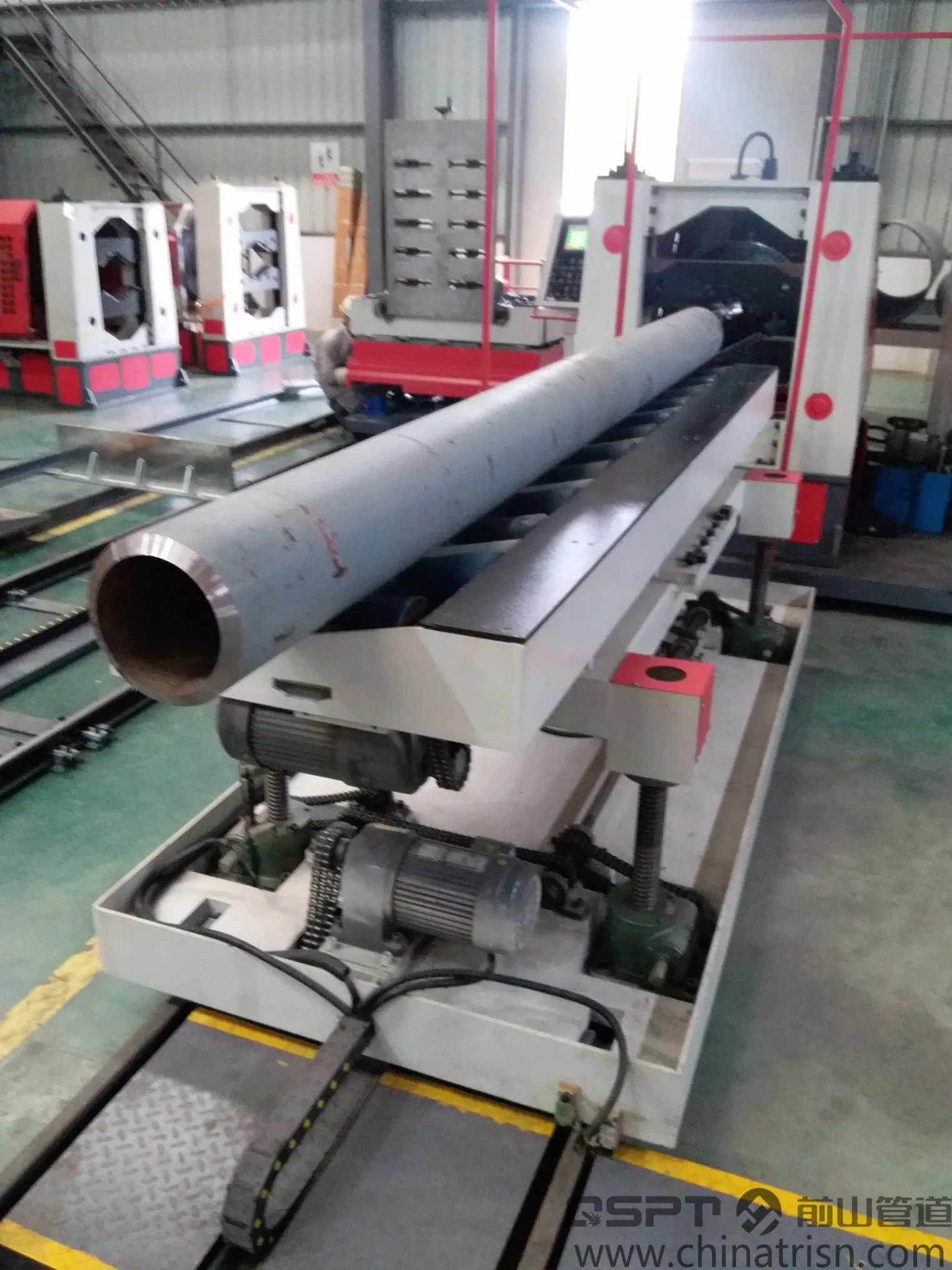

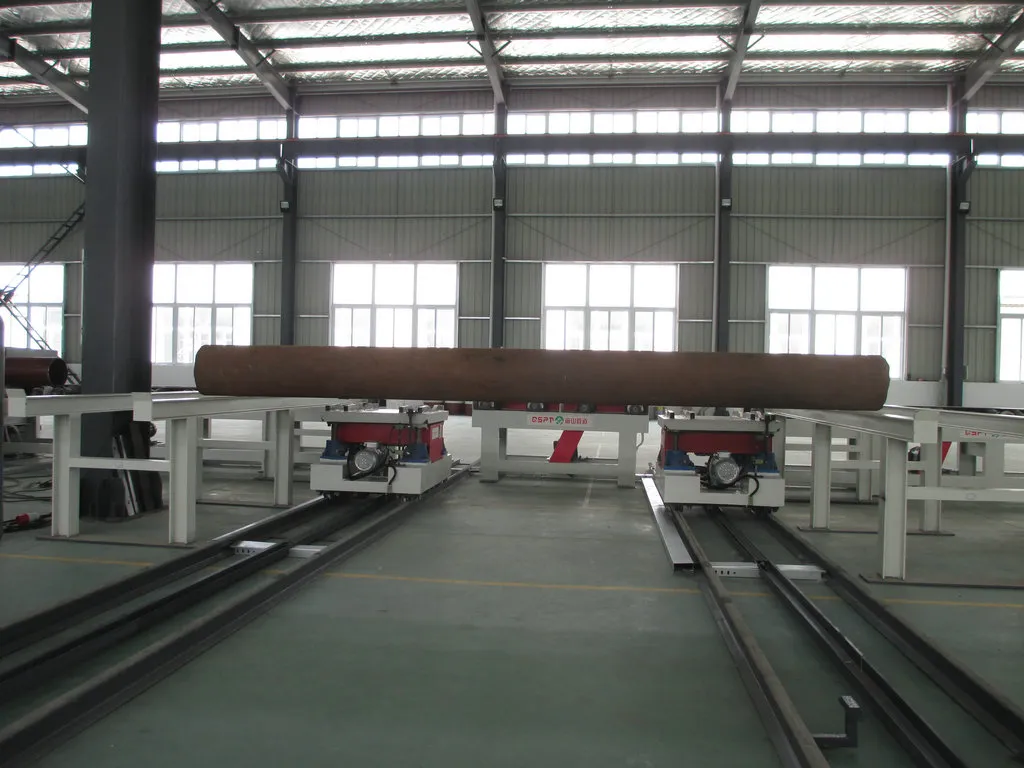

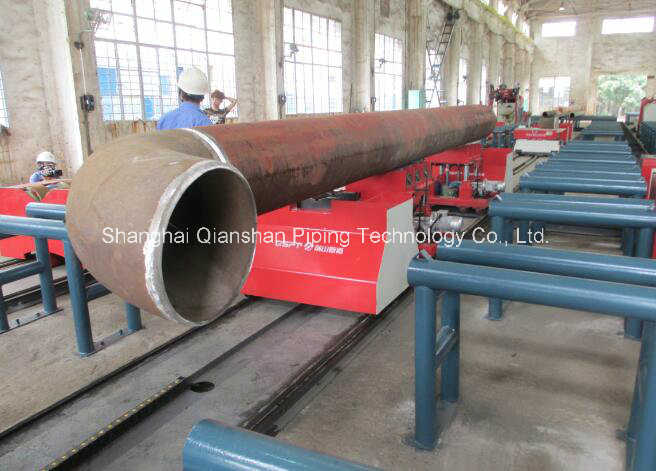

• Conveying the pipe or spool pieces transversely during beveling or automatic welding.
• Increases automatization levels in pipe fabricating plants.
• Decreases hazards during hoisting operations.

Technical Parameters:

• Pipe diameter applicable: DN50~600 (φ 60~610)
• Conveying length: ≥ 1000MM
• Line length: 7.5M
• Line height: 800MM

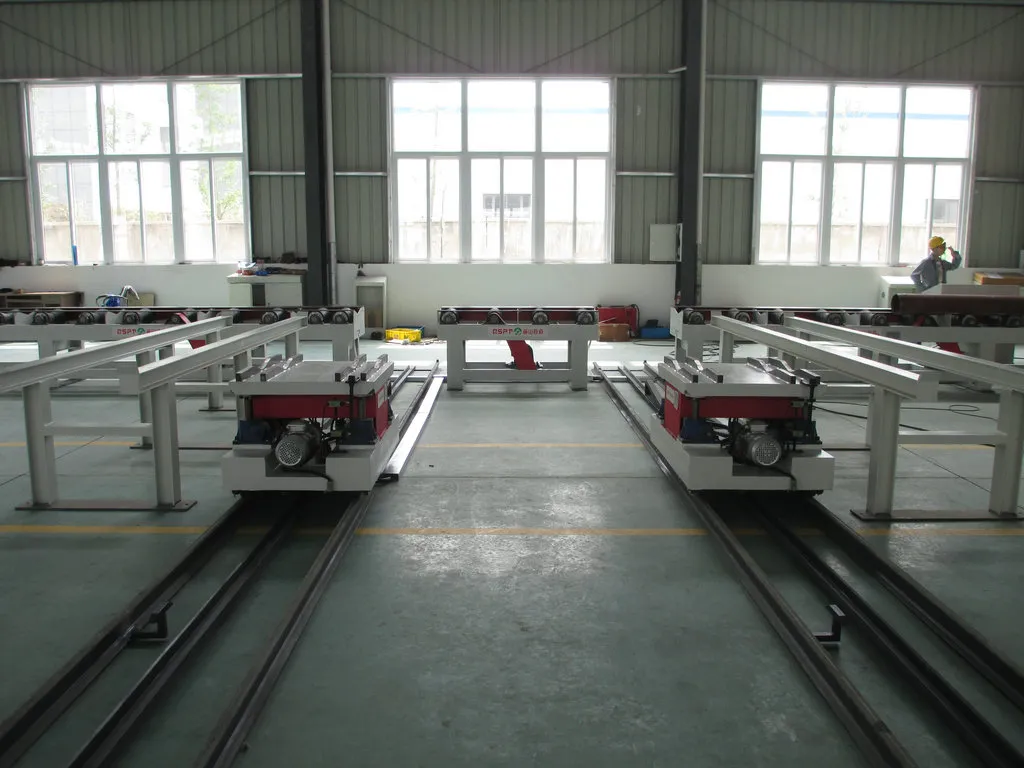

• Trolley number: 4 sets

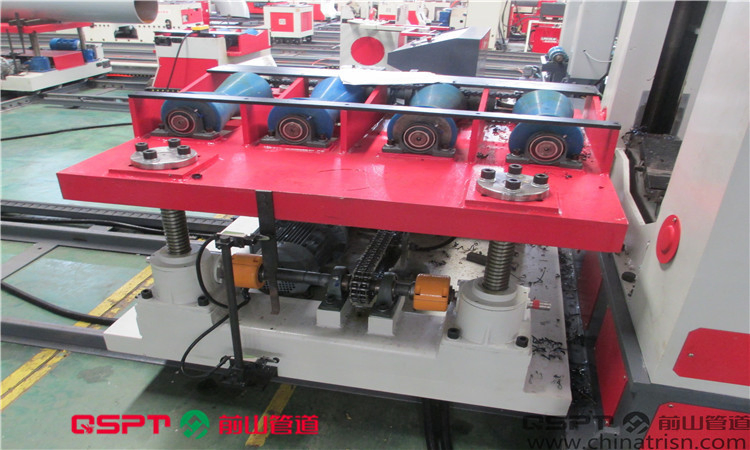

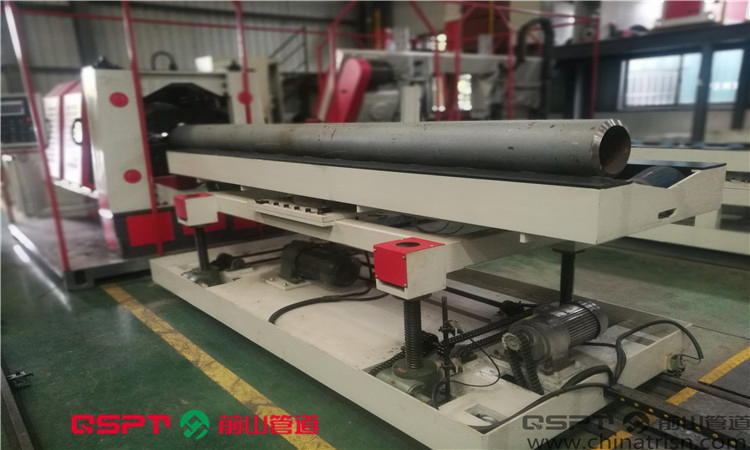

• Lifter mechanism: Screw lifter, driven electrically
• Lifter route: ± 30MM
• Conveying mechanism: Chain sprocket mechanism
• Speed of conveying: 0-10M/min
• Max loading capability: 2500KGS / 5000KGS
