Bottom Fuel Oil Products Loading Arm for Truck with Dry Break Coupler

1 / 5

Bottom Fuel Oil Products Loading Arm for Truck with Dry Break Coupler

Customization:	Available
After-sales Service:	Free Spare Parts, Video Technical Support, Field
Warranty:	1.5 Years

Send Inquiry

Product Description

Basic Information

Model NO.	AL2402
Certification	ISO 9001:2008
Power Source	Manual Operated
Applicable Medium	Crude Oil, Liquid Service Product
Nominal Diameter	DN100
Pipelines' Material	Carbon Steel, Stainless Steel, etc
Application	Gasoline, Diesel, Oil Product and Chemicals

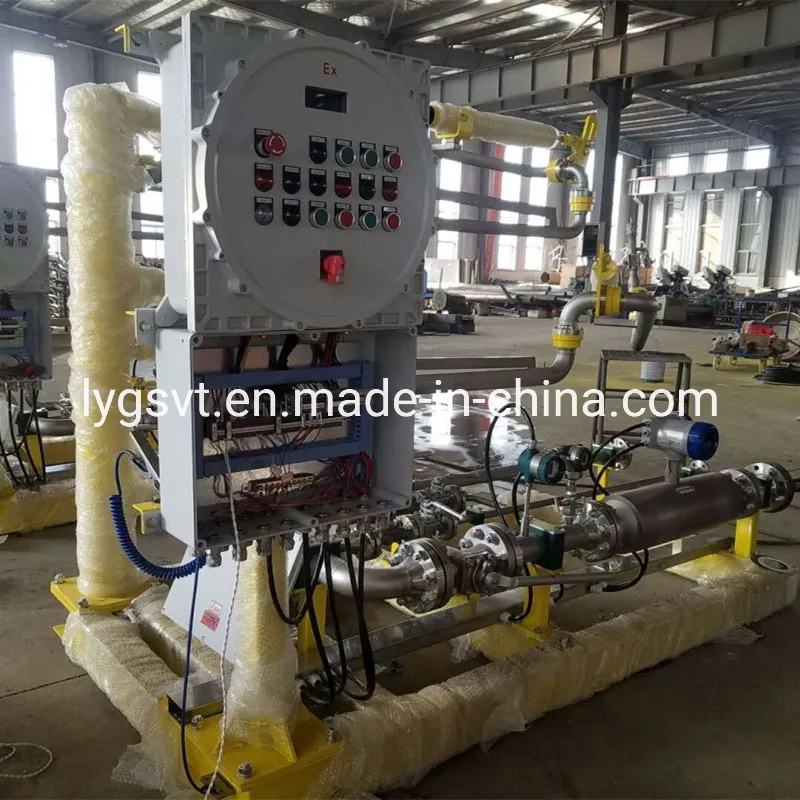

Accessories	Metering System, Overfill Prevention, Grounding
Type of Loading	Bottom Loading and Unloading
Transport Package	Plywood Case, Metal Frame, or Custom-Built
Production Capacity	3000 Sets/Year

Product Description

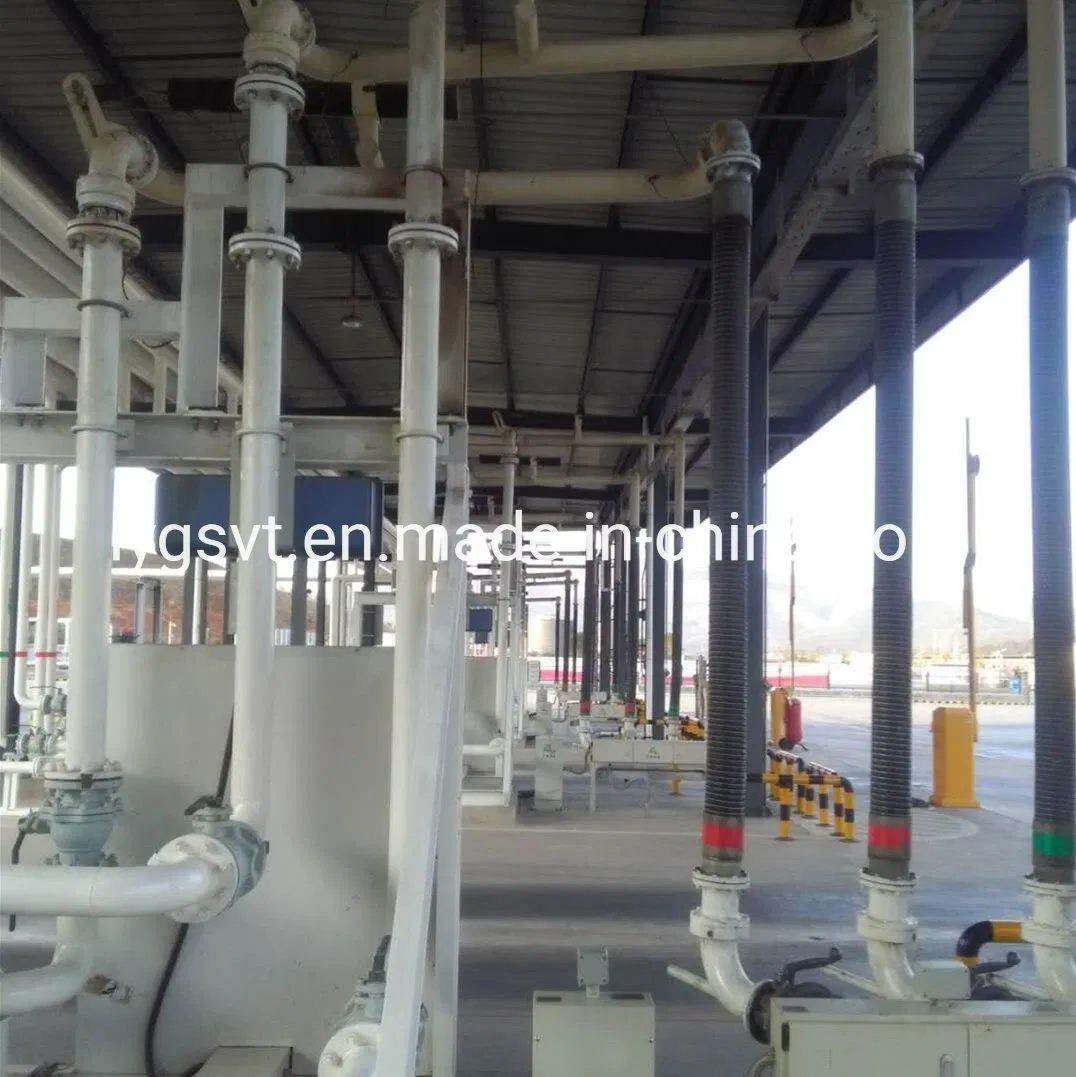

Loading Arm System

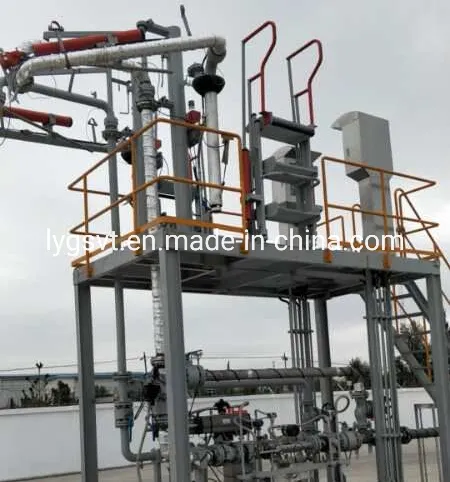

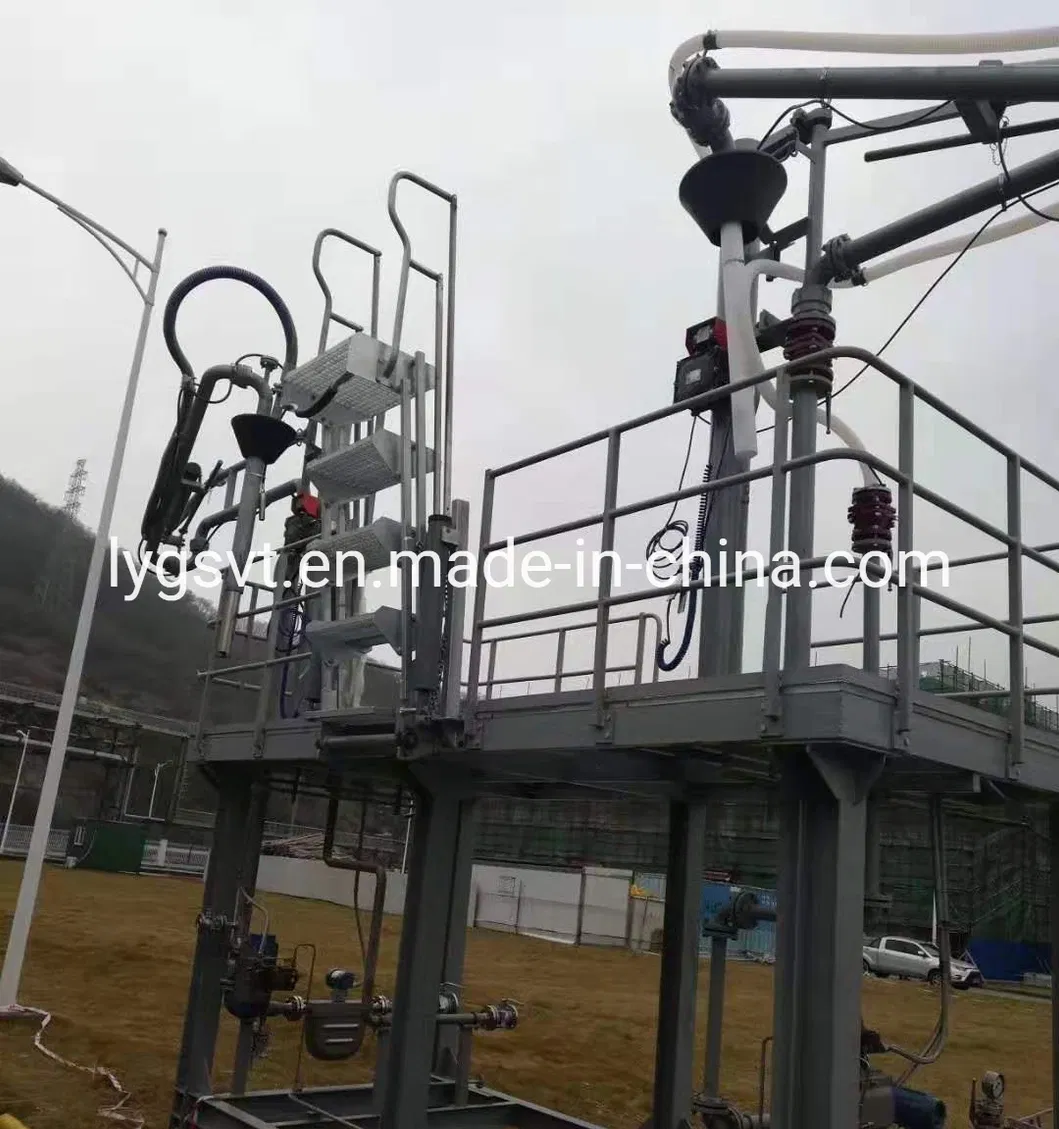

Our land loading arm is specifically designed for transporting fluid between piping systems and tankers. It is tailored to accommodate various tanker designs, liquids, and specific site conditions. To provide a comprehensive solution, the system can be equipped with loading platforms, folding stairs, and safety cages.

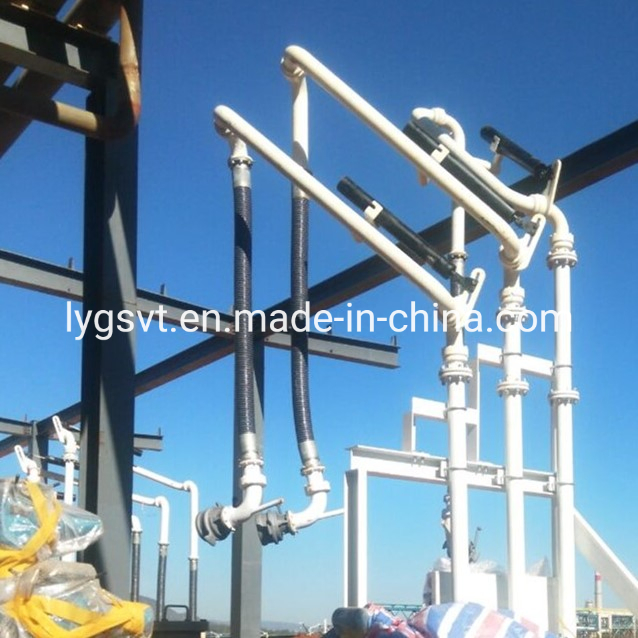

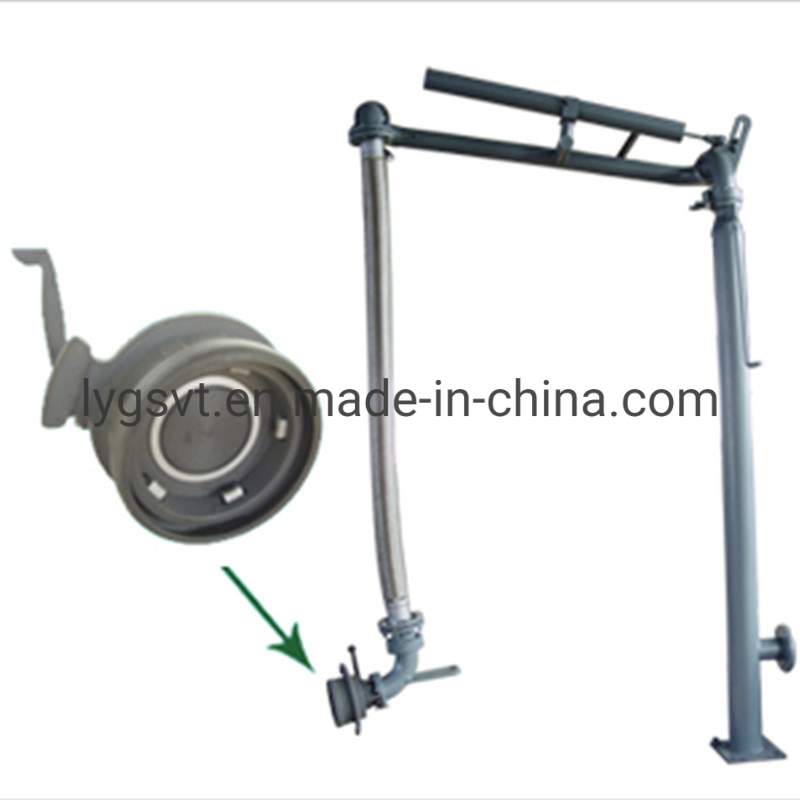

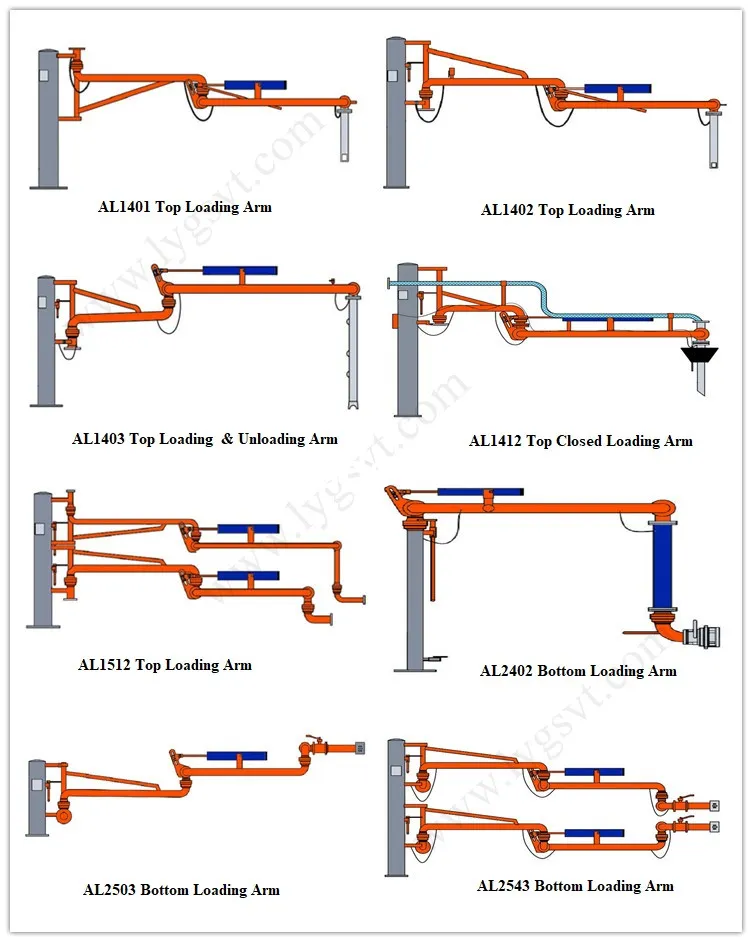

Bottom Loading Arm (RP1004)

The RP1004 bottom loading arm consists of a loading arm, dry-break coupler, and specialized valves. It is engineered for tankers featuring vapor and oil recovery systems. The dry-break coupler meets international standards including AP RP 1004.

Accommodates up to 6 arms per station working simultaneously.
Independent operation without interference.
Compatible with quantitative loading control and overfill prevention ESD systems.

Key Features

Simple structure with easy, intuitive operation.
Advanced Swivel Joint design for easy sealing ring replacement and leak prevention.
Spring cylinder balancing for smooth movement and effortless adjustment.
Integrated accessories: Ball Valve, Breakaway Coupler, Purge/Drain Lines, Position Indicators, and Pressure Gauges.

Product Parameters

Technical Specifications
Product Name	Petroleum & Chemicals Loading Arm
Service Product	Chemicals, Oil and other products
Nominal Diameter	DN100 (4")
Design Pressure	-0.08 Mpa ~ +2.5 MPa
Design Temperature	-196°C ~ +110°C
Pipe Material	Carbon steel, stainless steel, low-temperature steel, PTFE lined
Balancing	Spring Cylinder Balancing

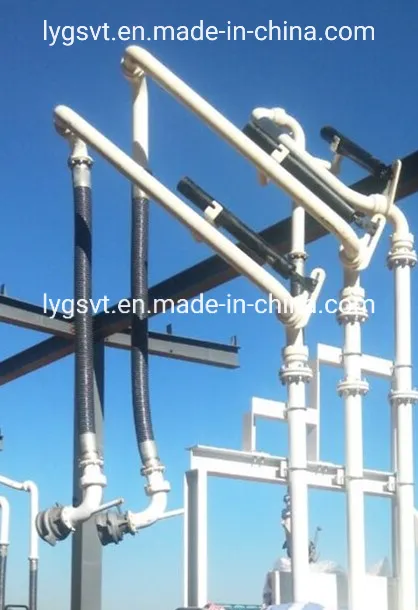

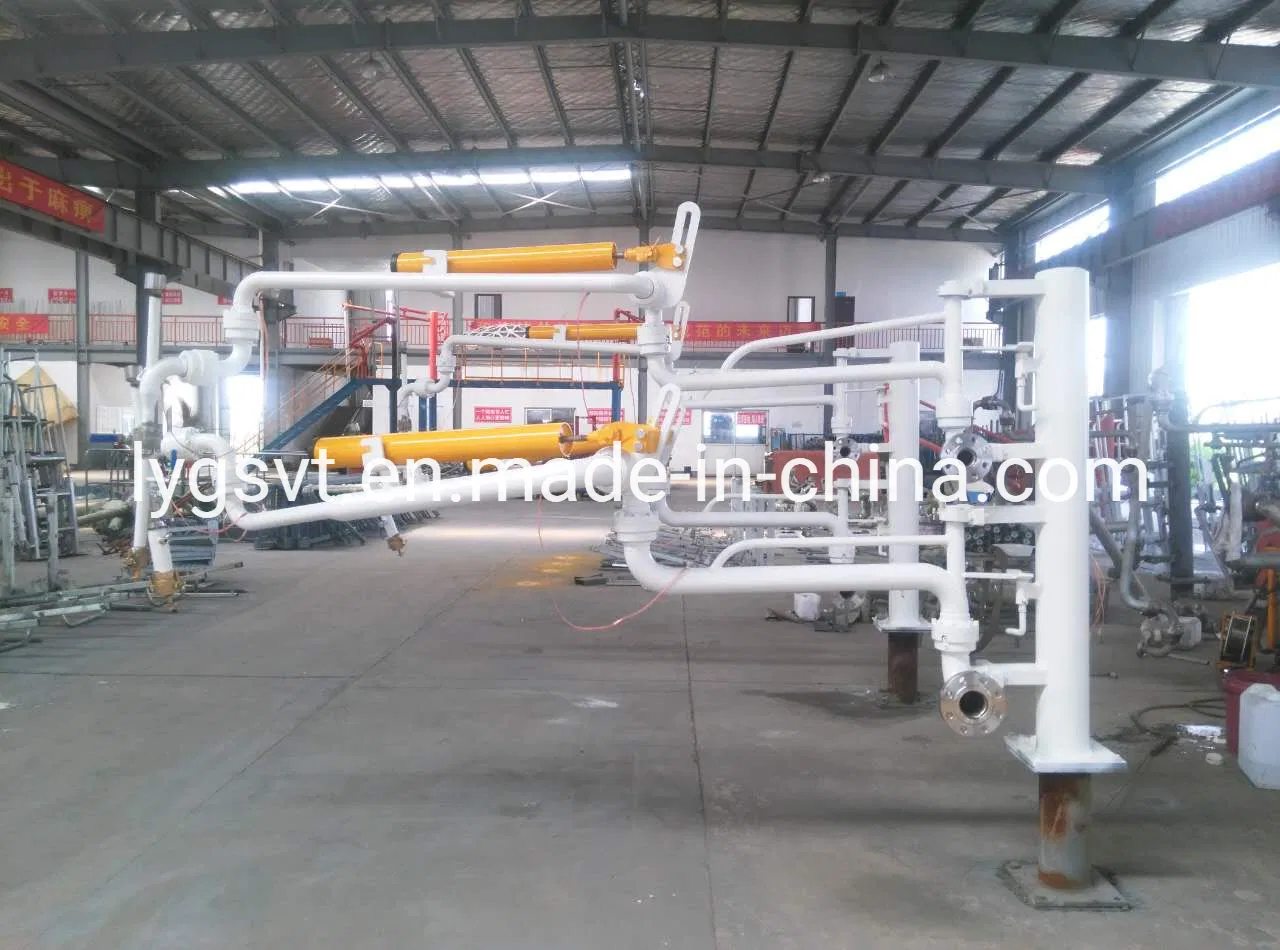

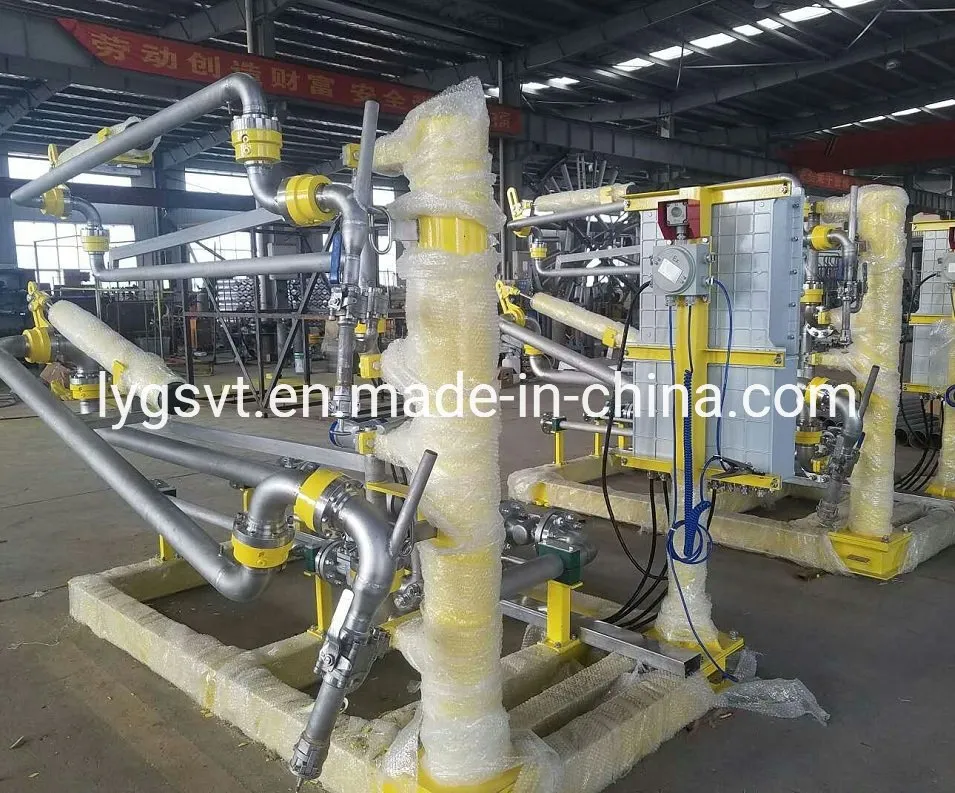

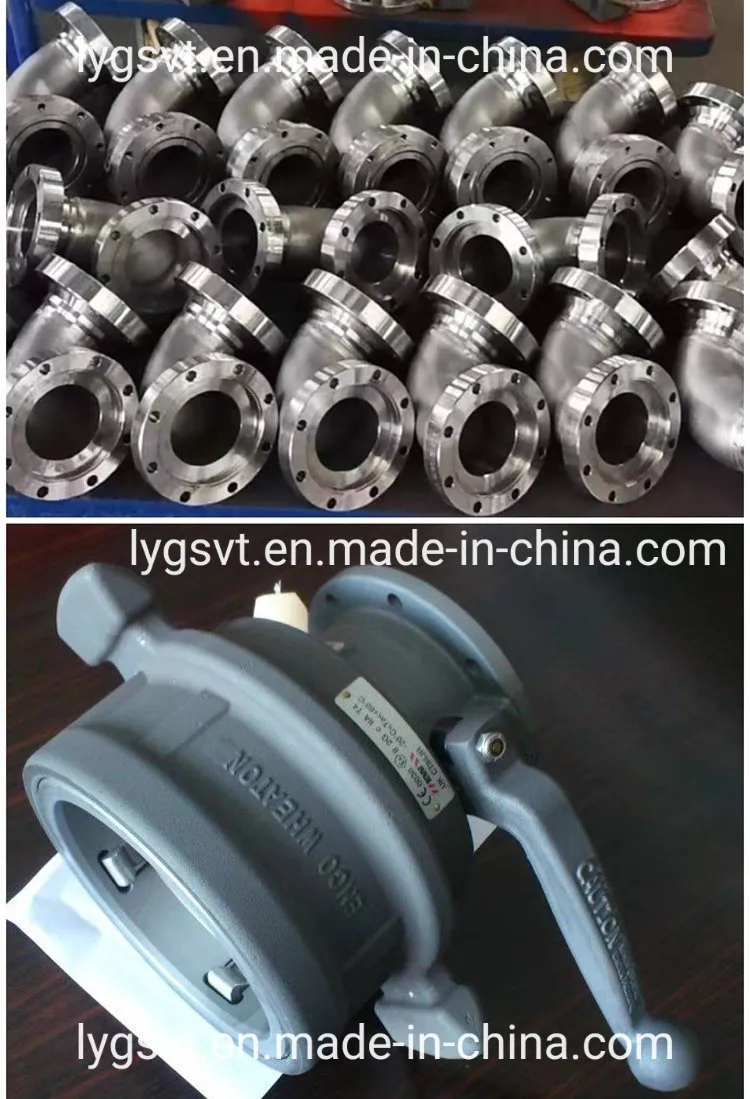

Detailed Photos

Packaging & Shipping

Package Size	200.00cm * 80.00cm * 80.00cm
Package Gross Weight	200.000kg

Production Capabilities

Specializing in the design, manufacture, sale, and installation of fluid equipment, we provide a wide range of solutions including Land Loading Arms, Marine Loading Arms, Internal Floating Roofs, Floating Suction Units, Folding Stairs, and Automatic Quantitative Loading Systems.

Our team consists of professional technical personnel with extensive experience in mechanical design and engineering. We strictly adhere to ISO9001 Quality Management Systems across all stages: from design and procurement to production and after-sales service. Our facility is fully equipped with advanced welding, processing, and testing equipment to ensure reliable performance.

Frequently Asked Questions

Q1: What media can this loading arm handle? A: It is suitable for a wide range of fluids, including crude oil, gasoline, diesel, oil products, and various chemicals.

Q2: What are the primary construction materials? A: The pipelines can be constructed from carbon steel, stainless steel, or low-temperature steel, with PTFE lining available for specific chemical needs.

Q3: Does the loading arm support overfill protection? A: Yes, it can be equipped with an overfill prevention probe and integrated with an ESD (Emergency Shutdown) system.

Q4: What temperature range is the equipment designed for? A: The design temperature range is extremely versatile, spanning from -196°C for cryogenic applications up to +110°C.

Q5: How is the arm balanced for manual operation? A: It utilizes a high-performance spring cylinder balancing system that ensures smooth movement and allows for easy manual adjustment.

Q6: What standards does the dry-break coupler follow? A: Our dry-break couplers are designed and manufactured to meet international AP RP 1004 requirements.
