Liftora Arm
1 / 5

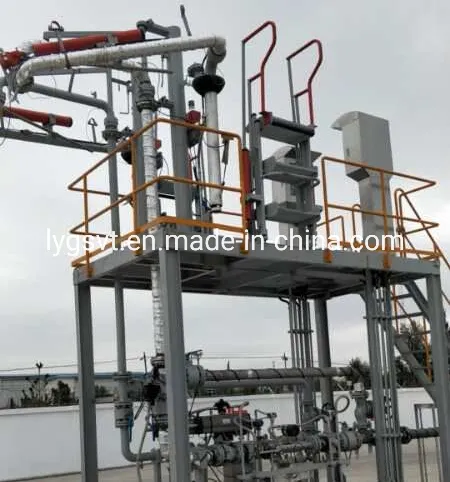

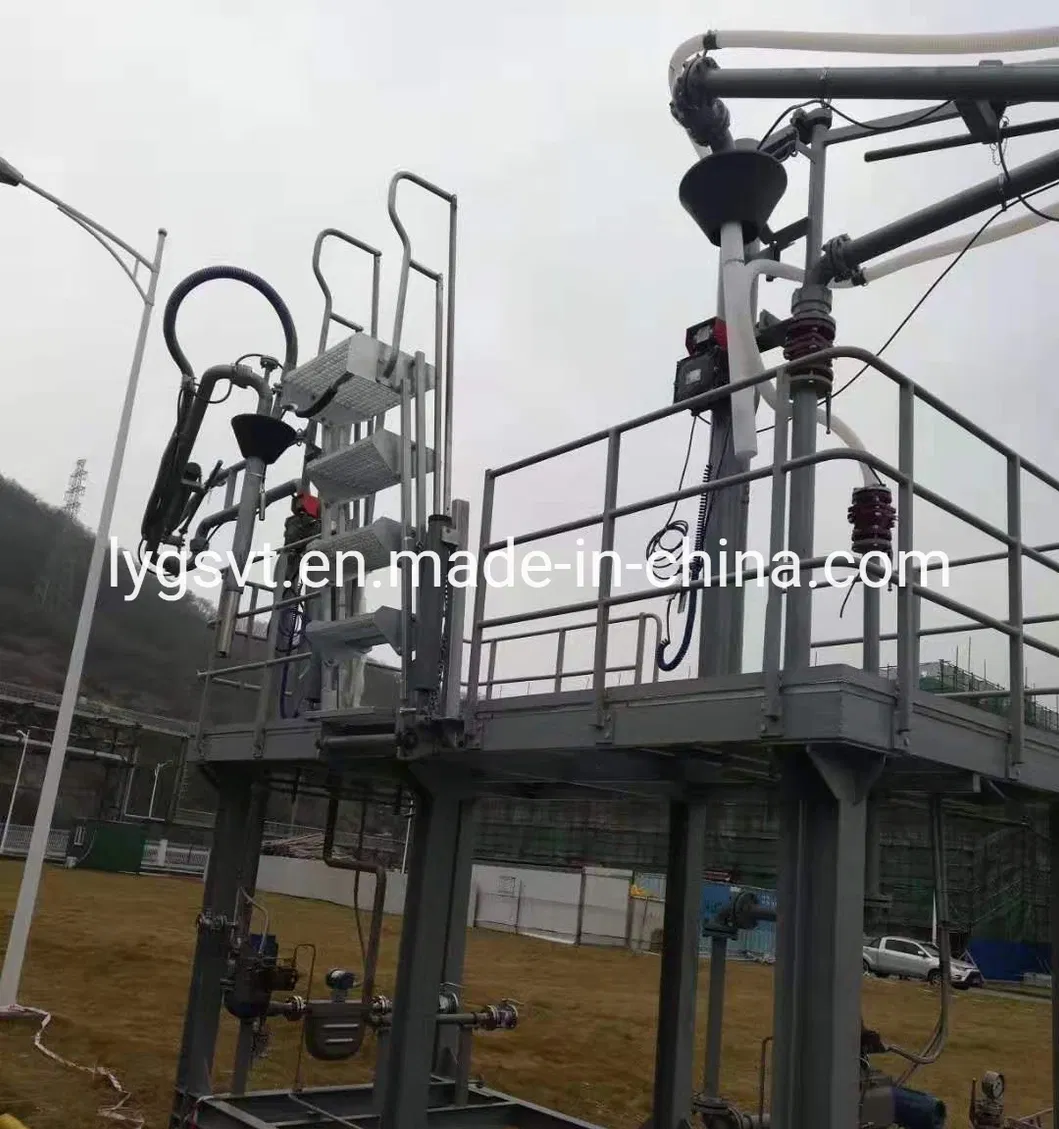

The land loading arm is specifically designed for transporting fluid between piping systems and tankers. Each system is engineered to accommodate different tanker types, liquid properties, and site conditions. It can be integrated with loading platforms, folding stairs, and safety cages to form a complete loading system.

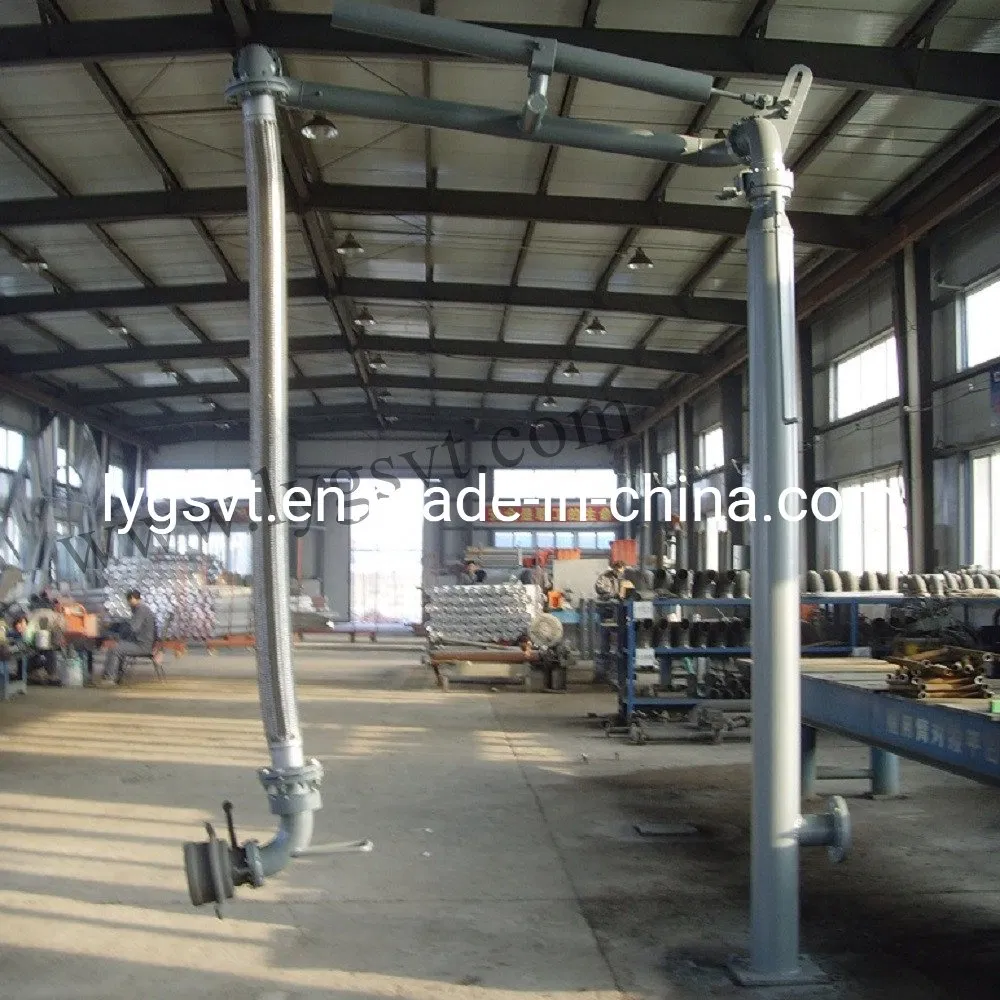

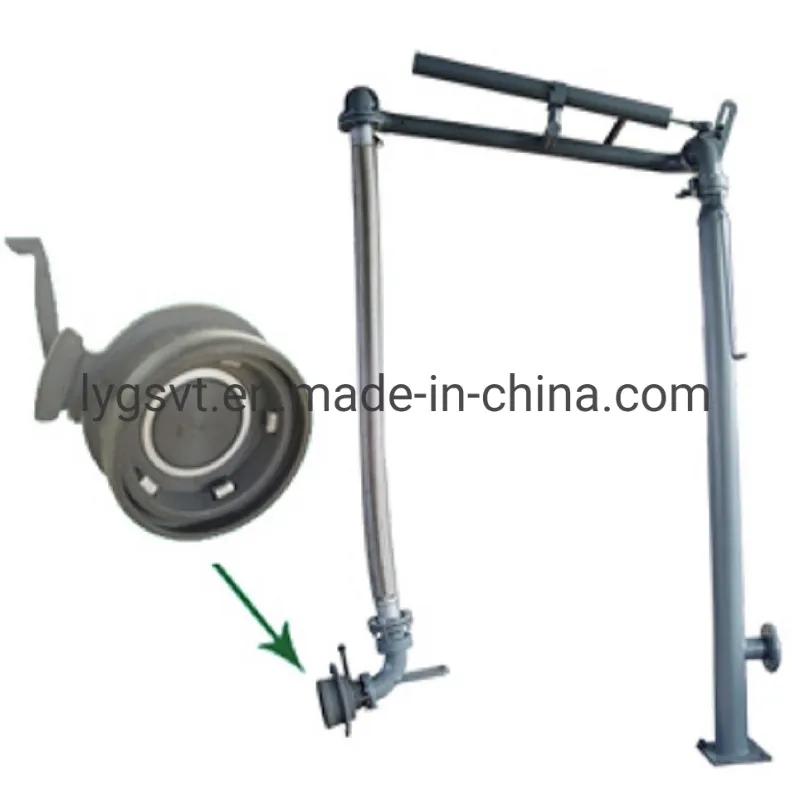

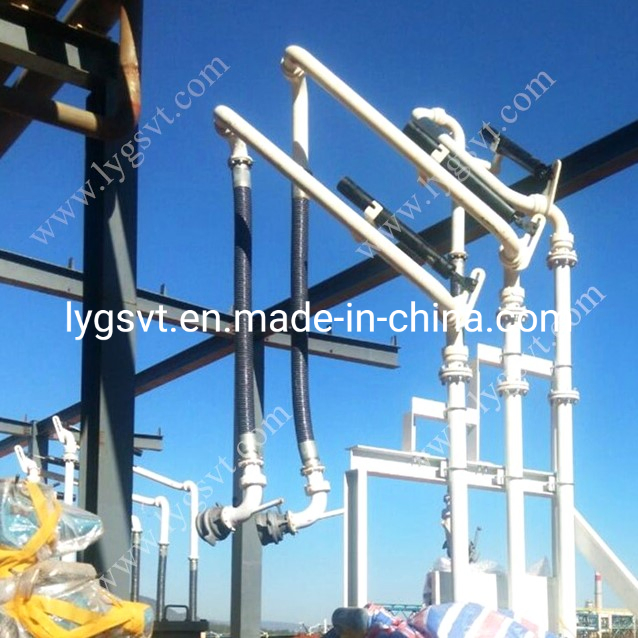

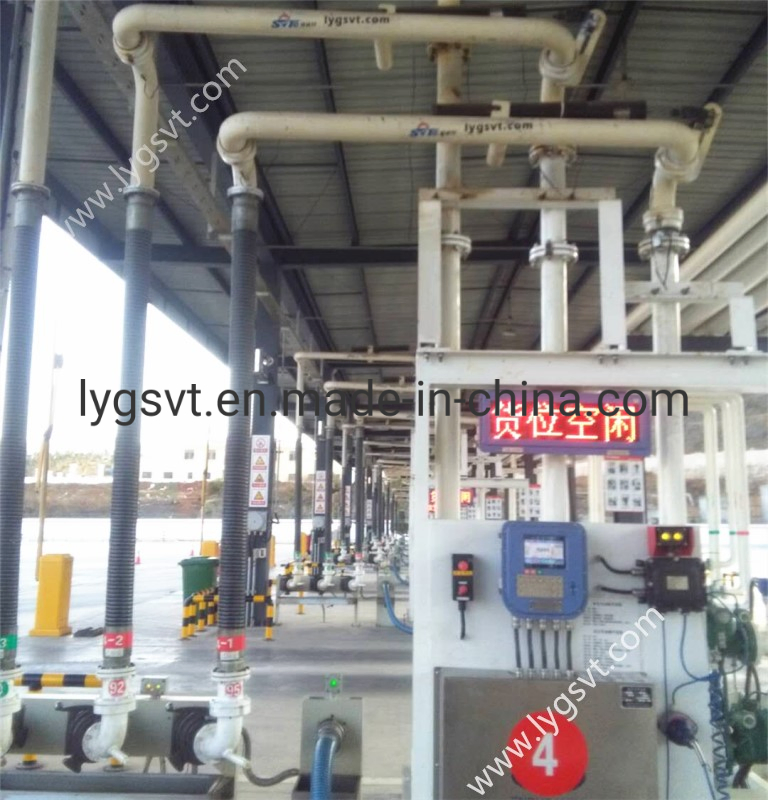

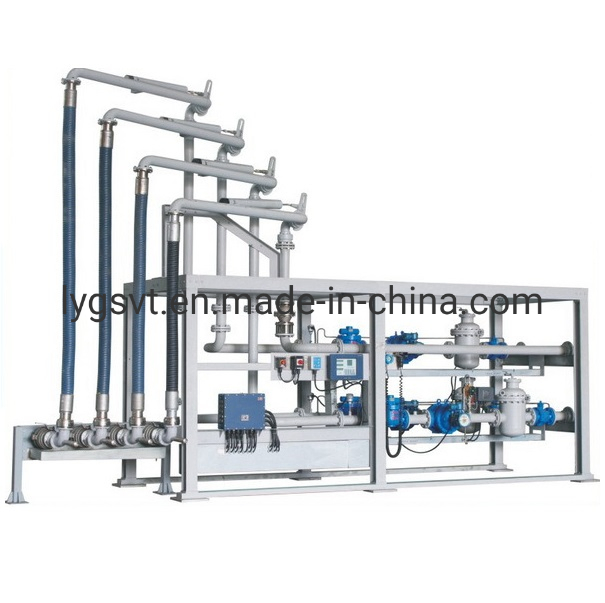

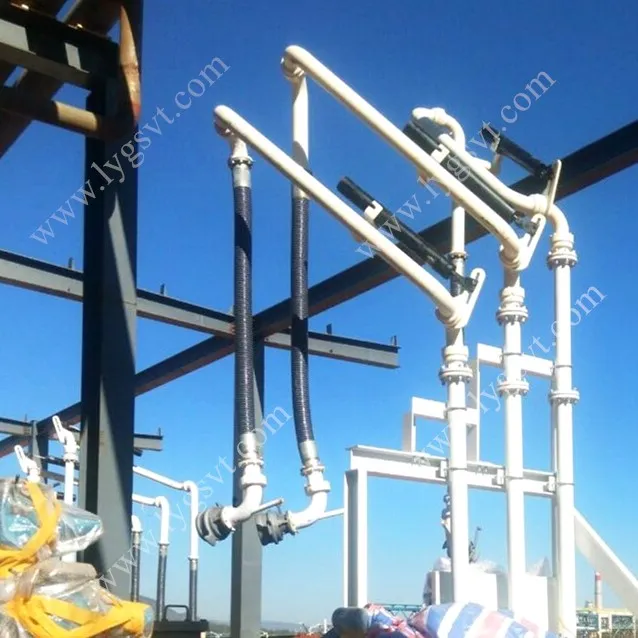

The bottom loading arm consists of the main loading arm, dry-break coupler, and valve. It is specifically designed for tankers equipped with vapor and oil recovery systems. The dry-break coupler is manufactured using advanced global technology, meeting RP 1004 requirements.
A single loading station can support up to 6 arms working simultaneously and independently. The system is compatible with bottom quantitative loading controls and overfill prevention ESD systems.
| Parameter | Specifications |
|---|---|
| Product Name | Petroleum & Chemicals Loading Arm |
| Service Product | Chemicals, Oil, and other products |
| Nominal Diameter | DN100 (4") |
| Design Pressure | -0.08 Mpa ~ +2.5 MPa |
| Design Temperature | -196°C ~ +110°C |
| Pipe Material | Carbon steel, stainless steel, low-temperature steel, line with PTFE |
| Balancing | Spring Cylinder Balancing |
Our facility specializes in the design, manufacture, sale, and installation of Land Loading Arms, Marine Loading Arms, Internal Floating Roofs, Floating Suction Units, Folding Stairs and Platforms, Gangway Towers, and Automatic Quantitative Loading Systems.
With professional technical personnel engaged in mechanical design and engineering construction, we maintain a robust quality assurance system. We strictly adhere to ISO9001 Quality Management Systems throughout design, procurement, production, and sales. Equipped with advanced processing, welding, and testing equipment, we ensure worry-free technical support and after-sales service.
