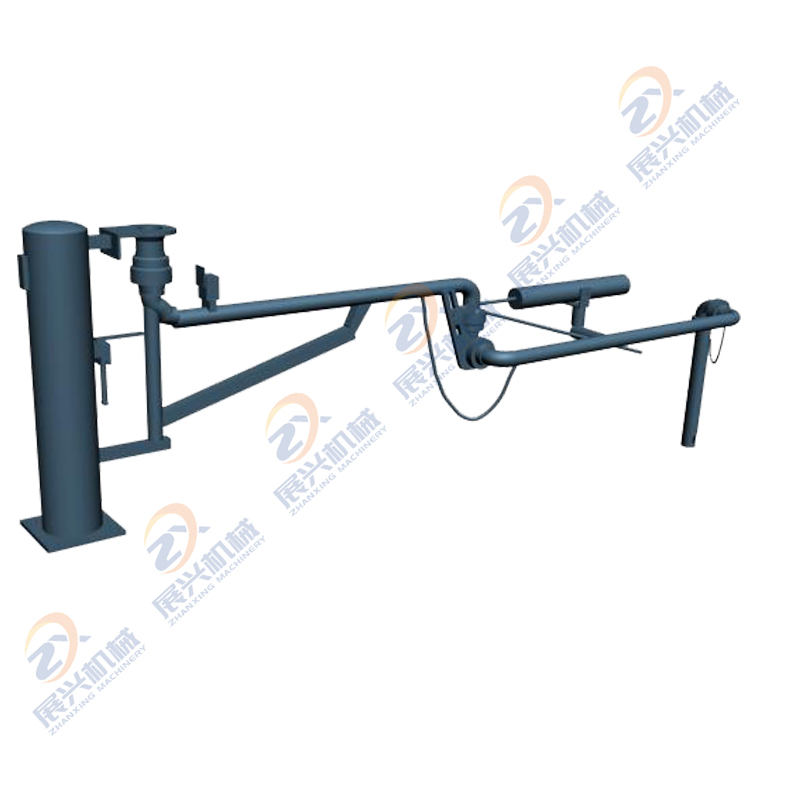

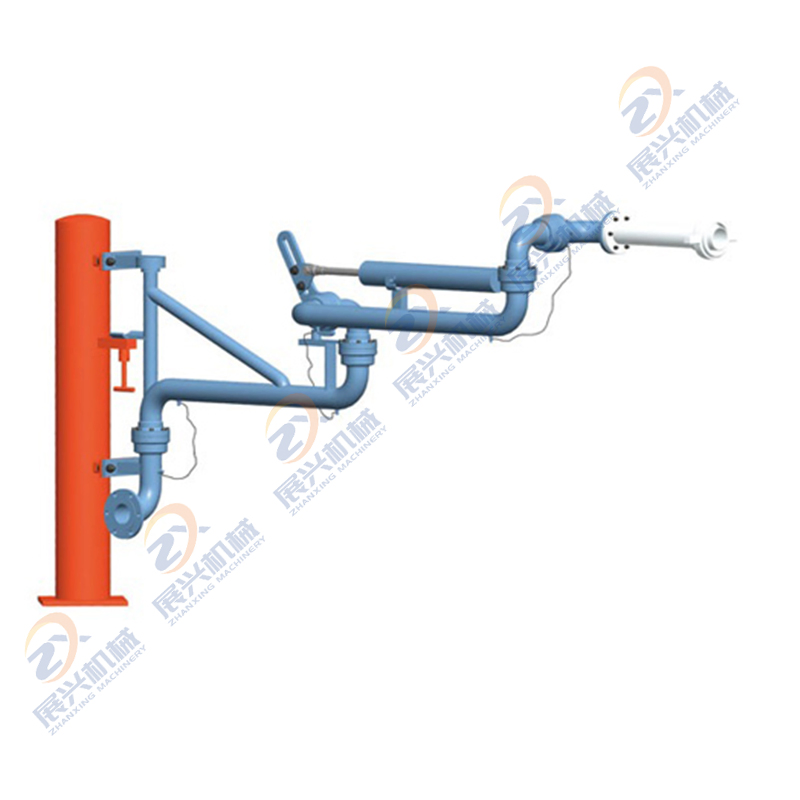

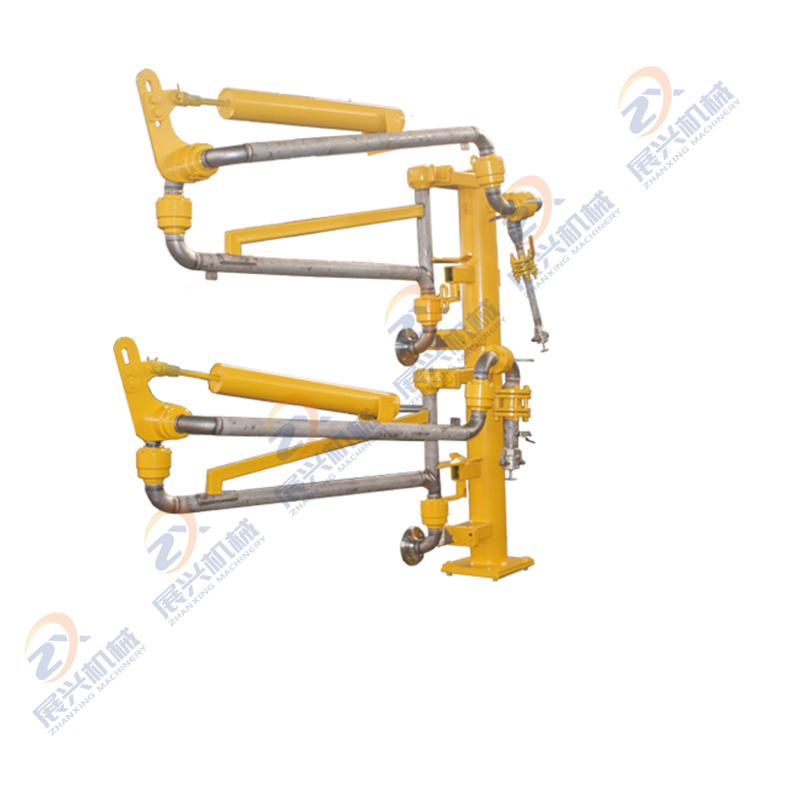

Land Bottom LPG Loading Arm for Truck Tanker Loading

1 / 5

Land Bottom LPG Loading Arm for Truck Tanker Loading

Customization:	Available
Warranty:	12 Months
Condition:	New

Send Inquiry

Product Description

Basic Specifications

Model NO.

Customized

Available

Tank Material

Metal Tank

Type

Low Temperature Storage & Transportation

Storage Objects

Liquid, Gas

Material

CS, SS, CS with PTFE Lined

Package

Pallet/Plywood Box

Specification

DN50~DN200

Origin

China

HS Code

842890

Product Description

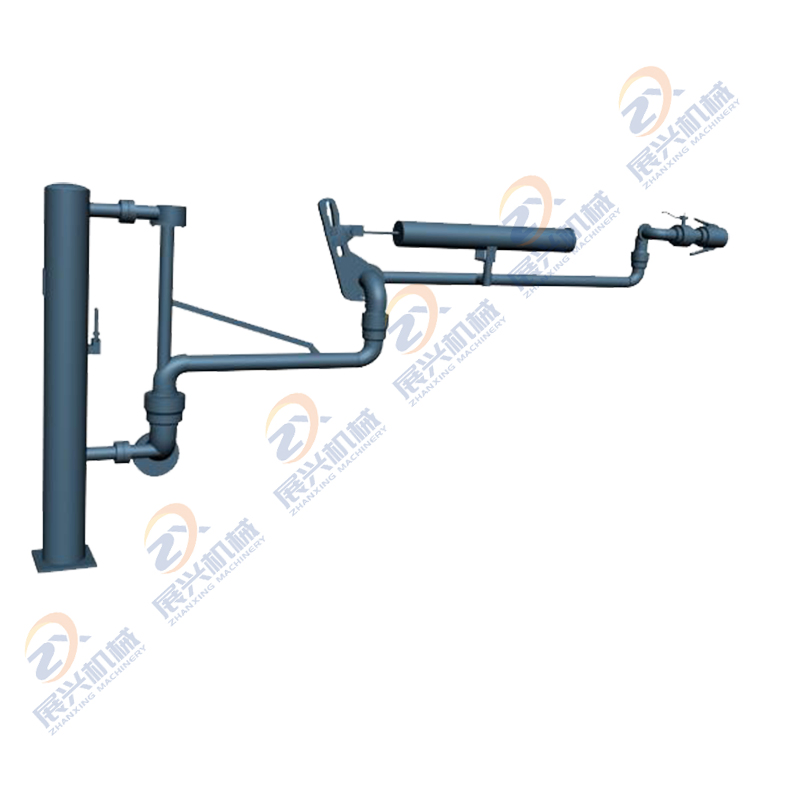

Land loading arm is one important fluid transfer equipment nowadays in the petrochemical industry. It is mainly used for transferring the fluid such as petroleum, LNG, LPG, chemicals, gas, oil, etc between the pipe system and the tankers.

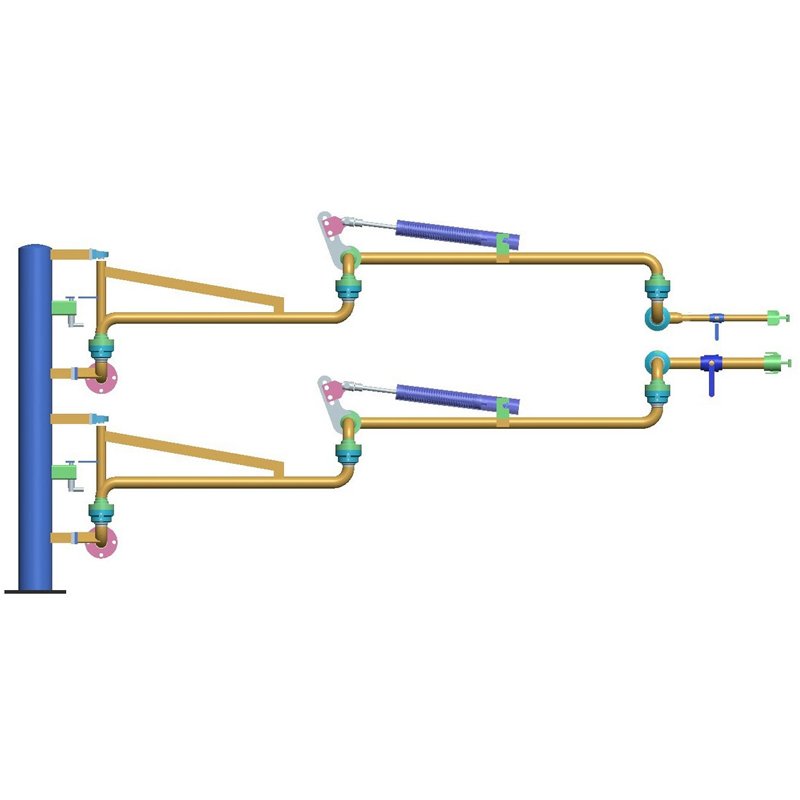

It mainly consists of arms, swivel joint, spring balance system, flange, vapor cone, vacuum breaker valve, drop tube, coupling, etc.

Features & Benefits

✓

Suitable for loading/unloading operation on the top/bottom of the tanker/railcar.

✓

Can follow the movement of the tanker/railcar in a definite range.

✓

Balance achieved by weight stack, spring cylinder or pneumatic support.

✓

Variety of ancillary facilities available for safe operation and environmental protection.

Base Parameters

Arm Material

Carbon steel, Stainless steel, Aluminium, etc.

Service Liquid

Petrochemicals, Aviation kerosene, Jet fuel, Diesel, PMS, AGO, Asphalt, etc.

Nominal Diameter

DN50-DN200 (2″-8″)

Design Pressure

-0.06Mpa to 6.0Mpa

Design Temp

-40°C to 100°C

Type

Top loading arm, Bottom loading arm

Note: Dimensions and configurations are customized based on client site conditions and detailed requirements. Free design services are available to select suitable models.

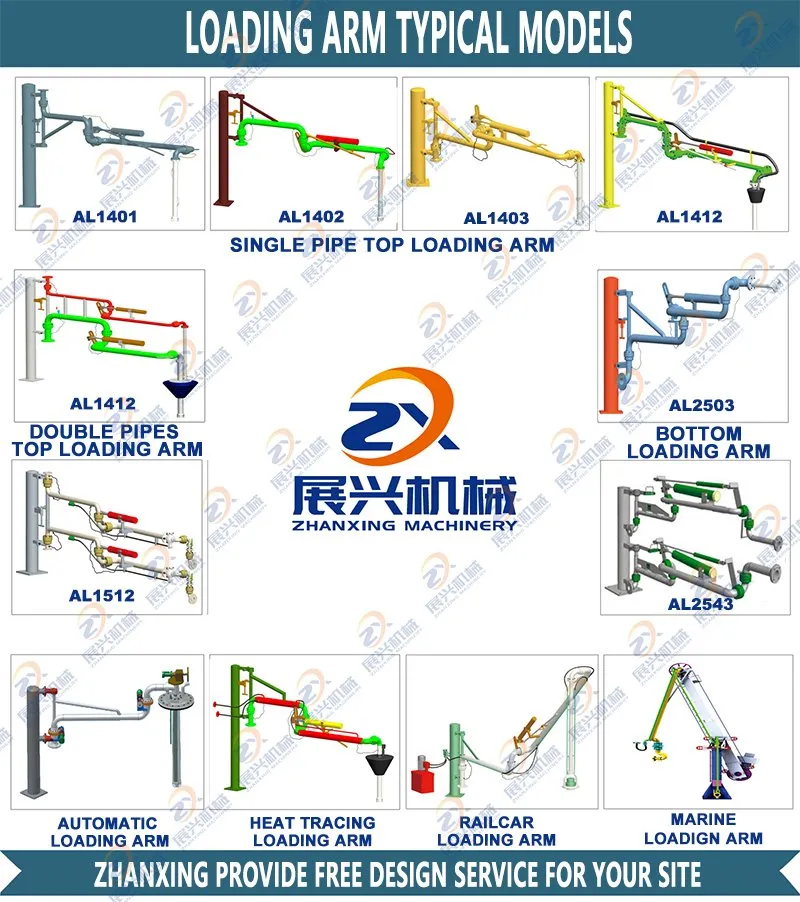

Typical Models

Model	Loading Position	Application	Single/Double Pipes	Liquid Flange Direction	Swivel Joints	Connection Type
AL1401	Top	Loading	Single	Upwards	4	Open
AL1402	Top	Loading	Single	Downwards	4	Open
AL1412	Top	Loading	Double	Downwards	4/5/8	Open
AL1512	Top	Loading	Double	Downwards	10	Closed
AL2503	Bottom	Loading/Unloading	Single	/	5	Closed
AL2543	Bottom	Loading/Unloading	Double	/	10	Closed
AL2404	Bottom	Loading/Unloading	Single	Downwards	4	Closed

Product Gallery

Frequently Asked Questions

What is the primary use of a land loading arm?

It is used for the safe and efficient transfer of fluids like petroleum, LNG, LPG, and chemicals between piping systems and tankers or railcars.

What materials are available for construction?

Loading arms can be manufactured from carbon steel, stainless steel, or aluminium, with options for PTFE lining for corrosive substances.

Can the loading arm handle extreme temperatures?

Yes, our standard design temperature range is from -40°C to 100°C, making it suitable for various industrial environments.

What is the difference between top and bottom loading?

Top loading arms operate from the top of the tanker, while bottom loading arms connect to the lower part of the vehicle, often providing enhanced safety and vapor recovery.

Are custom sizes and configurations available?

Absolutely. Dimensions and configurations are tailored to meet the specific site conditions and operational requirements of each client.

What balancing systems are used?

Balance is typically achieved through weight stacks, spring cylinders, or pneumatic support systems to ensure ease of movement.
