Carbon Steel Marine Loading Unloading Arm for Chemical Liquid

1 / 5

Carbon Steel Marine Loading Unloading Arm for Chemical Liquid

Customization:	Available
Condition:	New
Customized:	Customized

Send Inquiry

Product Description

📊 Basic Information

Model NO.

AM64

Certification

ISO9001

Tank Material

Metal Tank

Type

Middle Pressure Storage & Transportation

Storage Objects

Solid, Liquid, Gas

Color

Light Grey or Customized

Seal

Veton or PTFE

Working Pressure

0.6~4.0MPa

Working Temp.

-196~250 Degree Centigrade

Transport Package

Plywood Case or Container

Specification

4", 6", 8", 10", 12", 14", 16", 20", 30"

Origin

China

HS Code

8428909090

Capacity

200 Sets/Year

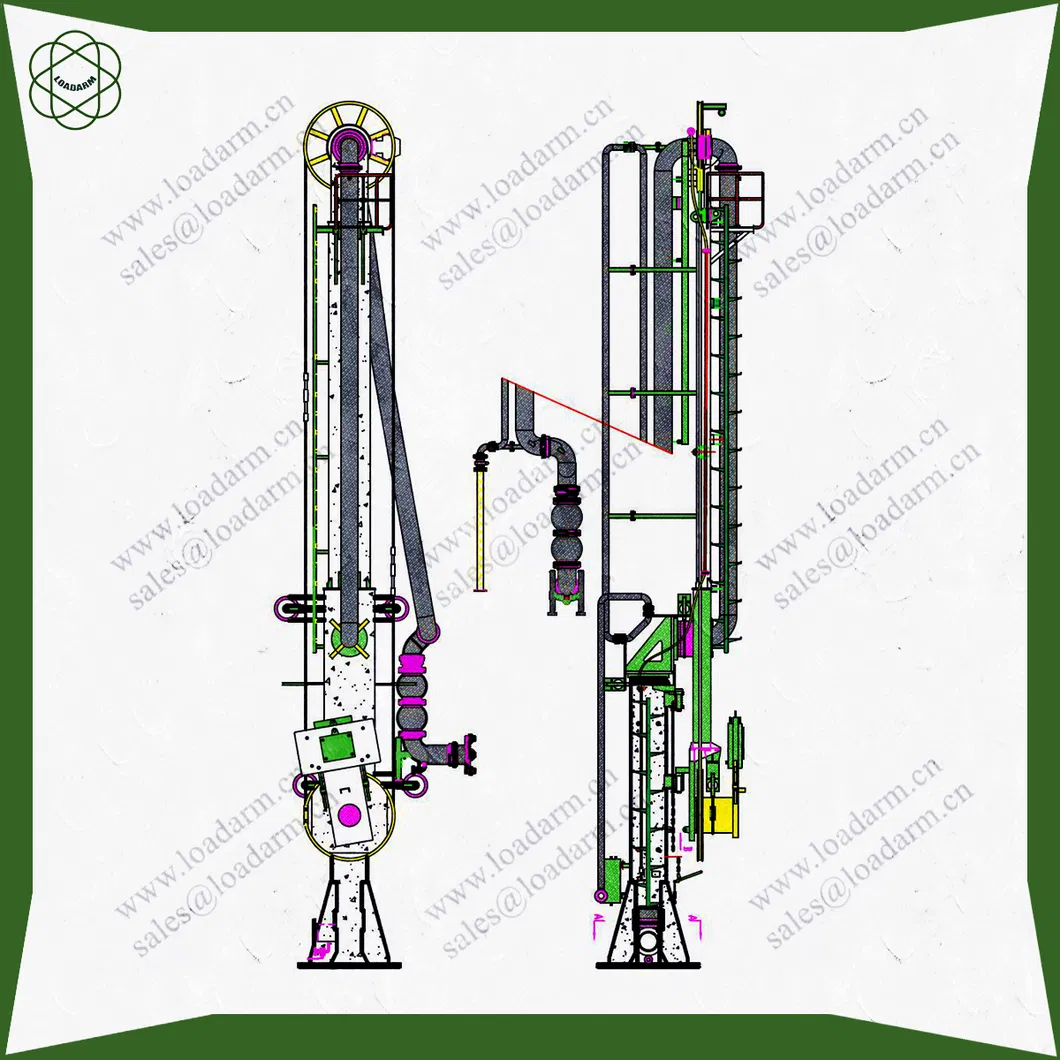

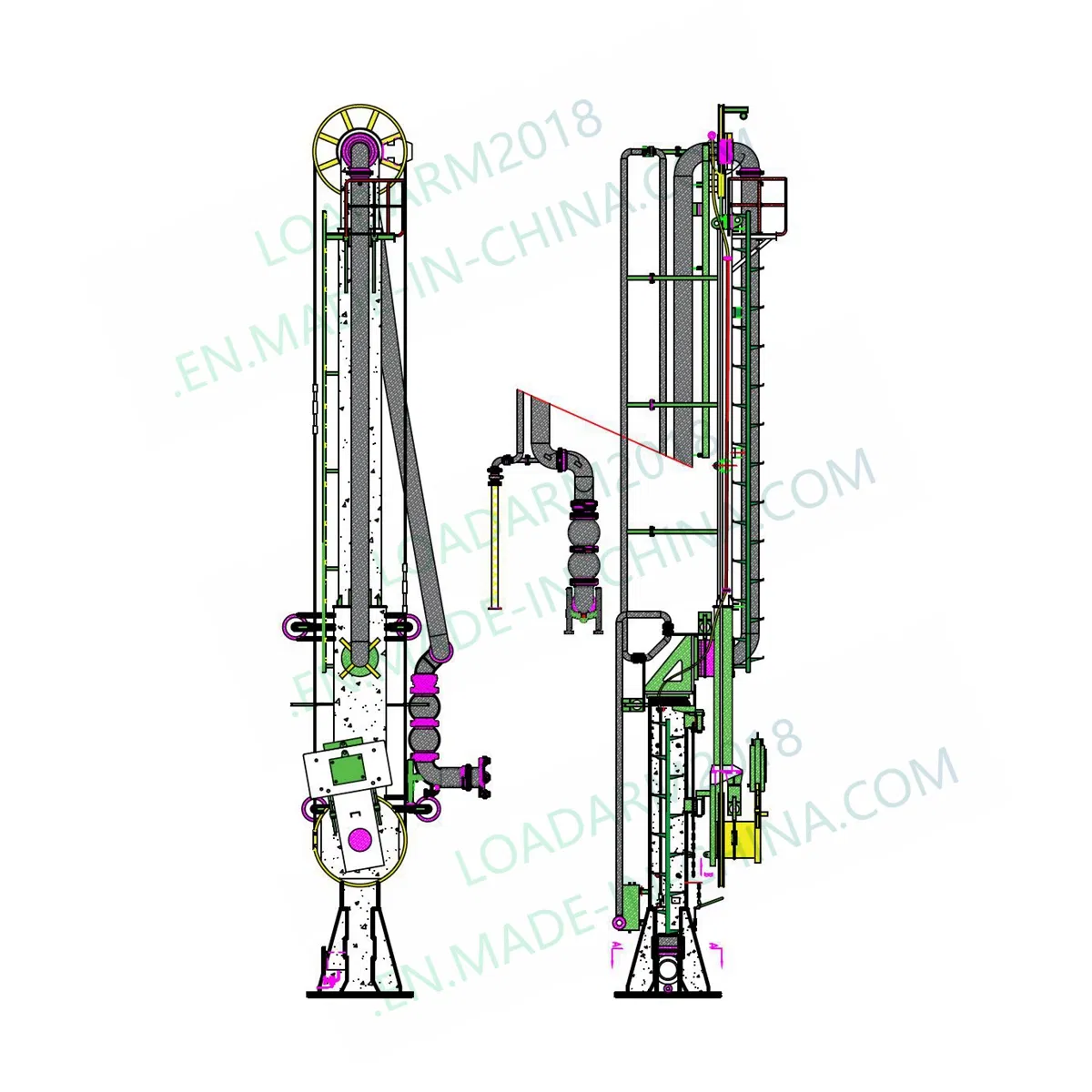

🏗️ Structure for Marine Loading Arm AM64

📝 General Product Description

Marine loading arm is specialized equipment for loading/unloading fluid materials crossing over the jetty and tanker, with swivel joints connecting pipelines, assisted by a supporting structure, including other accessories such as control systems required by customers.

At present, the marine loading/unloading arms feature various structural forms in series such as AM61, AM62, AM63 and AM64.

Depending on the physical and chemical features and temperature of the transmission medium, arms can be designed in carbon steel, stainless steel, and heat tracing configurations. The temperature range covers -196~250ºC, with a maximum design pressure of 10Mpa and nominal pipe sizes from DN80 to DN600 (3" to 24"). Operation modes include manual or electro-hydraulic control. The arm dynamically moves with the tanker within normal drift ranges and can be equipped with visual sound alarms for safety monitoring.

🛡️ Anti-Corrosion & Coating Specifications

NO.	PROCEDURE	COATING NAME	NOTE
1	Shot blasting	/	Sa2.5 grade
2	Primer	Epoxy zinc rich paint	2 coats
3	Intermediate coat	MIO epoxy paint	1 coat
4	Finish coat	Chlorinated rubber finish paint	2 coats

🔹 AM62 Structure Features

A part of the product pipe provides support to the loading arm, but most weight and loads are supported by an independent body or supporting auxiliary organizations. Inner and outer arms share one counterweight system. Mixed mode support for single-tube loading arms are compactly structured, suitable for large-tonnage vessels.

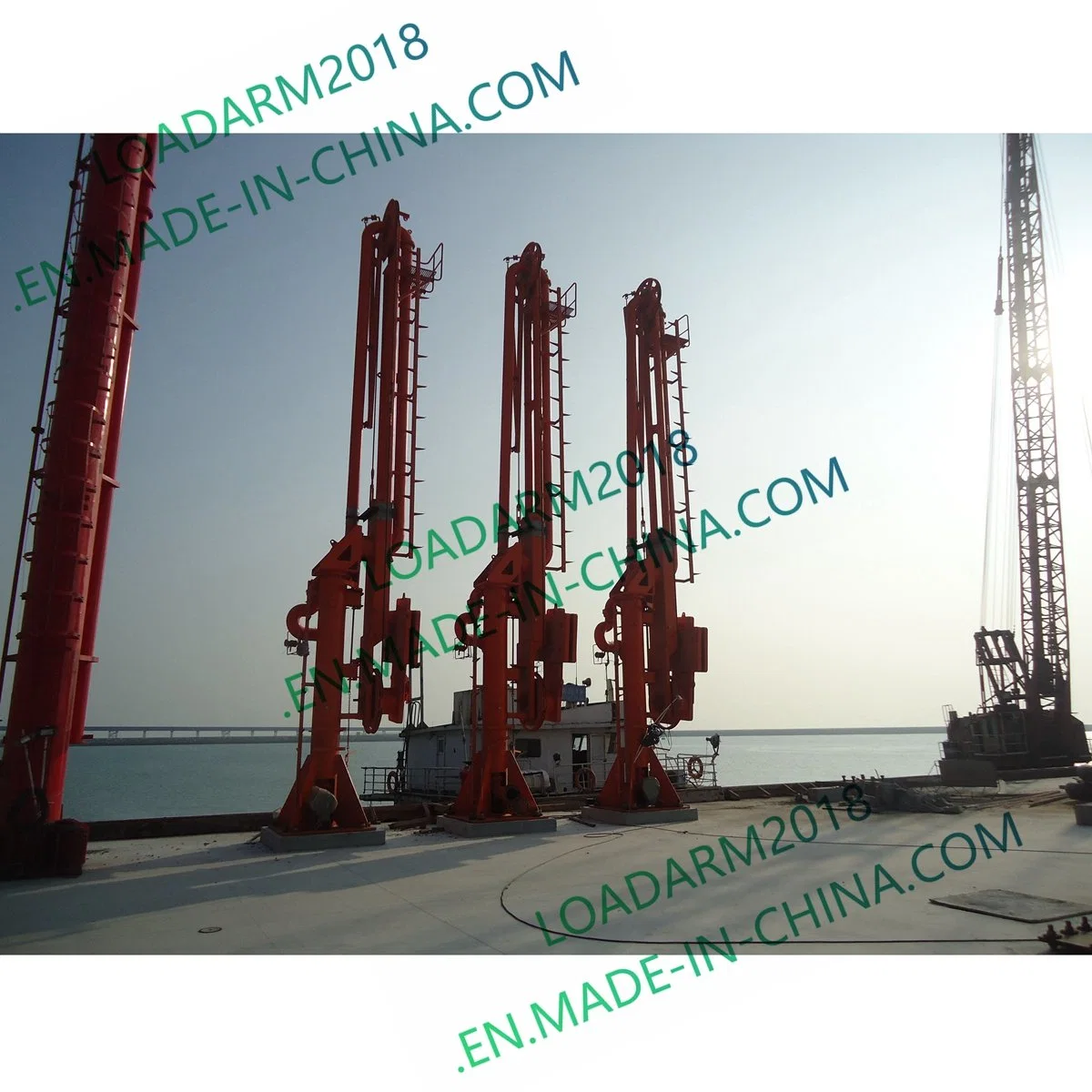

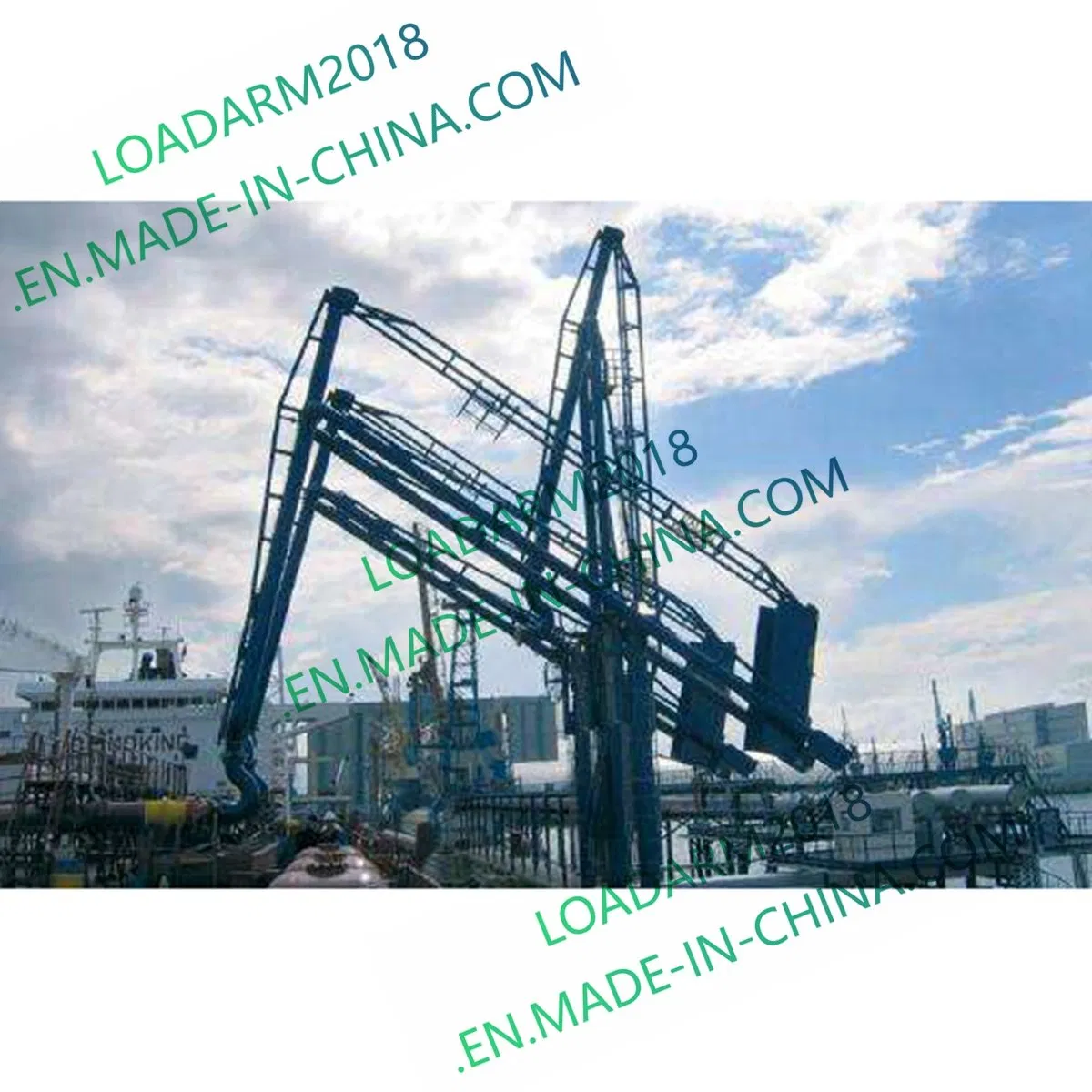

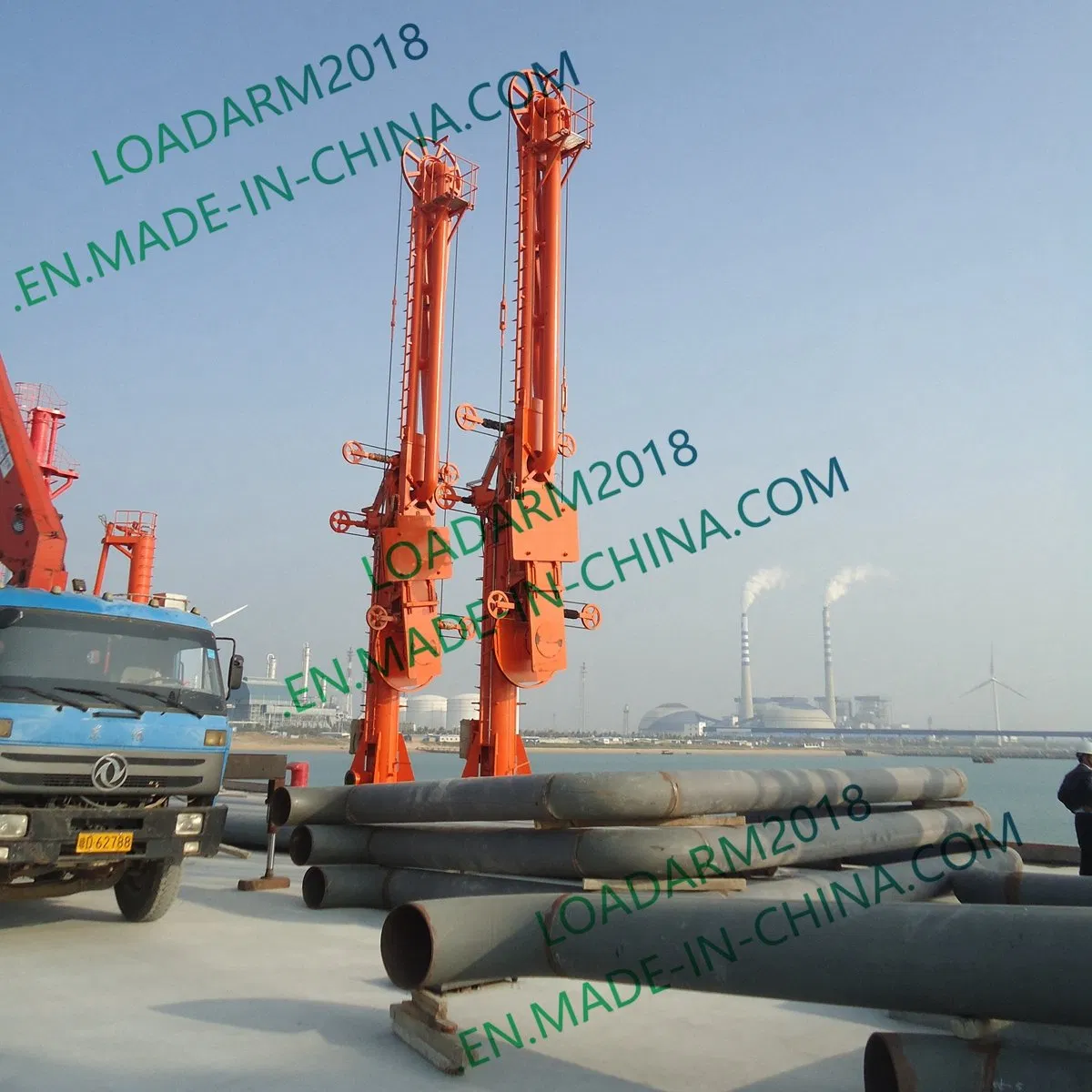

🏭 Workshop & Site Display

🌍 Overseas Project Cases

❓ Frequently Asked Questions

What materials can be transported using these loading arms?

The loading arms are designed to handle a wide range of fluid materials including solids, liquids, and gases, such as chemical liquids and petroleum products.

What is the operating temperature range for the AM64 model?

Our marine loading arms are engineered to withstand extreme temperatures ranging from -196ºC up to 250ºC.

Does the system support automatic control?

Yes, we offer both manual operation and electro-hydraulic control systems based on the specific requirements of the jetty and vessel size.

What pipe sizes are available for marine loading arms?

We provide a comprehensive range of nominal pipe sizes from DN80 to DN600 (3" to 24") to meet various flow requirements.

How are the loading arms protected against marine corrosion?

We apply a rigorous multi-stage coating process including shot blasting to Sa2.5 grade, epoxy zinc-rich primers, MIO epoxy intermediate coats, and chlorinated rubber finish paint.

What safety features are included in the design?

The arms are equipped with swivel joints for flexible movement and can include travel monitoring systems with visual and sound alarms to detect if the tanker drifts beyond safe operating limits.
