Liftora Arm
1 / 5
| Model NO. | AL2543 |
| Condition | New |
| Customized | Customized |
| Certification | ISO9001 |
| Tank Material | Metal Tank |
| Type | Middle Pressure Storage & Transportation Equipment |
| Storage Objects | Solid, Liquid, Gas |
| Application | Truck Tanker, Rail Tanker, Marine |
| Accessories | Vacuum Breaker, Quick Coupling, Break Away Coupling, Liquid Level Alarm |
| Color | Light Gray or Customized |
| Power Source | Manual |
| Seals | PTFE |
| Specification | DN50, DN80, DN100, DN150 |
| Production Capacity | 5000 Sets / Year |

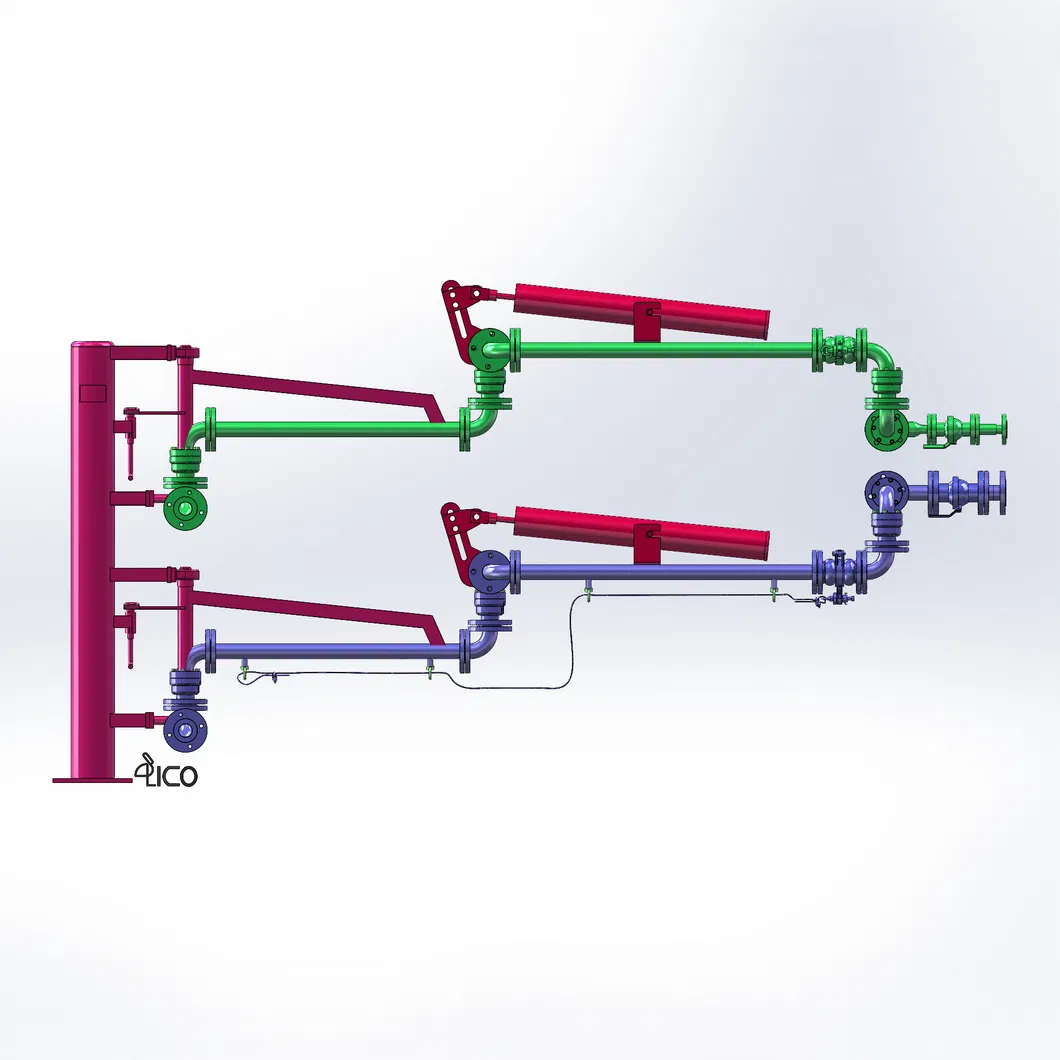

AL2543 Land Loading Arm Structure:
AL2543 type loading arm is a land-based bottom-loading and unloading arm. It is suitable for the bottom-loading and unloading of LPG, liquid ammonia and other media for trucks and trains. With a spring cylinder balance system, it is easy to operate and equipped with an anti-static device, which is safe and reliable.
General Introduction:
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.
| AL2543 is a typical of bottom loading arms, mainly for products such as LPG, liquid ammonia, liquid chlorine, etc. Connects by flanges or quick coupling. | |
| Places Applied | Bottom closed loading or unloading |
| Applications | Products easy to gasify at normal temperature and pressure |
| Nominal Diameter | DN50~DN80 (liquid), DN25~DN50 (vapour) |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of Pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |

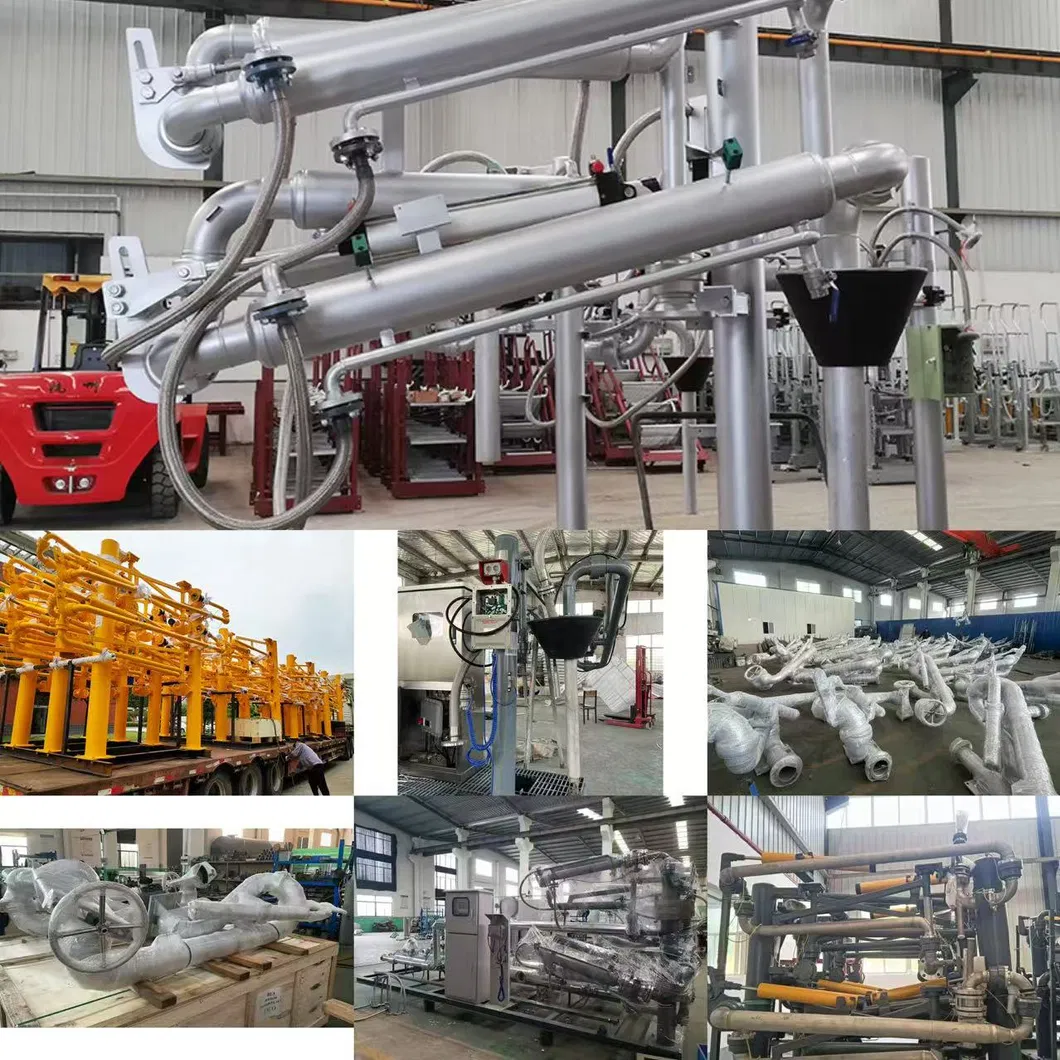

Workshop Production

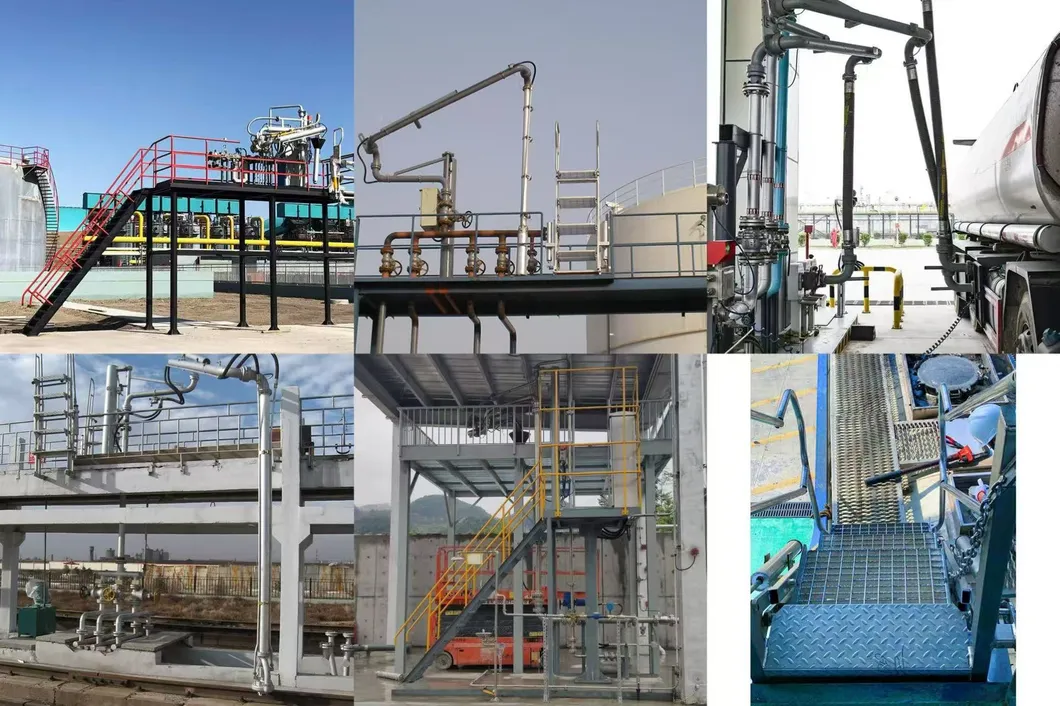

On-site Installation

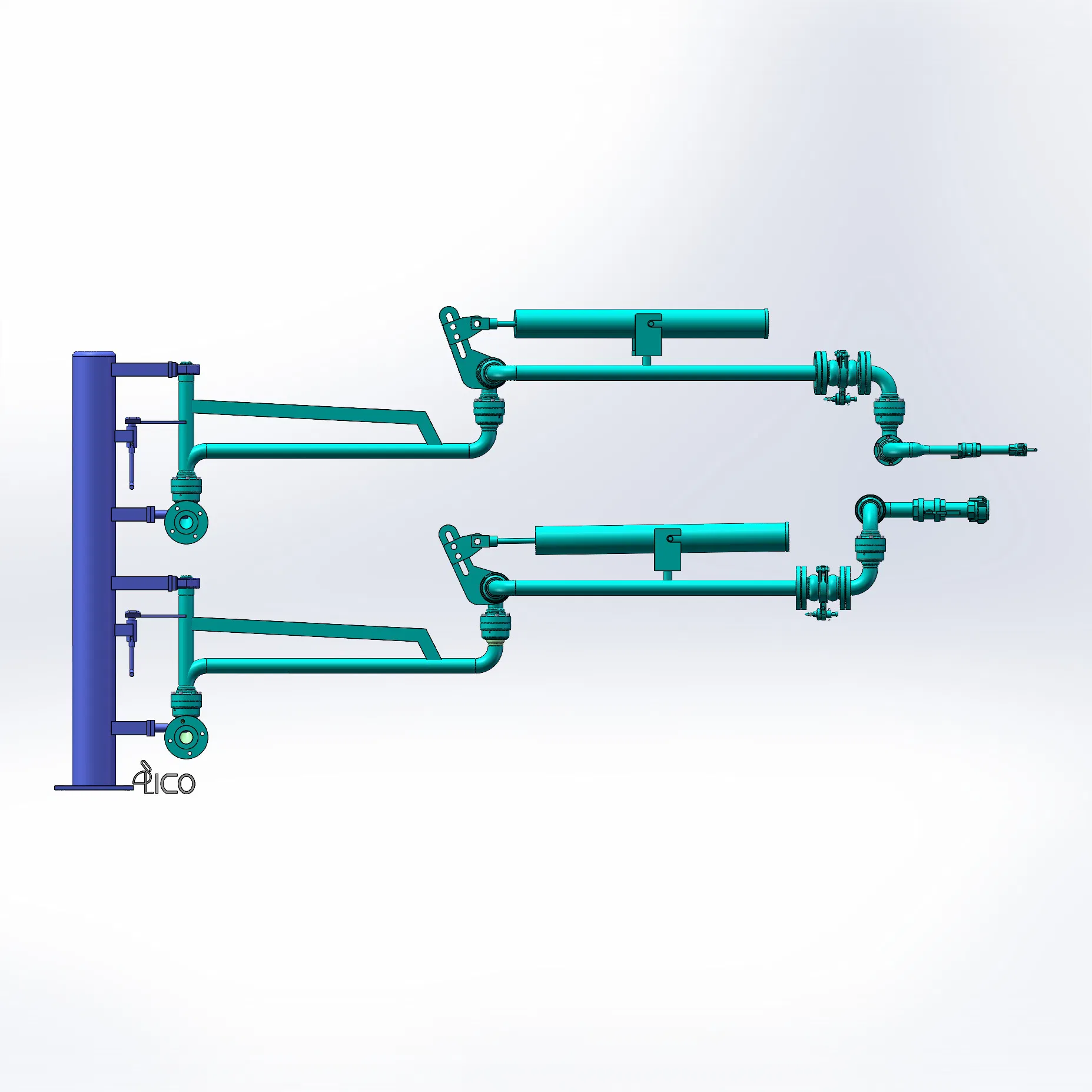

Detailed Component View:
The company is mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Its products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc., and it is a high-tech enterprise.
As a professional manufacturer of petrochemical storage and transportation machinery and automatic control systems, the products are widely used in large and medium-sized petrochemical enterprises. Products such as loading arms, jibs, floating roofs, movable ladders and skid-mounted equipment are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc., and have been recognized by domestic and foreign customers. The company attaches great importance to talent development and strictly controls product quality, regarding "quality" as the cornerstone of its development.
We will continue to adhere to product technological innovation, closely track the development status of domestic and foreign petrochemical storage and transportation equipment, continuously strengthen the technological R&D of independent products, and provide customers with high-quality products featuring cutting-edge technology, superior quality, energy conservation and environmental protection.
