Structure for AL2543 Land Loading Arm:
General Introduction:
Our land loading arm is specifically designed for transporting fluid between piping systems and tankers, customized for different tanker types, liquids, and site conditions. Equipped with loading platforms, folding stairs, and safety cages, it forms a complete loading system. It features level location or quantitative monitoring, providing sound and visual alarms or remote signals if fluid levels exceed preset values.
Operating modes include manual, pneumatic, or hydraulic, depending on product models and customer requirements.
Technical Data:
| AL2543 is a typical bottom loading arm, primarily for products such as LPG, liquid ammonia, and liquid chlorine. It connects to tankers via flanges or quick couplings with excellent sealing performance. | |
| Places Applied | Bottom closed loading or unloading |
| Applications | Products easy to gasify at normal temperature and pressure |
| Nominal Diameter | DN50~DN80 (liquid), DN25~DN50 (vapour) |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Pipeline Material | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined, etc. |

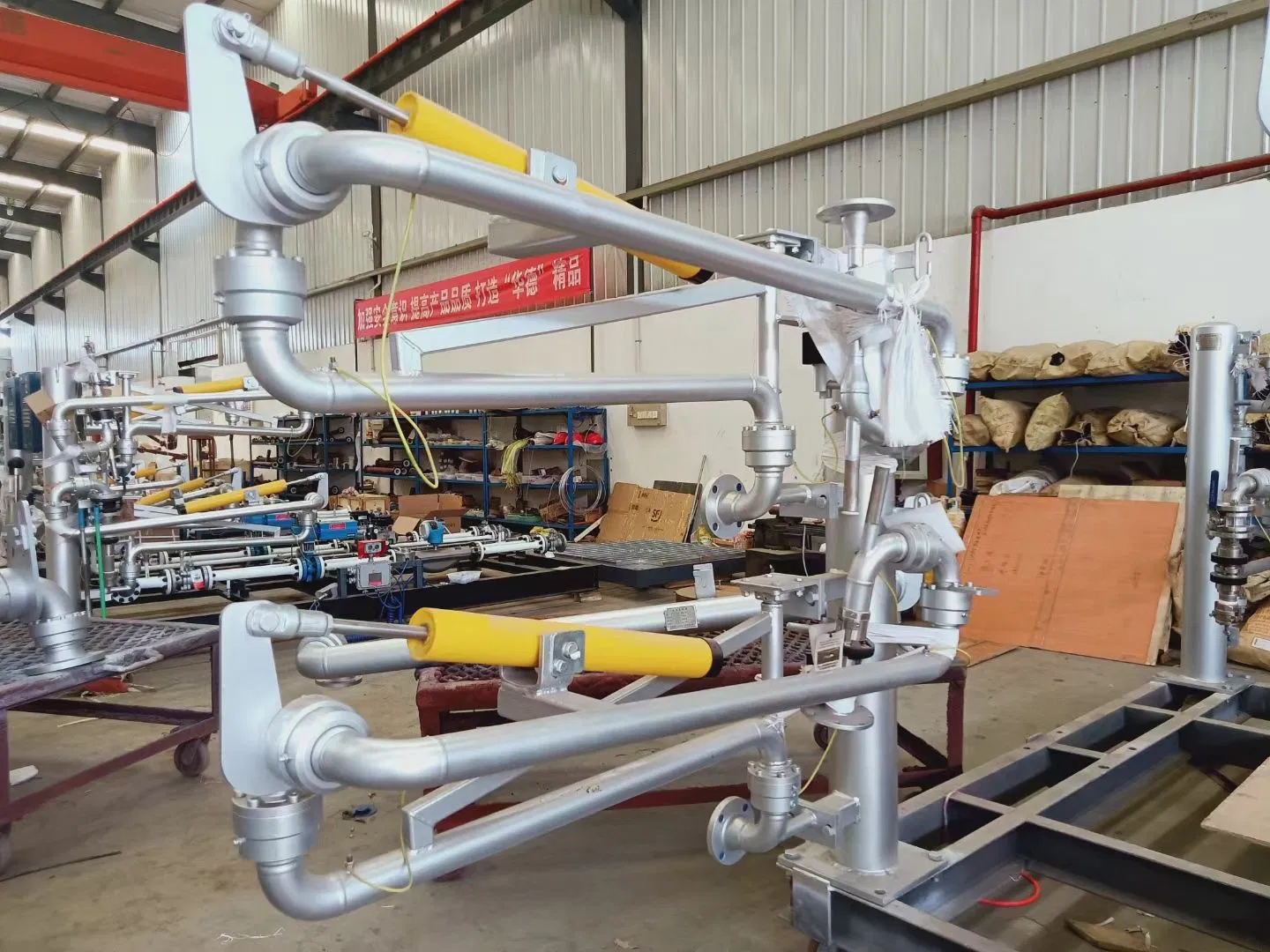

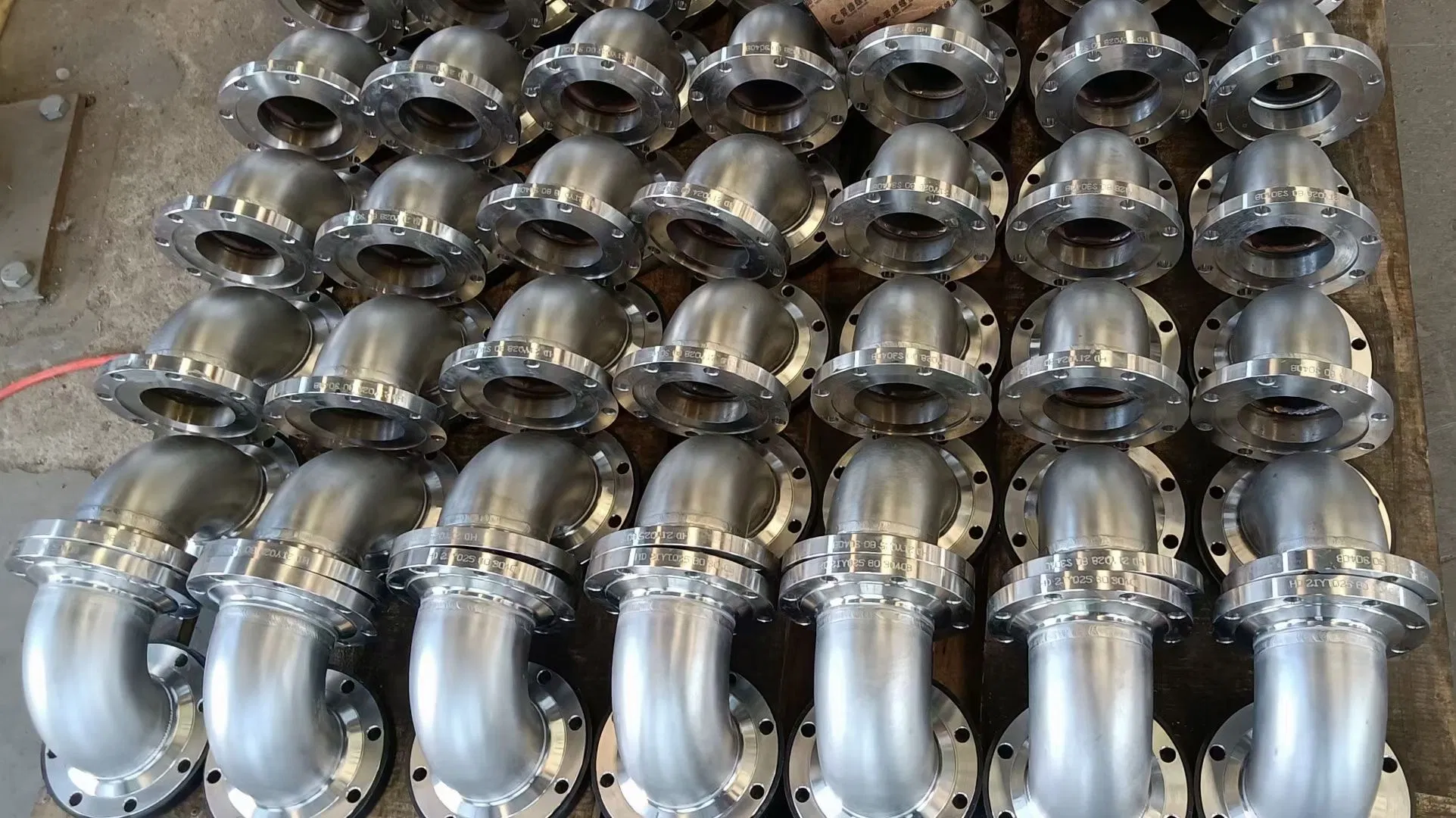

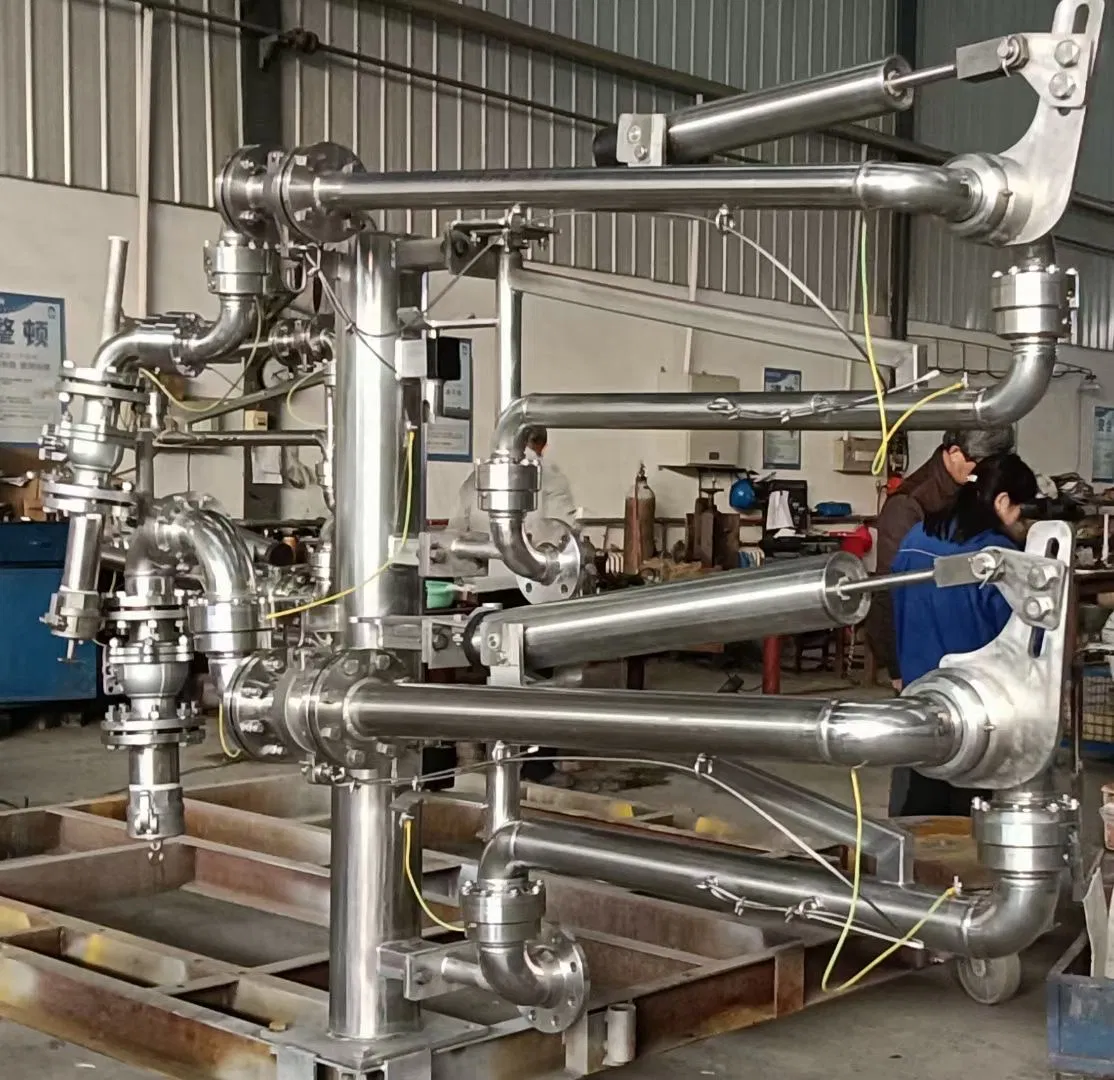

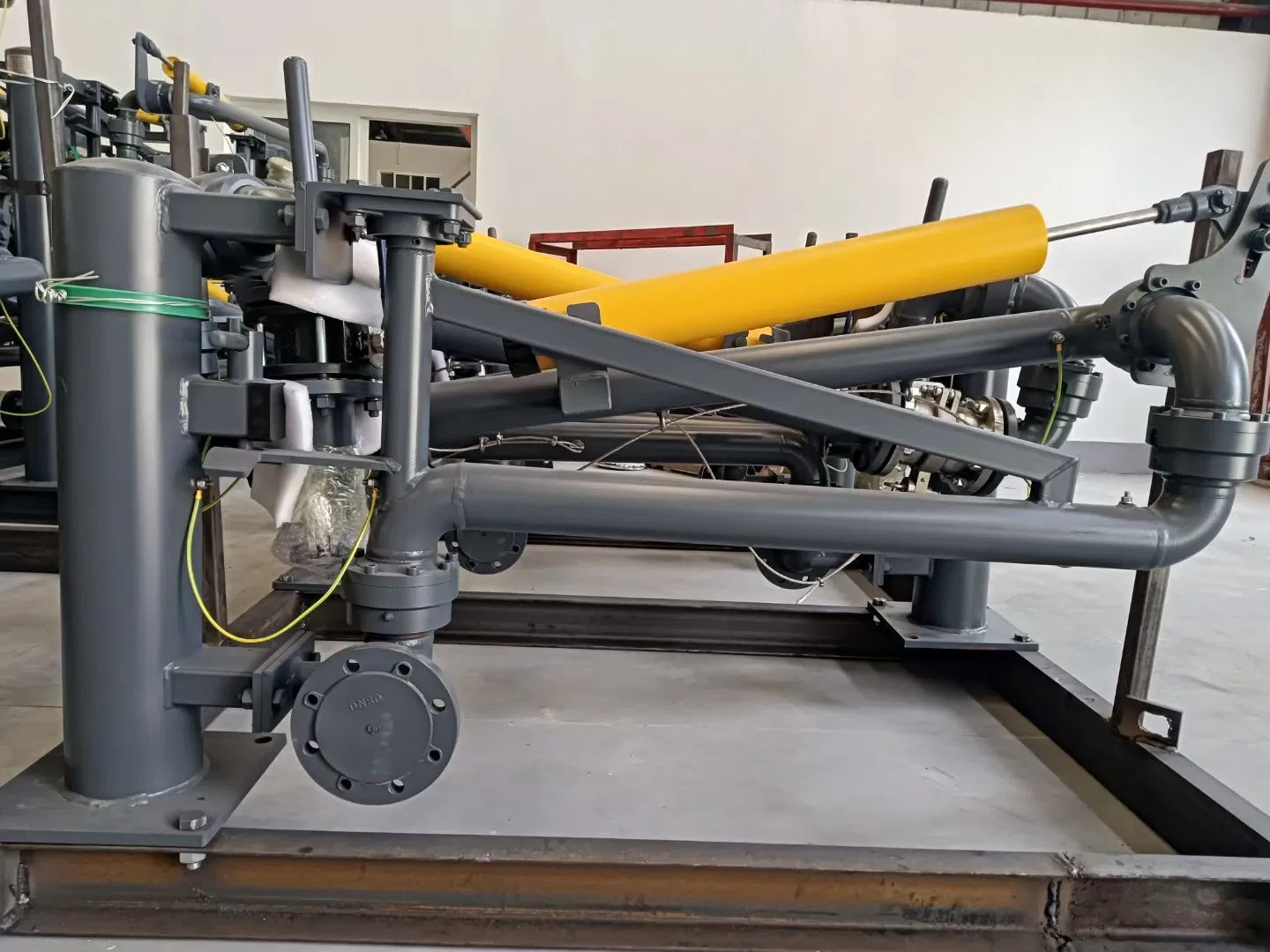

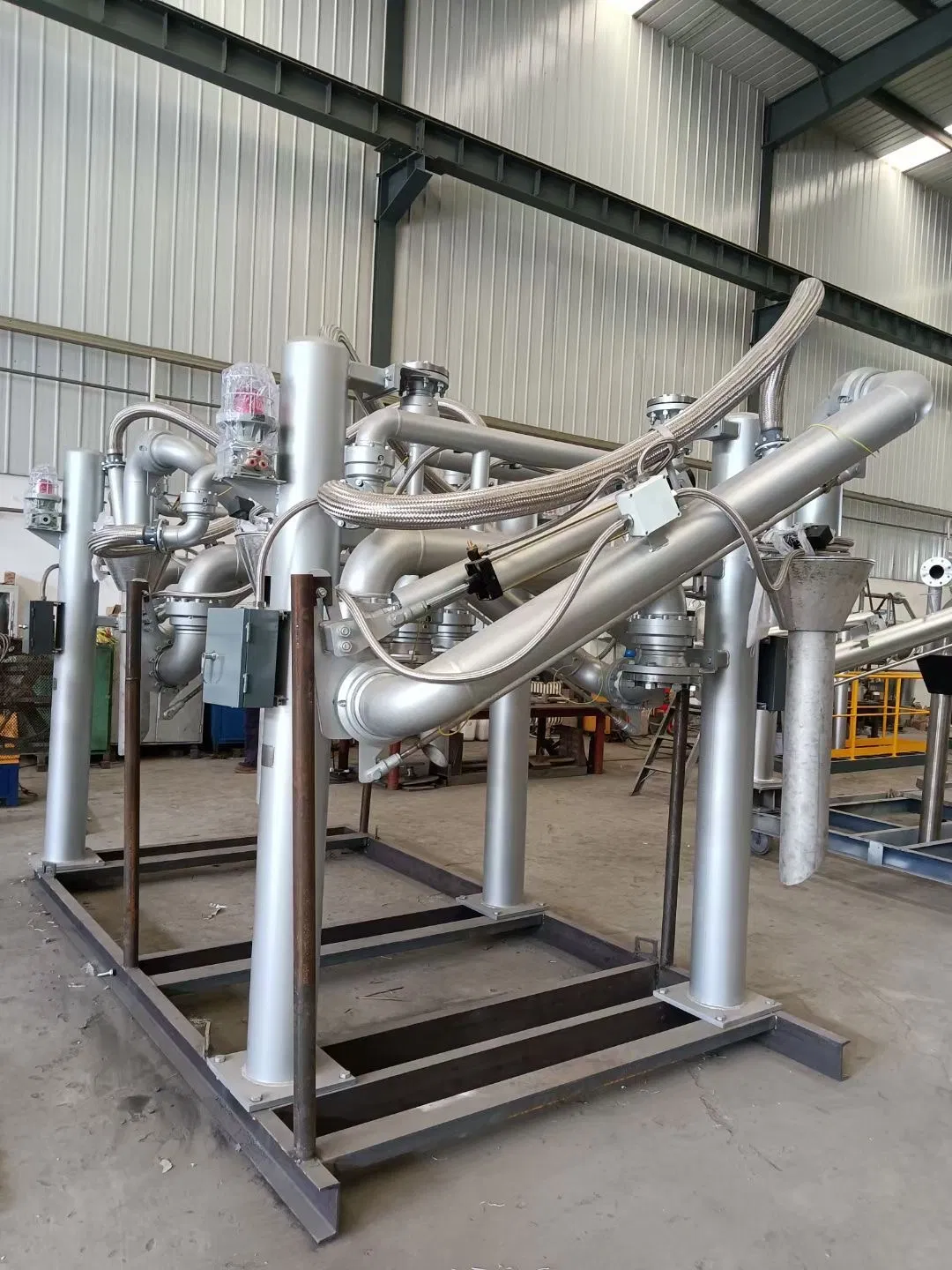

Workshop & On-site Display:
Overseas Project Cases:
