| Model NO. | PCT | Certification | CE, ISO 9001, API |
|---|---|---|---|
| Surface Treatment | Polishing | Centralizer Type | Single/Double Pump Skid Cementing |
| Structure | Single/Double Pump | Material | Stainless Steel |
| Type | PCT/PCS | Applicable Medium | Mud, Water, Crude Oil |
| Model | 70MPa | HS Code | 8207801000 |
| Capacity | 5000 sets/Year | Origin | China |

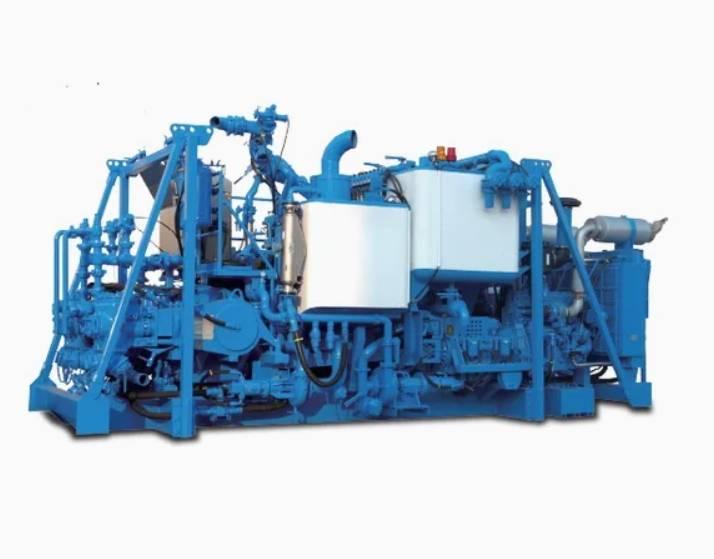

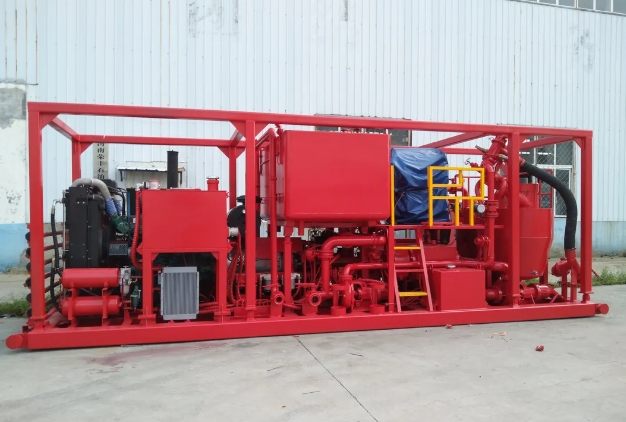

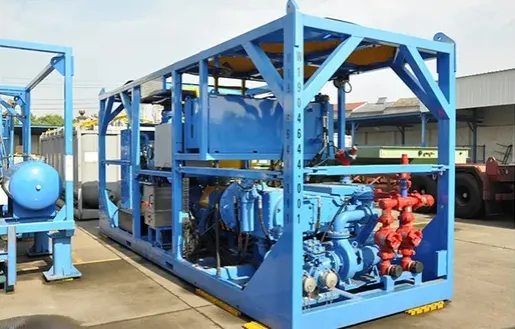

Skid mounted cementing equipment is mainly utilized in offshore or remote areas on land, such as deserts where vehicles are difficult to reach. High-quality triplex plunger pumps (TPA400, TPH400, or TPB600) with various plunger sizes are available to suit different operating conditions. The units are designed with full anticorrosion considerations for offshore applications, including Zone-II explosion-proof options for platform safety.
Model PCS-421B is an integral skid-mounted mixing and pumping unit featuring state-of-the-art continuous mixing and automatic density control. It consists of a skid frame, twin engines, twin transmissions, two TPA400 triplex pumps, a hydraulic system, and an ACM auto-mixing system. The high-energy mixing system is powered via transmission PTO, making the entire skid compact and ideal for offshore drilling platforms.
| Parameter | Standard Details (40Mpa / 70Mpa) | |
|---|---|---|
| Max. Working Pressure | 40 MPa (5800 psi) / 70 MPa (10152 psi) | |
| Density Range | 1.3 ~ 2.5 g/cm³ | |
| Auto Control Precision | ±0.02 g/cm³ | |
| Mixing Capacity | 0.3 ~ 2.3 m³/min | |
| Working Temperature | -20ºC to 50ºC | |
| Engine (Optional) | Type 400 | 315kW / 1900rpm or 303kW / 1800rpm |
| Type 700 | 345kW / 1900rpm or 333kW / 2100rpm | |
| Plunger Pump Model | 3ZB-300/40 or 3ZB-300/70 | |
| Water Tank Volume | 4 m³ | |

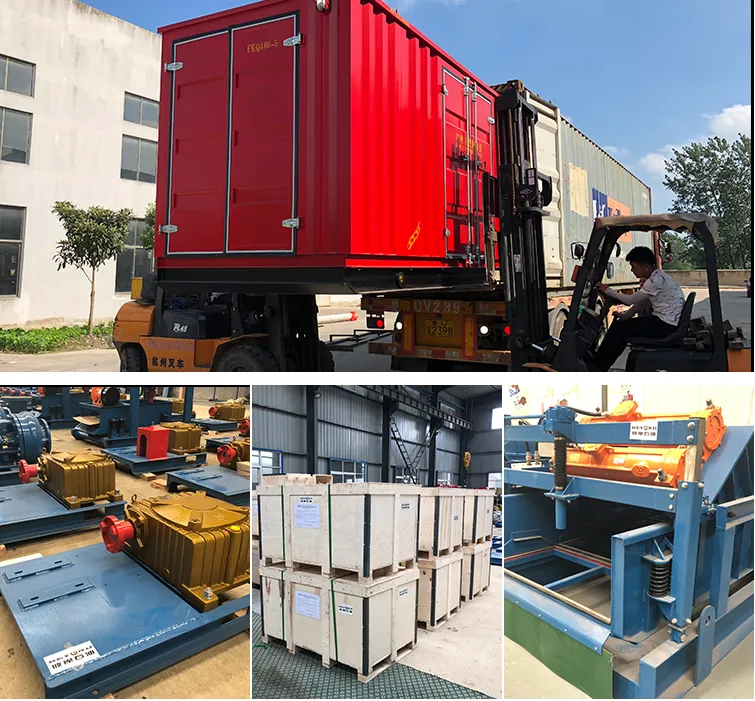

We integrate resources nationwide to provide a comprehensive procurement service for all drilling equipment, streamlining coordination and export procedures.
We independently select the best suppliers based on strict criteria including certifications, delivery timelines, and technical reputation to ensure high quality.
By handling supplier screening and verification, we reduce the risks associated with international cooperation and provide clear supply records.
Long-term factory relationships ensure priority support. After-sales teams consist of experienced engineers delivering comprehensive maintenance help.

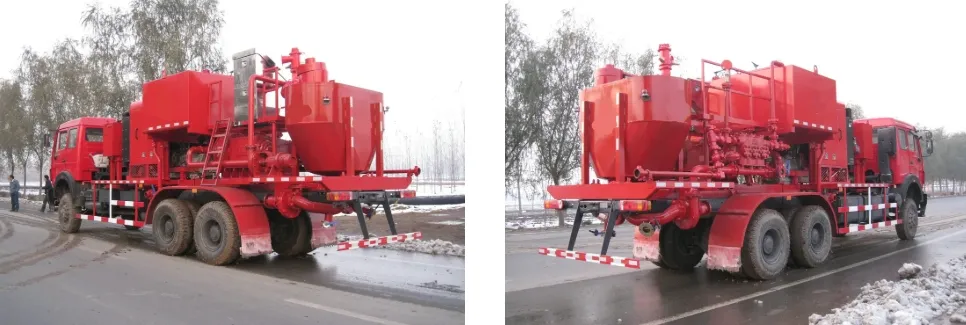

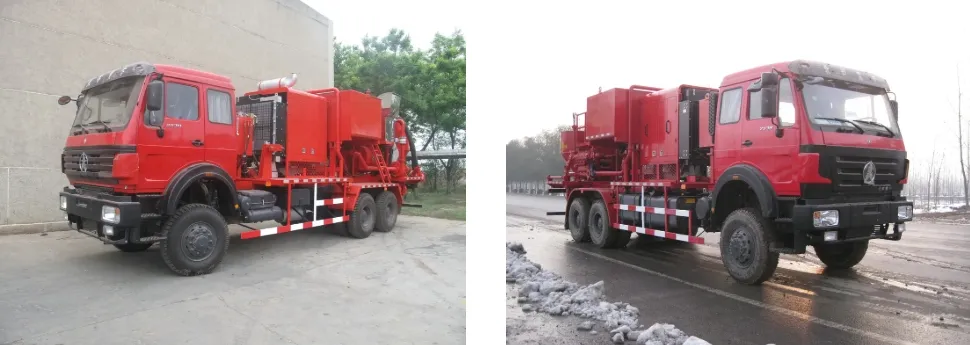

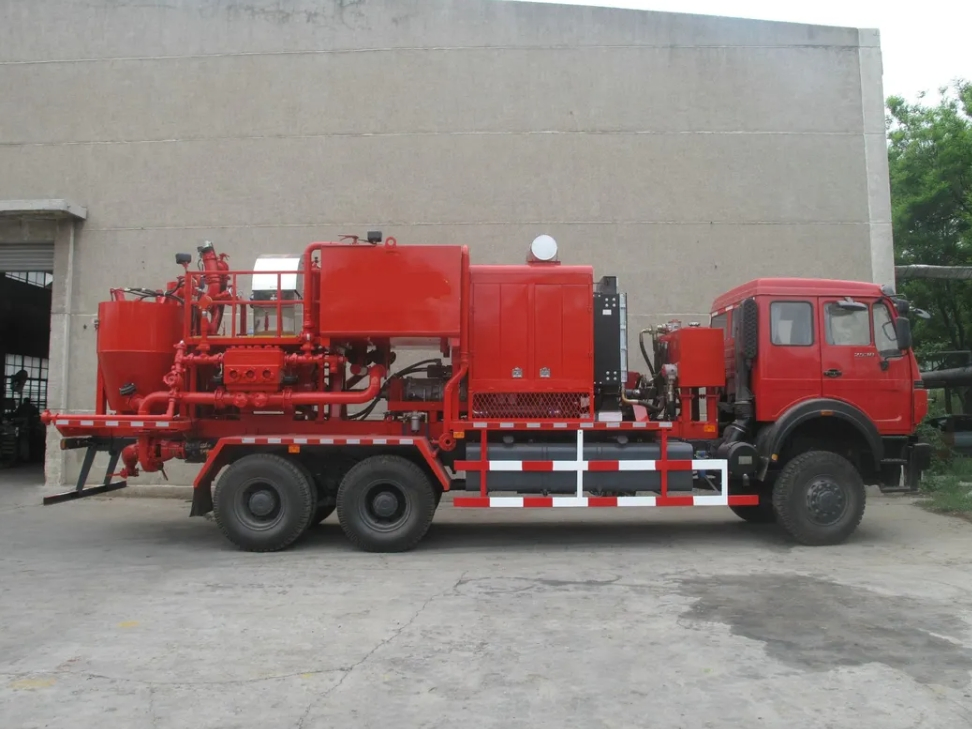

This truck-mounted mixing and high-pressure pumping unit is designed for onshore cementing operations. It features precise manual or automatic control of slurry density and discharge rates.
| Chassis Type | 6x6 Heavy Duty Chassis | Engine Power | 475 hp @ 2,100 rpm / 540 hp @ 2,100 rpm |
|---|---|---|---|
| Transmission | ALLISON 4700 | Max. Pressure | 103.5 MPa (15,000 psi) |
| Mixing Tub | 12 bbl (1.9 m³) | Displacement Tank | 25 bbl (4 m³) |
