Manufacturer of Chemical Transmission Device Marine Loading Arm

1 / 5

Manufacturer of Chemical Transmission Device Marine Loading Arm

Customization:	Available
Condition:	New
Customized:	Customized

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

AM62

Certification

ISO9001

Tank Material

Metal Tank

Type

Middle Pressure Storage & Transportation

Storage Objects

Solid, Liquid, Gas

Color

Light Grey or Customized

Seal

Veton or PTFE

Working Pressure

0.6~4.0MPa

Working Temperature

-196~250 Degree Centigrade

Transport Package

Plywood Case or Container

Specification

4", 6", 8", 10", 12", 14", 16", 20", 30"

Trademark

LOADARM

Origin

China

HS Code

8428909090

Production Capacity

200 Sets/Year

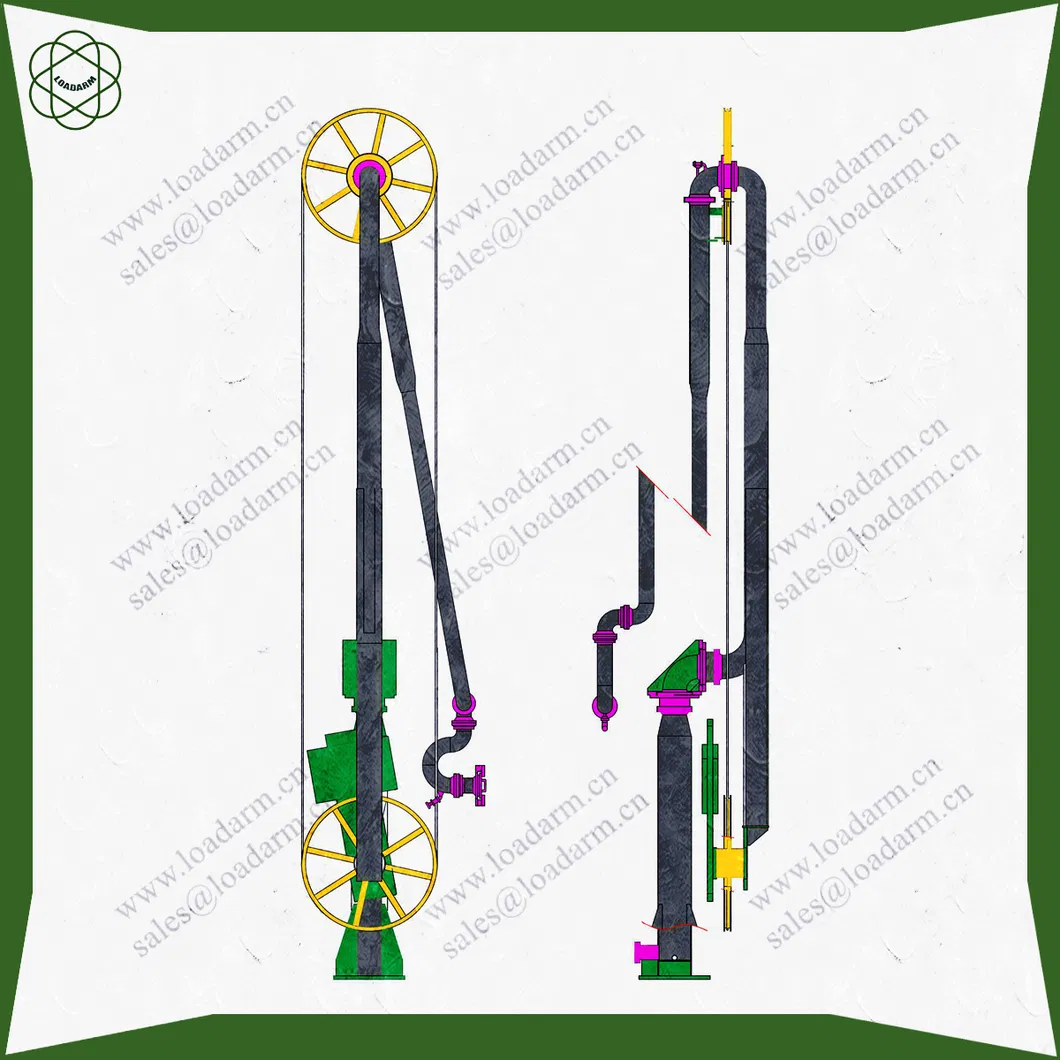

⚙️ The structure for marine loading arm AM62

📝 General Description

Marine loading arm is the special equipment for loading/unloading fluid materials crossing over the jetty and tanker, with swivel joints connecting pipelines, assist by a supporting structure, including other accessories such as control systems required by customers.

At present, the marine loading/unloading arms has many structural forms in such series as AM61, AM62, AM63 and AM64.

✔ Versatile Design: Designed for various pipe forms such as carbon steel, stainless steel, and heat tracing.

✔ Extreme Range: Temperature range of -196~250ºC and maximum design pressure up to 10Mpa.

✔ Flexible Sizing: Nominal pipe sizes ranging from DN80 to DN600 (3" to 24").

✔ Smart Operation: Manual or electro-hydraulic control with visual sound alarm monitoring systems.

The marine loading arm is comprised of: pipeline, plumbing accessories, swivel joint, balancing assembly, supporting structure, and operating system.

🛡️ Normal Anti-Corrosion & Coating

NO.	PROCEDURE	COATING NAME	NOTE
1	Shot blasting	/	Sa2.5 grade
2	Primer	Epoxy zinc rich paint	2 coats
3	Intermediate coat	MIO epoxy paint	1 coat
4	Finish coat	Chlorinated rubber finish paint	2 coats

🏗️ AM62 Structural Features

A part of the product pipe provides support to the loading arm, but most weight and loads are supported by an independent body or supporting auxiliary supporting organizations. Inner and outer arms share one counterweight system. Mixed mode support for single-tube loading arms are compactly structured, suitable for large-tonnage vessels.

🏭 Workshop and Site Display

🌍 Oversea Project Cases

❓ Frequently Asked Questions

What is the primary function of a Marine Loading Arm?

It is specialized equipment used for the safe and efficient transfer of fluid materials (liquid or gas) between a jetty and a tanker vessel.

What materials are used for the pipeline construction?

Depending on the medium and requirements, pipelines can be constructed from carbon steel or stainless steel, with options for heat tracing.

How is the AM62 model structured differently?

The AM62 features an independent supporting body that carries most of the weight, and uses a shared counterweight system for the inner and outer arms, making it ideal for large vessels.

Can the loading arm handle extreme temperatures?

Yes, the equipment is designed to operate in temperatures ranging from -196ºC to 250ºC, suitable for cryogenic or high-heat applications.

What safety features are included?

It can be equipped with electro-hydraulic controls and travel monitoring systems with visual and sound alarms to prevent operation beyond safe limits.

What is the annual production capacity for these units?

The current production capacity is approximately 200 sets per year.
