Type
Middle Pressure Storage & Transportation
Storage Objects
Solid, Liquid, Gas
Color
Light Grey or Customized
Application
Truck Tanker, Rail Car, Marine

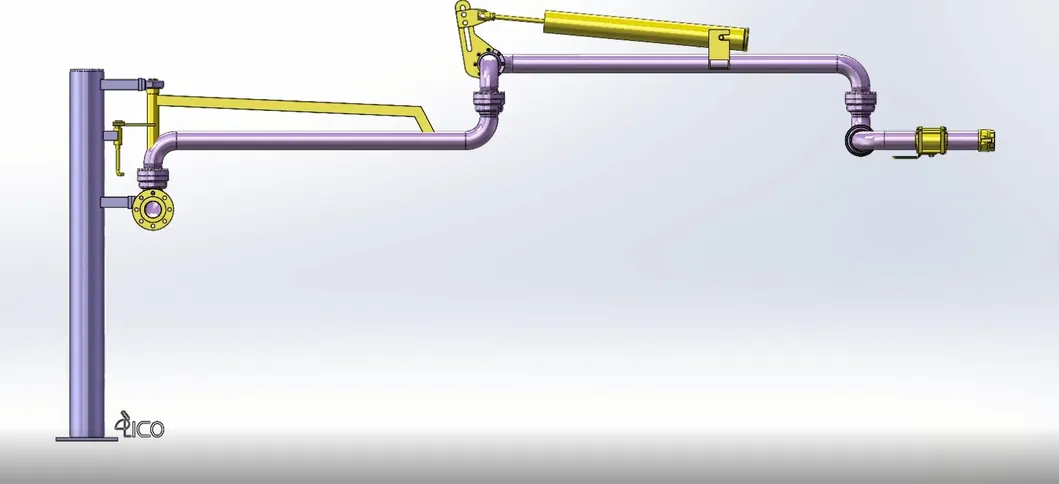

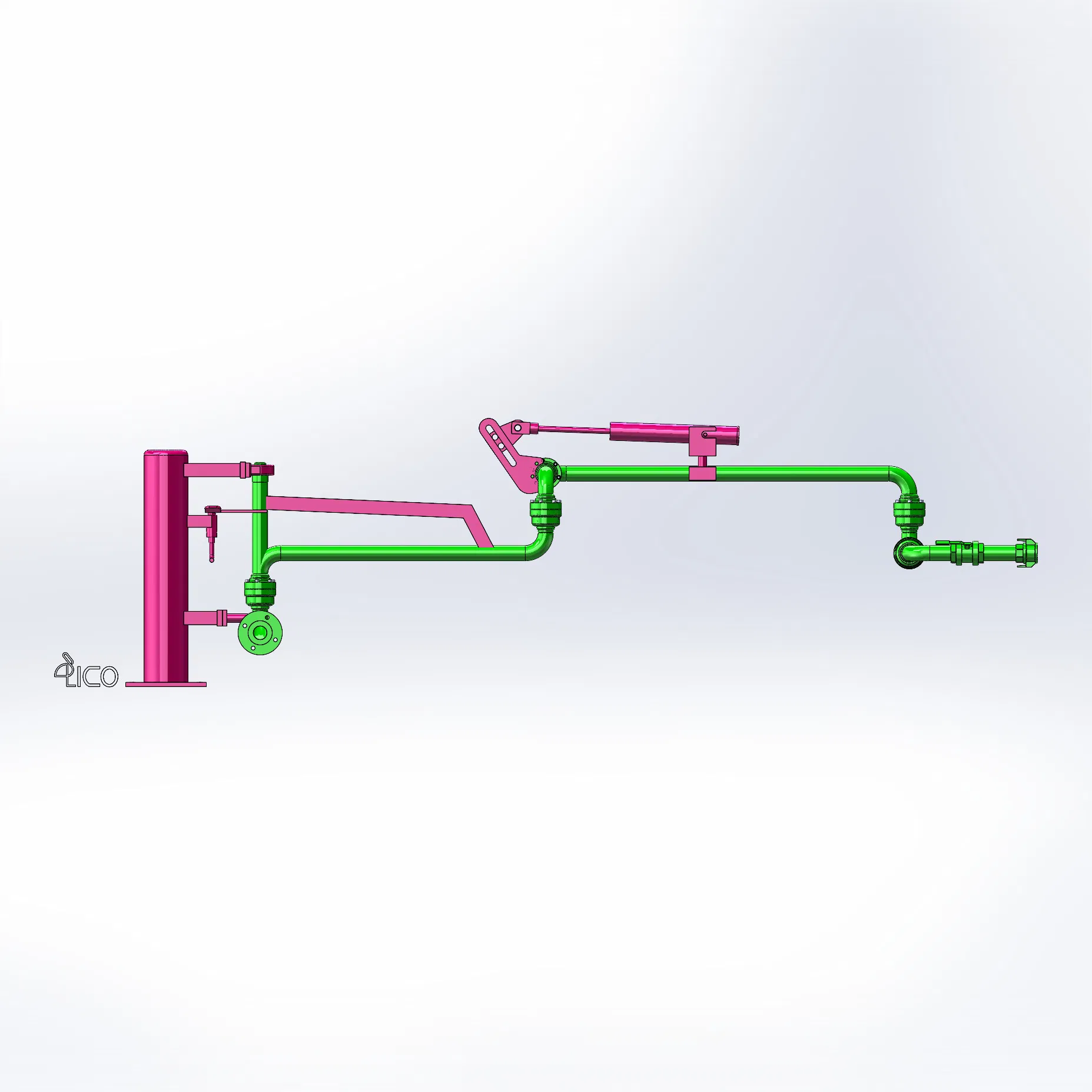

AL2504 Land Loading Arm Structure:
AL2504 is a bottom-loading and unloading crane tube. It is often used for bottom-loading and unloading operations of trains and trucks, and can transfer various media such as crude oil, chemical raw materials, and coal-water slurry. It has a variety of nominal diameter specifications to adapt to different pipelines. With a wide working temperature range, it can operate stably from low-temperature to relatively high-temperature environments, playing a significant role in petrochemical, energy and other industries.

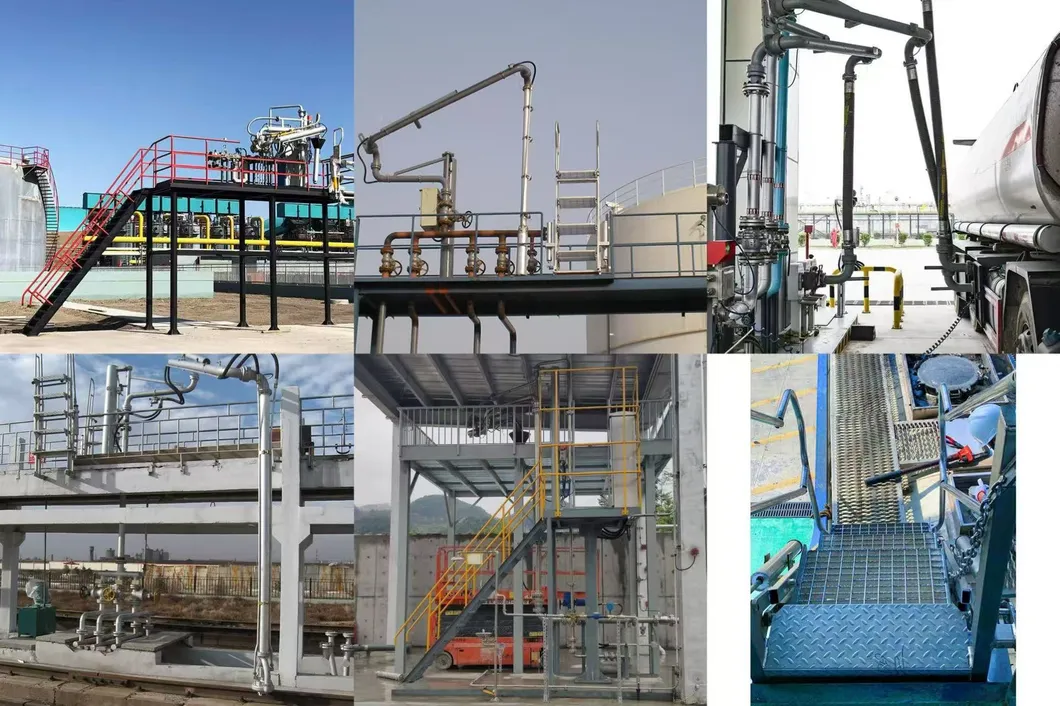

Our land loading arm is specifically designed for transporting fluid between piping systems and tankers, customized for different tankers, liquids, and site conditions. Equipped with loading platforms, folding stairs, and safety cages, it forms a complete loading system. It features level location or quantitative monitoring with sound and visual alarms.
| AL2504 Bottom Loading Arm Technical Data |
| Places Applied |
Bottom closed loading or unloading |
| Applications |
Product oil, chemicals, etc. |
| Nominal Diameter |
DN50 ~ DN100 |
| Working Temperature |
-196ºC ~ 250ºC |
| Working Pressure |
PN1.0 ~ PN4.0 |
| Material of Pipeline |
Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |
P

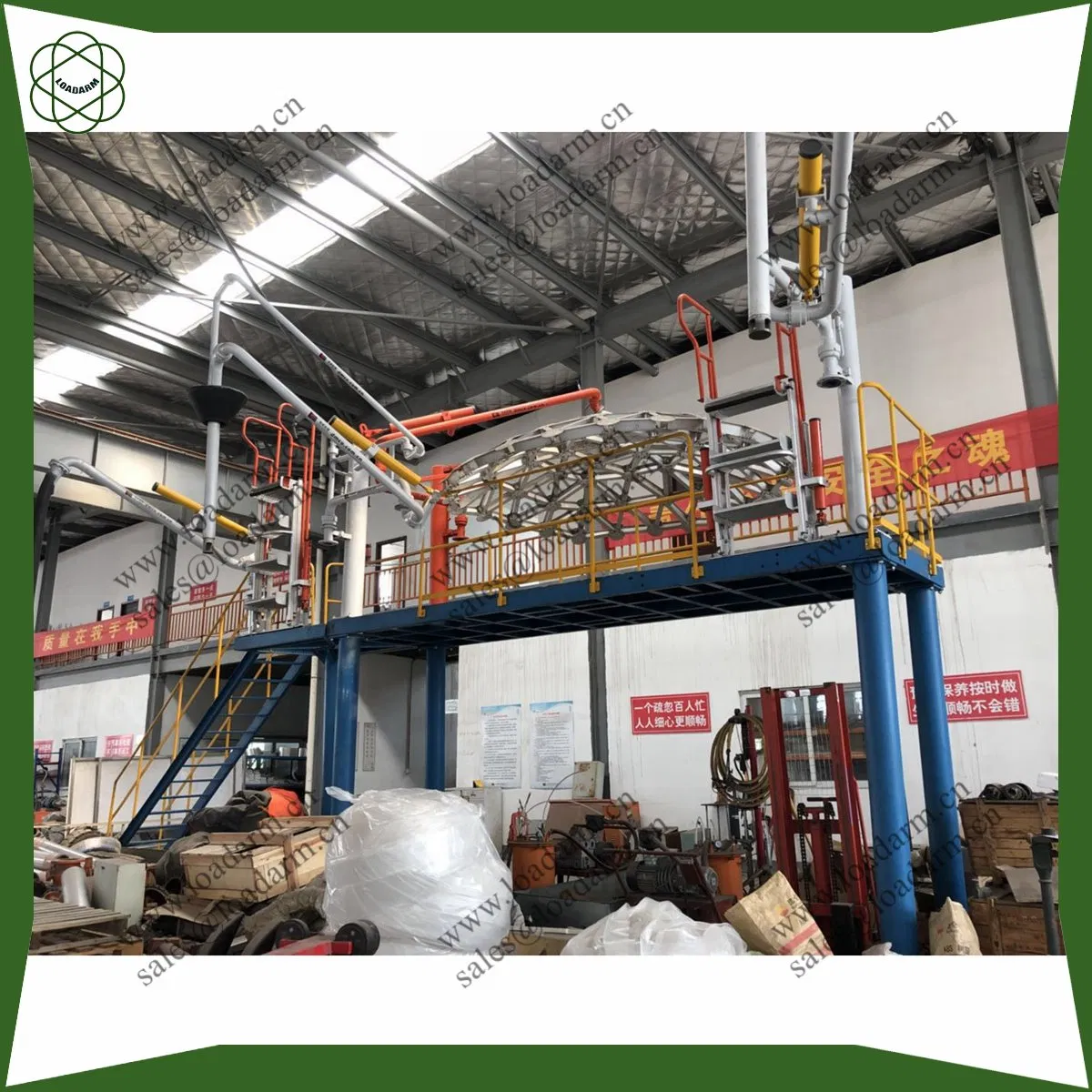

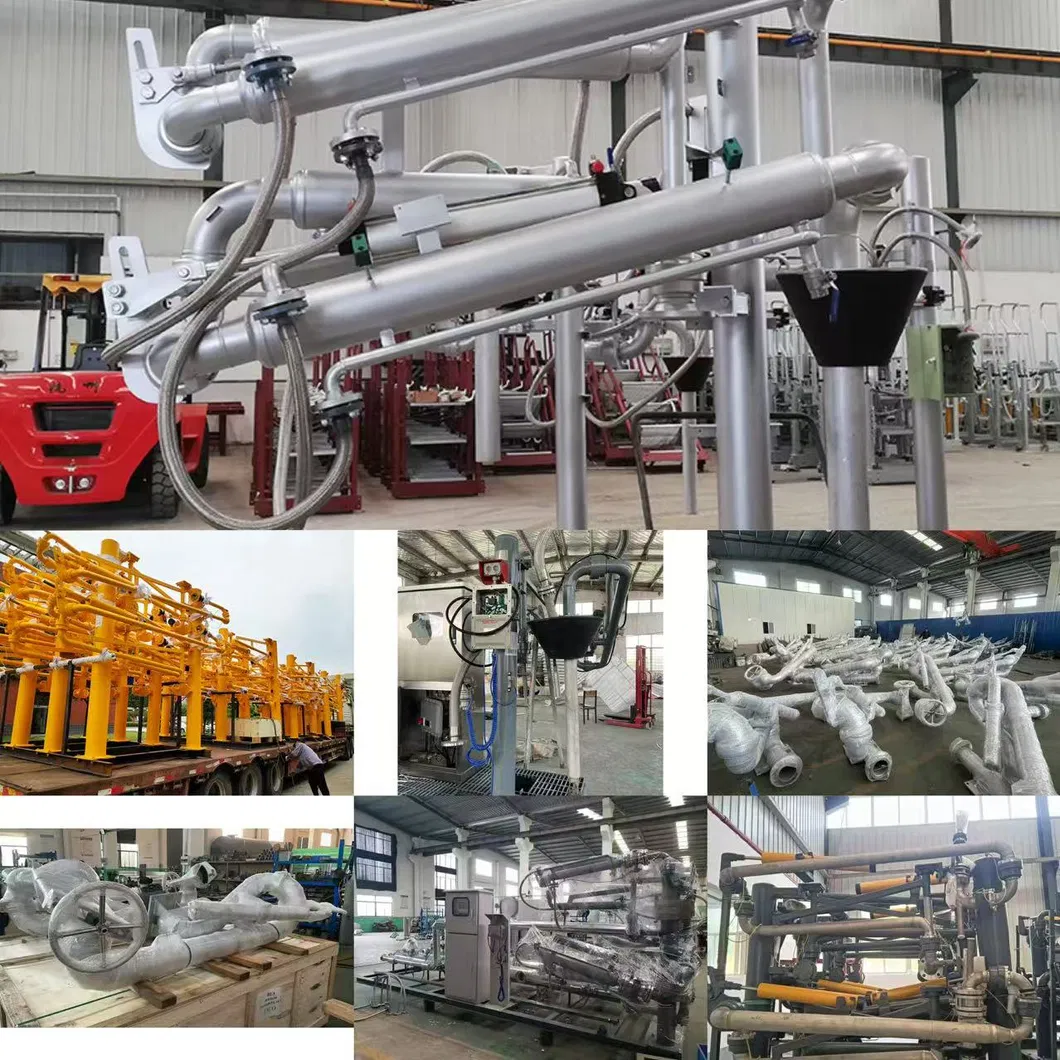

Detailed Photos & Workshop
Engaged in the R&D, design, manufacturing, and maintenance of petrochemical storage and transportation equipment. Products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, and skid-mounted equipment. As a high-tech enterprise, the company focuses on technological innovation and strict quality control. Products are widely used in large and medium-sized petrochemical enterprises and exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc.
?
Frequently Asked Questions
1. What is your production period or delivery time?
Delivery time can be within 20 days. For special products, it could be within 30-50 days.
2. What payment terms do you offer?
T/T before shipment or L/C can be accepted.
3. Can you do OEM or use a custom name plate?
Yes, we accept and welcome OEM orders and customized name plates for the products.
4. How do you ensure the quality of your products?
We have a strict quality control process, including inspections at every stage (RT, PT, and hydraulic tests). We hold ISO certification and TUV welder certificates.
5. Can you provide documentation and certifications?
Yes, we provide material certificates, inspection reports, and customs clearance documents such as CO, Form E, etc.
6. How long is your warranty period?
12 months from commissioning or 18 months from delivery, whichever comes first. Extended 2-year warranties are available in some cases.
