Product Description
I. Standard Configuration
- 1. LPG Storage Tank
- 2. Underframe
- 3. Pipeline System

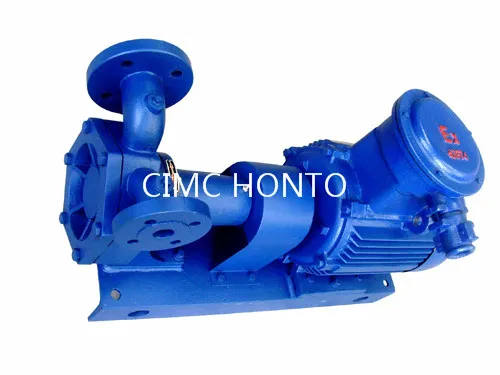

- 4. LPG Filling Pump
- 5. LPG Filling Scale or LPG Dispenser
- 6. Electrical Control System
- 7. Sunshed

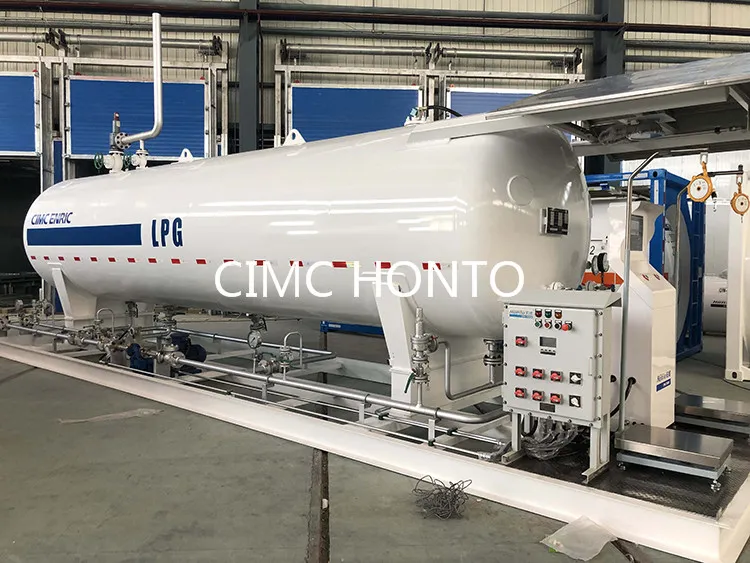

II. Performance Advantages

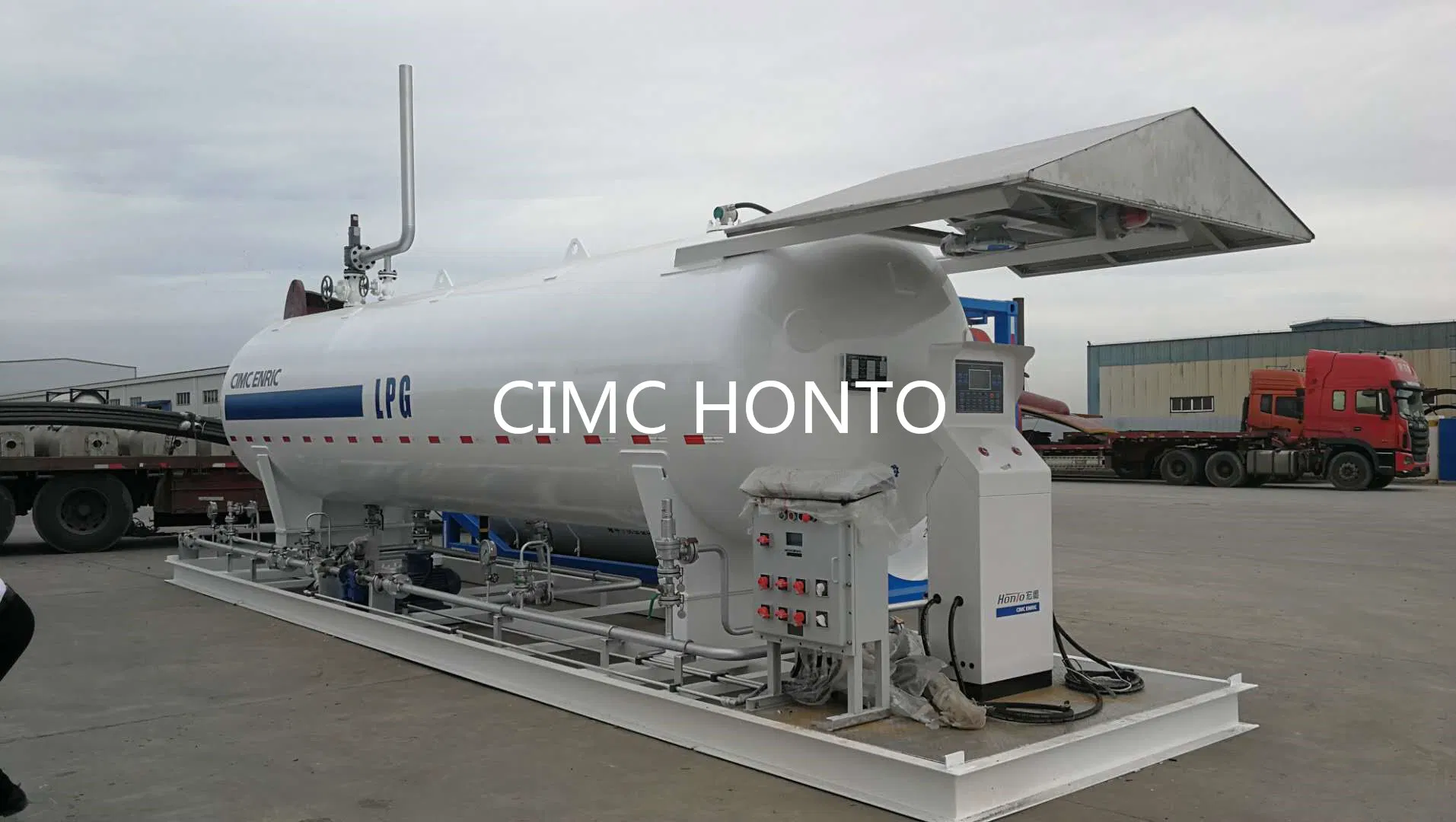

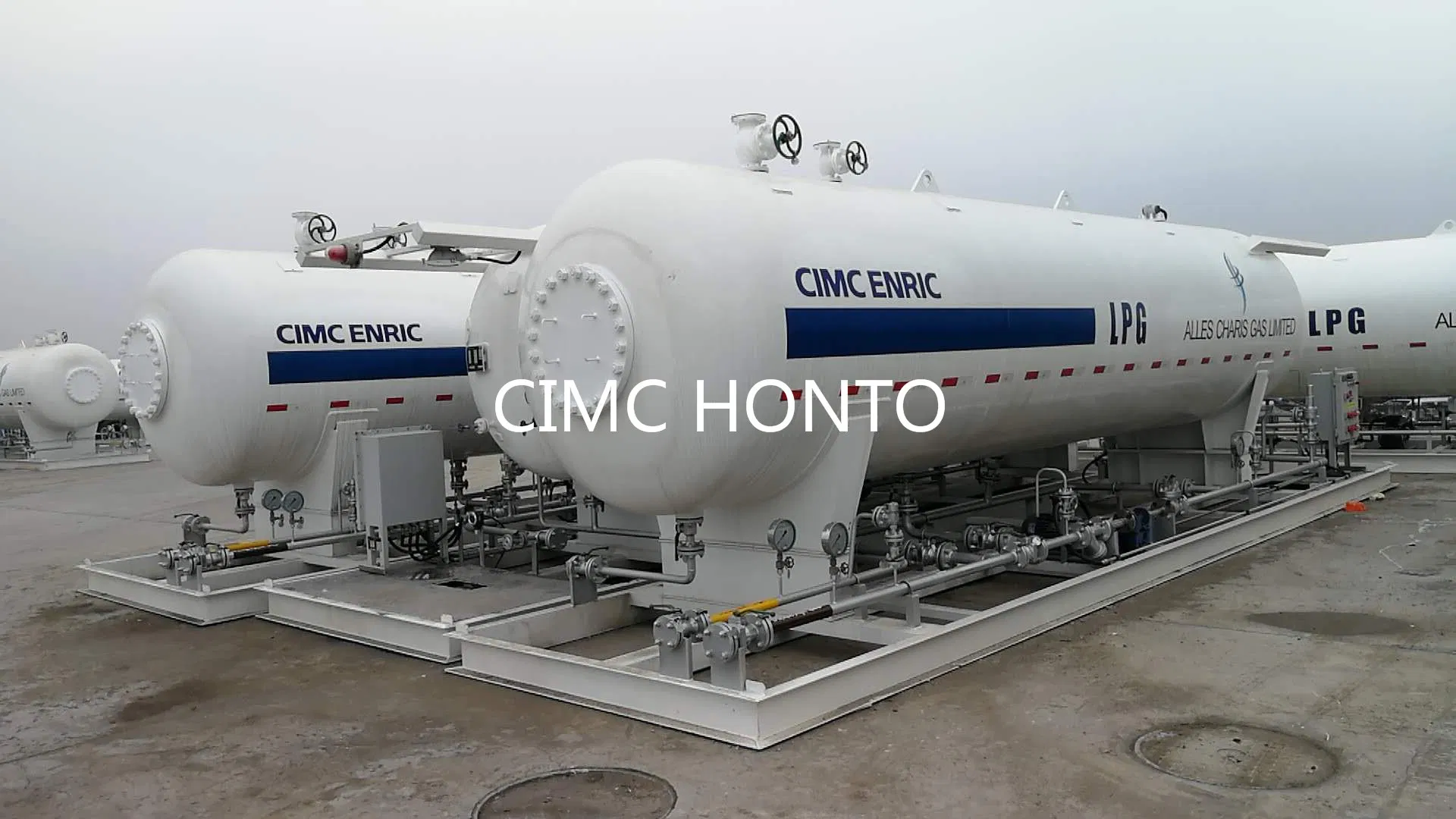

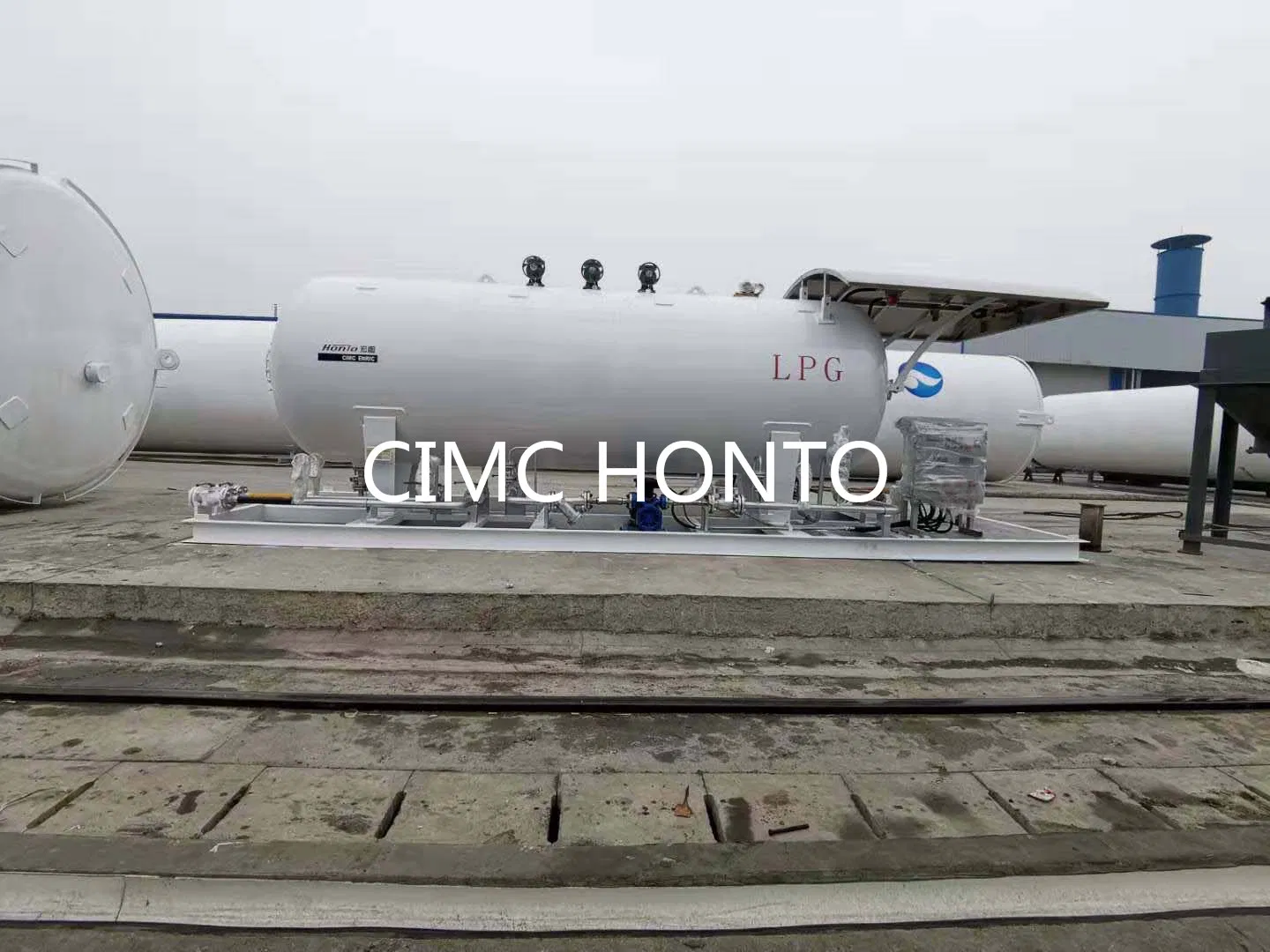

This product is an integrated equipment for metering civil LPG storage tank (household gas tank). The main equipment adopts integrated skid design, including LPG storage tank, process piping, hydrocarbon pump, LPG filling scale and control carbinet. It has the unloading function for LPG tanker with pump, unloading function for LPG storage tank skid with pump, filling function for LPG cylinder in car, bottling function for civil LPG cylinder, loading function for LPG tanker, function of safe reflux, etc.

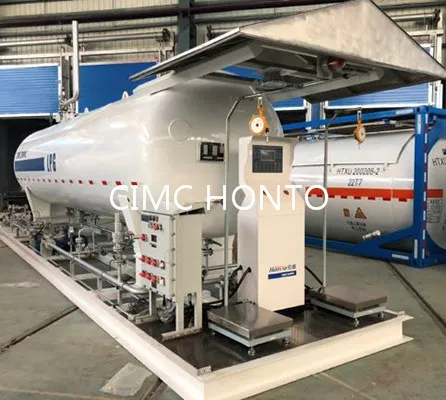

III. Key Advantages
1
High integrity, small occupied land area; standard design.
2
Complete functions to meet various customer requirements.
3
PLC control, safe and reliable operation.
4
Short installation time; commissioning inside plant.
5
Skid design, convenient for transportation.
Key Advantages
✓
Powerful R&D Ability: Acquisition of more than 120 patents through frequent technical communications with international standardization committees and universities.
✓
Top Expert Team: Over 330 professional technical staff and senior engineers participating in national safety regulation compilation.
✓
Strong Production Capacity: Equipped with over 2000 sets of advanced equipment including welding robots, plasma cutting machines, and large heat treatment furnaces.
✓
Scientific QA&QC System: Each product passes 111 quality control points and 243 control procedures. Quality files are maintained for over 20 years for full traceability.
Frequently Asked Questions
1. What are the main applications of the LPG Filling Skid?
It is primarily used for bottling civil LPG cylinders, fueling cars via LPG dispensers, and loading/unloading operations for LPG tankers and trucks.
2. What is the standard design pressure for the storage tanks?
The standard design pressure is 1.61 MPa, with a Maximum Allowable Working Pressure (MAWP) of 1.77 MPa. Customized options are also available.
3. What materials are used in the construction?
The tanks are made from high-quality Q345R carbon steel, and the processing pipes utilize 20# steel for durability and safety.
4. Is the equipment easy to transport and install?
Yes, the integrated skid design is specifically built for convenient transportation. Since commissioning is done inside the plant, the installation time at the site is significantly shortened.
5. How is the quality of the welds and construction monitored?
We employ a rigorous QA&QC system with 111 control points. Each product undergoes extensive radiographic inspection, and records are kept for over 20 years to ensure weld quality can be tracked.
6. Can the filling skid operate in extreme temperatures?
The design temperature range for the LPG filling skid is between -20ºC and 50ºC, making it suitable for various climatic conditions.
