Top Closed with Seal Cap and Vapor Recovery Loading Arms

Customization:	Available
After-sales Service:	1 Year Garantee
Warranty:	1 Year

📋 Basic Information

Model NO.

AL1401

Certification

ISO 9001:2000

Power Source

Manual

Operation Pressure

Pn4.0

Applicable Medium

Mud, Water, Crude Oil, Gasoline, Diesel

Structure

Seamless Pipe with Swivel Joint

Material

Stainless Steel, Carbon Steel, PTFE Lined etc

Quality Guarantee

1 Year

Seals

PTFE

Application

Truck Tanker, Rail Car, Marine

Specification

DN50, DN80, DN100, DN150

Origin

China

🛠️ Product Description

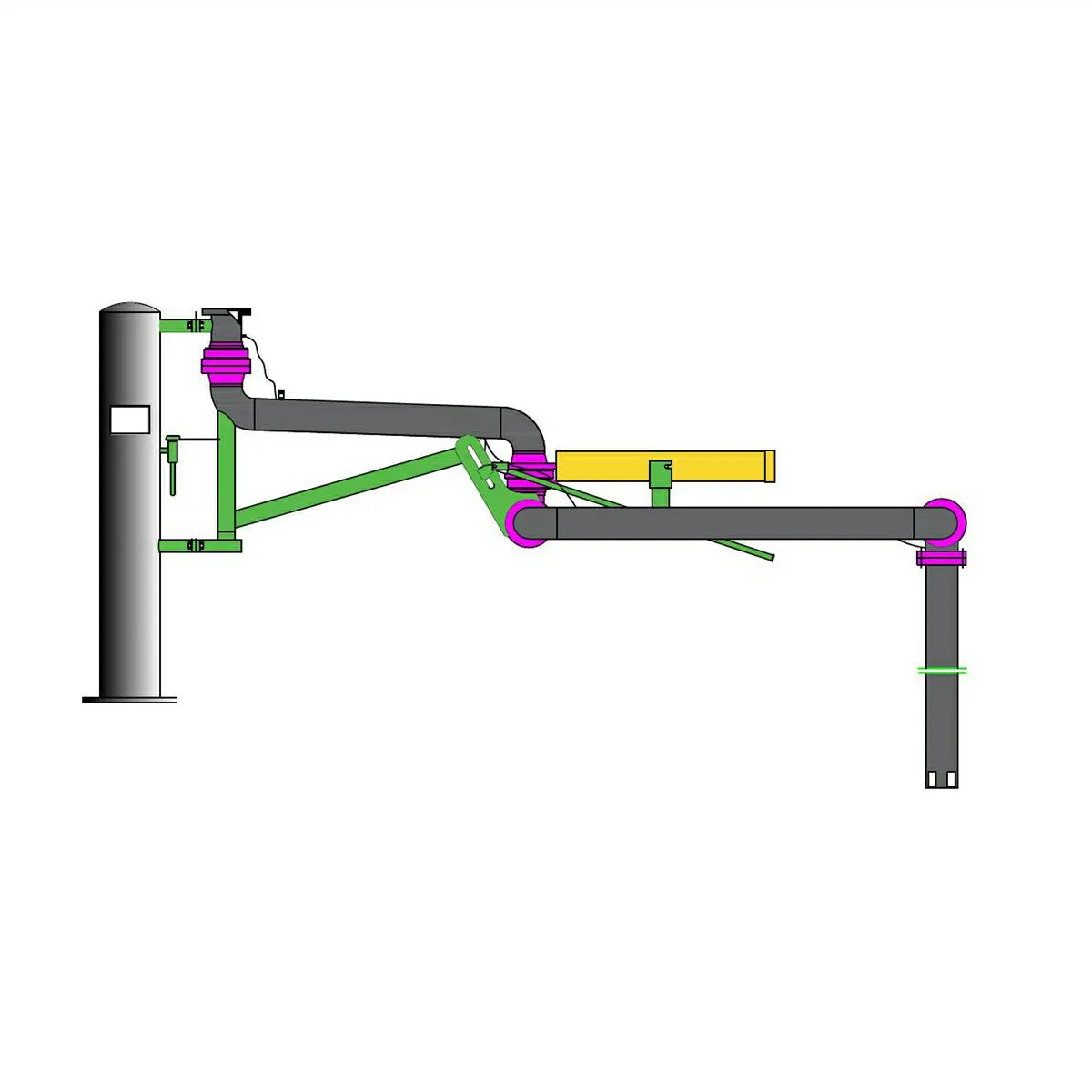

The structure for loading arm AL1401:

AL1401 loading arm is suitable for top loading of various liquid media such as crude oil and refined oil. The inlet flange interface is upward, with a variety of nominal diameters. The applicable pressure is 1.6 - 2.5MPa, and the temperature ranges from -50ºC to 110ºC. The pipeline material can be carbon steel or stainless steel, which is reliable and durable.

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.

🔹 By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.

🔹 Operating modes could be manual, pneumatic or hydraulic etc according to requirements.

AL1401 Technical Specifications
Places Applied	Top open loading
Applications	Product oil, chemicals
Nominal Diameter	DN25~DN200 (1"~8")
Working Temperature	-196~250ºC
Working Pressure	PN1.0~PN4.0
Material of pipeline	Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.

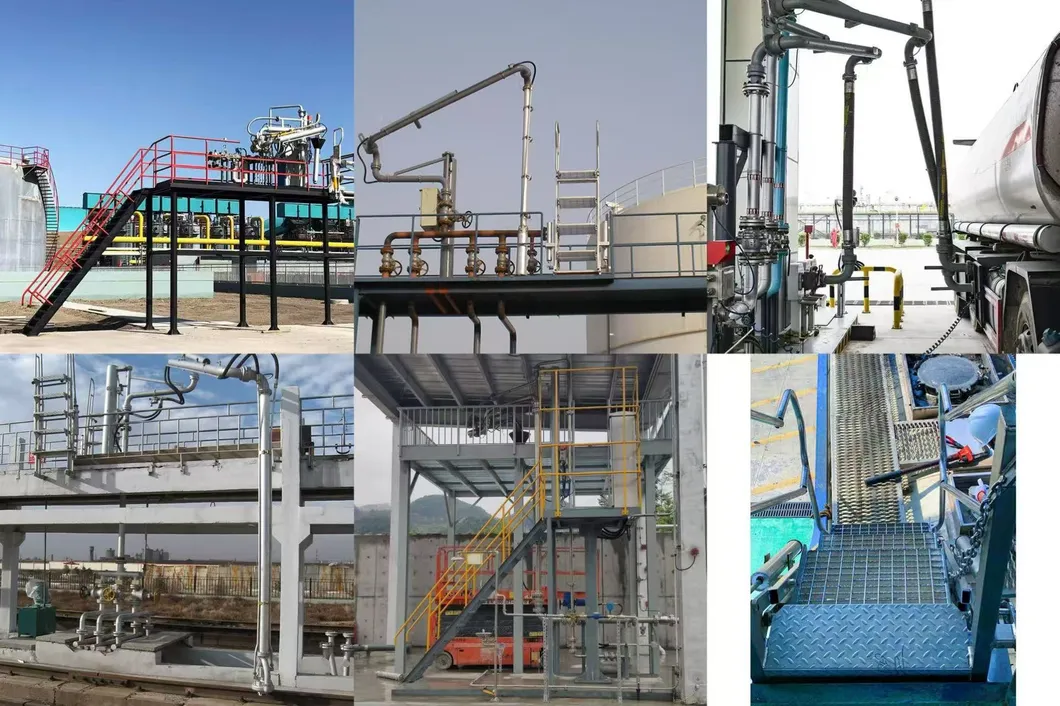

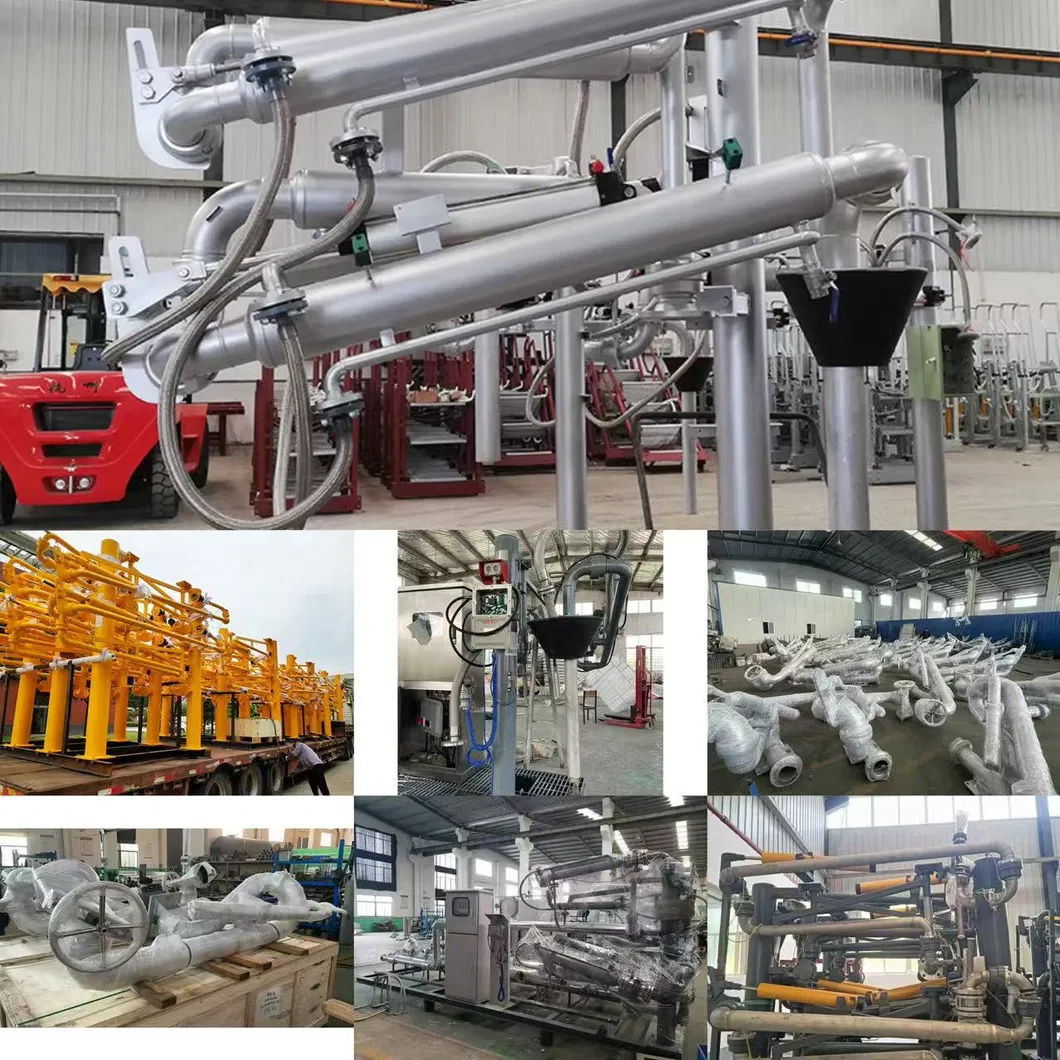

📸 On-site & Workshop Display

🚢 Packaging & Overseas Projects

Overseas Project Cases:

🏢 Capability & Profile

We are mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Our products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc.

Our equipment is widely used in large and medium-sized petrochemical enterprises. Products are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc., and have been recognized by domestic and foreign customers. We continue to adhere to product technological innovation, providing high-quality products featuring cutting-edge technology, energy conservation and environmental protection.

❓ Frequently Asked Questions

What is your production period or delivery time?

Delivery time can be within 20 days. For special products, it could range between 30-50 days.

What payment terms do you offer?

We accept T/T before shipment or L/C.

Can you provide OEM services or custom nameplates?

Yes, we accept and welcome OEM orders and can use the customer's specific nameplates for the products.

How do you ensure the quality of your products?

We have a strict quality control process, including inspections at every stage (RT test, PT test, and hydraulic test). We hold ISO certification and TUV welding certificates.

What documentation do you provide?

We provide material certificates, inspection reports, and customs clearance documents such as CO, Form E, etc., in compliance with industry standards.

How long is the warranty period?

The standard warranty is 12 months from commissioning or 18 months from delivery, whichever comes first. In some cases, we can provide a 2-year warranty.
