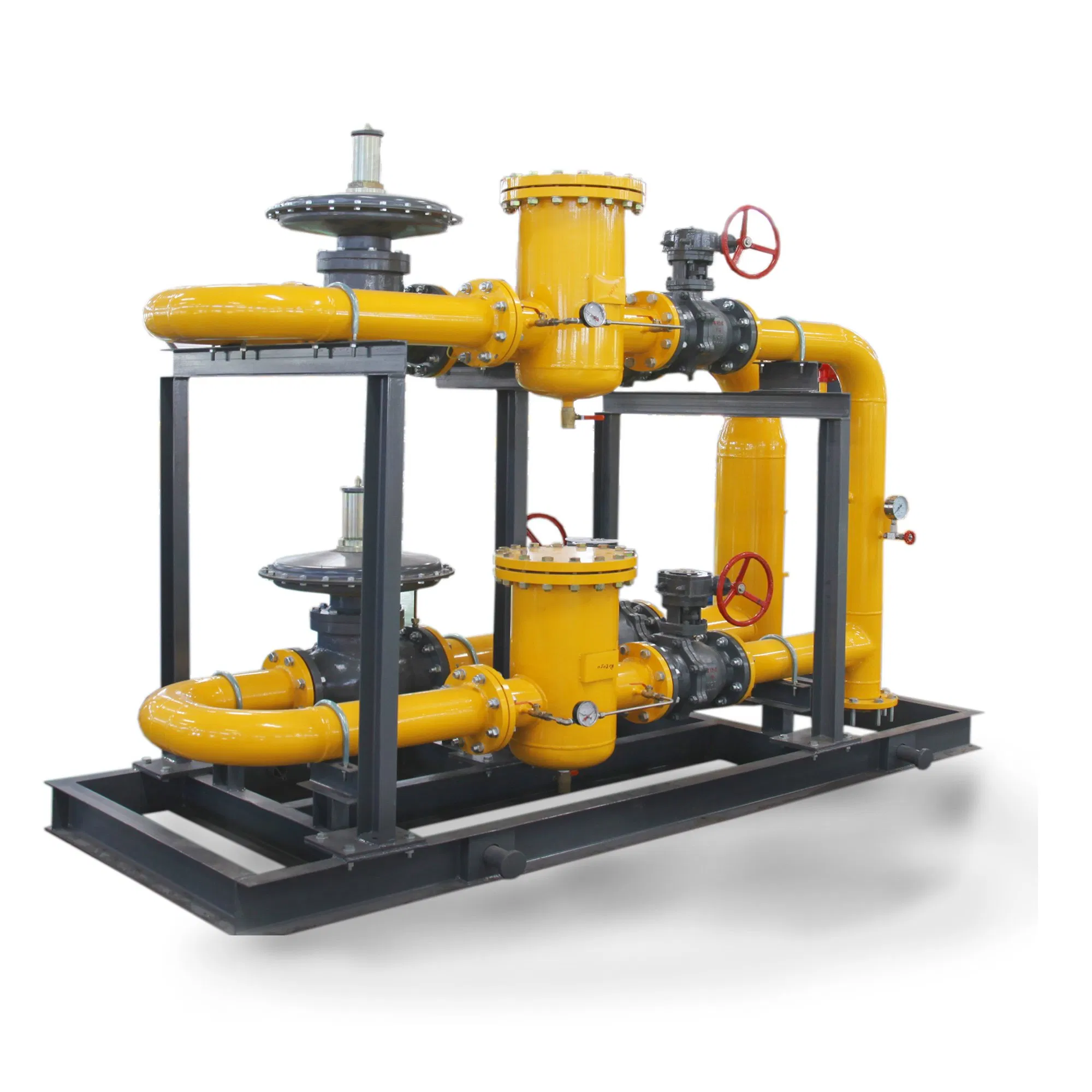

Pressure Regulating Metering Skid for CNG Compressor Station

1 / 4

Pressure Regulating Metering Skid for CNG Compressor Station

Customization:	Available
Application Fields:	Electronic
Certification:	ISO, CE

Send Inquiry

Product Description

🔹 Basic Information

Name

Gas Regulator

Condition

New

Purpose

Gas Purification

Max Pressure

1MPa

Outlet Pressure

1-100kpa

Size

DN50

Noise Level

Low

Usage

Nitrogen

Flanged

Class150

Trademark

Origin

China

HS Code

8481100090

🔹 Product Overview

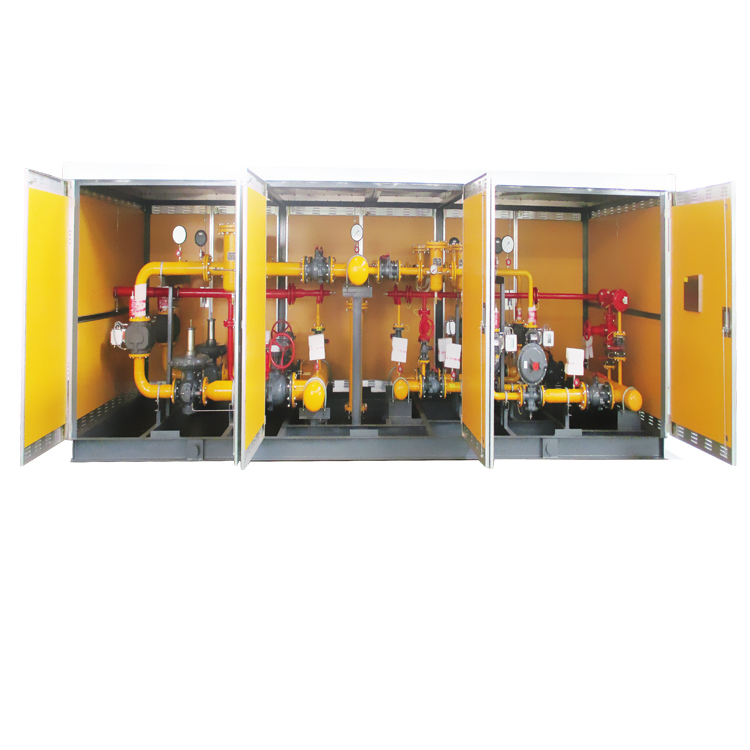

500Nm3/h Factory of Gas Pressure Regulating Box

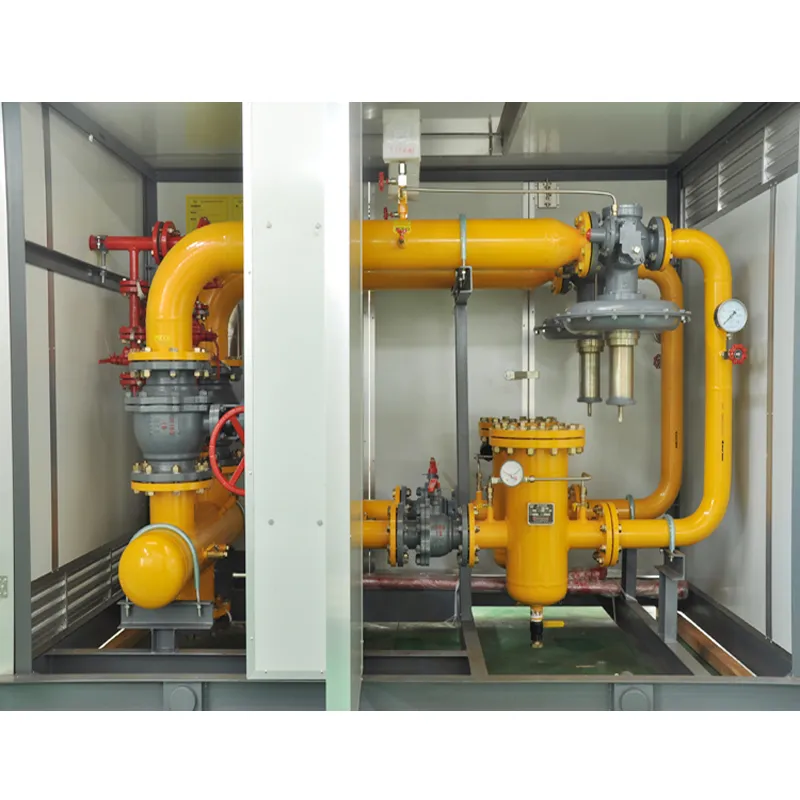

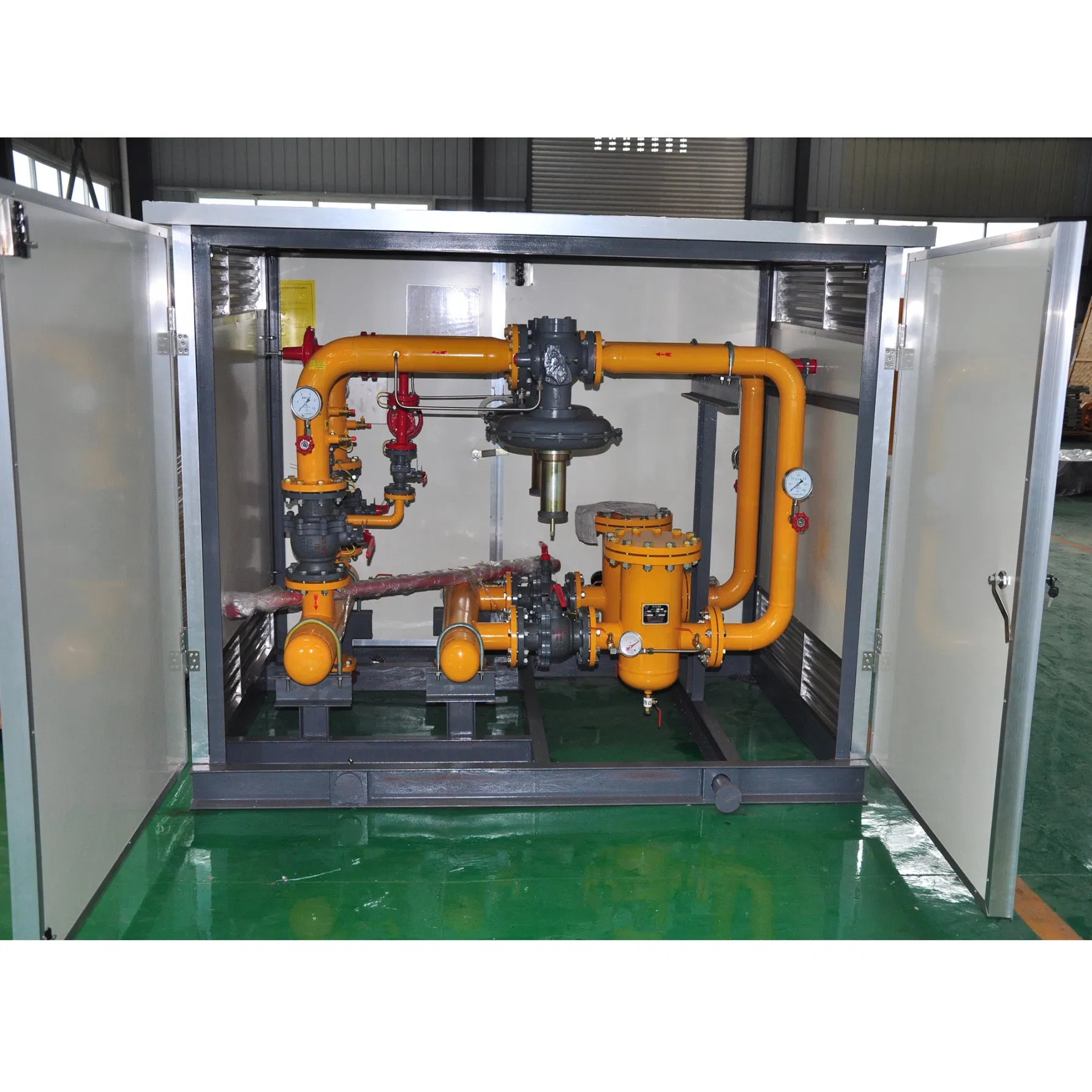

This series of pressure regulating boxes are primarily designed for medium and low-pressure gas transmission and distribution systems. The unit integrates a filter, pressure regulator (with self-shut off and release functions), ball valve, and pressure gauge within a compact box structure.

Built for safety and ease of maintenance, it is an ideal solution for civil buildings, apartment complexes, hotels, restaurants, and medium-sized industrial sites. It is also compatible with low-pressure gas boilers and small direct-fired turbines. The enclosure is available in stainless steel, cold-rolled steel spray, or glass steel finishes.

🔹 Key Benefits

✔ Modular Structure Design

✔ Big Flow & Fast Response

✔ High Pressure Accuracy

✔ Automatic Overpressure Shut-off

✔ Low Gas Cleanliness Requirement

✔ Convenient Online Maintenance

🔹 Technical Data Sheet

Maximum Inlet Pressure	25MPa
Outlet Pressure Range	0.1-5Mpa
Accuracy Class	AC10
Lock-up Pressure Class	SG15
Working Temperature	-19 ~ +60ºC
Available Specs	DN50, DN80, DN100, DN150

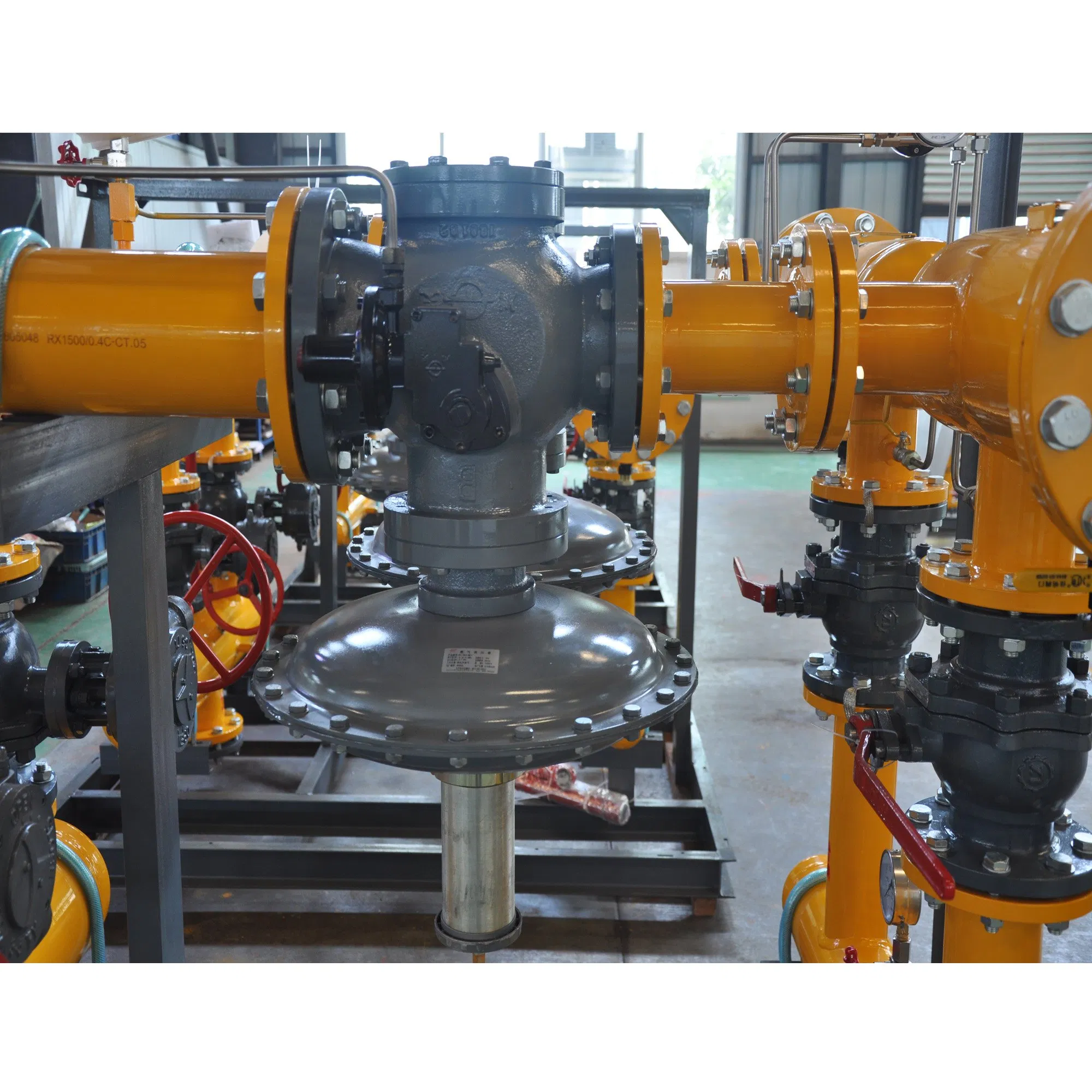

🔹 Product Display

🔹 Global Supply & Service

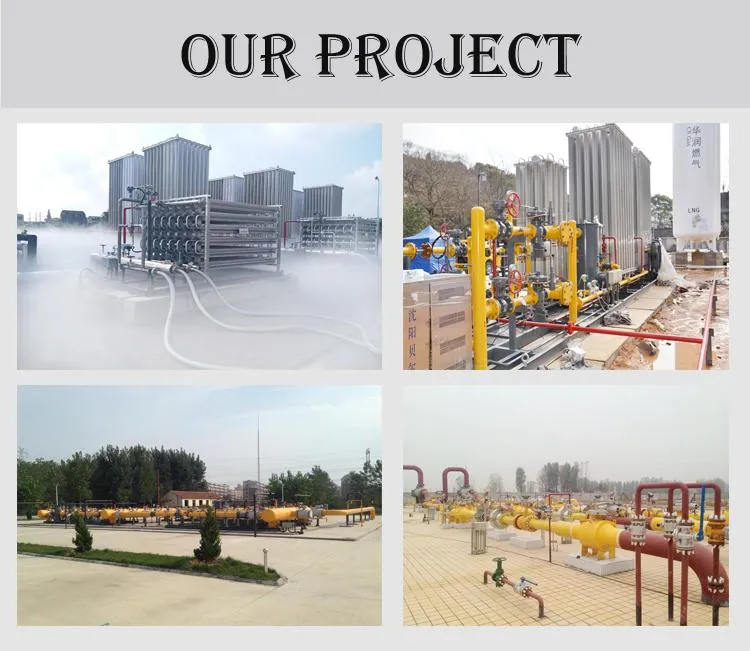

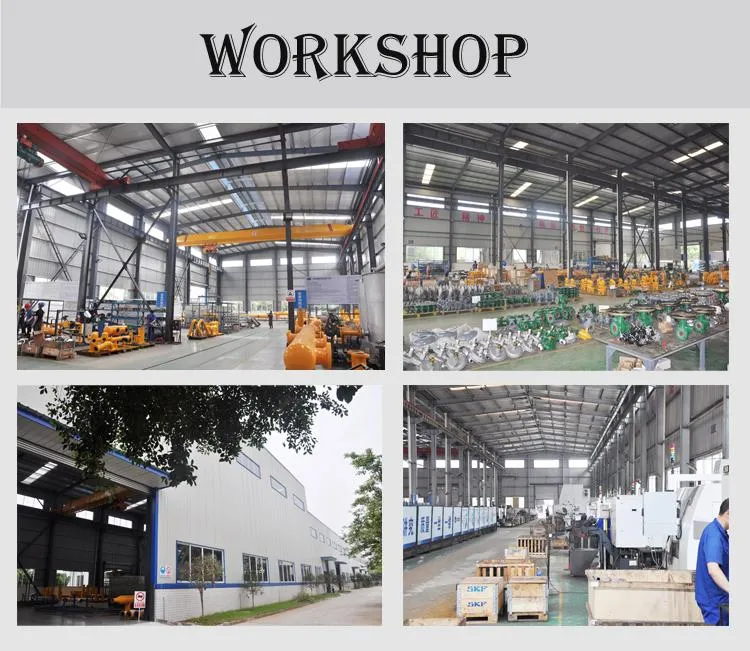

Our sales network extends globally, exporting to numerous international markets. As a high-quality supplier to major national gas and energy corporations, we have established a leading industry brand position. Our commitment to quality and service has made our facilities a recognized training base for regulator equipment care and maintenance.

📑 Frequently Asked Questions (FAQ)

1. What are the primary applications for this Gas Pressure Regulating Box? It is mainly used in medium and low-pressure gas transmission systems for civil buildings, hotels, restaurants, and small industrial boilers.

2. What safety features are integrated into the system? The system includes an automatic overpressure shut-off function and a pressure release function to ensure operational safety.

3. Can the equipment be maintained without shutting down the system? Yes, the modular design allows for convenient online maintenance, minimizing downtime for the user.

4. What materials are used for the protective box? The box is manufactured using high-quality materials such as stainless steel, cold-rolled steel with spray coating, or glass steel.

5. What is the working temperature range for this regulator? The equipment is designed to operate reliably in temperatures ranging from -19ºC to +60ºC.

6. What connection sizes are available? We offer multiple specifications including DN50, DN80, DN100, and DN150 to suit different flow requirements.
