📋 Basic Information
| Model NO. |
CNG-2000/250-2 |
Certification |
ISO, CE |
| Temperature |
Ordinary Temperature |
Connection |
Flange |
| Valve Seat |
Customized |
Structure |
Container |
| Material |
Stainless Steel |
Product Type |
RMS / Gas Pressure Reducing Skid |
| Storage Medium |
CNG, LNG |
Flowrate |
120-15000nm3 |
| Application |
CNG / Natural Gas / Industrial Gas |
Condition |
New |
| Inlet Pressure |
≥250 Barg |
Main Components |
Filter, Regulator, Heater, Meter |
| Temperature Range |
-20℃±60℃ |
Production Capacity |
10000PCS/Year |
🏭 About Us

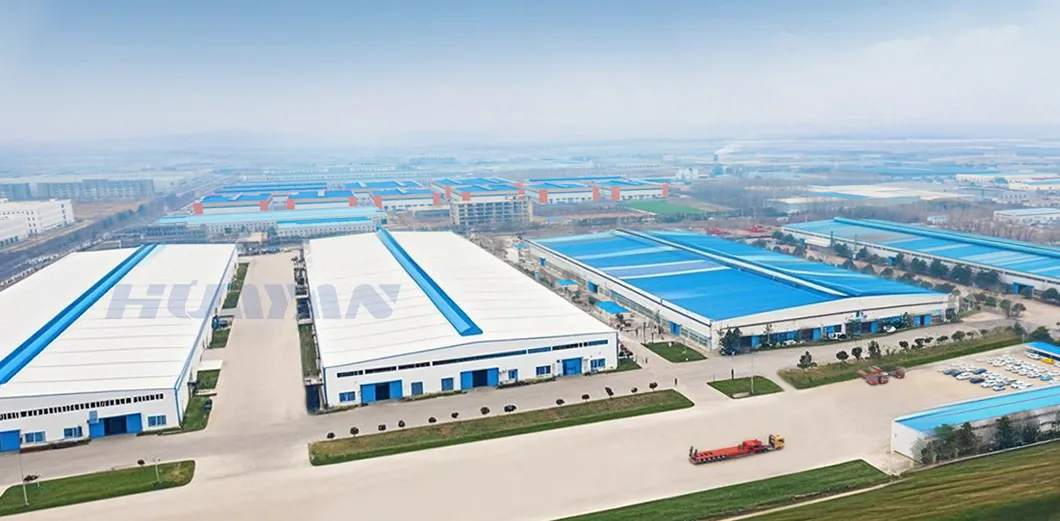

Established in 2005, our company is a leading integrated transportation solution provider integrating R&D, production and trade. Covering an area of 222,000 square meters, we use advanced automation equipment, a professional R&D team and cutting-edge manufacturing technology to provide high-quality special transportation equipment.
Our core offerings include gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, powder/liquid tankers and a full range of semi-trailers for energy, hazardous chemical transportation and engineering logistics. With more than 20 years of export experience, we serve more than 30 countries including Peru, India, Russia and Brazil. We have achieved a 100% order delivery rate through digital management and hold ISO9001, ASME, and ADR certifications.
🚀 Product Description

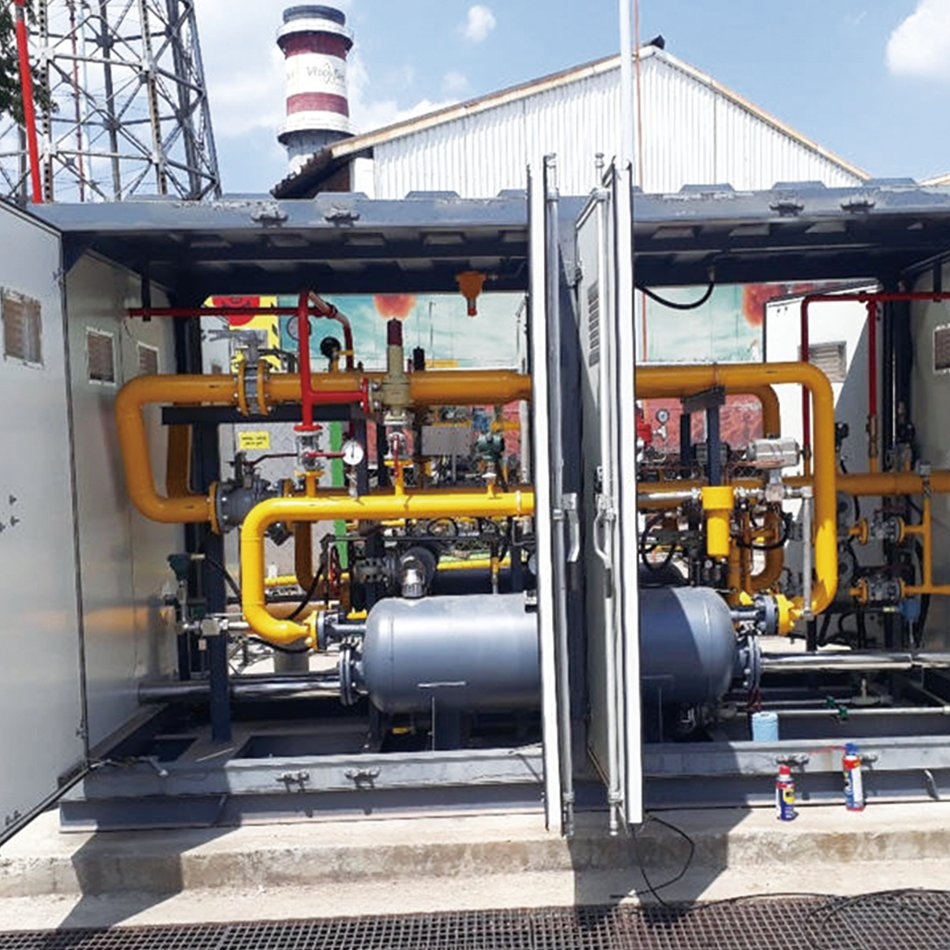

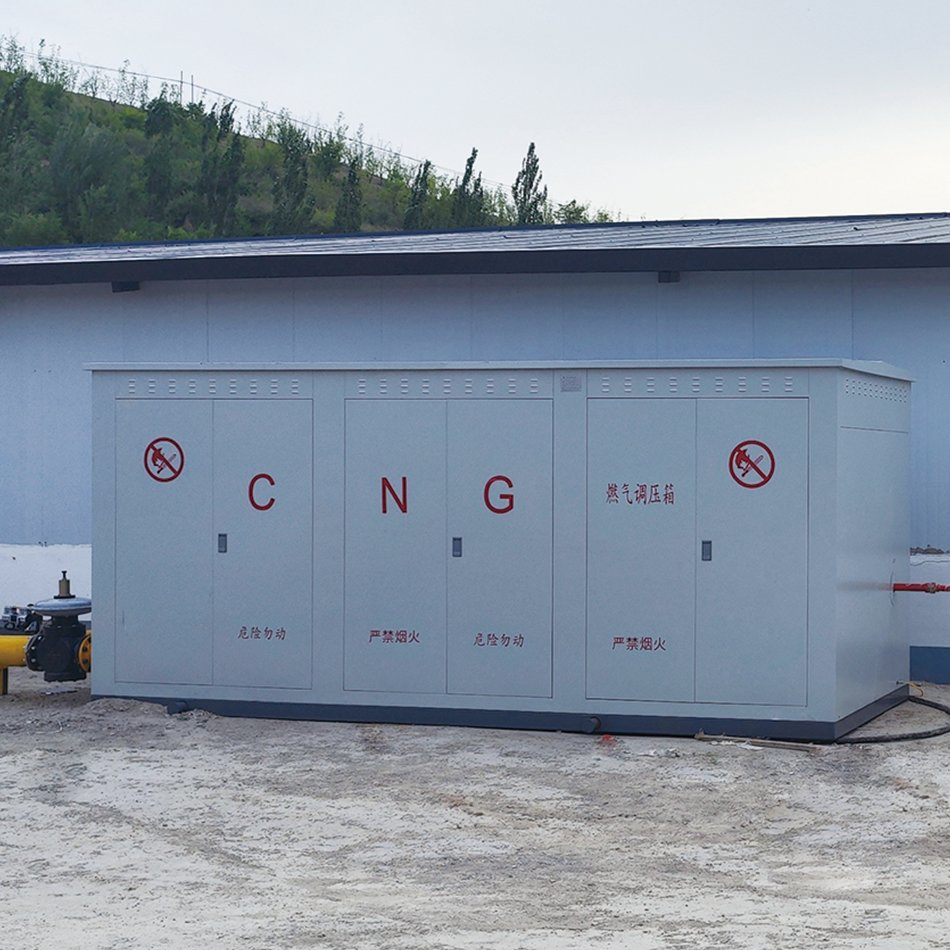

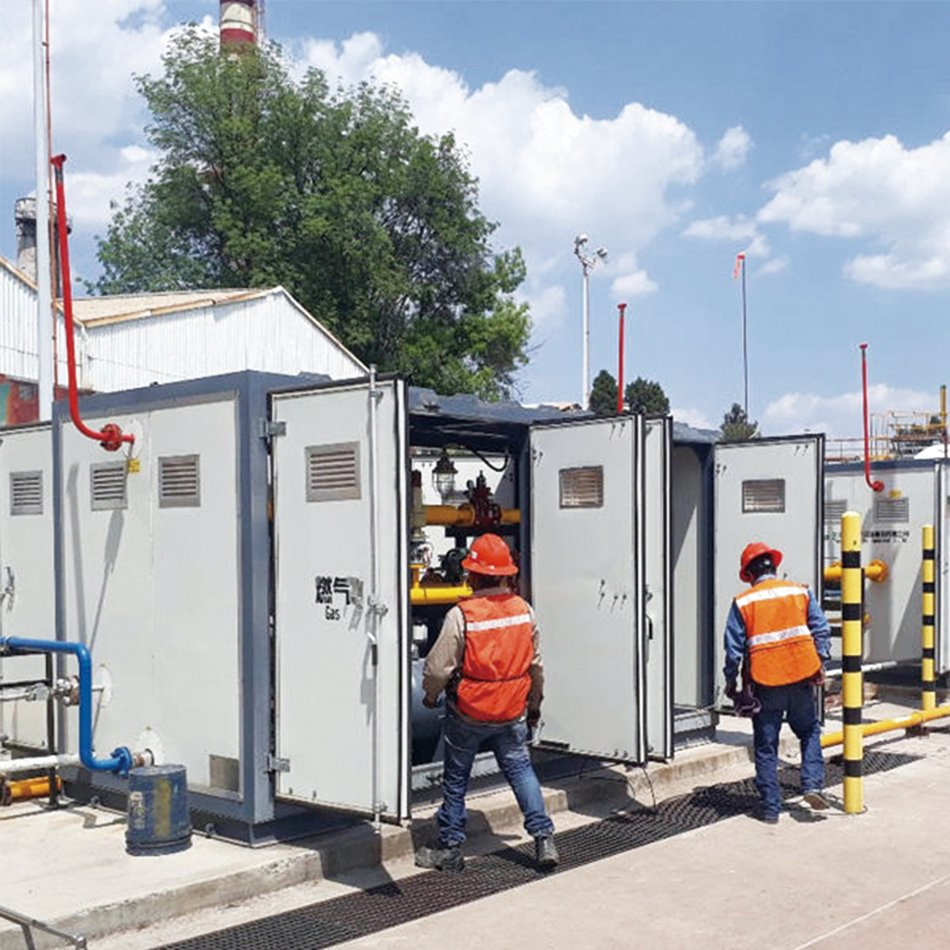

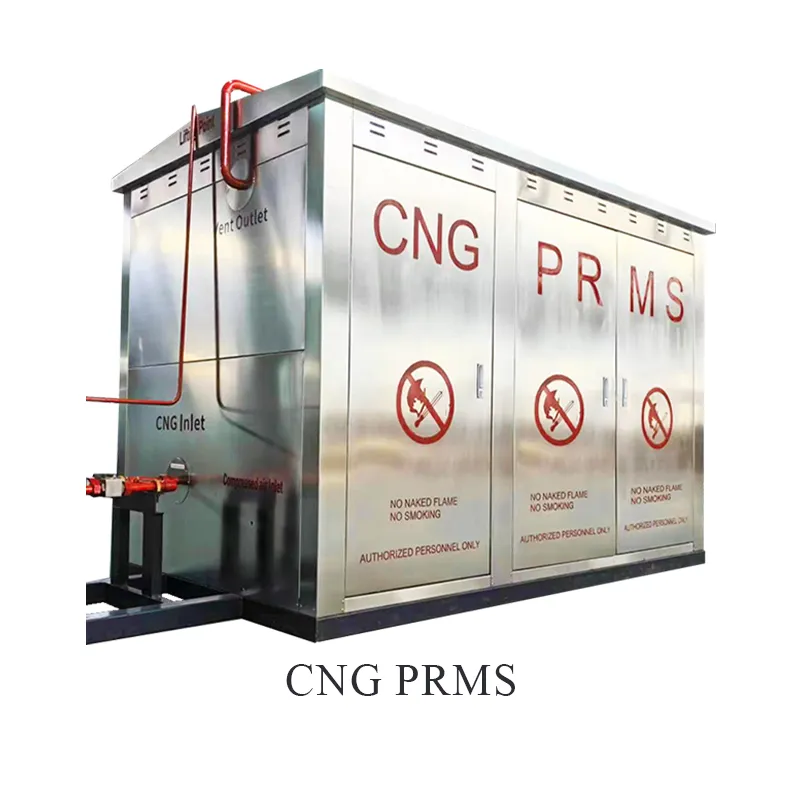

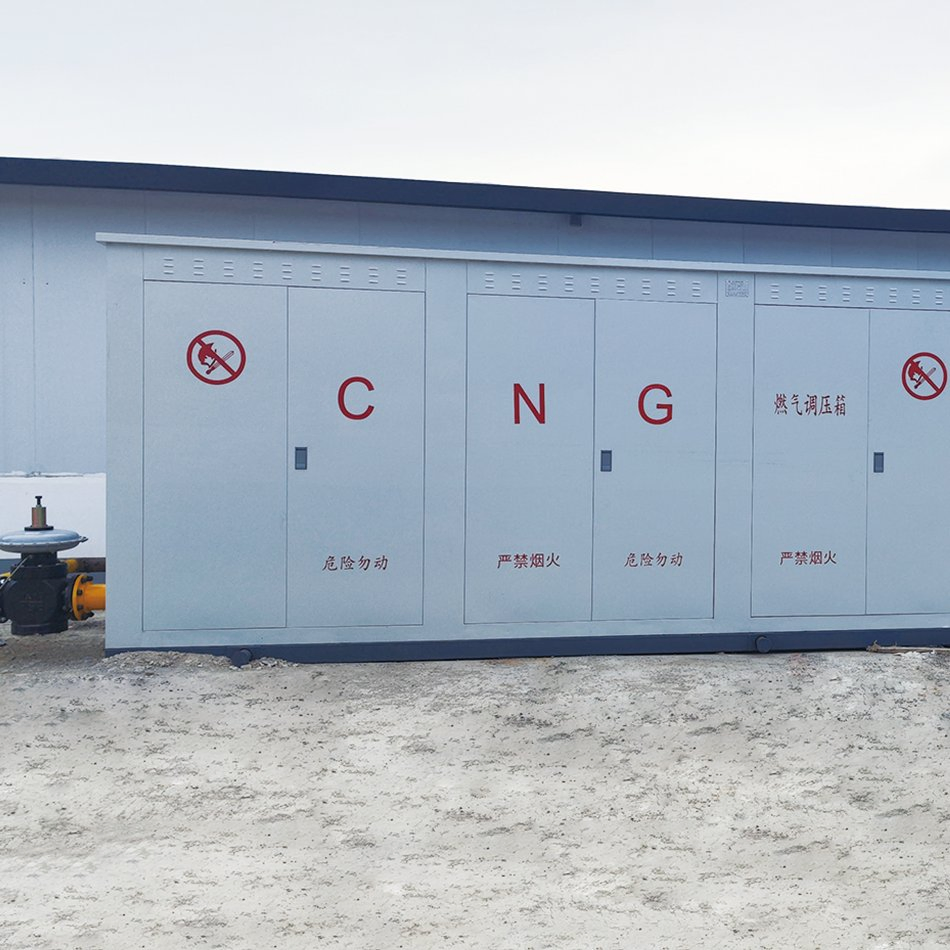

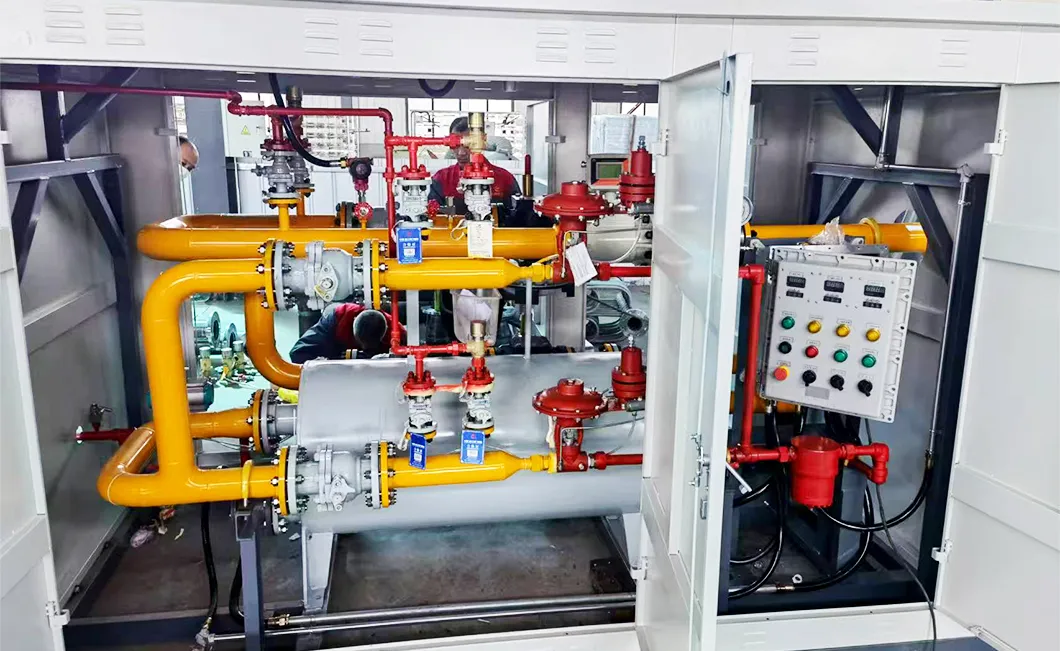

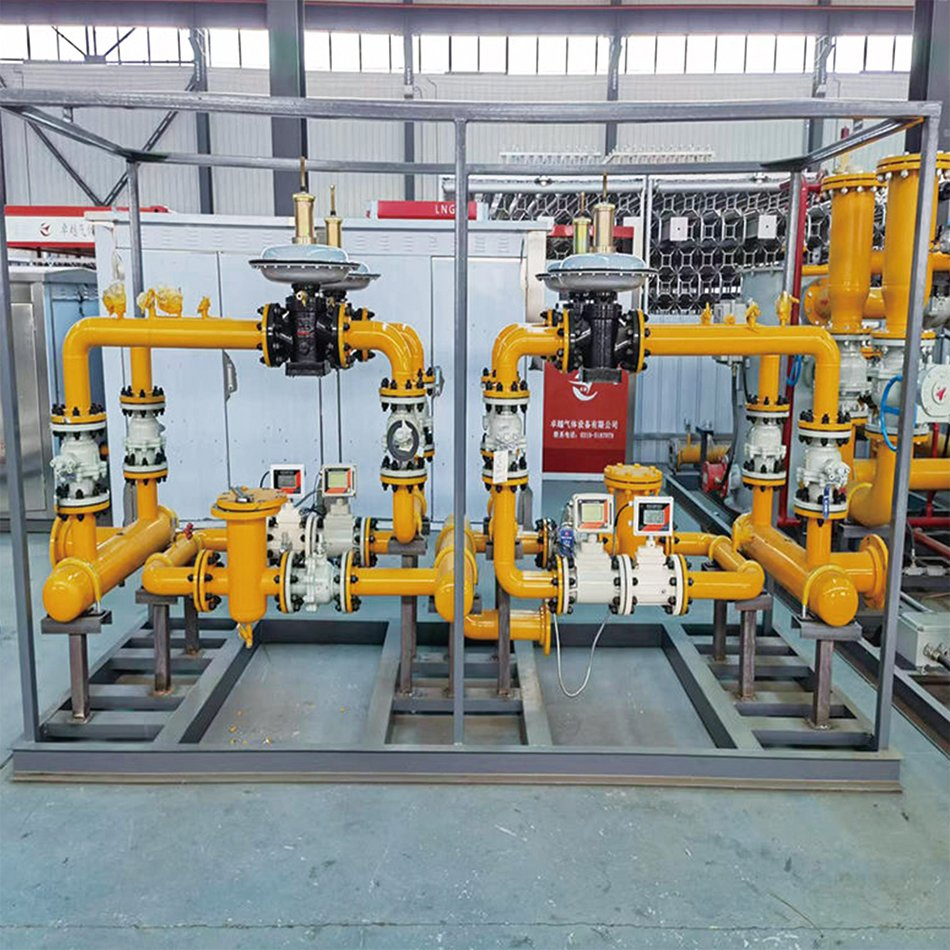

This series of pressure-regulating boxes is primarily designed for medium and low-pressure gas transmission and distribution systems. Each unit includes a filter, pressure regulator (with self-shutoff and release functions), ball valve, pressure gauge, and enclosure.
Key Features: The box features a compact structure, easy maintenance, and reliable safety performance. It is suitable for use in civil buildings and at small to medium-sized sites, such as apartment complexes, hotels, and restaurants. The enclosure is manufactured from stainless steel, spray-coated cold-rolled steel or fiberglass.
⚙ Technical Parameters
| Parameter Item |
Specification Details |
| Structural mode | Two-stage pressure regulation, overall skid-mounted |
| Rated gas supply | 1000m³/h |
| Inlet pressure | 25MPa |
| Outlet pressure | 0.2-0.4MPa |
| Pressure reduction level | 2 levels |
| Heat exchange level | 2 levels |
| Heat exchange temperature | 60-75ºC |
| Outlet temperature | ≥-5ºC |
| Shut-off valve power | 0.2-0.6Mpa (compressed air) |
| Alarm mode | Sound and light dual alarm |
| Medium | Compressed natural gas |
👍 Product Recommendations
✔
Pressure Reducing Skid: Integrates unloading, pressurization, gasification, and metering. Supports remote monitoring and extreme climate adaptation.
✔

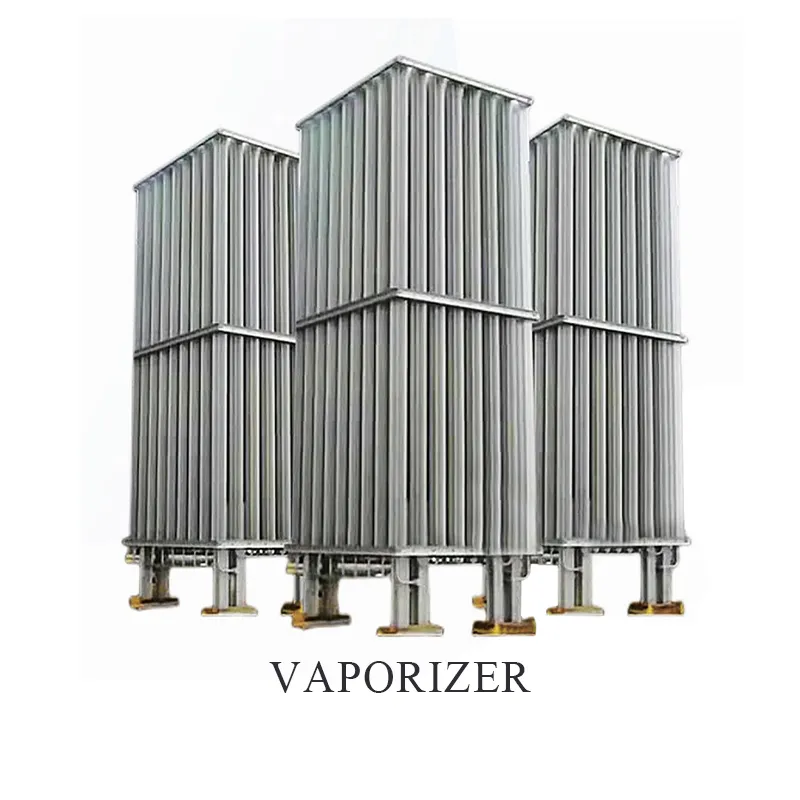

Gasifier: Air temperature or water bath design. High efficiency fin combination to reduce frosting. Made of aluminum alloy and stainless steel.
✔

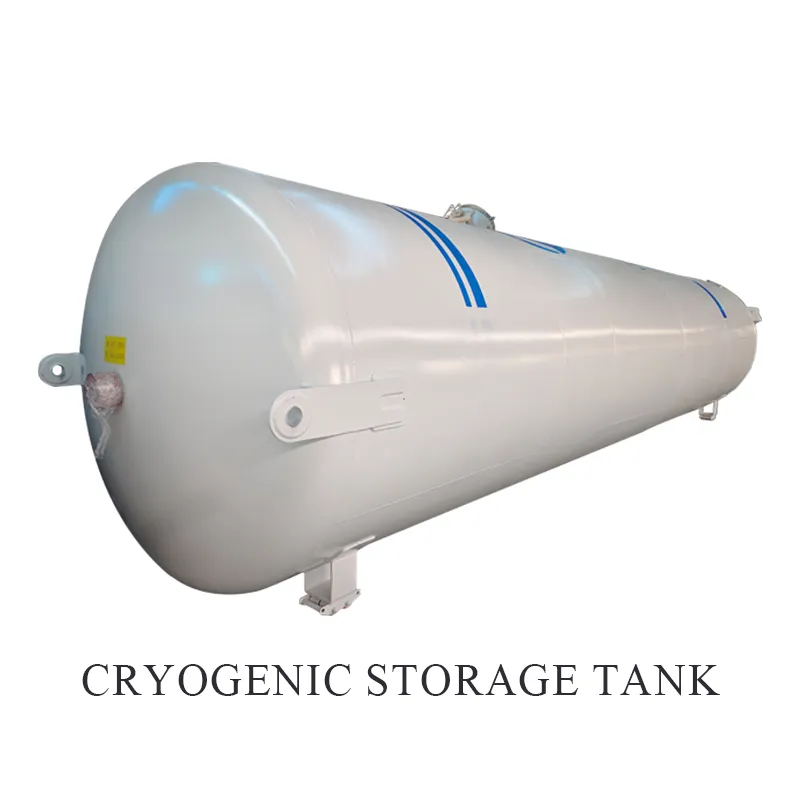

Cryogenic Tanks: Double-layer vacuum insulation. Volume up to 150 m³. Integrated safety facilities including fire sprinklers and lightning rods.
🎖 Certifications & Quality

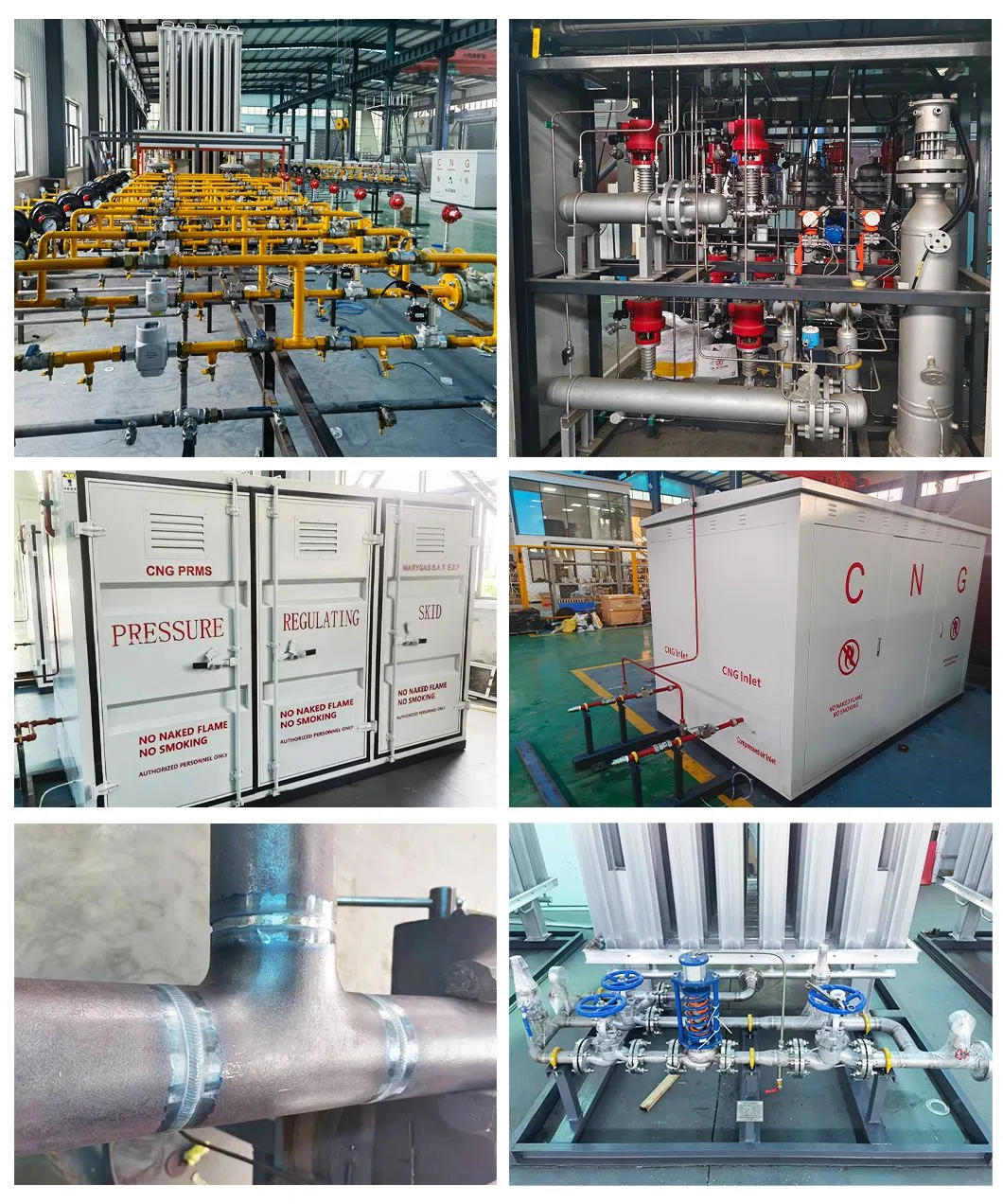

Our products have passed ISO9001, 14001 and CE certificates. We provide relevant documentation to meet specific national requirements.
🤝 Global Presence
📦 Packing & Delivery
We prepare detailed delivery schedules for every project. Our logistics capabilities ensure efficient domestic and international delivery via container, bulk ship, or RO-RO.
💬 Frequently Asked Questions
What are the main components of a CNG PRMS?
The main components include the Regulator, Flowmeter, Water heater, Valves, and Pipelines.
What products can you provide?
We provide CNG Skid containers & tube trailers, CNG PRMS, Mobile Stations, Gas Compressors, Gas Vaporizer Equipment (LNG Station, BOG, EAG), and various trailers (hydraulic modular, lowbed, etc.).
May I have the best price from you?
Sure. We are committed to maintaining competitive pricing and high-quality service standards for all our global clients.
Do you provide a one-stop service?
Yes, by cooperating with us, you gain access to a professional team in China that handles R&D, production, and international logistics to save your time and labor.
What is the delivery time?
Standard models in stock can be shipped within 30 days after payment. Customized equipment typically requires 40 days to be ready for shipment.
Are the products customizable?
Yes, all products can be customized according to specific technical requirements and national standards of the customer.
