Certification
CE, ISO/TS16949
Storage Medium
CNG, Compressed Hydrogen, Nitrogen, Helium
Working Temperature
-50~65

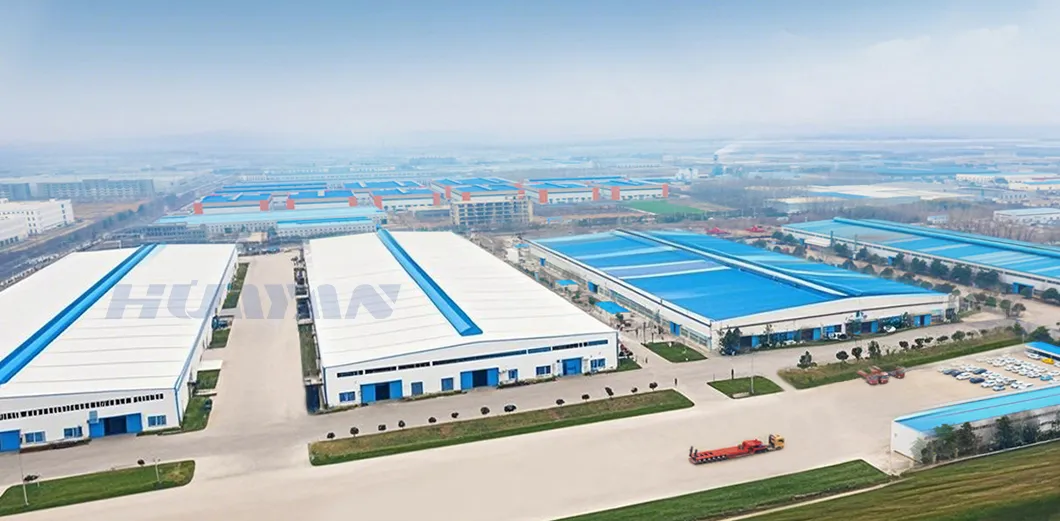

Established in 2005, we are a leading integrated transportation solution provider integrating R&D, production and trade. Covering an area of 222,000 square meters, the company uses advanced automation equipment, a professional R&D team and cutting-edge manufacturing technology to provide high-quality special transportation equipment, including gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, powder/liquid tankers and a full range of semi-trailers (heavy-duty low-bed, flat container, skeleton, side curtain, self-unloading) for energy, hazardous chemical transportation and engineering logistics.
Our core hydraulic system is compatible with international brands, ensuring compliance with global technical standards. With more than 20 years of export experience, we serve more than 30 countries worldwide. The company has passed ISO9001, ASME, ADR certification, and has achieved a 100% order delivery rate through digital management.

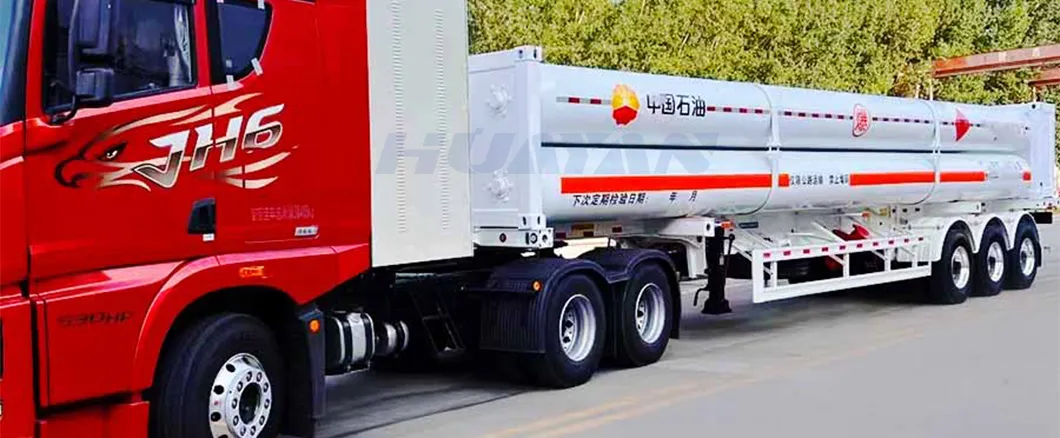

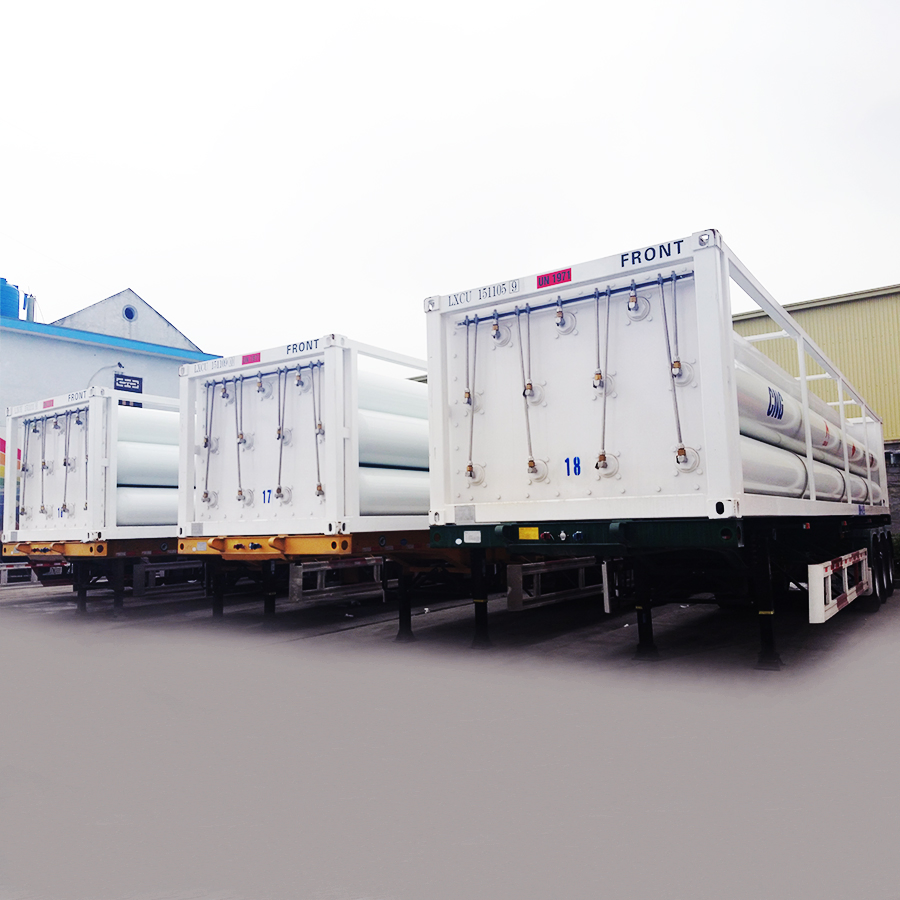

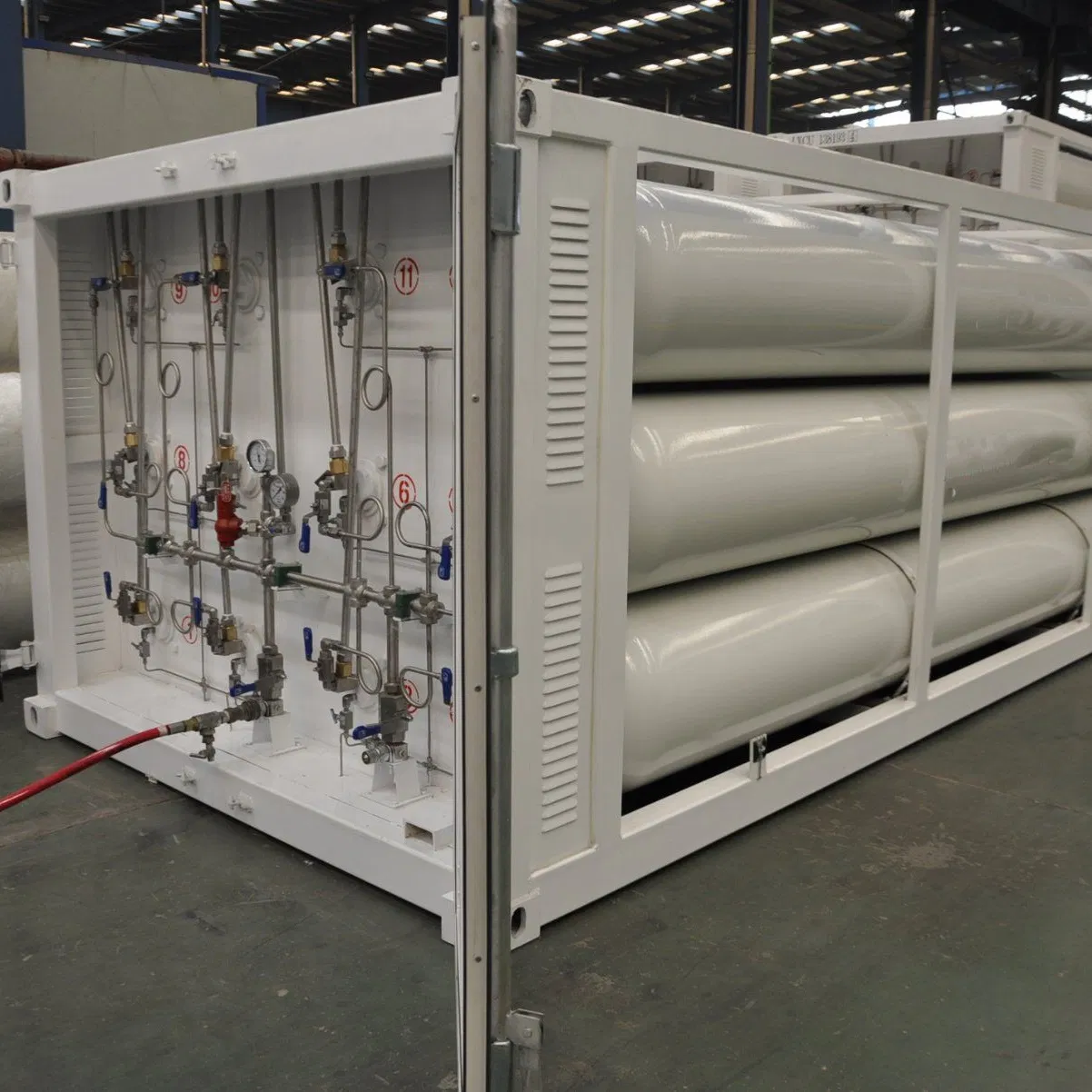

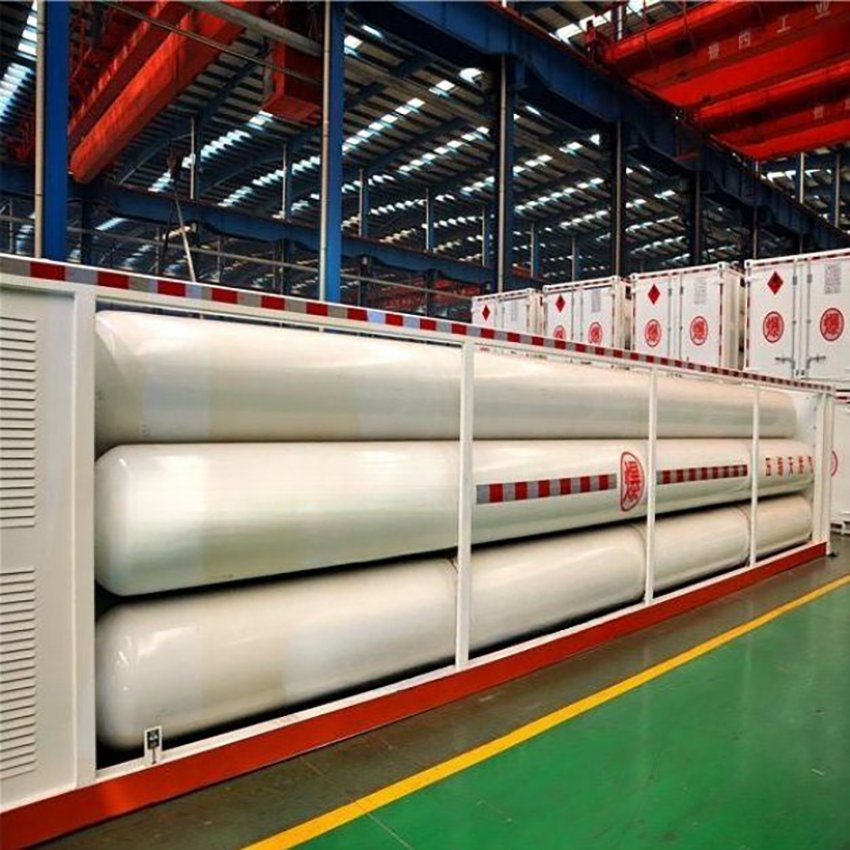

The tube bundle vehicle usually consists of a frame, a tube bundle unit, a fixing device and safety accessories. The frame is made of high-strength steel or lightweight alloy to ensure a balance between load-bearing capacity and lightweight. The tube bundle unit is integrated with multiple high-pressure gas cylinders or pipelines. For example, the 30MPa hydrogen transport tube bundle vehicle adopts a modular design, and the pressure bearing capacity is improved by high-strength alloy materials.
|
|
| Type | GSJ10-2450-CNG-25 | Working pressure | 25 MPa |
| Container weight | 29600Kg | Working temperature | -50~65ºC |
| Filling weight | 5512Kg | Main material | 30CrMoLX |
| Total volume | 29.4M3 | Cylinder Q.ty | 10 |
| Dimension(mm) | 12192x2438x1890 | Design service life | 15 Years |
|
| Type | GSJ16-2450-CNG-25 | Working pressure | 25MPa |
| Container weight | 45280Kg | Total volume | 39.2M3 |
| Filling amount | 12250Nm3 | Cylinder Q.ty | 16 |
| Dimension (mm) | 12192x2438x2591 | Design service life | 15 Years |
Our products have passed ISO9001, 14001 and CE certificates. We provide relevant documentation that meets international and national requirements for safety and quality.

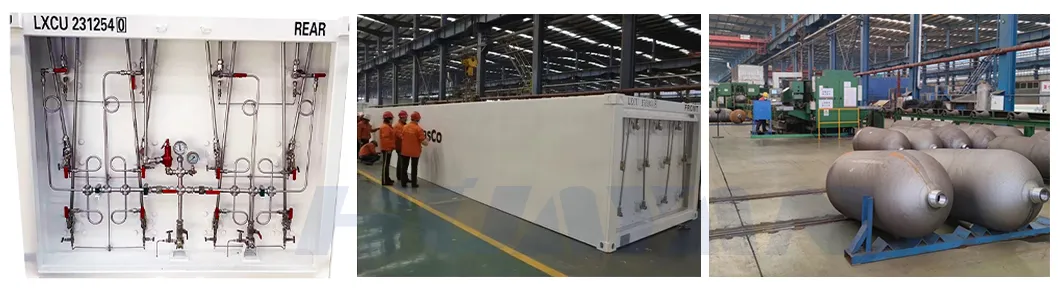

Key Features & Advantages
- High-quality imported valves for maximum safety.
- Advanced manufacturing equipment and strict quality insurance system.
- Scientific design with a logical load-bearing structure.
- Customizable combinations of storage cylinder groups.
- Automatic submerged arc welding for enhanced durability.
- Epoxy coating and acrylic finish for long-lasting rust protection.
Exhibition & Global Presence

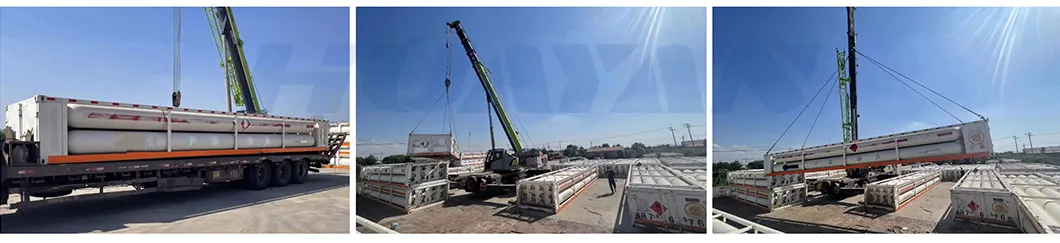

We provide comprehensive logistics schedules for every project. Our robust delivery capabilities ensure safe domestic and international transport via containers, bulk ships, or RO-RO vessels.
Frequently Asked Questions

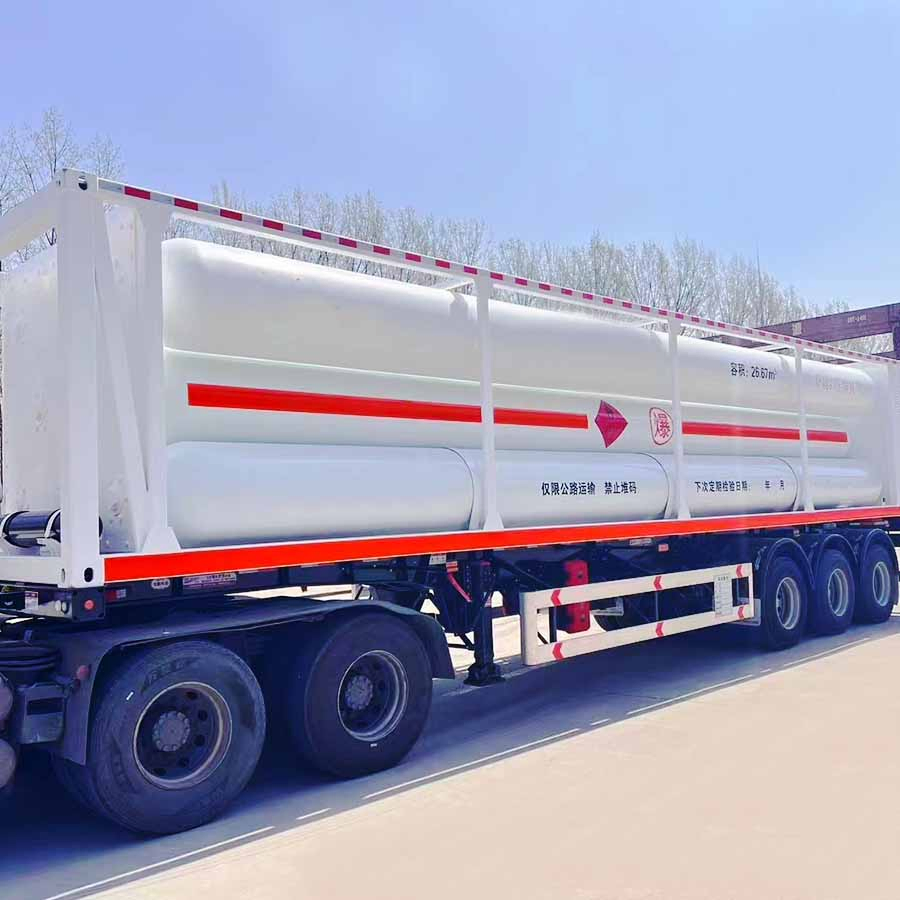

What are the main components of a CNG long tube trailer?
The main components include the trailer chassis, framework, large-cubage seamless steel cylinders, safety cabin, and back operation cabin.
What specific gas products can you provide?
We specialize in producing LPG cylinders, LNG cylinders, and Cryogenic Liquid Storage tanks for LO2, LN2, LAr, LCO2, and LNG.
Can I get a customized price for large orders?
Yes, we are committed to providing competitive pricing and service. Please contact us with your specific requirements for a detailed quote.
Do you provide a one-stop service for international buyers?
Absolutely. By cooperating with us, you gain access to a professional team in China that handles design, production, and logistics to save your time and labor.
What is the typical delivery time for standard and custom models?
Standard models in stock can be shipped within 10-15 days. Customized orders are typically ready for shipment within 15-20 days.
Are the tube bundle containers compliant with international standards?
Yes, our products are designed and manufactured according to ISO11120 and ISO 668 standards, ensuring global compliance and safety.
