Product Description

📊 Basic Specifications

Model NO.

ZKBOT-4086

Drive Mode

Electric

Payload

3kgs

Repeat Position Accuracy

±0.1mm

Maximum Reach

700 mm

Working Voltage

AC220V/110V

Power Consumption

100W

Drive

Hybrid Servo Motor + High-Precision Oblique Gear

I/O

10 Inputs, 8 Outputs

Condition

New

Certification

Warranty

1 Year

Transport Package

Carton Box

Production Capacity

1000 PCS / Year

🤖 Product Overview

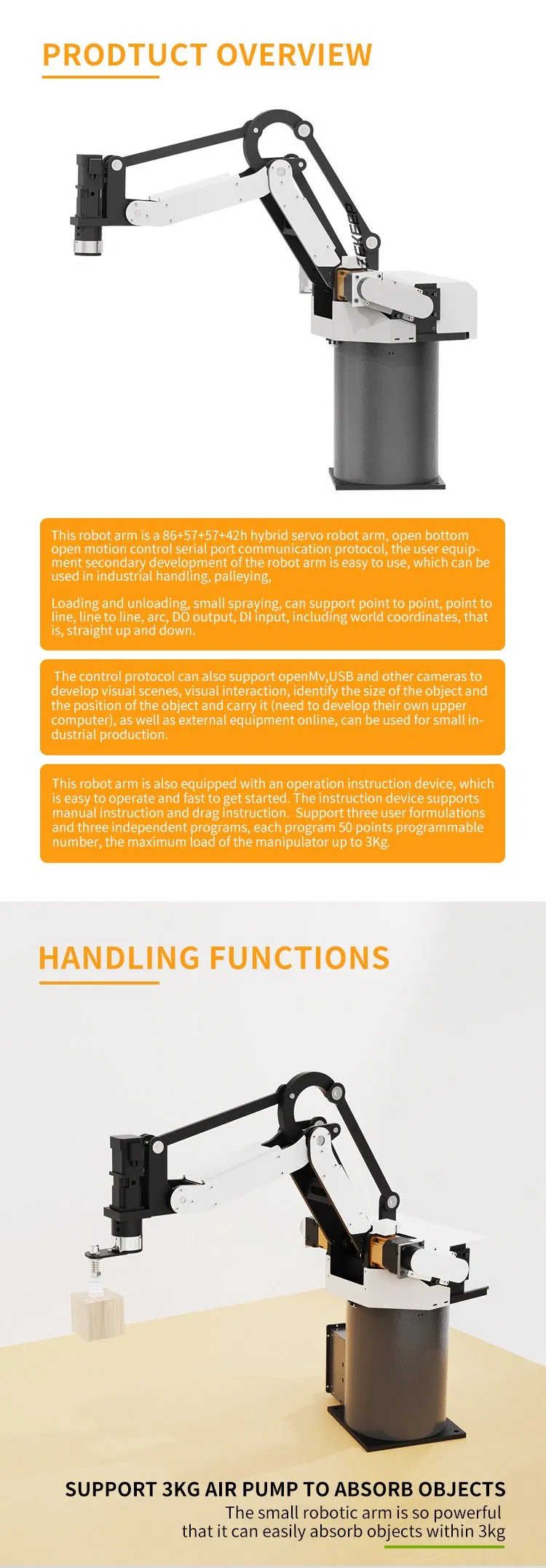

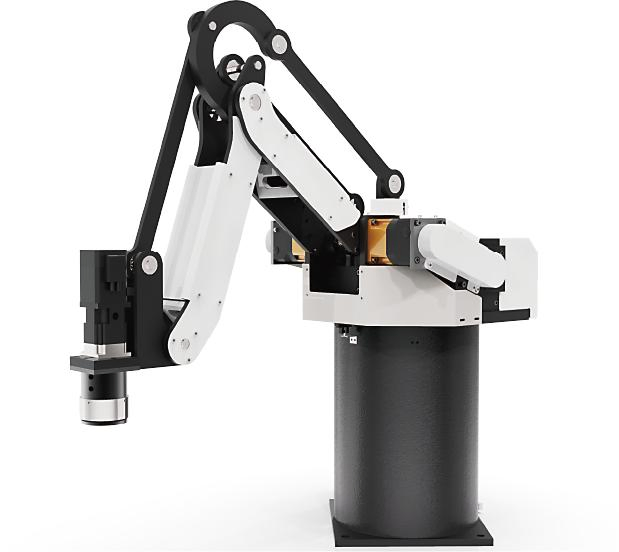

Industrial Mechanical Arm - AI Smart Visual Sorting Solution System

This industrial mechanical arm is a high-performance 86+57+57+42h hybrid servo system designed for industrial handling, palletizing, loading and unloading, assembly, gluing, and business presentations. It features an open motion control serial port communication protocol, making secondary development easy for users.

📦 3KG Payload

High power capacity to handle industrial objects with ease.

🎯 High Precision

±0.05mm repeated accuracy with closed-loop encoder motors.

👁️ Visual Support

Compatible with OpenMV and USB cameras for AI identification.

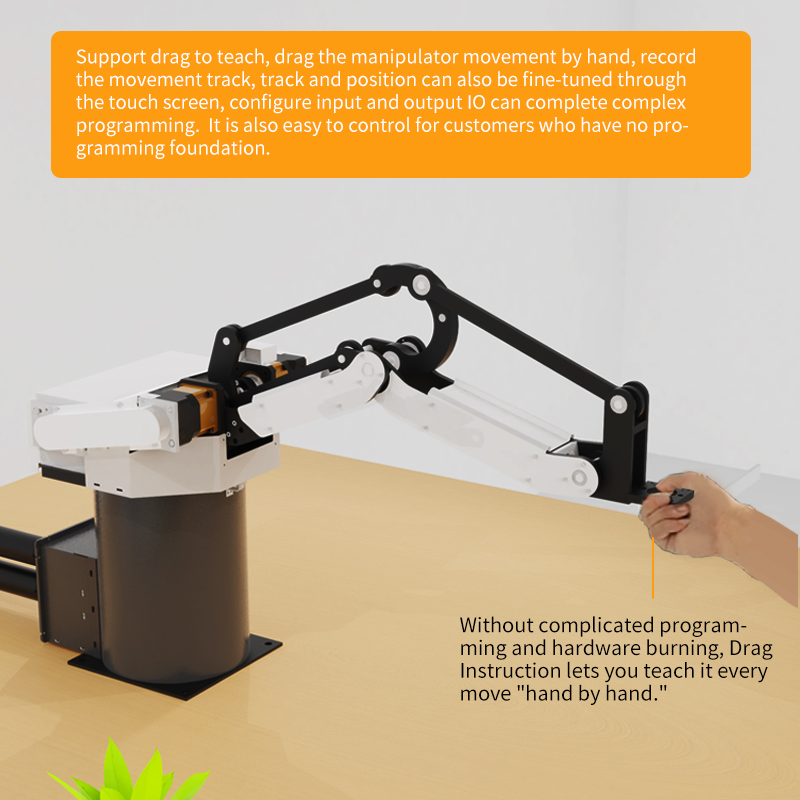

🖐️ Drag Teaching

Supports "hand by hand" learning for users without programming foundation.

📷 Product Visuals

⚙️ Technical Capabilities

Intelligent Recognition: Classification of object varieties.

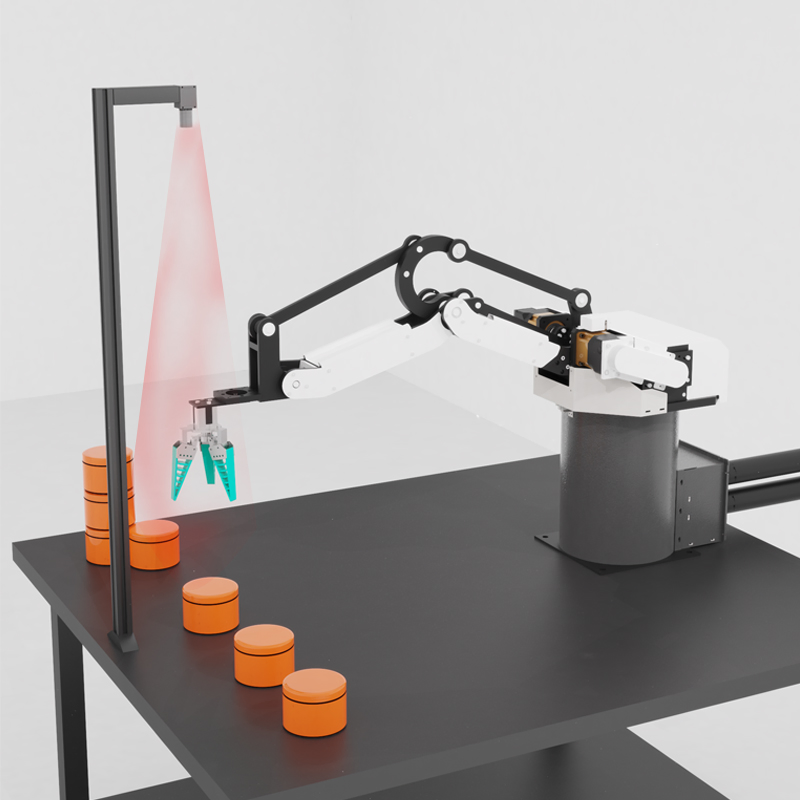

Visual Positioning: Quickly locate and identify products.
Color Recognition: Intelligent detection of product colors.
Defect Detection: Identifies letter defects and leaks.

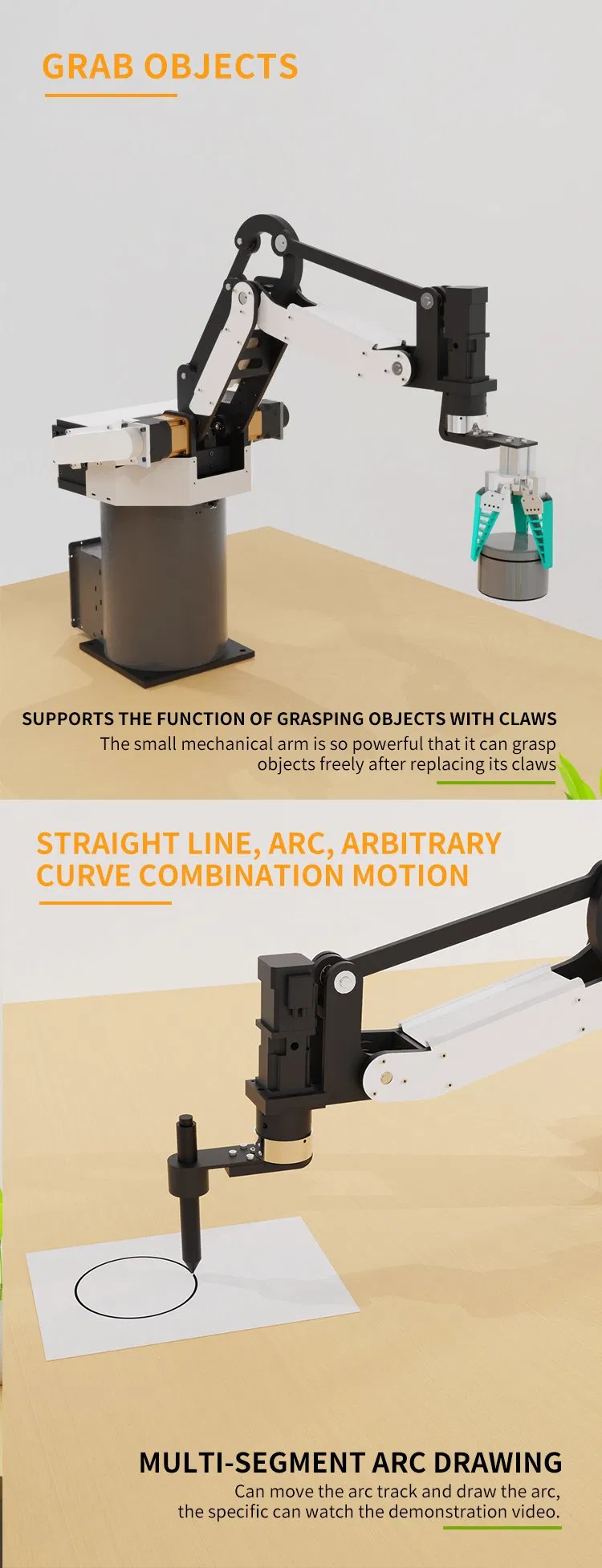

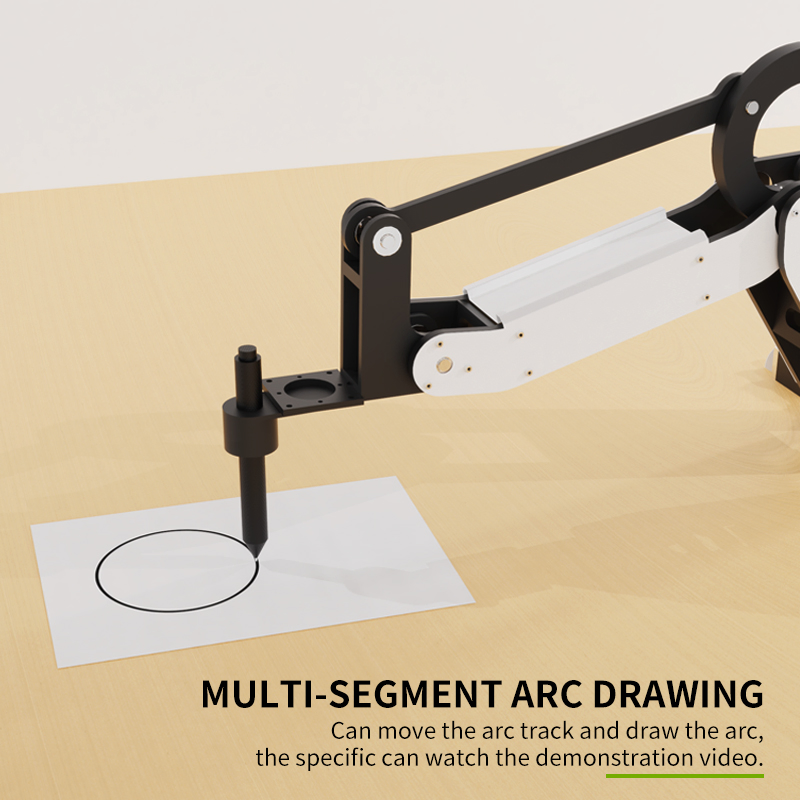

Motion Control: Supports straight line, arc, and arbitrary curve combination motion.
Security: Permanent magnet brakes ensure power-off safety.
Secondary Development: Open control protocol for serial communication.

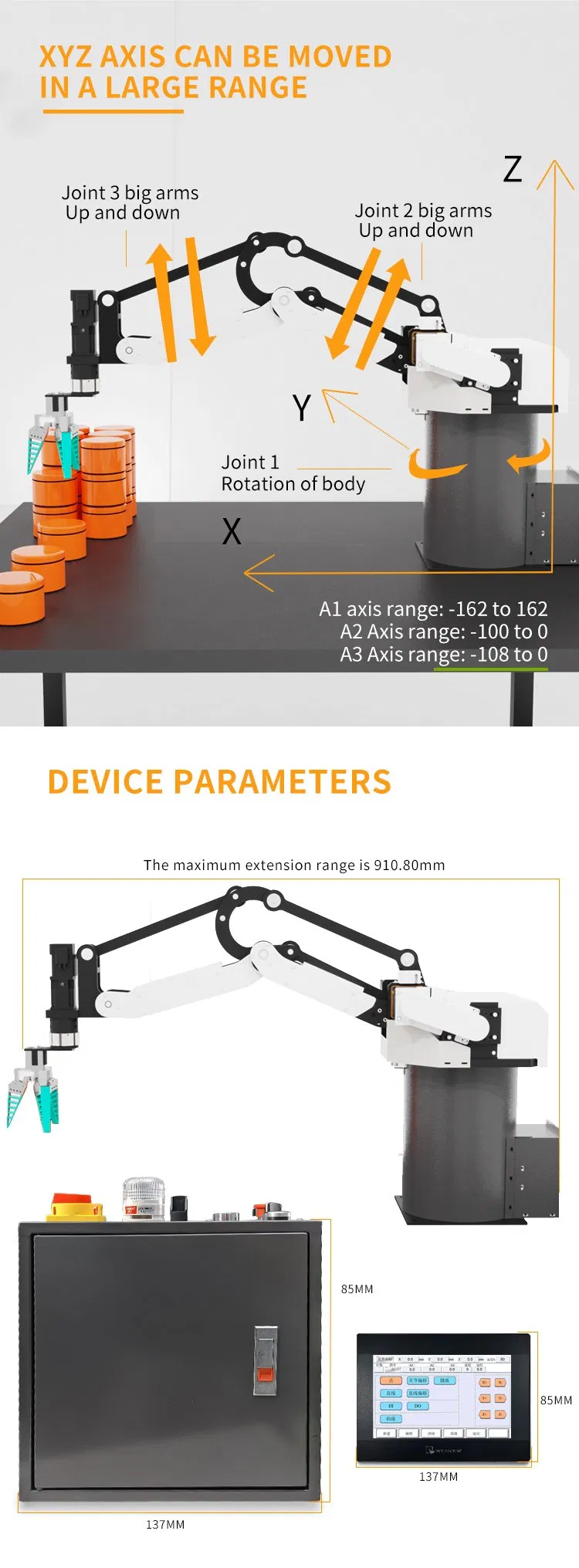

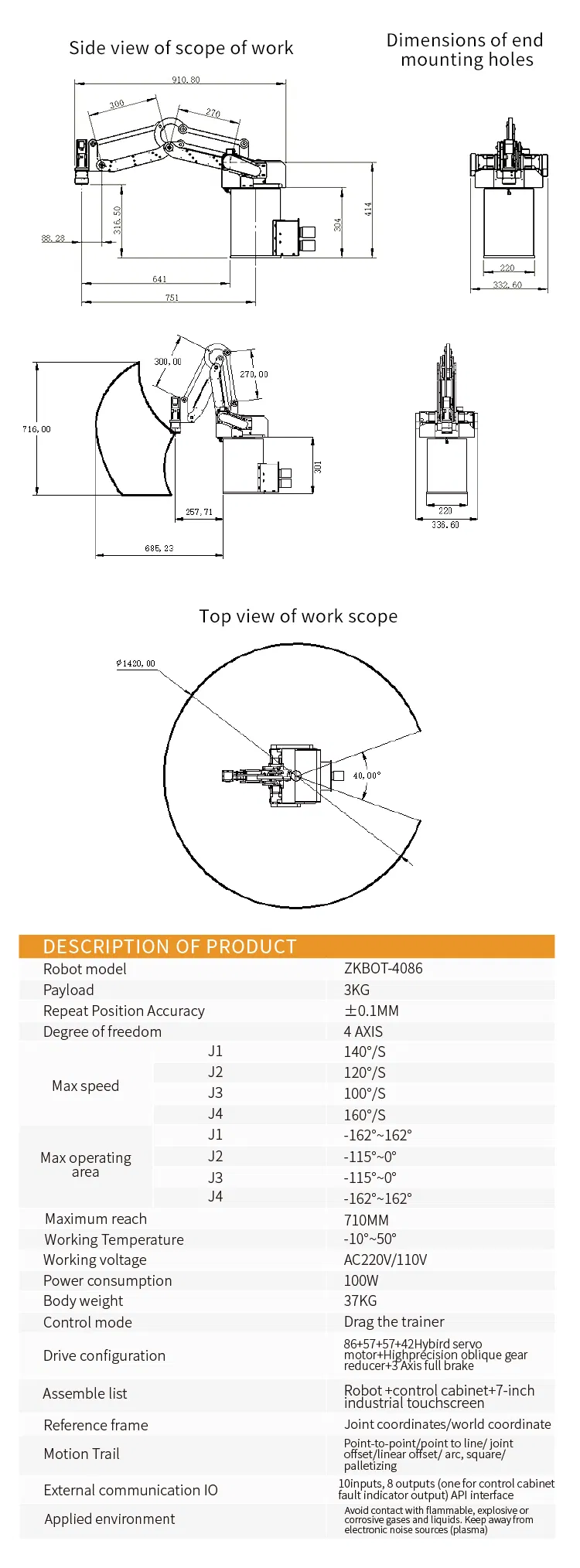

Working Range: A1 axis: -162° to 162°; A2 axis: -100° to 0°; A3 axis: -108° to 0°.

❓ Frequently Asked Questions

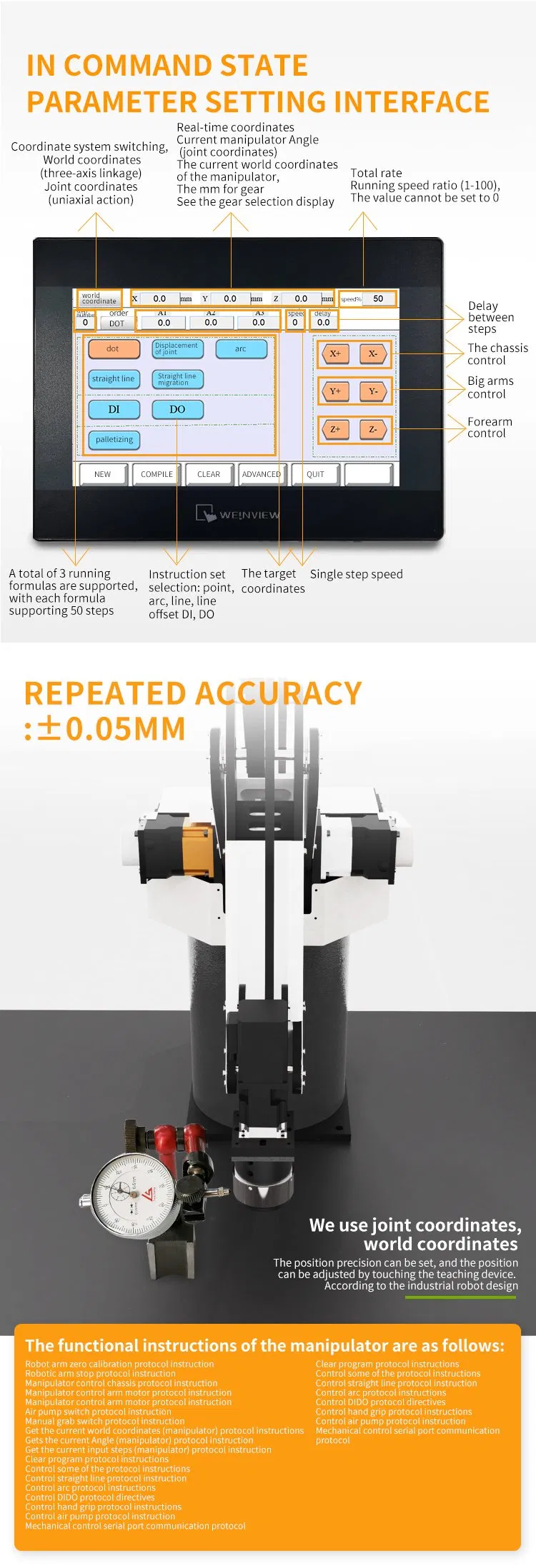

Q1: Can the robot be set for cycle work?

A1: Yes. The touch screen supports motion node cycles within 50 steps, and a connected PC can support unlimited step cycles.

Q2: Does it automatically save teaching points during power failure?

A2: Yes, the system includes a function to automatically save teaching points when power is off.

Q3: Is the robot arm open source?

A3: It is not completely open source, but the bottom layer provides the manipulator control communication protocol, supporting secondary development of peripherals and external device interaction.

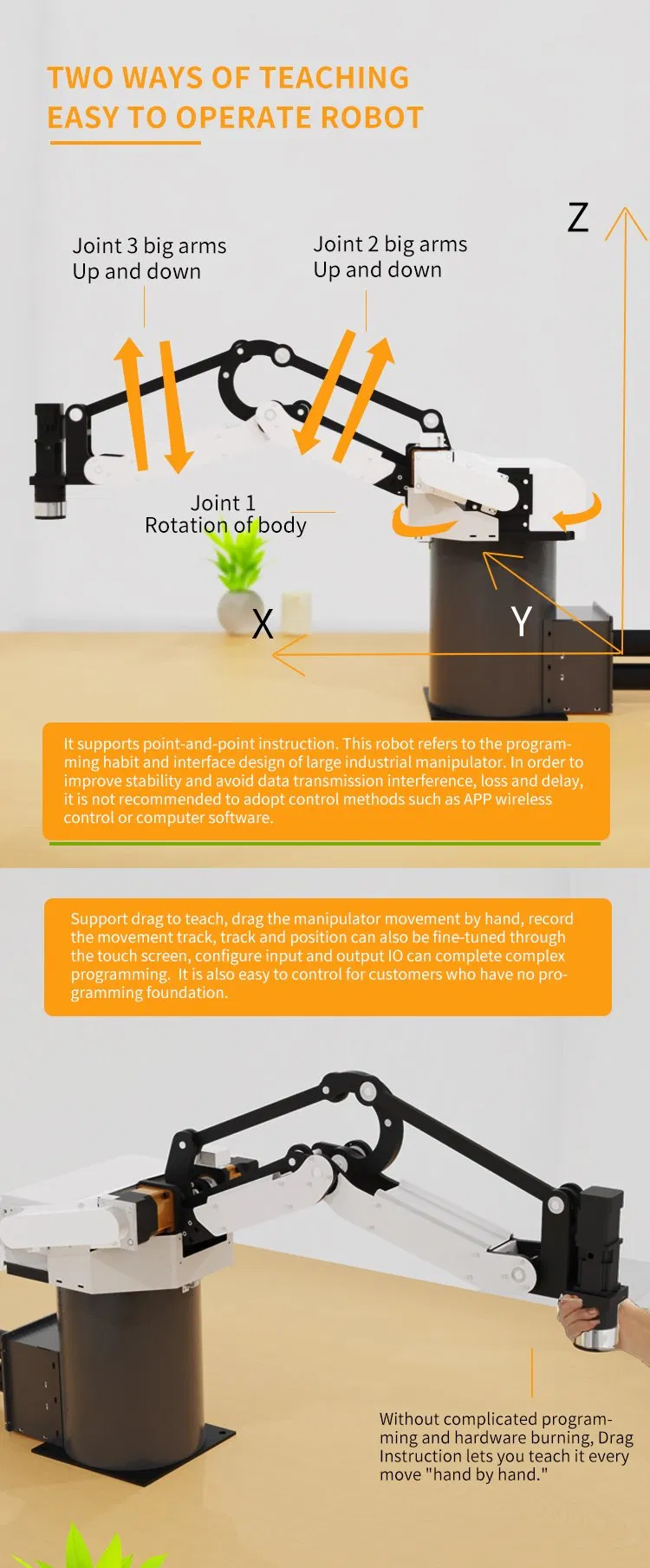

Q4: What teaching methods are supported?

A4: It supports both point-to-point instruction via touch screen and "drag to teach," where you can manually move the arm to record tracks.

Q5: What is the maximum load and accuracy?

A5: The maximum load capacity is 3KG, with a repeat positioning accuracy of ±0.05mm.

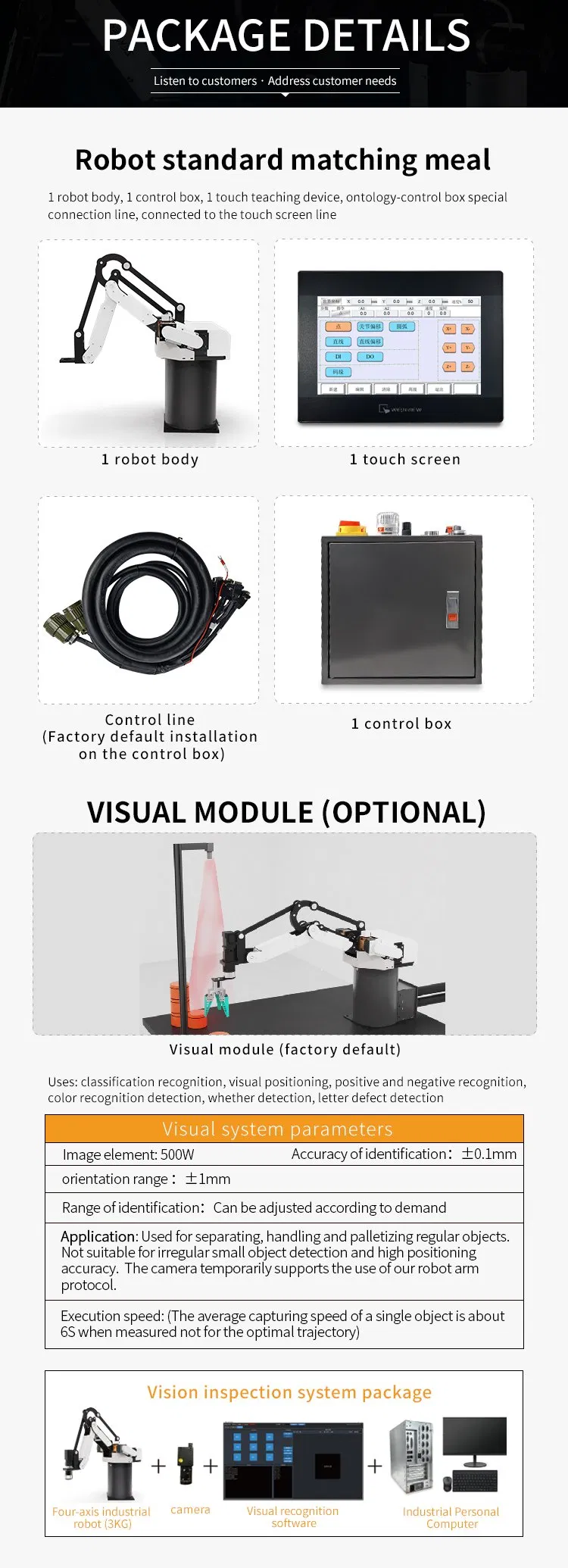

Q6: What comes in the standard package?

A6: The standard package includes 1 robot body, 1 control box, 1 touch teaching device, and the necessary connection cables. Visual modules are optional.
