Liftora Arm
1 / 5
| Certification | ISO9001, QS, TUV |
|---|---|
| Type | Single-Arm, Double-Arm |
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical |
| Model No. | Am61/63/64 |
| Pipeline Material | CS, Ss, Low-Temp. CS, Lined with PTFE. |
| Accessories | ERC (ERS), QC/DC, PMS, etc. |
| Envelope Range | Customized to User Needs |
| Seal | Viton, PTFE |
| Nominal Diameter | DN80~DN400(3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250℃ |
| Operating Mode | Manual / Electro-Hydraulic |
| HS Code | 8428909090 |
| Production Capacity | 200 Sets/Year |
| Package Size | 1800.00cm * 200.00cm * 200.00cm |
|---|---|
| Package Gross Weight | 25000.000kg |

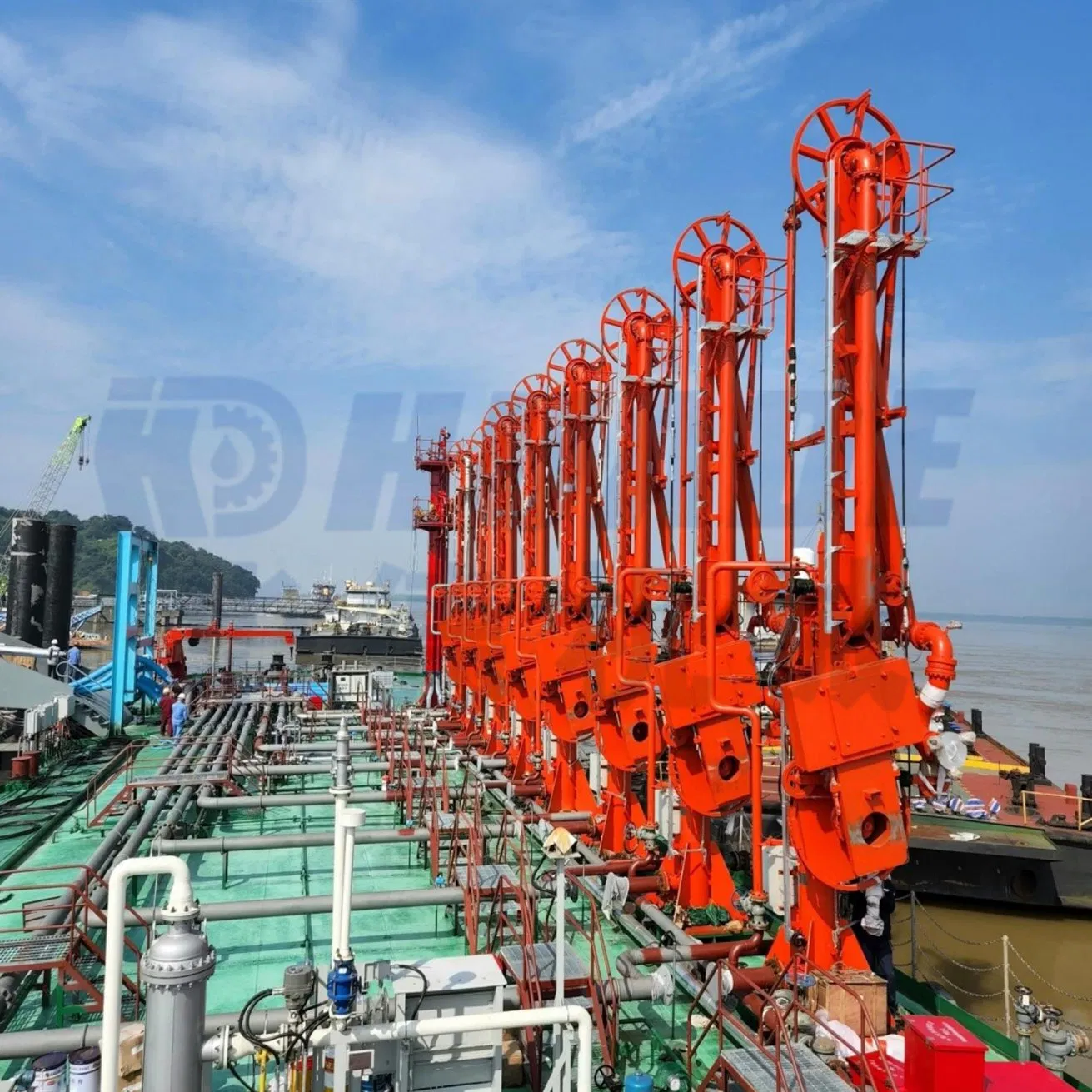

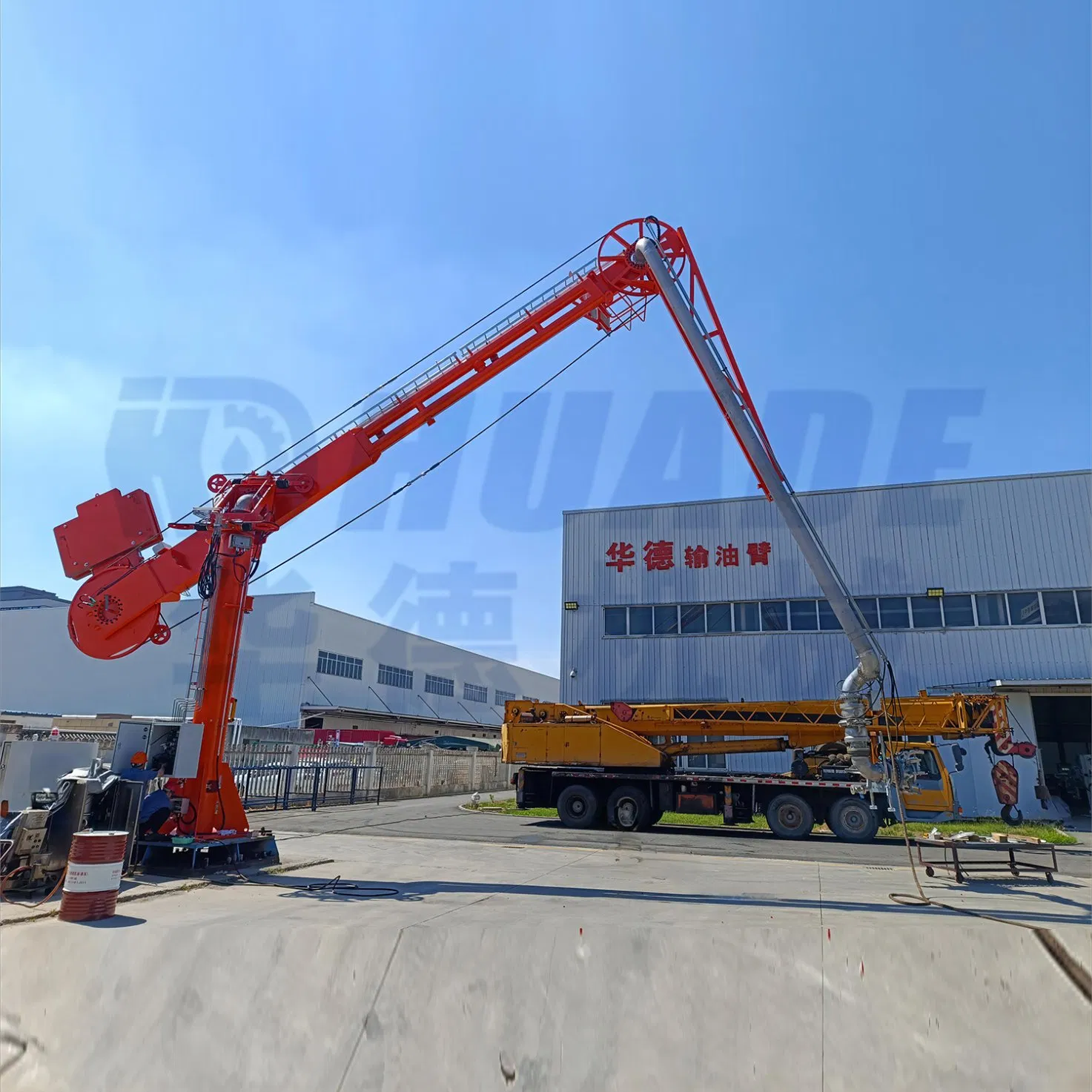

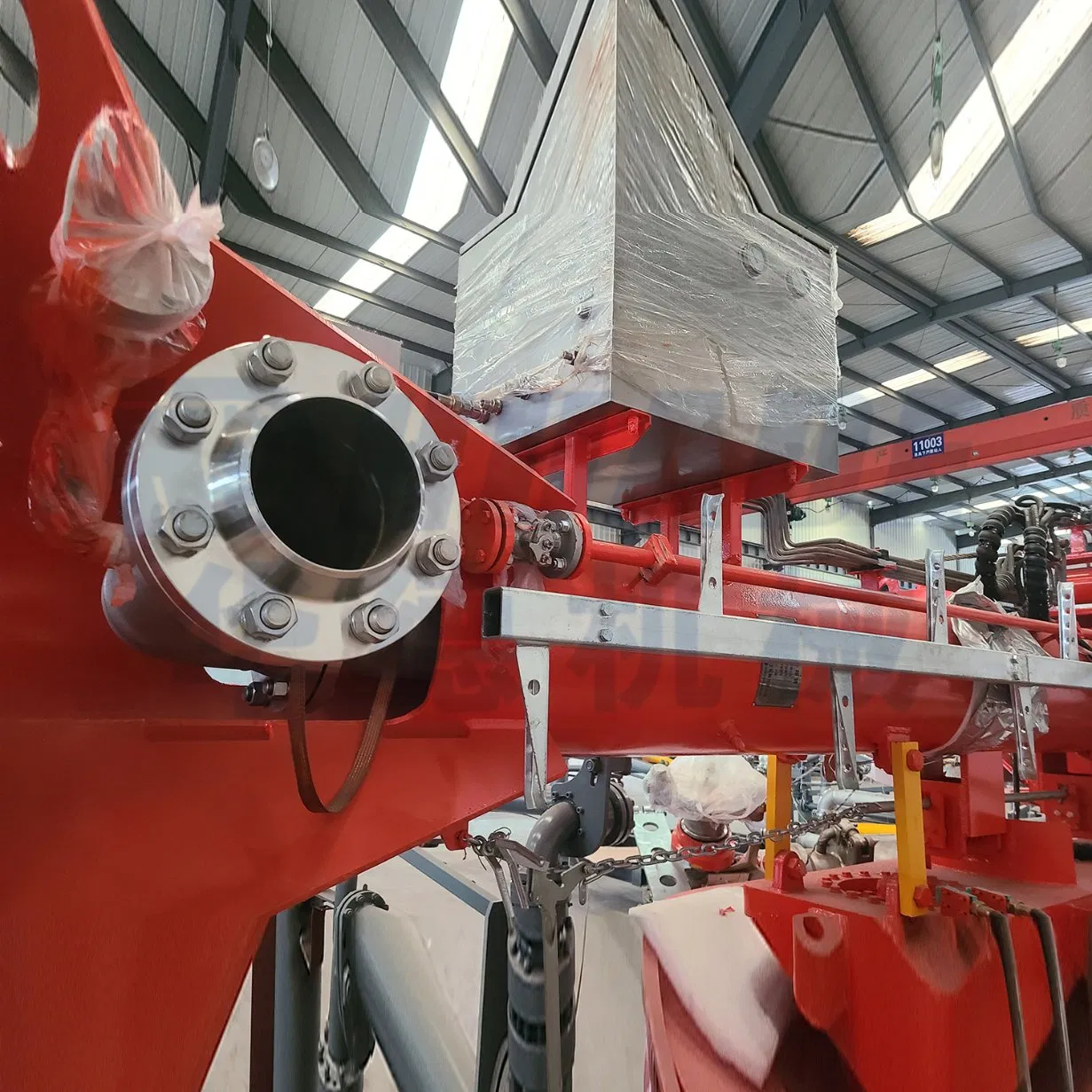

Marine Loading Arms (MLAs) are essential for transferring various fluids such as oil, chemicals, LPG, and LNG between ships and storage facilities.

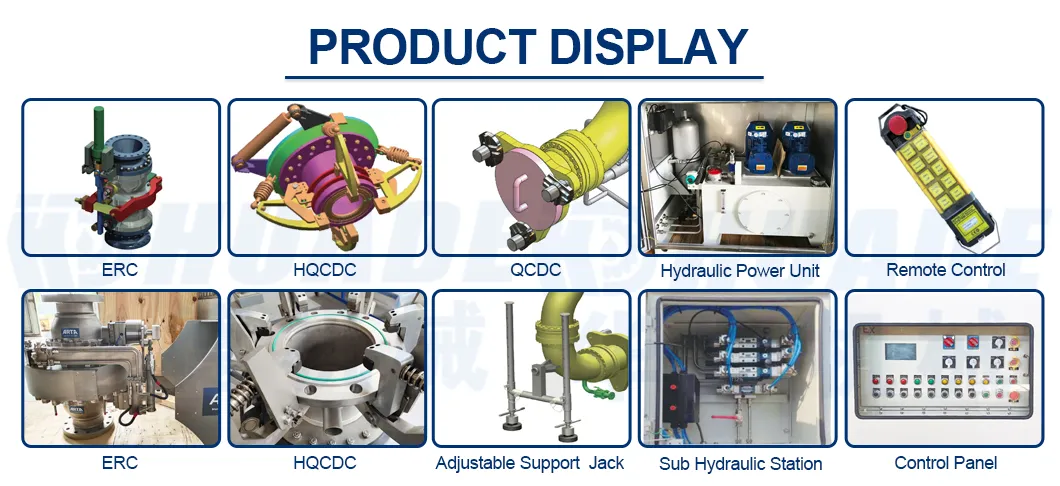

Installed at the vertical part of the triple swivel assembly to separate the MLA from the tank ship in emergency cases such as fire, typhoons, or ship drifting.
Enables fast connection/disconnection to the tanker manifold without bolts or nuts, saving manpower and time. Available in manual and hydraulic versions.

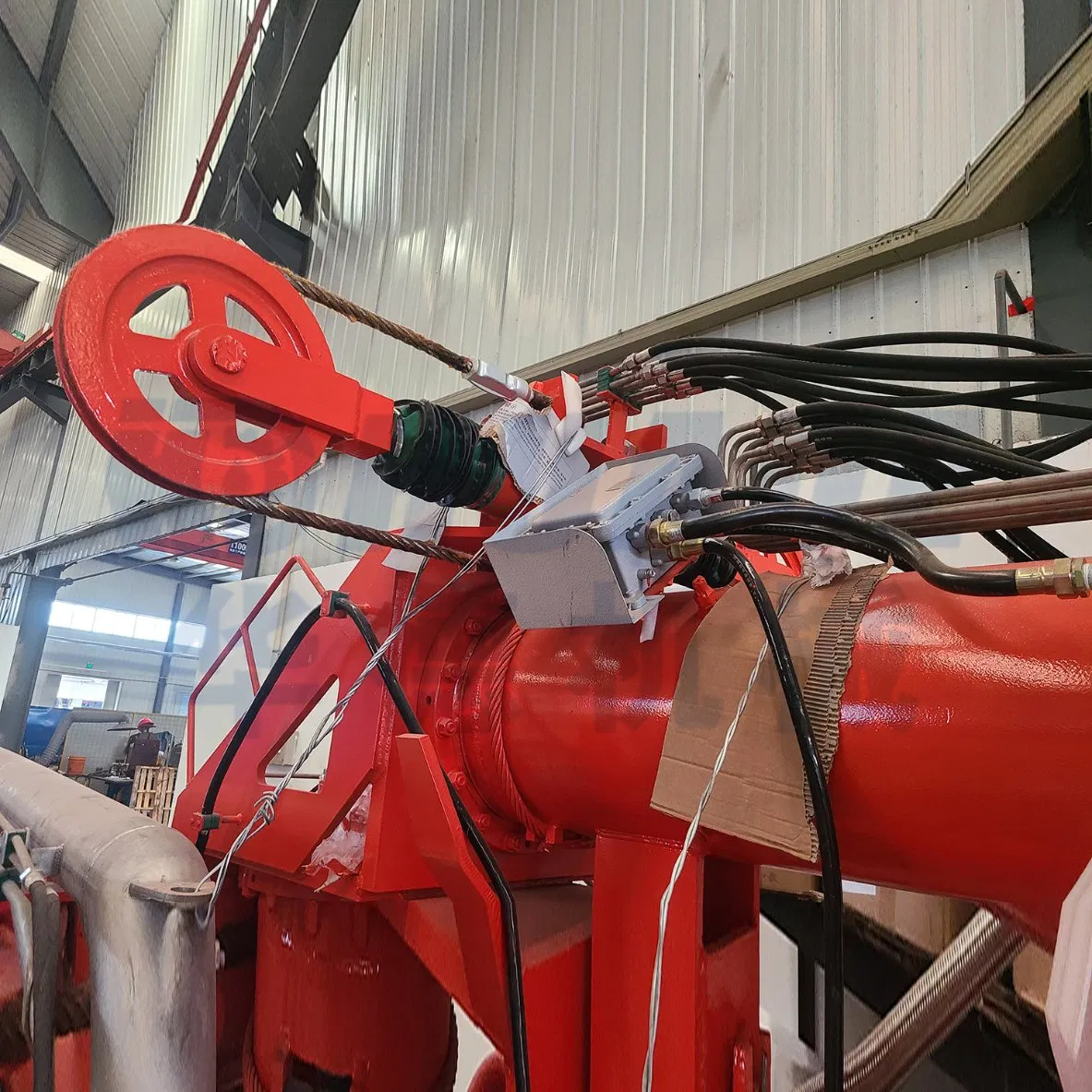

Includes Local Control Panel (LCP), Wired or Wireless Control Pendent, and Hydraulic Power Pack (HPP). PLC-based system for easy maintenance and monitoring.
| Item | Data |
|---|---|
| Nominal Diameter | DN80~DN400(3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250ºC |
| Pipeline Material | Carbon Steel, Stainless Steel, Low-Temp Steel, Lined with PTFE |
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical |
| Operating Mode | Manual / Electro-hydraulic |

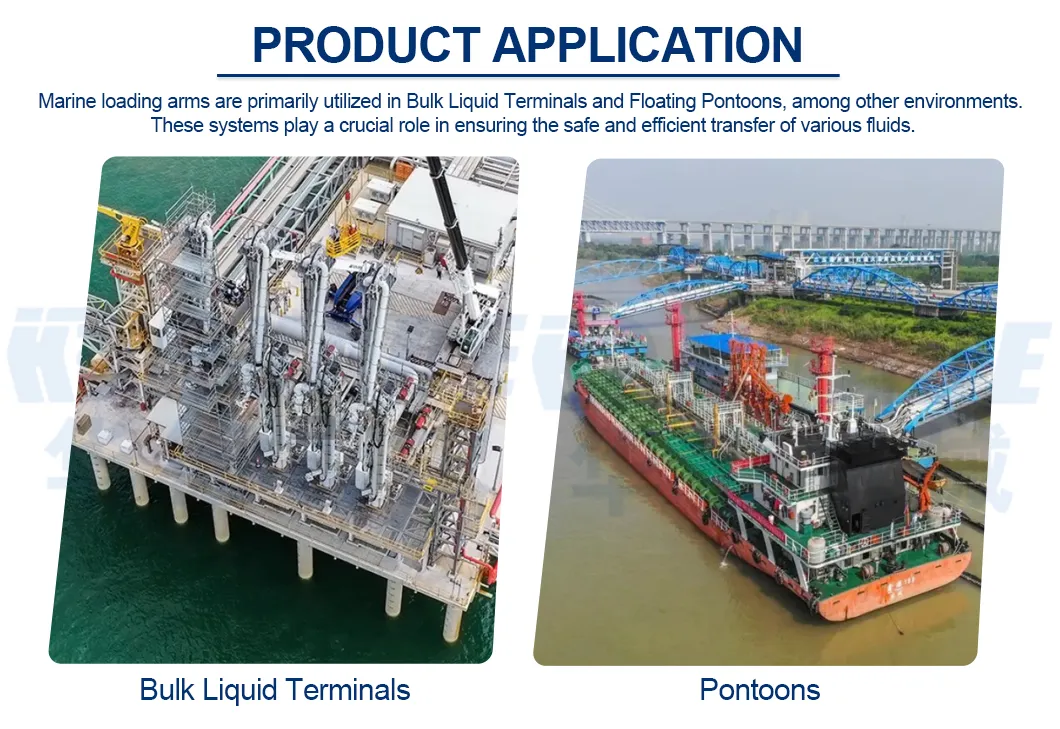

Essential for loading and unloading liquids from storage tanks to tankers, reducing spillage risks and ensuring environmental protection.
Facilitates liquid transfer on floating docks or barges in harbors and offshore locations where fixed infrastructure is impractical.
We are a leading manufacturer for loading arms, jetty and petrochemical equipment. We specialize in the design, manufacturing and supply of land loading arms, marine loading arms, floating suction units, loading skids, gangways, quick release hooks, and folding stairs.

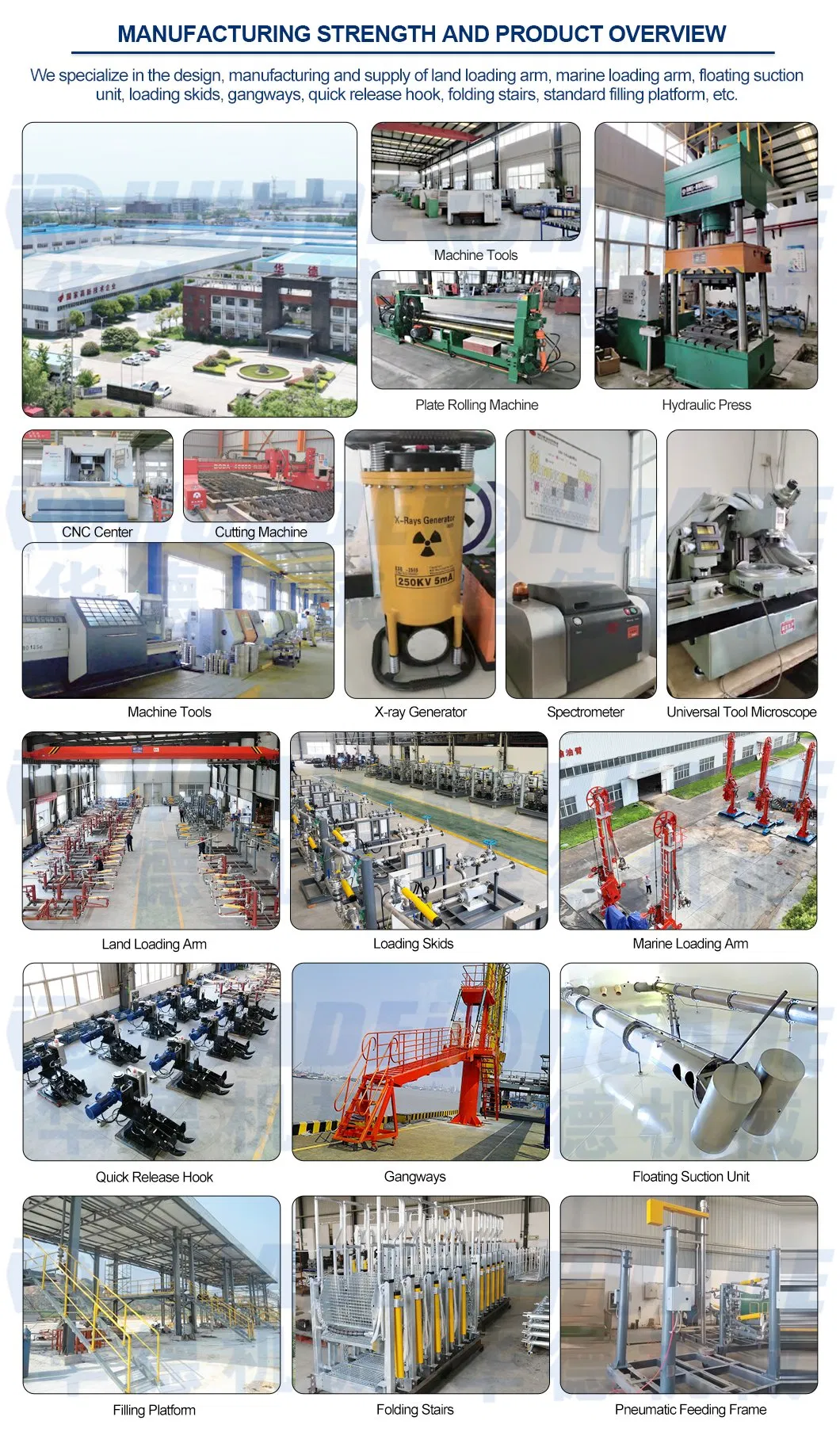

Our facility includes more than 12 acres, with advanced manufacturing and testing equipment. We hold multiple invention patents and are authorized as a National High-Tech Enterprise with ISO9001/ISO14001/ISO45001 certifications.
