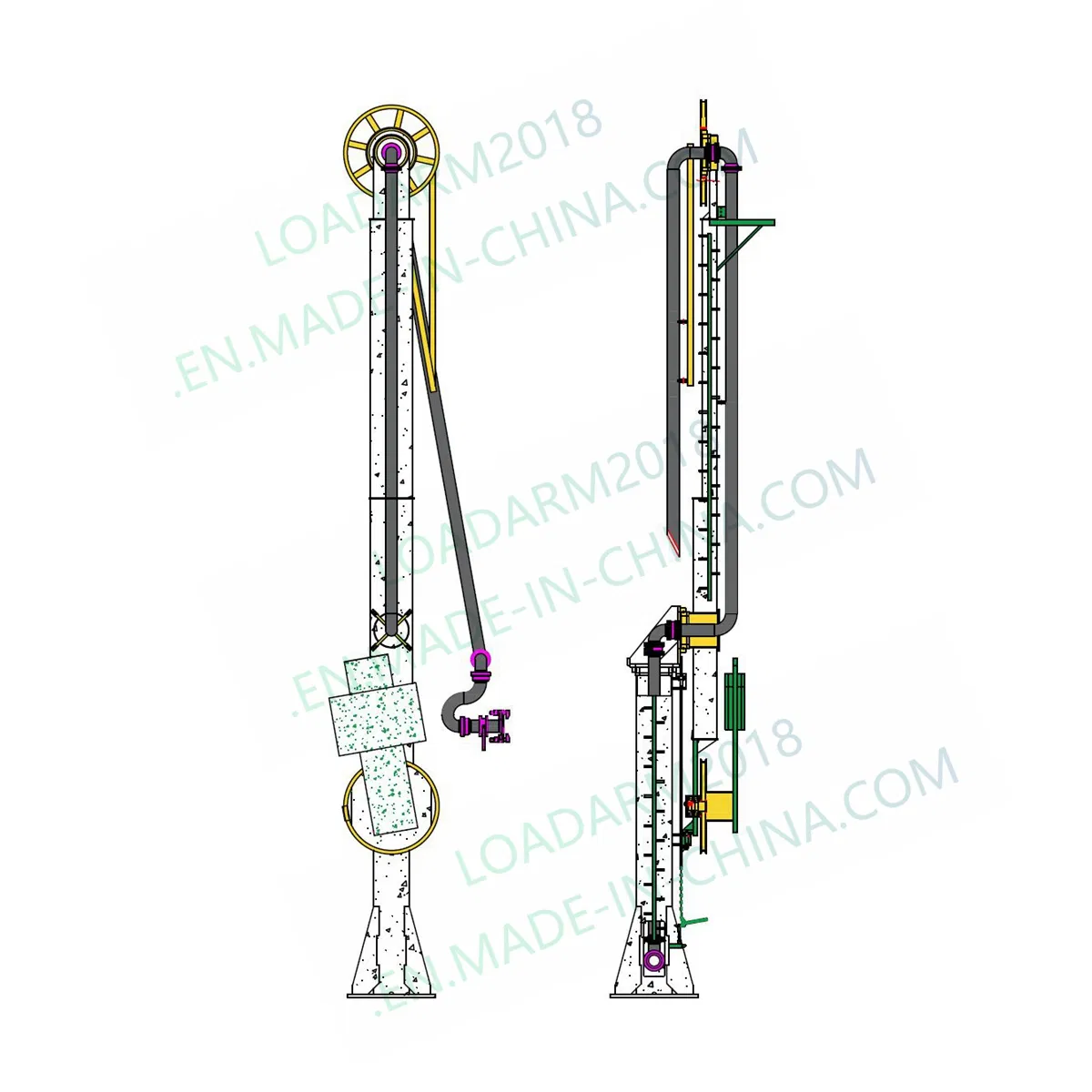

Customized Emco Marine Loading Arm (for Chemical Industry)

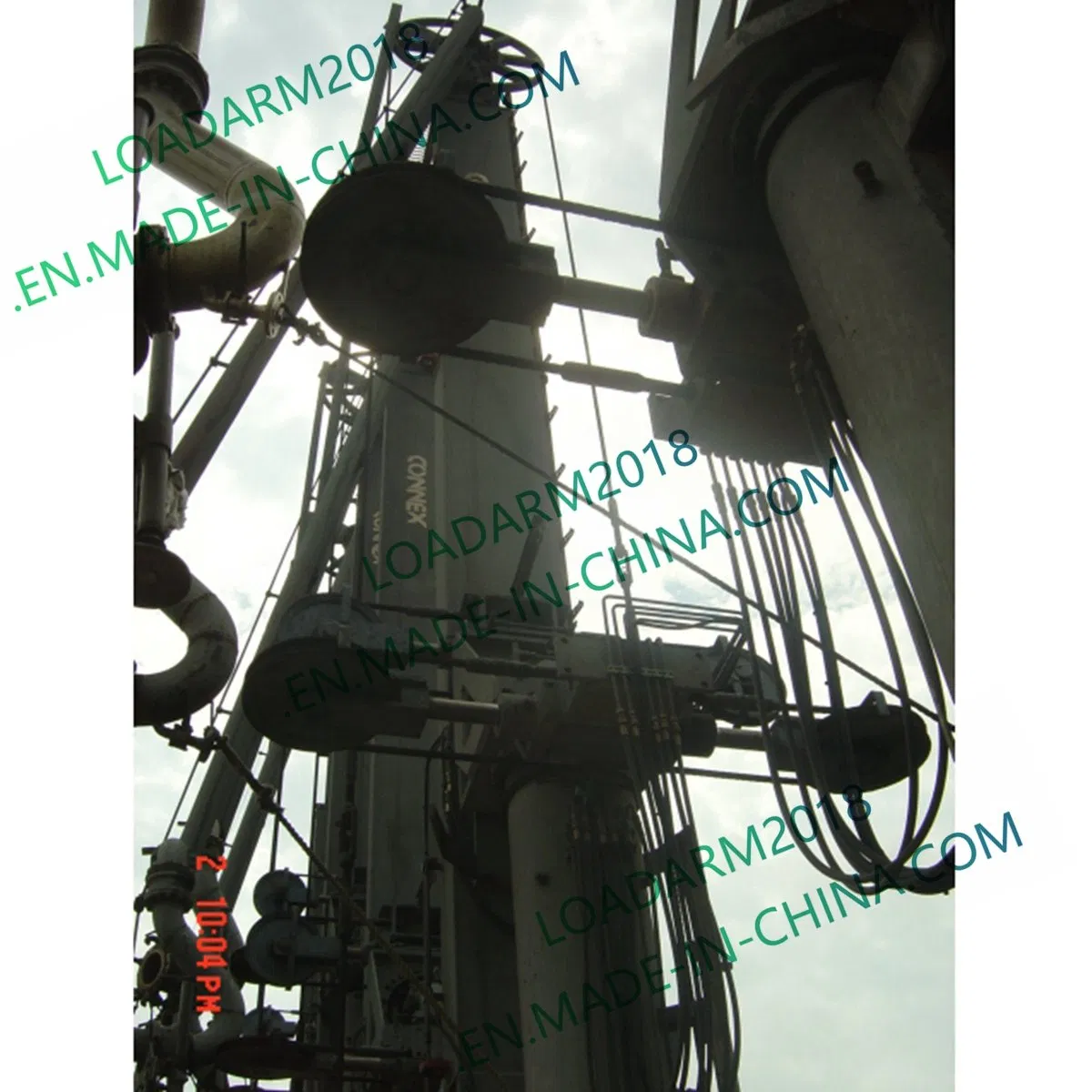

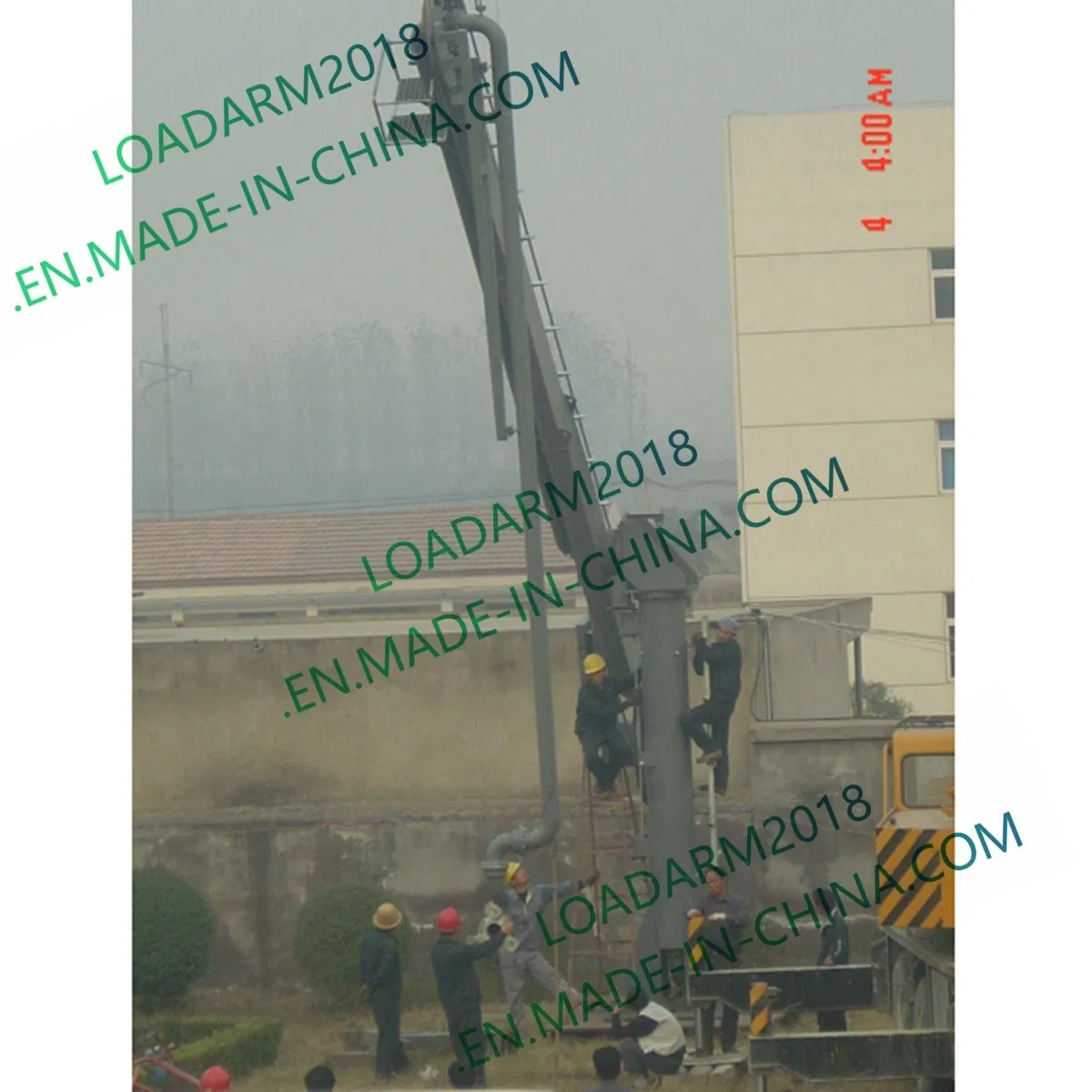

Marine loading arm is the special equipment for loading/unloading fluid materials crossing over the jetty and tanker, with swivel joints connecting pipelines, assist by a supporting structure, including other accessories such as control systems required by customers.

At present, the marine loading/unloading arms has many structural forms in such series as AM61, AM62, AM63 and AM64.

According to the difference in physical and chemical features and temperature of the transmission medium as well as special requirements of customers, the arms can be designed in many pipe forms such as carbon steel, stainless steel and heat tracing, with temperature range being -196~250ºC, the maximum design pressure 10Mpa and nominal pipe size DN80~DN600 (3"~24").

The operating mode can be designed as manual or electro-hydraulic control type. During the fluid transmission process, the arm can move with the tanker within the normal drift range. It can also be set with a visual sound alarm device through travel monitoring system in case header pipe of the tank drifts beyond the specified operating scope.

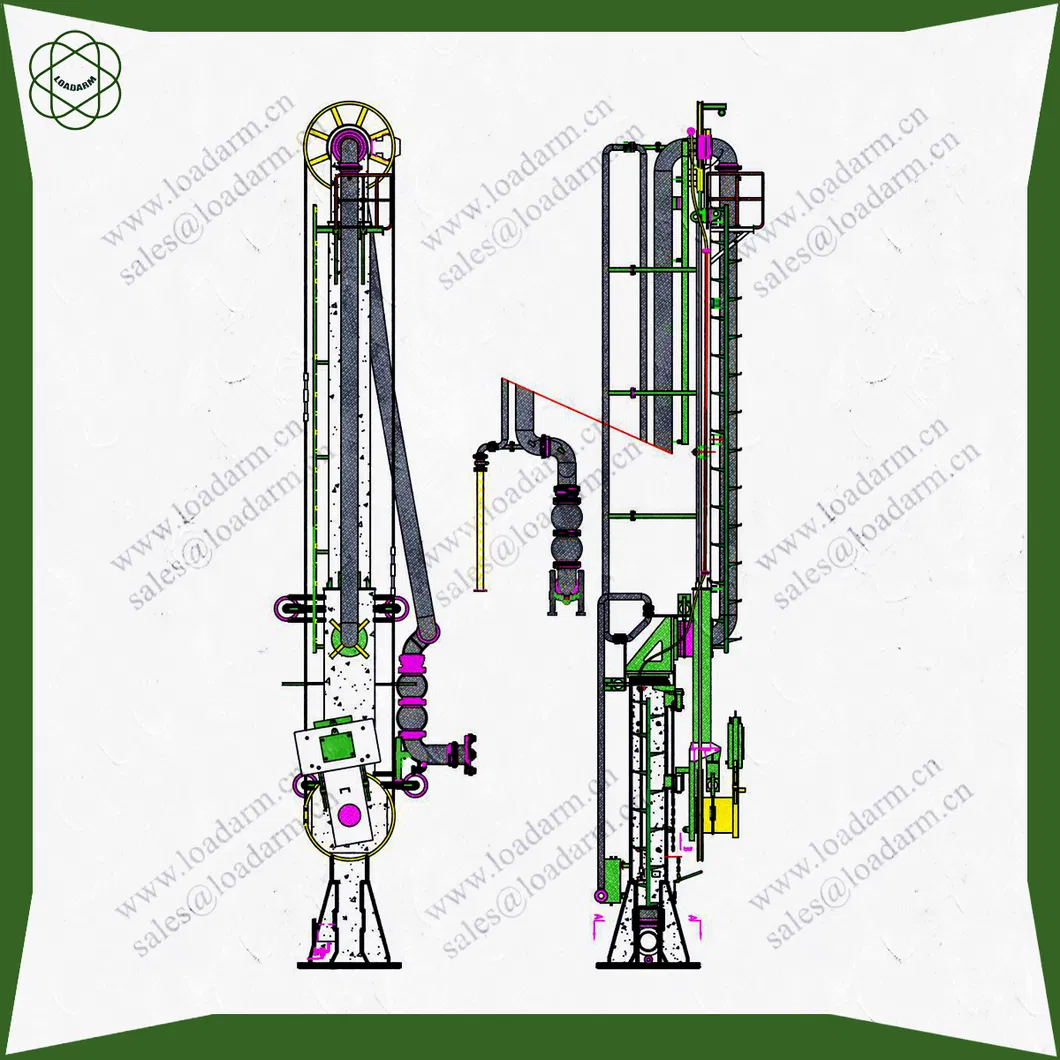

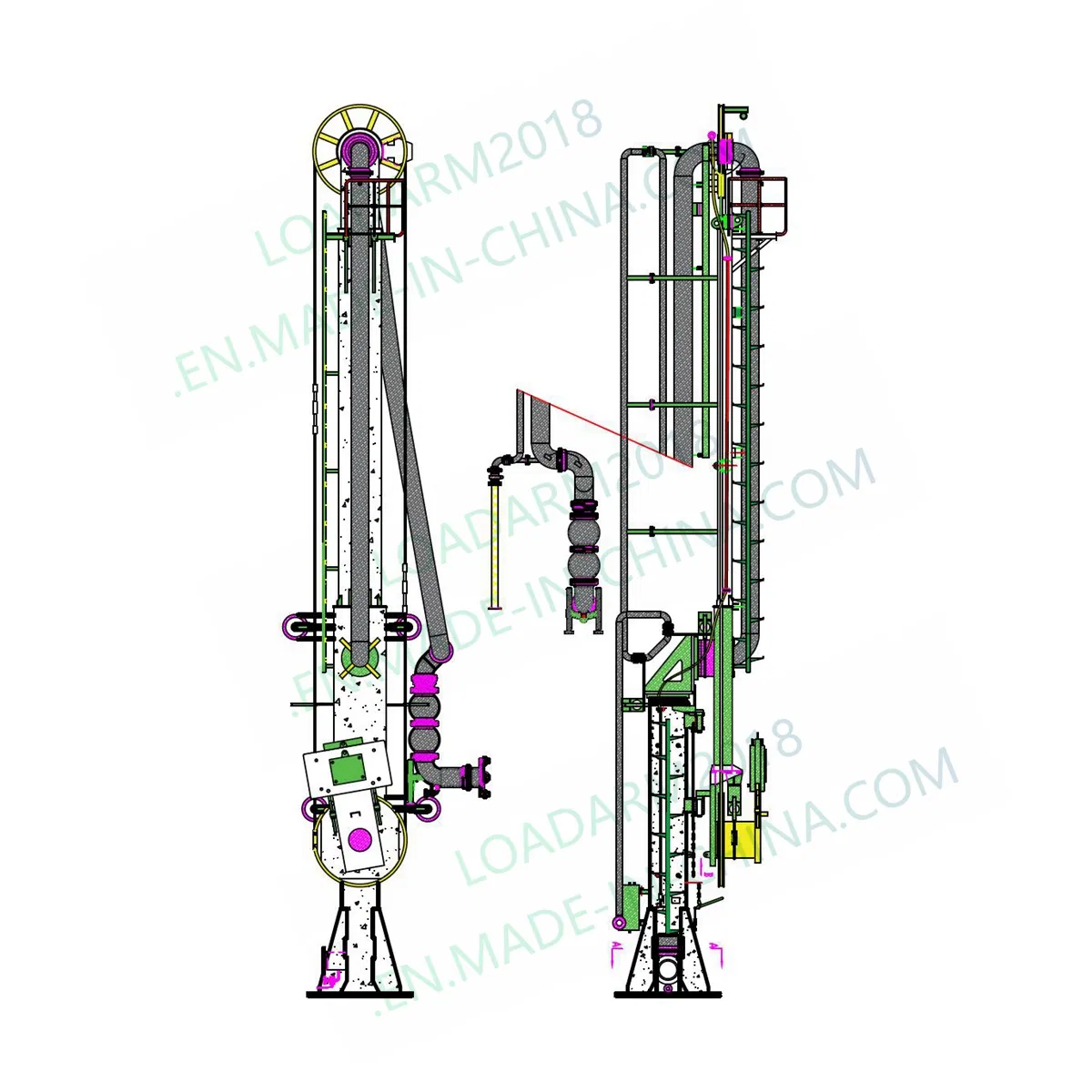

A part of the product pipe provides support to the loading arm, but most weight and loads are supported by an independent body or supporting auxiliary supporting organizations. Inner and outer arms share one counterweight system. Mixed mode support for single-tube loading arms are compactly structured, suitable for large-tonnage vessels.
