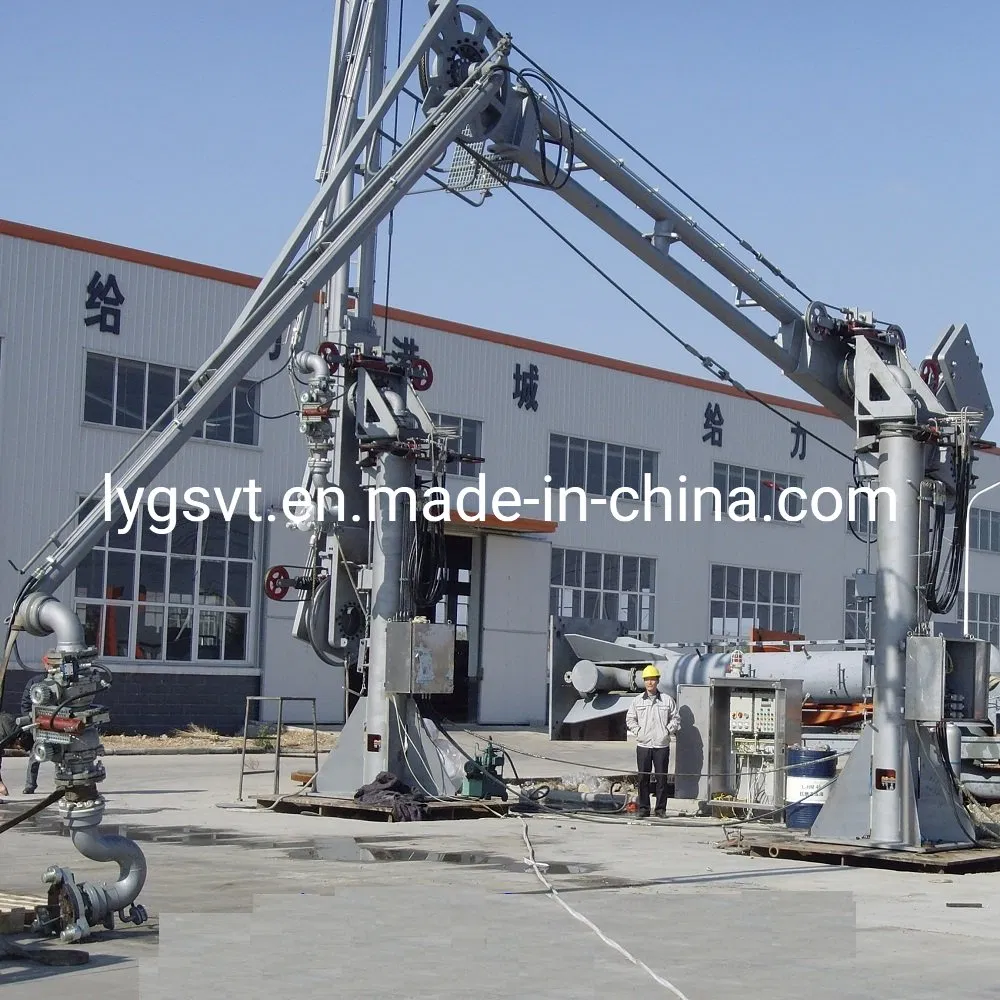

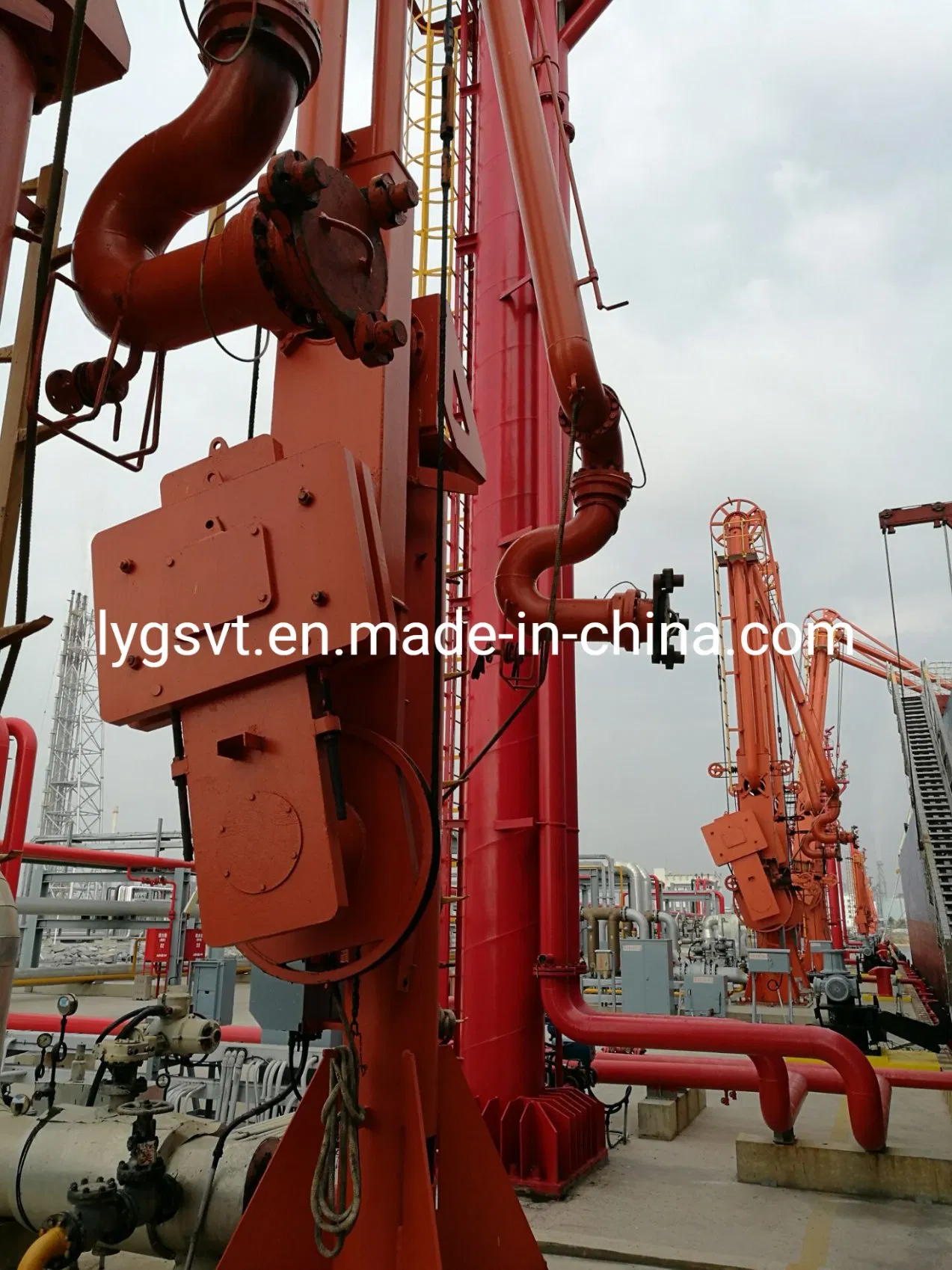

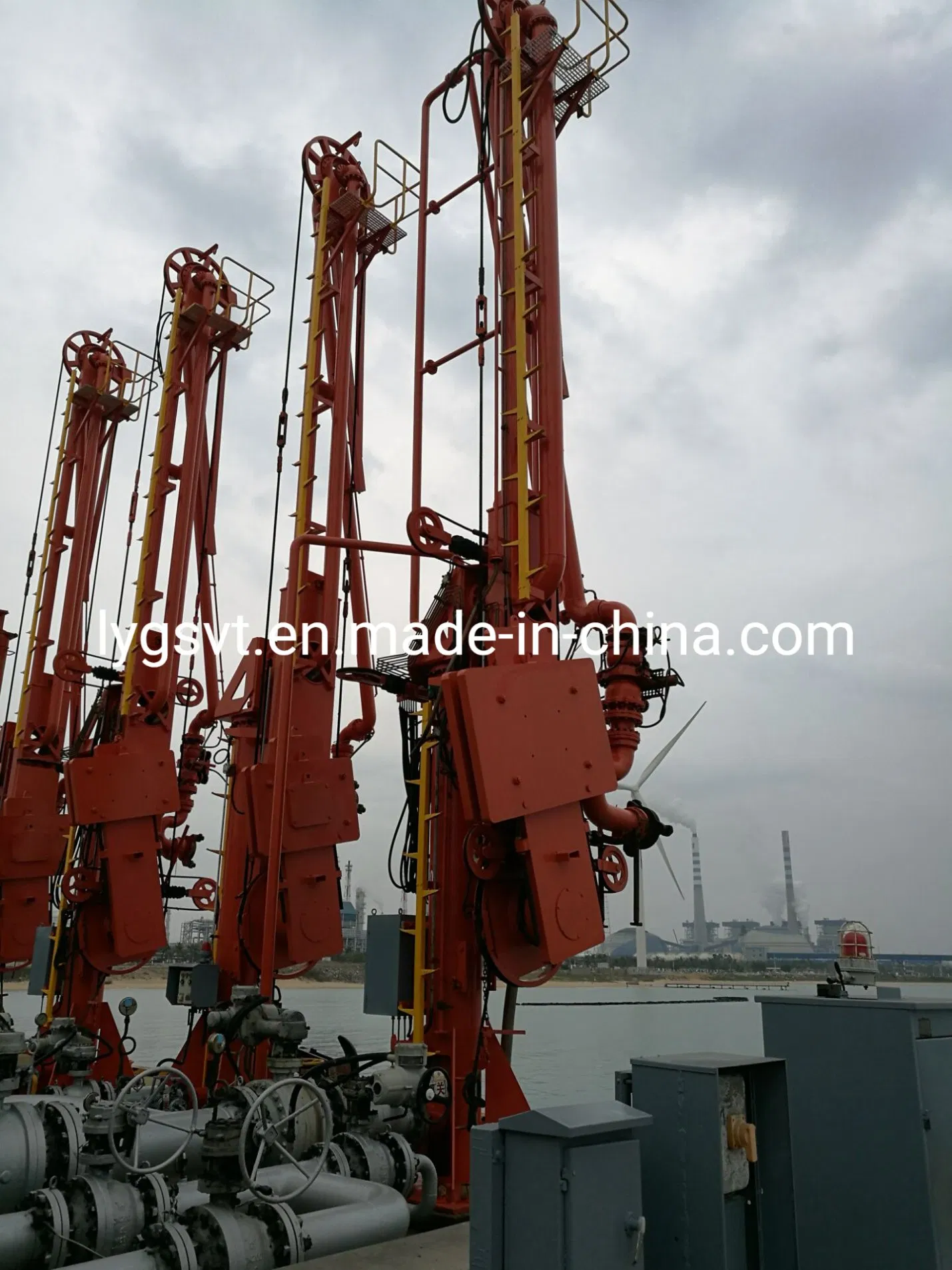

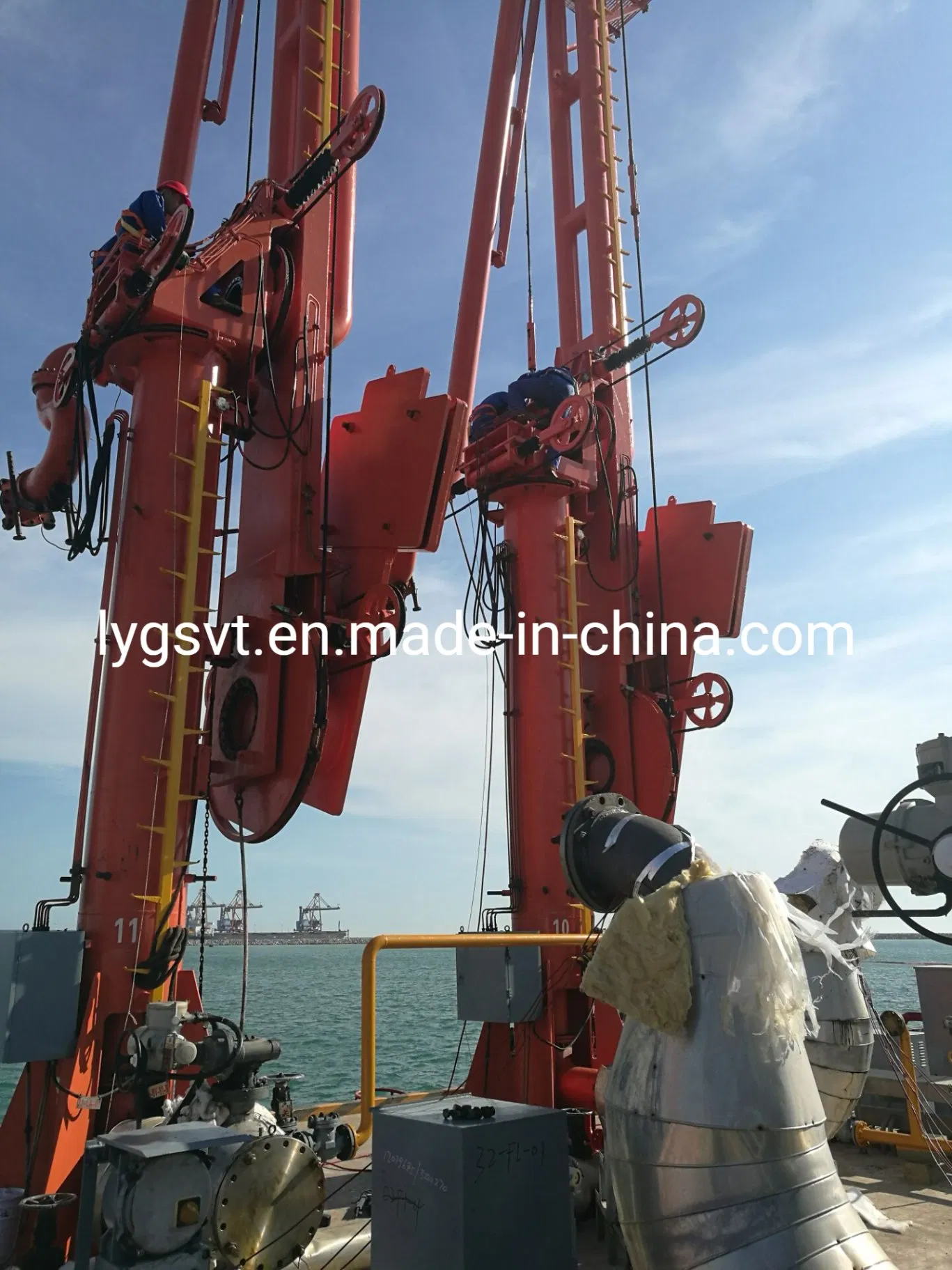

A Marine Loading Arm is an articulated pipe system for the transfers of liquids or gases. This may be operated manually or hydraulically.

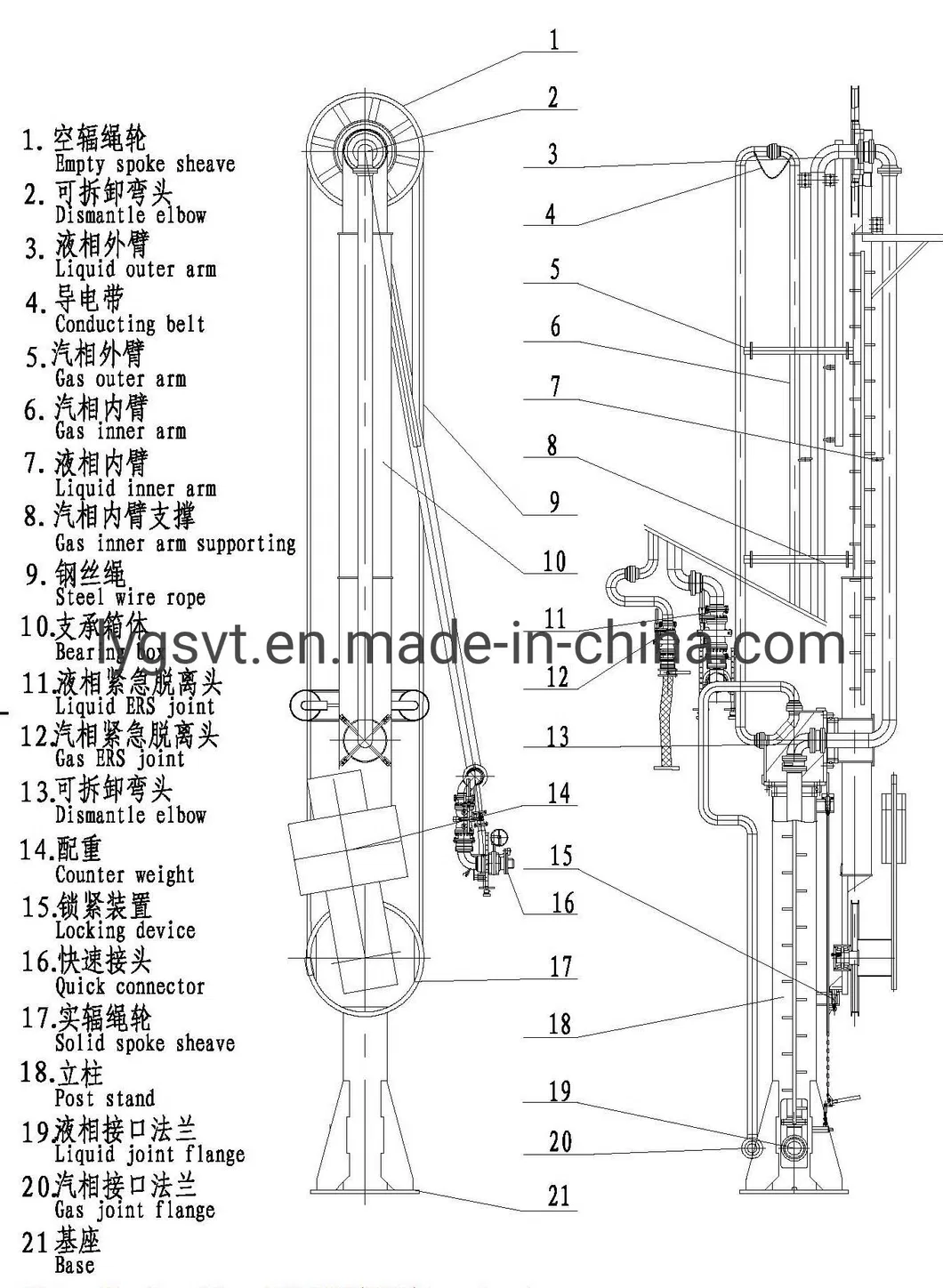

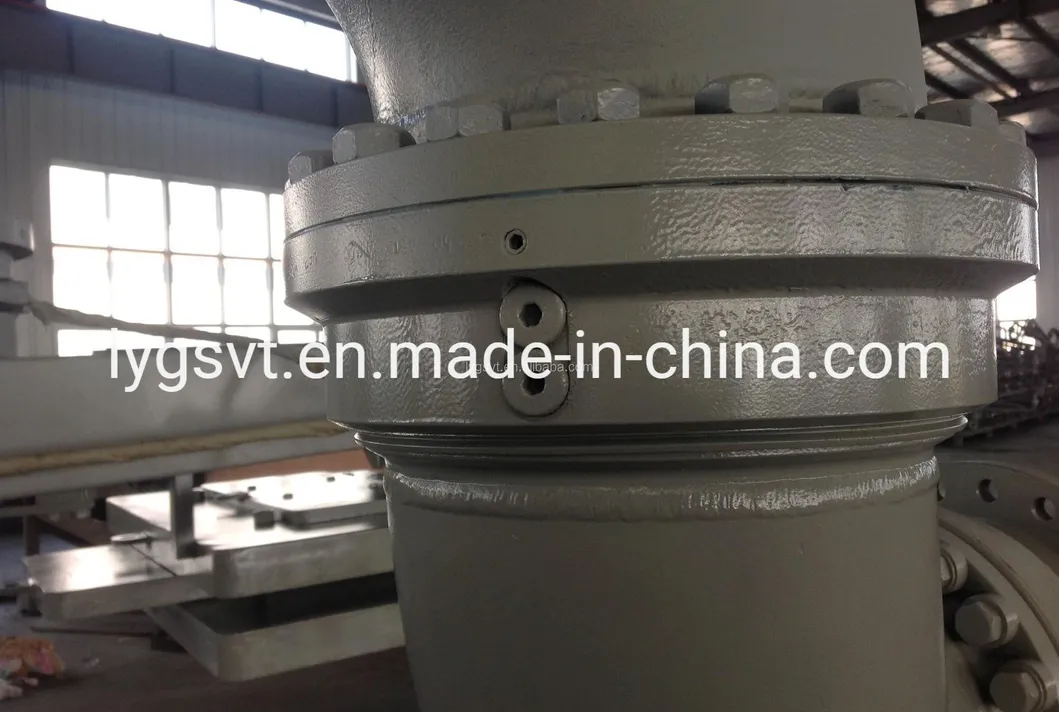

A marine loading arm comprises several components namely: base riser, inboard arm, outboard arm, balancing assembly, supporting structure, and operating system. The articulation is assured by swivel arrangements. These arrangements (or styles) allow for complete movement in all planes. We design and manufacture a wide range of Marine Loading Arms to load and unload almost any liquid and compressed gas product from river barges, ships and ocean going super tankers.
| Product Name | Marine Loading Arm |
| Service Product | Oil, Gasoline, Diesel, LPG, LNG and all kinds of liquid |
| Nominal Diameter | DN200 ~ DN600 (8" to 24") |
| Design Pressure | -0.08 Mpa ~ +2.5 MPa |
| Design Temperature | -196°C~ +250°C |
| Pipe Material | Carbon steel, stainless steel, low-temperature steel, line with PTFE |
| Operation Method | Manual operated, hydraulic operated |
| Optional Equipment | PMS, HPU, QC/DC, PLC, ERS, etc. |
The design of the marine loading arm varies from client's requirements and environment. Users provide design datasheets including terminal tidal range, ship's tonnage, liquid handled, pipeline size, and environmental parameters (wind load, temperature, earthquake loads).
On-site Service and After-sales Service are provided for installation, commissioning, maintenance, and automatic system upgrading for all products. The warranty period is 12 months from the date of startup or 18 months after delivery, whichever happens first.
Specializing in the design, manufacture, sale, and installation of Land Loading Arms, Marine Loading Arms, Internal Floating Roofs, Floating Suction Units, Folding Stairs and Platforms, Gangway Towers, Automatic Quantitative Loading Systems, Shells, and more.
Our Services & Strength: Professional technical personnel engaged in mechanical design and engineering construction for many years with a perfect quality assurance system. Strictly performing ISO9001 Quality Management Systems from design and procurement to production and after-sale service. Fully equipped with various types of processing, welding, and testing equipment to provide customers with worry-free technical support.
