Expert Manufacturer of Loading Arms for Petroleum Tanker Platforms

1 / 5

Expert Manufacturer of Loading Arms for Petroleum Tanker Platforms

Customization:	Available
Certification:	ISO 9001:2000
Power Source:	Manual

Send Inquiry

Product Description

Basic Specifications

Model NO.

AL2503

Operation Pressure

Pn4.0

Applicable Medium

Water, Crude Oil, Gasoline, Diesel etc

Structure

Seamless Pipe with Swivel Joint

Material

SS, CS, PTFE Lined etc

Quality Guarantee

1 Year

Seals

PTFE

Application

Truck Tanker, Rail Tanker, Marine

Specification

DN50, DN80, DN100, DN150

Production Capacity

5000 Sets / Year

Packaging & Delivery

Package Size

1000.00cm * 1000.00cm * 800.00cm

Gross Weight

888.000kg

Transport Package

Pallet or Plywood Case

Product Description

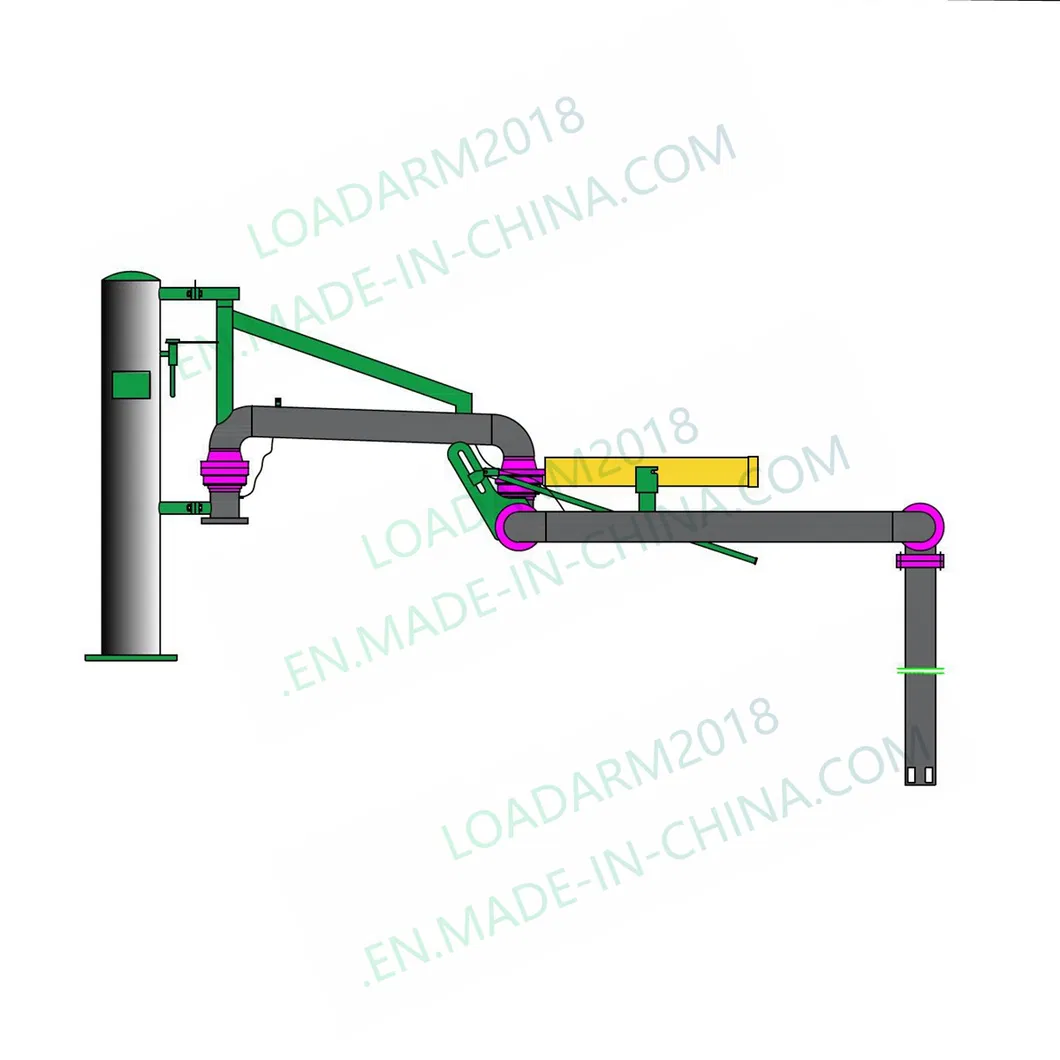

Structure of AL1402 Loading Arm:

General Introduction for Land Loading Arm:

Our land loading arm is specifically designed for transporting fluid between piping systems and tankers, engineered to suit different tankers, liquids, and site conditions. Equipped with loading platforms, folding stairs, and safety cages, it forms a complete loading system. By utilizing level location or quantitative monitoring, the system provides sound and visual alarms or remote signals if fluid levels exceed set values.

Operating modes include manual, pneumatic, or hydraulic, depending on product requirements and customer specifications.

Technical Data - AL1402

AL1402 typical loading arm: Easy operation and maintenance.
Places Applied	Top open loading
Applications	Product oil, chemicals
Nominal Diameter	DN25~DN200 (1"~8")
Working Temperature	-196~250ºC
Working Pressure	PN1.0~PN4.0
Material of pipeline	Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.

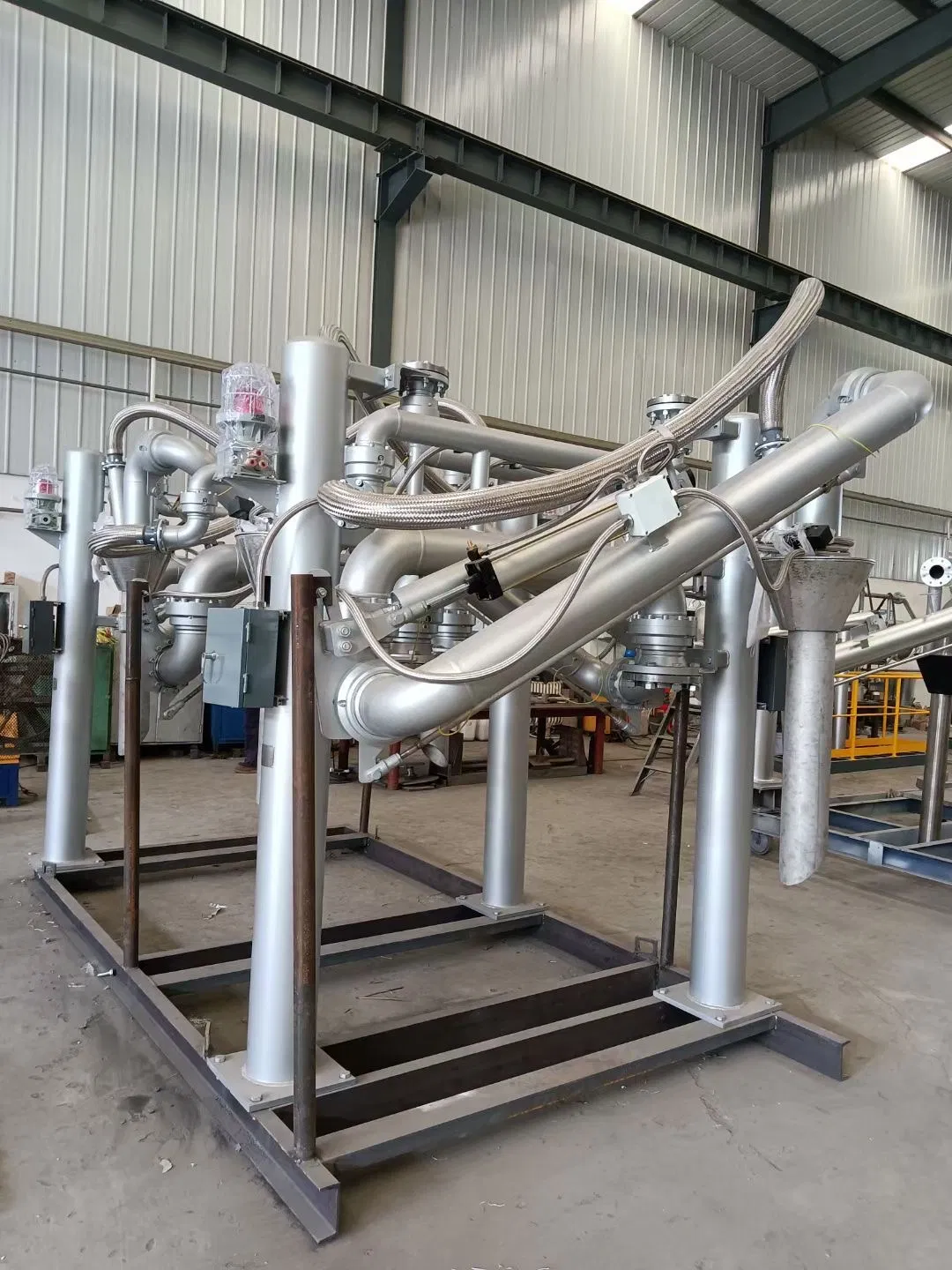

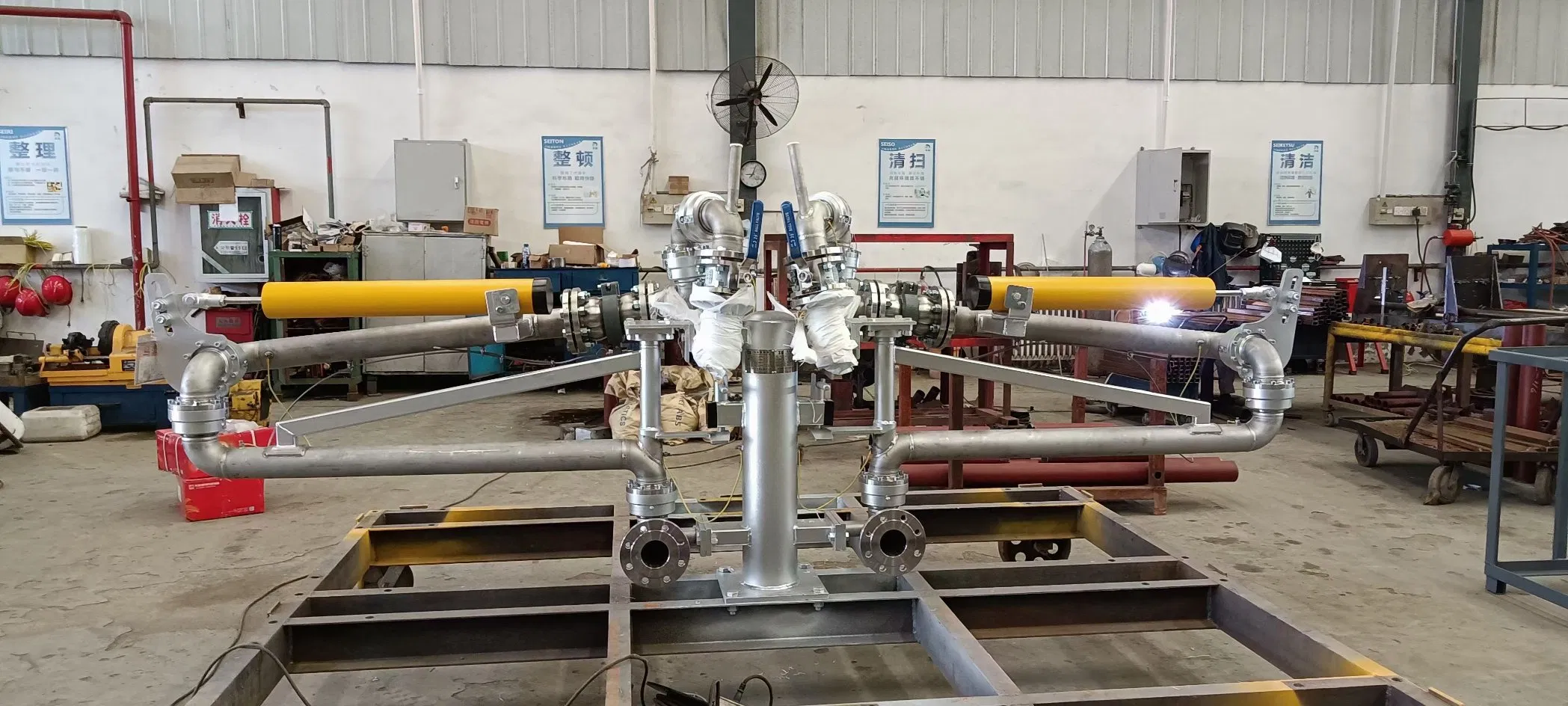

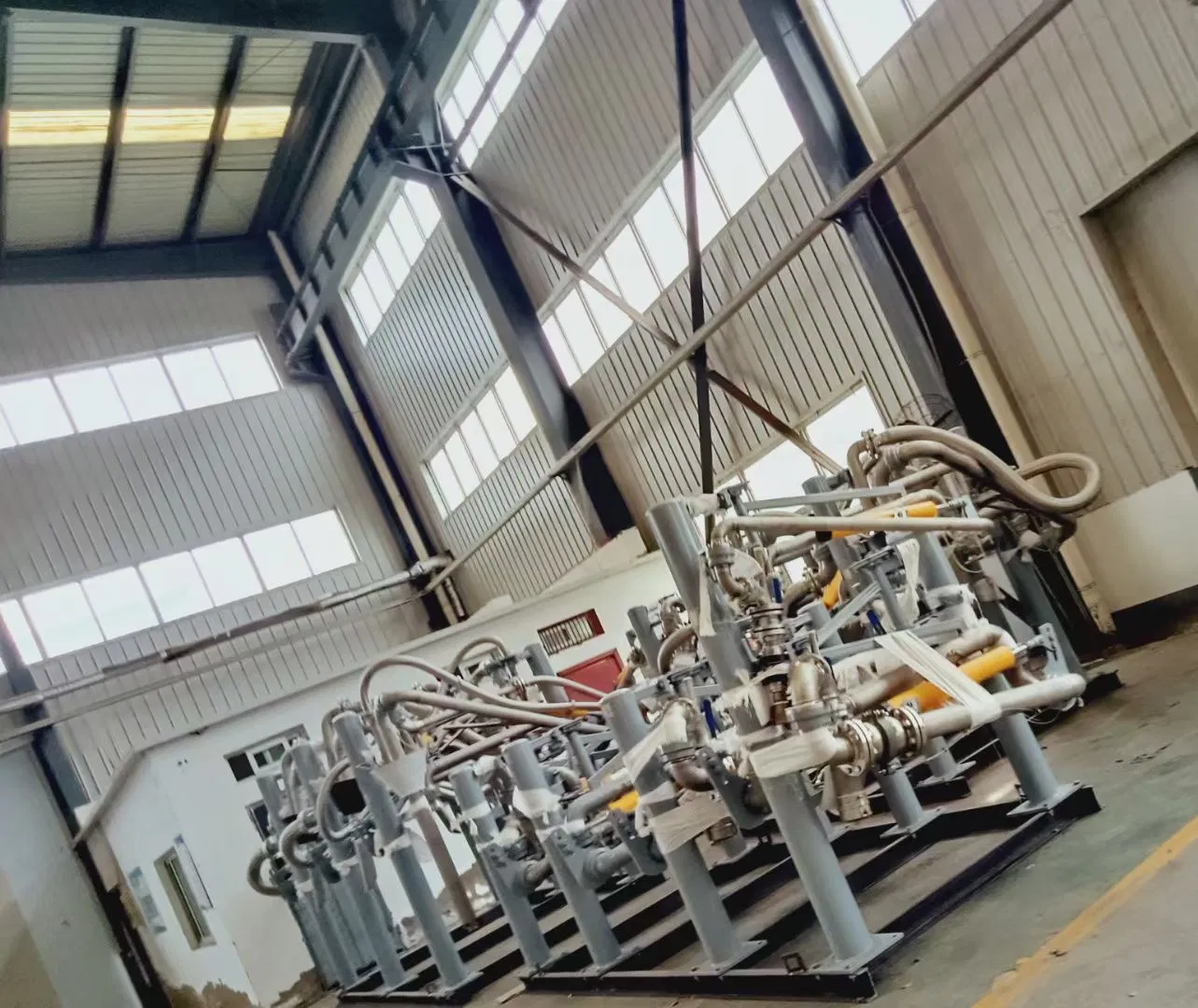

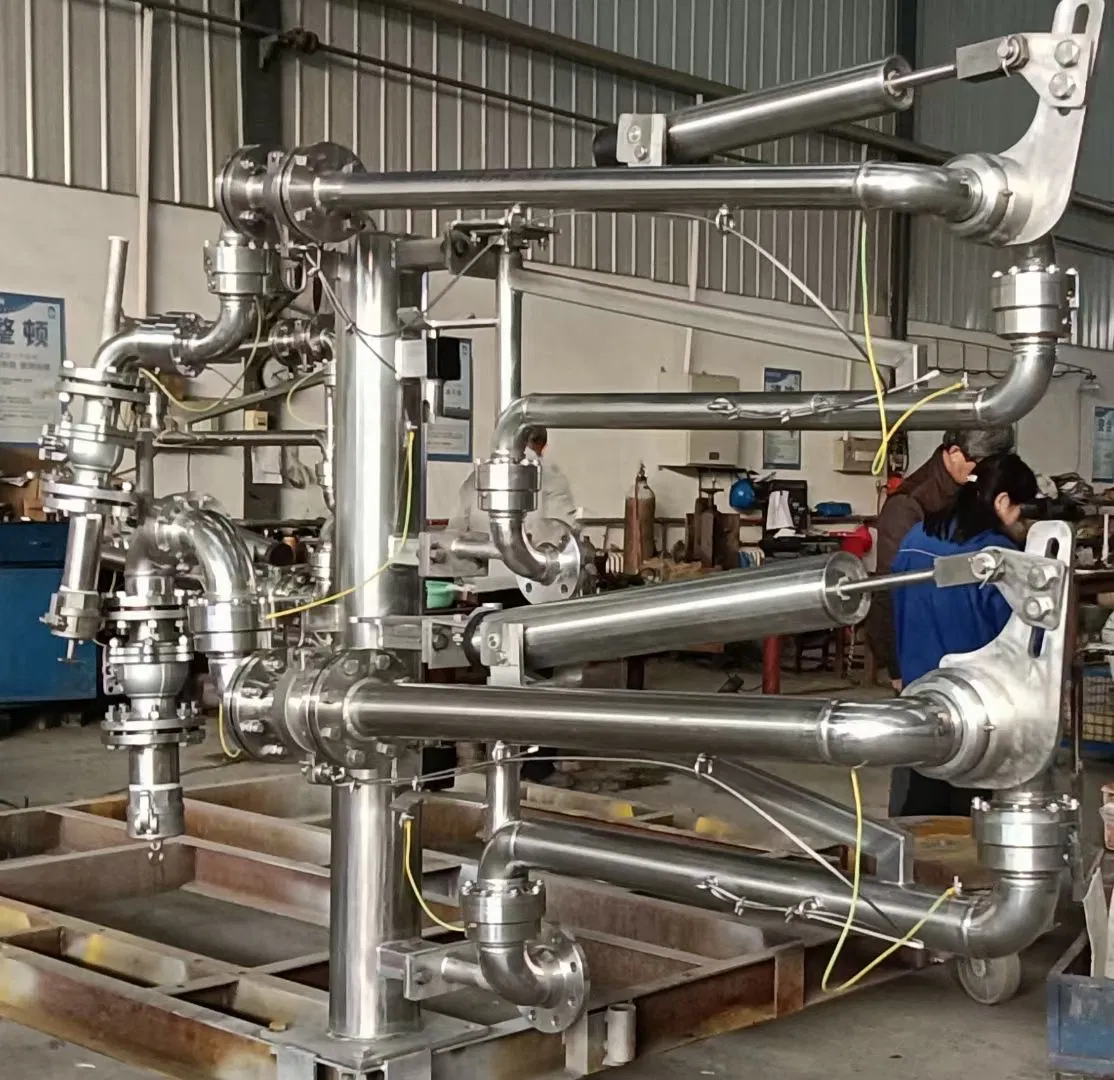

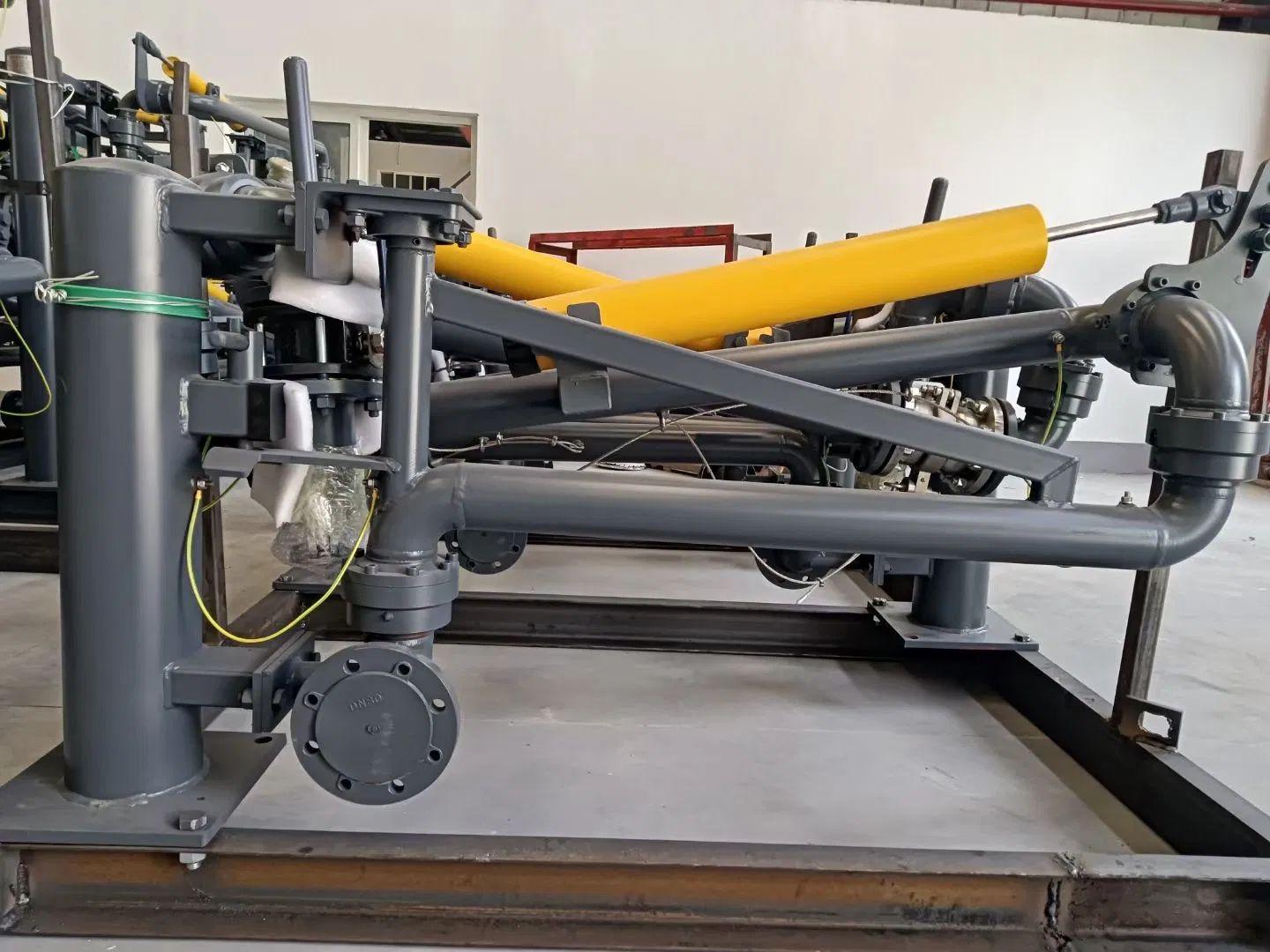

Workshop & Project Display

Overseas Project Cases:

Frequently Asked Questions

What is your production period or delivery time?

Delivery time can be within 20 days. For special products, it could be within 30-50 days.

What payment terms do you offer?

T/T before shipment or L/C can be accepted.

Can you do OEM or use custom name plates for the product?

Yes, we can accept and welcome OEM orders and custom branding requirements.

How do you ensure the quality of your products?

We have a strict quality control process in our factory, including inspections at every stage of production, RT tests, PT tests, and hydraulic tests. We hold ISO certification, welding certificates, and welder certificates from TUV.

Can you provide documentation and certifications for your products?

Yes, we provide all necessary documentation including material certificates, inspection reports, and customs clearance certificates such as CO, Form E, etc., ensuring compliance with industry standards.

How long is your warranty period?

12 months from commissioning or 18 months from delivery, whichever comes first. In some cases, we can supply a 2-year warranty.
