Product Description

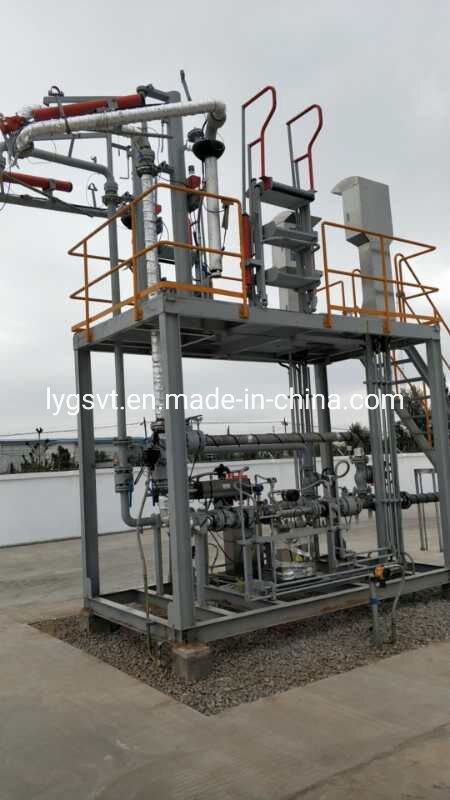

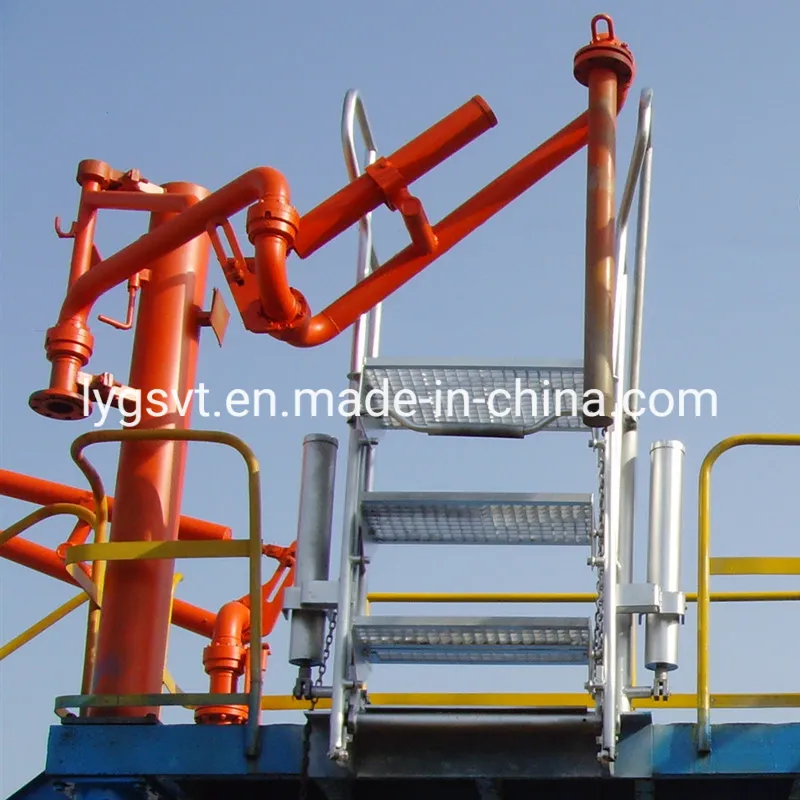

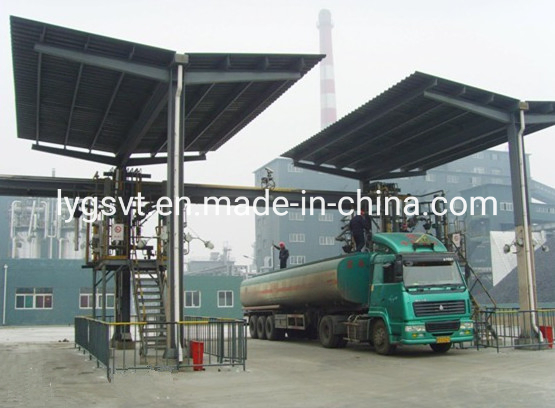

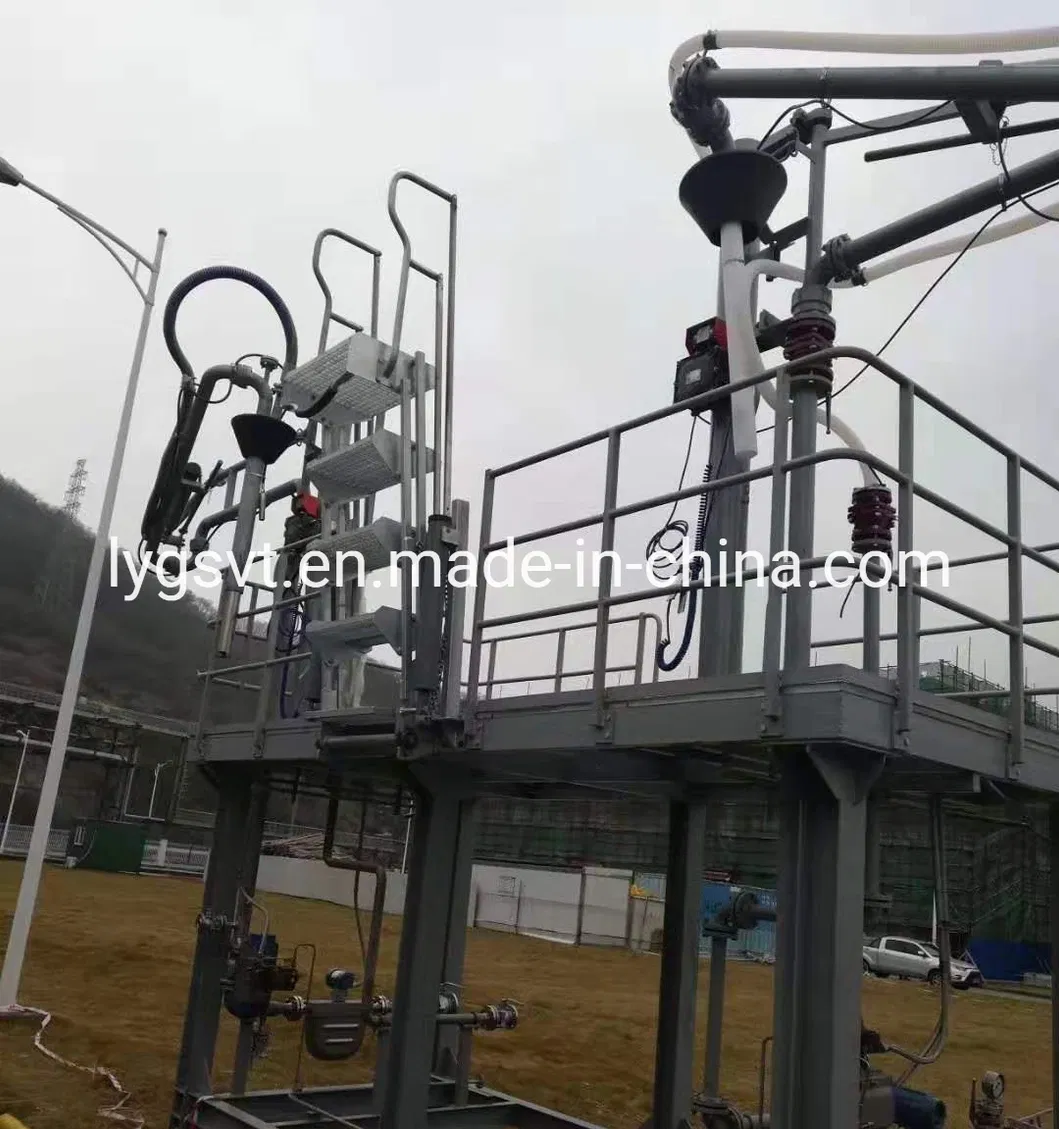

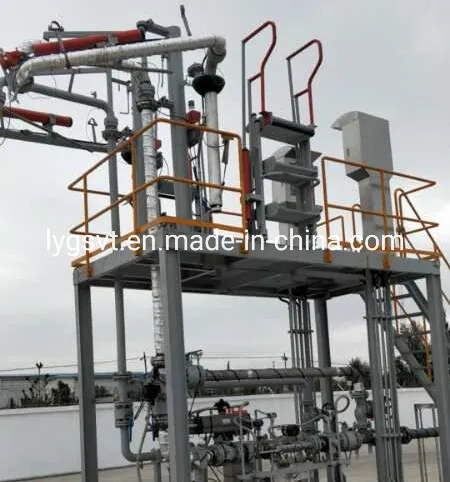

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.

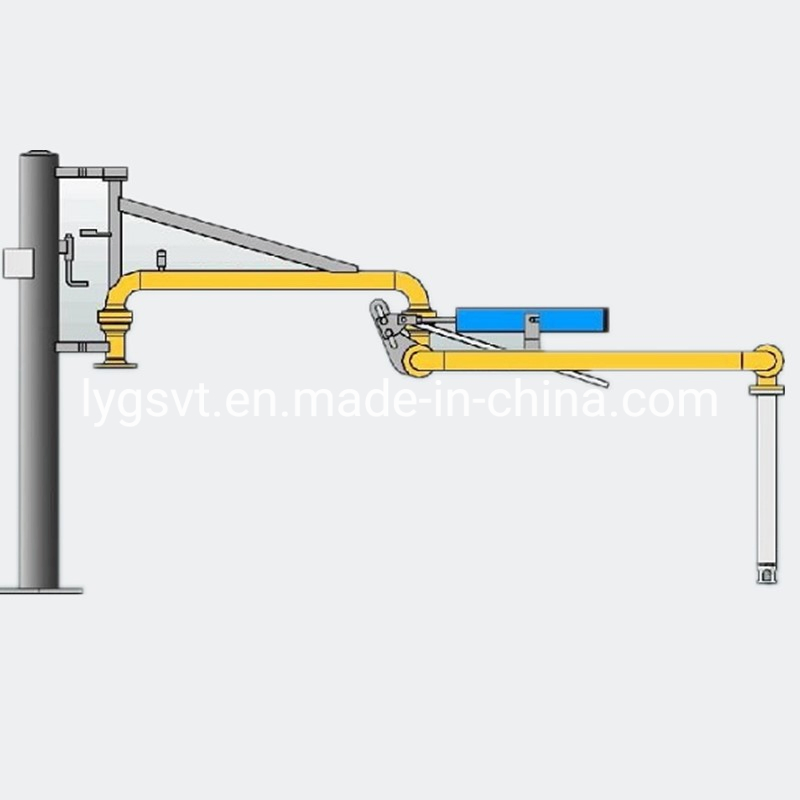

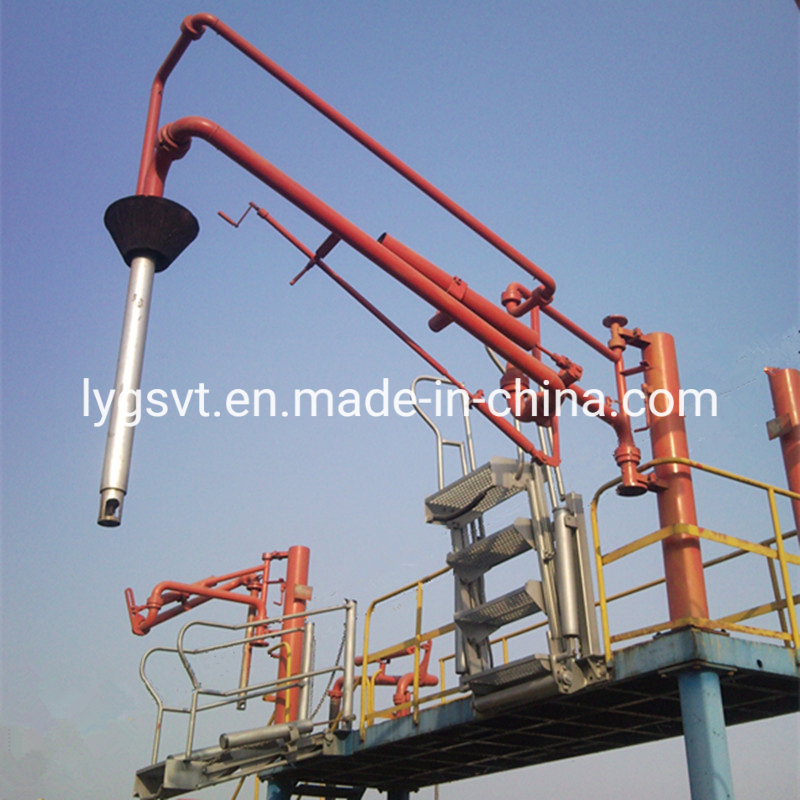

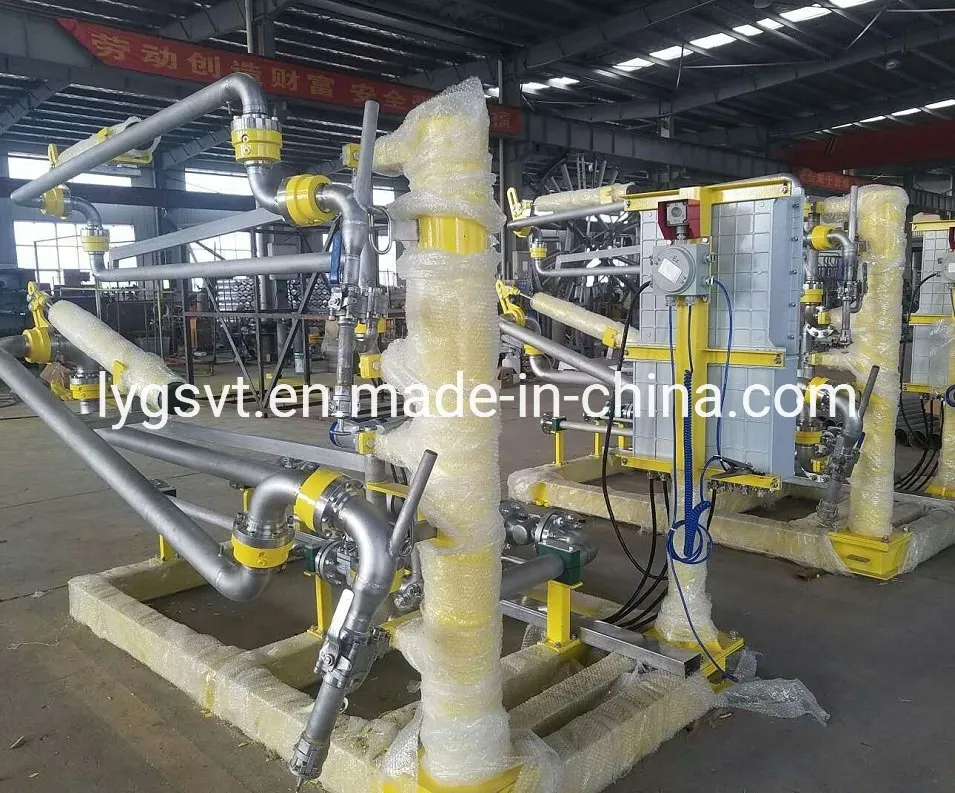

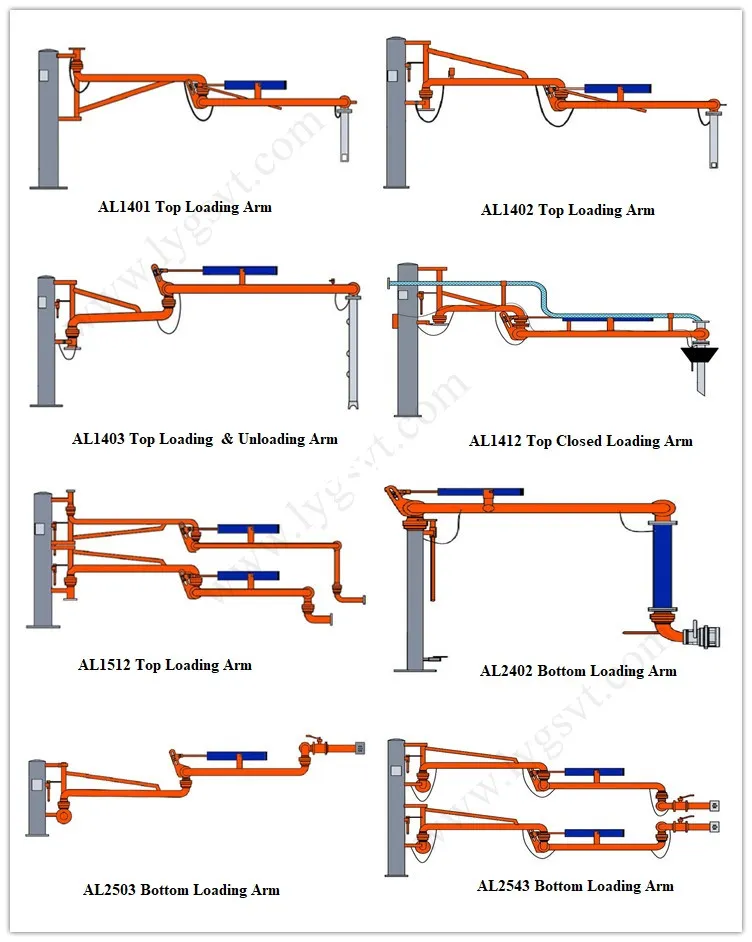

Top Loading Arm is mainly composed of the Riser, Inboard arm, Outboard arm, Spring Cylinder Balance System, Locking System, Sealing Cone (if required), Vapor Return Pipeline (if required), Drop Pipe. It can also be equipped with liquid level alarm system, which will give out sound and visual alarm or the remote signal when the set liquid level is reached.
Key Features
- Simple structure, widely used, and easy operation.

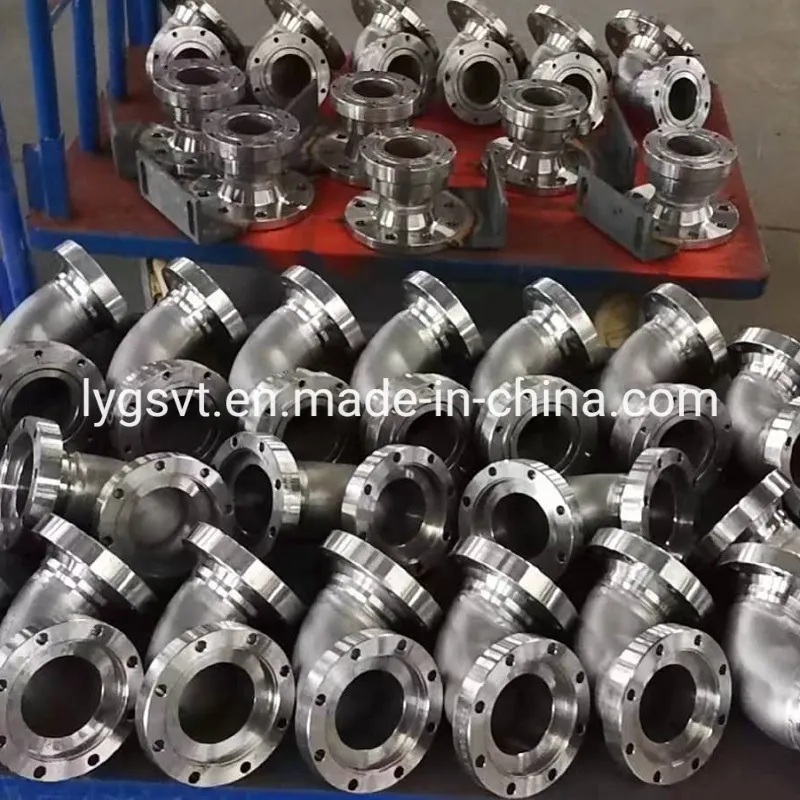

- Advanced design of Swivel Joint makes easier replacement of sealing ring and great performance to prevent leaking.
- Spring cylinder makes the loading arm's movement smoothly and easier to adjust.
- Comprehensive accessories: Ball Valve, Breakaway Coupling, Purge Line / Drain Line, Position Indicators, Overfill Probe, and Pressure Gauge.
Production Excellence
Our company specializes in the design, manufacture, sale and installation of Land Loading Arm, Marine Loading Arm, Internal Floating Roof, Floating Suction Unit, Folding Stairs and Platform, Gangway Tower, Automatic Quantitative Loading System, Shell, etc.
We have professional technical personnel engaged in mechanical design and engineering construction for many years, and has perfect quality assurance system. We strictly perform the ISO9001 Quality Management Systems, from design, procurement, production, sales and after-sale service. Our facilities are fully equipped with various types of processing, welding, testing equipment and special processing equipment, providing customers with worry-free technical support and after-sales service.
Frequently Asked Questions
What fluids can these loading arms handle?
They are designed for a wide range of products including crude oil, gasoline, diesel, various chemicals, and other liquid service products.
What materials are available for the pipeline construction?
Pipelines can be constructed from carbon steel, stainless steel, low-temperature steel, or lined with PTFE depending on the medium requirements.
How is the loading arm balanced for operation?
The system utilizes a high-performance Spring Cylinder Balance System, which ensures smooth movement and easy adjustment during manual operation.
Are there safety systems for overfilling?
Yes, the loading arms can be equipped with a liquid level alarm system that provides both sound and visual alerts or remote signals when the set level is reached.
What is the typical diameter range for these arms?
The nominal diameter typically ranges from DN50 to DN150 (2 inches to 6 inches), tailored to specific loading requirements.
Can the swivel joints be maintained easily?
Yes, the advanced design of our swivel joints allows for easier replacement of sealing rings while maintaining excellent leak prevention performance.
