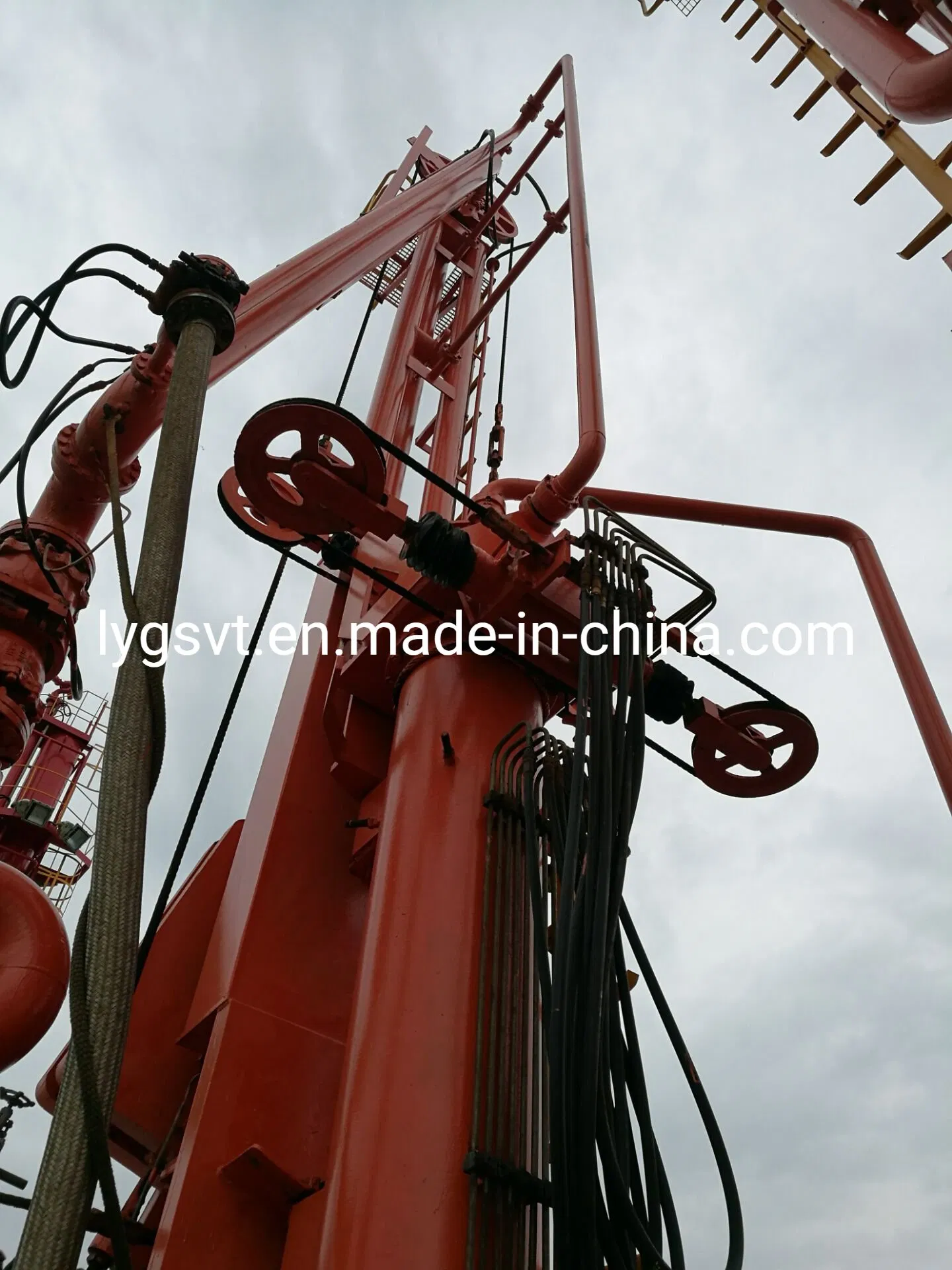

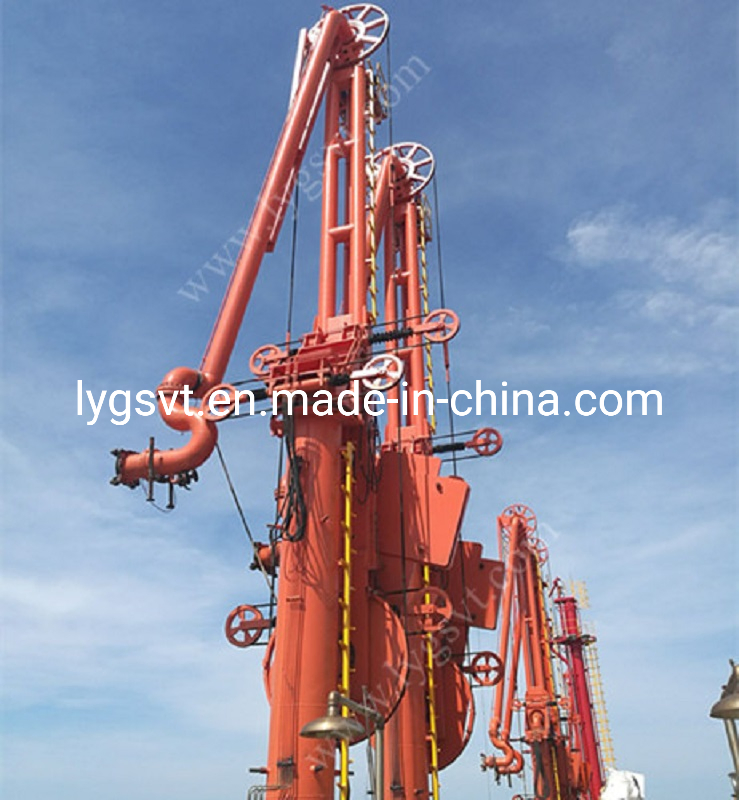

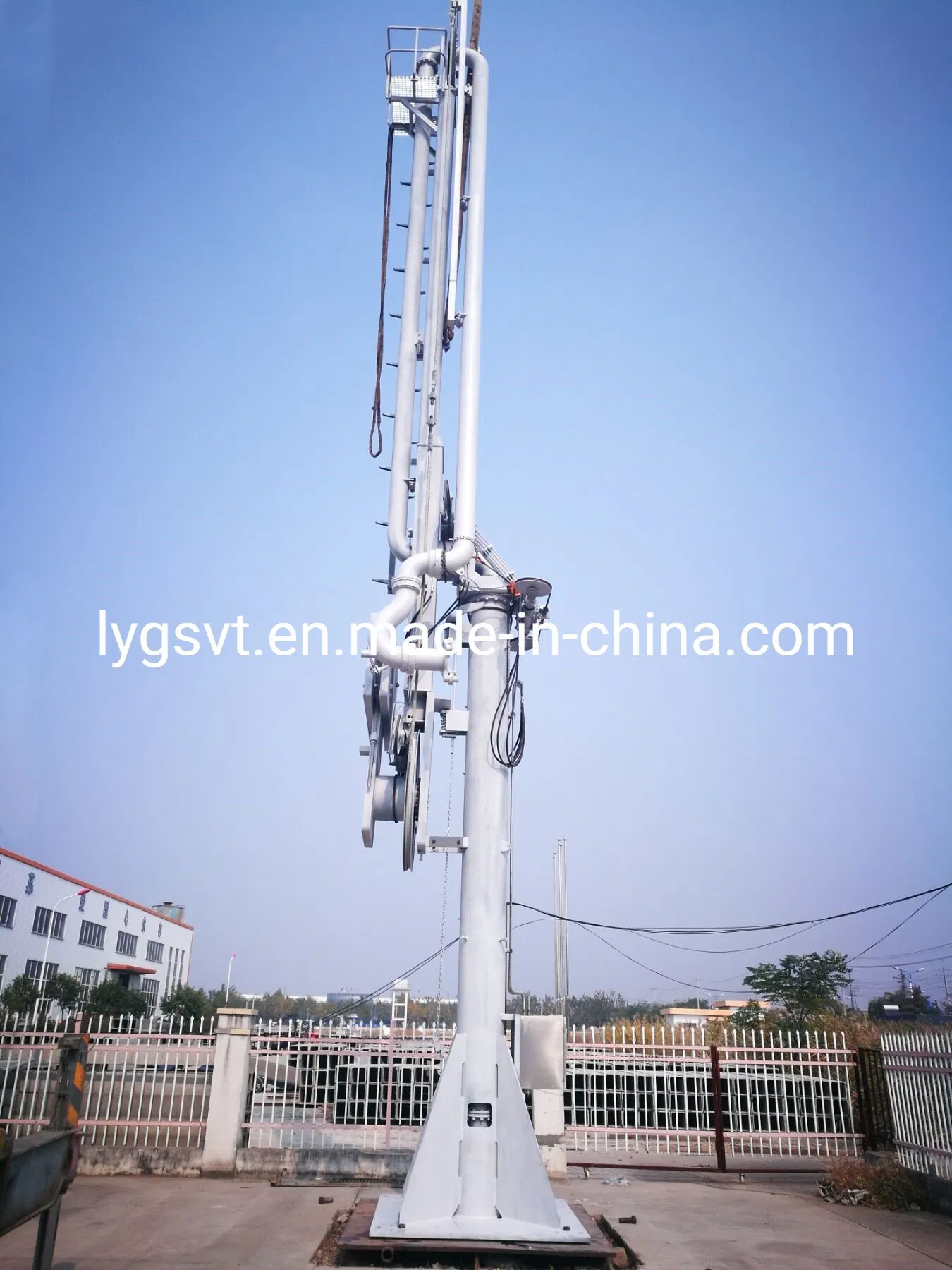

A Marine Loading Arm is an articulated pipe system for the transfers of liquids or gases. This may be operated manually or hydraulically.

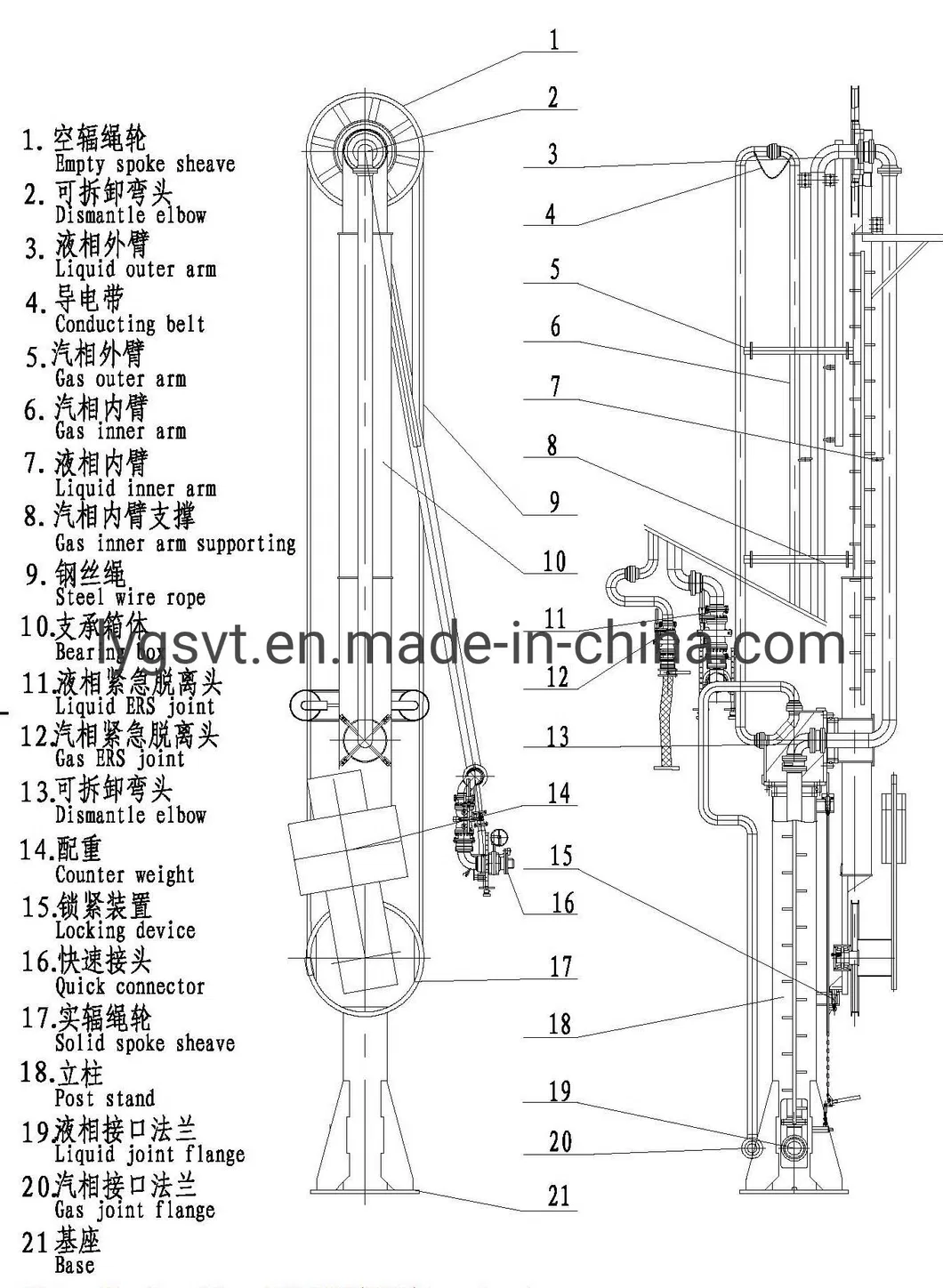

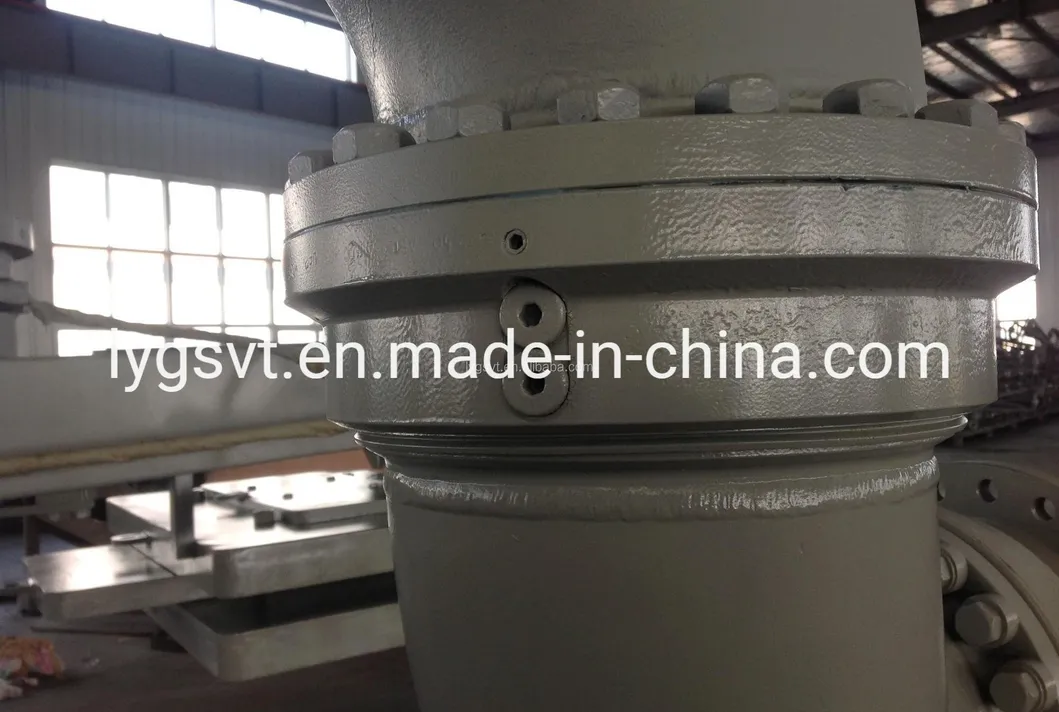

A marine loading arm comprises several components namely: base riser, inboard arm, outboard arm, balancing assembly, supporting structure, and operating system. The articulation is assured by swivel arrangements. These arrangements allow for complete movement in all planes.

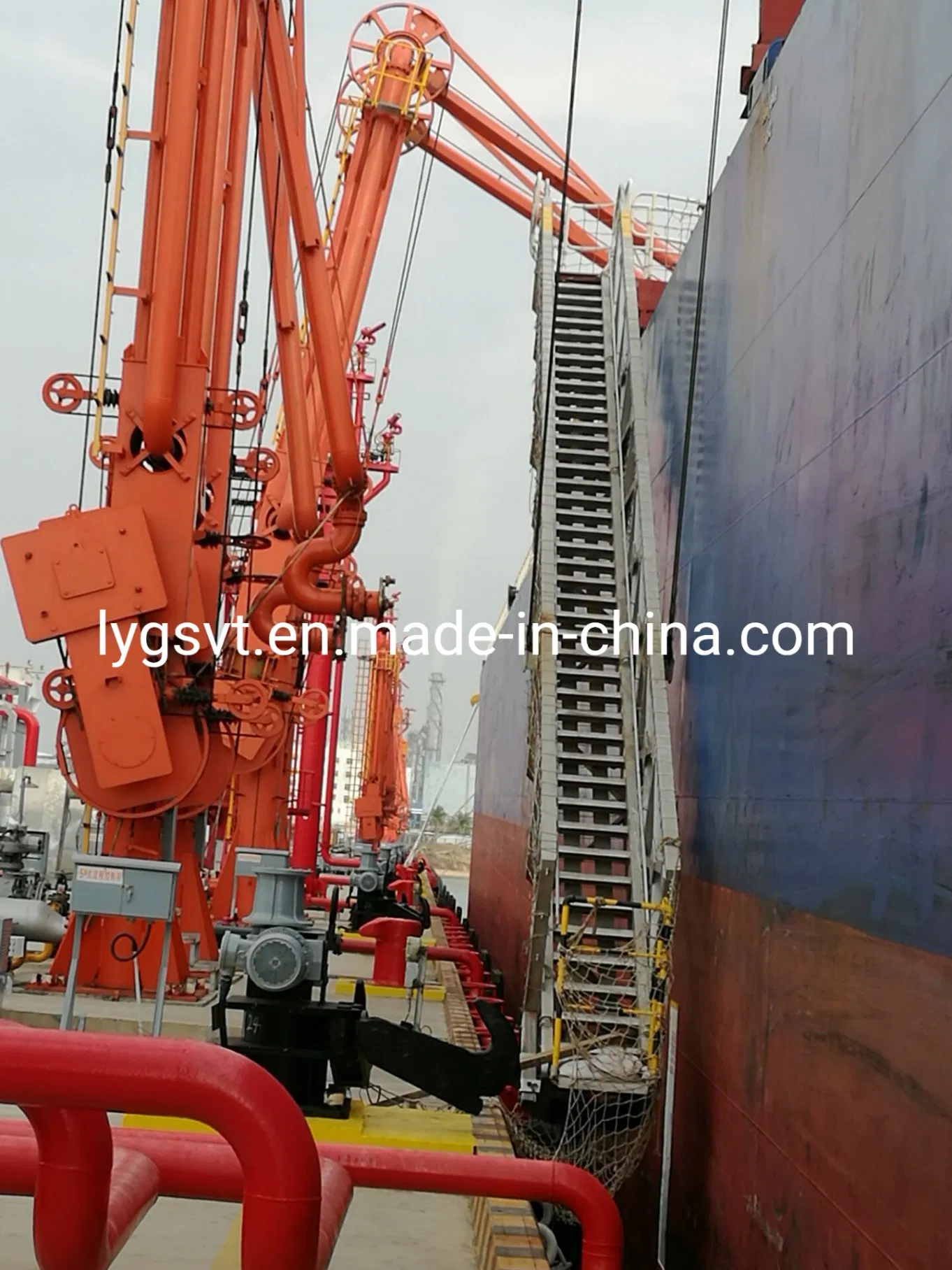

We design and manufacture a wide range of Marine Loading Arms to load and unload almost any liquid and compressed gas product from river barges, ships and ocean going super tankers.
| Parameter | Details |
|---|---|
| Product Name | Marine Loading Arm |
| Service Product | Oil, Gasoline, Diesel, LPG, LNG and all kinds of liquid |
| Nominal Diameter | DN200 ~ DN600 (8" to 24") |
| Design Pressure | -0.08 Mpa ~ +2.5 MPa |
| Design Temperature | -196°C~ +250°C |
| Pipe material | Carbon steel, stainless steel, low-temperature steel, line with PTFE |
| Operation method | Manual operated, hydraulic operated |
| Optional Equipment | Position Monitor system (PMS), Hydraulic power units (HPU), QC/DC, PLC, Emergency Release System (ERS) |
The design of the marine loading arm varies based on client requirements and environmental conditions. Key design parameters include:

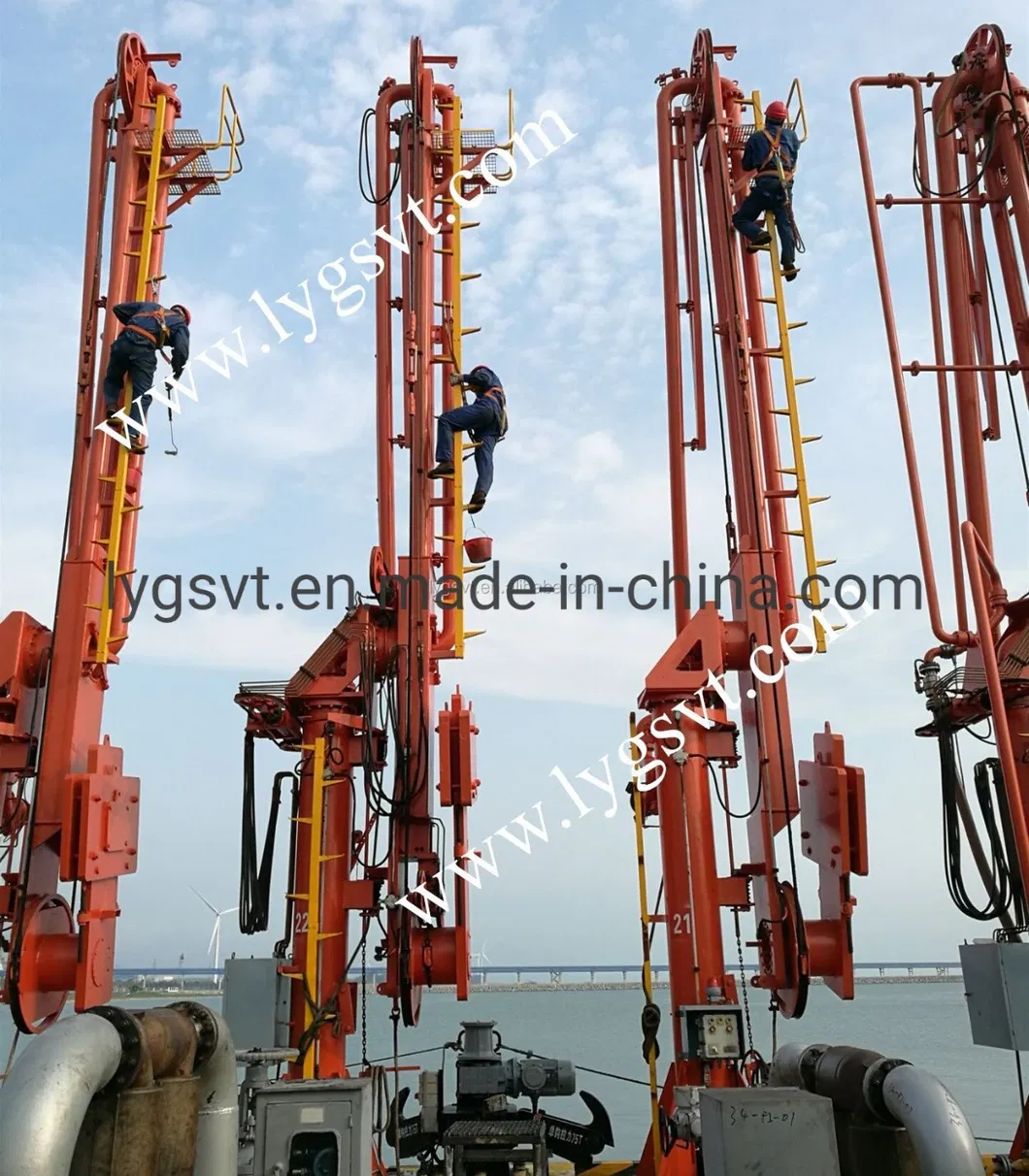

On-site Service and After-sales Service are provided for installation, commissioning, maintenance, and automatic system upgrading for all products.
The warranty period is 12 months from the date of startup or 18 months after delivery, whichever happens first.
Professional technical personnel engaged in mechanical design and engineering construction for many years ensure a perfect quality assurance system. Operations strictly perform under ISO9001 Quality Management Systems, from design and procurement to production and after-sale service.

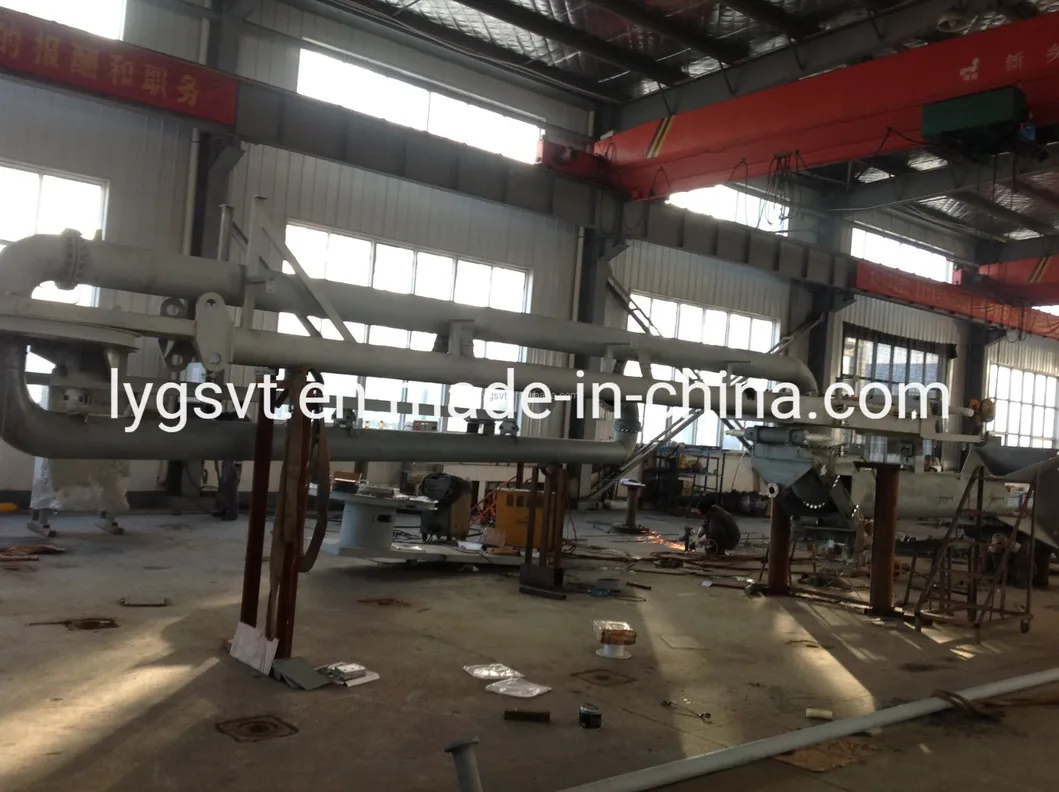

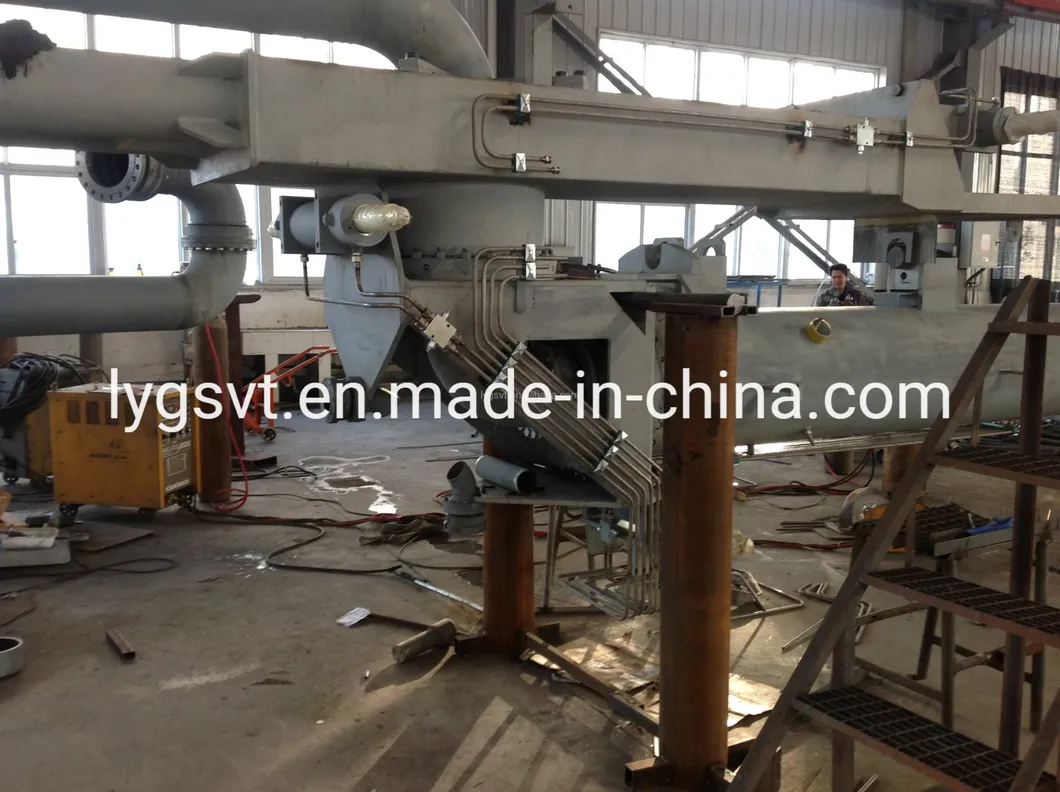

Equipped with various types of processing, welding, and testing equipment, a professional installation and after-sales service department provides customers with comprehensive technical support.
