Experienced Heat Insulation Loading Arm for LNG/CNG Filling Station
Experienced Heat Insulation Loading Arm for LNG/CNG Filling Station
Experienced Heat Insulation Loading Arm for LNG/CNG Filling Station
Experienced Heat Insulation Loading Arm for LNG/CNG Filling Station
Experienced Heat Insulation Loading Arm for LNG/CNG Filling Station
1 / 5
Experienced Heat Insulation Loading Arm for LNG/CNG Filling Station
Experienced Heat Insulation Loading Arm for LNG/CNG Filling Station
Experienced Heat Insulation Loading Arm for LNG/CNG Filling Station
Experienced Heat Insulation Loading Arm for LNG/CNG Filling Station
Experienced Heat Insulation Loading Arm for LNG/CNG Filling Station

Experienced Heat Insulation Loading Arm for LNG/CNG Filling Station

Customization: Available
Condition: New
Customized: Customized
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
AL2503
Certification
ISO9001
Tank Material
Metal Tank
Equipment Type
Middle Pressure Storage & Transportation
Storage Objects
Solid, Liquid, Gas
Color
Light Grey or Customized
Seals
PTFE
Quality Guarantee
1 Year
Application
Truck Tanker, Rail Car, Marine
Size Range
DN50, DN80, DN100, DN150
HS Code
8428909090
Capacity
5000 Sets / Year
P

Packaging & Delivery

Package Size
1000.00cm * 1000.00cm * 1000.00cm
Gross Weight
888.000kg
Package Type
Wooden Case or Plywood Case
D

Product Description

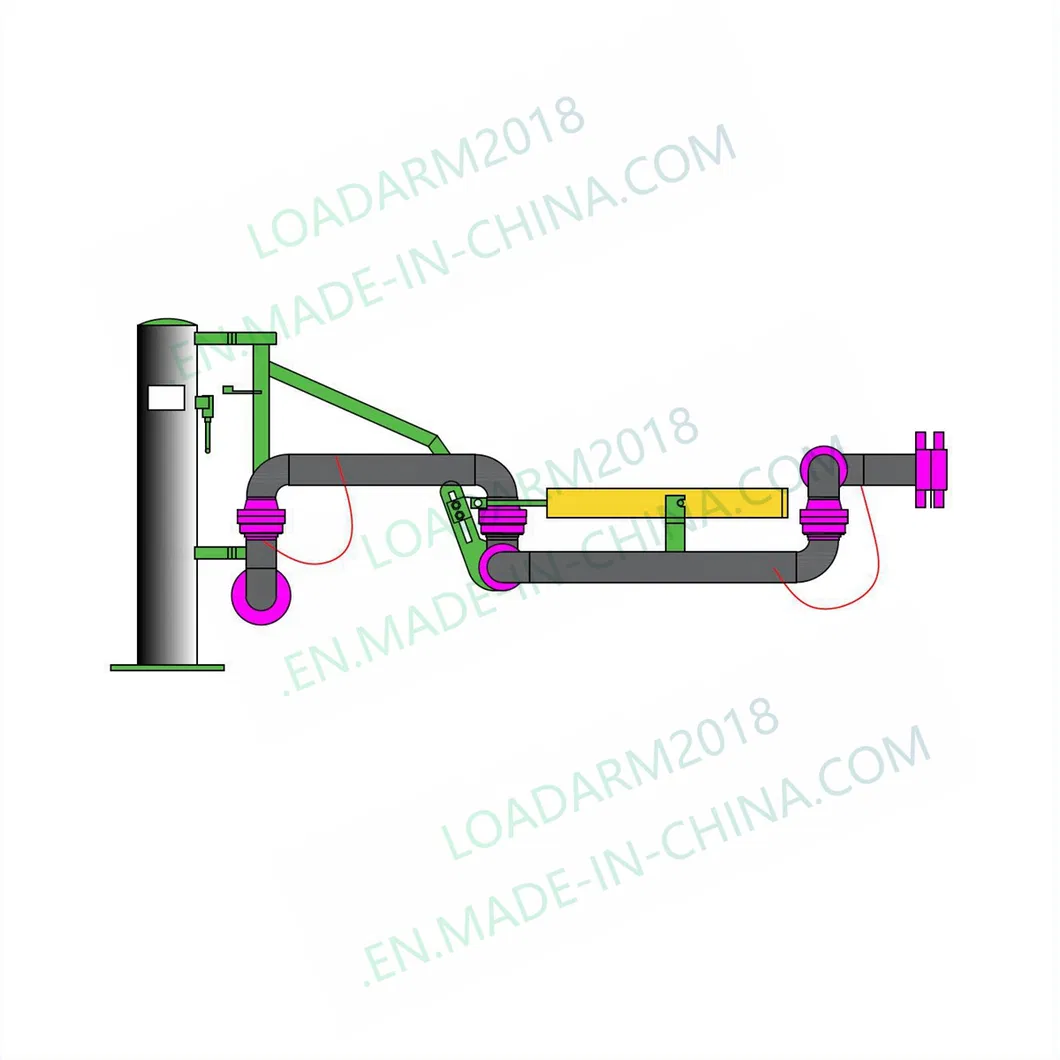

The structure of AL2503 land loading arm:

Loading Arm Structure

Workshop Display:

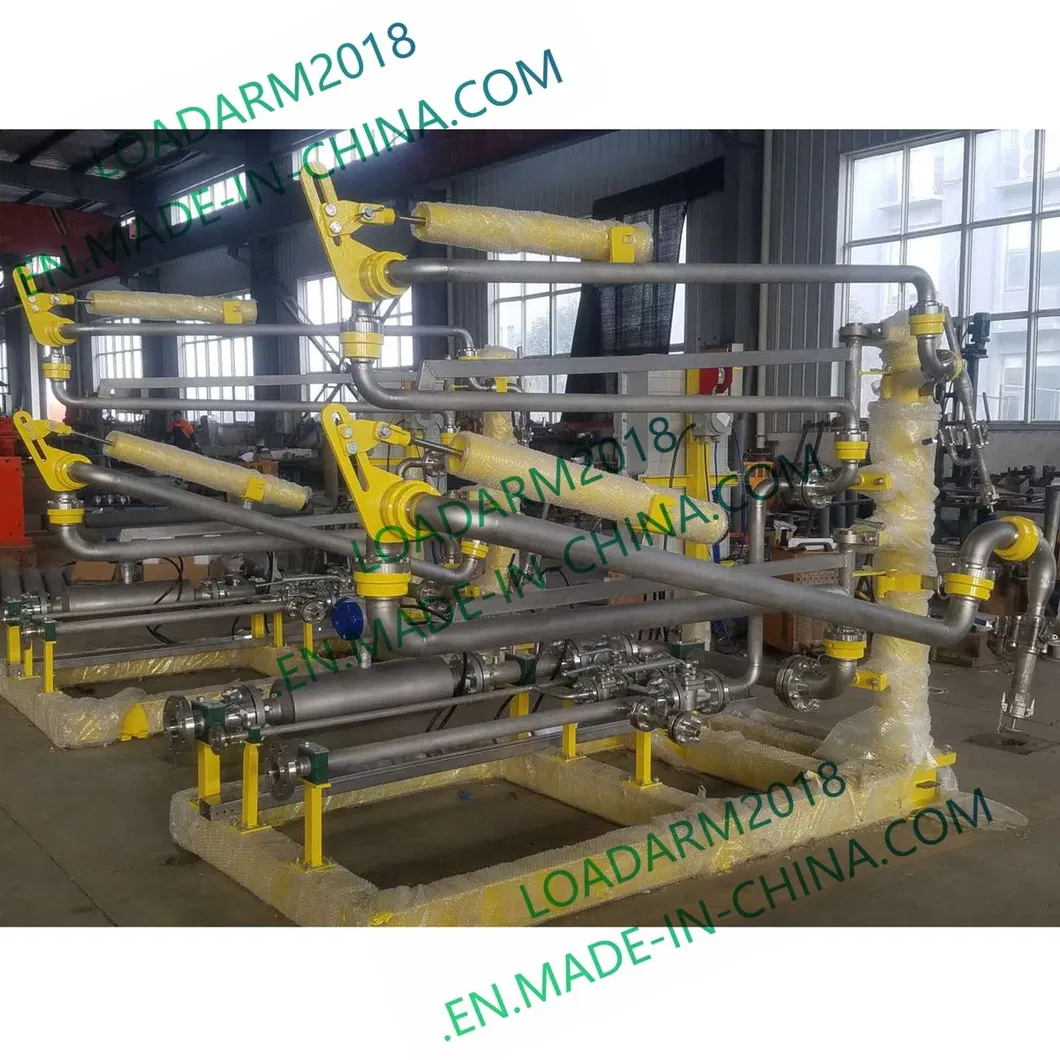

Workshop 1
Workshop 2

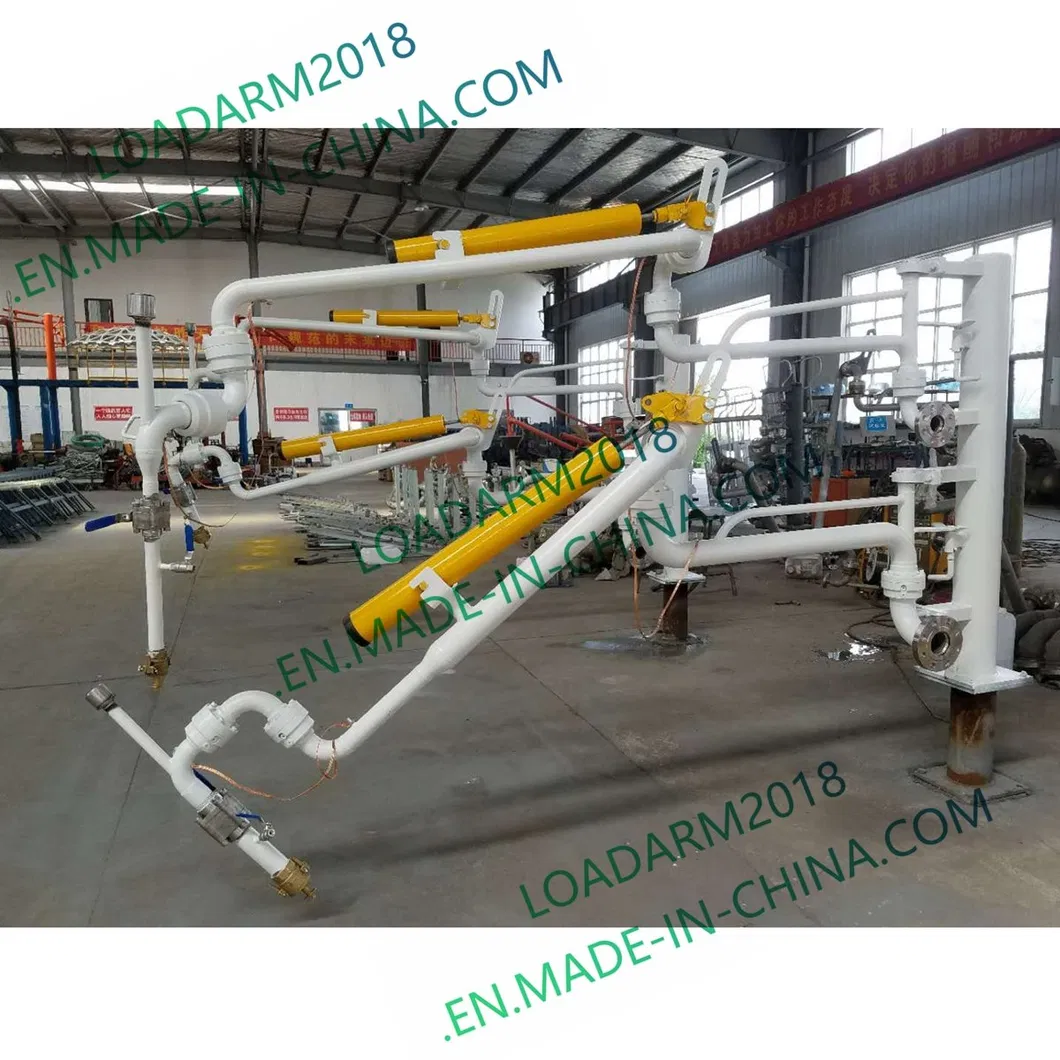

Workshop 3

Our land loading arm is specifically designed for transporting fluid between piping systems and tankers. It is tailored to accommodate different tanker types, liquid properties, and site conditions.

Equipped with loading platforms, folding stairs, and safety cages, the system provides a complete loading solution. Features include quantitative monitoring and level location sensors that provide sound, visual, or remote alarms when fluid levels exceed preset values.

Operating modes include manual, pneumatic, or hydraulic, depending on customer requirements.

Technical Data for AL2503 Land Loading Arm:

AL2503 is a typical bottom loading arm usually connected by flanges or quick couplings with superior sealing performance.
Places Applied Bottom closed loading or unloading
Applications Product oil, chemicals, etc.
Nominal Diameter DN50 ~ DN100
Working Temperature -196℃ ~ 250℃
Working Pressure PN1.0 ~ PN4.0
Pipeline Material Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.

Overseas Project Cases:

Project Case 1
Project Case 2
?

Frequently Asked Questions

What is your production period or delivery time?
Standard delivery time is within 20 days. For specialized or custom products, it may range between 30-50 days.
What payment terms do you offer?
We accept T/T (Telegraphic Transfer) before shipment or L/C (Letter of Credit).
Can you handle OEM requests or custom name plates?
Yes, we welcome OEM orders and can use the customer's name plate for the products.
How do you ensure product quality?
We maintain a strict quality control process, including inspections at every production stage, RT tests, PT tests, and hydraulic tests. We hold ISO certification and welding certificates from TUV.
Can you provide documentation and certifications?
Yes, we provide all necessary documentation including material certificates, inspection reports, CO, Form E, and other compliance documents.
How long is your warranty period?
Standard warranty is 12 months from commissioning or 18 months from delivery, whichever comes first. Extended 2-year warranties are available for specific cases.
