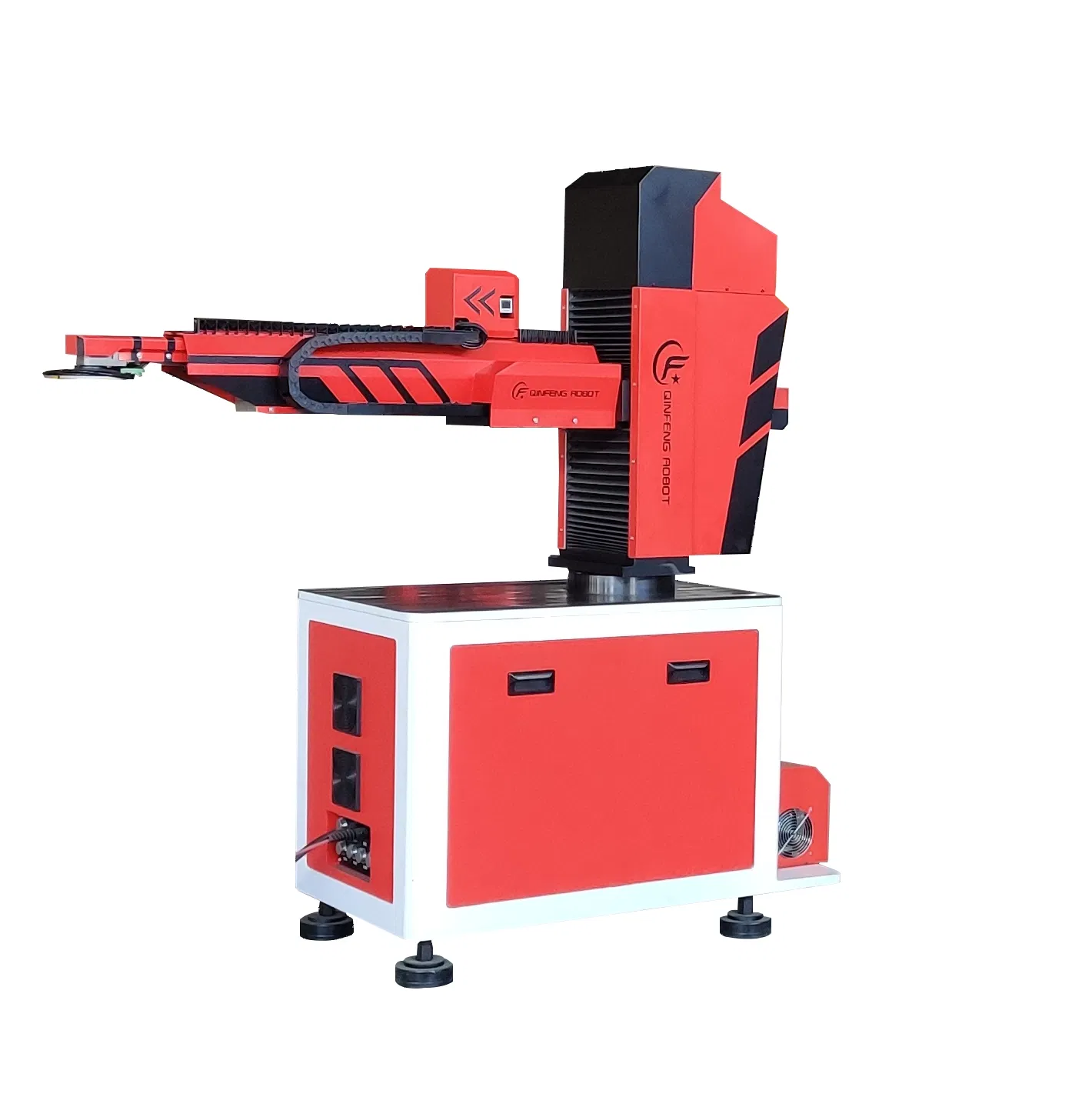

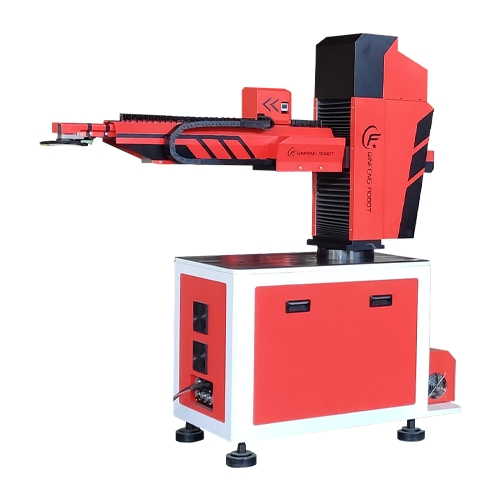

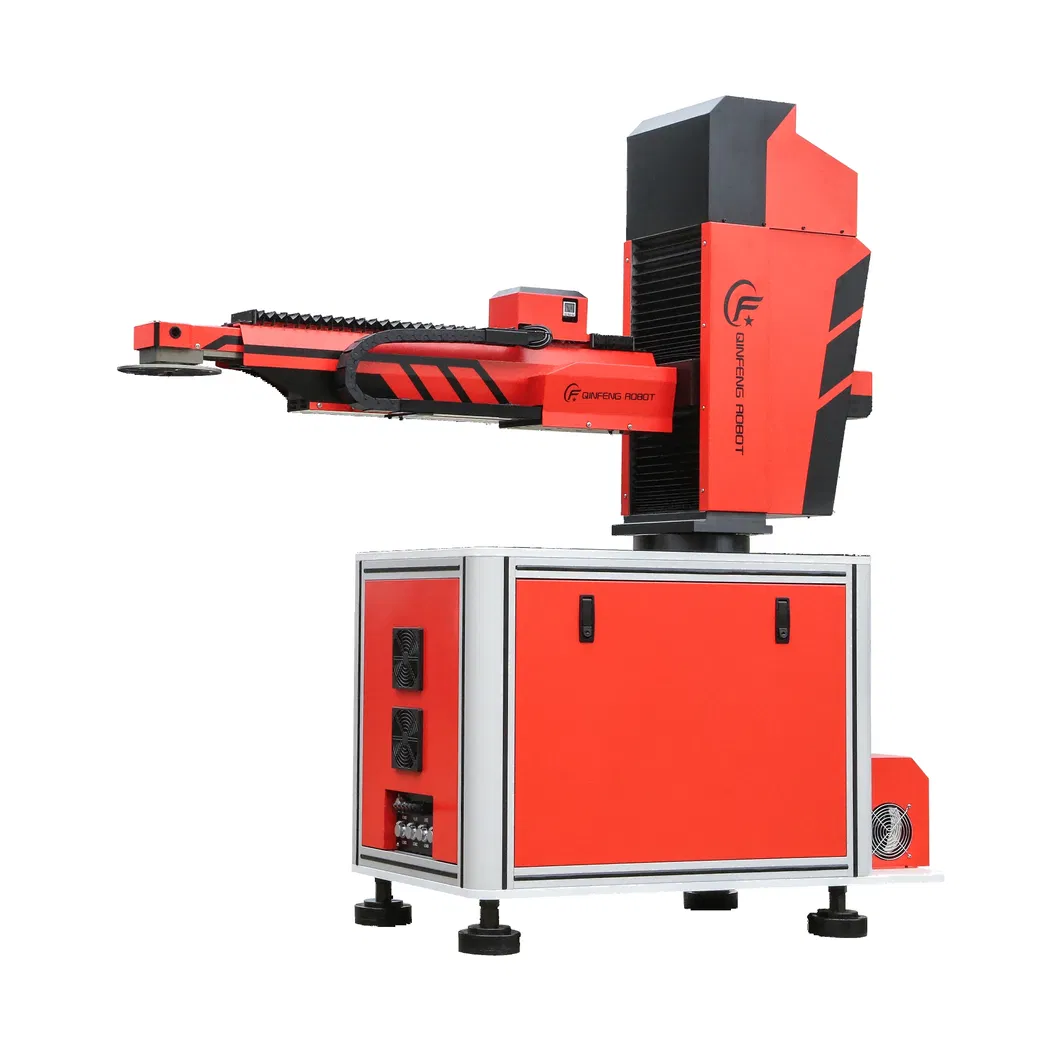

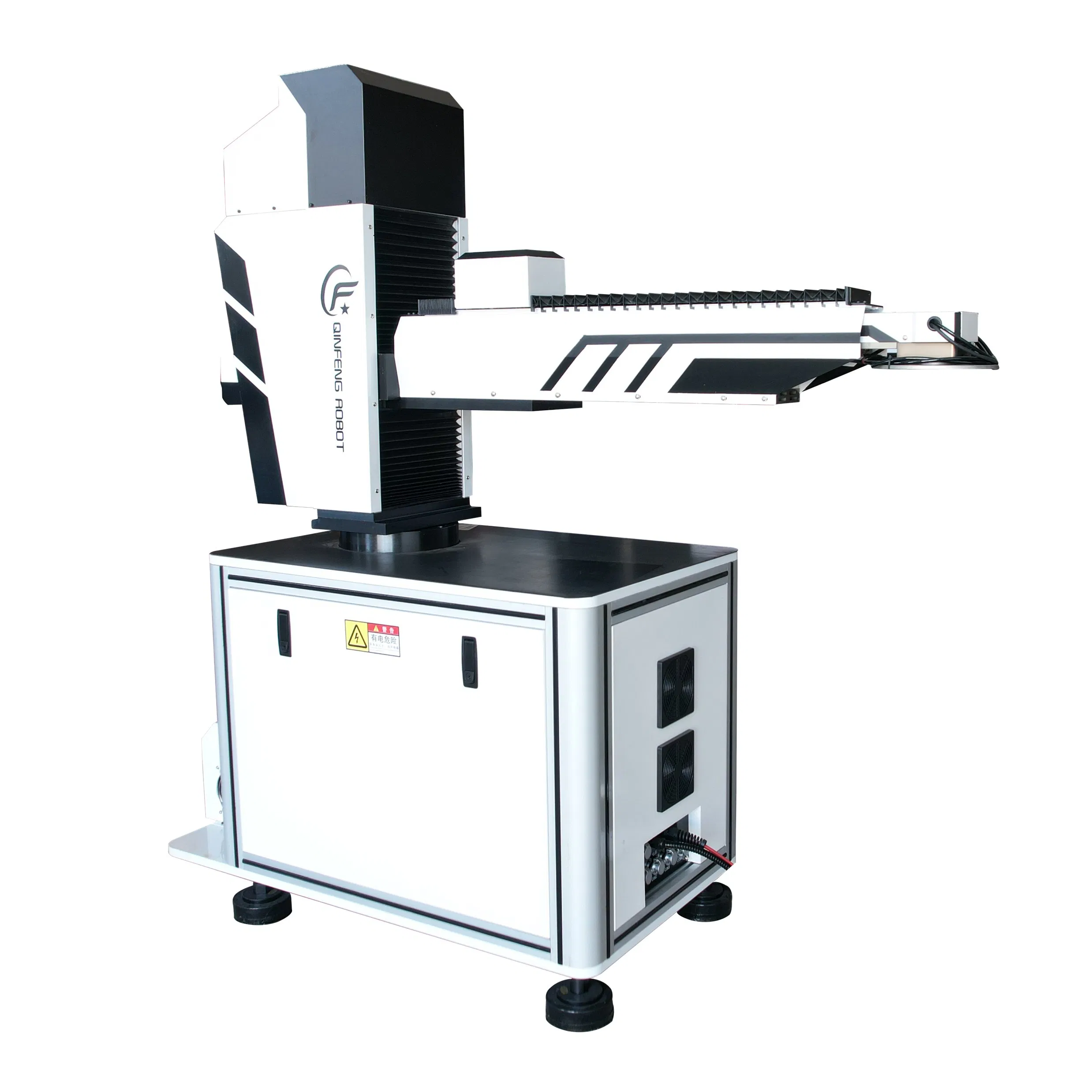

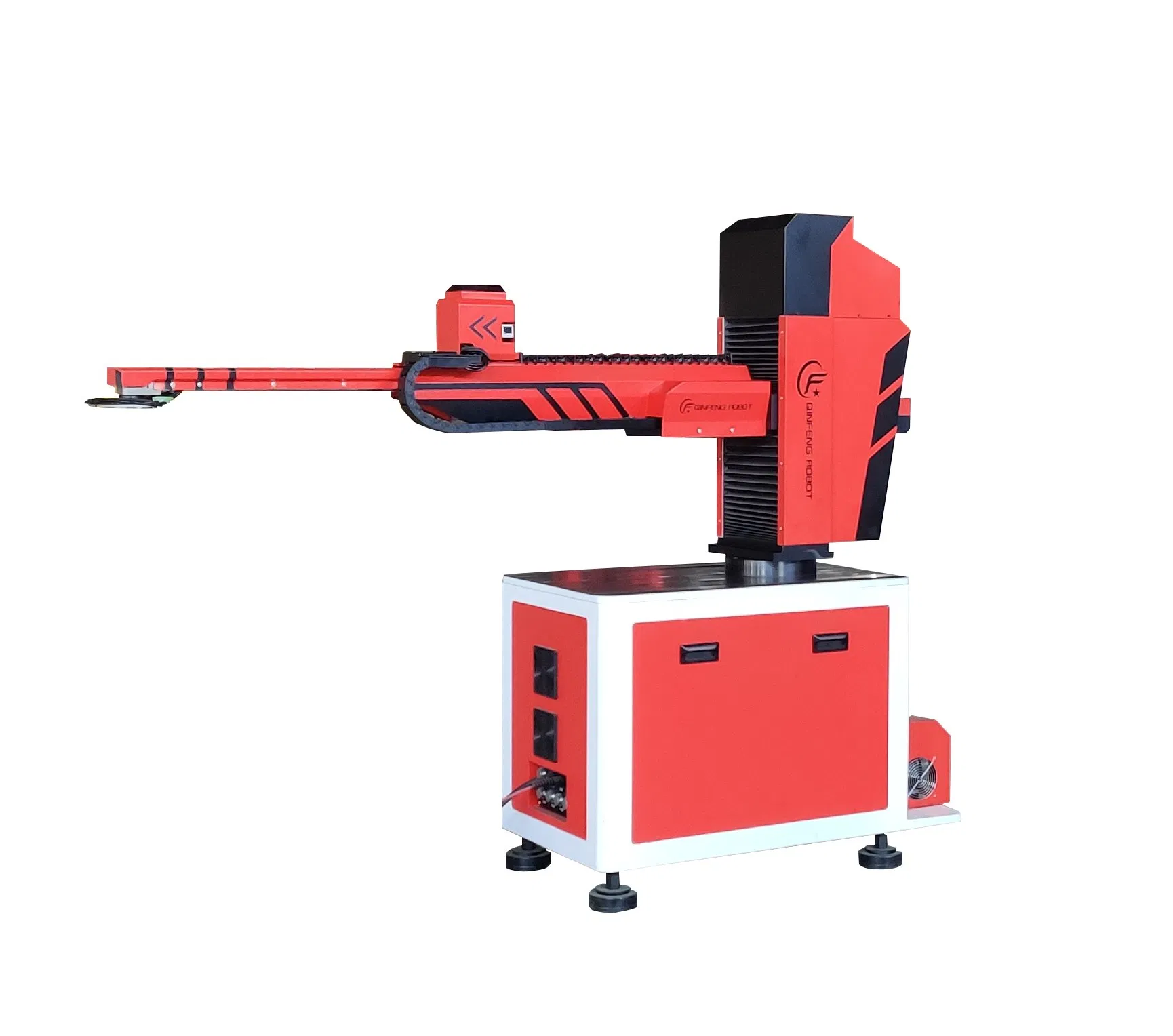

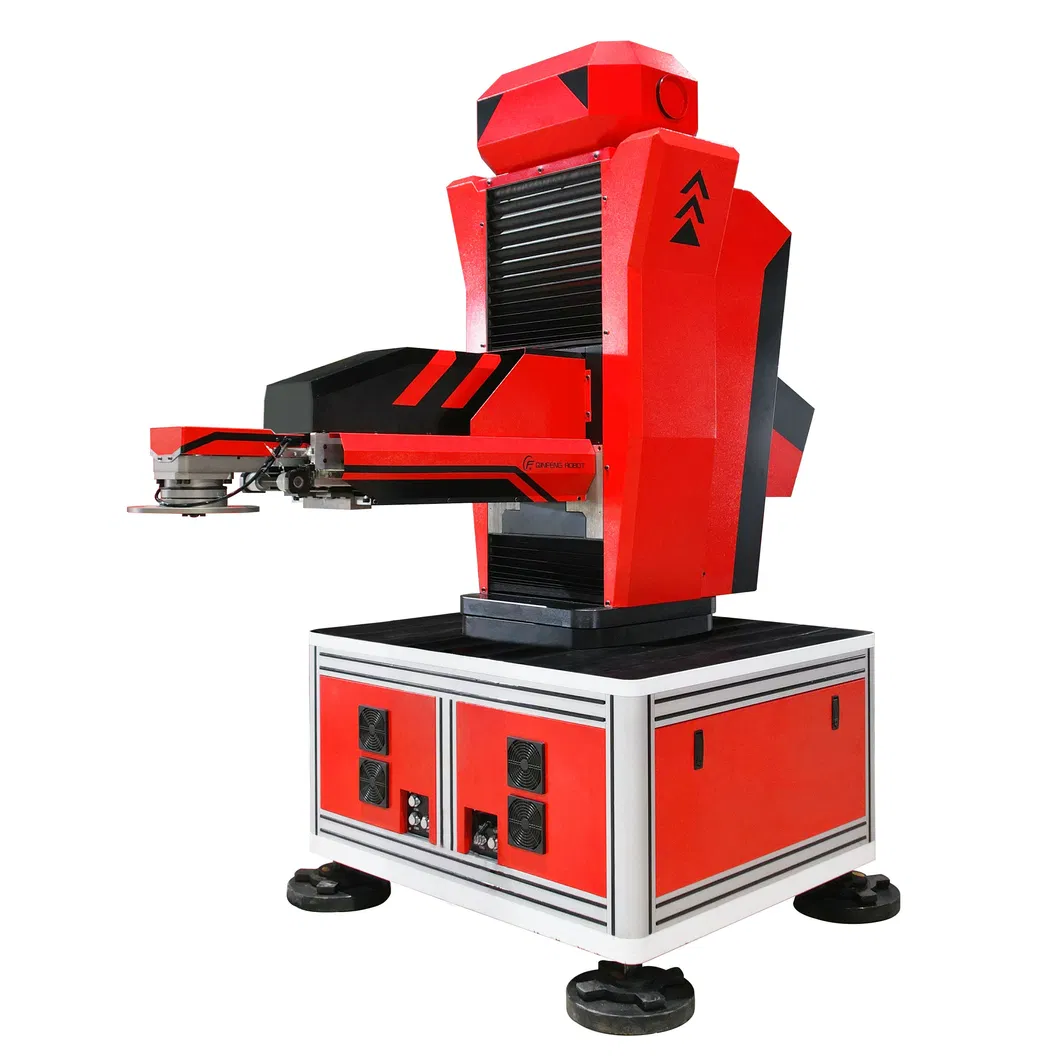

High-Performance Robotic Arm for Punch Press Automation Tasks

Customization:	Available
After-sales Service:	Available
Type:	Punch Loading and Unloading

ℹ️

Basic Information

Model NO.

QF-5045-S3-3

Forging Method

Mold Forging

Power Source

Electric

Feature

Automation

Certification

ISO9001, CE

Warranty

12 Months

Condition

New

Max. Working Radius

1650mm

Voltage

Single Phase 220V

Power

3.5kw

Repeated Accurancy

±0.1mm

Shaft

Four-Axis

Payload

3kg

⚙️

Product Description

Application: Suitable for the stamping site of electronic products, home appliance parts, and mechanical parts. It effectively solves the efficient and stable pick-and-place of workpieces within 20 kg.

Smart Control: Self-developed robot control algorithm realizes linkage control of each axis. The optimal motion track is automatically generated, achieving an efficiency of 10-20 times per minute.

🚀 High Flexibility: Realizes various stamping actions in all directions: flipping, scrapping, side hanging, oblique placing, or stacking. Suitable for continuous mold and single machine multi-mode processes.

🚀 Precision Performance: Each axis adopts a high-performance absolute servo system with power-off position memory function. Positioning error is controlled at ±0.1mm.

🚀 Compatibility: Suitable for all types of stamping equipment: gear punch press, pneumatic punch press, and hydraulic press, regardless of tonnage or height.

📊

Technical Specifications

Parameter	Unit	Index (Model: QF-5045-S3-3)
Voltage	V	220±10%
Power Frequency	Hz	50/60
Power	KW	3.5
Working Temperature	ºC	-20 ~ 45
Swing Axis	degree	±170
Up and Down Axis	mm	0 ~ 340
Front and Rear Axis	mm	1120 ~ 1650
Revise Axis	degree	±360
Productivity	Pcs/h	800 ~ 1000
Feeder Accuracy	mm	±0.2
Max. Working Radius	mm	1500
Payload	kg	≤3
Robot Weight	kg	≈350

❓

Frequently Asked Questions

Q1: What types of stamping equipment is this robotic arm compatible with?

It is compatible with all types of stamping equipment on the market, including gear punch presses, pneumatic punch presses, and hydraulic presses, regardless of the tonnage or machine height.

Q2: What is the positioning accuracy and expected service life?

The positioning error is strictly controlled at ±0.1mm. With proper maintenance and depending on the production environment, the service life is typically 8 to 10 years.

Q3: Can the motion trajectory be edited for different products?

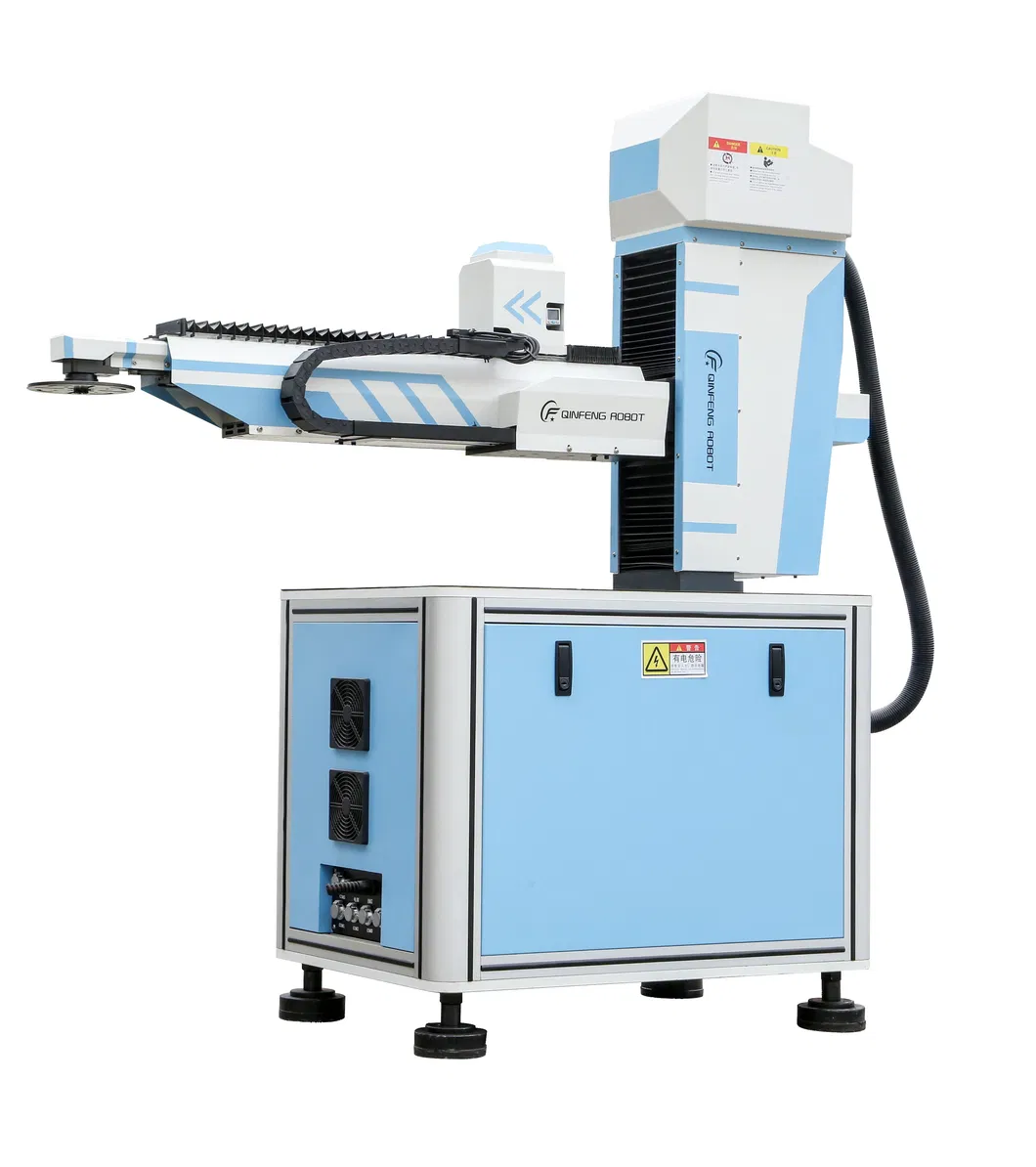

Yes, the system adopts open programmable technology which supports motion trajectory editing. It can store a variety of product information, allowing for high interchangeability and long-term use after a one-time setting.

Q4: What are the main advantages of the absolute servo system used?

The high-performance absolute servo system optimizes the circuit for excellent overall performance and includes a power-off position memory function, eliminating the need to return to the origin after power loss.

Q5: Is the machinery standard or can it be customized for specific needs?

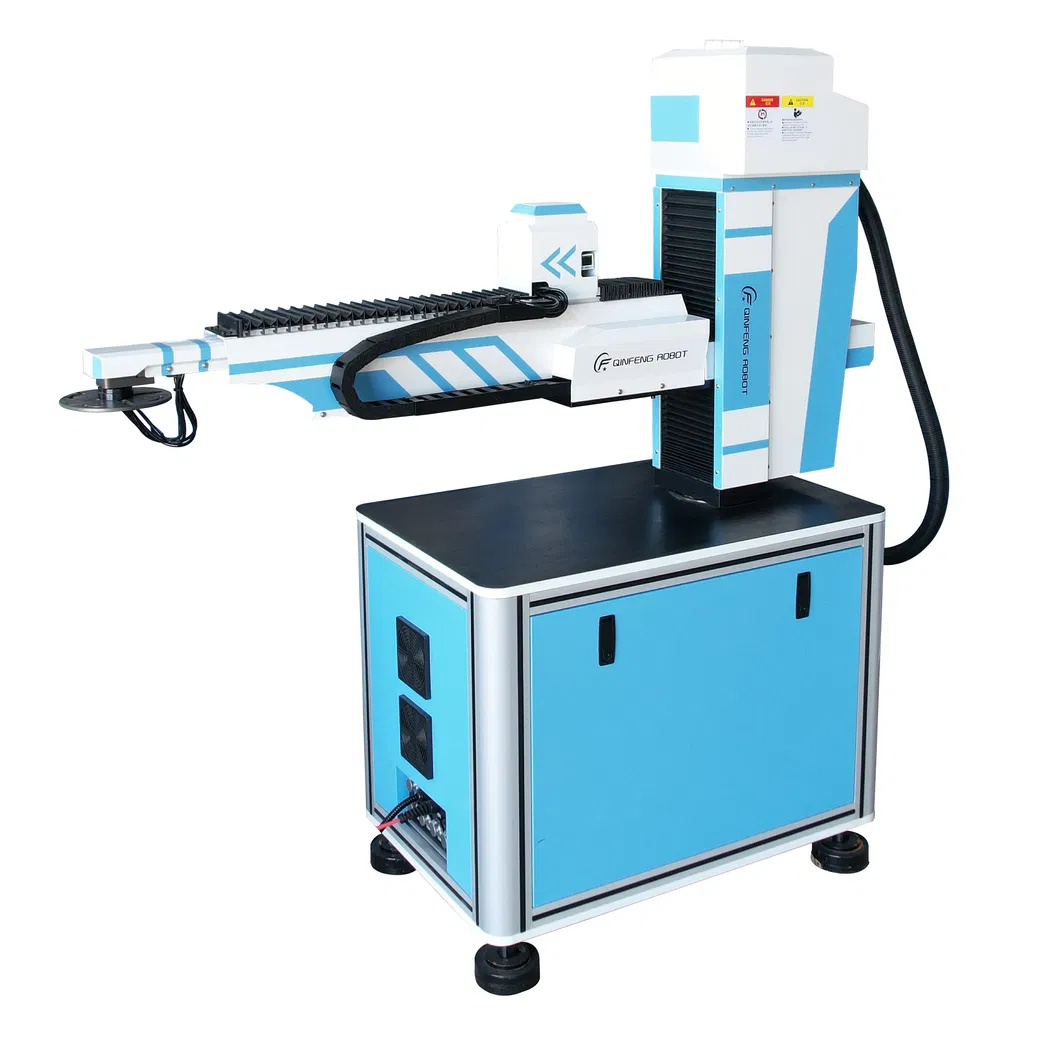

Both options are available. While most machinery follows standard models for quick deployment, we can customize the equipment and grippers (suction cup, pneumatic, or magnetic types) to meet your specific production requirements.

Q6: How long does it take to install and start production?

The products are highly standardized. Once delivered, they are easy to install and can typically be ready for mass production within three days.
