| Item | Specifications |
|---|---|
| Certification | ISO9001, QS, TUV |
| Type | Single-Arm, Double-Arm |
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical |
| Model No. | Am61/63/64 |
| Pipeline Material | CS, Ss, Low-Temp. CS, Lined with PTFE |
| Accessories | Erc (Ers), QC/DC, Pms, etc. |
| Envelope Range | Customized to User Needs |
| Seal | Viton, PTFE |
| Nominal Diameter | DN80~DN400(3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250℃ |
| Operating Mode | Manual / Electro-Hydraulic |
| HS Code | 8428909090 |
| Production Capacity | 200 Sets/Year |

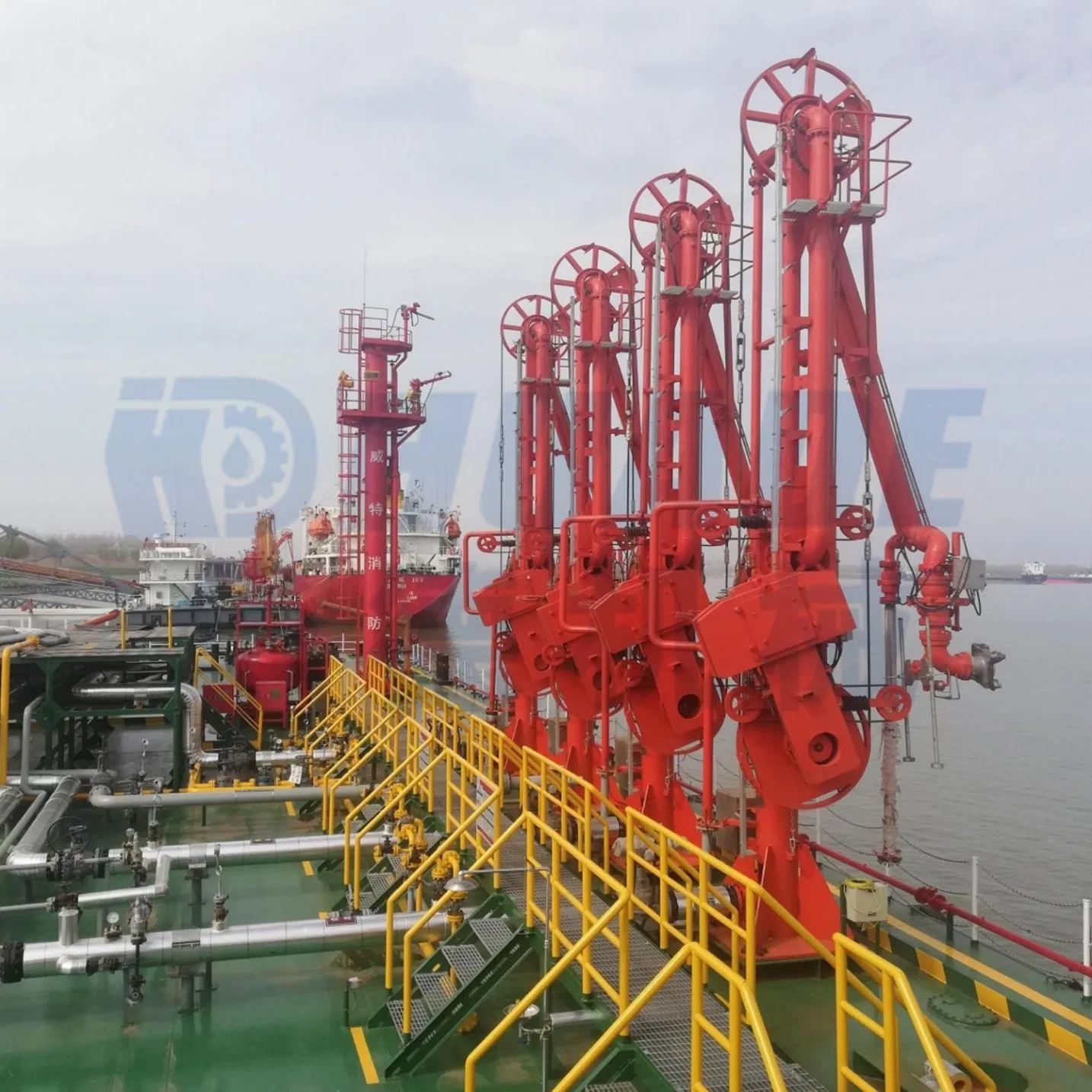

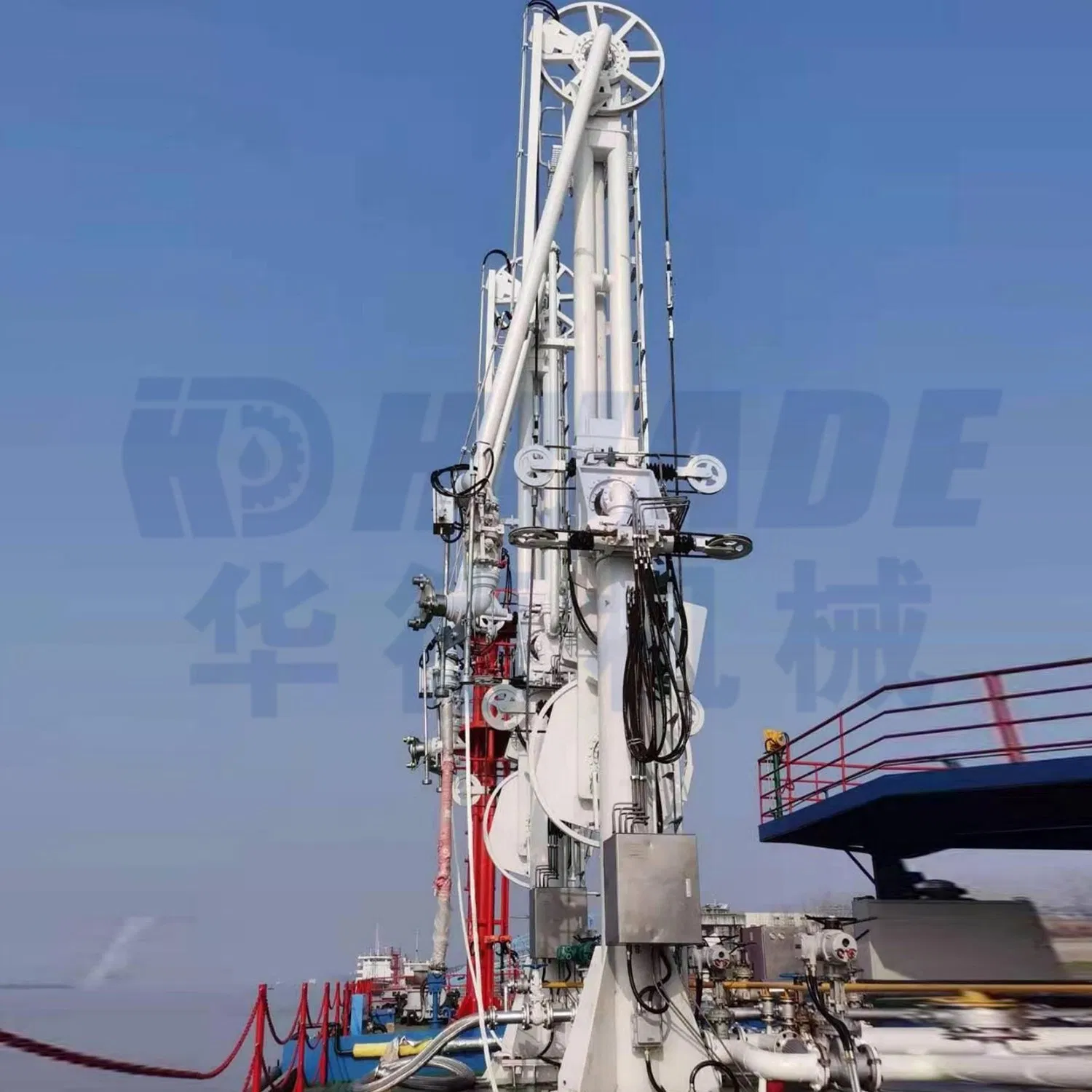

Marine Loading Arms (MLAs) are essential for transferring various fluids such as oil, chemicals, LPG, and LNG between ships and storage facilities. Typical features and benefits include:

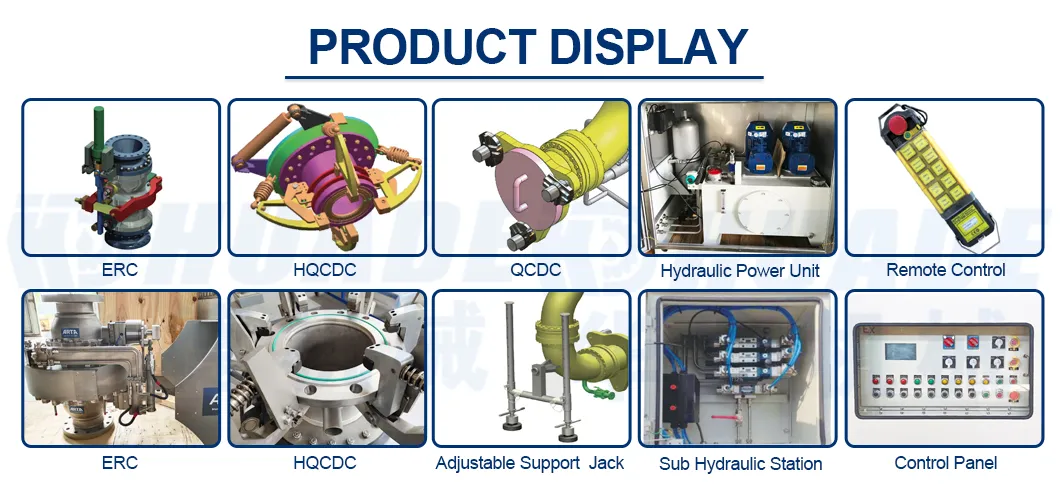

Emergency Release Coupler (ERC): Installed at the vertical part of the triple swivel assembly to separate the MLA from the tank ship in case of fire, typhoons, or ship drift, preventing major damage and pollution.
Quick Connect/Disconnect Coupler (QCDC): Provides a means to quickly connect/disconnect the MLA to/from the tanker manifold without bolts or nuts, saving manpower and time.
Electro-hydraulic Control System: Includes Local Control Panel (LCP), Wired/Wireless Pendent, and Hydraulic Power Pack (HPP). PLC-controlled for easy maintenance and real-time monitoring.
| Item | Data |
|---|---|
| Nominal Diameter | DN80~DN400(3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250ºC |
| Pipeline Material | Carbon Steel, Stainless Steel, Low-Temperature Steel, Lined with PTFE, etc. |
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical |
| Operating Mode | Manual / Electro-hydraulic |

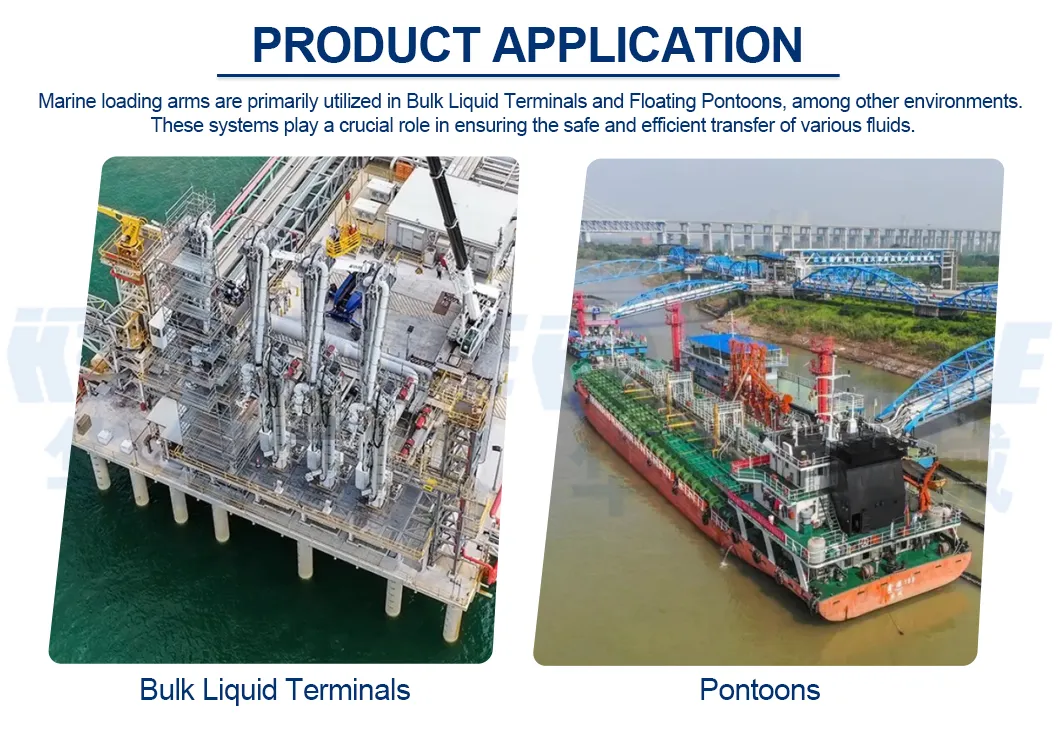

Bulk Liquid Terminals: Essential for loading/unloading large quantities of crude oil, chemicals, and refined products between storage tanks and tankers.
Pontoons: Facilitates liquid transfer on floating docks or barges in harbors and offshore locations where fixed infrastructure is impractical.

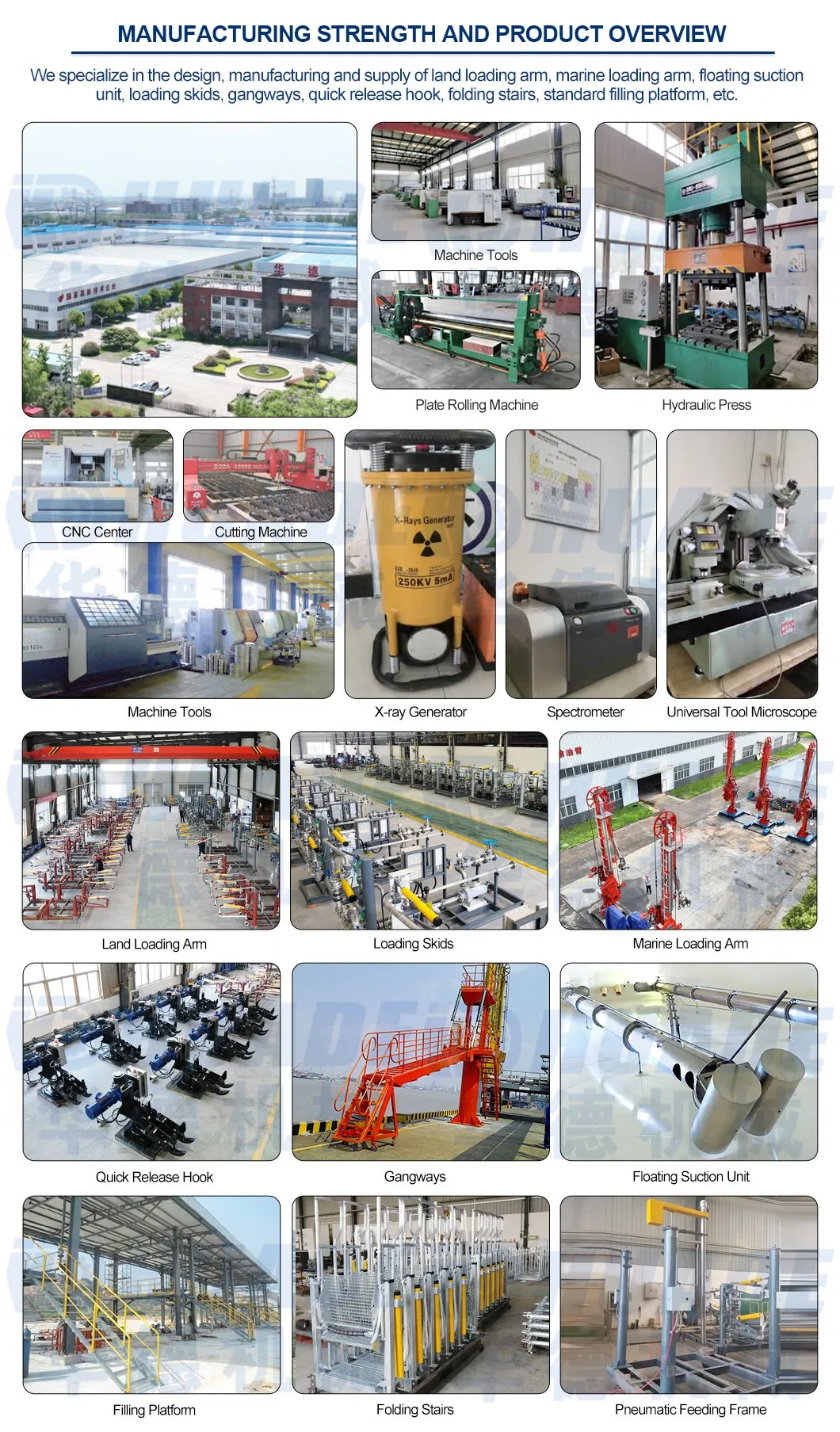

As a leading manufacturer for loading arms and petrochemical equipment, we specialize in the design and supply of land loading arms, marine loading arms, floating suction units, and loading skids. With a factory area of more than 12 acres and over 120 sets of advanced manufacturing equipment, we hold numerous patents and international certifications including ISO9001, ISO14001, and ISO45001.
Our products are exported globally to regions including Europe, Southeast Asia, and Africa, serving major petrochemical enterprises with cost-effective systematic solutions.
