| Basic Info. | |
|---|---|
| Certification | ISO9001, QS, TUV |
| Type | Single-Arm, Double-Arm |
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical |
| Model No. | Am61/63/64 |
| Pipeline Material | CS, Ss, Low-Temp. CS, Lined with PTFE. |
| Accessories | Erc (Ers), QC/DC, Pms, etc. |
| Envelope Range | Customized to User Needs |
| Seal | Viton, PTFE |
| Nominal Diameter | DN80~DN400(3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250℃ |
| Operating Mode | Manual / Electro-Hydraulic |
| Origin | China |
| HS Code | 8428909090 |
| Production Capacity | 200 Sets/Year |
| Packaging & Delivery | |
|---|---|
| Package Size | 1800.00cm * 200.00cm * 200.00cm |
| Package Gross Weight | 25000.000kg |

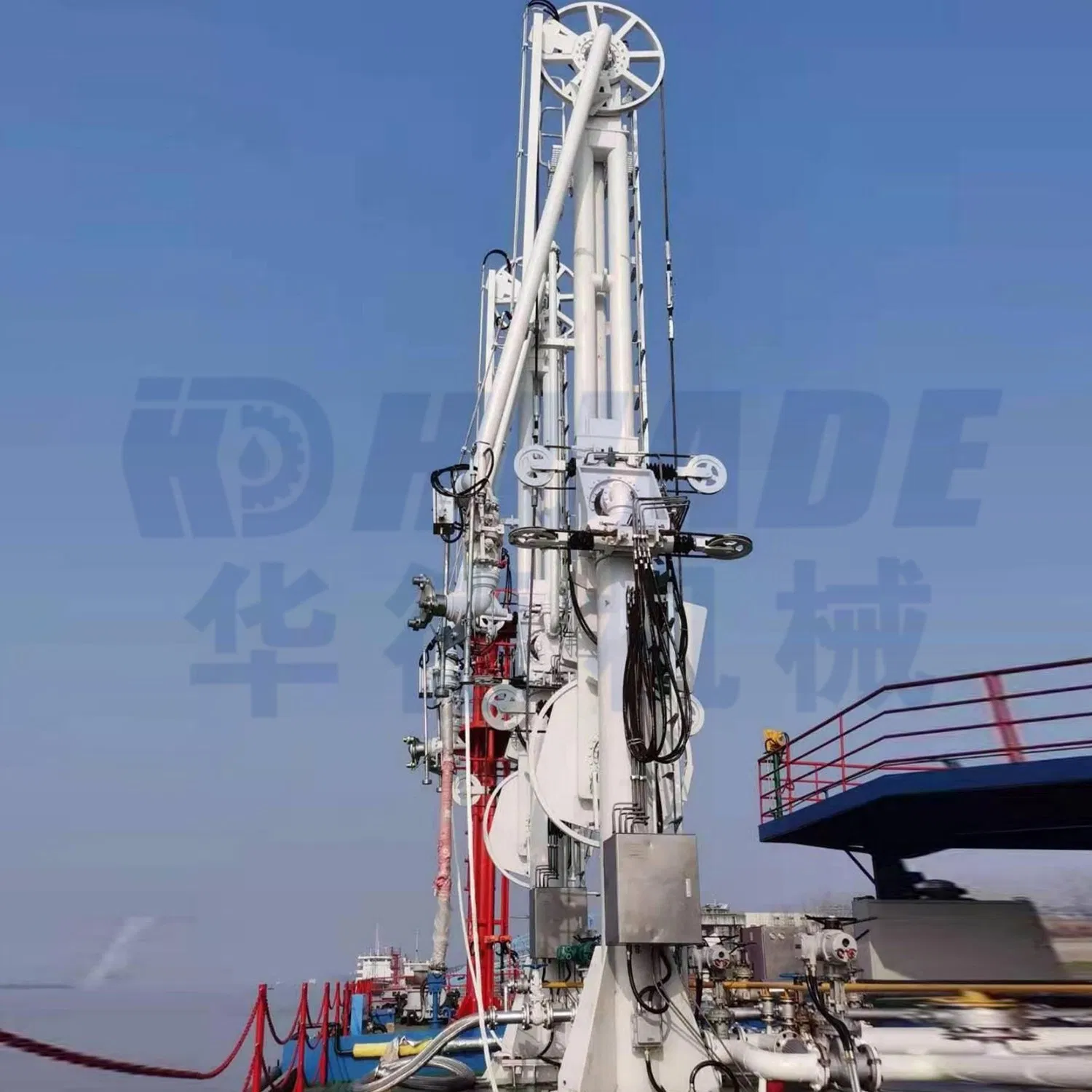

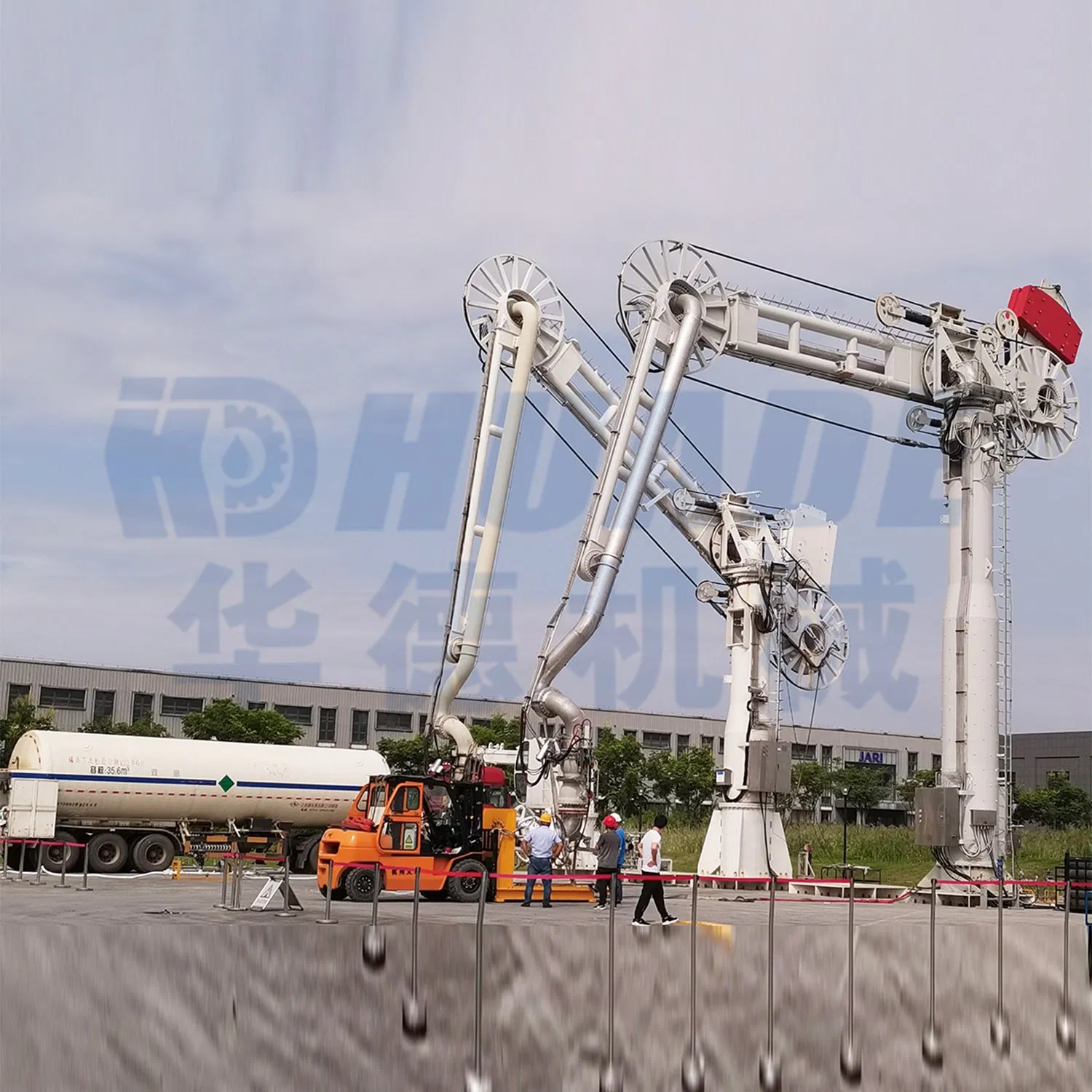

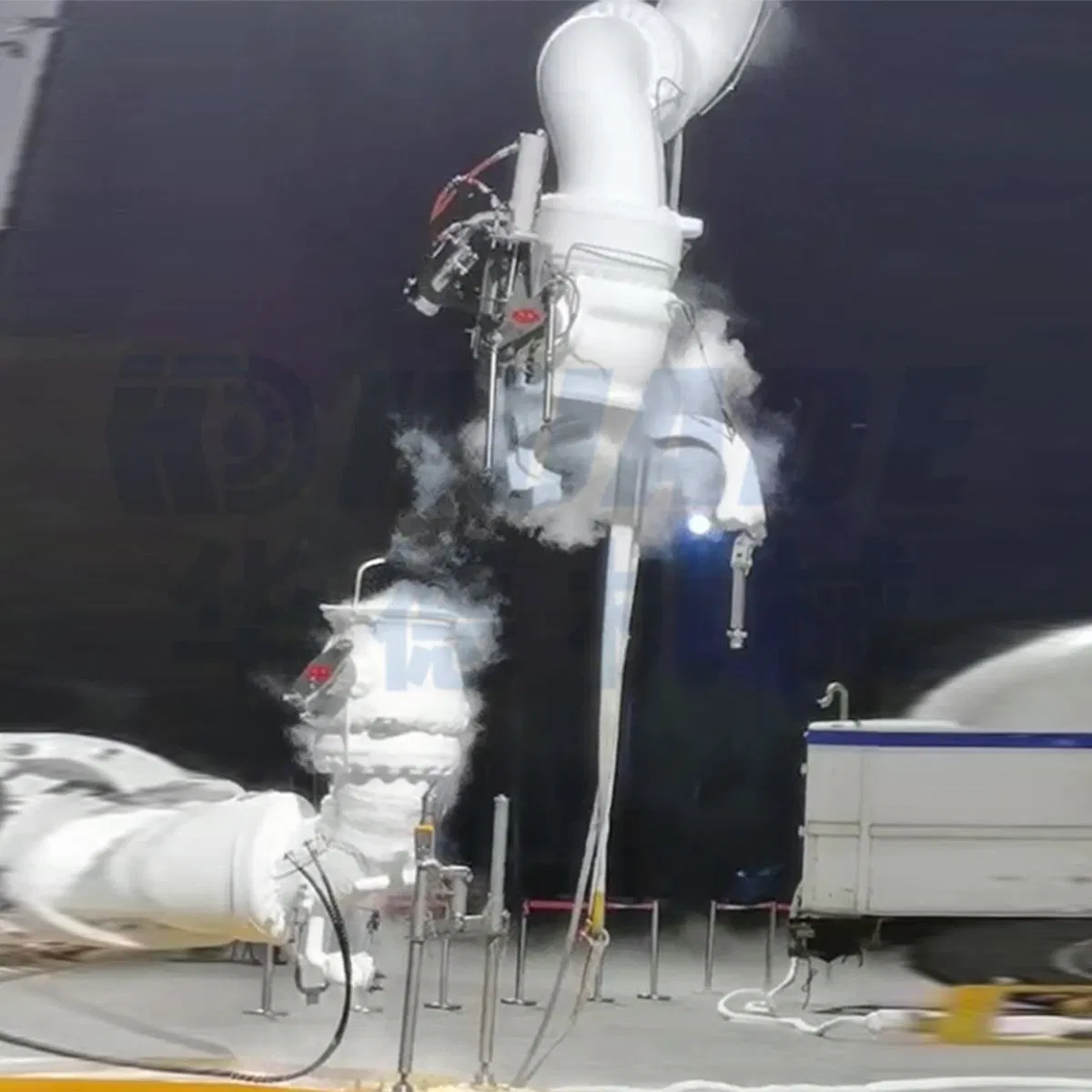

Marine Loading Arms are essential for transferring various fluids such as oil, chemicals, LPG, and LNG between ships and storage facilities. Key features include:

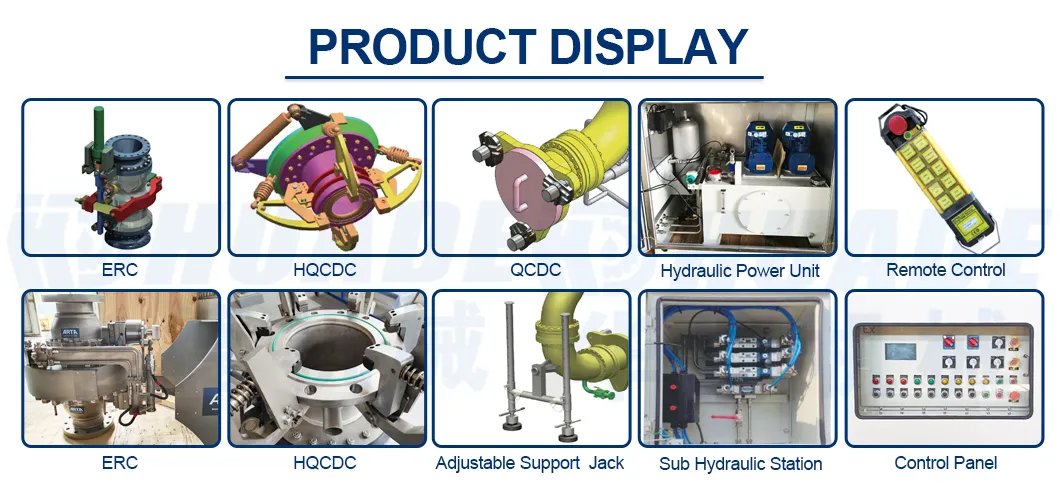

ERC is installed at the vertical part of triple swivel assembly to separate the MLA from tank ships during emergencies such as site fires, typhoons, or ship drifting. It prevents major damage and environmental pollution.
Provides means of quickly connecting/disconnecting the MLA to/from the tanker flange without bolts or nuts, saving manpower and time.
Includes Local Control Panel (LCP), Wired/Wireless Pendent, and Hydraulic Power Pack (HPP). PLC-based for easy maintenance and real-time monitoring.
| Item | Data |
|---|---|
| Nominal Diameter | DN80~DN400(3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250ºC |
| Pipeline Material | Carbon Steel, Stainless Steel, Low-Temperature Steel, Lined with PTFE, etc. |
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical |
| Operating Mode | Manual / Electro-hydraulic |
· AM61M: Manual operation, double counterweight, self-support. Ideal for inland river jetties.
· AM63M: Manual operation, rotary counterweight, separate-support. Easy seal replacement.
· AM63H: Electro-hydraulic operation. Supports ERC and QCDC. Up to 16".
· AM64H: Electro-hydraulic operation with vapor line support. Ideal for sea jetties.

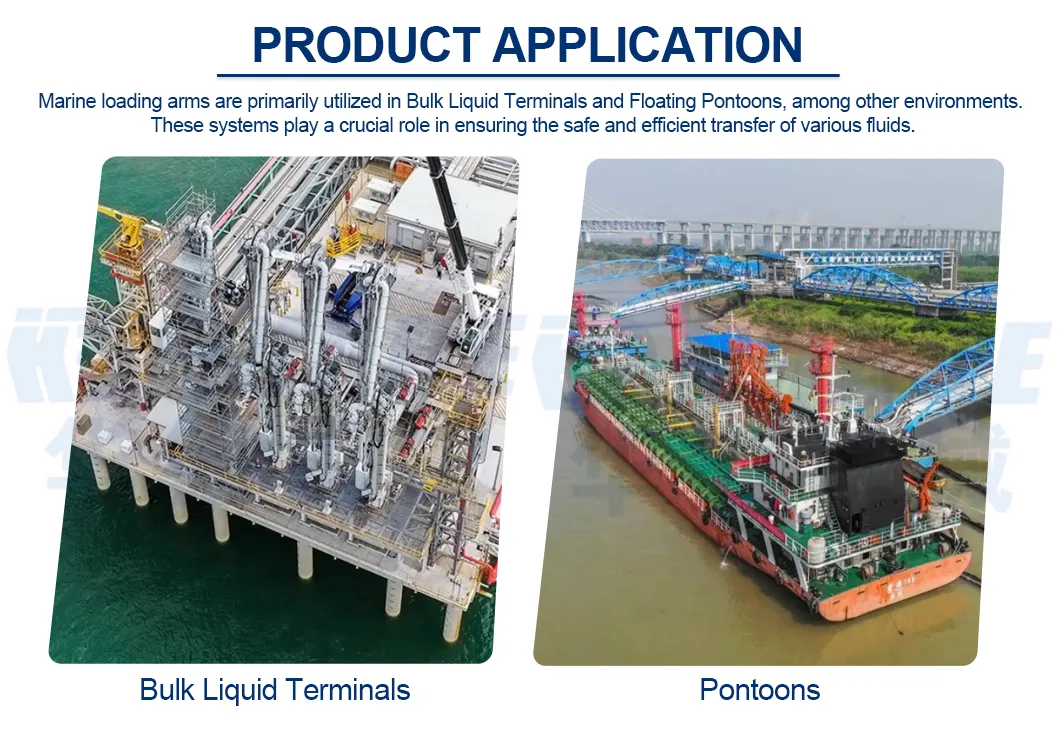

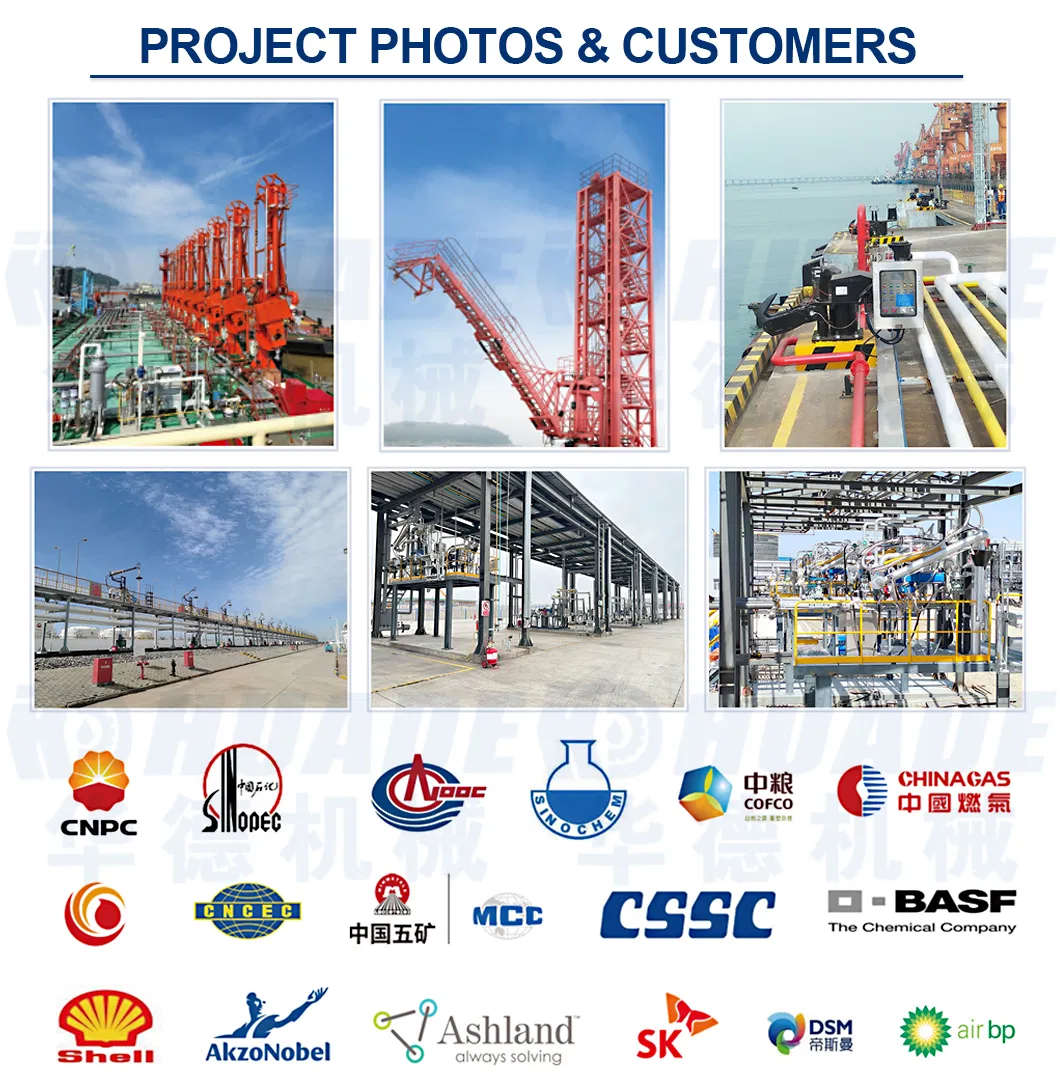

Specialized facilities for storage and transfer of crude oil, refined products, and chemicals. MLAs ensure secure transfer and spillage prevention.
Floating structures in harbors and rivers. MLAs on pontoons offer high flexibility to accommodate vessel movements.

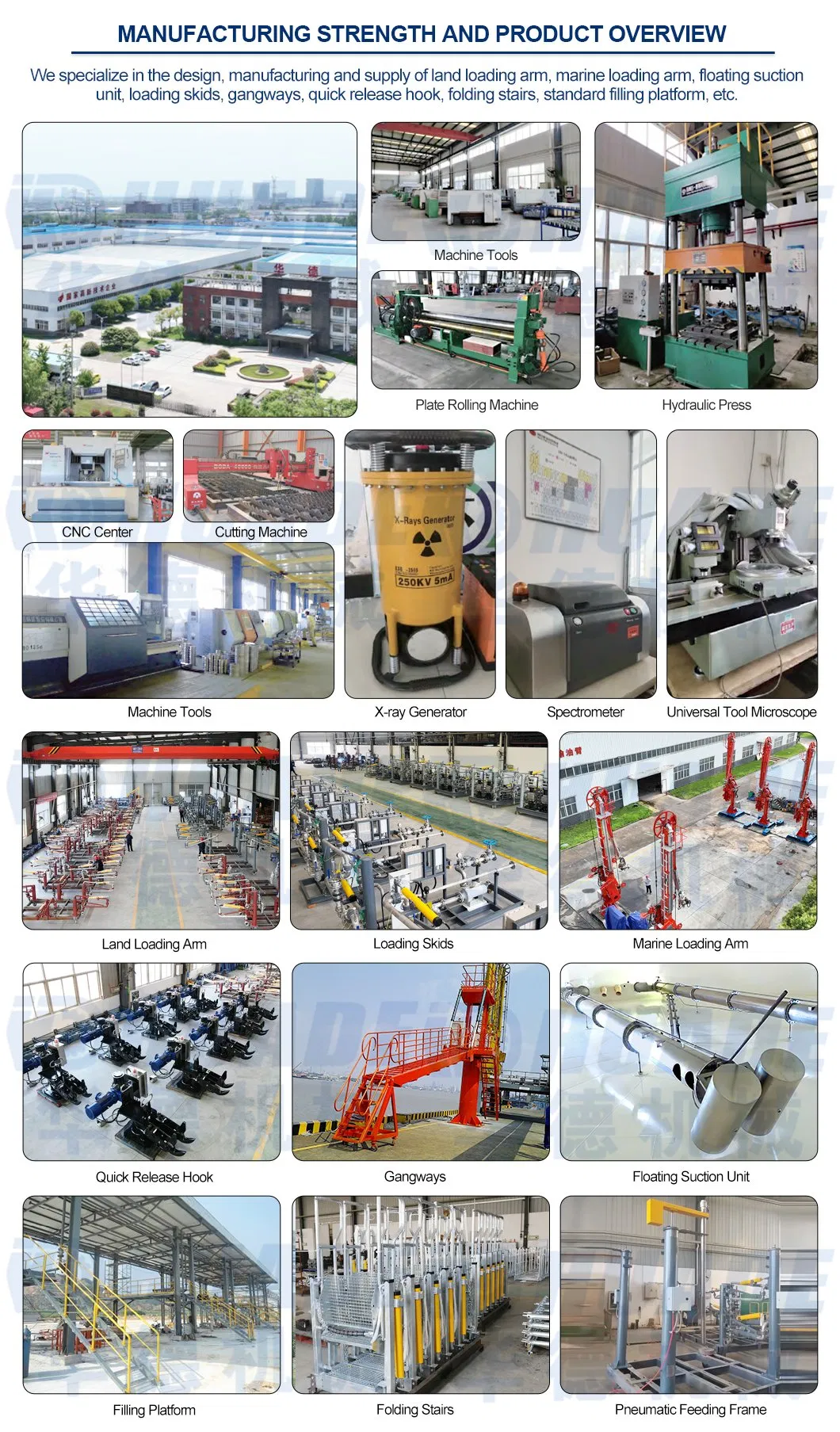

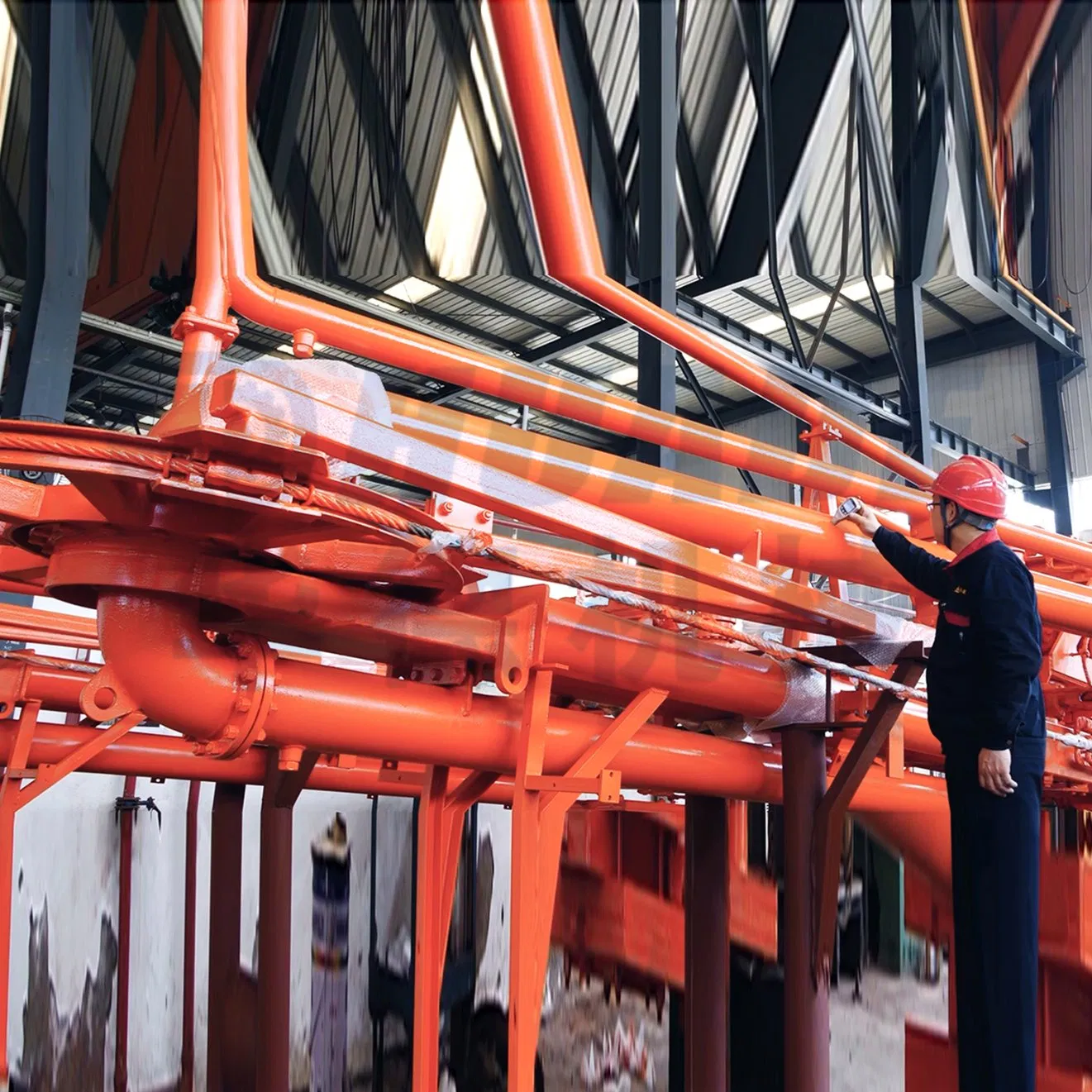

We are a leading manufacturer for loading arms, jetty and petrochemical equipment. We specialize in the design, manufacturing and supply of land loading arm, marine loading arm, floating suction unit, loading skids, gangways, quick release hook, folding stairs, and standard filing platforms.
Currently, we have a factory area of more than 12 acres, a workshop area of 20,000 m², and more than 120 sets of advanced manufacturing and testing equipment. We hold production licenses for special equipment, ISO9001/ISO14001/ISO45001 certifications, and are recognized as a National High-Tech Enterprise.
Our products are exported globally to regions including Europe, Southeast Asia, and Africa, serving major energy and chemical corporations with cost-effective systematic solutions.
