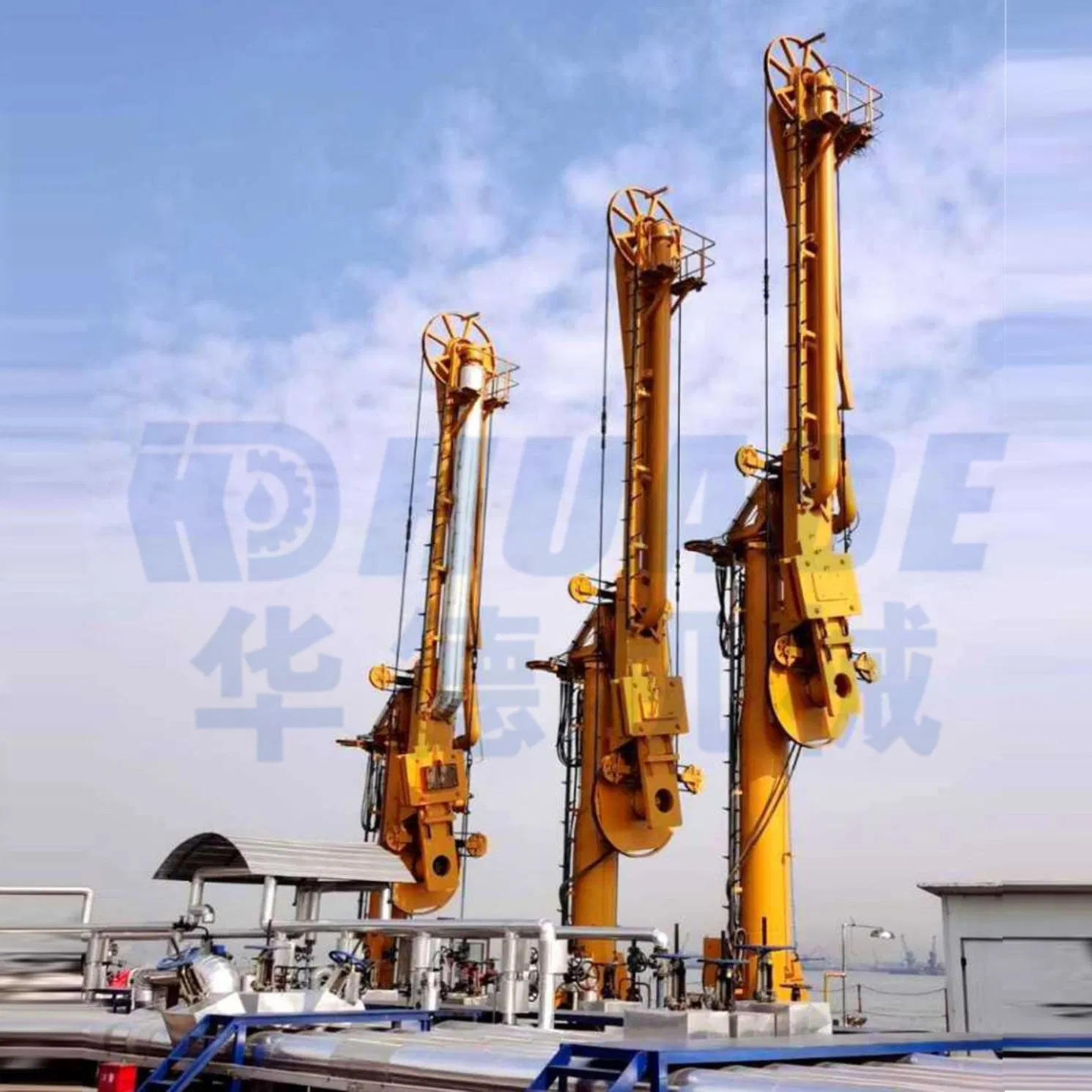

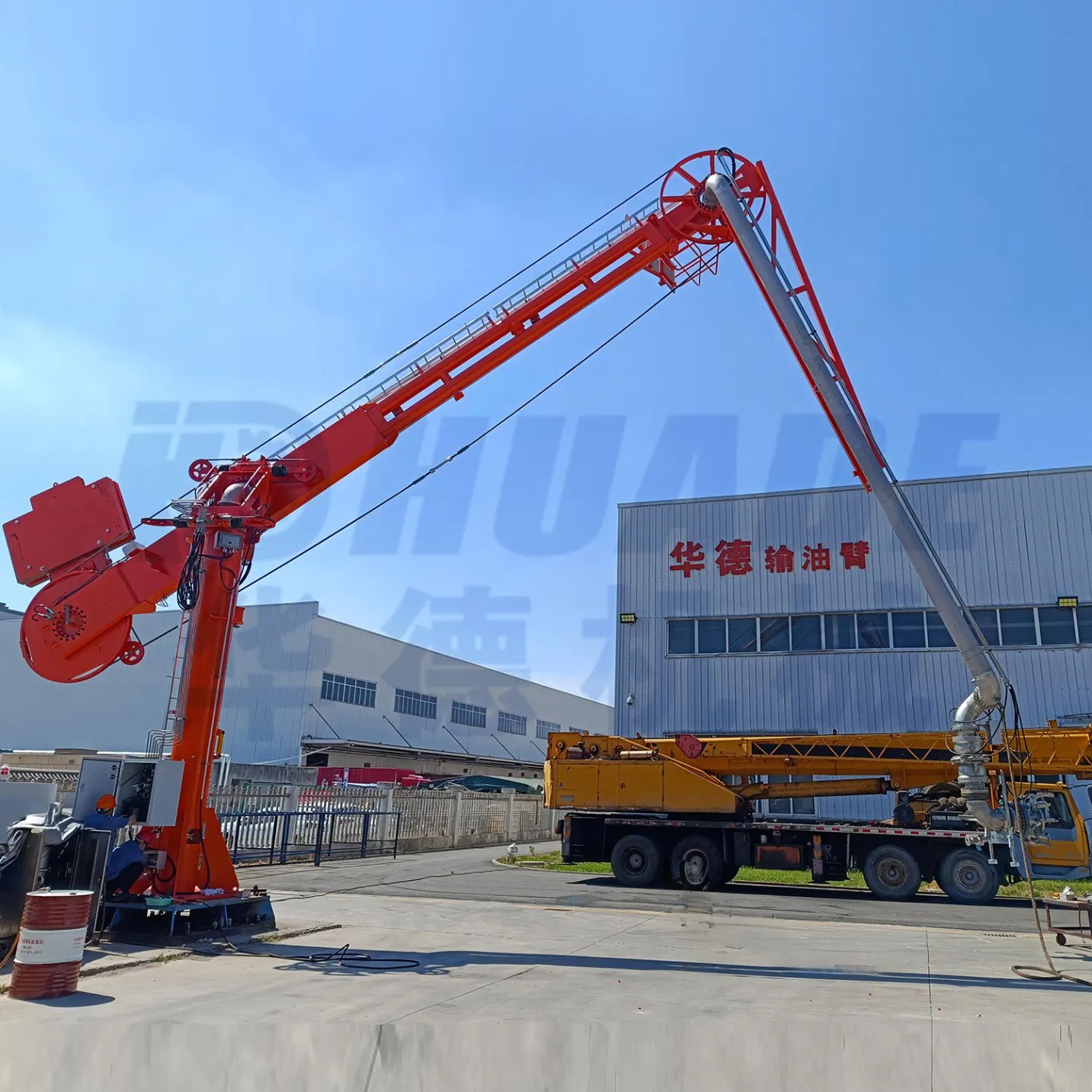

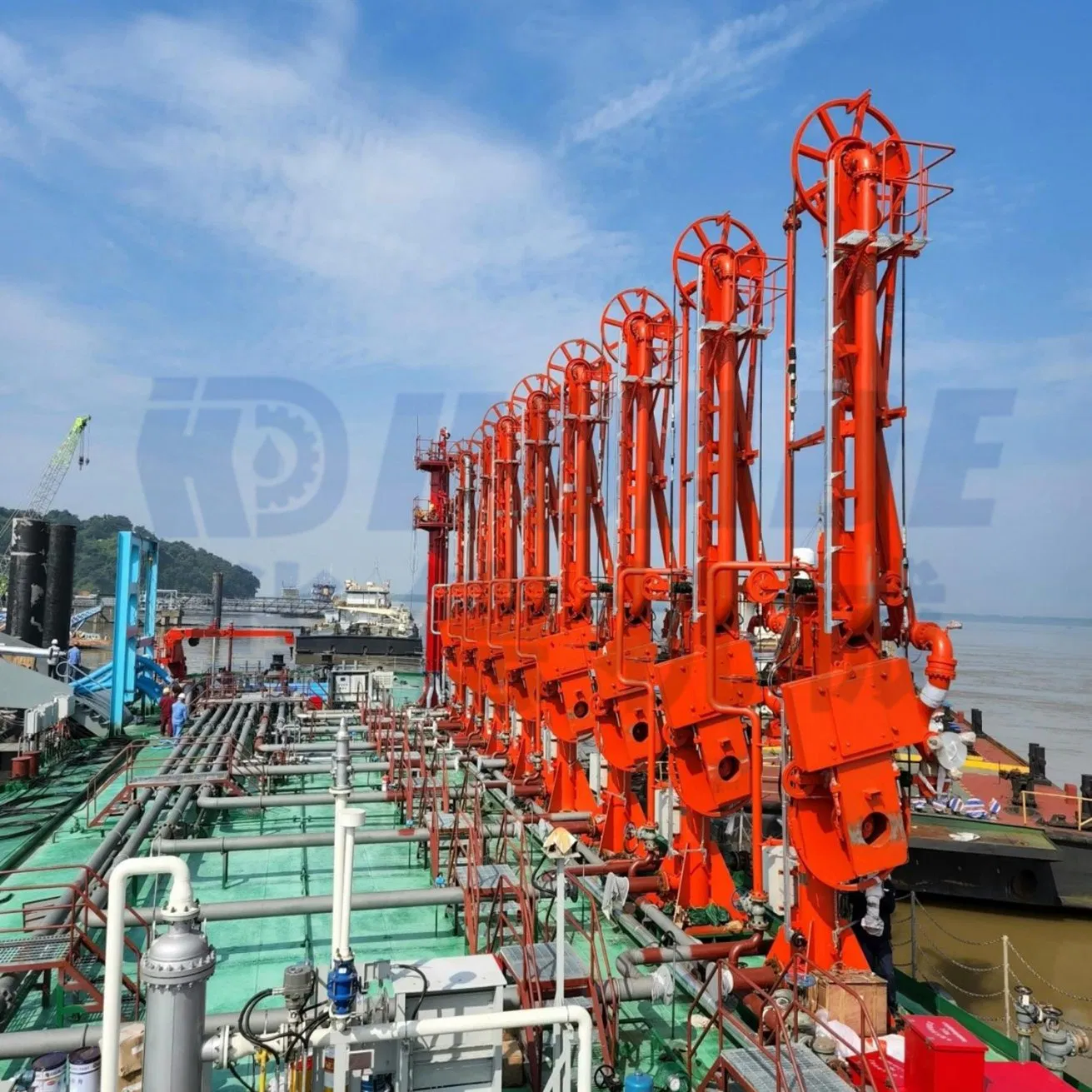

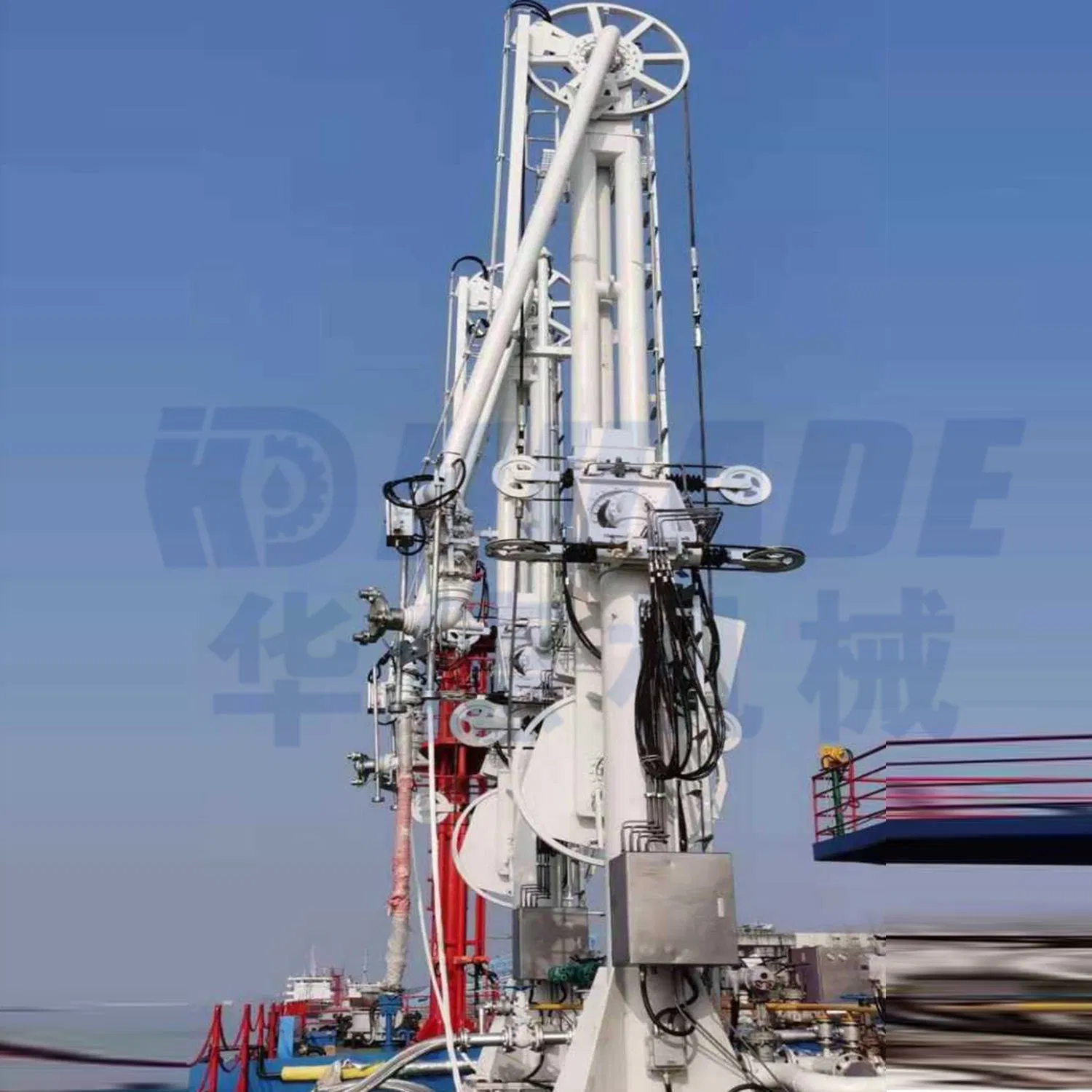

Marine Loading Arms (MLAs) are essential for transferring various fluids such as oil, chemicals, LPG, and LNG between ships and storage facilities. Our MLAs offer several key benefits:

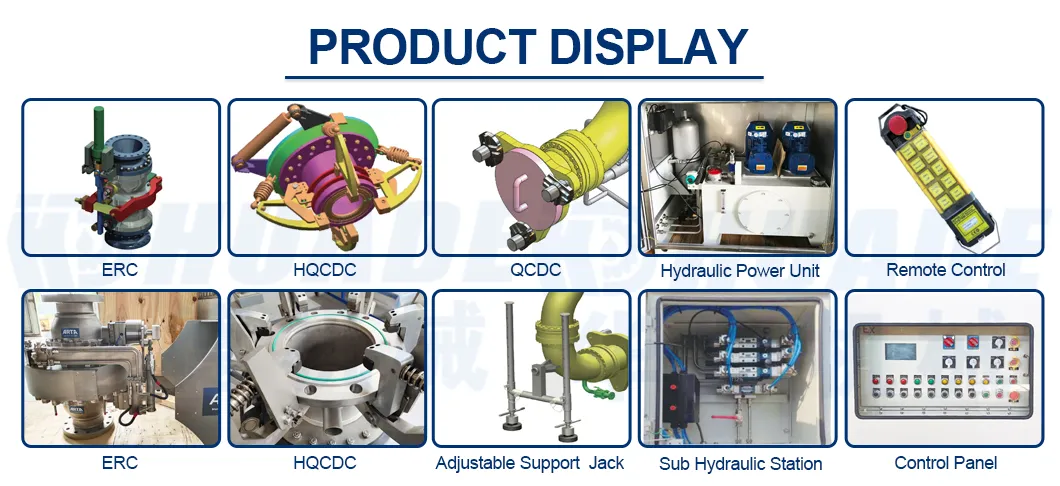

Emergency Release Coupler (ERC): Installed at the triple swivel assembly to separate the MLA from the ship automatically in case of fire, typhoons, or excessive ship drift, preventing major damage and pollution.
Quick Connect/Disconnect Coupler (QCDC): Allows for rapid connection to the tanker manifold without bolts or gaskets, saving manpower and time.
Electro-hydraulic Control System: Includes LCP, HPP, and PLC-based controls. It allows remote operation and displays real-time status and alarm information.
| Item | Data Specifications |
|---|---|
| Nominal Diameter | DN80~DN400 (3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250ºC |
| Pipeline Material | Carbon Steel, Stainless Steel, Low-Temp Steel, PTFE Lined |
| Product Service | Petroleum, Gasoline, Diesel, Chemicals |
| Operating Mode | Manual / Electro-hydraulic |

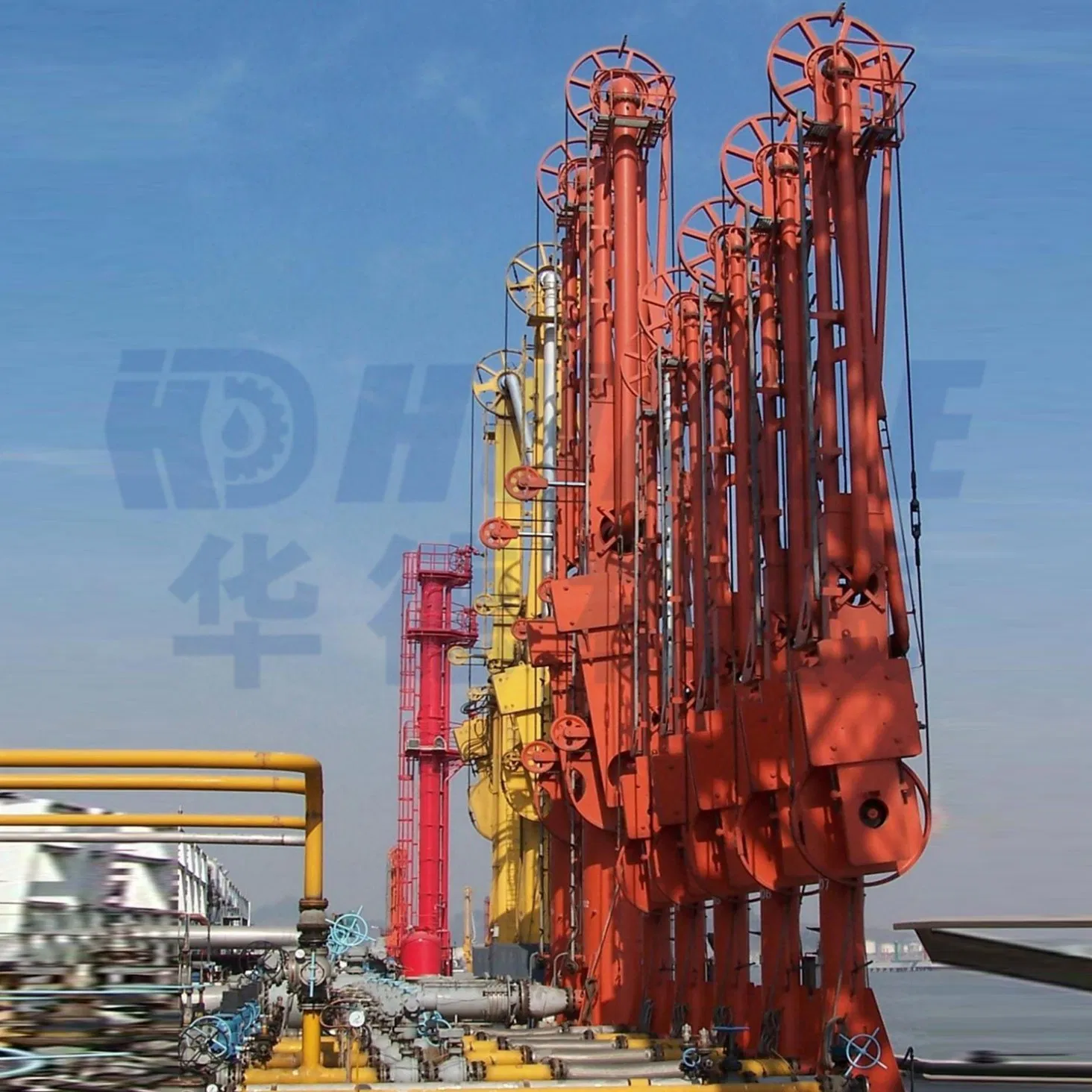

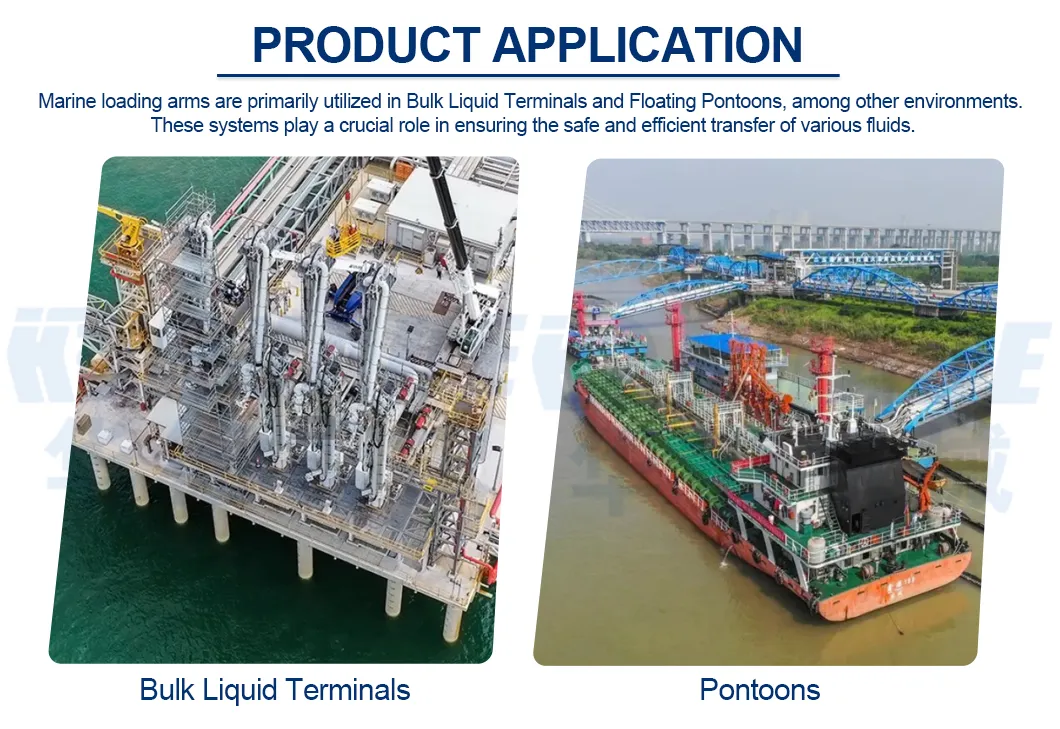

Bulk Liquid Terminals: Specialized facilities for the transfer of crude oil, refined products, and chemicals. MLAs ensure secure transfer and reduce spillage risks.
Pontoons: Floating structures where fixed infrastructure is impractical. Our MLAs provide the flexibility needed for vessel-to-pontoon movements.
We are a leading manufacturer of loading arms and petrochemical equipment. With origins dating back to 1989, we were among the first to integrate advanced international loading arm technologies. Today, our facility spans over 12 acres with 20,000 m² of workshop space and over 120 sets of advanced manufacturing equipment.
Our solutions are customer-oriented, providing cost-effective and innovative designs for global petrochemical giants. We hold numerous patents and certifications, including ISO9001, ISO14001, and ISO45001.
