Liftora Arm
1 / 5
| Item | Specification |
|---|---|
| Certification | ISO9001, QS, TUV |
| Type | Single-Arm, Double-Arm |
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical |
| Model No. | Am61/63/64 |
| Pipeline Material | CS, SS, Low-Temp. CS, Lined with PTFE |
| Accessories | ERC (ERS), QC/DC, PMS, etc. |
| Envelope Range | Customized to User Needs |
| Seal | Viton, PTFE |
| Nominal Diameter | DN80~DN400 (3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250℃ |
| Operating Mode | Manual / Electro-Hydraulic |
| Production Capacity | 200 Sets/Year |

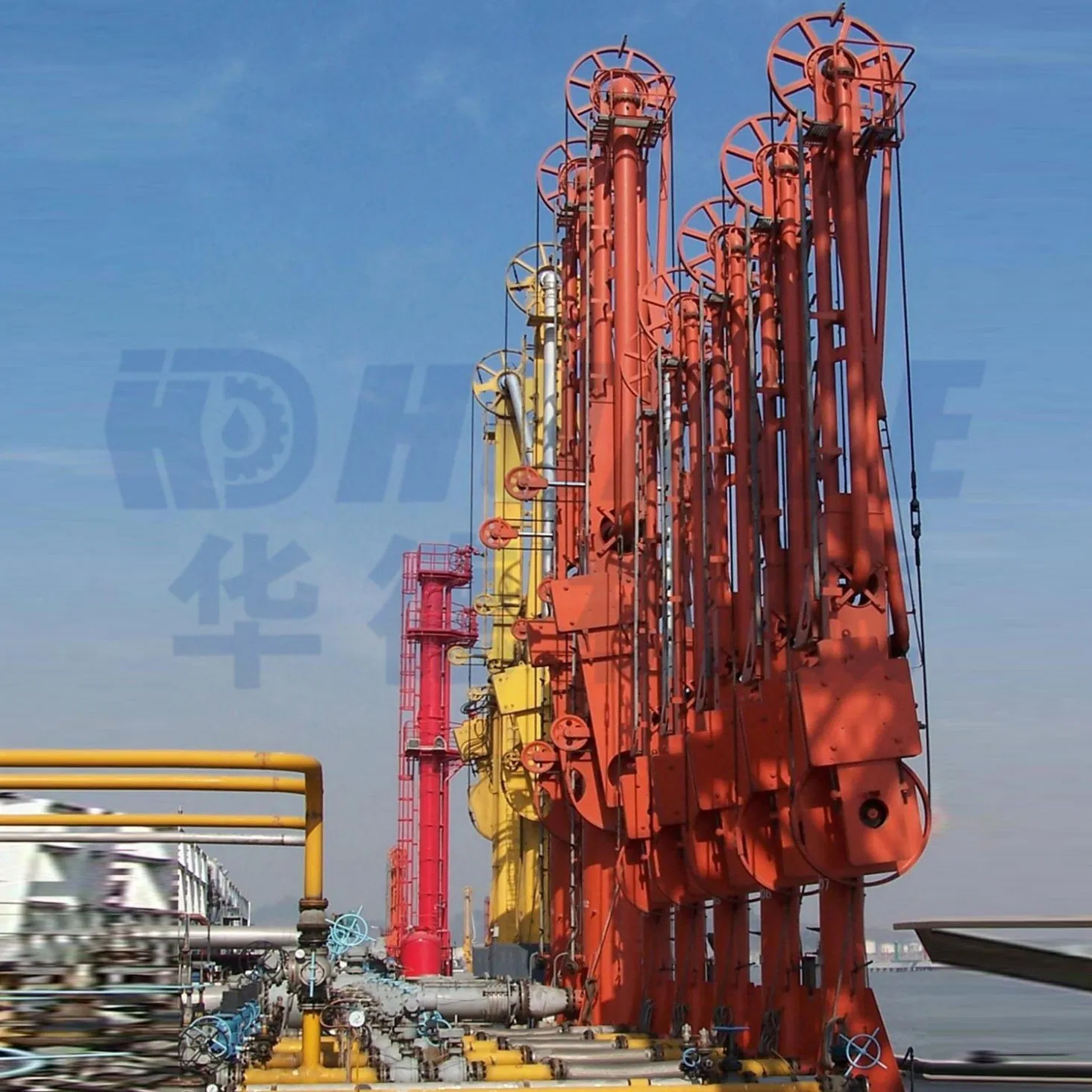

Marine Loading Arms (MLAs) are essential for transferring various fluids such as oil, chemicals, LPG, and LNG between ships and storage facilities. Our systems are engineered for high performance in demanding marine environments.
Designed to handle large volumes of fluids efficiently, reducing loading and unloading times for large-scale operations.
Incorporates advanced safety features like Emergency Release Systems (ERS) and Quick Connect/Disconnect Couplers (QC/DC).
Constructed from robust materials to withstand harsh marine environments, ensuring a long lifespan.
Modern designs with zero-emission technologies to minimize environmental impact during transfer.

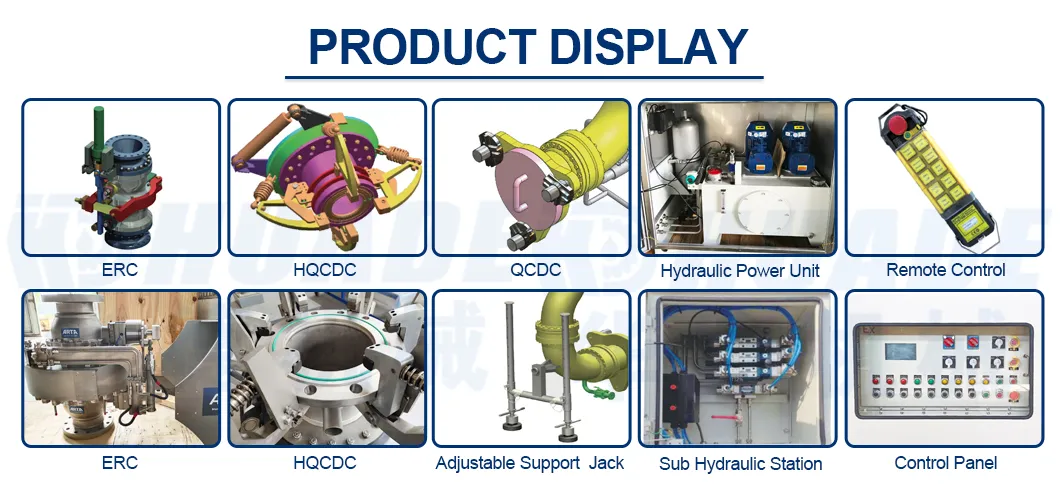

Emergency Release Coupler (ERC): Installed at the triple swivel assembly to separate the MLA from the tank ship during emergencies such as fire, typhoons, or ship drift, preventing major damage and pollution.
Quick Connect/Disconnect Coupler (QCDC): Provides a fast means to connect/disconnect the MLA to the tanker flange without bolts or nuts, saving significant manpower and time.
Electro-hydraulic Control System: Includes LCP, HPP, and PLC-based controls. Allows remote operation and real-time monitoring of MLA status and alarms.
| Typical Structure | Features & Application |
|---|---|
| AM61M | Manual operation, double counterweight. Small dead weight. For inland river/small jetties (< 8"). |
| AM63M | Manual operation, rotary counterweight. Easy seal change. For inland river/small jetties (< 10"). |
| AM63H | Electro-hydraulic, rotary counterweight. Supports ERC/HQCDC. For inland and sea jetties (up to 16"). |
| AM64H | Electro-hydraulic. Includes liquid and vapor lines. For inland and sea jetties (16" liquid + 8" vapor). |

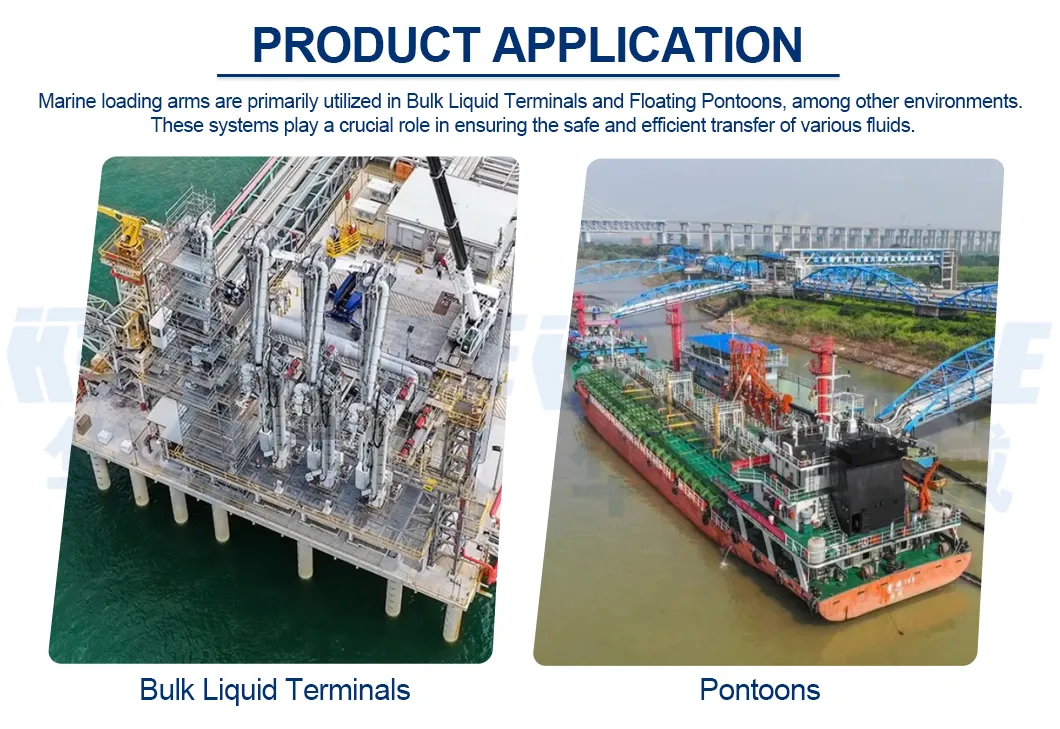

Essential for loading/unloading crude oil, refined products, and chemicals from storage tanks to tankers with secure transfer systems.
Highly flexible arms designed to accommodate vessel movements in harbors, rivers, and offshore locations.
As a leading manufacturer of loading arms and jetty equipment, we specialize in the design and supply of land and marine loading systems. With a factory area of over 12 acres and advanced manufacturing equipment, we hold numerous patents and certifications including ISO9001, ISO14001, and ISO45001.

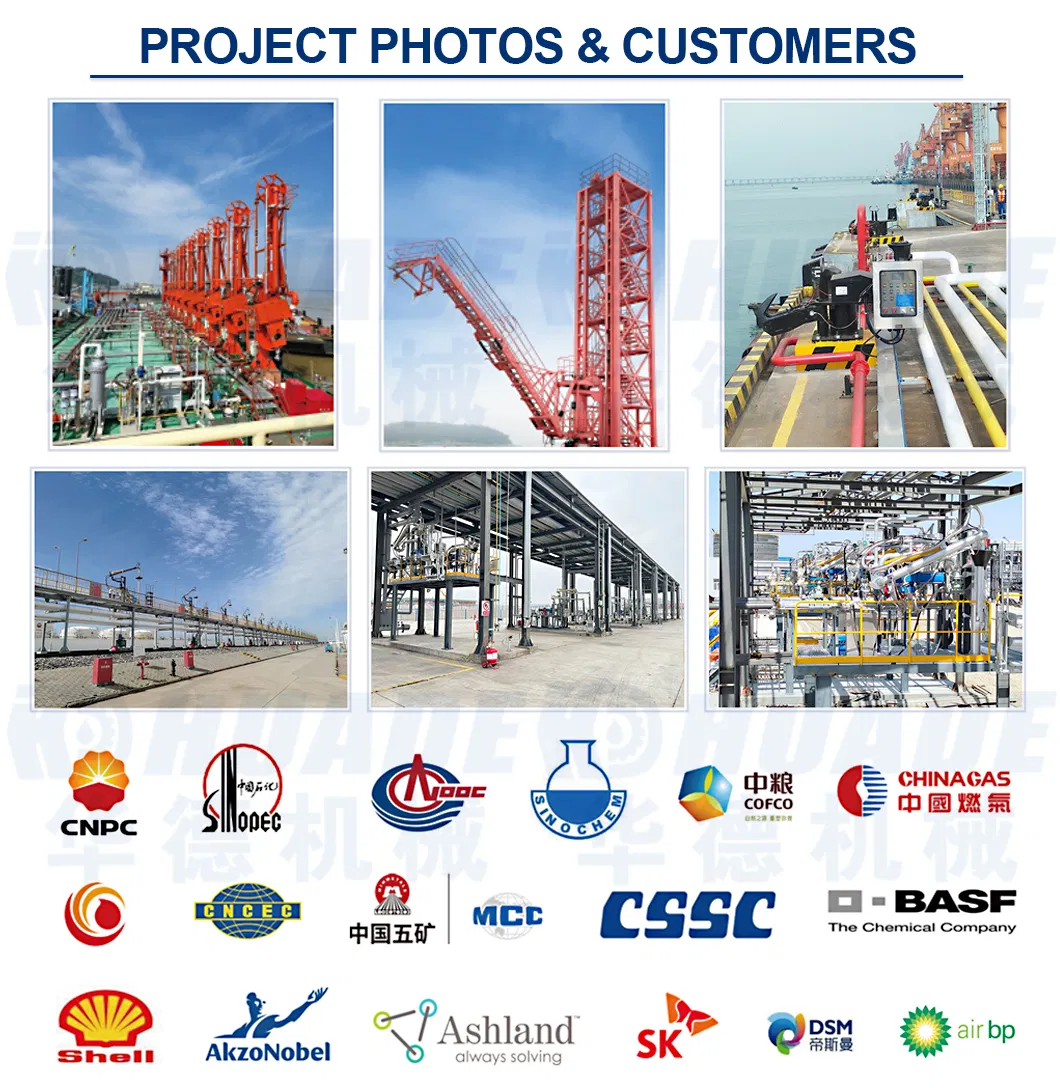

Our products are exported globally to regions including Europe, Southeast Asia, and Africa, serving major petrochemical and energy corporations with cost-effective systematic solutions.
