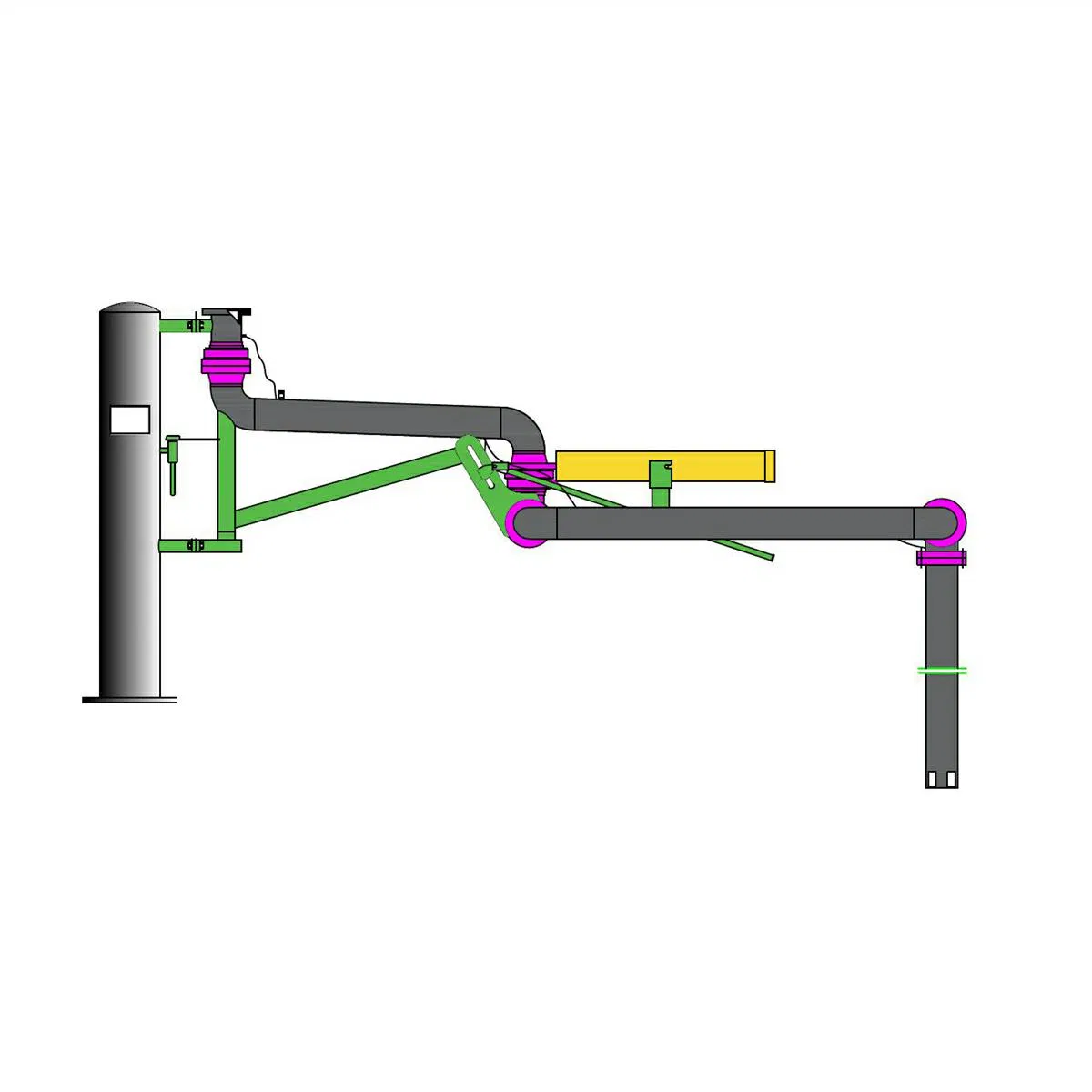

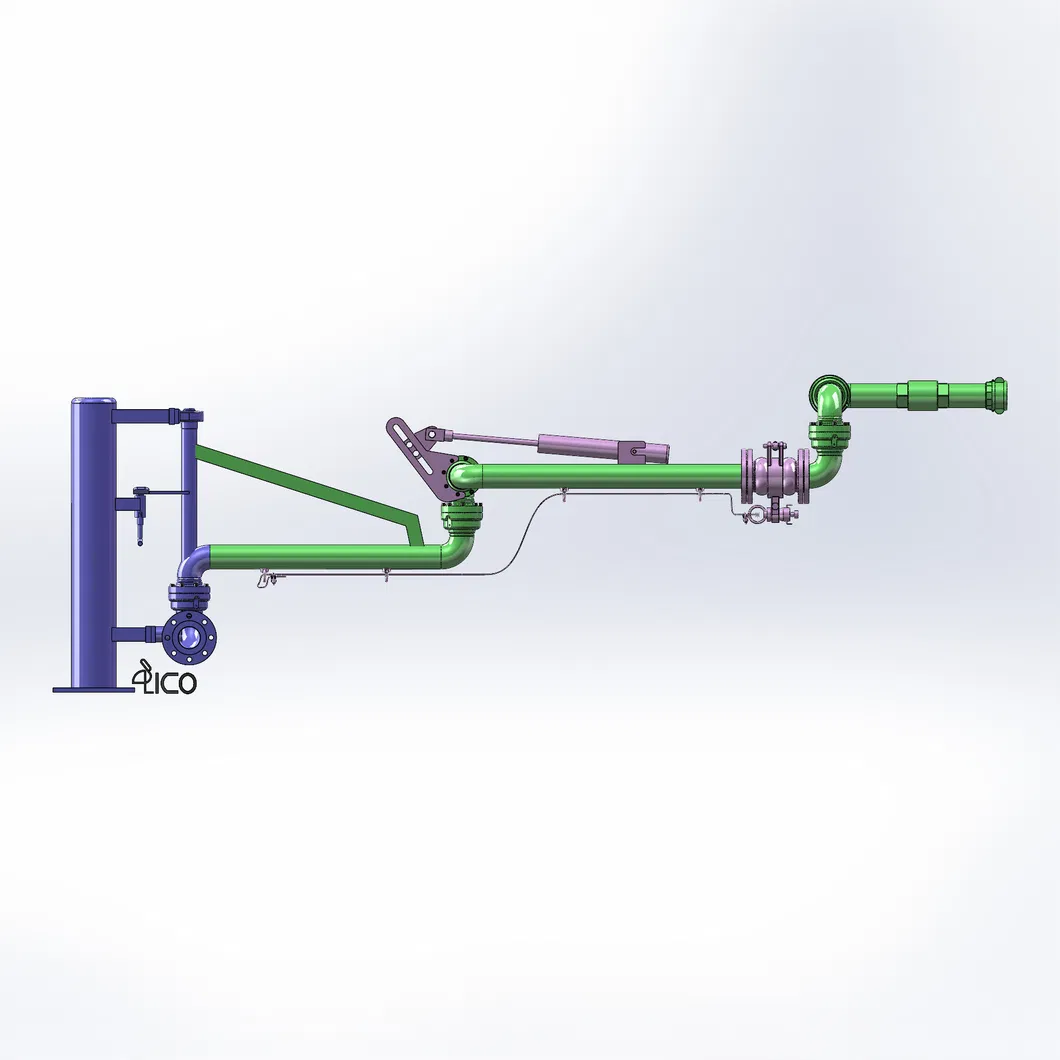

The structure of AL2503 land loading arm:
Crane AL2503 is often used for bottom loading and unloading operations of trucks and trains, applicable to various materials such as crude oil, residual oil, and chemical media. It adopts swivel joints made of alloy steel and stainless steel, featuring flexible rotation and reliable sealing. With a wide range of working pressure and temperature, it can meet different working conditions, and is convenient to operate with high safety.
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.

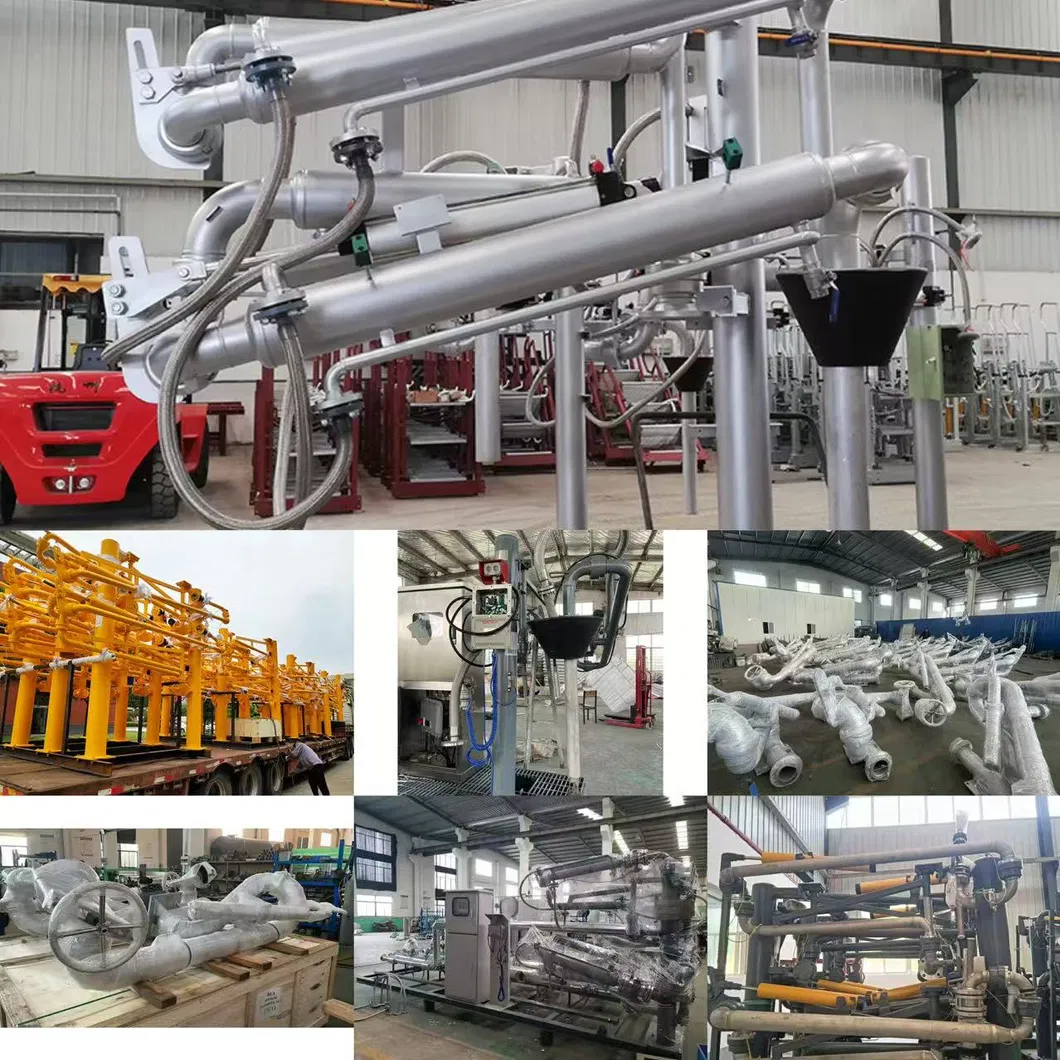

Workshop Production
On-site Application
| Technical Specifications for AL2503 Land Loading Arm | |
| Places Applied | Bottom closed loading or unloading |
| Applications | Product oil, chemicals, etc. |
| Nominal Diameter | DN50~DN100 |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of Pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |
Our company is mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Its products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc., and it is a high-tech enterprise.
We are a professional manufacturer of petrochemical storage and transportation machinery and automatic control systems. Our products are widely used in large and medium-sized petrochemical enterprises. Products such as loading arms, jibs, floating roofs, movable ladders and skid-mounted equipment are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc., and have been recognized by domestic and foreign customers.
We will continue to adhere to product technological innovation, closely track the development status of domestic and foreign petrochemical storage and transportation equipment, continuously strengthen the technological R&D of independent products, and provide customers with high-quality products featuring cutting-edge technology, superior quality, energy conservation and environmental protection.
