High-Quality Pre-Fabricated Piping Fitting up Systems for Quick Installation

1 / 5

High-Quality Pre-Fabricated Piping Fitting up Systems for Quick Installation

Customization:	Available
After-sales Service:	Quality Assurance
Warranty:	1 Year

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

PPFUM

Keywords

Pipe Fitting up Machine

Color

Customized

Transport Package

Container

Specification

SGS, ISO9001, CE

Origin

China

Production Capacity

800 Sets/Year

🛠️

Product Description

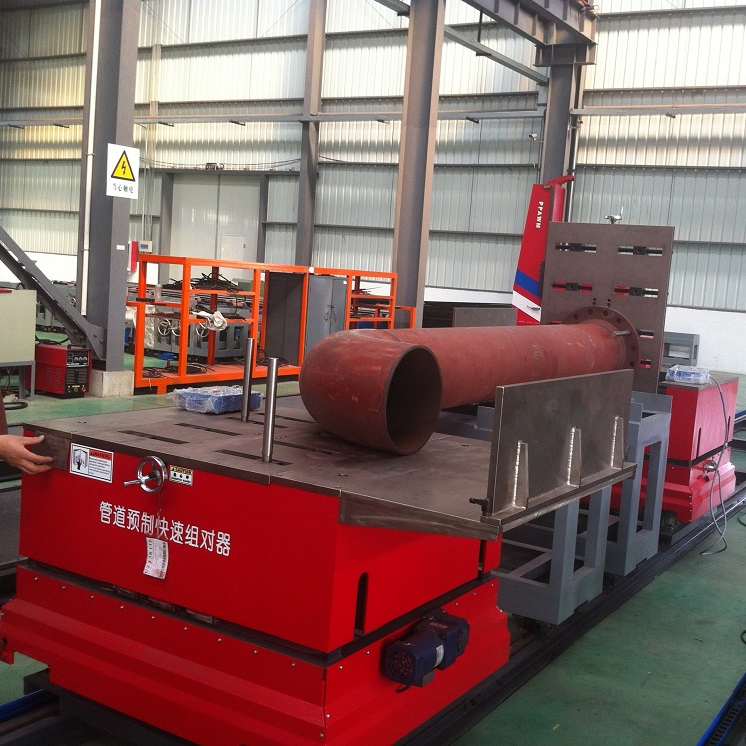

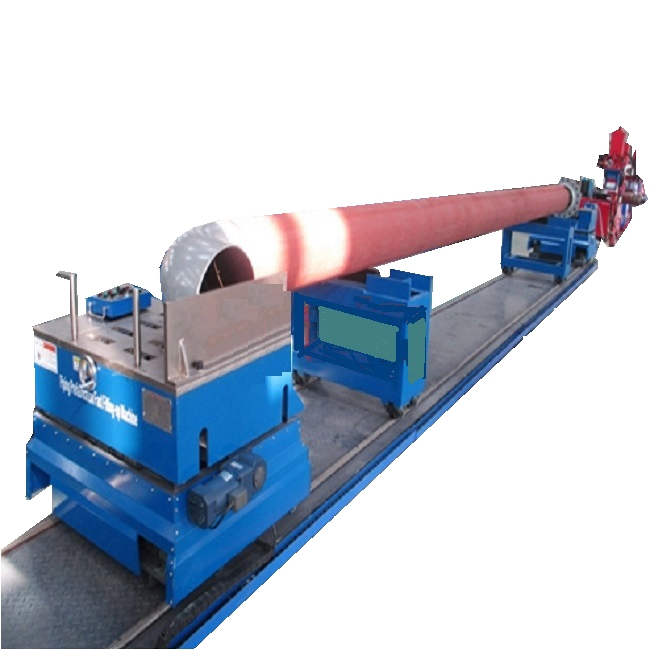

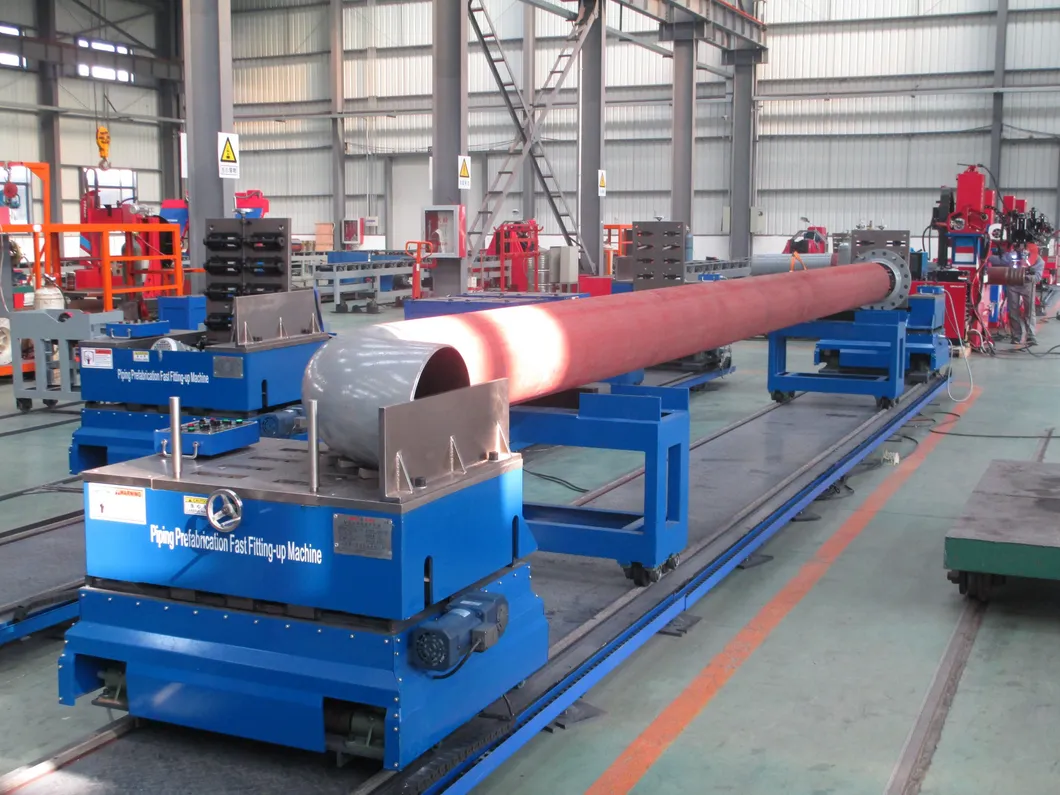

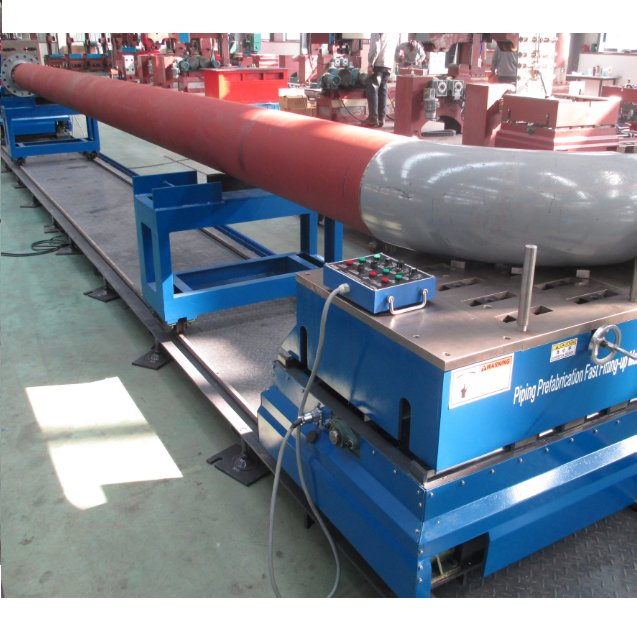

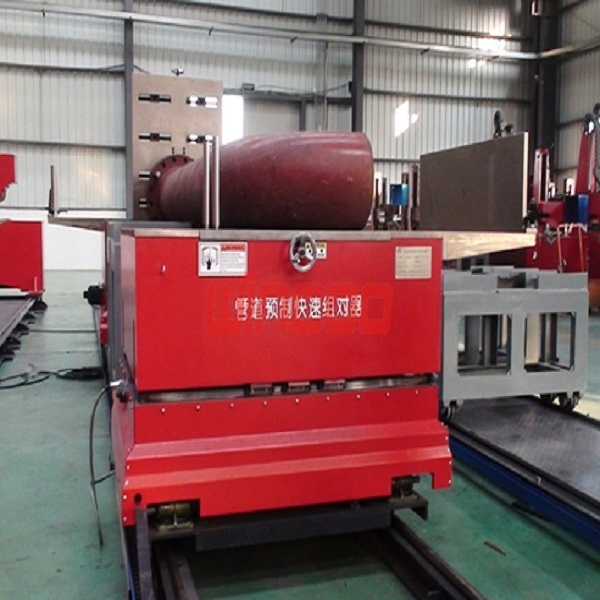

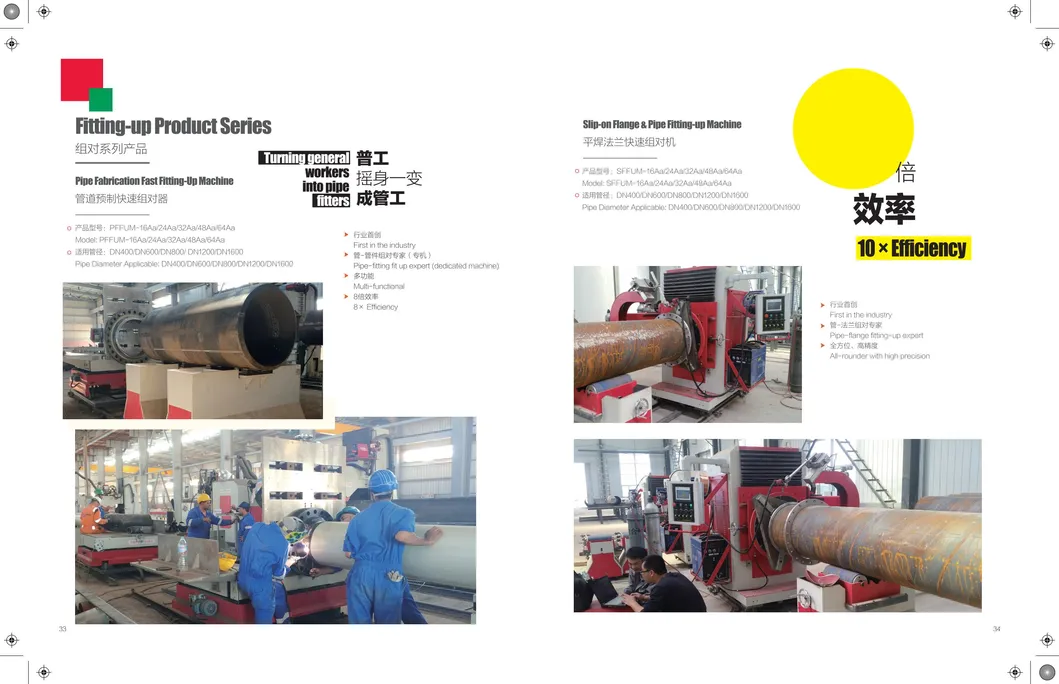

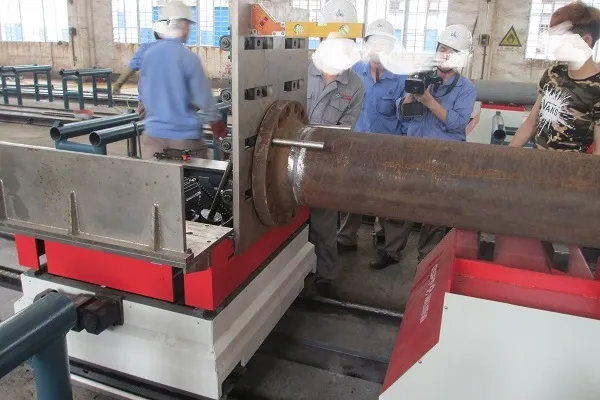

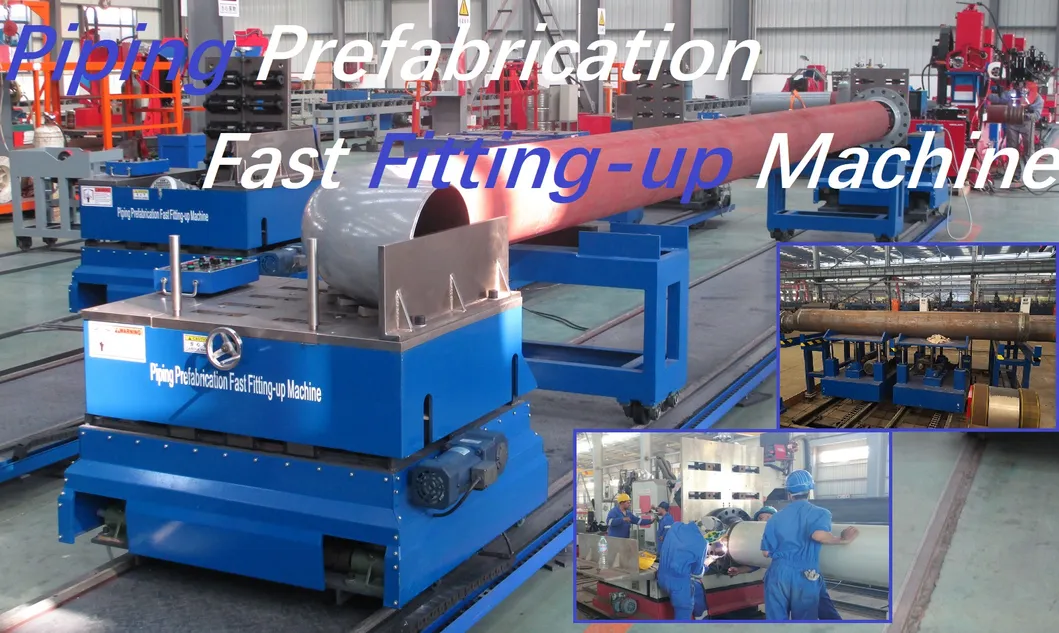

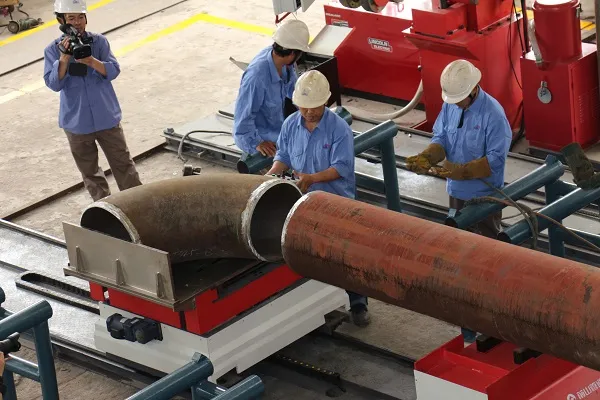

The Multifunction Piping Fitting Up Machine is designed for versatile operations including pipe to pipe, pipe to flange, pipe to elbow, pipe to reducer, and pipe to tee fit-ups.

Models: PPFUM-16A2; PPFUM-24A2; PPFUM-32A2
Applicable Industries: Oil & Gas, Refinery, Petrochemical, Petroleum, Chemical Industry, Onshore & Offshore, Marine Engineering, Shipbuilding & Shipyard, Thermal & Nuclear Power Plant, Boiler, Heat Exchanger Refrigeration, Medical, Voyage, Pressure Vessel, Foodstuff Machinery, Atomic Power, Beverage, etc.

📊

Product Parameters

Pipe diameter applicable	DN50-400 (2-16 inch); DN150~600mm (6~24 inch); DN200-800mm (8-32 inch); Or custom made
The longest pipe	12m or 6M (or depend on the situation)
Fitting-up system	2 sets
Moving up/down	With screw lifter, driven electrically
Moving left/right	Linear guiding rail, driven & movement electrically
Vertical turnover	With screw lifter, driven electrically
Lengthwise moving	Motorized driving Hexagonal steel track
Max loading capability	750KG / 1000KGS / 1500KGS
Bracket system	2 sets
Max loading (Bracket)	2,500KGS; 3500KGS; 5000KGS
Track system	Hexagonal steel track, 7.5M or 10M

⭐

Product Features

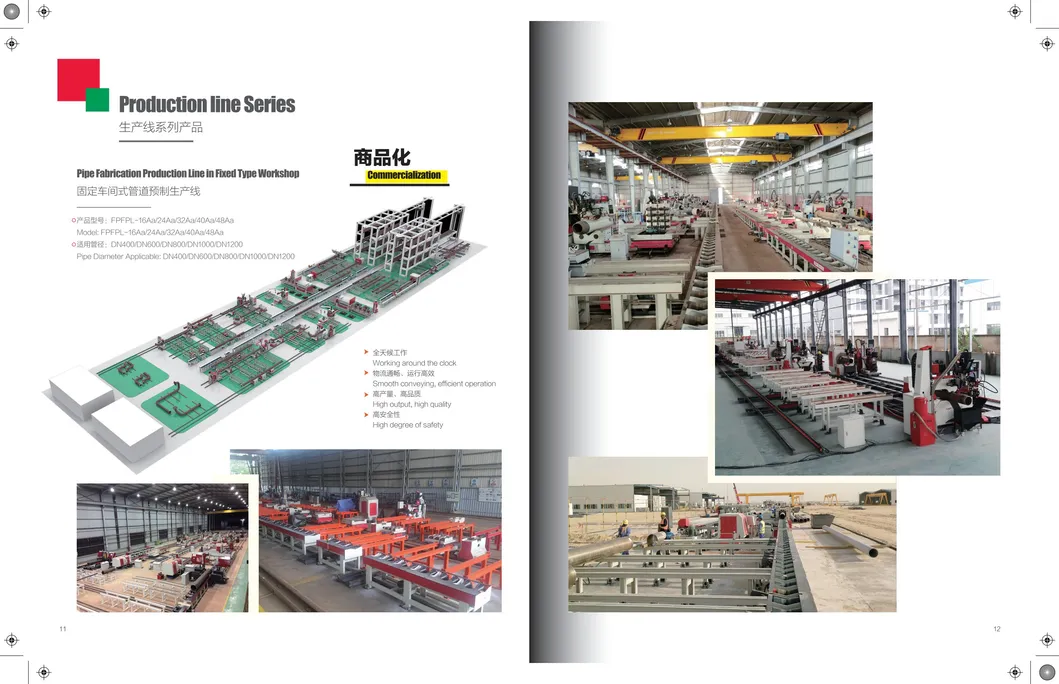

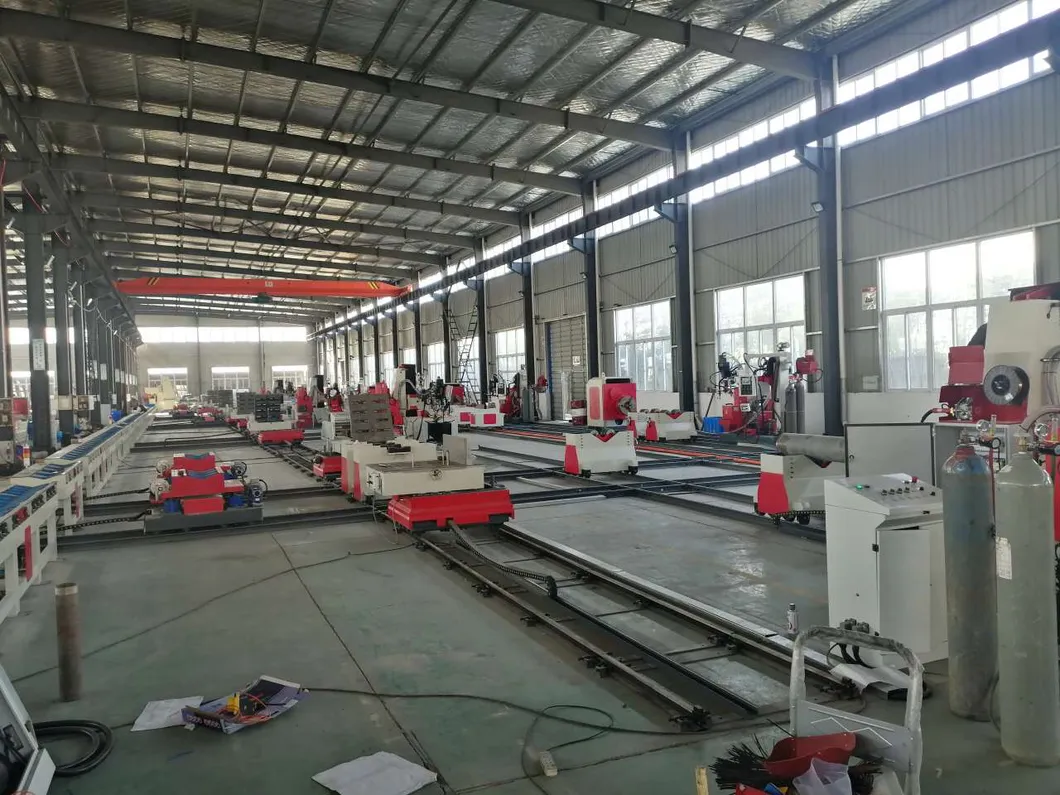

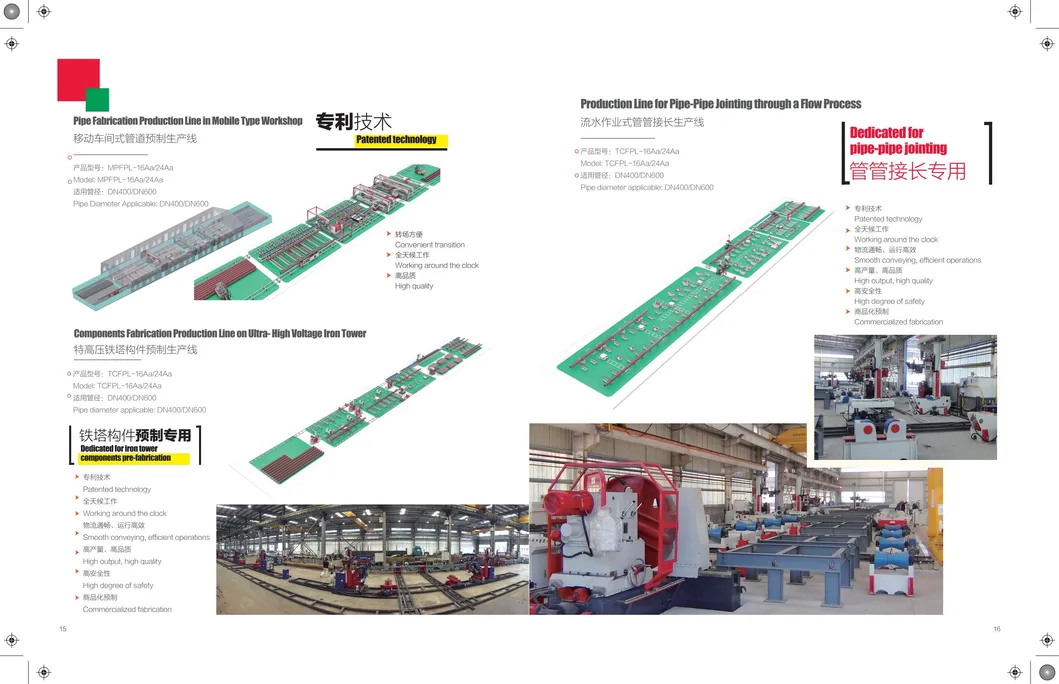

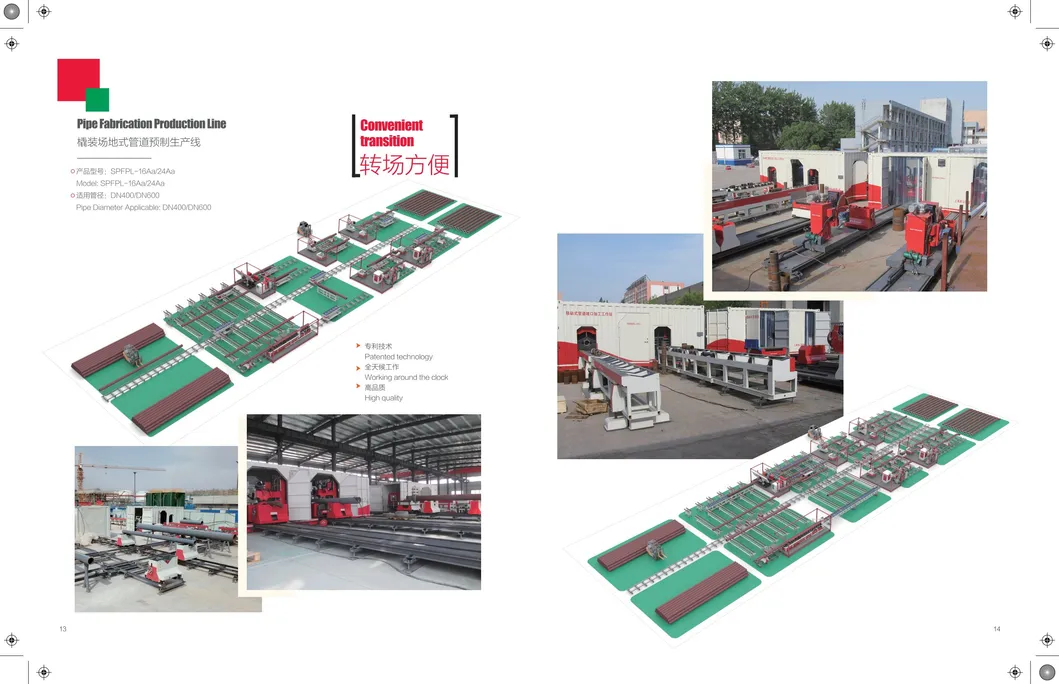

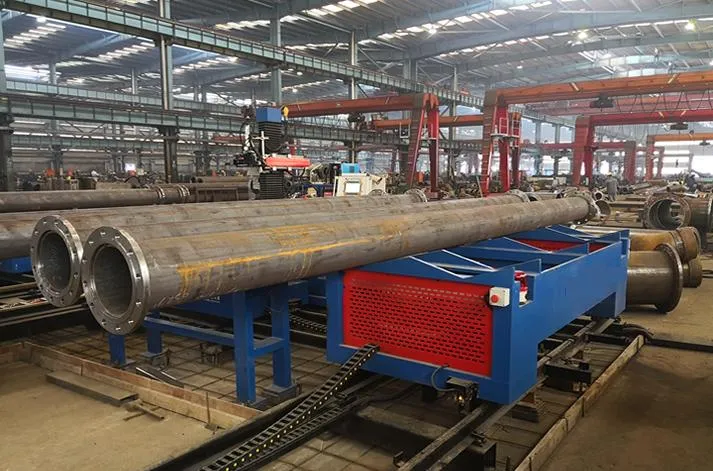

System Configuration: Includes containerized pipe spool fabrication, pipe cutting & beveling workstations, mechanical fitting up stations, and automatic welding units.

High Efficiency: Extremely high productivity using overhead cranes, high-speed cutting, and automatic welding stations.

Logistics Integration: Equipped with advanced logistics transport or conveying systems and robust steel structure pipe racks.

Field Suitability: Optimized for field pipe prefabrication in energy, aerospace, and chemical engineering sectors.

Capacity: 20,000 ~ 150,000 DI/month (depending on field size/config), significantly reducing manpower and costs.

🏢

Services & Strengths

Specializing in providing suitable solutions and equipment for pipe fabrication, tank construction, and pipeline projects for EPC companies and fabricators worldwide.

Workable solutions to reduce project execution time and man-hour costs.
Customized facility designs based on site space to guarantee production schedules and quality.
Prompt supply of project materials, tools, and specialized machinery.
Flexible procurement services to meet specific merchandise requirements.
