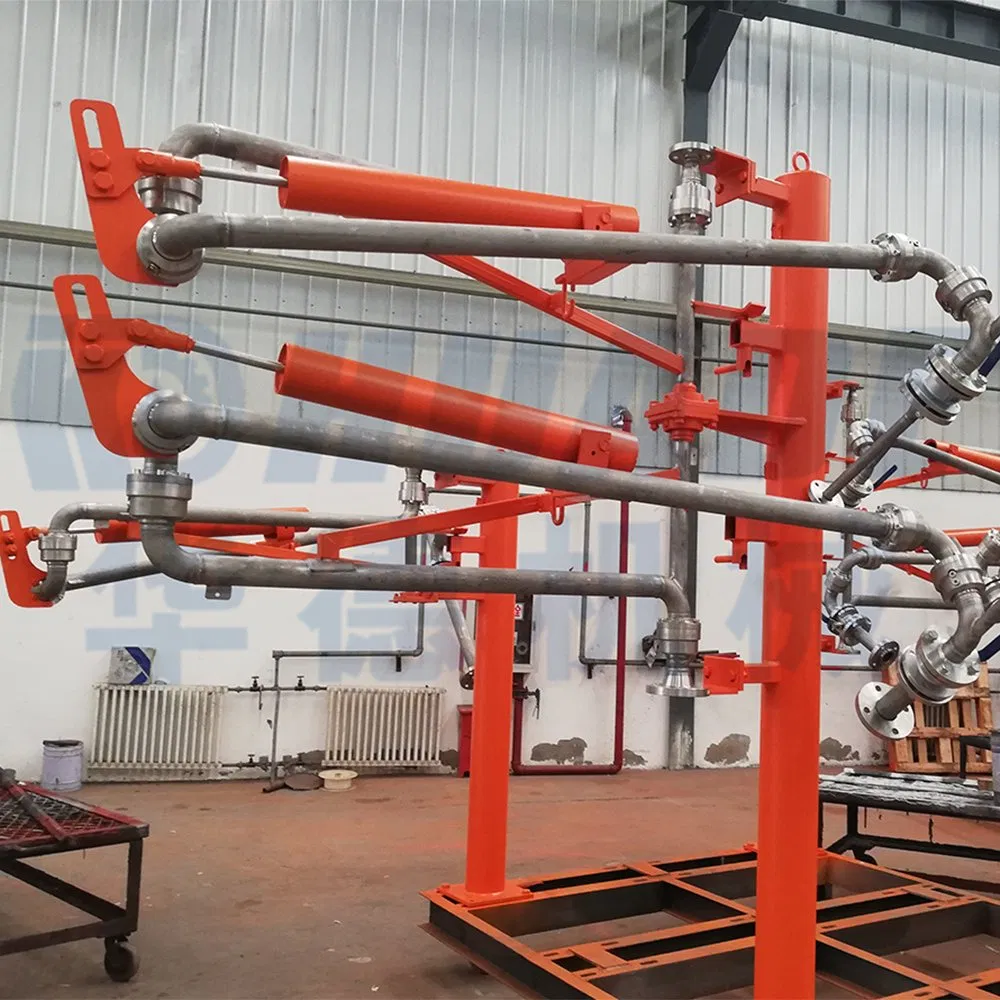

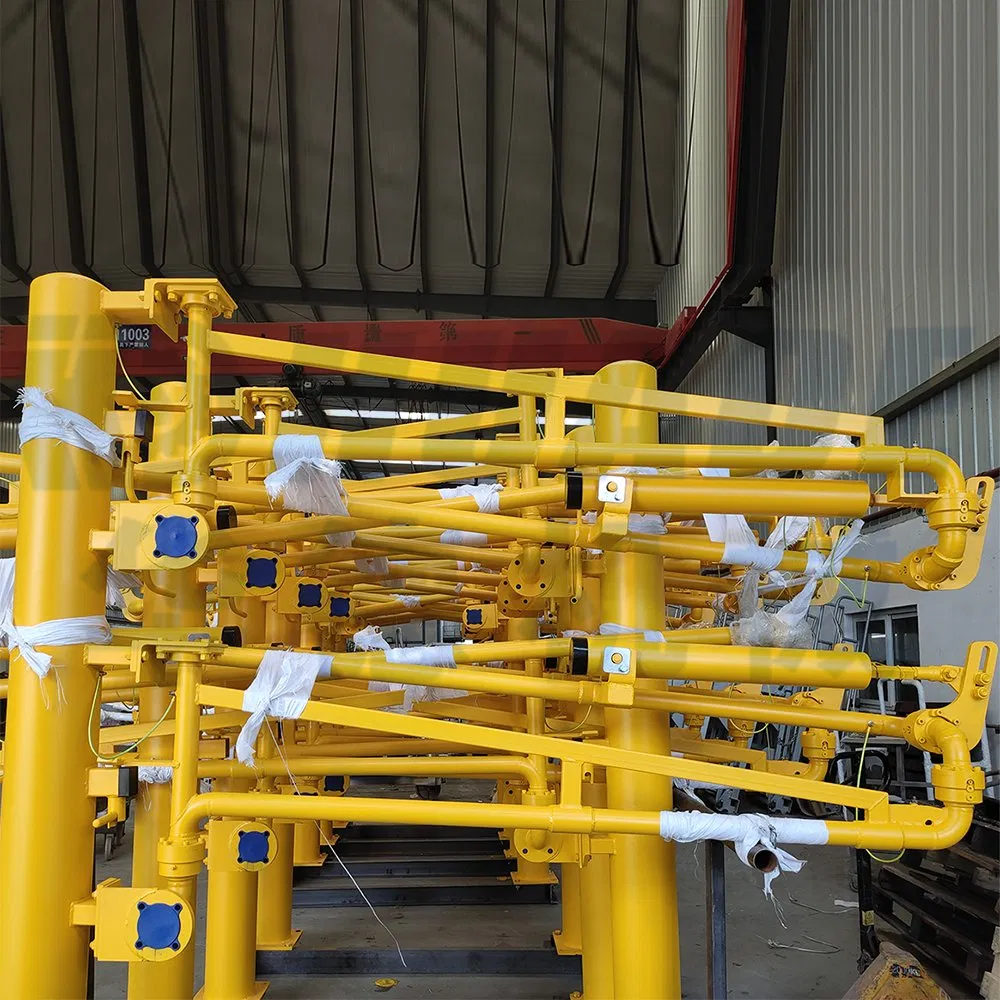

The Top Loading Arm with Two Arms is a specialized device designed for efficient and safe liquid transfer from the top of road or rail tankers.
Equipped with multiple swivel joints, allowing it to reach different loading positions flexibly. Custom-designed specific lengths meet the user's envelope range and site requirements.
Optional emergency shut-off system, overfill protection, and vapor recovery system help minimize leaks and control harmful emissions.
Engineered for high flow rates, ensuring rapid and efficient liquid loading essential for high-capacity industrial production.

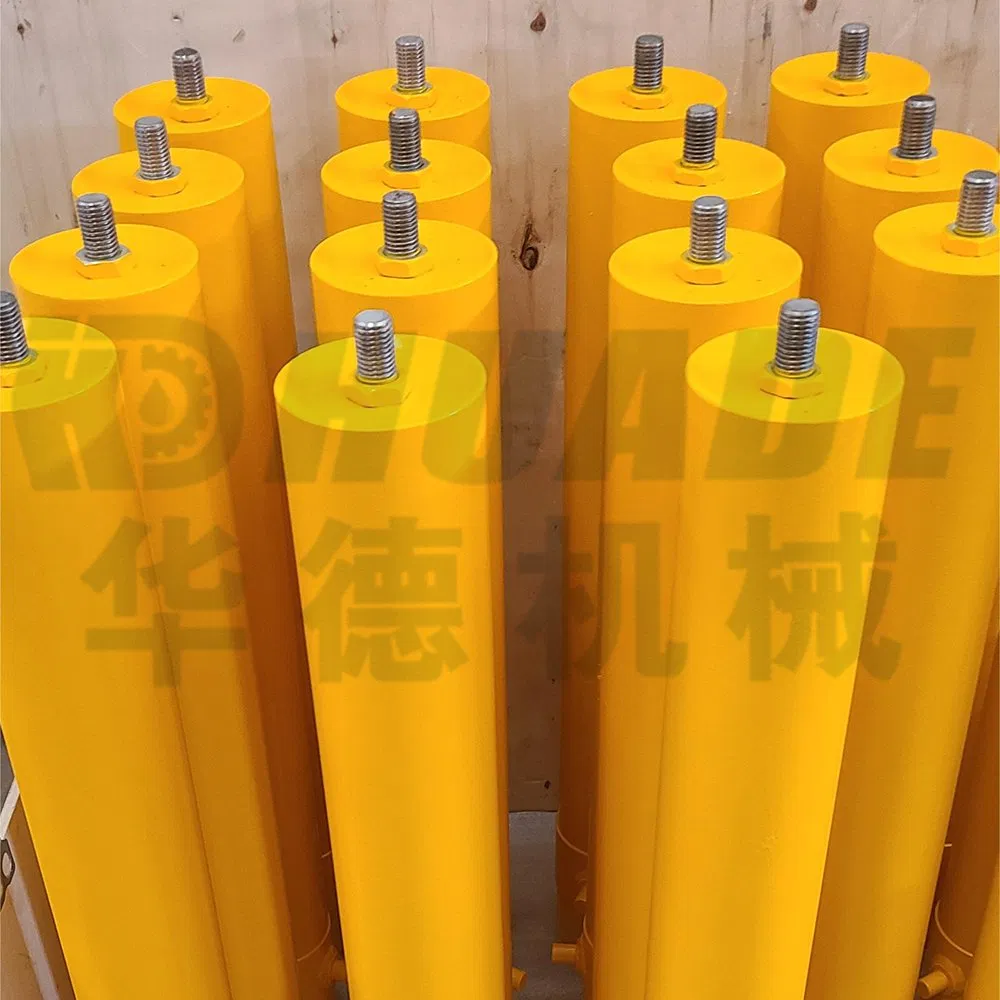

Advanced spring or counterweight mechanisms maintain stability during operation, ensuring smooth and precise movements.
Integrated antistatic systems effectively eliminate static electricity generated by liquid movement, enhancing operational safety.
| ITEM | SPECIFICATION |
|---|---|
| Nominal Diameter | DN25 ~ DN200 (1"-8") |
| Design Pressure | -0.06MPa ~ 5.0MPa |
| Design Temp. | -196ºC ~ 250ºC |
| Pipeline Material | CS, SS, Aluminum Alloy, Steel lined with PTFE, etc. |
| Operating Method | Manual, Pneumatic or Hydrauilc |
| Balance Mode | Spring cylinder or counterweight |

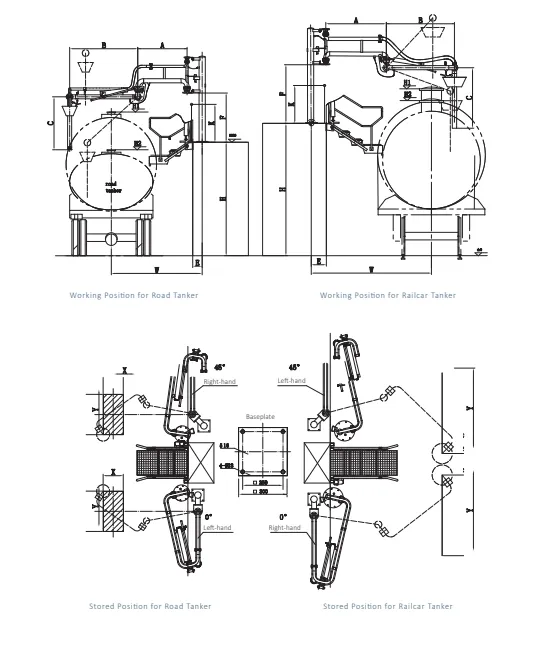

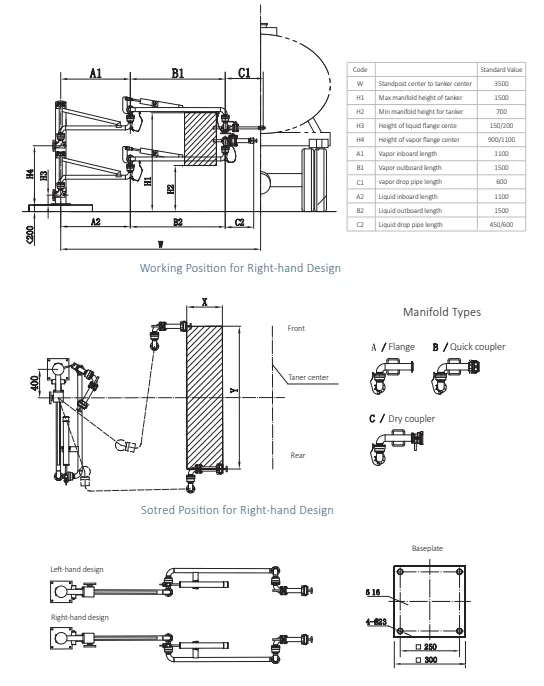

Structural Diagram & Operating Envelope:

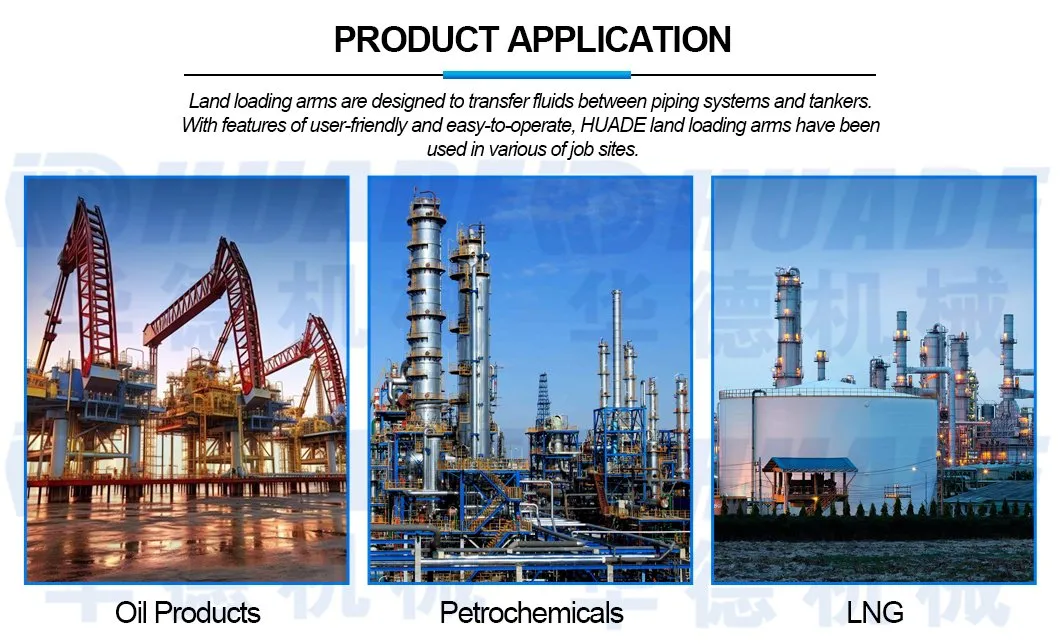

Land loading arms are widely used in industries where safe and efficient transfer of liquid or gaseous products is essential:

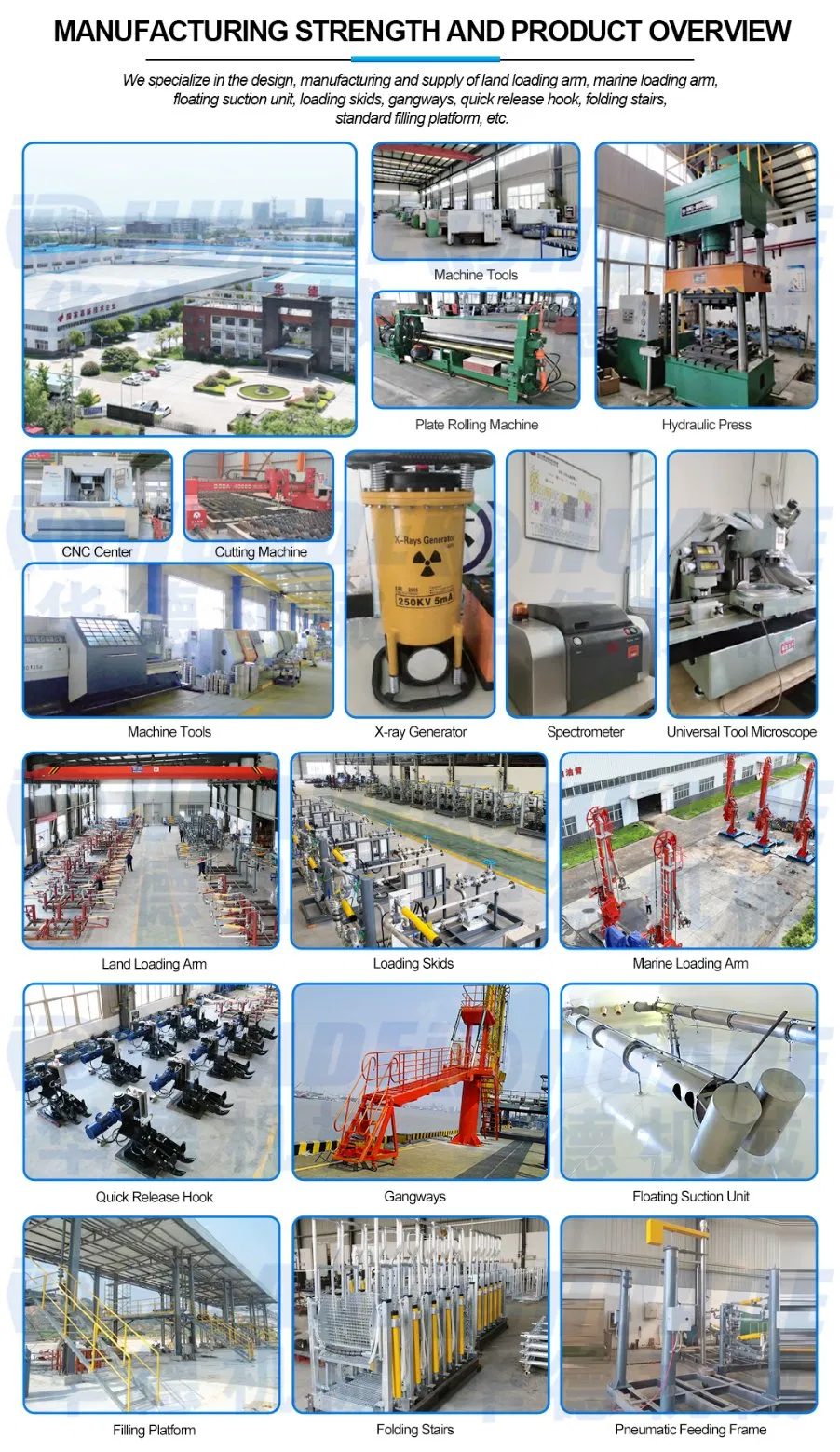

As a leading manufacturer for loading arms, jetty and petrochemical equipment, our expertise stems from importing advanced technologies since 1989. We specialize in the design, manufacturing, and supply of land loading arms, marine loading arms, floating suction units, loading skids, gangways, quick release hooks, and folding stairs.
With a factory area of more than 12 acres and workshop area of 20,000 m², we utilize more than 120 sets of advanced manufacturing and testing equipment. We hold production licenses for pressure pipeline components and certificates for ISO9001/ISO14001/ISO45001 systems.
