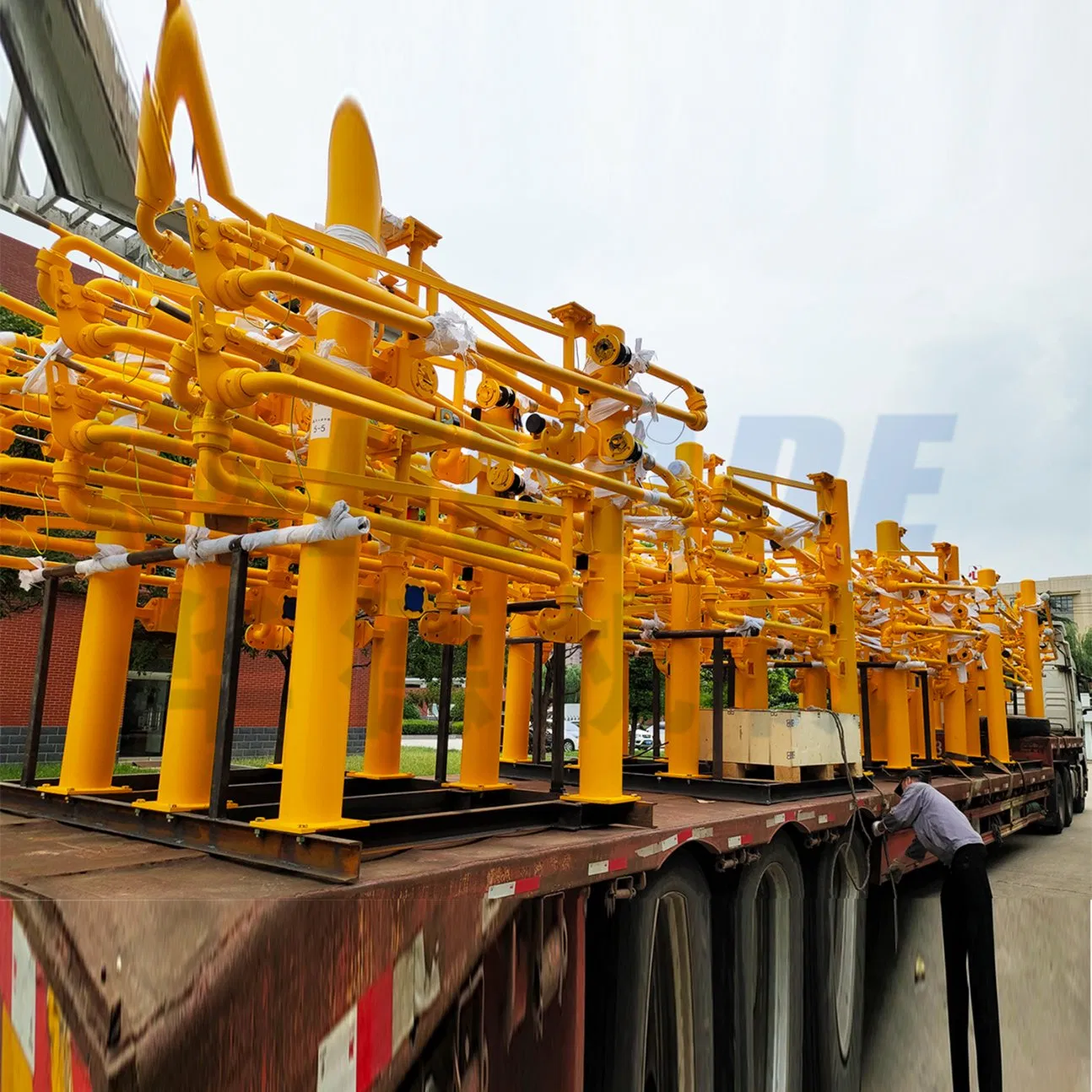

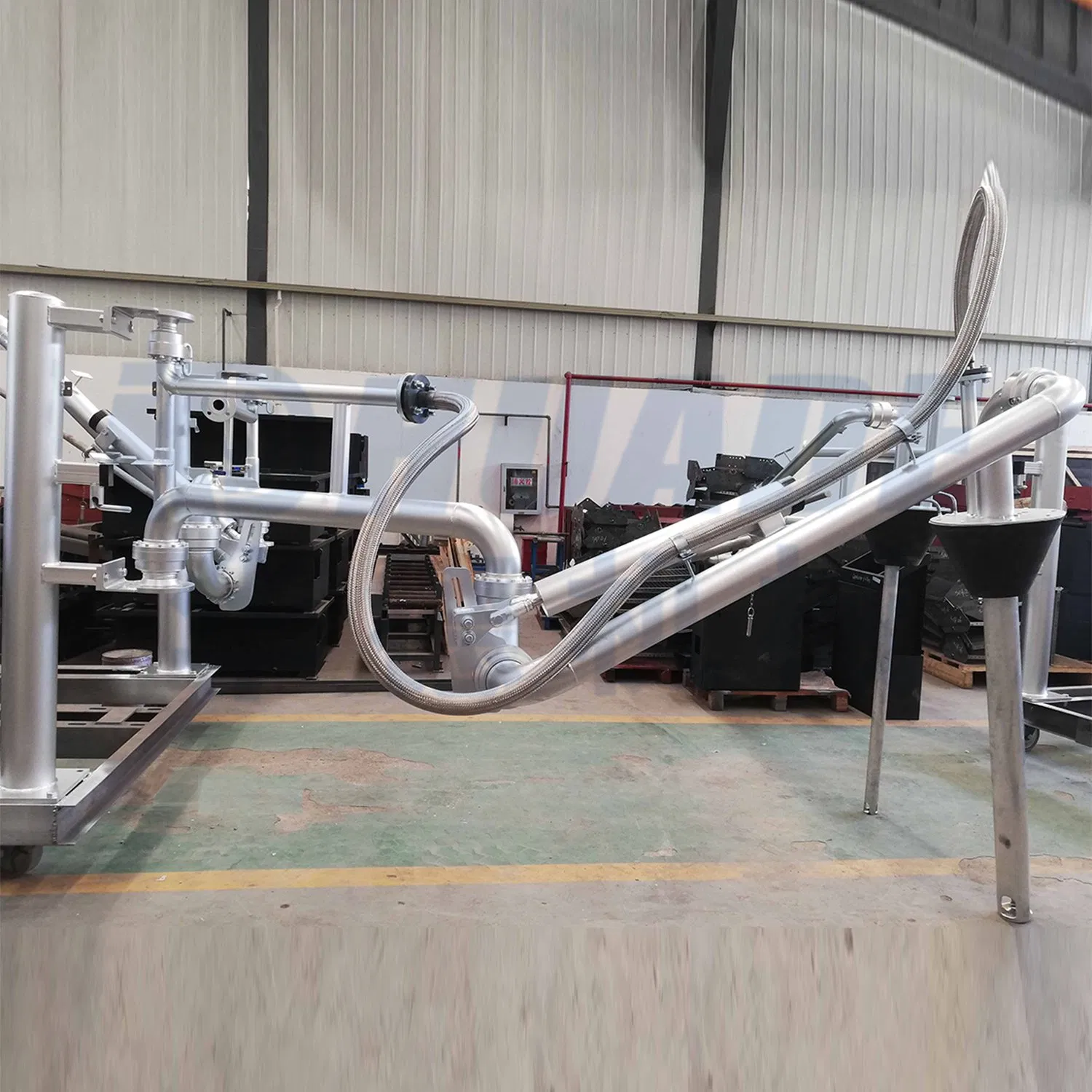

High Safety Industrial Machinery Top Land Loading and Unloading Equipment Arm with Two Arms

Customization:	Available
After-sales Service:	Lifetime Maintenance Services
Warranty:	12 Months (or as Per Customer Requirements)

Basic Information

Condition:New

Customized:Available

Certification:ISO9001, QS, TUV

Type:Single-Arm, Double-Arm

Storage Objects:Solid, Liquid, Gas

Pipeline Material:CS, SS, Aluminum Alloy, PTFE Lined, etc.

Design Temp:-196 ~ +250°C

Nominal Diameter:DN25~DN200

Design Pressure:-0.06~5.0MPa

Balance Mode:Spring Cylinder or Counterweight

Product Description

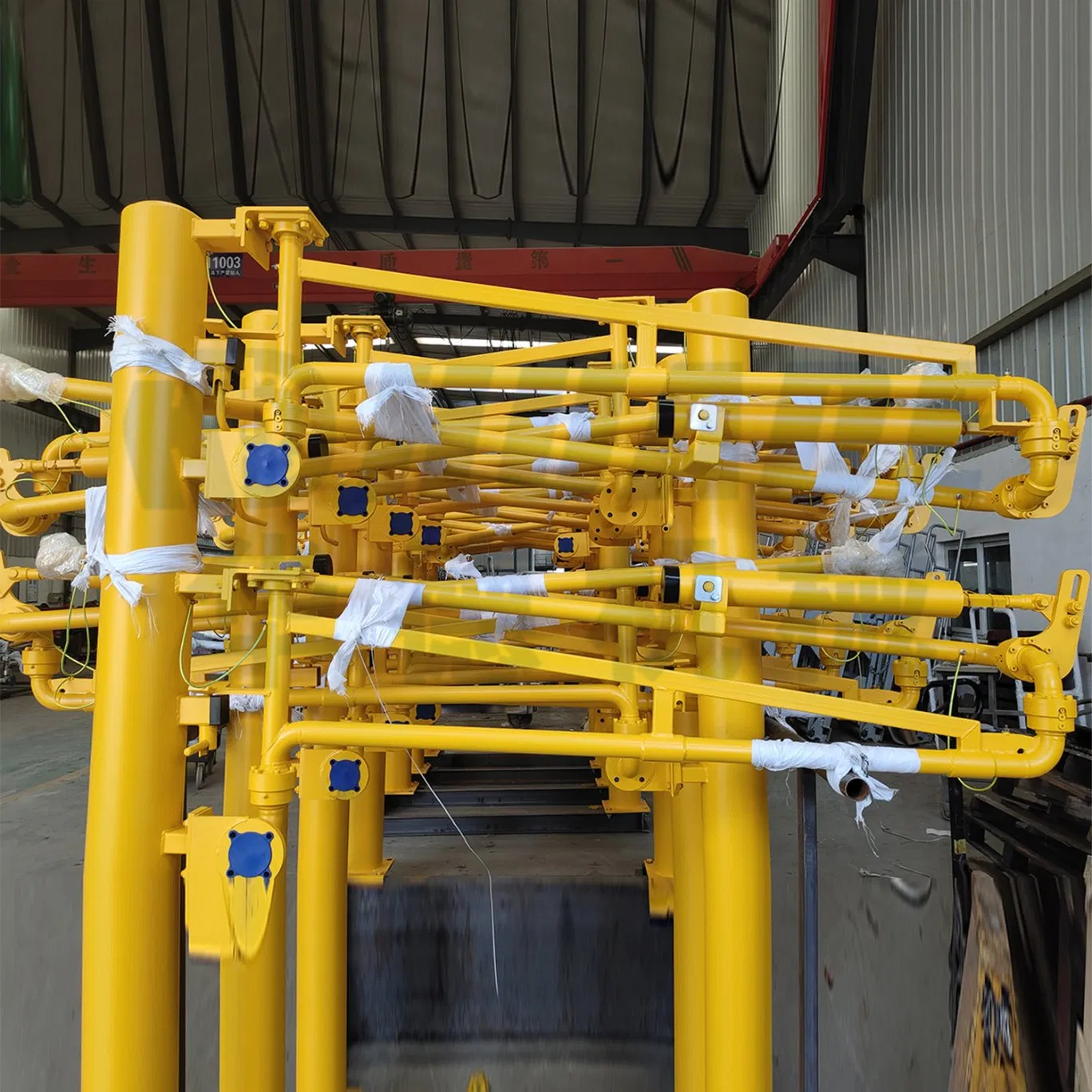

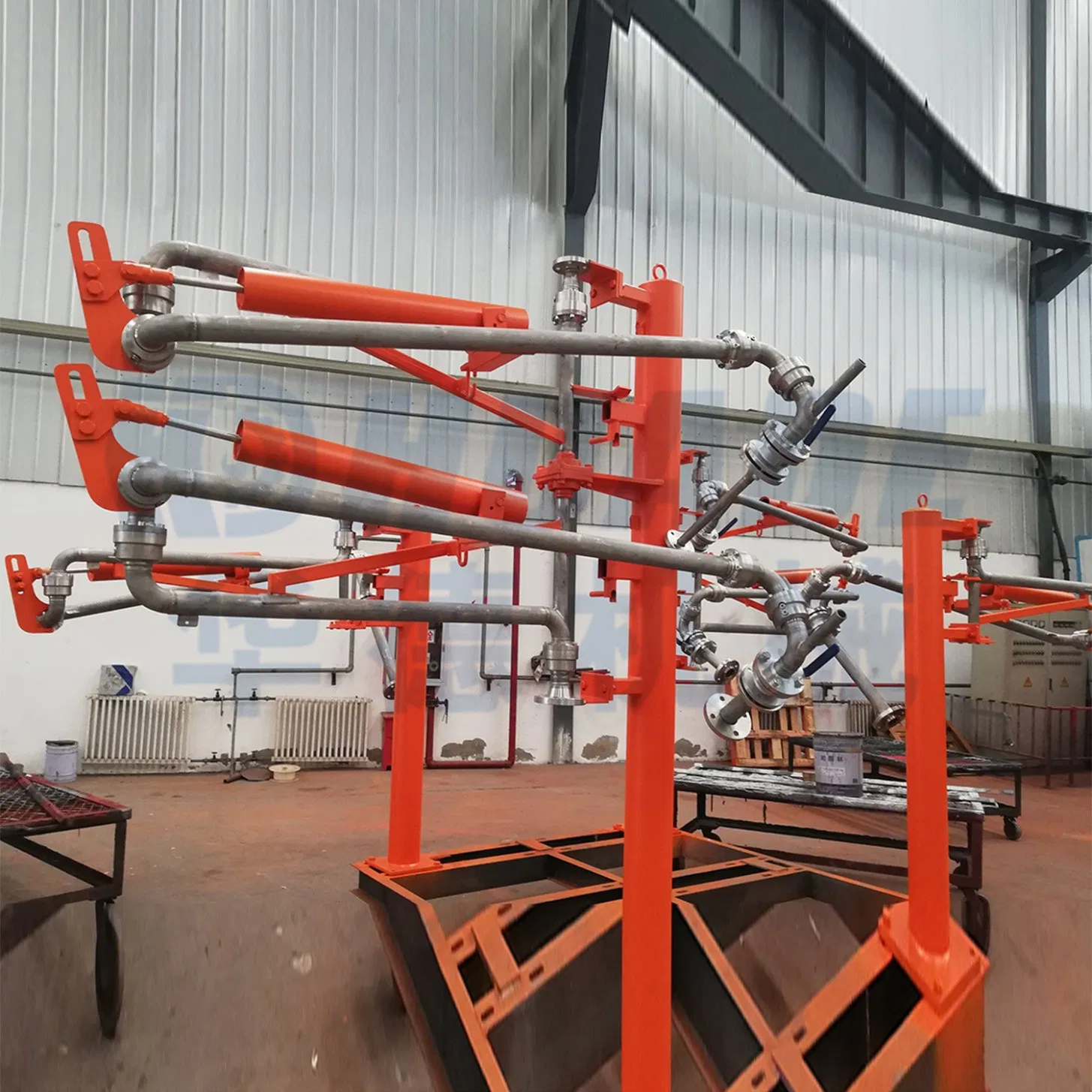

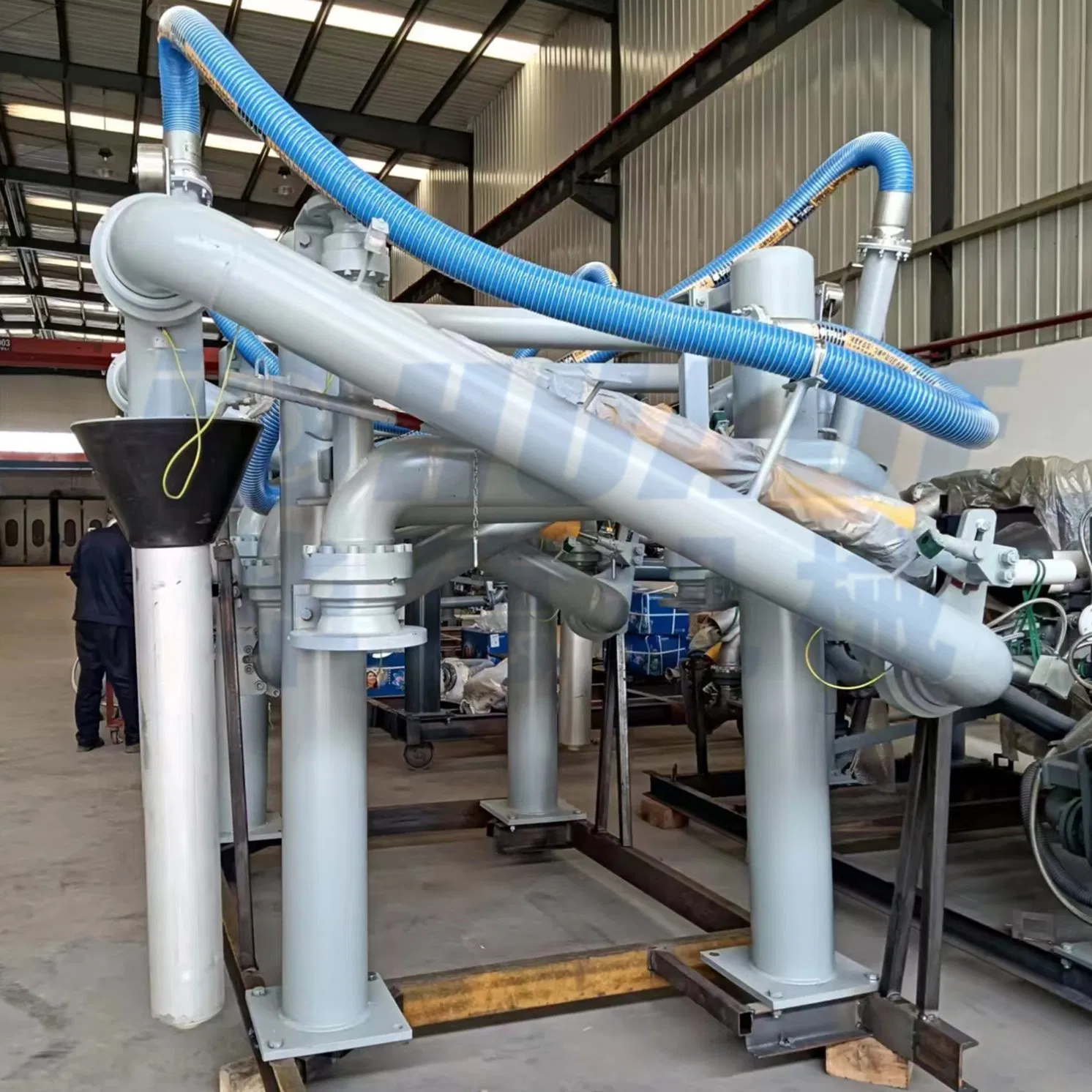

The Top Loading Arm with Two Arms is a specialized device designed for efficient and safe liquid transfer from the top of road or rail tankers.

Flexibility and Maneuverability
Multiple swivel joints allow flexible reaching. Custom lengths available to meet site requirements and compatibility with road or rail tankers.

Safety Features
Optional emergency shut-off, overfill protection, and vapor recovery systems to minimize leak risks and emissions.

High Flow Design
Engineered for rapid and efficient liquid loading, ensuring quick turnaround times for production targets.

Multiple Balance Systems
Equipped with spring or counterweight mechanisms for stability and smooth, precise movements during operation.

Antistatic Device
Integrated systems eliminate static electricity generated by liquid movement, enhancing operational safety.

Vapor Recovery (Optional)
Collects volatile organic compounds (VOCs), reducing environmental impact and ensuring regulatory compliance.

Product Parameters

ITEM	SPECIFICATION
Nominal Diameter	DN25 ~ DN200 (1"-8")
Design Pressure	-0.06MPa ~ 5.0MPa
Design Temp.	-196ºC ~ 250ºC
Pipeline Material	CS, SS, Aluminum Alloy, Steel lined with PTFE, etc.
Operating Method	Manual, Pneumatic or Hydraulic
Balance Mode	Spring cylinder or counterweight

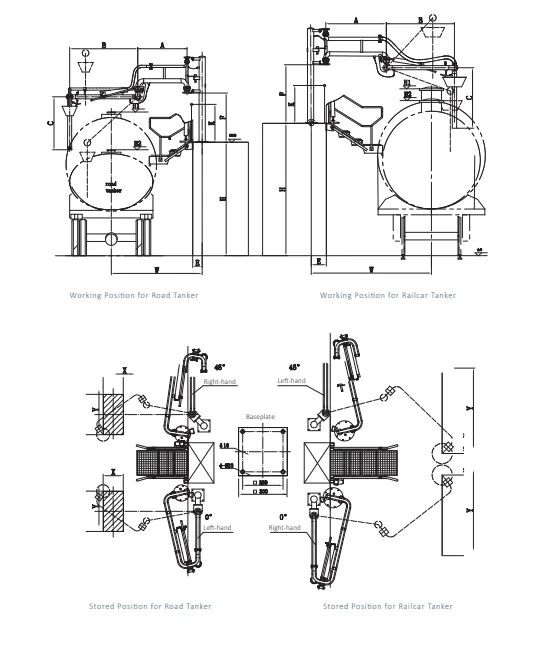

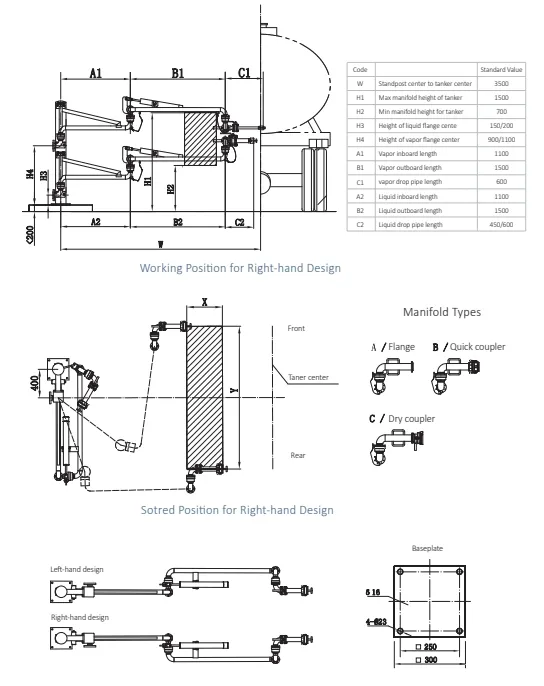

Structural Diagrams & Operating Envelopes:

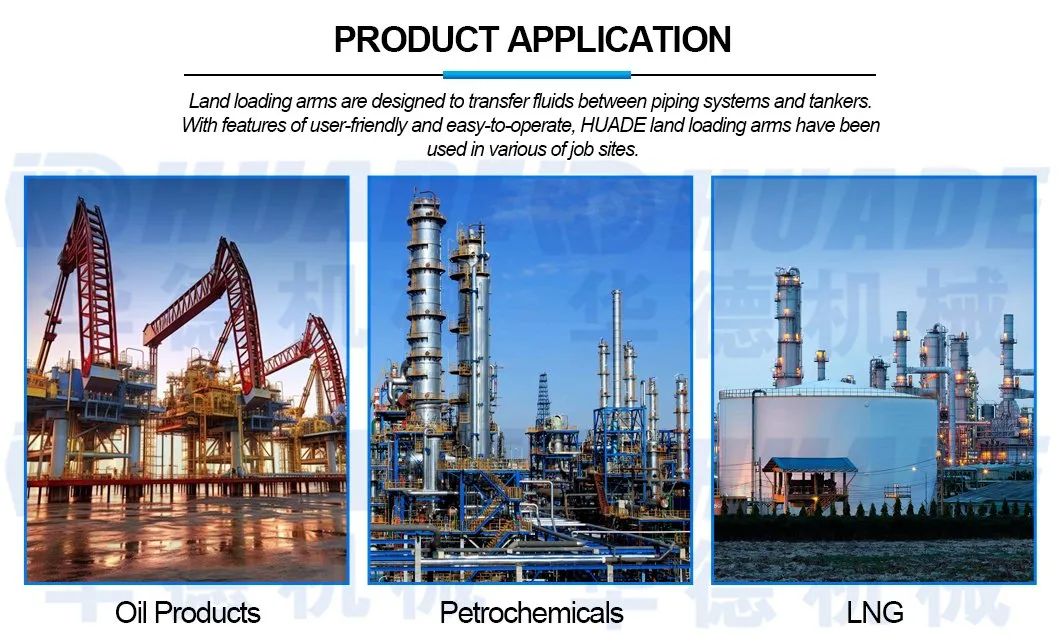

Application Areas

Oil and Gas

Transfer of crude oil, refined petroleum, and LNG at refineries and storage terminals.

Chemical Industry

Handling corrosive, hazardous, or high-viscosity chemicals with compatible seals.

Food & Beverage

Hygienic transfer of milk, edible oils, syrups, and juices complying with standards.

Pharmaceuticals

Ensuring safe and contamination-free transfer of solvents and liquid medications.

Company Overview

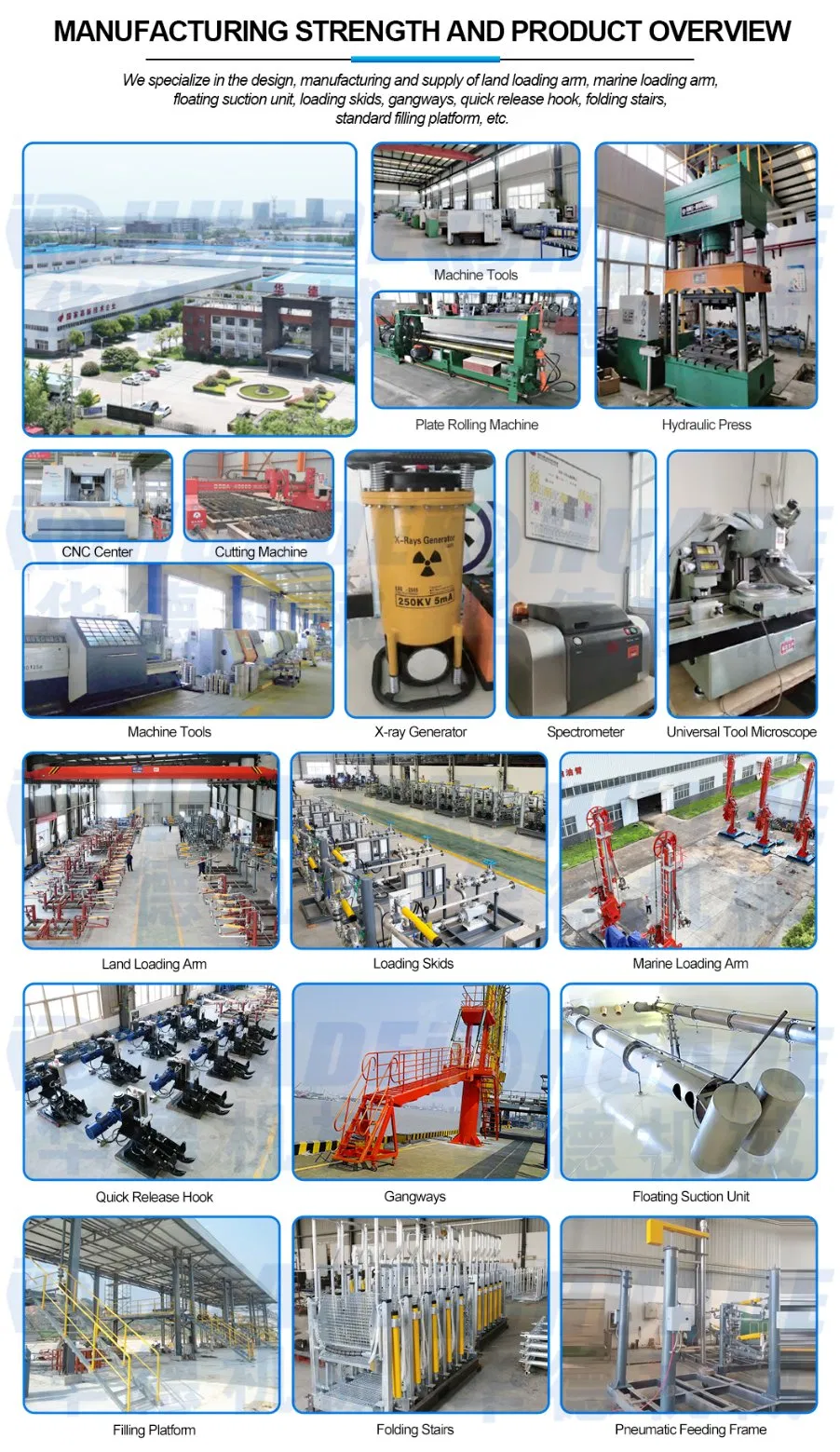

A leading manufacturer for loading arms, jetty, and petrochemical equipment. We specialize in the design, manufacturing, and supply of land loading arms, marine loading arms, floating suction units, loading skids, gangways, and folding stairs.

With a factory area of more than 12 acres and over 120 sets of advanced manufacturing and testing equipment, we hold numerous invention patents and software copyrights. We are authorized as a National High-Tech Enterprise with ISO9001/ISO14001/ISO45001 certifications.
