| Certification | ISO9001, QS, TUV | Type | Single-Arm, Double-Arm |
|---|---|---|---|
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical | Model No. | Am61/63/64 |
| Pipeline Material | CS, Ss, Low-Temp. CS, Lined with PTFE | Accessories | Erc (Ers), QC/DC, Pms, etc. |
| Seal | Viton, PTFE | Operating Mode | Manual / Electro-Hydraulic |
| Design Pressure | -0.06~10MPa | Design Temp. | -196~250℃ |

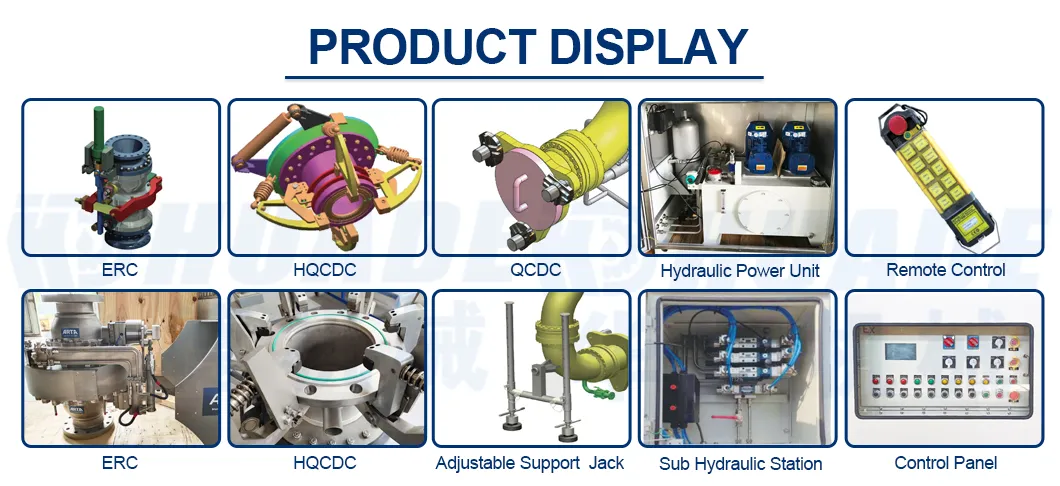

ERC is installed at the vertical part of triple swivel assembly to separate the MLA from the tank ship in critical situations such as fire, typhoons, or accidental ship drift, preventing major damage and environmental pollution.
Enables fast connection without bolts or nuts, saving manpower and time. Suitable for various flange diameters and pressures, equipped with high-quality O-ring seals.
Includes Local Control Panel (LCP), Wired/Wireless Pendent, and Hydraulic Power Pack (HPP). PLC-integrated for easy maintenance and real-time status monitoring.
| Item | Data |
|---|---|
| Nominal Diameter | DN80~DN400(3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250ºC |
| Pipeline Material | Carbon Steel, Stainless Steel, Low-Temperature Steel, Lined with PTFE, etc. |
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical |
| Operating Mode | Manual / Electro-hydraulic |
· AM61M: Manual operation, double counterweight. Ideal for inland river jetties (≤ 8").
· AM63M: Manual operation, rotary counterweight. Enhanced seal maintenance (≤ 10").
· AM63H: Electro-hydraulic operation. Supports ERC and QCDC (≤ 16").
· AM64H: Electro-hydraulic with 16" liquid line and 8" vapor line. Versatile for sea jetties.

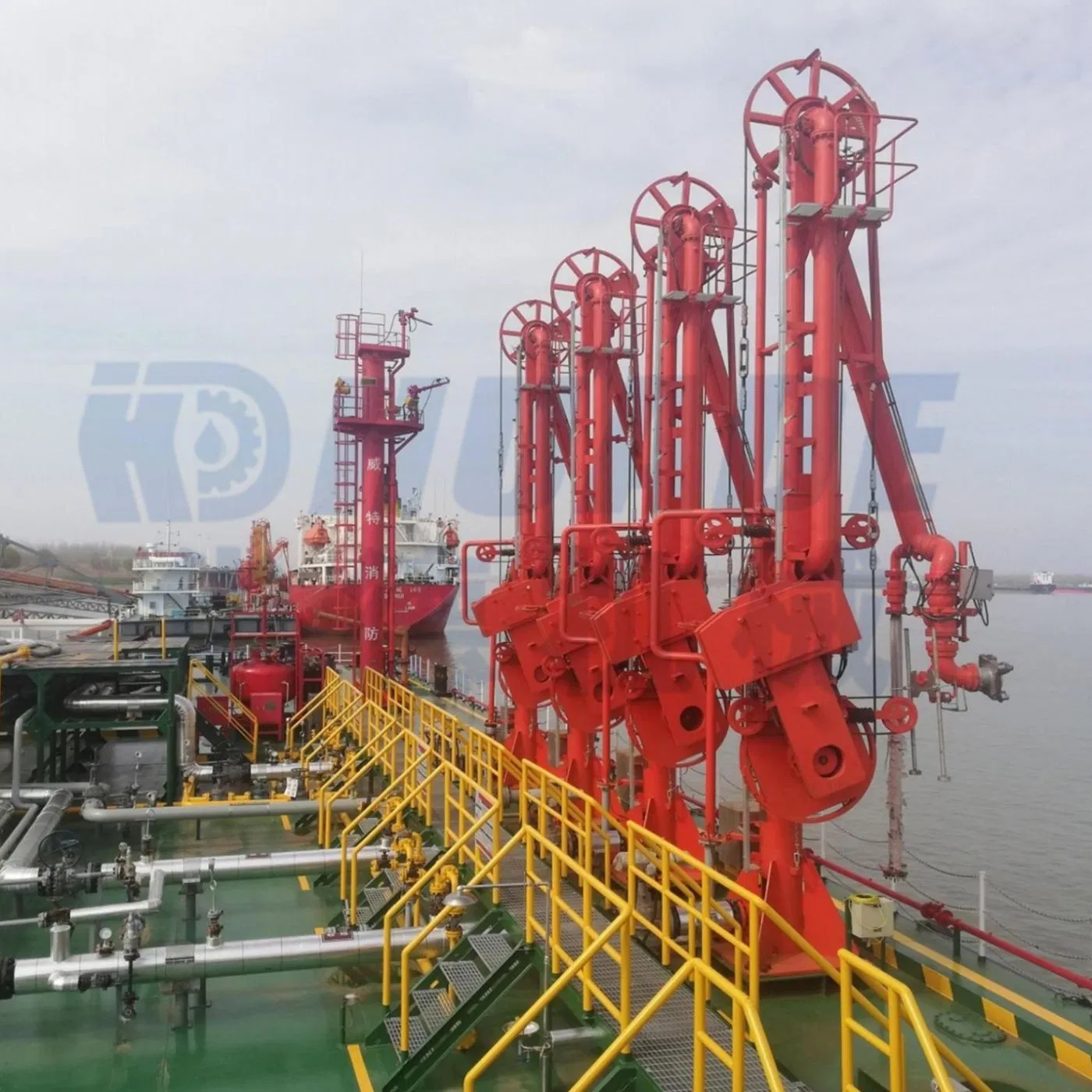

Essential for loading and unloading crude oil, refined products, and chemicals with high security and spill prevention.

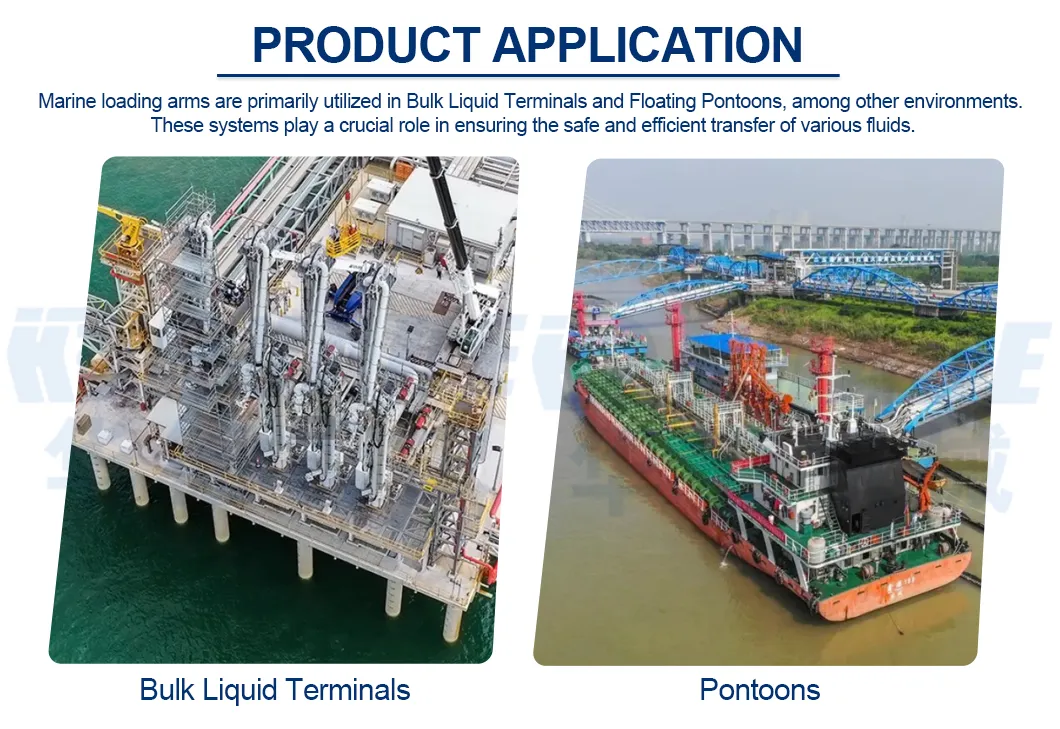

Highly flexible arms designed for floating docks and barges, accommodating vessel movements in harbors and offshore locations.

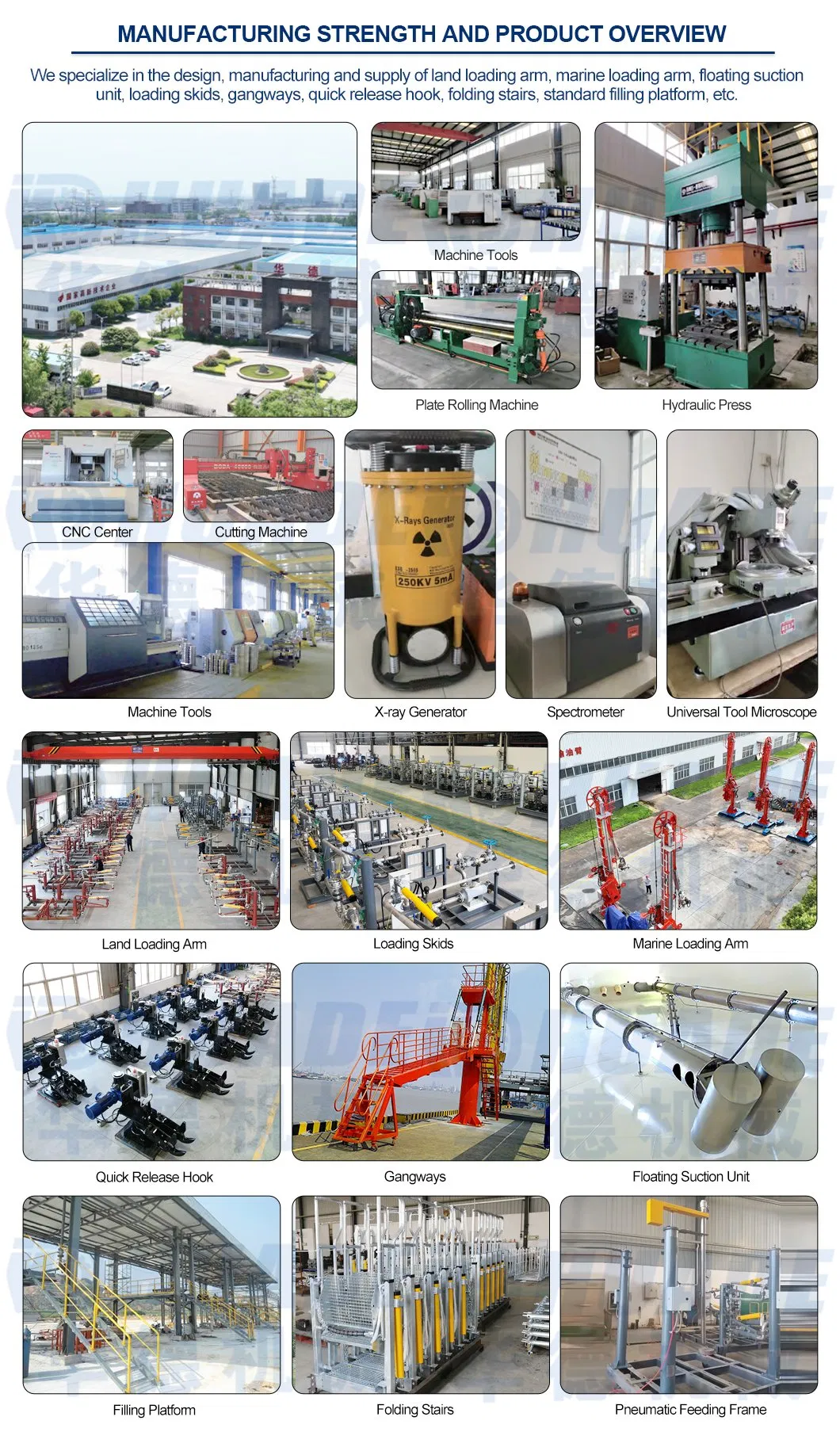

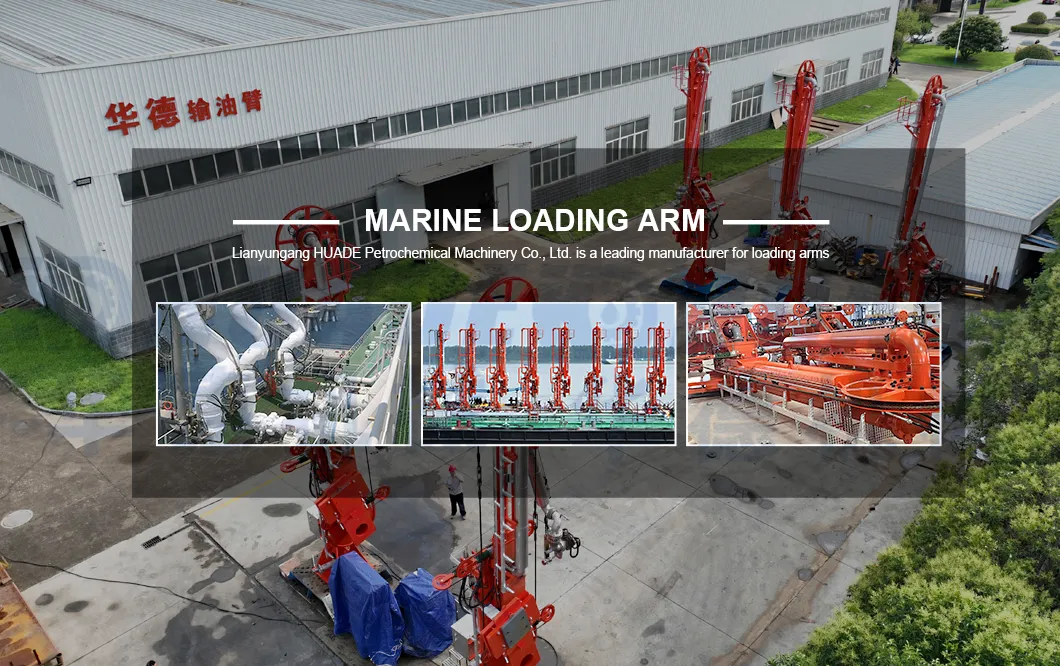

As a leading manufacturer of loading arms and petrochemical equipment, the company specializes in land and marine loading arms, floating suction units, and loading skids. With a factory area of over 12 acres and advanced manufacturing equipment, the facility is authorized as a National High-Tech Enterprise with ISO9001/ISO14001/ISO45001 certifications.
